CNC 3020 Laser Engraver Machine
This CNC engraver machine with an effective working area of 300 (X) X 200 (Y) X 40 (Z) mm (11.8" X 7.8" X 1.6"), is made of bakelite. It features a USB port, GRBL control board, and is able to be controlled easily with computers. It can be used to engrave all types of plastics, soft aluminum, woods, PVCs, etc., which is an excellent affordable self-learning engraving tool!
- Technical Parameter
- Strong Compatibility
- Powerful Performance
- Easy To Install

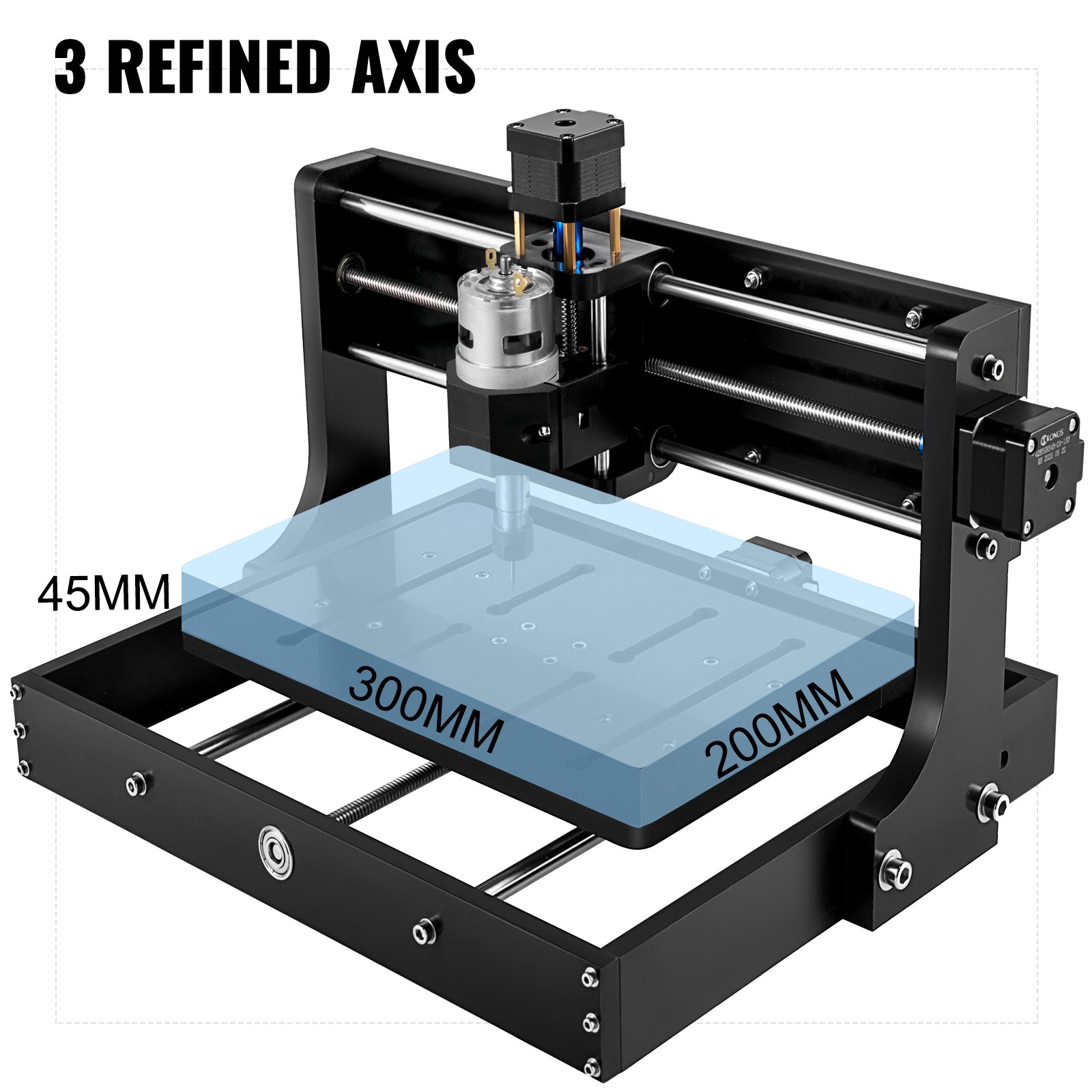

3 Refined Axis
Three axes allow for flat engraving with an effective area of 300 (X) X 200 (Y) X 40 (Z) mm (11.8" X 7.8" X 1.6"), which can accommodate most items.

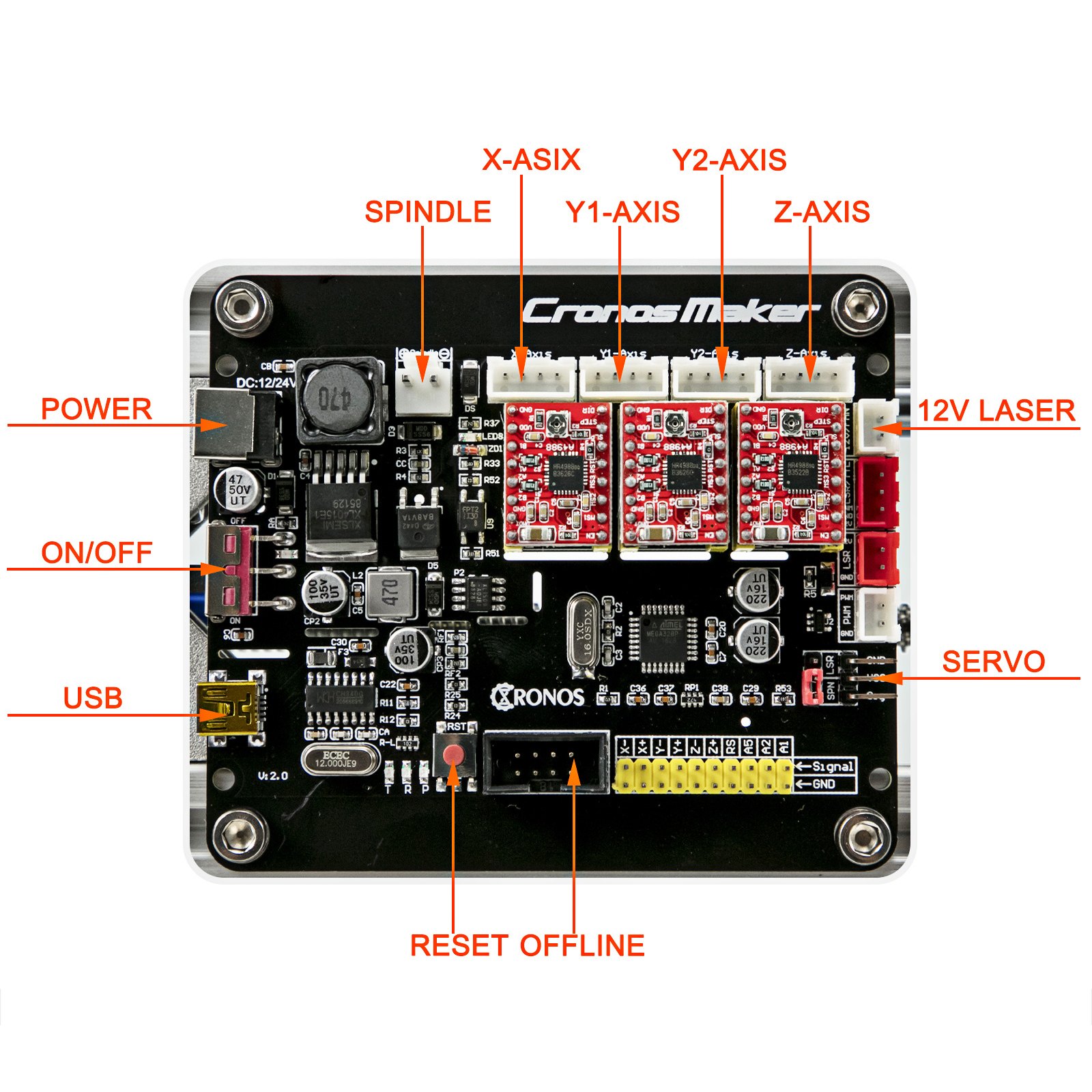

GRBL Control Board
The GRBL control board can directly read the engraving files in the USB. It can output 2P/3P and support PWM and TTL functions, which keeps the CNC engraver run with stable performance. These two kinds of control panels are delivered at random, but does not affect the performance.

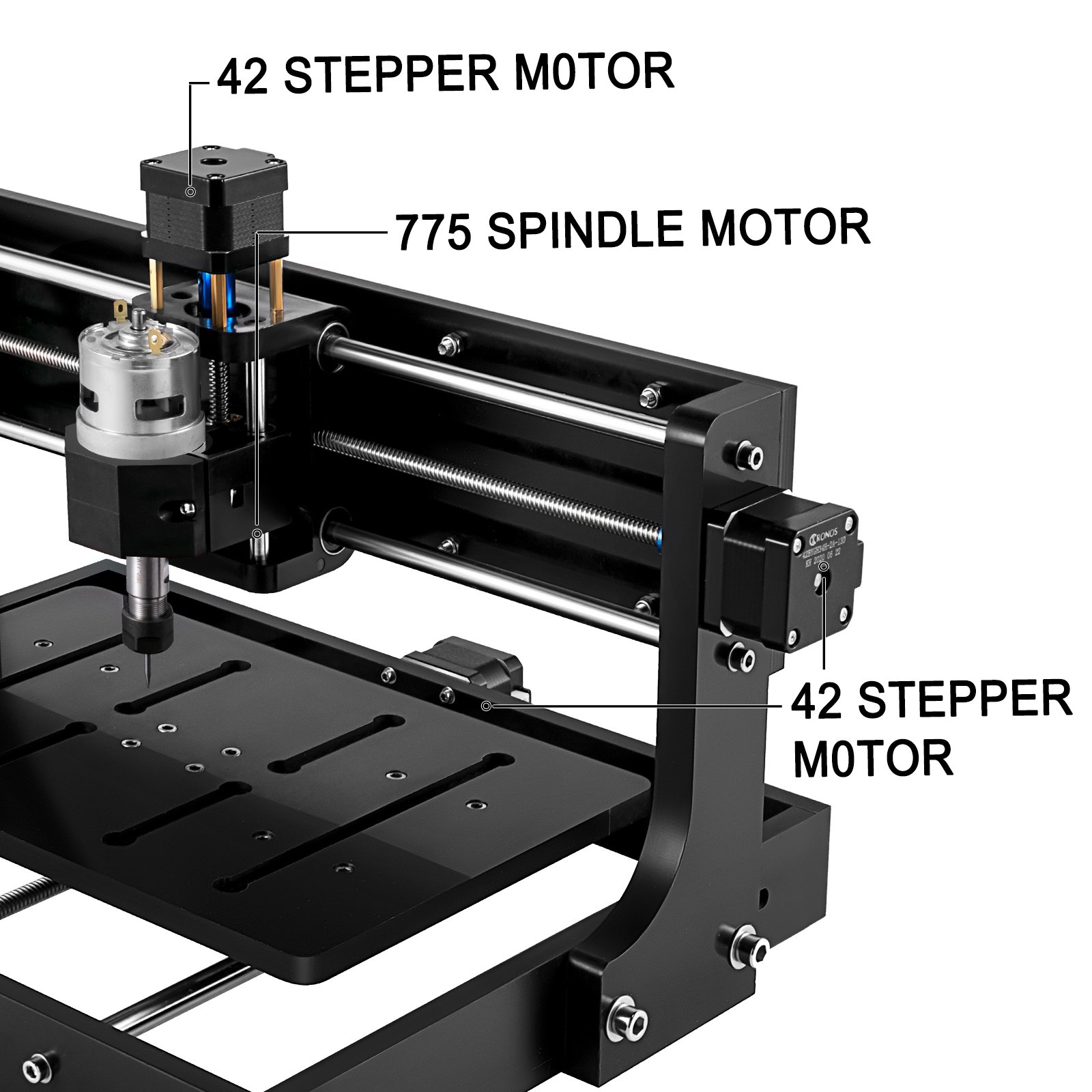

High-efficiency Motors
Each axis contains one 42-stepper motor for smooth motion. The 775 spindle motor on the Z-axis can reach 10,000 r / min speed and provide efficient engraving.

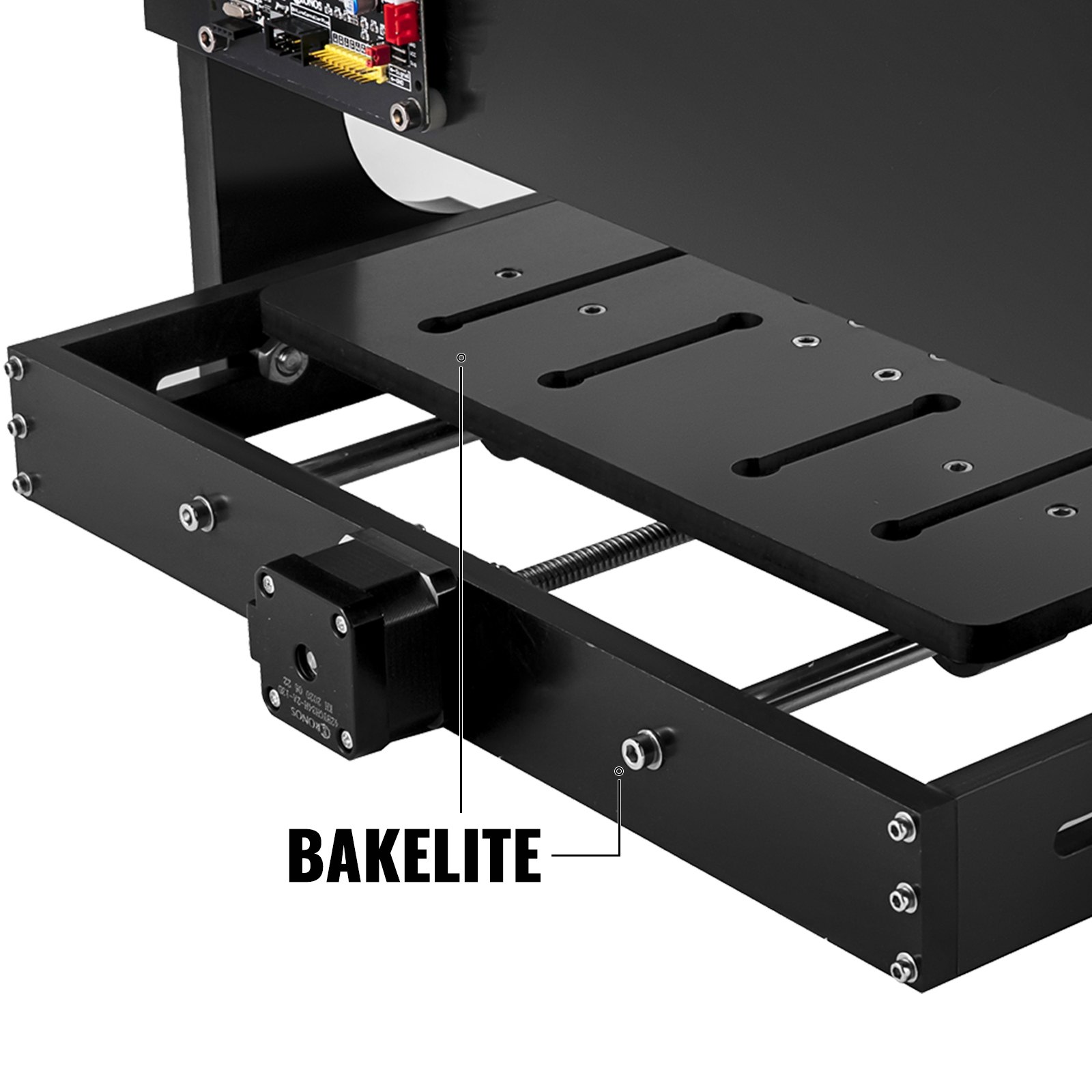

Durable Material
The 3020 CNC kit, made of bakelite, features high precision and durability. Anti-slip bakelite board has good insulation performance, high strength, and hard texture.

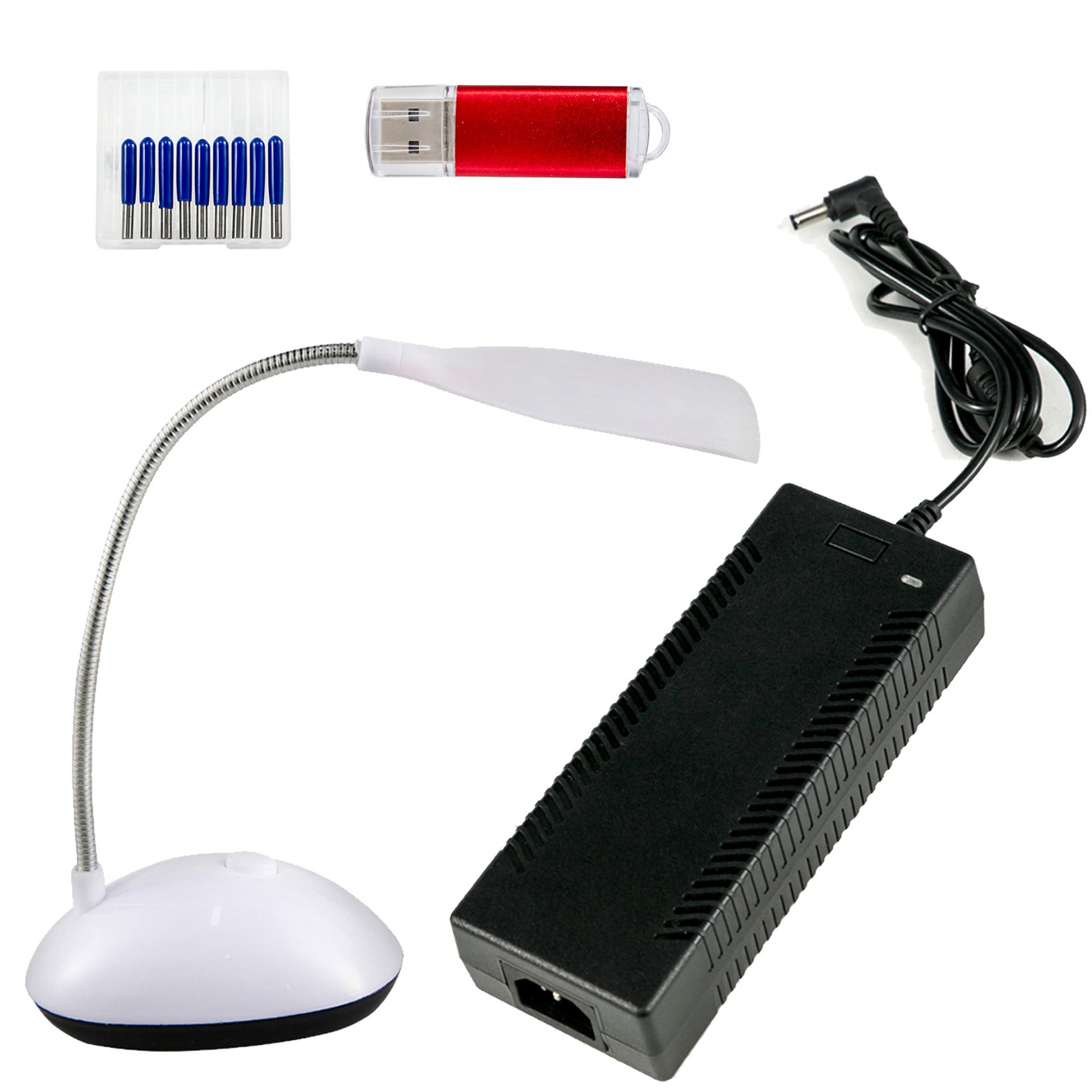

Complete Accessories
All the accessories you need will be provided, such as a USB drive, cutters, table lamp, etc. That will bring a lot of conveniences and improve working efficiency.

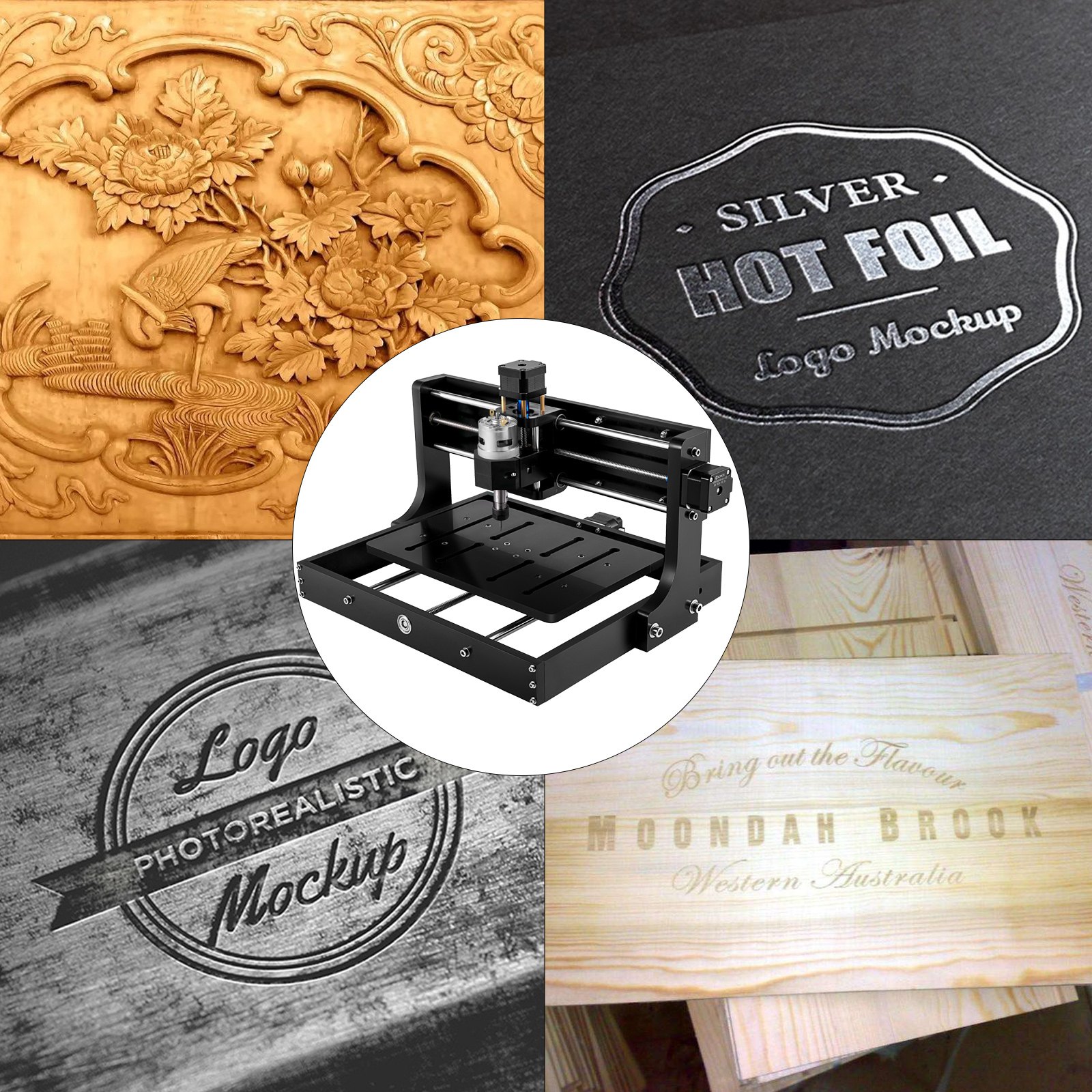

Wide Application
Take advantage of the added stability for milling a wider range of materials such as wood, plastic, acrylic, PCB CCL, soft metal, etc.

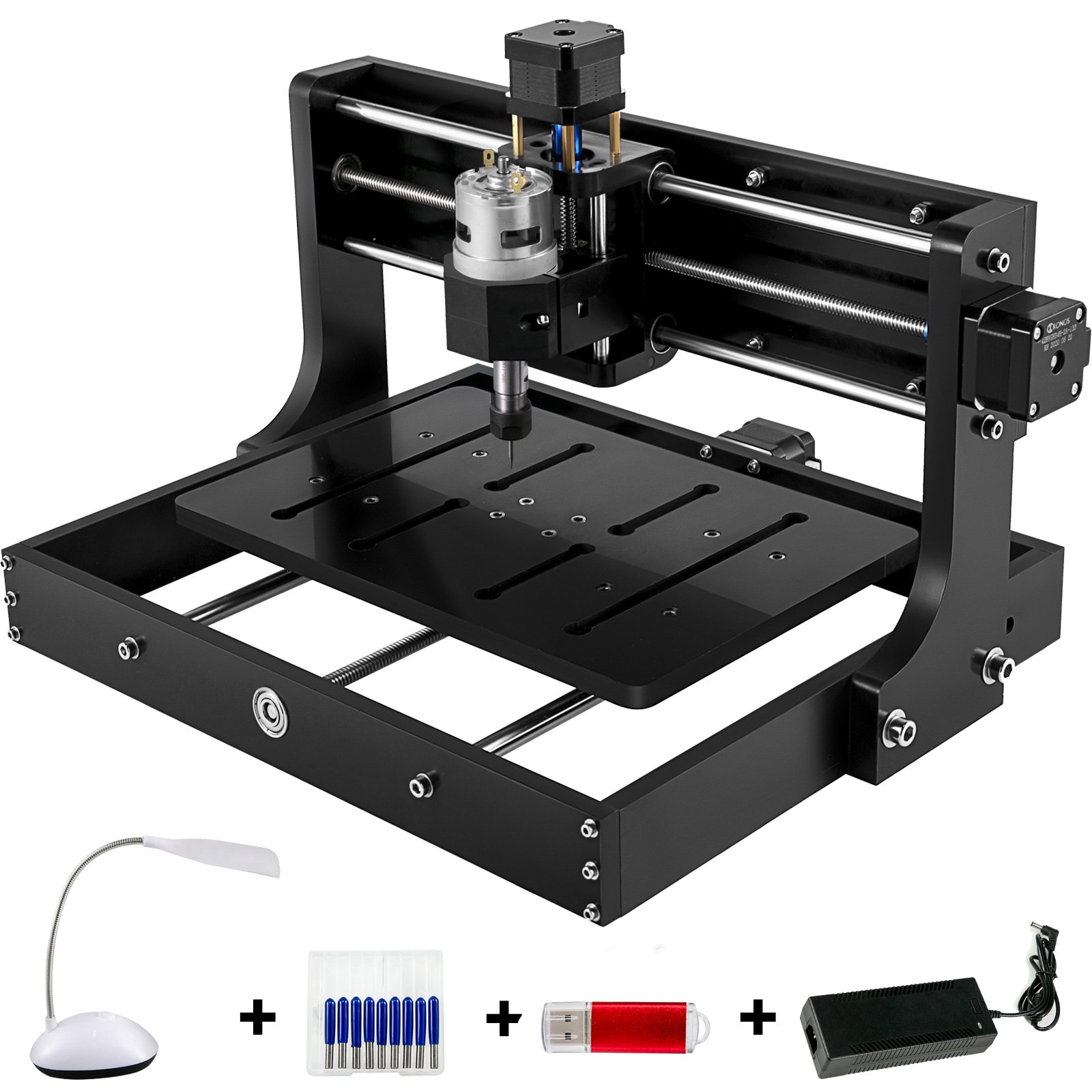

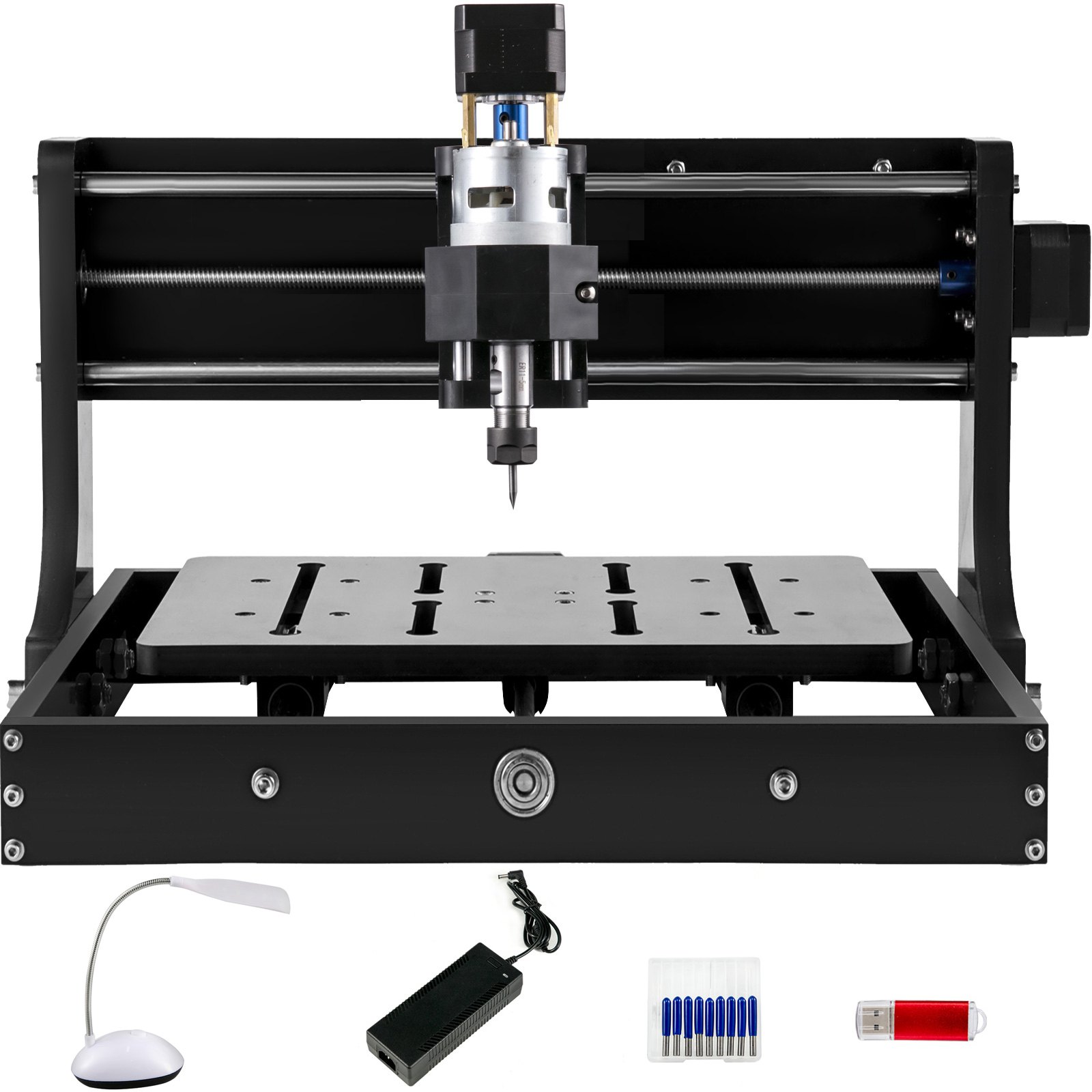

Package Content
- 1 x CNC 3020 Router Kit
- 1 x USB Drive
- 1 x Table Lamp
- 1 x Set of Tools
Specifications
- Power: 24V 5A
- Spindle: 775 spindle motor 24V
- Spindle Speed: 10000 rpm/min
- Effective Carving Area: 300 (X) X 200 (Y) X 40 (Z) mm (11.8" X 7.8" X 1.6")
- Driving Units: T8 Stainless Steel Screws
- Stepping Motor: current: 1.3A, 12V; torque: 0.25 N/m
- Control Software: GRBL control
- Drill Tip: 0.1 mm
- Drill Diameter: 3.175 mm
- Drill Length: 30 mm
- Connection: USB
- Applies to: IOS, Win XP, Win7, Win8, Win10

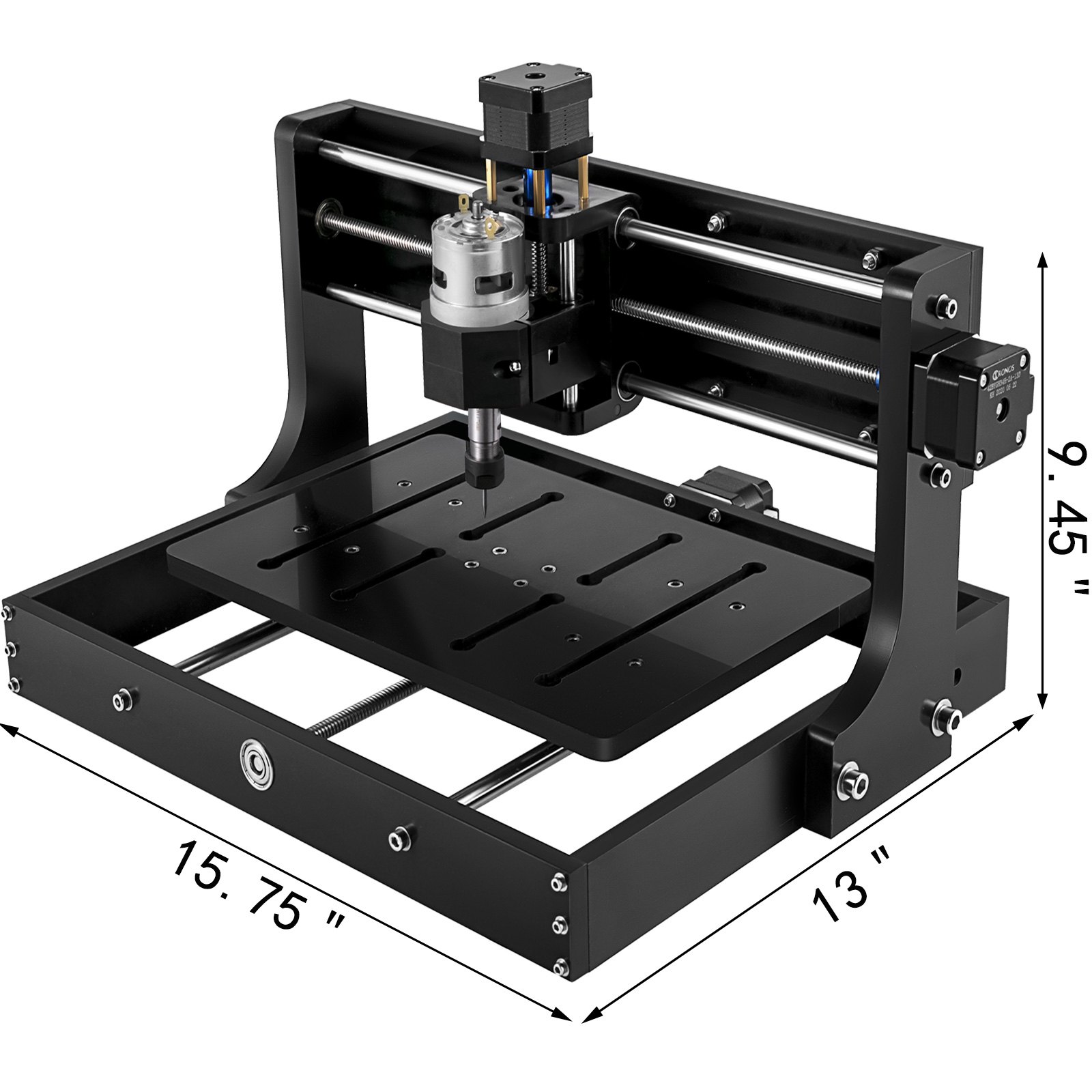

- Product size: 400 x 330 x 240 mm/15.74" x 13" x 9.45"
