Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB
DKJ3Z3018DKJ5500MV3

Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB

See All Customer Reviews
12 Reviews 13 answered questions
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • CNC 3018 Router Machine: The 5500mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
  • Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

Vevor CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB
Description Specification Questions and Answers Reviews

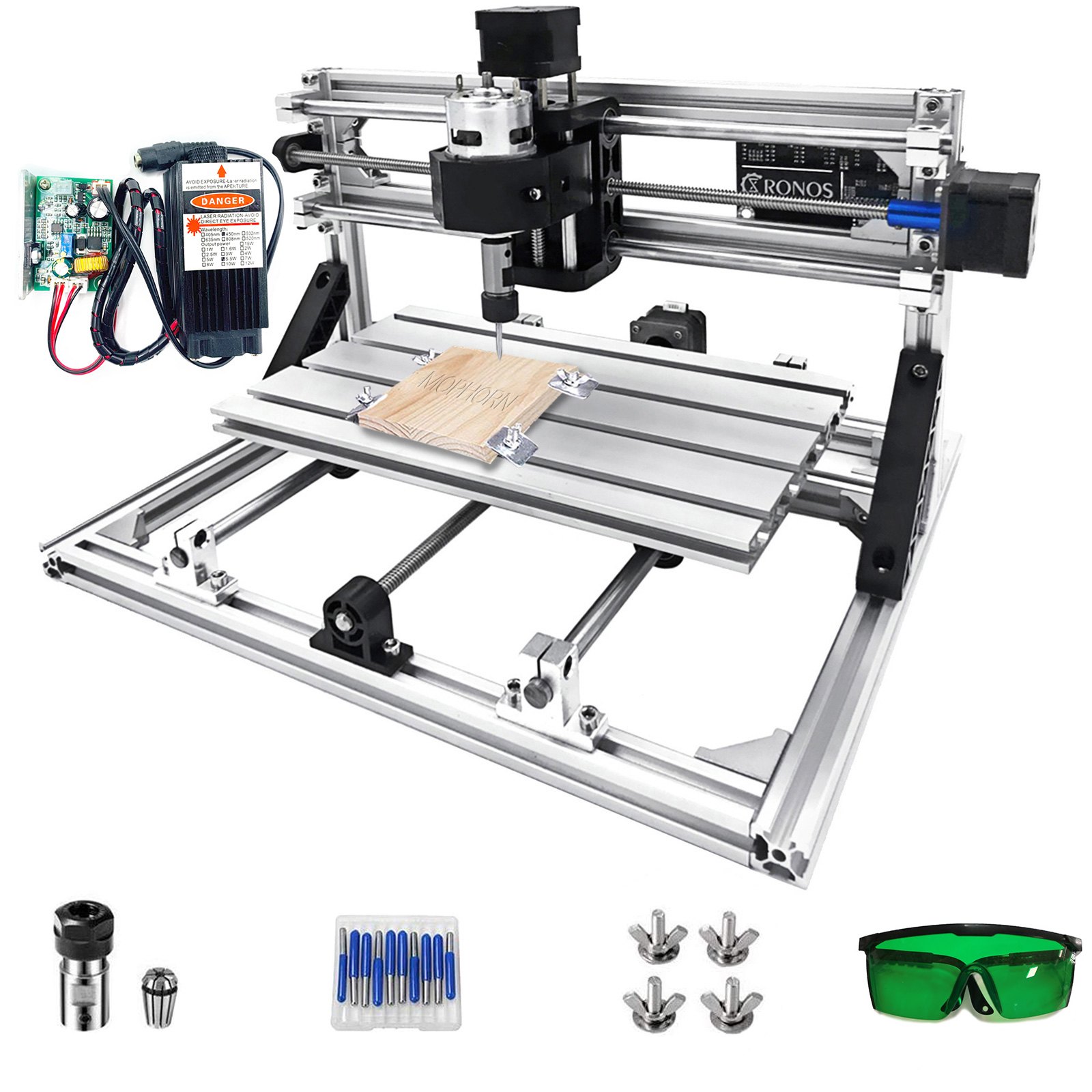

CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
Our CNC 3018 adopts premium aluminum material, ideal for engraving plastics, woods, acrylics, PVCs, PCBs, and other soft materials. It is equipped with a GRBL control board and high-speed motor to achieve X/Y/Z axis CNC control and laser engraving control to be an excellent affordable self-learning engraving tool.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

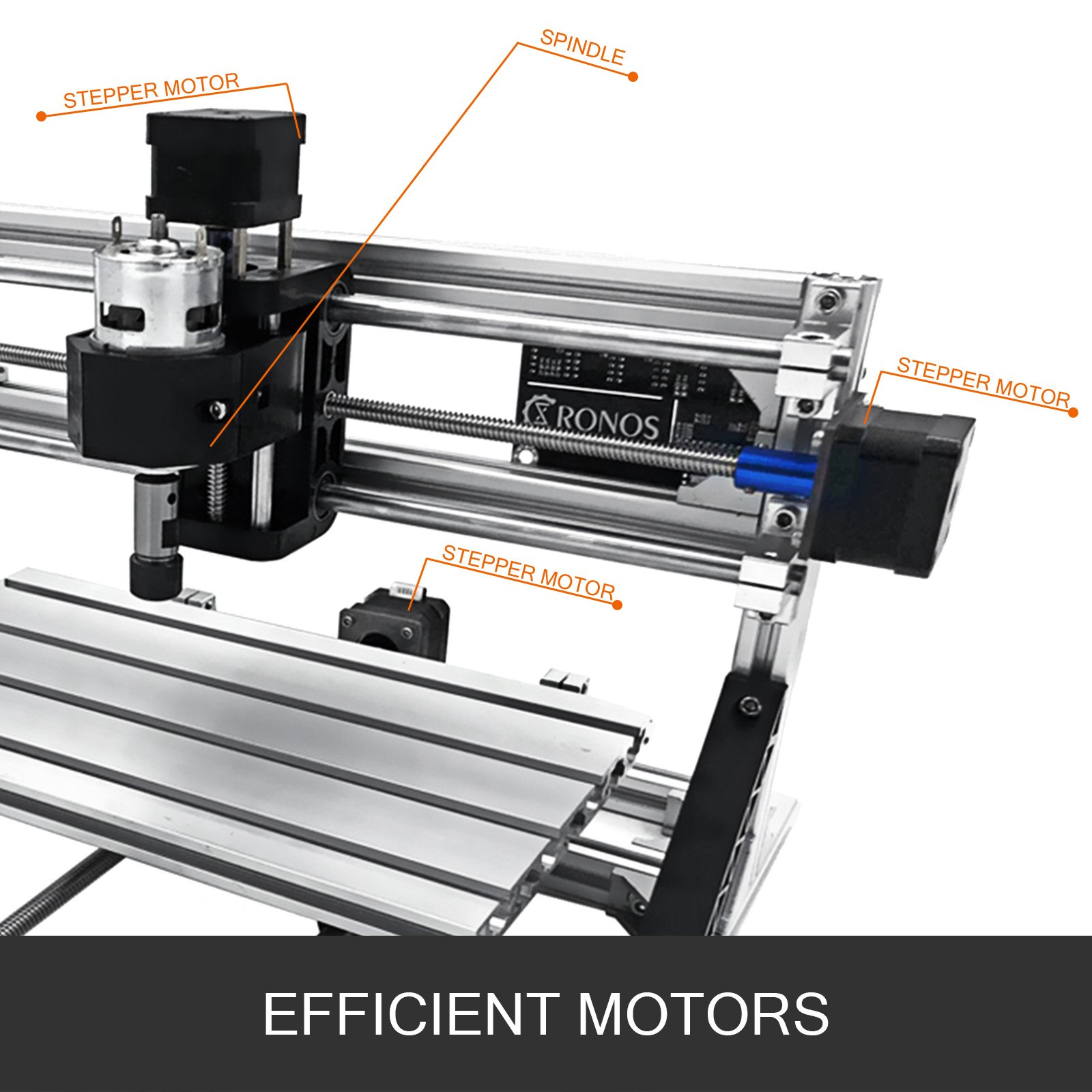

5500mW Laser Module & Spindle Motor
The 5500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.

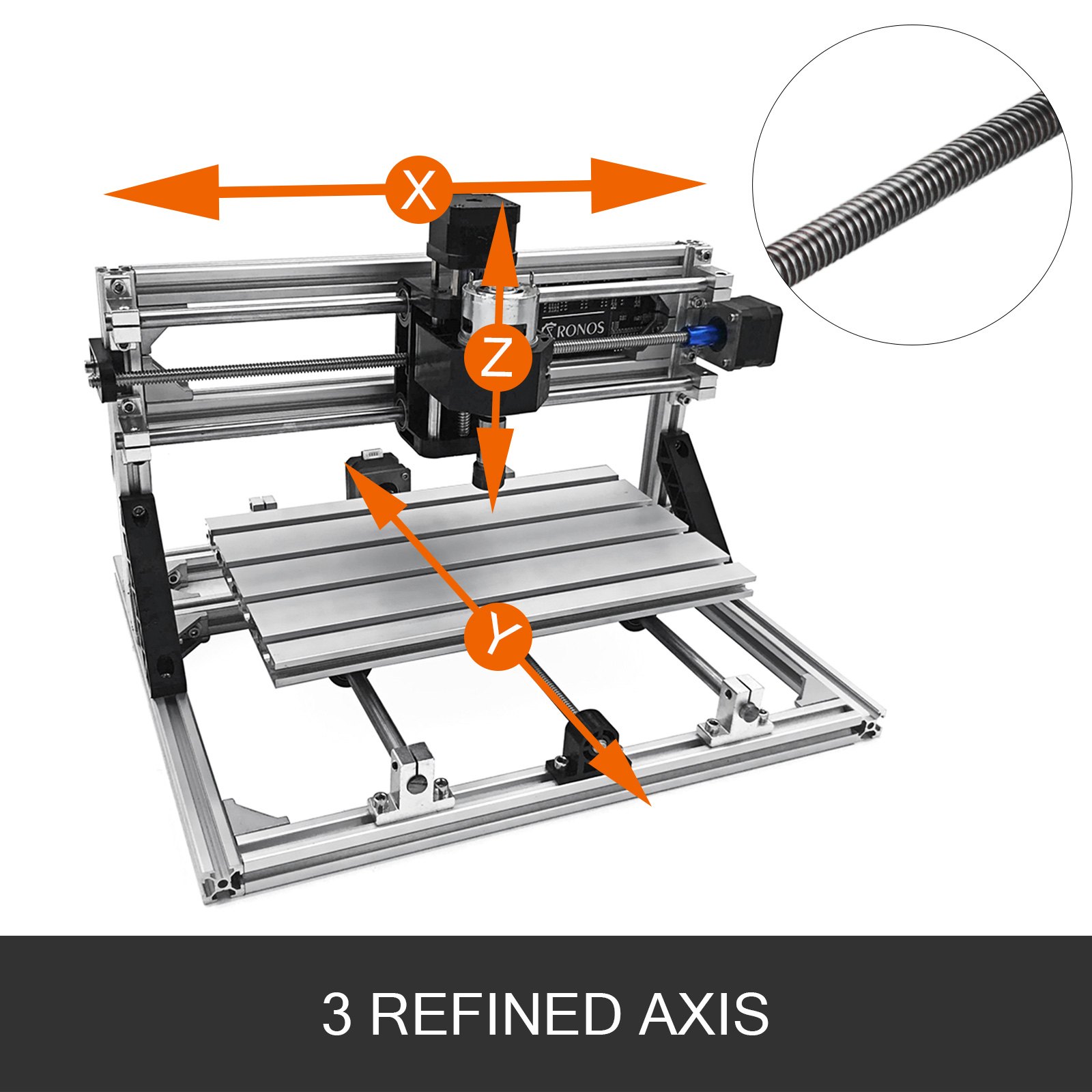

Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.

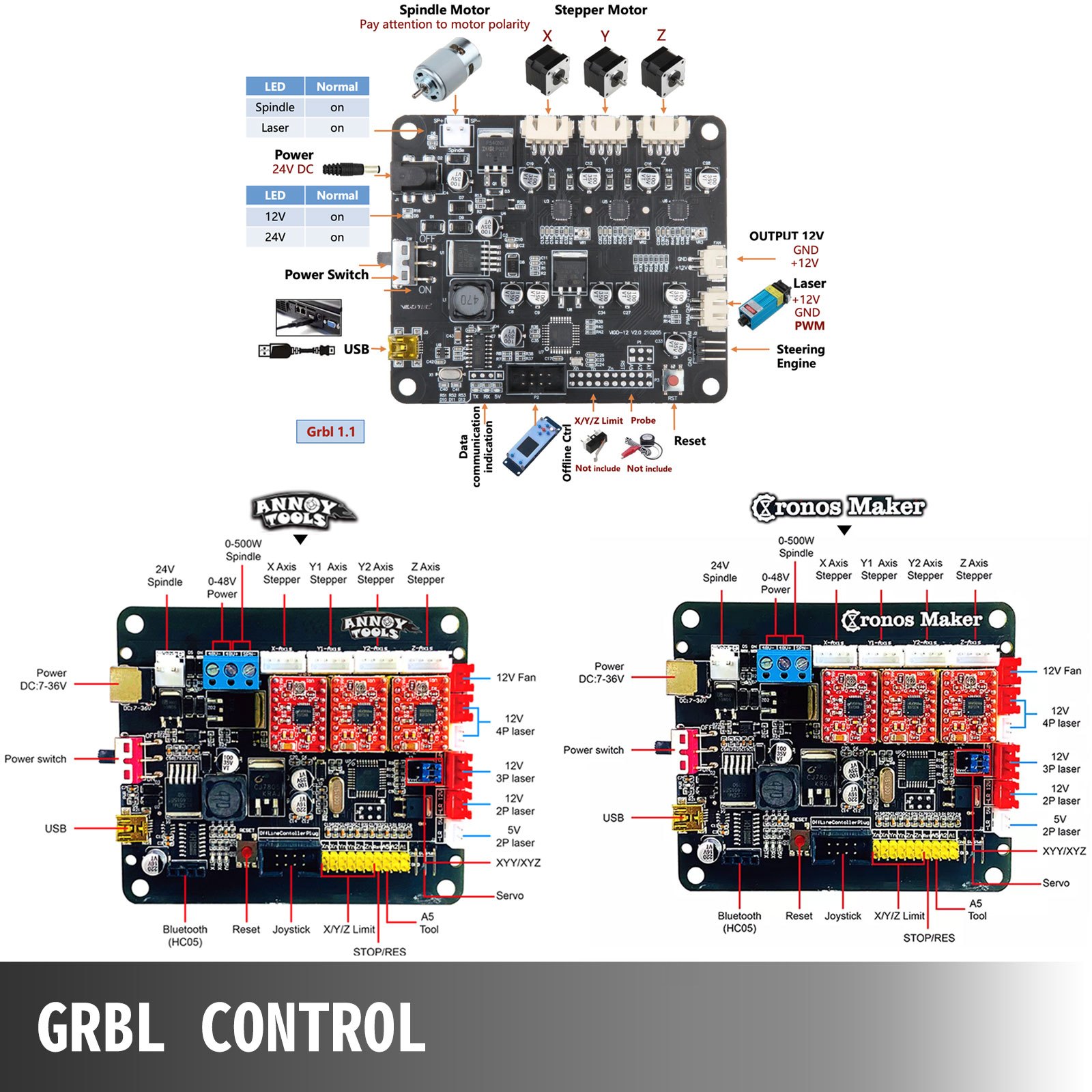

Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.

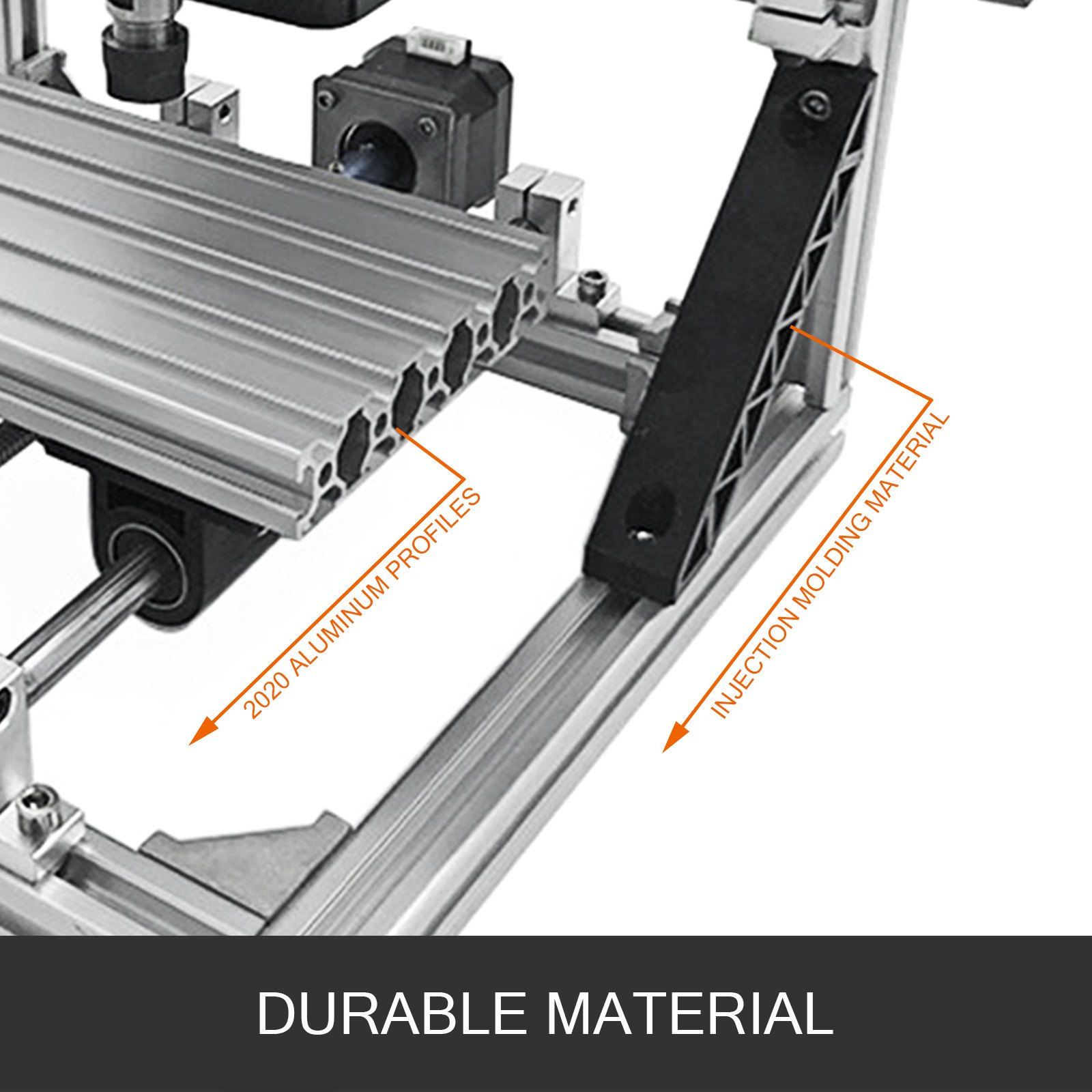

Extraordinary Quality
Constructed with aluminum alloy materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.

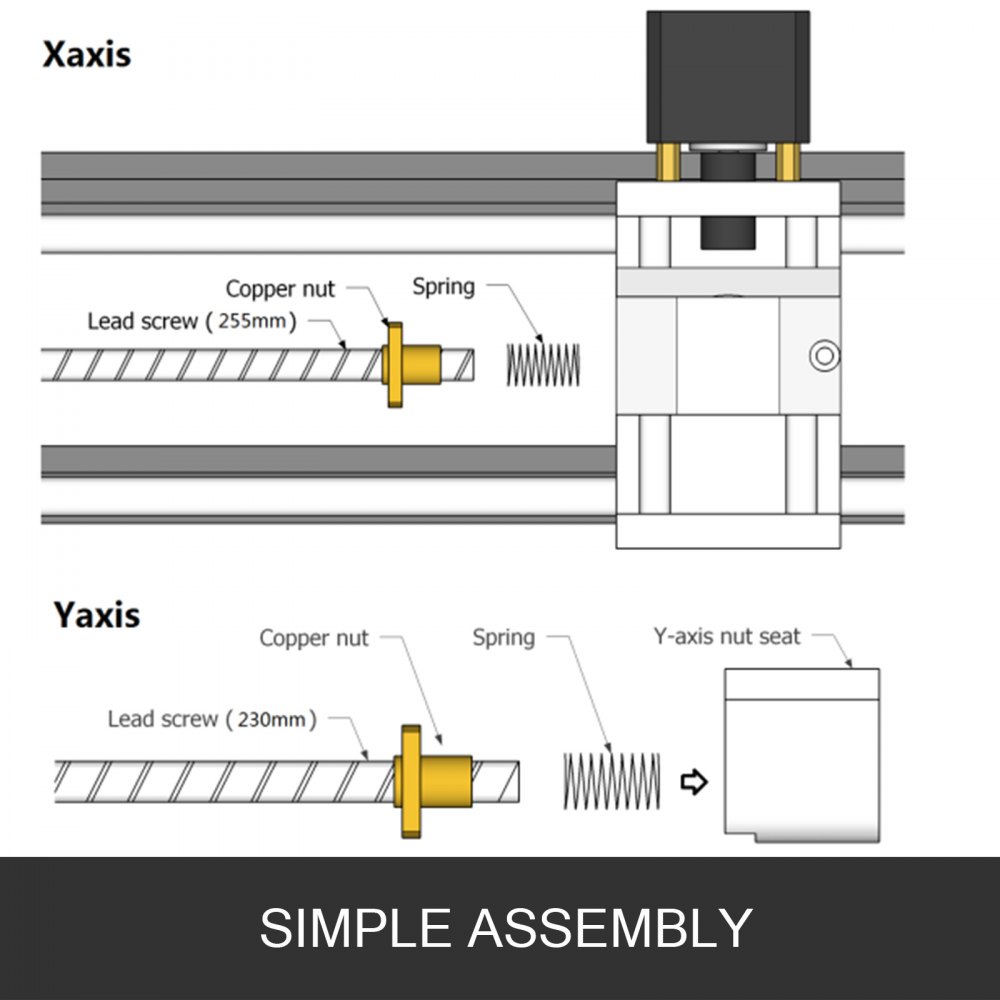

Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.

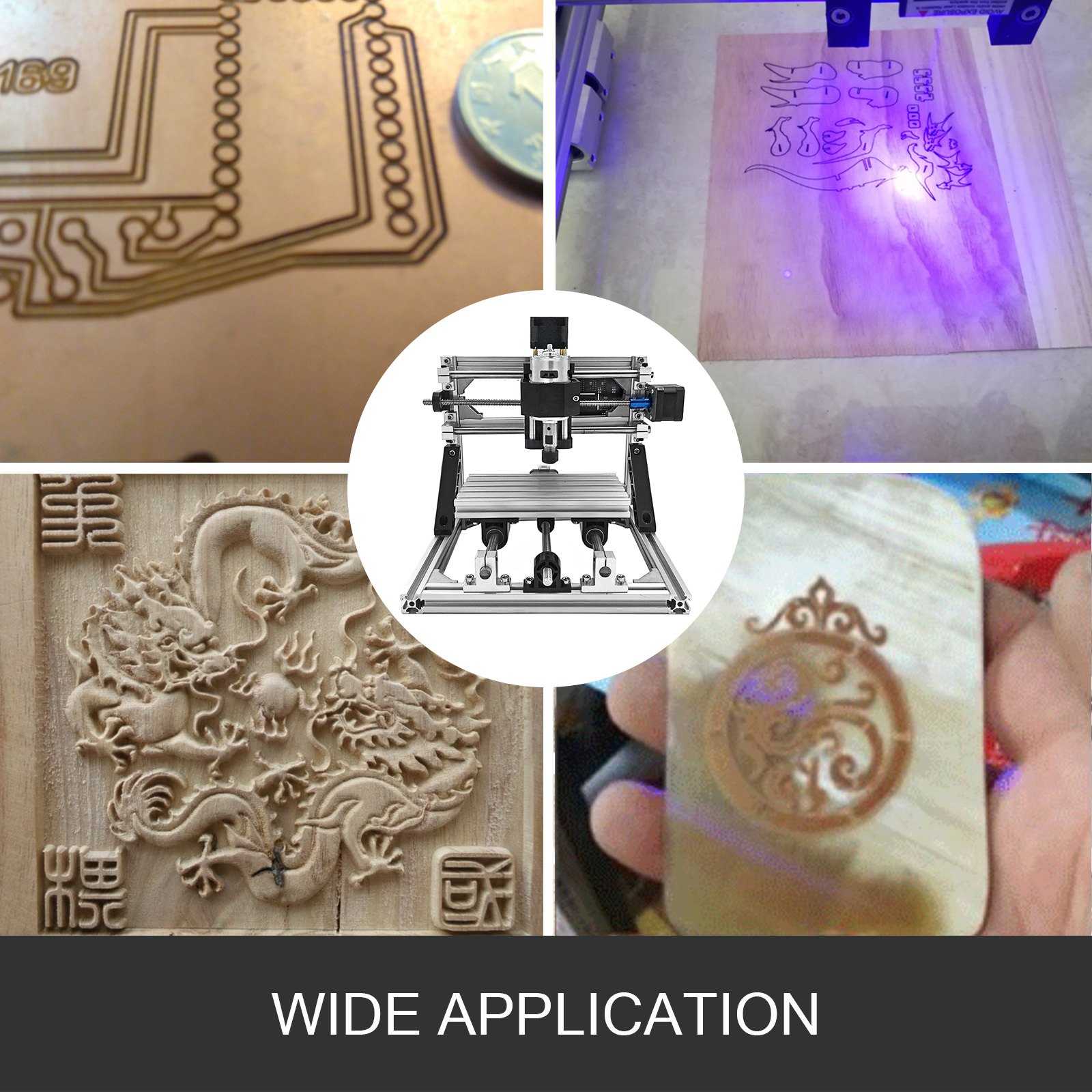

Wide Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications
  • Model: VG-S3018
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
  • Material: 2020 Aluminum
  • Input Power: DC 24V 5A
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003 inch/ 0.07 mm

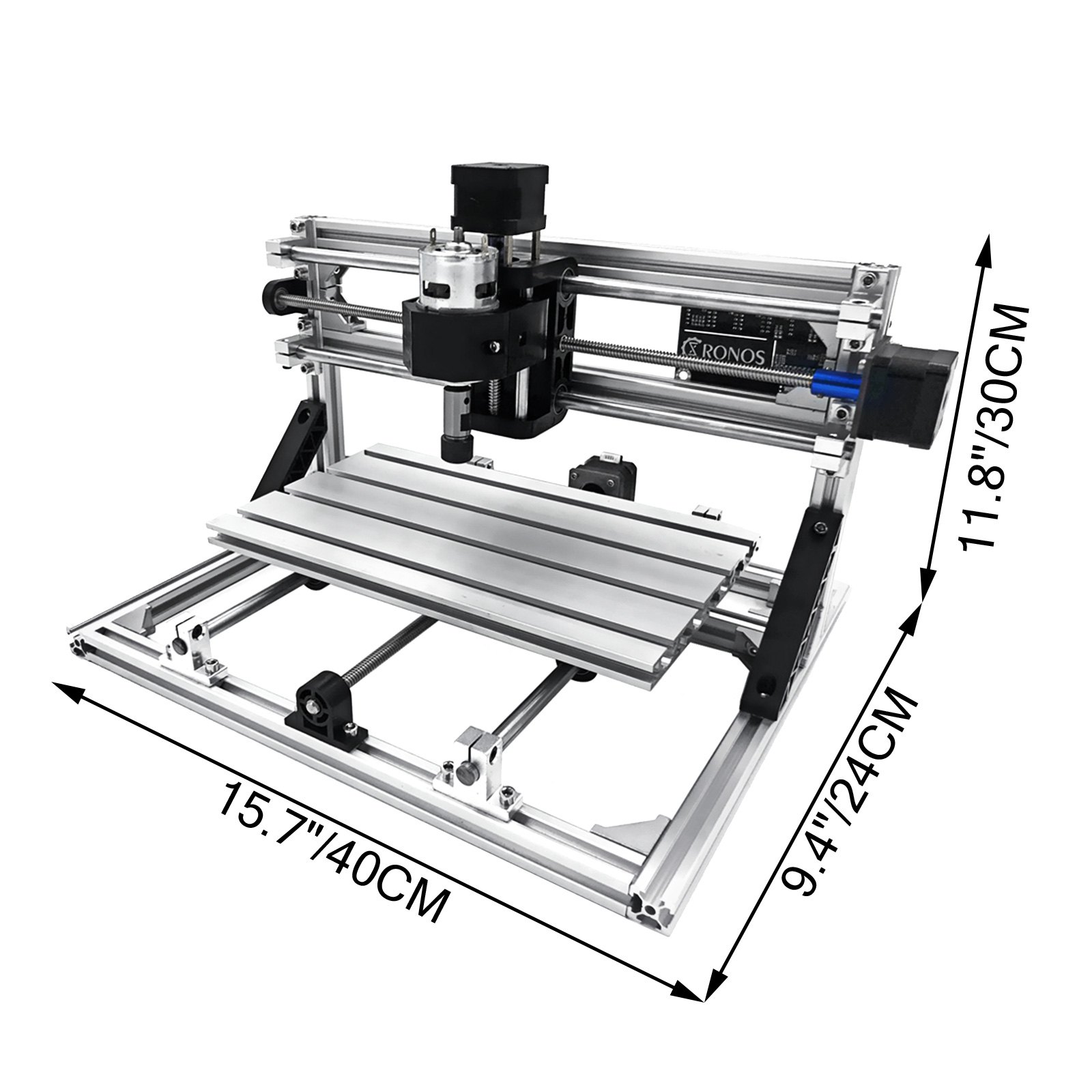

  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

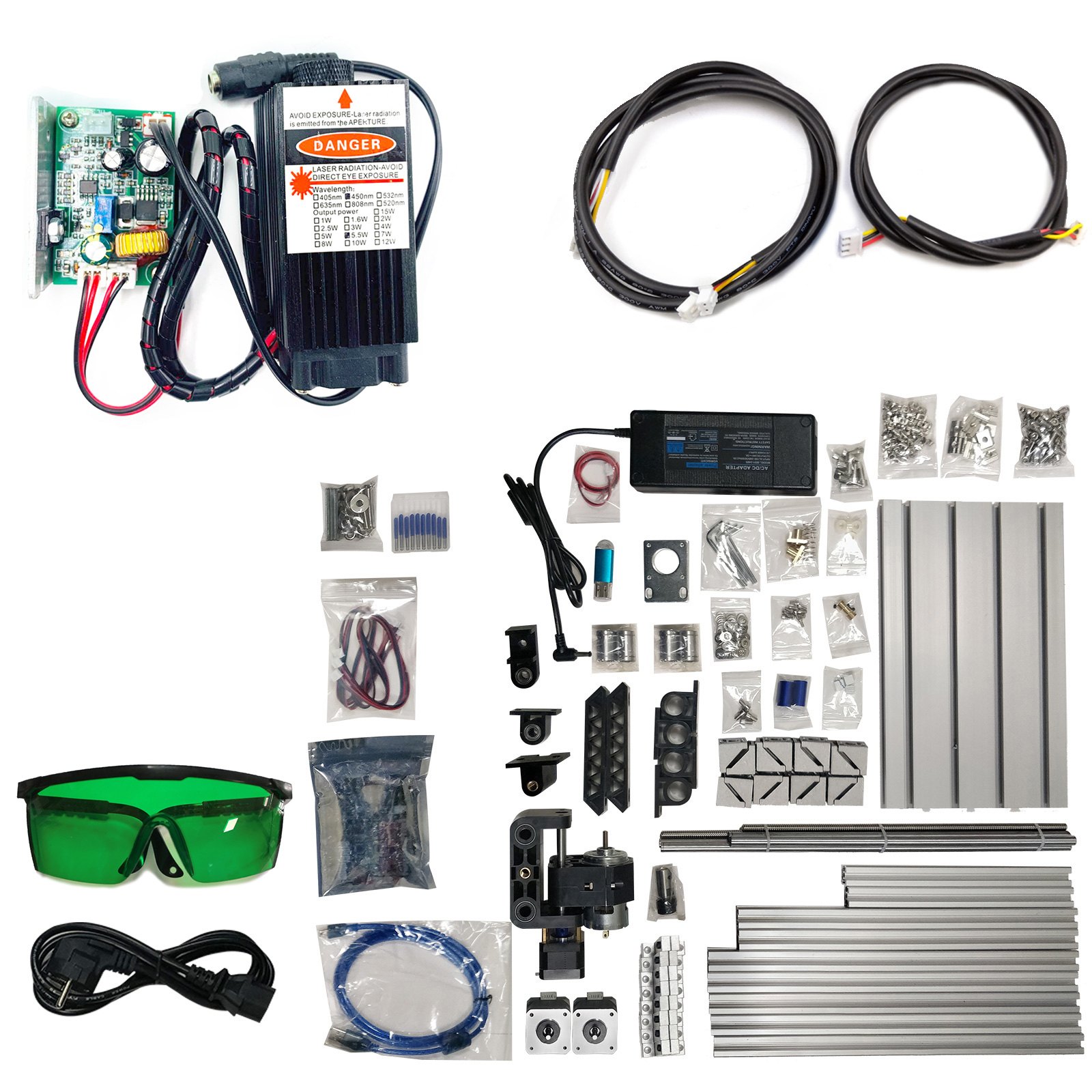

Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Power Supply
  • 1 x USB Cable
  • 1 x Set of Milling Cutter
  • 1 x Graver
  • 1 x Set of Tools
  • 1 x Brush
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
Our CNC 3018 adopts premium aluminum material, ideal for engraving plastics, woods, acrylics, PVCs, PCBs, and other soft materials. It is equipped with a GRBL control board and high-speed motor to achieve X/Y/Z axis CNC control and laser engraving control to be an excellent affordable self-learning engraving tool.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
5500mW Laser Module & Spindle Motor
The 5500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Wide Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Power Supply
  • 1 x USB Cable
  • 1 x Set of Milling Cutter
  • 1 x Graver
  • 1 x Set of Tools
  • 1 x Brush
Specifications
  • Model: VG-S3018
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
  • Material: 2020 Aluminum
  • Input Power: DC 24V 5A
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003 inch/ 0.07 mm
  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

Specification

Model
VG-S3018
Effective Working Area(X x Y x Z)
11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
Material
2020 Aluminum
Input Power
DC 24V 5A
Driving Units
T8 Stainless Steel Screws
Spindle Speed
10000 rpm
Stepping Motor
Size 42, 12V; Torque
Control Software
GRBL Control
Cutter Diameter
0.125" / 3.175 mm
Positioning Accuracy
0.003 inch/ 0.07 mm
Item Dimension
17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm
Questions and Answers
13 Questions
or Ask a Question
What is the maximum wood thickness that can be cut with the laser?
Answer This Question
It can cut light wood boards of about 3 mm at one time, and the cross-section will have black edges after laser cutting.
By vevor
Helpful ( 5 )
Does cutting wood with a laser cause the edges to burn and turn black?
Answer This Question
Yes, it will be black after laser engraving. Laser belongs to the high-temperature carbonization principle.
By vevor
Helpful ( 5 )
Hi I'm 76 yrs old would like to learn to Lazer engrave and to carve soft material, would this machine be O.K. to learn on ? Rgds John T (Feral)
Answer This Question
Carving software is provided with the goods. LaserGRBL is used for laser software and Candle is used for tool carving. The common image of laser engraving can be directly carved when it is opened. The Candle software of tool engraving supports the. nc file format of executing G code. You can download ArtCAM software online, convert the image or CAD into G code file, and then use the provided Candle software to realize relief or cutting. The video of machine operation and assembly can be provided for watching and learning.
By vevor
Helpful ( 2 )
What depth can this cut ply and acrylic shet please for shapes. Also can it engrave aluminium cards and acrylic. Thankyou
Answer This Question
Aluminum cannot be engraved, but plywood and acrylic can be cut in layers. The maximum Z-axis travel is 4.5 cm.
By vevor
Helpful ( 0 )
Can the 3018 CNC machine have a more power lazer installed, if so are you able to provide one, and what is the size of bits the Router Collet will except
Answer This Question
You can search a more power lazer on our website. The ones we carry can clamp 3.175mm tool handles. You can also take out the spring collet in the middle and replace it yourself. Match the tool handle diameter you need to achieve tool clamping of different diameters. The nut model is ER11, please see the picture, https://we.tl/t-XVhxKylvuN, the link is valid in 3 days.
By vevor
Helpful ( 0 )

Customer Reviews

4.5 Out of 5
Based on 12 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
12 Review(s)
Clear filters
Arthur Arthur
Mr
I'm not really a mechanical person but I managed to assemble the machine in a reasonable time. It works well and has some new good features to that of my old 6 year CNC (broken) machine. I like the positioning knobs. They save a lot of time. Bigger work area.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Licinio Licinio
M
Shipping was a little slower than advertised, but through no fault of the sender. After sending them a message, they promptly got onto it. Good communication and problem solving. Item arrived as advertised. Will definitely use again.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Mo Mo
MR
Excellent quality for the price There was a problem with one of the parts And they prost it very quickly Very happy with the service
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Anthony Robertson Anthony Robertson
Mr
Good product for the price and seems well built. Like anything new there is a pretty steep learning curve but once you have the basics locked in you can do some pretty cool things with it. I highly recommend adding air assist for laser cutting.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Jason Jason
Good quality
Good quality product fast shipping . Extensive amount of work to assemble. Happy with purchase . Quality products through this company
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Stephen Stephen
Hobbyist
I bought this cnc because it had a good price. Assembly took some time even with the manual and several videos found online. Machine works very well, used Easel to create projects then Candle for further carving. Recommend this machine for anyone interested in starting out with cnc projects - excellent value for money. Assembled machine is firm and maintains its rigidity even after many months of carving. Worked far better than I originally envisaged, now hooked on it. Now researching a larger laser machine for more learning as well as projects.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Nigel Nigel
Mr
Good gear fast postage would buy again
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Dylan Dylan
Incorrect parts
Didn't get far in the assembly process. Bolts for corner brackets the washers are .2mm too small so had to get my own otherwise easy setup
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Gerry Gerry
S3018 engraver
Received as promised. Being a first time used I had my son give me some help re assembly then how to use, My only problem was I did not realise how easy to use it really was with an offline controller and Inventables Easel. I contacted VEVOR via online re purchasing a controller, they promised to follow up and get back to me ASAP. To date no response only negative on the whole deal. I have since ordered a controller from China. I use the machine to make items for childcare such as engraving wood pieces with animals' aboriginal icons and symbols which are eagerly received and used in the education process. Only lesson make sure if buying get one with offline controller, so easy to use.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Austonyp Austonyp
Mr
A challenge to build, thanks to YouTube I got it done. Now working on coming to terms with the software to drive it. All new to me but having a ball.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
