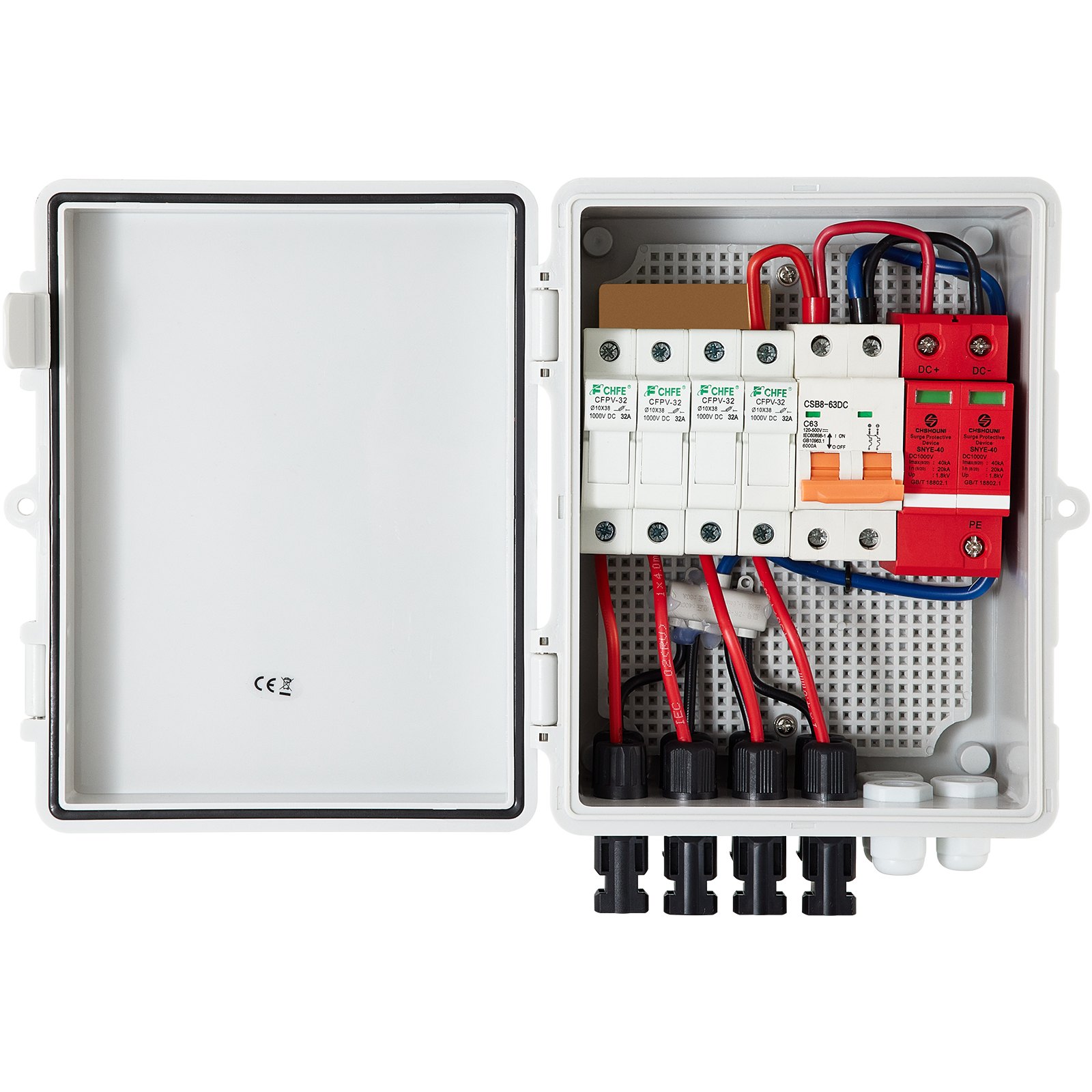

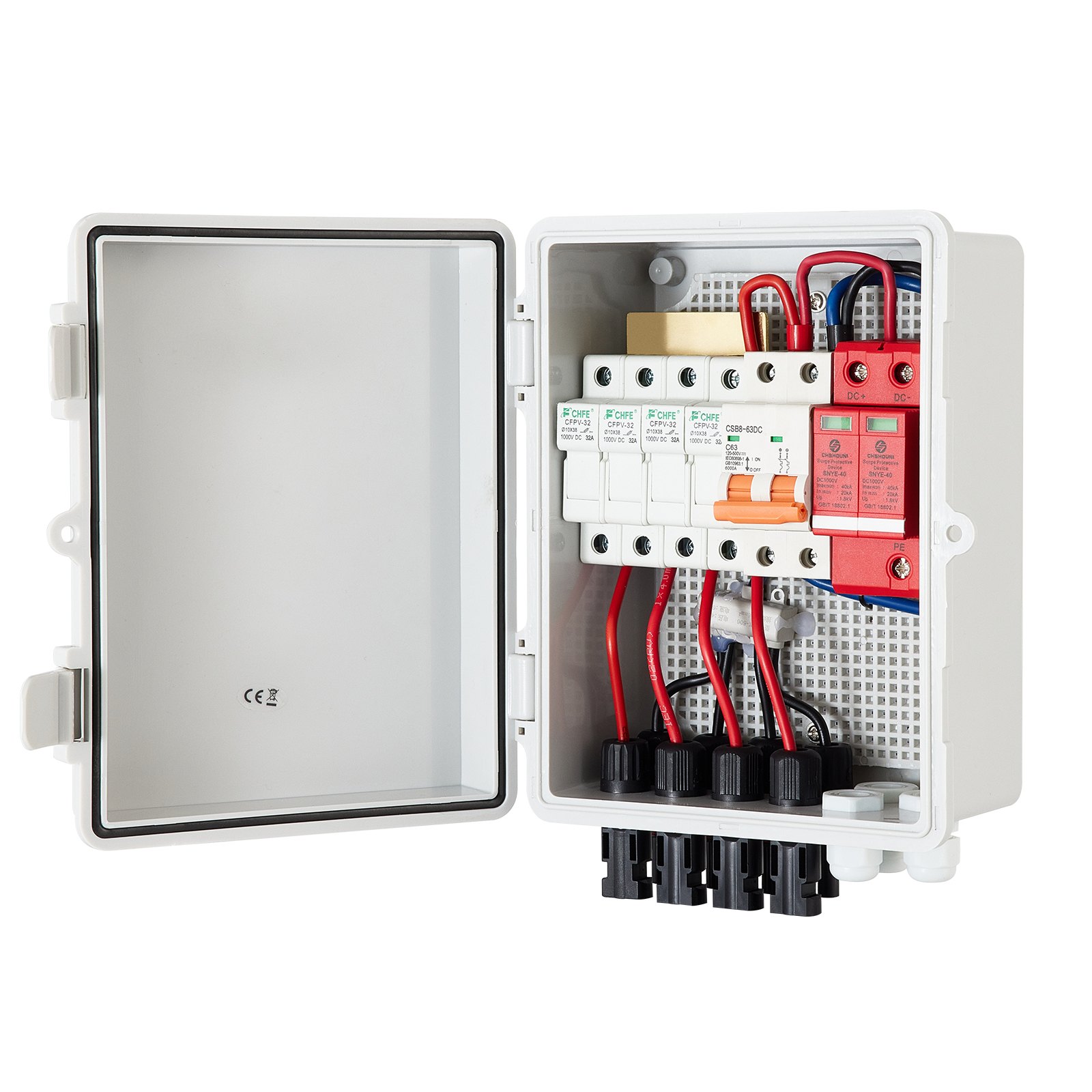

VEVOR pv combiner box with open lid, showing internal wiring and components.

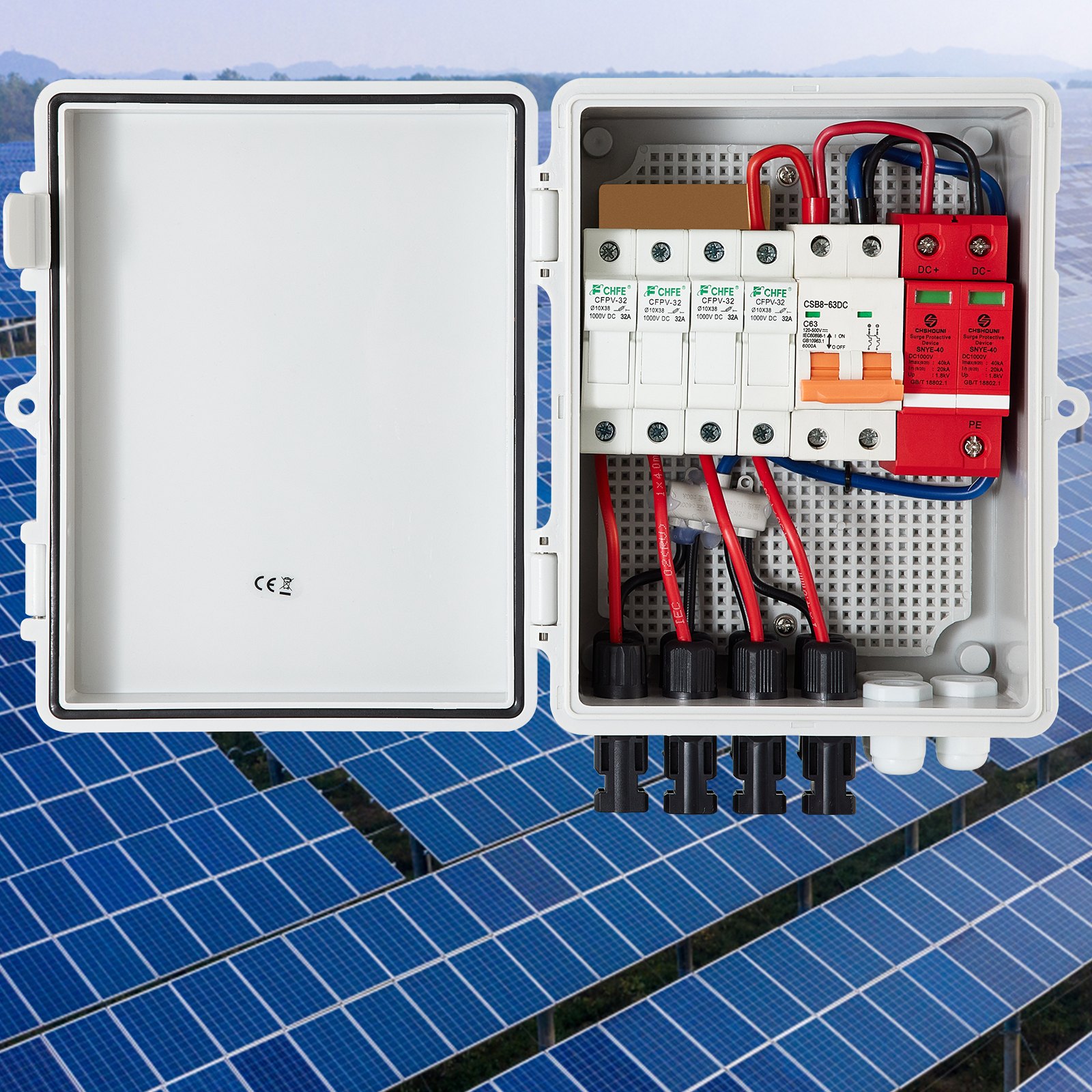

VEVOR pv combiner box open on rooftop against blue sky, various applications shown.

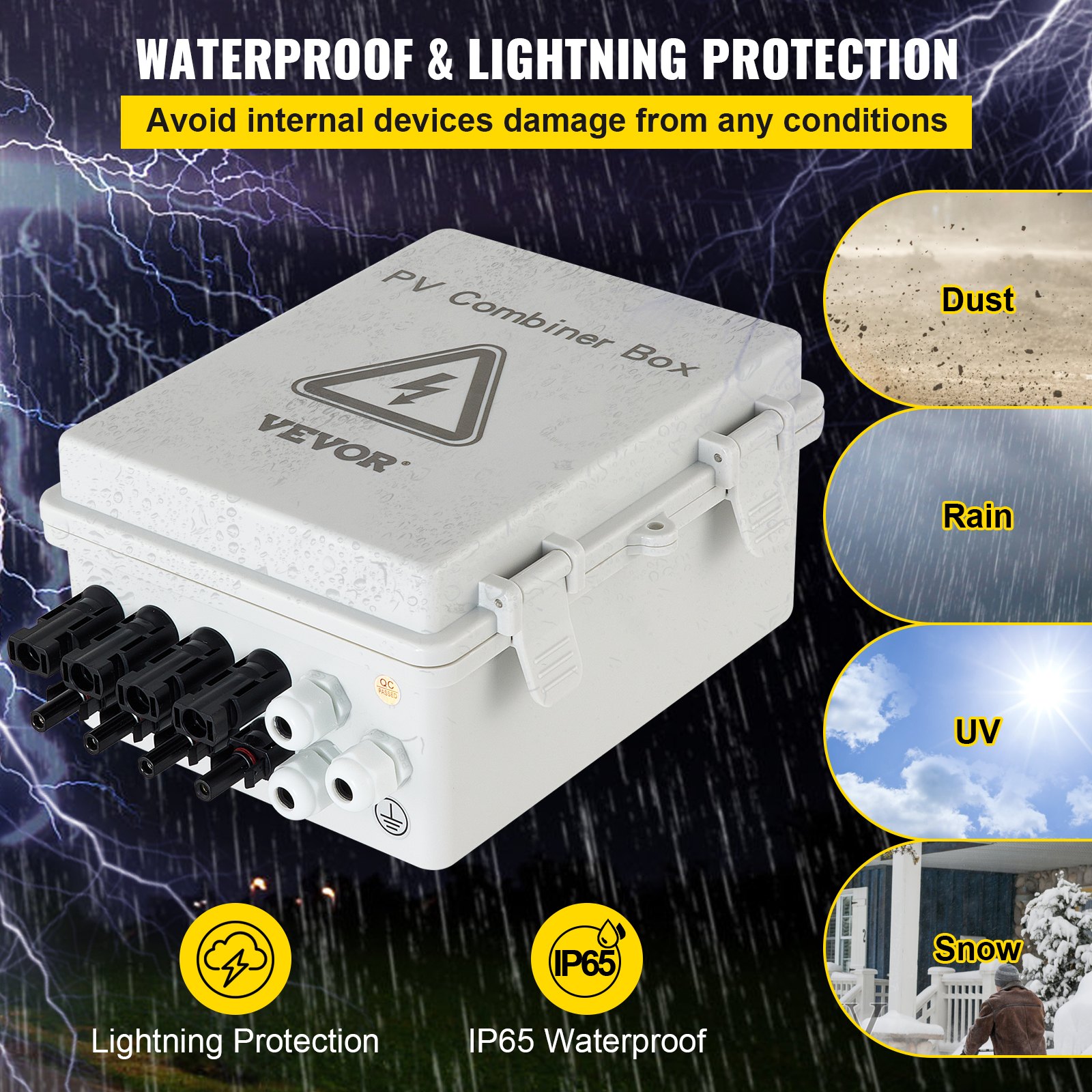

VEVOR pv combiner box with lightning protection and ip65 waterproof for dust, rain, uv, snow.

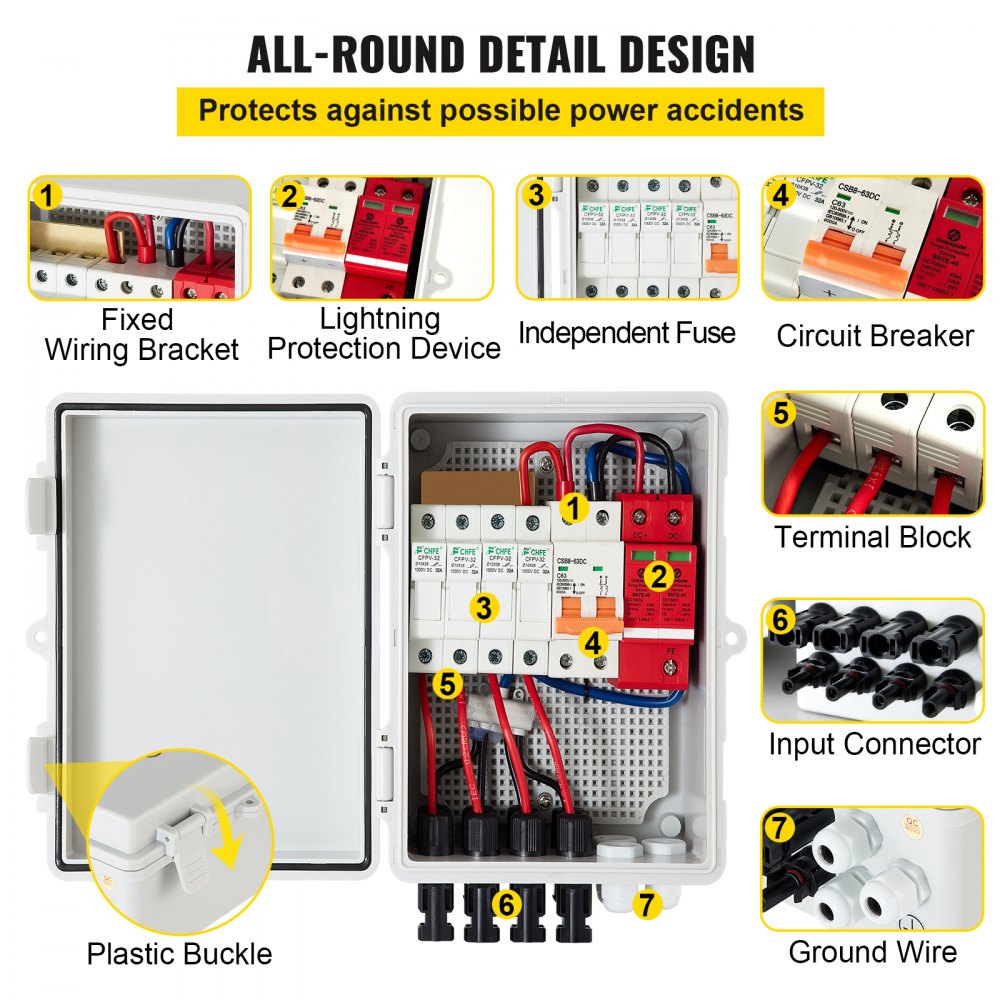

VEVOR pv combiner box with labeled components like fuse, circuit breaker, and ground wire.

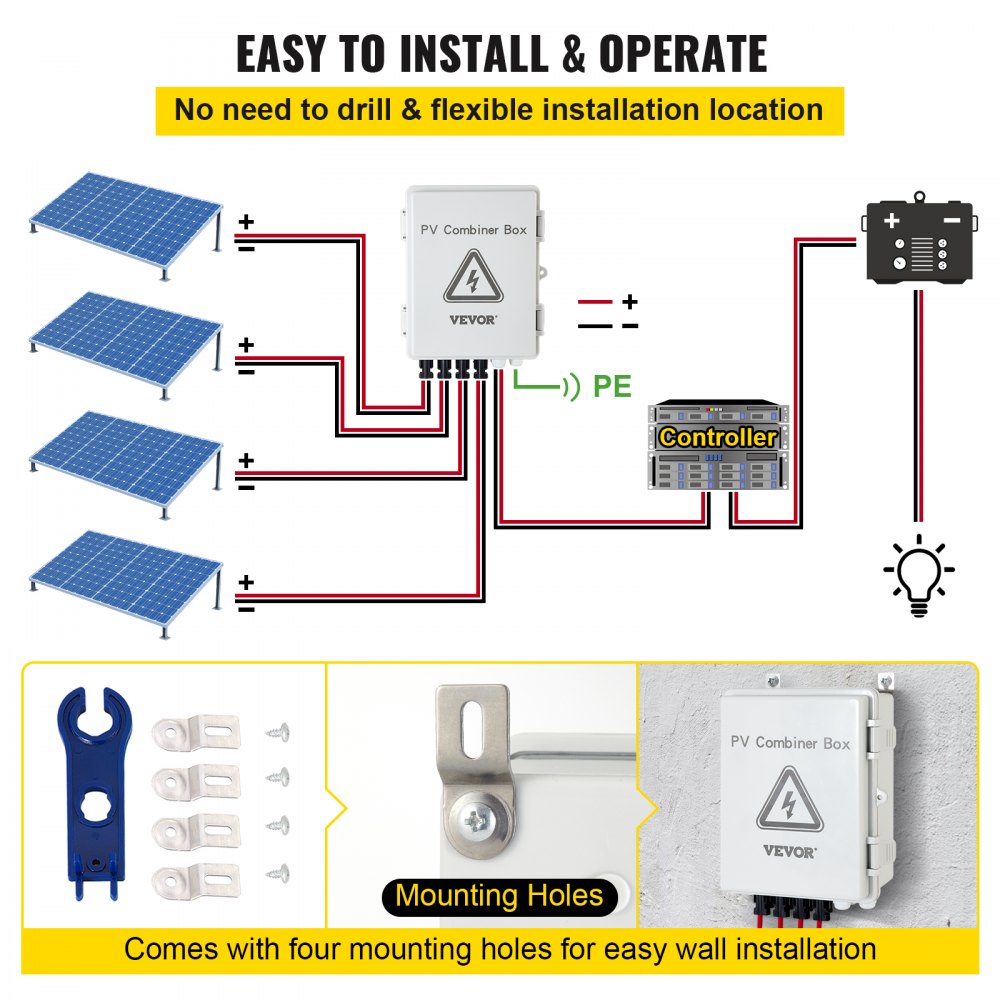

easy installation diagram for VEVOR pv combiner box with four mounting holes.
VEVOR pv combiner box with impact resistance, strong insulation, and corrosion proof.
+7
More

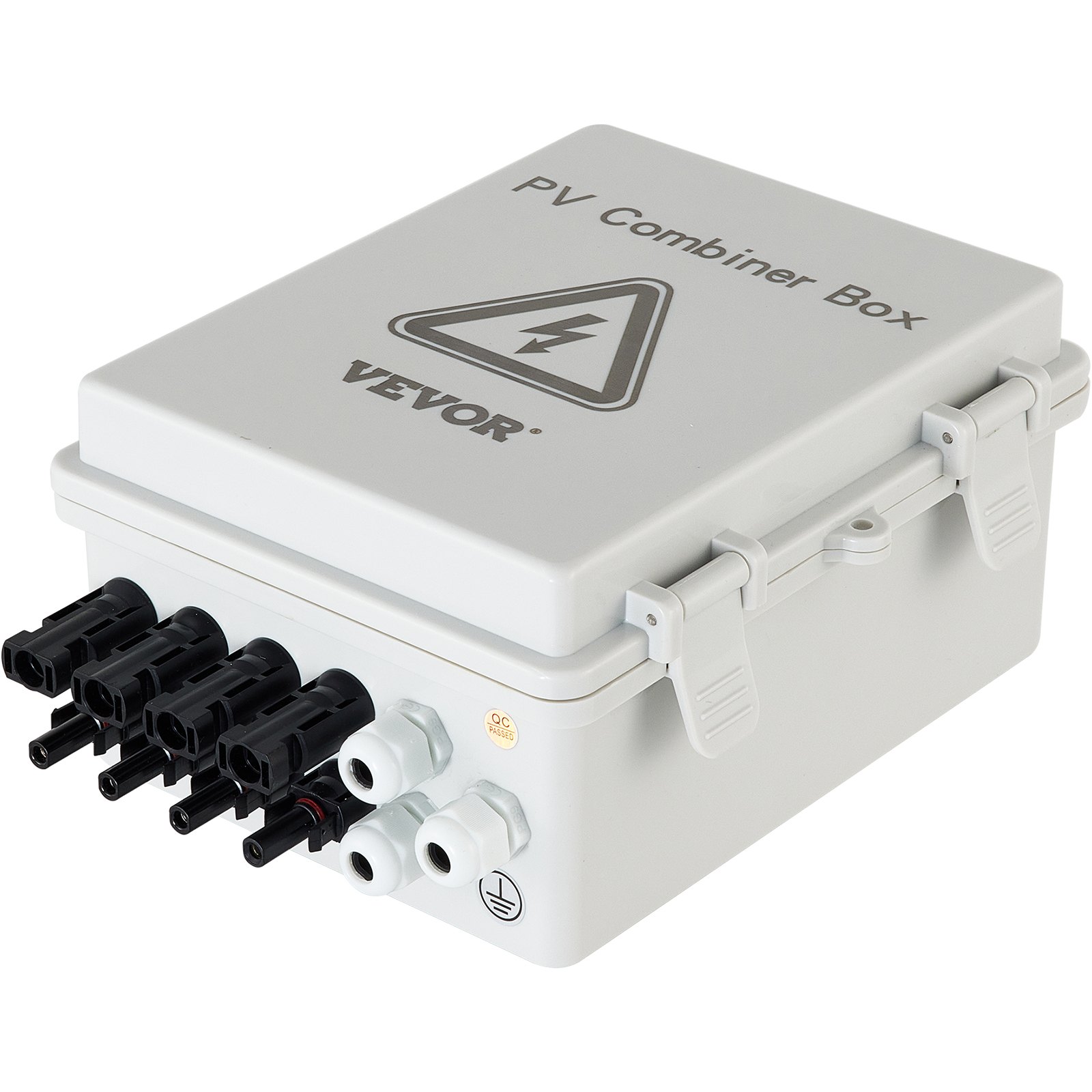

VEVOR pv combiner box with product dimensions and connectors.
VEVOR pv combiner box with open lid, showing internal wiring and components.VEVOR pv combiner box with open lid, showing internal wiring and components.

Features & Details

  • Durability Meets Reliability: Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!
  • Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.
  • IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!
  • 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.
  • Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!
See More

Reviews 4.6
All reviews are from verified purchases
Average rating based on 8 reviews

Top Reviews
eds
Reviewed on Feb 07,2025
Very well made. Easy to install and works well.
Very well made. Easy to install and works well.
VEVOR Customer
Reviewed on Jan 11,2025
I'm going to buy 2 more.
I'm going to buy 2 more.
Matt C
Reviewed on Dec 31,2024
Very happy with the product. I ended up with three of these because of the size of the system on my RV and by simply putting in bigger fuses I'm am able to fuse every panel individually and keep it within specs to meet the new regulations. Highly recommend this product and the seller. I now have the best of solar and wind hybrid off-grid on my motorhome and it has exceeded all my expectations. 5 stars.
Very happy with the product. I ended up with three of these because of the size of the system on my RV and by simply putting in bigger fuses I'm am able to fuse every panel individually and keep it within specs to meet the new regulations. Highly recommend this product and the seller. I now have the best of solar and wind hybrid off-grid on my motorhome and it has exceeded all my expectations. 5 stars.
About this item
Product specification
Model
SWHL-4
Number Of Max. Connection PV Array
4
Max. Input Current of Single PV Array
15A
Total Input Current of PV Array
60A
Max Input Voltage of Single PV Array
500V
Max Output Voltage
500V
Protection Grade
IP65
Operational Environment Temperature
-30℃ to 70℃ / -22℉ to 158℉
Relative Humidity
0-95%, No Condensation
Cooling Method
Natural Cooling
Surge Lightning Protection
Yes
Surge Protective Device
in
SPD Indicate Light Status
Green
Air Circuit Breaker Parameter
500V, 63A; ON/OFF
Fuse Parameter
DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
Fuse Holder Parameter
DC1000V, 32A
RV Solar System
720W in 12V System, 1440W in 24V System, 2880W in 48V System
Product Dimensions(L x W x H)
17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
Net Weight
1.8 kg / 3.9 lbs
Description
VEVOR pv combiner box for 4 string 15a solar panel system with ip65 waterproof feature.

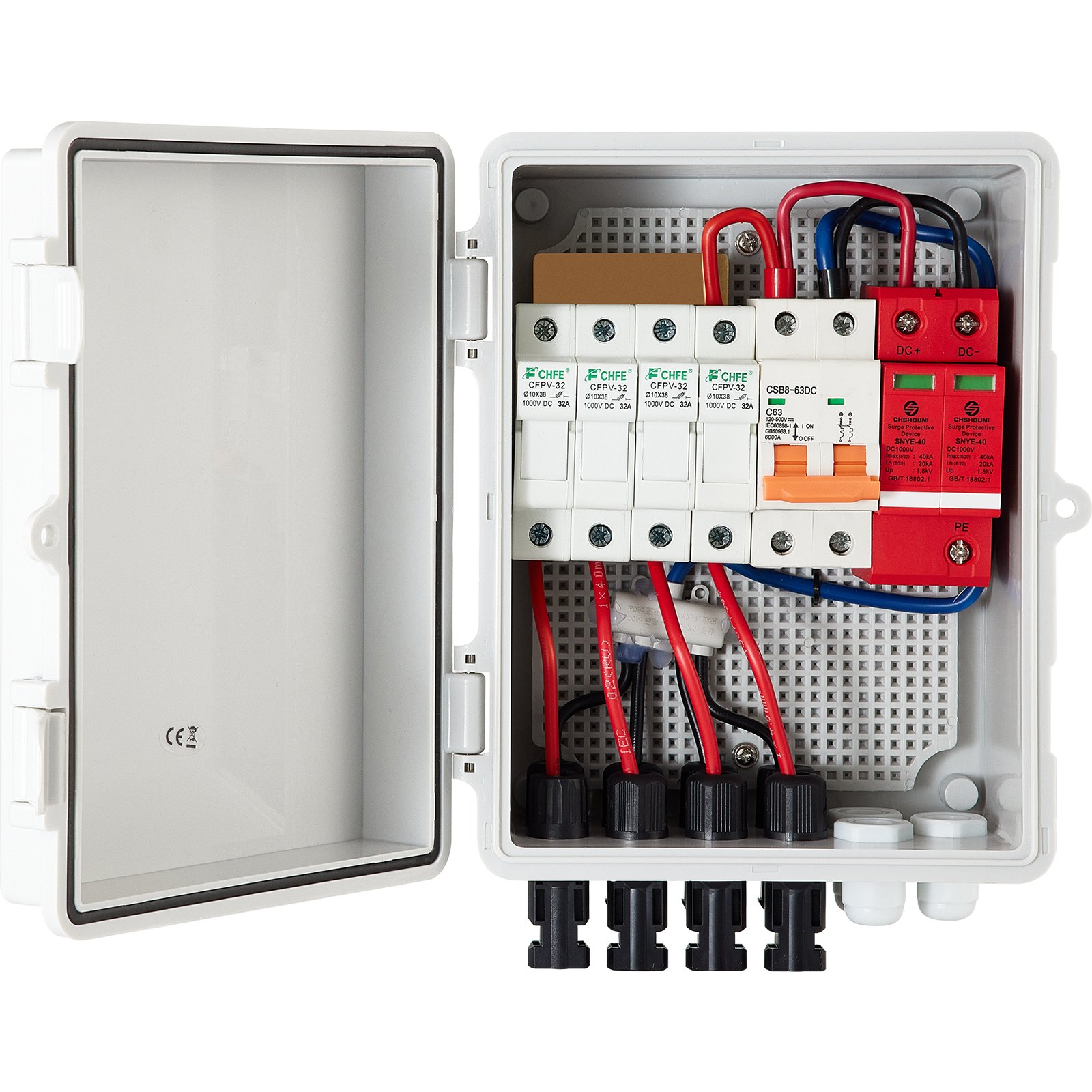

VEVOR pv combiner box with circuit breakers and wiring inside a grey enclosure.
Enhance Your Solar Setup with Our PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.
  • Durability Meets Reliability
  • IP65 Dust & Water Barrier
  • 24/7 Lightning Protection
  • Installation Made Easy
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pv combiner box with high voltage lightning arrester and protection device.
Professional PV Combiner Box
With four 15A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.
VEVOR pv combiner box with ip65 protection, suitable for outdoor use, blocks weather elements.
Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.
VEVOR pv combiner box showcasing thoughtful design with fuse, breaker, and wiring block.
Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.
VEVOR pv combiner box with detailed wiring and connection components shown.
Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!
VEVOR pv combiner box, impact and wearable resistance, effortless to use.
Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!

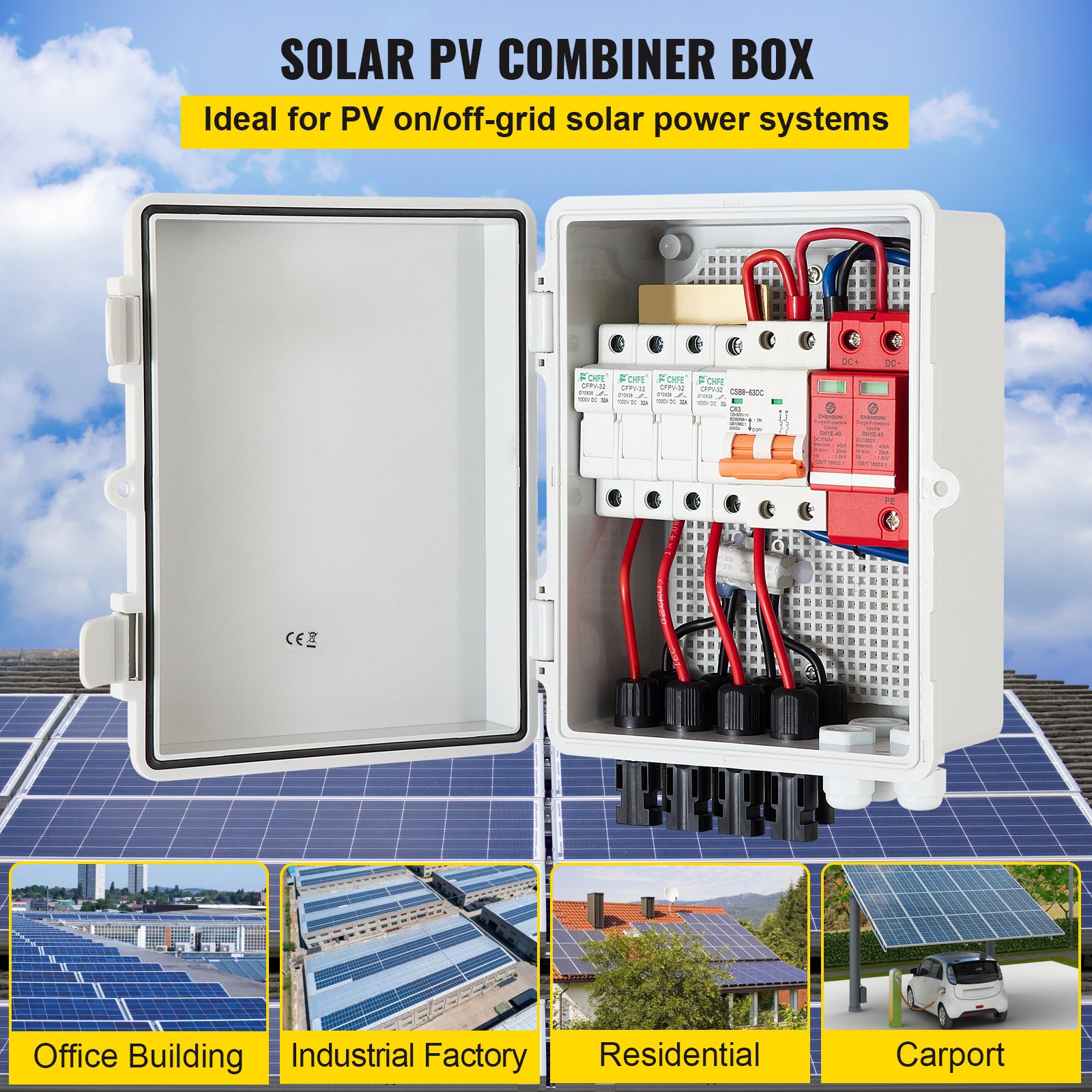

VEVOR pv combiner box with solar panels on office building, factory, house, and carport.
Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!

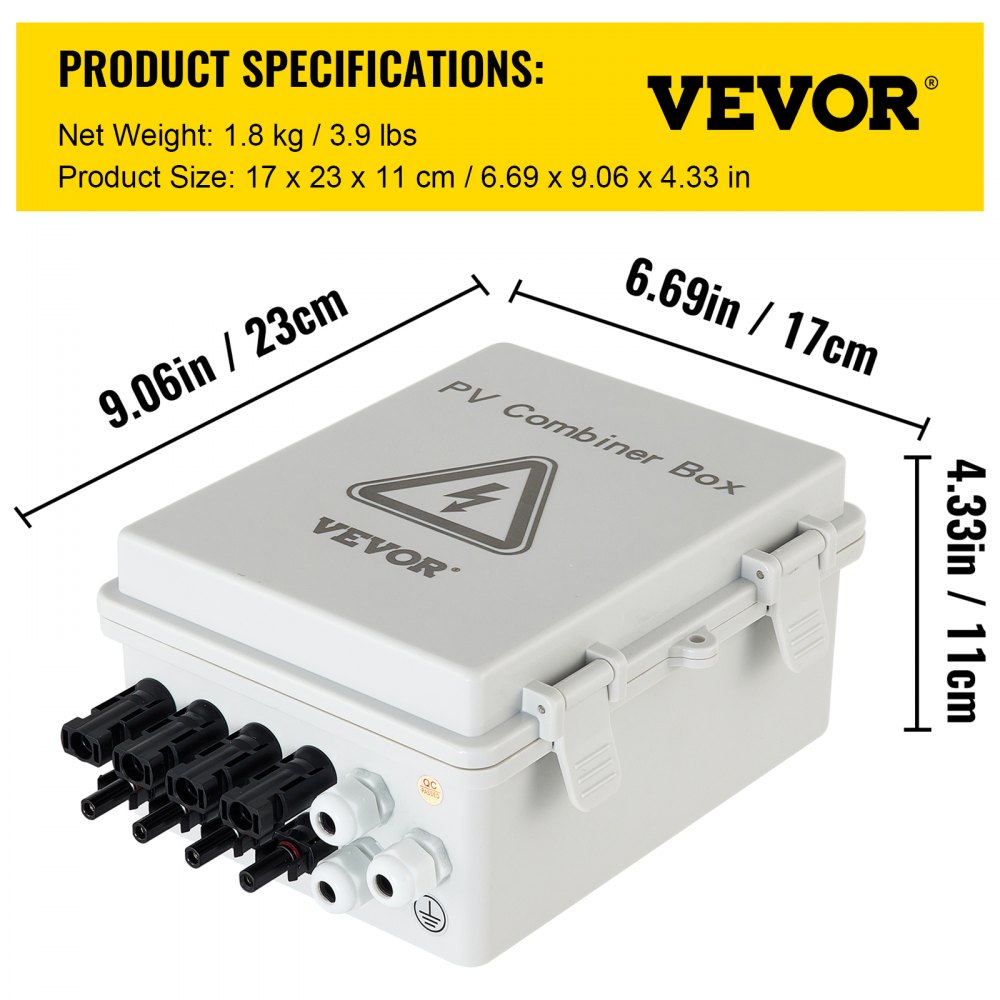

VEVOR pv combiner box dimensions: 9.06in x 6.69in x 4.33in, shown in white.
Specifications
  • ​Item Model Number: SP-HL-P202010-15A
  • Number of Inputs: 4
  • Number of Outputs: 1
  • Rated Operating Voltage: DC 500V
  • Fuse Holder Specification: DC 15A/500V
  • Rated Current of Fuse: DC 15A
  • Specification of Main Circuit Breaker: 63A 2P DC500V
  • Surge Protector: 40KA 2P DC500V
  • Protection Rating: IP65
  • Door Opening Method: Latch Opening
  • Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
  • Sealing Strip: PU Polyurethane Foam Material(Black)
  • Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
  • Net Weight (including all accessories): 4.1 lbs / 1.86 kg
  • Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
VEVOR pv combiner box with wiring setup, manual, wrench, and connectors included.
Package Content
  • 4 x MCB Female Connectors with Red Wire (2.5 mm²)
  • 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
  • 2 x PG13.5 Plastic Waterproof Glands
  • 1 x PG9 Plastic Waterproof Gland
  • 1 x MC4 Tool
  • 4 x Cold Rolled Steel Wall Mounting Brackets
  • 4 x Screws
VEVOR pv combiner box for 4 string 15a solar panel system with ip65 waterproof feature.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pv combiner box with circuit breakers and wiring inside a grey enclosure.
Enhance Your Solar Setup with Our PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.
  • Durability Meets Reliability
  • IP65 Dust & Water Barrier
  • 24/7 Lightning Protection
  • Installation Made Easy
VEVOR pv combiner box with high voltage lightning arrester and protection device.
Professional PV Combiner Box
With four 15A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.
VEVOR pv combiner box with ip65 protection, suitable for outdoor use, blocks weather elements.
Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.
VEVOR pv combiner box showcasing thoughtful design with fuse, breaker, and wiring block.
Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.
VEVOR pv combiner box with detailed wiring and connection components shown.
Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!
VEVOR pv combiner box, impact and wearable resistance, effortless to use.
Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!
VEVOR pv combiner box with solar panels on office building, factory, house, and carport.
Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!
VEVOR pv combiner box with wiring setup, manual, wrench, and connectors included.
Package Content
  • 4 x MCB Female Connectors with Red Wire (2.5 mm²)
  • 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
  • 2 x PG13.5 Plastic Waterproof Glands
  • 1 x PG9 Plastic Waterproof Gland
  • 1 x MC4 Tool
  • 4 x Cold Rolled Steel Wall Mounting Brackets
  • 4 x Screws
VEVOR pv combiner box dimensions: 9.06in x 6.69in x 4.33in, shown in white.
Specifications
  • ​Item Model Number: SP-HL-P202010-15A
  • Number of Inputs: 4
  • Number of Outputs: 1
  • Rated Operating Voltage: DC 500V
  • Fuse Holder Specification: DC 15A/500V
  • Rated Current of Fuse: DC 15A
  • Specification of Main Circuit Breaker: 63A 2P DC500V
  • Surge Protector: 40KA 2P DC500V
  • Protection Rating: IP65
  • Door Opening Method: Latch Opening
  • Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
  • Sealing Strip: PU Polyurethane Foam Material(Black)
  • Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
  • Net Weight (including all accessories): 4.1 lbs / 1.86 kg
  • Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm

PV Combiner Box Ensures Reliable Solar Panel Integration

The VEVOR PV combiner box is made to reliably integrate solar panels. It allows for the safe and efficient connection of multiple solar panel systems. The box features a strong construction that ensures durability. This includes both on-grid and off-grid solar panel combiner box systems, including essential components like fuses and circuit breakers. These features enhance safety and performance. With this PV combiner box, you can trust your solar setup to work seamlessly. You will get reliable power management for your system.


Easy Installation and Maintenance of Solar Combiner Box 4 String

The VEVOR PV combiner box is simple to install. It comes with clear instructions and all the necessary components. The compact design makes it easy to mount on various surfaces. Maintenance is also straightforward. You can quickly access the internal components for any checks or adjustments. Tightening connections or replacing fuses is hassle-free. This ease of maintenance ensures the box stays in top condition. Built to last for long-term reliability with minimal upkeep, this solar combiner box 4 string is an excellent choice for both DIY enthusiasts and professionals. Easy design and user-friendly features save time and effort.


IP65 Waterproofing and Durability for Outdoor Use

The VEVOR PV combiner box is built to withstand outdoor conditions. It has IP65 combiner box waterproofing, protecting it from dust and water. This makes it ideal for installation on roofs or in open areas. The durable materials ensure the box can handle harsh weather. Even in extreme temperatures, it remains functional. The strong design prevents damage from moisture and dirt. This high level of protection ensures the longevity of your solar setup. You can trust the box to perform reliably in any outdoor environment. It is an essential component for any outdoor solar installation.


Efficient Lightning Protection with Solar Panel Lightning Arrester

The VEVOR PV combiner box includes a built-in solar panel lightning arrester to protect your solar panels. This ensures the system is protected from electrical surges. The arresters prevent damage to connected equipment. It provides peace of mind, knowing your investment is safe. The efficient design guarantees optimal performance in all weather conditions. This feature is important for maintaining the long-term reliability of your solar setup. You can use this box for areas that are prone to lightning strikes.


Space-Saving Design with 4 String Configuration

The VEVOR PV combiner box has a space-saving 4-string configuration. Its compact design makes it ideal for installations with limited space. The box efficiently combines multiple solar panels, saving room. This design ensures an efficient and organized setup. Perfect for small-scale solar projects or tight spaces, the box offers strong performance despite its small size. Up to 60A of total input current can be used effectively. It’s versatile and suitable for various applications. The efficient design maximizes the output from your solar panel system.


User-Friendly Design with Plug and Play Features

The VEVOR PV combiner box is designed with user-friendliness in mind. It has plug-and-play features, making installation quick and easy. The box comes pre-wired, saving you time and effort. Simply connect your solar panels and the box is ready to use. This makes it ideal for DIY enthusiasts or those new to solar installations. Our simple design ensures you can set it up without professional help. Easy-to-follow instructions guide you through the process. This user-friendly feature enhances the overall usability of the box.


High-Quality Build with Sturdy Materials

The VEVOR PV combiner box is made with high-quality materials. It features a strong build that ensures long-term durability. The robust construction makes it resistant to wear and tear. The box is designed to handle the rigors of outdoor use. The strong materials ensure it can withstand various environmental factors. This high-quality build provides peace of mind, knowing your investment is protected. The durable design ensures the box remains functional for years. Anyone looking for a dependable solar combiner box will find this model to be an excellent choice.


Product guides and documents
User manual-en (PDF)Review
Questions and Answers (4)
4 Questions
Ask a Question
Showing 1-4 of 4
Sort by:
Featured questions
Hi Would this handle 4 strings consisting of 2 x 305 watt / 40 volts (voc) @ 10 (Isc) panels connected in series for each string ? Kind regards Lucky
Answer This Question
Hello, as long as the rated current of each incoming line does not exceed 15A and the rated voltage does not exceed 500VDC, it can be used. You can use the product normally.
By vevor on Jun 25, 2023
Helpful? 3
Hello, I have 4 strings each, 135.62 volts and each 14 .36 volts is this combiner box suitable thanks
Answer This Question
Hello, you need to ensure that the line voltage connected to the solar panel is the same, the maximum voltage is 500vdc for normal use
By vevor on Dec 01, 2024
Helpful? 0
How do you replace the 15A fuses? If I wanted to replace these fuse blocks with trips, are they a standard fitting?
Answer This Question
For standard size 10*38mm fuses can be used. A professional engineer is required to replace it after eliminating the potential risk of electric shock after a power outage.
By vevor on Mar 01, 2024
Helpful? 0
Hi do you have one of these suitable for 4 strings for 350w 12v panel each string? So 1400w total 12v
Answer This Question
No. If it is a 350W 12V panel, the current is 29.16A, which exceeds the rated current. So you cannot use it like this.
By vevor on May 11, 2023
Helpful? 0
G2415A63AIP654HIKV0

VEVOR PV Combiner Box, 4 String with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste Connector for On/Off Grid Solar Panel System, IP65

4.6
8 Reviews
Exclusive AU $5.00 off for your first three orders on the App.
 Download Now

4 Branches

  • 4 Branches
  • 6 Branches
4 Branches
Edit selections
Security & Privacy
100% Secure payment
Secure privacy
FREE Returns
30-day Free Returns
Refund for lost packages / damaged items
Professional Service
12-months warranty
Customer Support
People Who Bought This Item Also Bought
People Who Viewed This Item Also Viewed
Your Browsing History
Recommended Searches
We use cookies to improve your online experience.By continuing browsing this website,we assume you agree our use of cookies and Privacy & Security.
Agree
co-subscribe-content-left
Thanks! You are on the list!
Check your inbox for more exclusive offers.
OK
