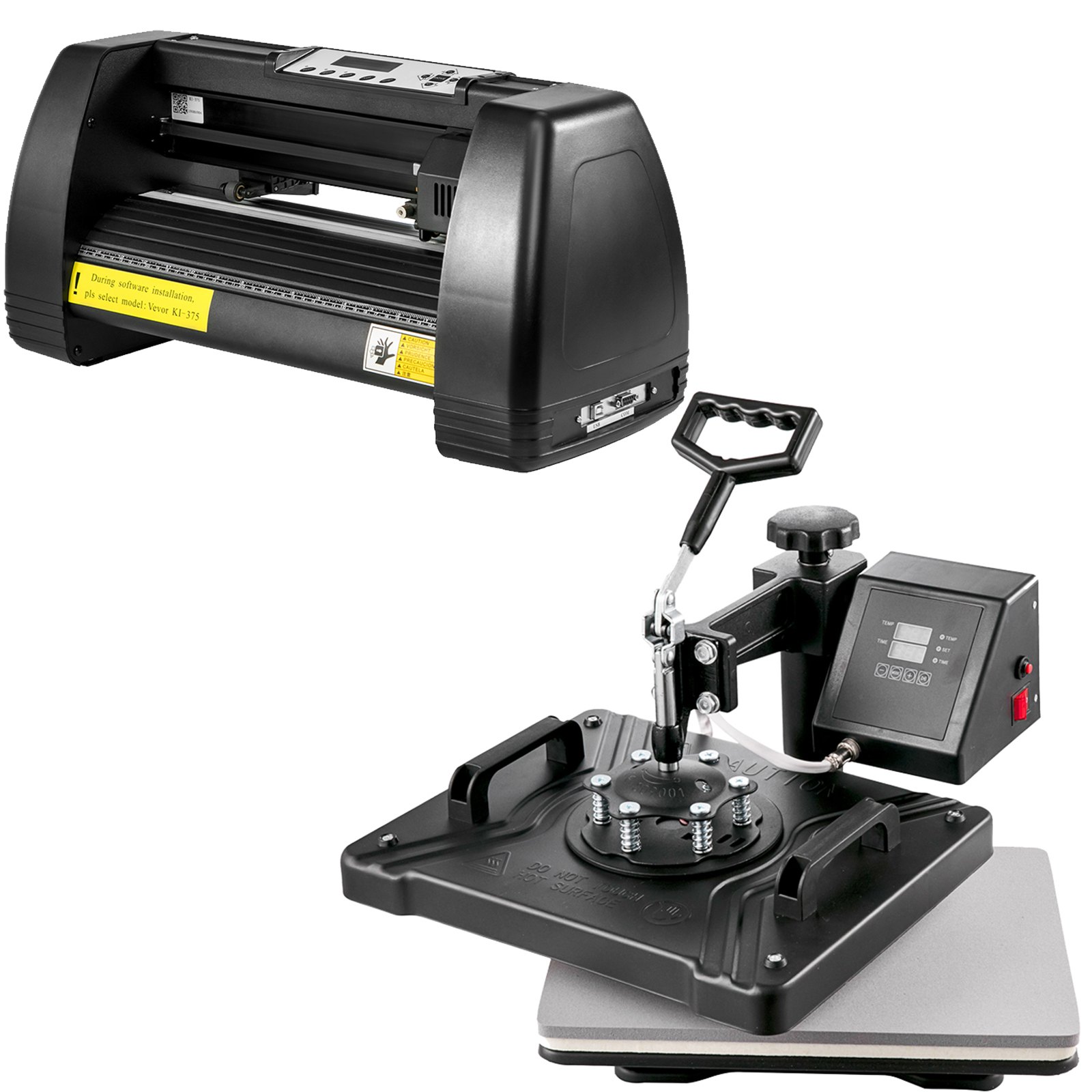

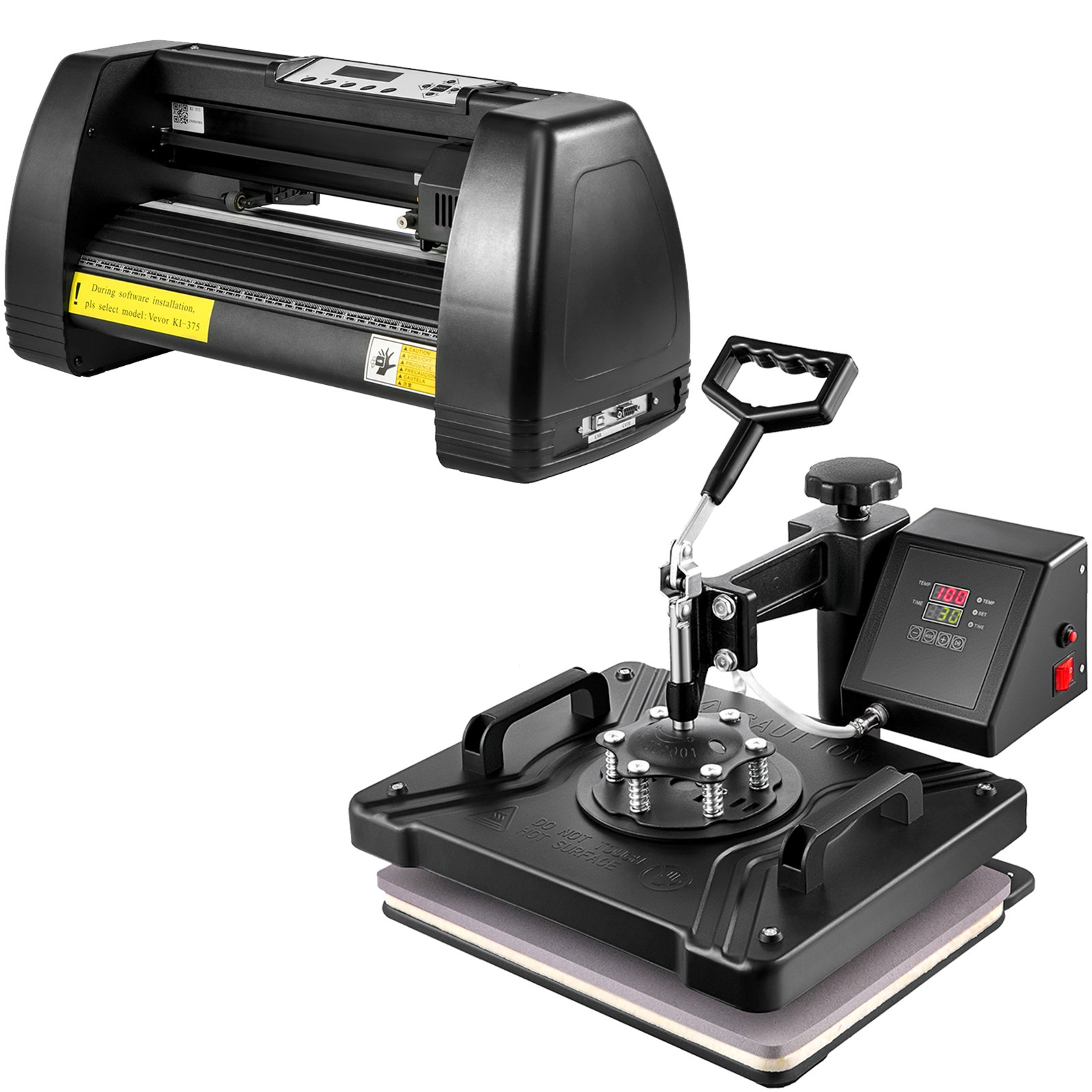

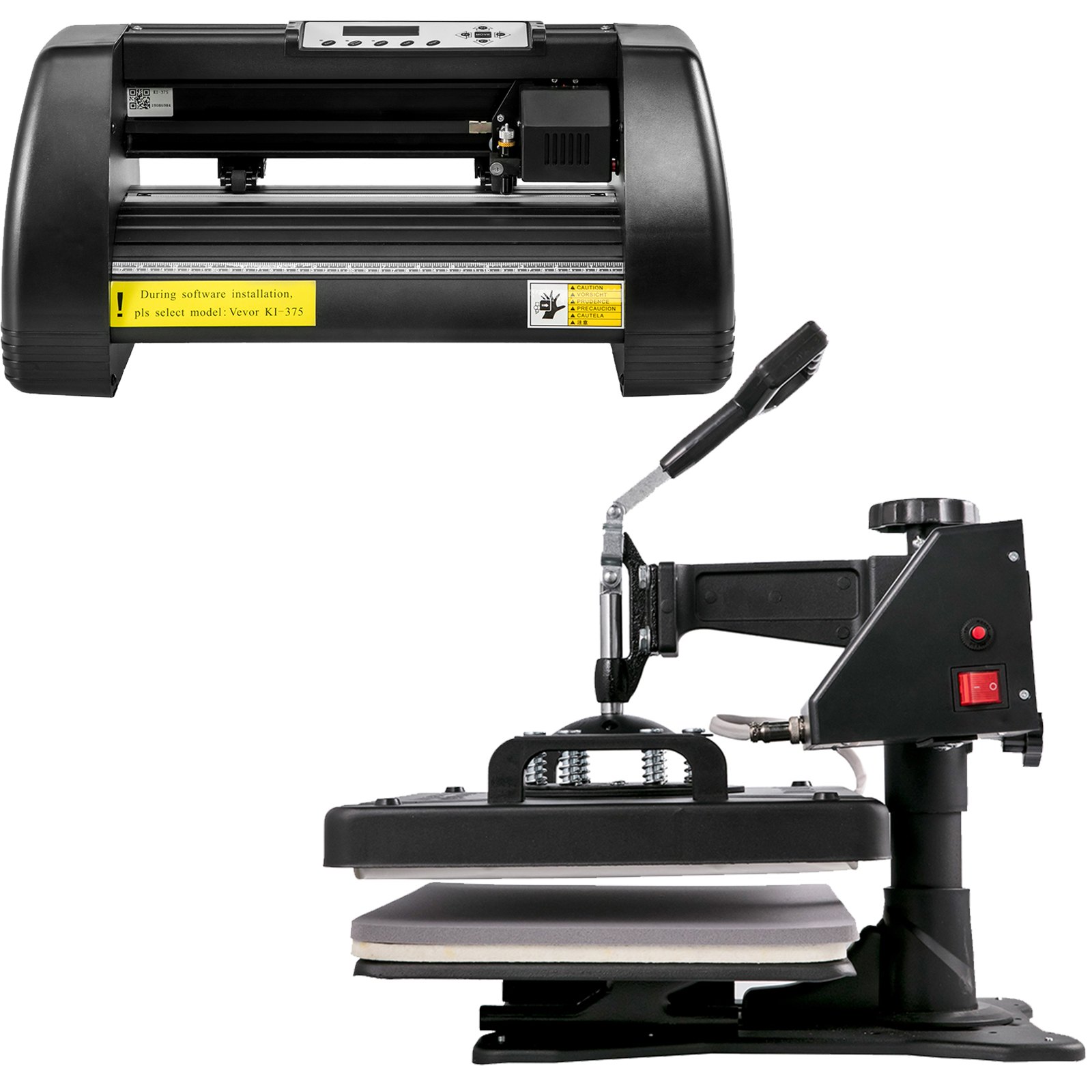

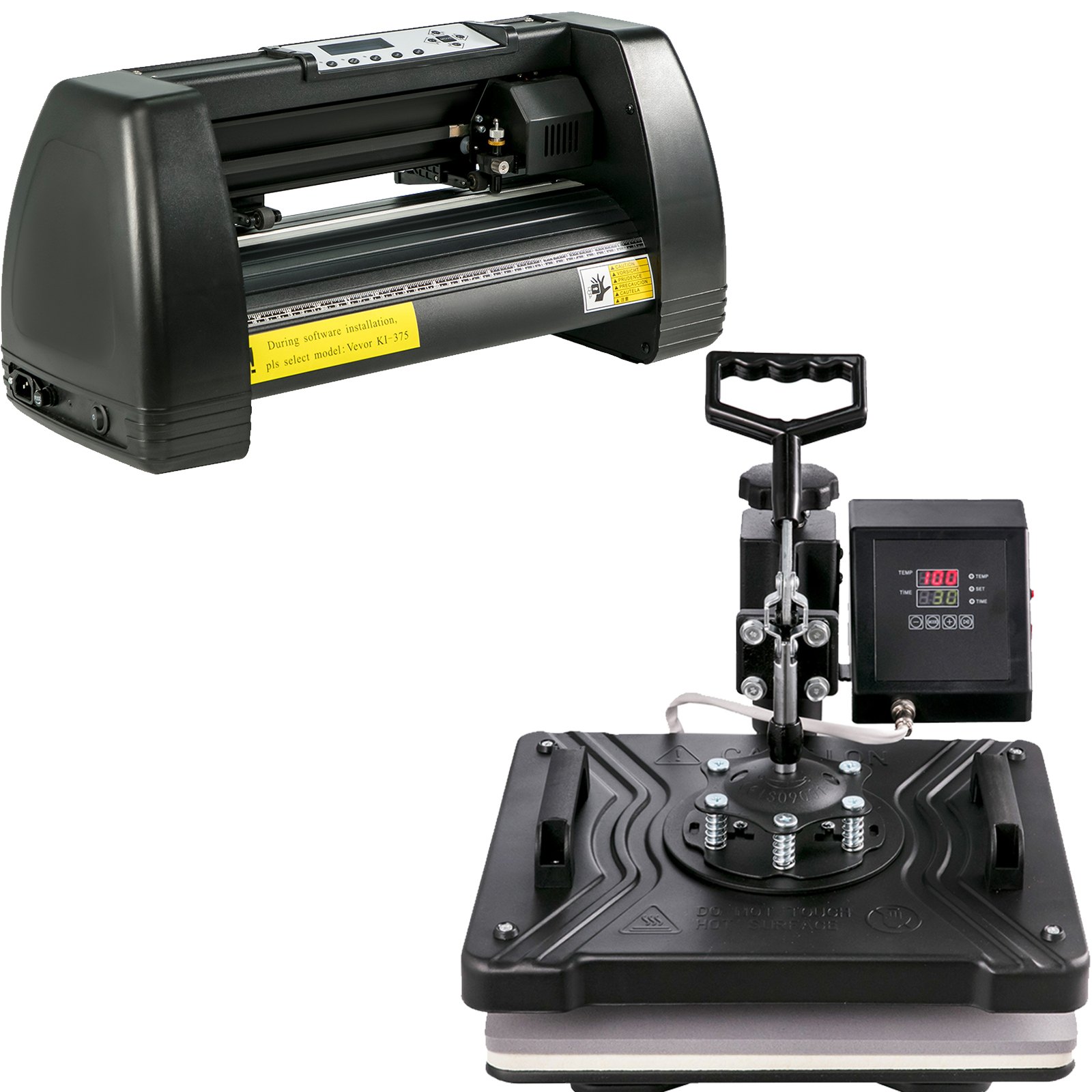

Vevor 5in1 Heat Press 12"x15" Vinyl Cutter Plotter 14" Drawing Tools Digital Graphics

This listing offers youa5 in 1 15" x 12" Heat Press Machineanda14 Inch Vinyl Cutter Machine with Signmaster Software!!

5 in 1 15" x 12" Heat Press Machine

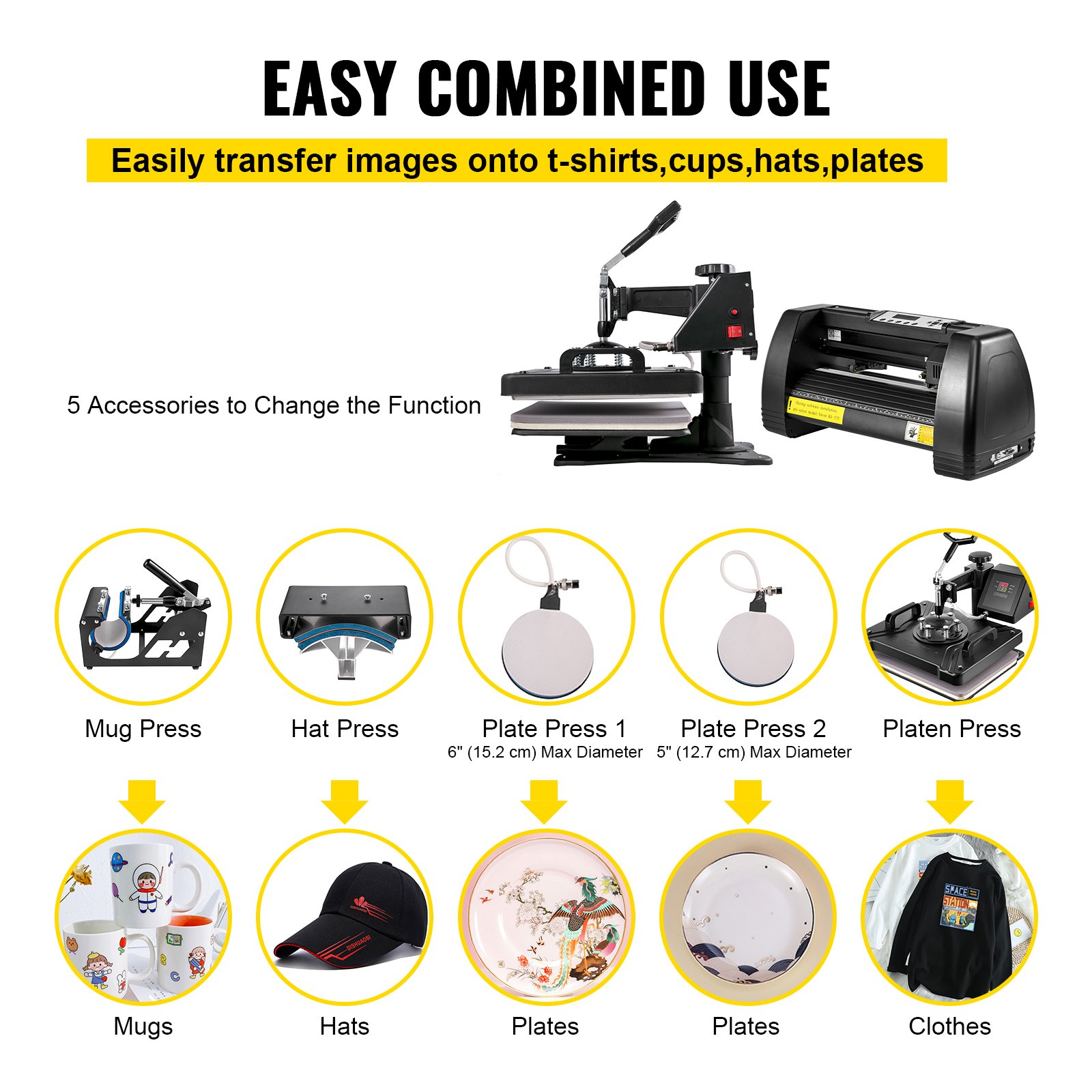

This 5 in 1 heat press machine can beused for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc. This all-in-one press includes flat platen, mugs and plates. The swing-away heat press boasts all of the must-have attachments. It has a built-in Teflon coated 12" x 15" (38X30cm) heat platen with a full range of heating coils to allow for consistency throughout its surface. The digital timer control is adjustable up to 999 seconds. The features a digital temperature gauge ranging from 0 - 250ºC (about 480ºF).

The machine is of metal and plastic construction, sanding surface,comfortable feeling. Automatic electronic timing when single table integrated, automatic alert when processes is completed. Built-in fuse for safe using. Slides design make the changing of the parts easier and fast, save your time and effort. Adjustable feet for unevenly floor.

Novel, fashion, high-grade design, reasonable structure, easy operate.
Large 15" x 12" transfer element- The 15" x 12" (38X30cm) heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc.

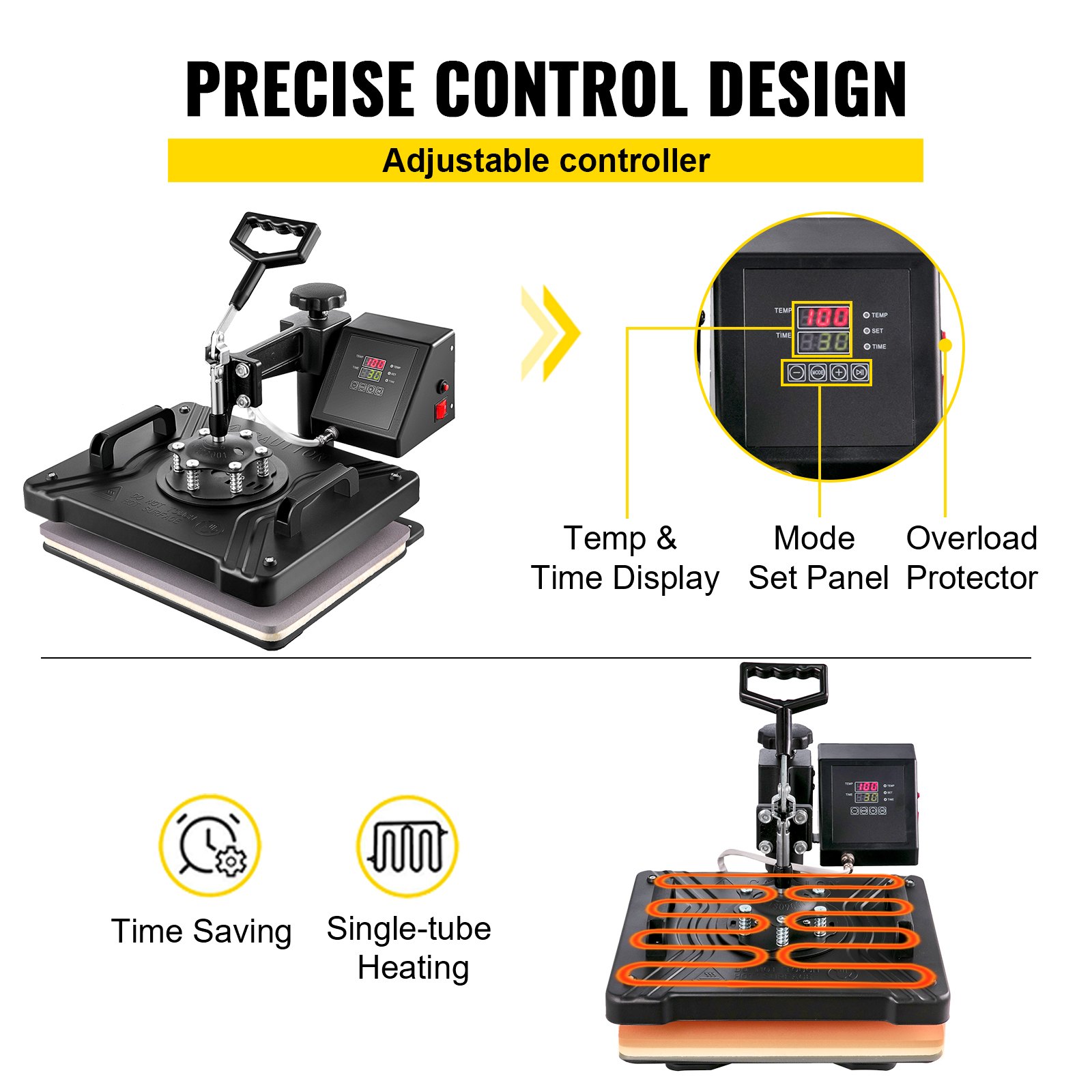

Digital LED controller - Preset the desired temperature and timer. Intelligent audible alarm after the transfer done.

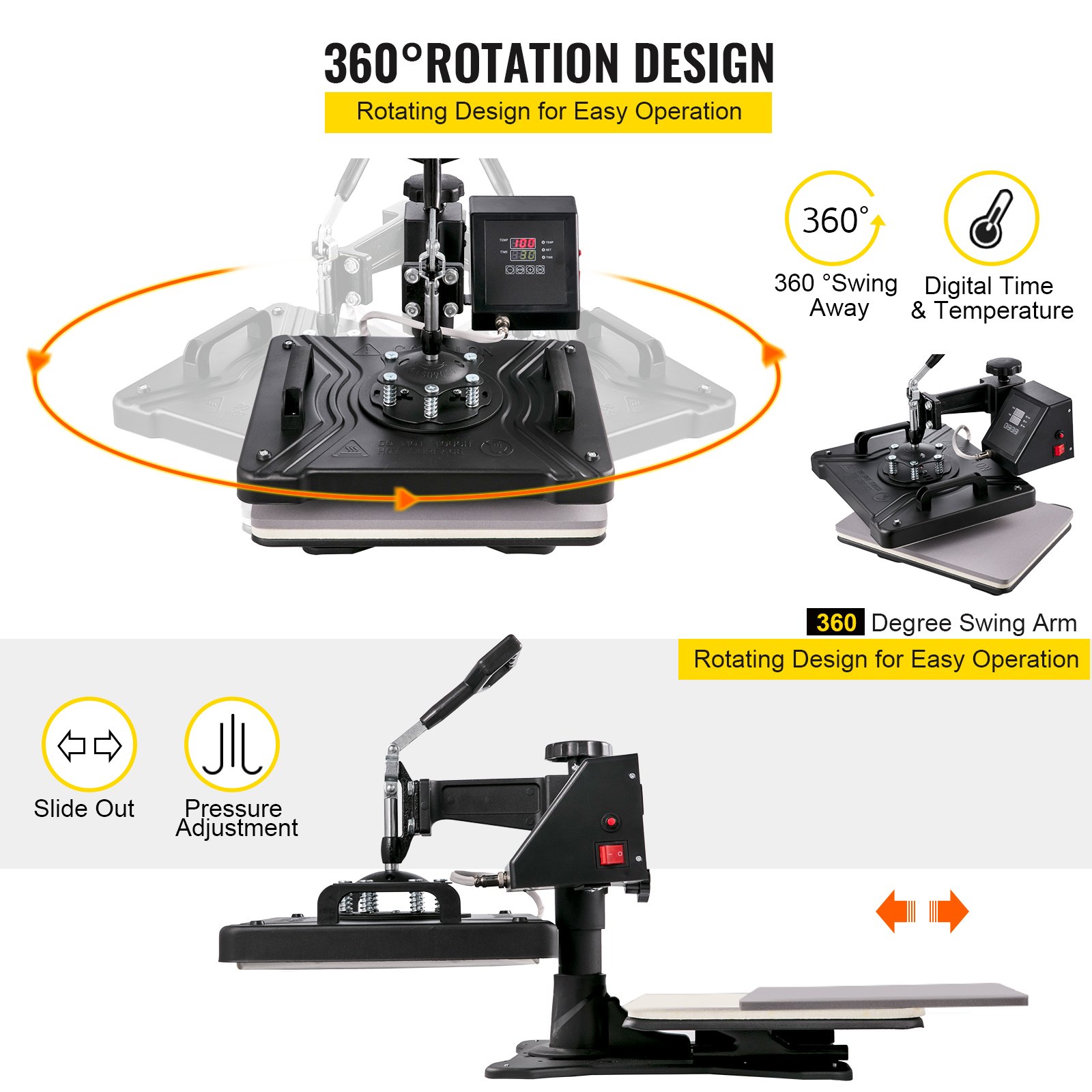

Full 360-degree rotation of swing-away design- Allows the heating element to be moved safely aside and reduce the chances of accidental contact.
Full-range pressure-adjustment knob - This allows the pressure to be adjusted according to the thickness of the material you're transferring to.
Teflon-coated platen press element- The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
2 4/5" Long arm handle- Comfortable rubber grip for everyday use and long production runs.
Detachable lower platform - It is elevated with dual supports. Easily exchange to other elements.
Adjustable multi-spring balancer- Allows pressure to be more evenly distributed across the entire platen when it is closed.
4/5" thick heating board - Built-in structural support to maintain flatness. Warm up quickly and offer even heating.
Upgraded aluminium alloy cradle - Detached cradle for use of the mug elements. Compact size and lightweight, as compared to standard mug cradles.

14 Inch Vinyl Cutter Machine with Signmaster Software

This14" Professional Vinyl Cutting Plotter comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork,and draw your own shapes! It Works great for advertising industry,car beauty industry,fashion design,etc.

Signmaster software is a professional-quality, extremely easy-to-use program that allows you to cut virtually any shape or design with your electronic cutting machines. This one-of-a-kind program gives you the ability to use your fonts, import custom artwork, and draw on your own shapes! The possibilities are endless!

In this version, if you have an image that has many colors in it, you can easily isolate each color and cut them separately

• Print and cut capability for this vinyl cutting plotter
• 3D-shadow (drop-shadow feature)
• Pro gives users the ability to import a variety of vector and raster images from external sources
• Works with your installed TrueType and OpenType fonts
• Works with thousands of free TrueType Fonts including Dingbat/Wingding Fonts
• Import various file formats, including SVG and PDF
• Drawing tools to draw and edit shapes
• Weld overlapping letters and shapes together
• Select styles, including shadow and blackout, to change the look of your letters and shapes with just a few clicks
• Cut & Simple Print
• Save and share your design layouts
• Free technical support and access to professionally made video training series
• Aluminum shaft adopts whole precision processing
• Suitable for various paper sizes

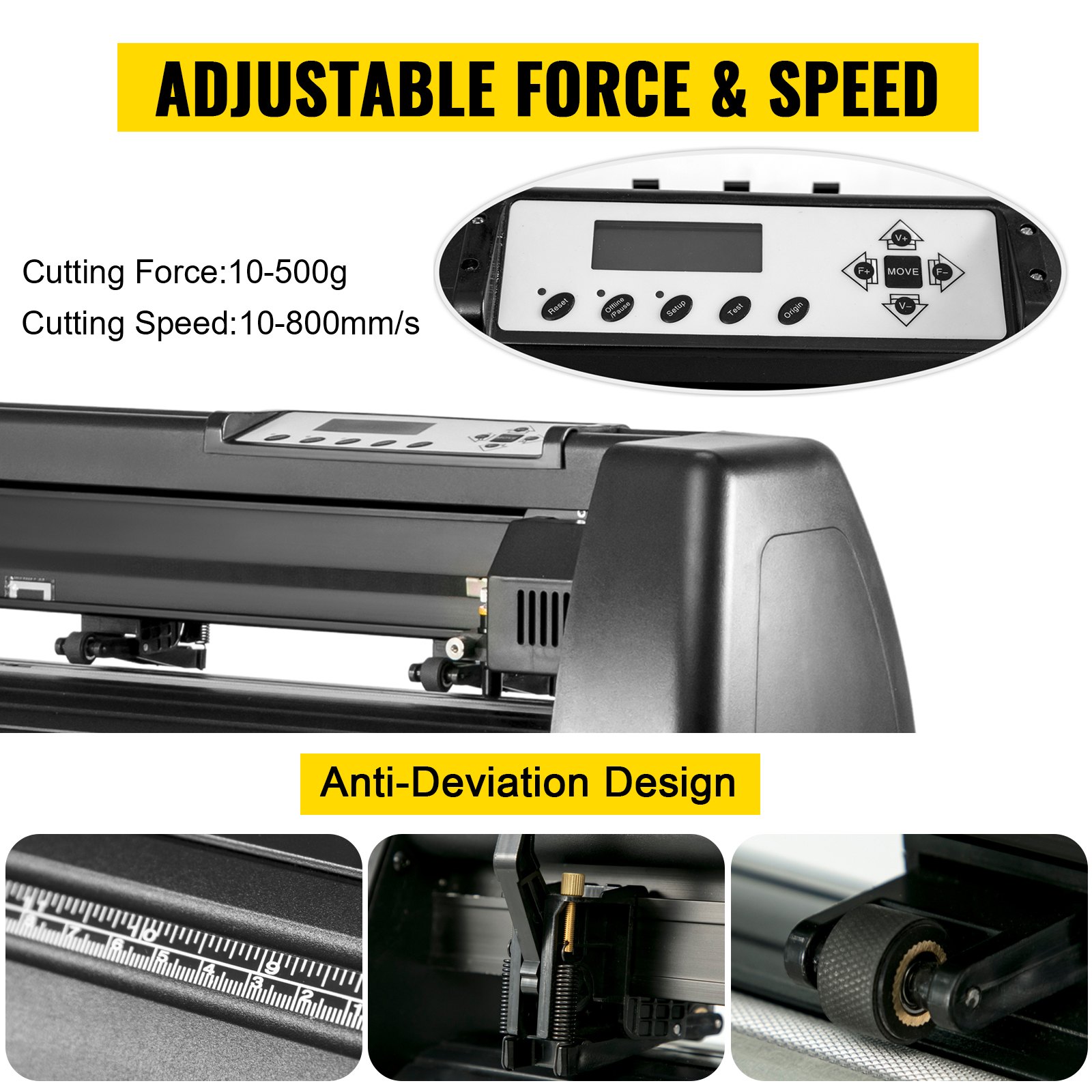

• Adjustable digital force and speed to handle the cutting process
• Advanced design allows adjustment of cutting force and speed while working
• 128K-2M memory, DM/PL, HP/GL language
• Compatibility: DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64).
• NOT compatible with Mac system when used with this cutter
• System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10(32& 64)

• 【Works Cooperatively】-14 inch vinyl cutter, together with 5 in 1 heat press, enables quick design and product making, a nice combination for art business.
• 【Flexible Cutting】- Plotter machine cutter pressure: 10-500g. Adjustable.
• 【2 Rollers】- 2 fully adjustable pinch-rollers allow you to use a flexible range of materials. Roland compatible blade holder gives you access to the most economical blades available.
• 【360-degree Rotation】- Swing-away design of heat press allows the heating element to be moved safely aside and reduce the chances of accidental contact.
• 【Teflon-coated Platen Press Element】- The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.

User Manual is included in the attached USB flash disk.

NOT compatible with IOS system！

Signmaster Software

• Extremely easy-to-use program with endless possibilities allows you to cut virtually any shape or design with your cutting machine. Gives you the ability to use your fonts, import custom artwork, and draw on your own shapes!

Humanized Design

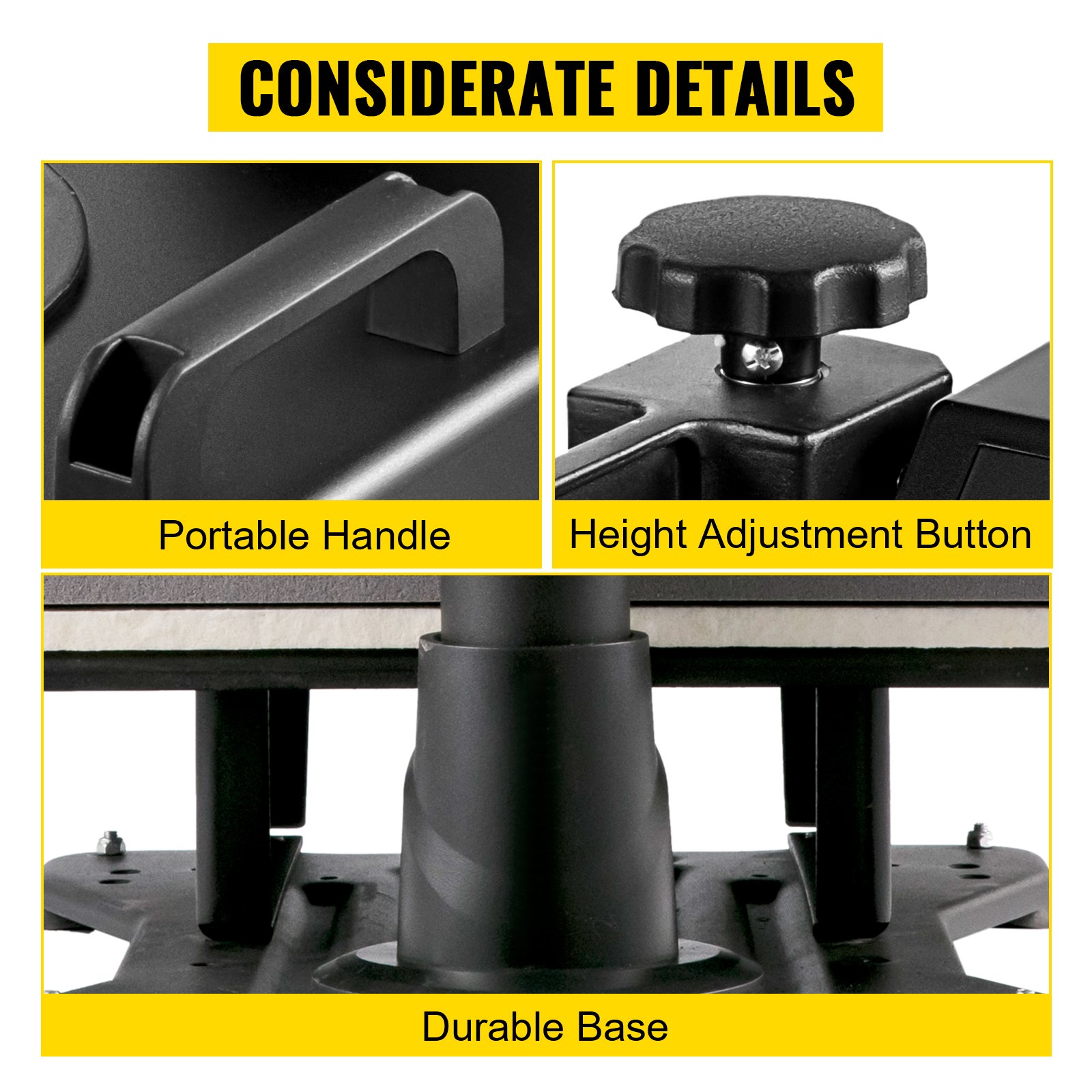

• Full-range adjustment knob allows heat transfer pressure to be adjusted according to material thickness. Comfortable 2 4/5" long rubber grip for everyday use. Detachable lower platform is elevated with dual supports. Easy exchange to other elements.

Overload Protector Replacement

• A small red button on the control box of heat press will pop-up when voltage is unstable or too high, thus providing protection for control box as well as heat platen.

Power and USB Interface

• USB connection of vinyl cutter is accomplished through serial conversation to support the long-distance data transmission. Equipped with 110V 60Hz power cable, perfectly used in USA.

5 in 1 15" x 12" Heat Press Machine

• Temperature Range: 200-450 °F（95-232 °C）
• Timer Control: 0 - 999 seconds
• Adjustable Height: 13 1/2" to 17"
• Wattage: 1250W
• Power Input: 110V
• Cord Length: 4.5"
• Platen Press (telfon-coated): 12" x 15" (38X30cm)
• Hat/Cap Press: 6"x 3" (curved)
• Mug Press:3"-3.5"diameter (11OZ)
• Plate Press #1: 5" max diameter
• Plate Press #2: 6" max diameter

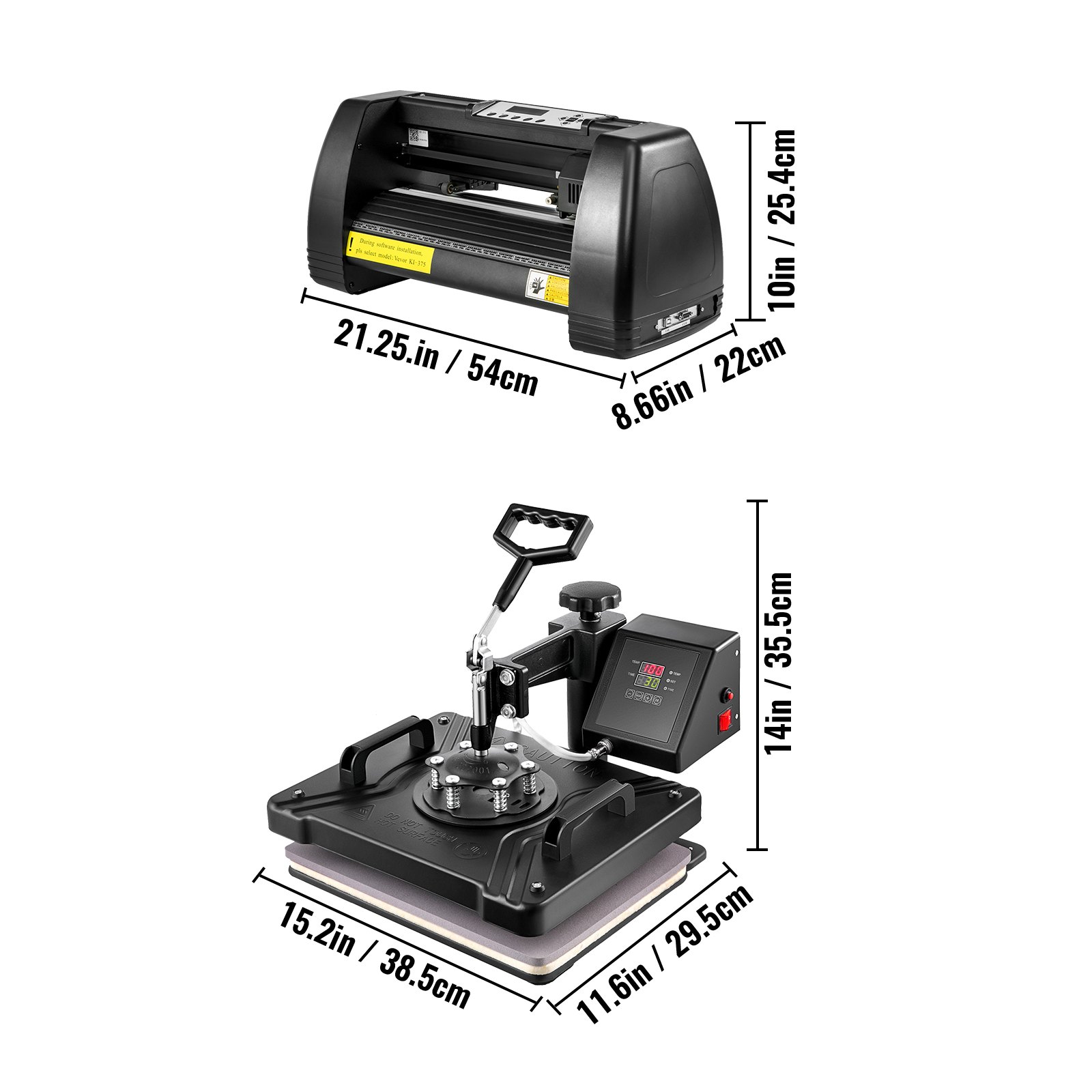

• Product Size：38.5 x 29.5 x 35.5 cm/15.15 x 11.61 x 13.97 inch
• Package Size：47.5 x 45 x 52 cm/18.7 x 17.72 x 22.83 inch


14 Inch Vinyl Cutter Machines with Signmaster Software

• Voltage: 110V AC, 60 Hz
• Blade Types:Standard, Roland Compatible, 2 mm Dia
• Motor Type:Stepper Motor
• Interface:USB port
• Max Paper Feed: 370 mm (14.6 inch)
• Max Cutter Width: 350 mm (13.8 inch)
• Cutter Pressure: 10-500g
• Cutting Speed: 10-800 mm per second
• Number of Pinch Rollers: 2
• Memory: 128K-2M
• Positioning: Manual
• Language: DM/PL, HP/GL
• Repetition Accuracy: 0.005" (0.127 mm)
• System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10(32& 64)
• Gross Weight: 22 lb (10 kg)
• Package Dimensions (L x W x H): 26" x 13.8" x 13" (66 x 35 x 33 cm)

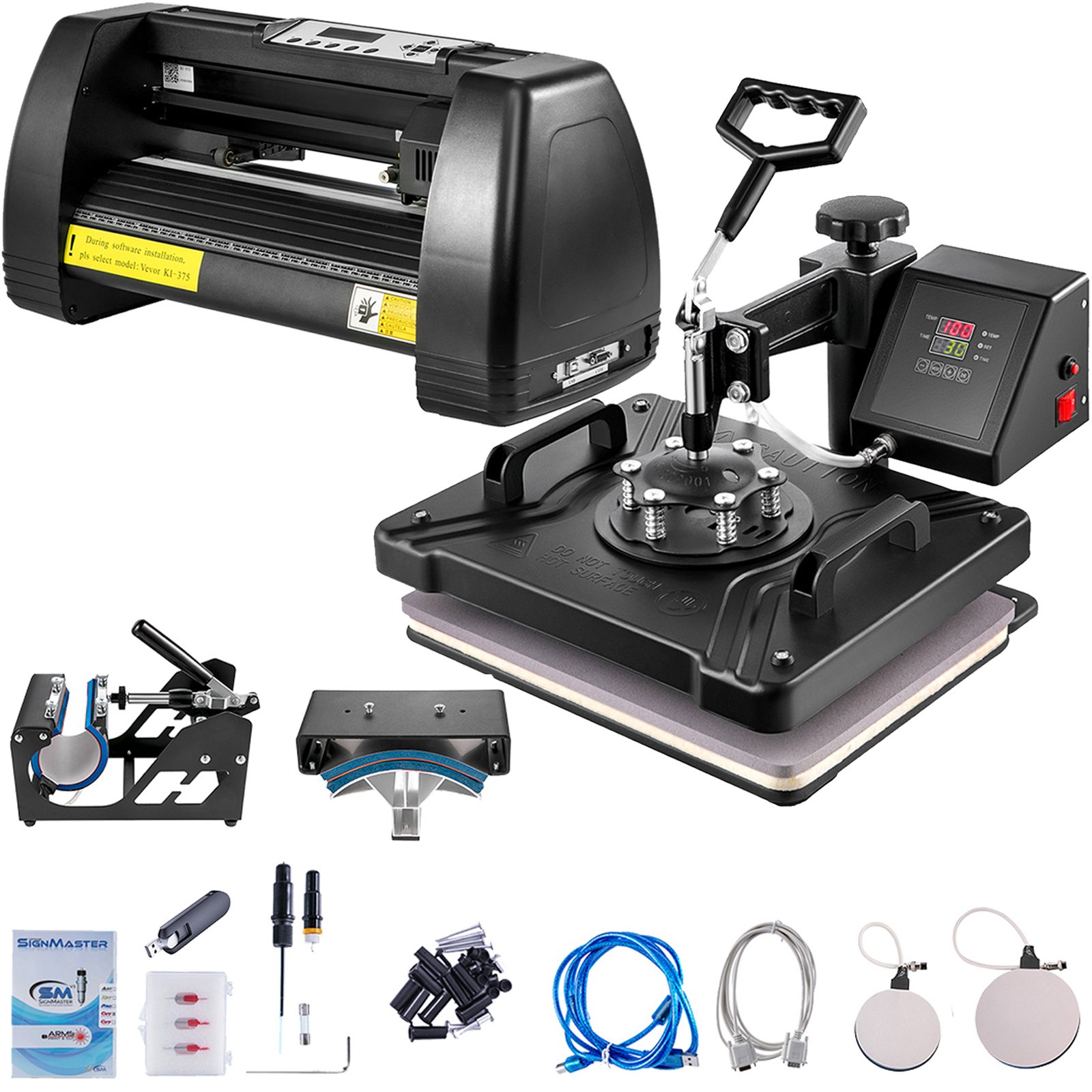

5 in 1 15" x 12" Heat Press Machine

• 1 X Fully-assembled Machine with Platen Press
• 1 X Hat Press
• 1 X Mug Presses
• 2 X Plate Presses
• 1 X Removable Silicone Pad and Cotton Pad
• 1 X Wrench & Screwdriver

• 1 X Operating Manual
• T-shirts, cups and hats are NOT included

14 Inch Vinyl Cutter Machine with Signmaster Software

• 1 X 14 Inch Vinyl Cutter Plotter Machine
• 1X SIGNMASTER Software
• 1 X Blades Holder
• 3 X Blades
• 1 X Pen Holder
• 1 X USB Cable
• 1 X Serial Cable
• 1 X Power Cord
• 1 X USB Driver
• 1 X User Manual
