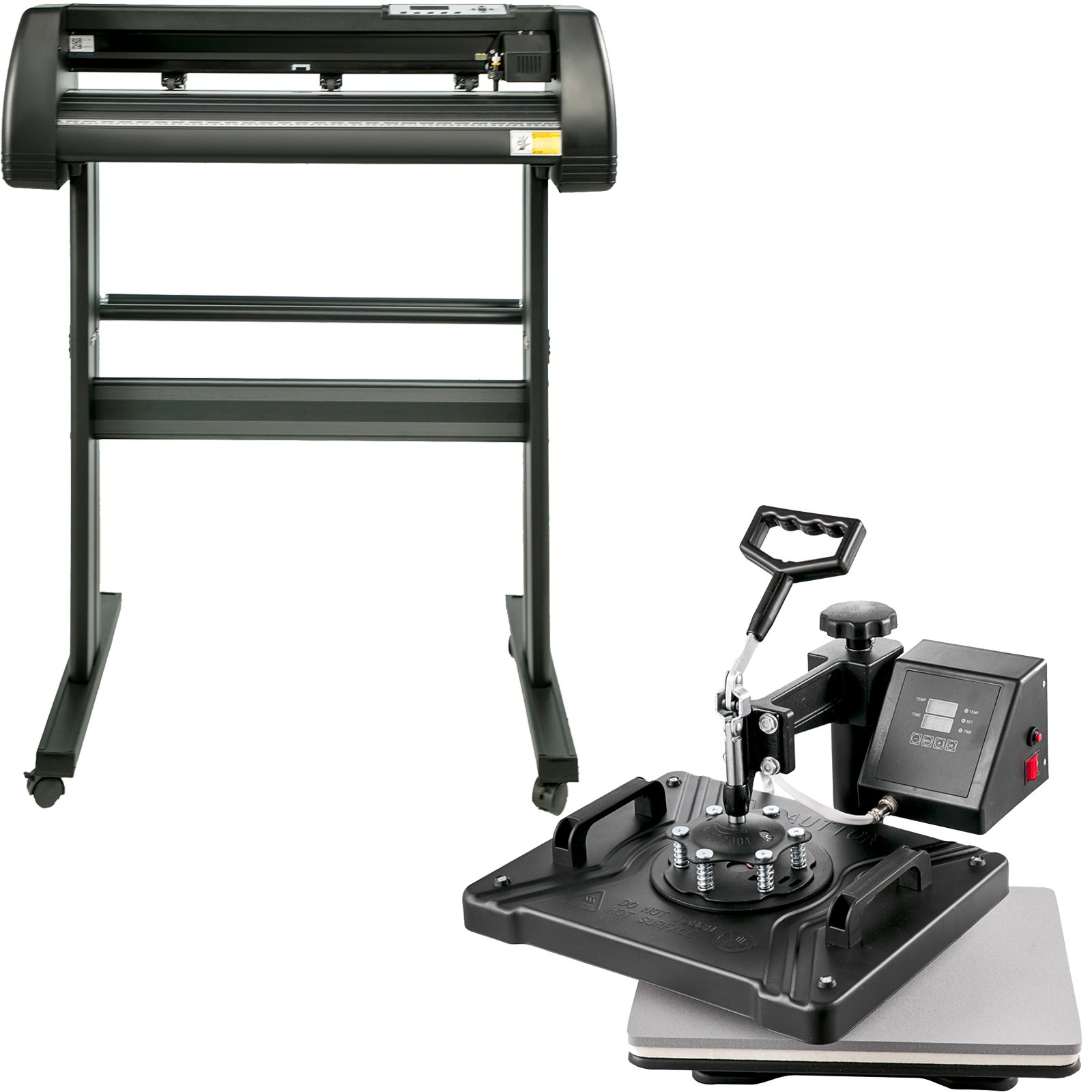

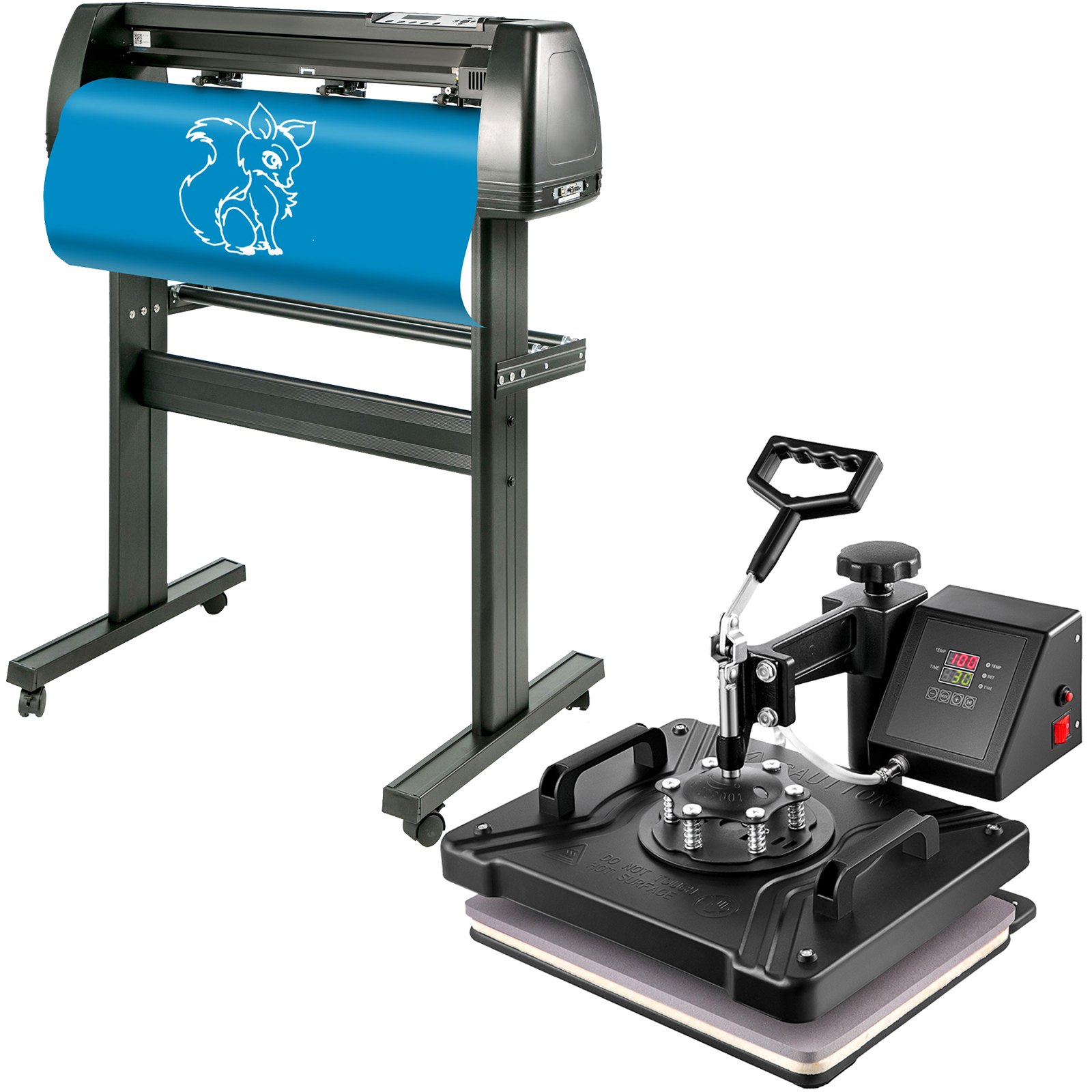

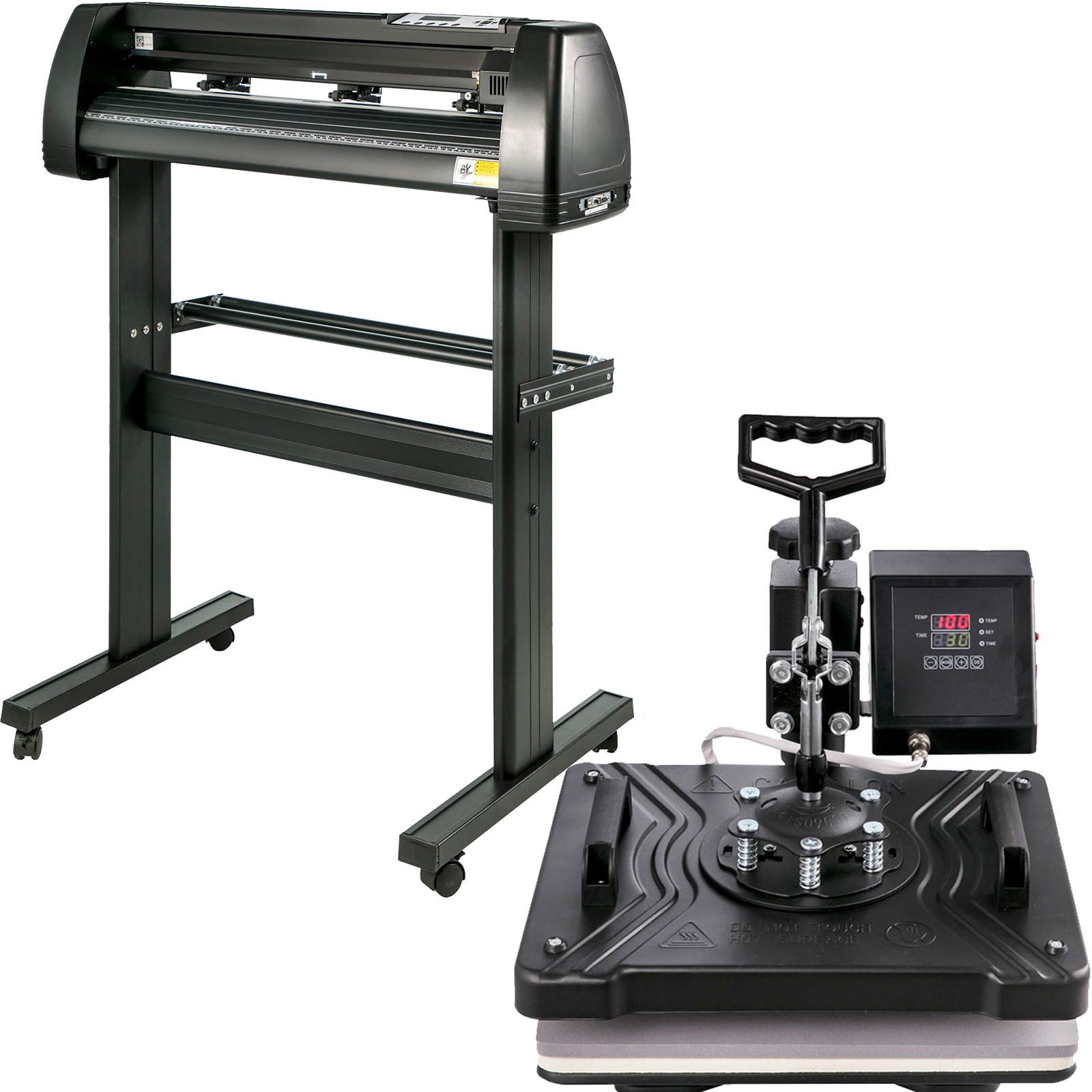

Vevor 5 in 1 Heat Press 12"x15" Transfer Cap 28" Vinyl Cutter Plotter Cutting 3 Blades

This listing offers youa5 in 1 15" x 12" Heat Press Machineanda28 Inch Vinyl Cutter Machine with Signmaster Software!!

5 in 1 12" x 15" (30x38 cm) Heat Press Machine

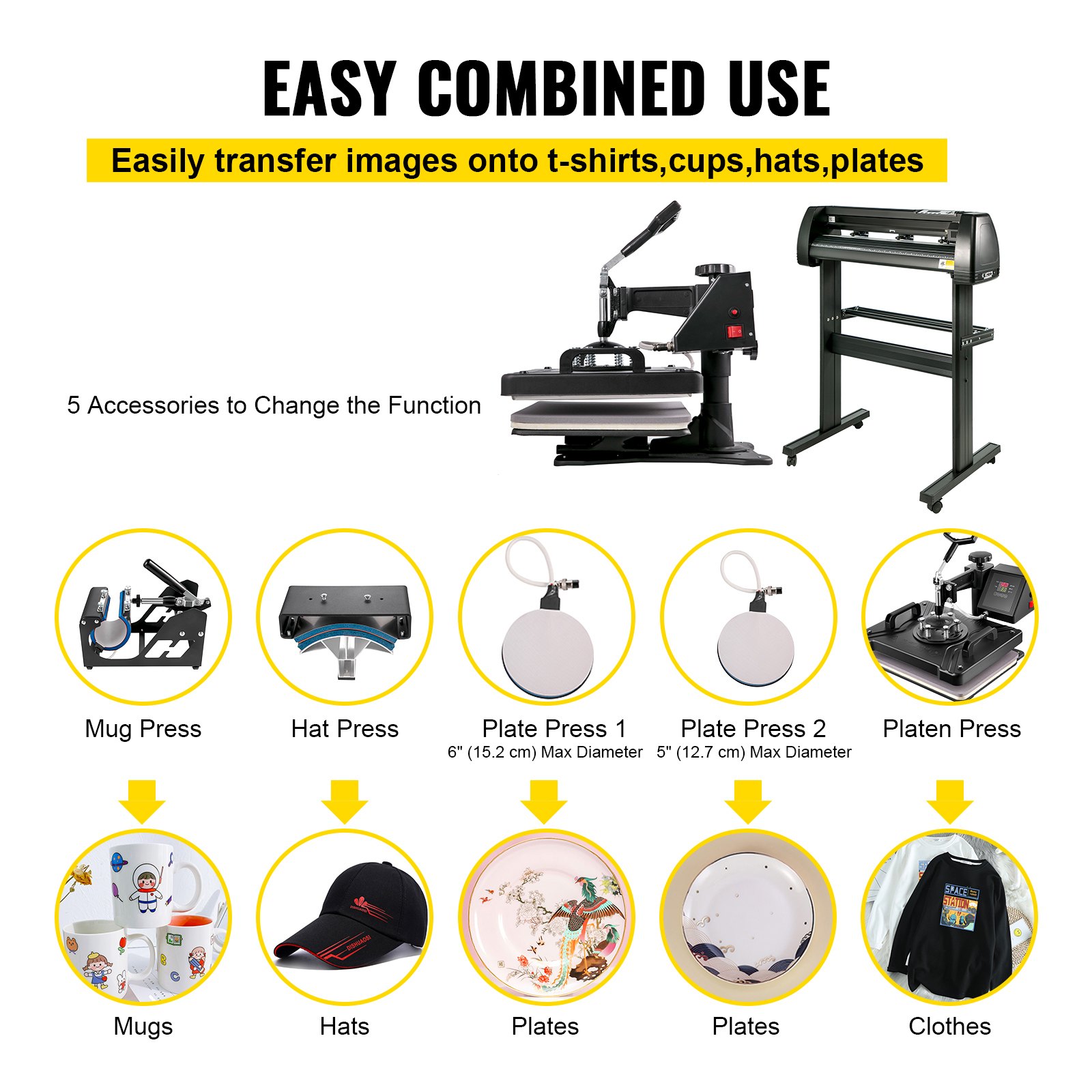

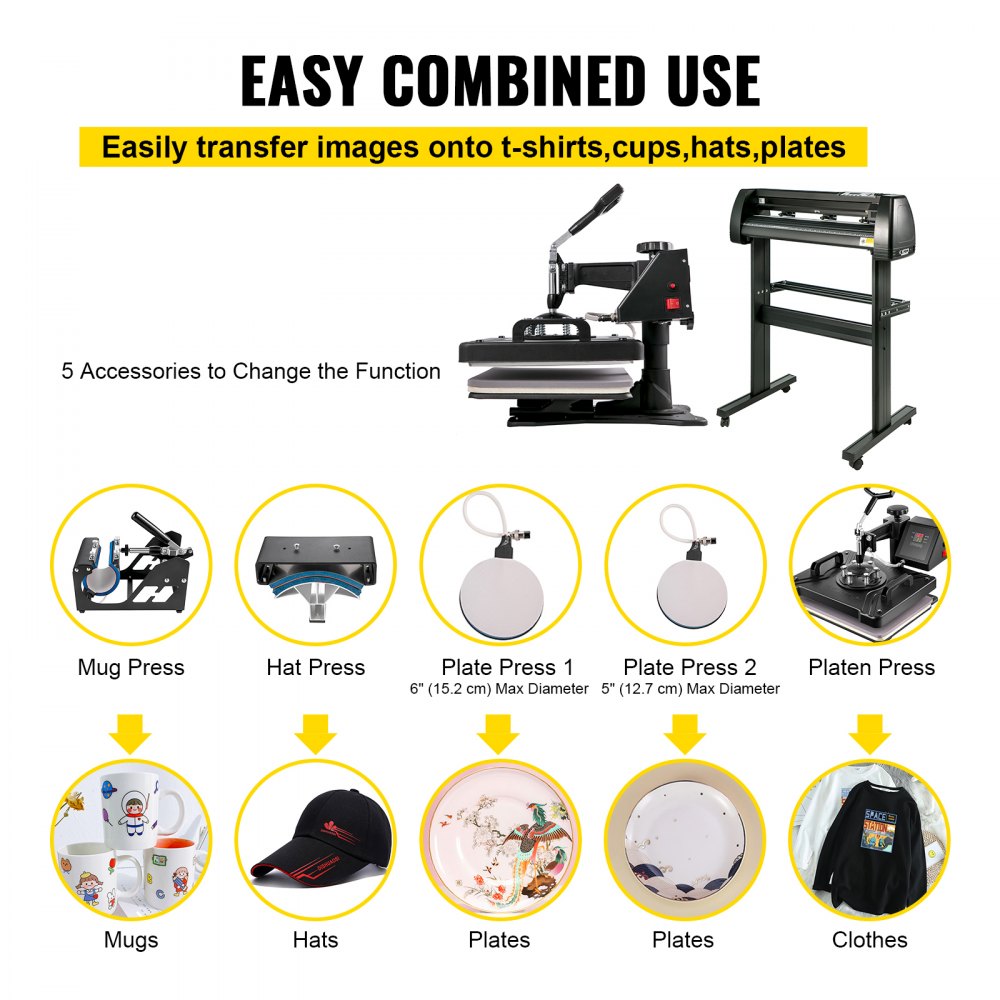

Can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc. This all-in-one press includes flat platen, mugs and plates. The swing-away heat press boasts all of the must-have attachments. It has a built-in Teflon coated 12" x 15" (30x38cm) heat platen with a full range of heating coils to allow for consistency throughout its surface. The digital timer control is adjustable up to 999 seconds. Fahrenheit and Celsius scales selectable. Initial temperature setting range: 93-254℃. Highest temperature setting range: 200-450℉.

The machine is of metal and plastic construction, sanding surface,comfortable feeling. Automatic electronic timing when single table integrated, automatic alert when processes is completed. Built-in fuse for safe using. Slides design make the changing of the parts easier and fast, save your time and effort. Adjustable feet for unevenly floor. Novel, fashion, high-grade design, reasonable structure, easy operate.

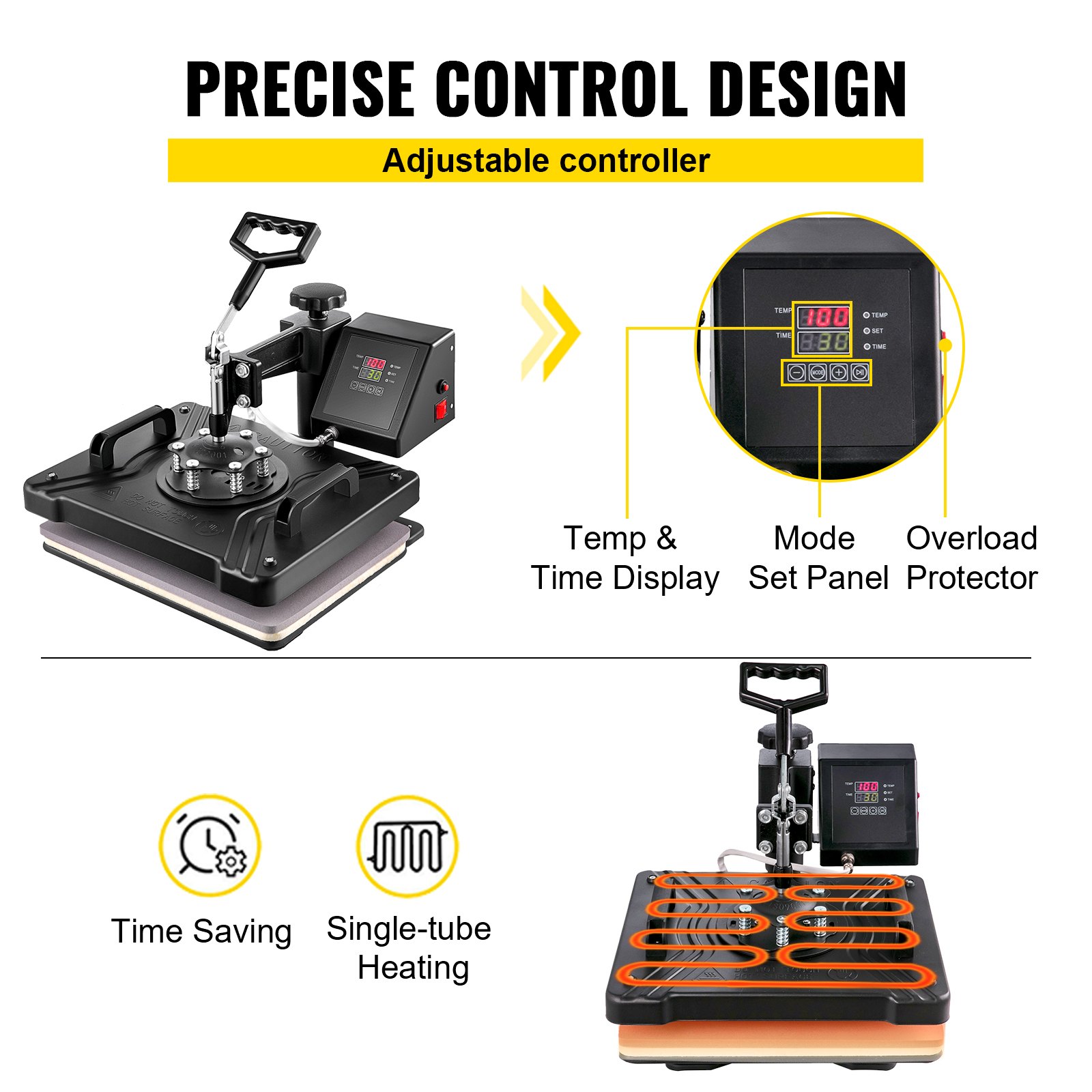

Digital LED controller - Preset the desired temperature and time. Intelligent audible alarm after the transfer is done.

Adjustable multi-spring balancer - Allows pressure to be more evenly distributed across the entire platen when it is closed.

Upgraded aluminium alloy cradle - Detached cradle for use of the mug elements. Compact size and lightweight, as compared to standard mug cradles.

28" Professional Vinyl Cutting Plotter with Stand

Comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!

Illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings. Emergency stop/start function allows stop and restart.

Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.

Compatibility: DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64). NOT compatible with Mac system when used with this cutter.

• 【Works Cooperatively】- 28 inch vinyl cutter, together with 5 in 1 heat press, enables quick design and product making, a nice combination for art business

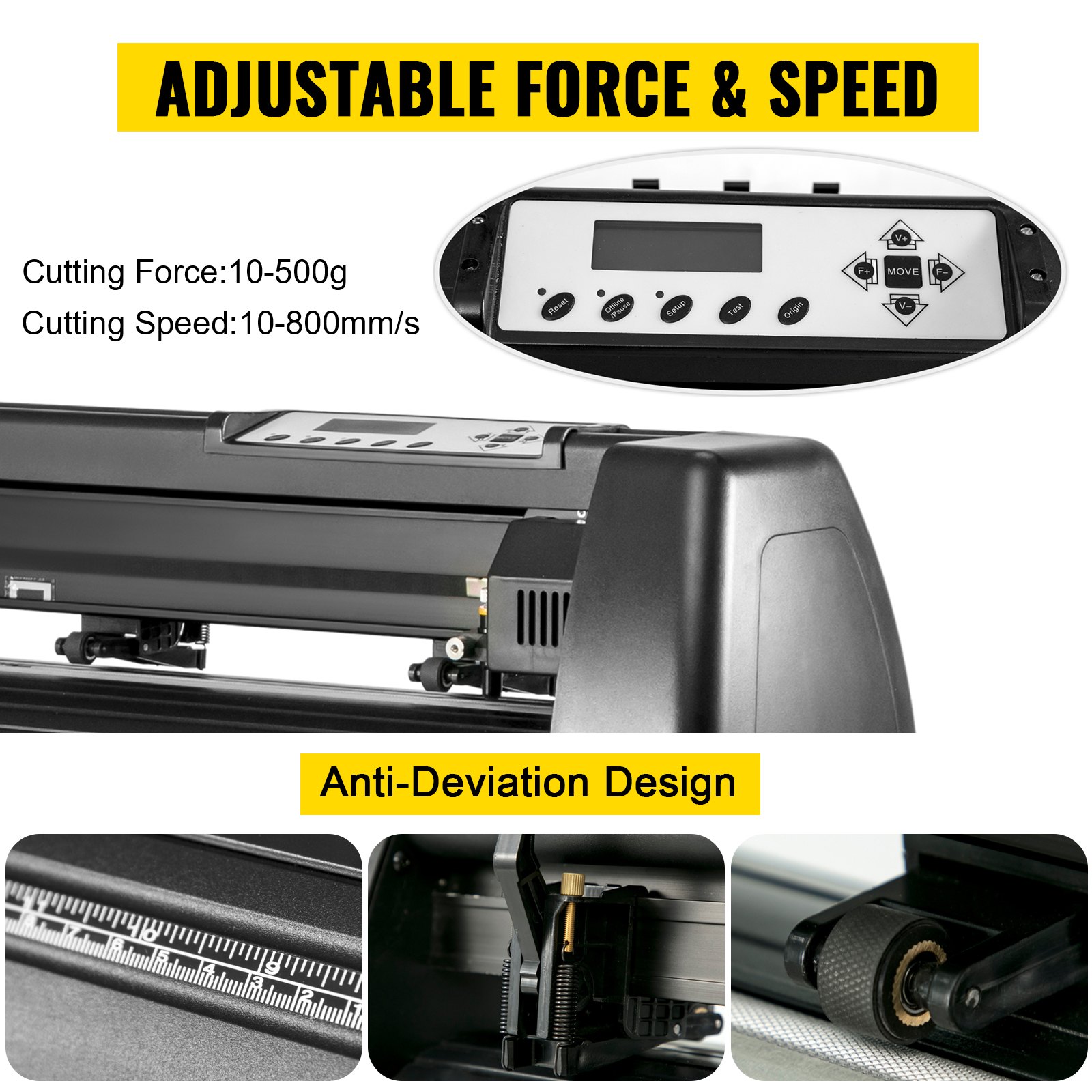

• 【Flexible Cutting】- Plotter machine cutter pressure: 10-500g. Cutting speed: 10-800 mm per second. Both adjustable
• 【2 Rollers】- 2 fully adjustable pinch-rollers allow you to use a flexible range of materials. Roland compatible blade holder gives you access to the most economical blades available

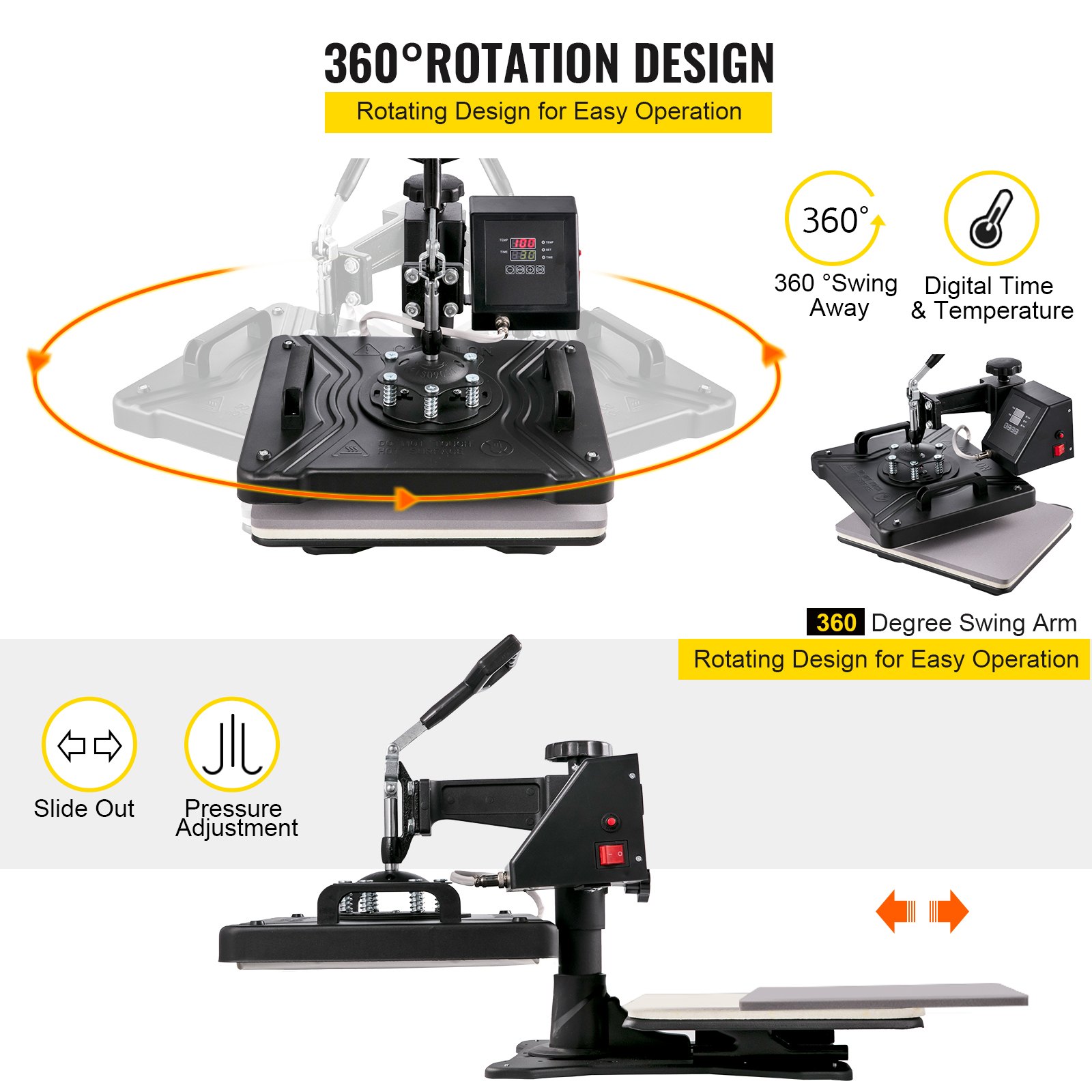

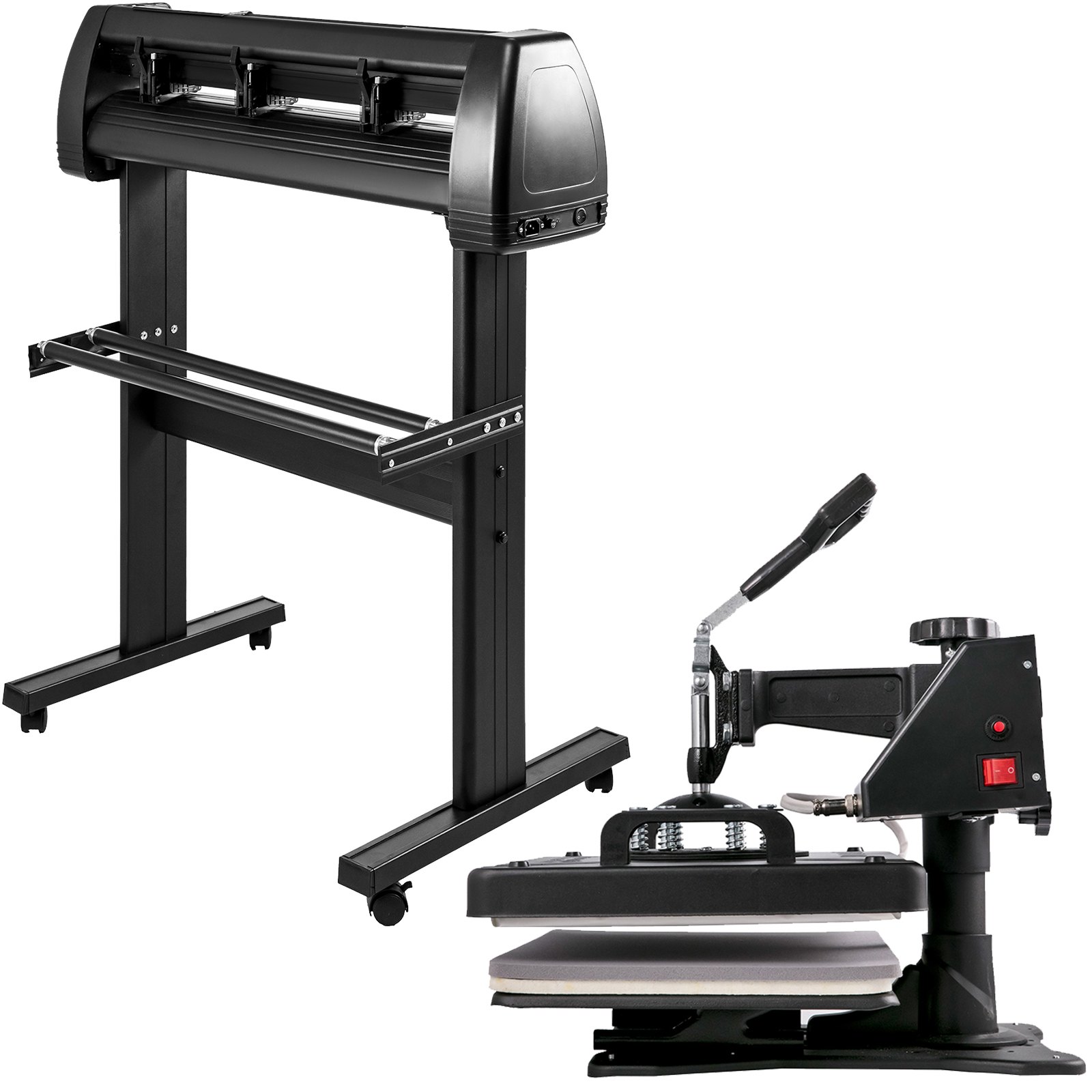

• 【360-degree Rotation】- Swing-away design of heat press allows the heating element to be moved safely aside and reduce the chances of accidental contact
• 【Teflon-coated Platen Press Element】- The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.

User Manual is included in the attached USB flash disk.

NOT compatible with IOS system！

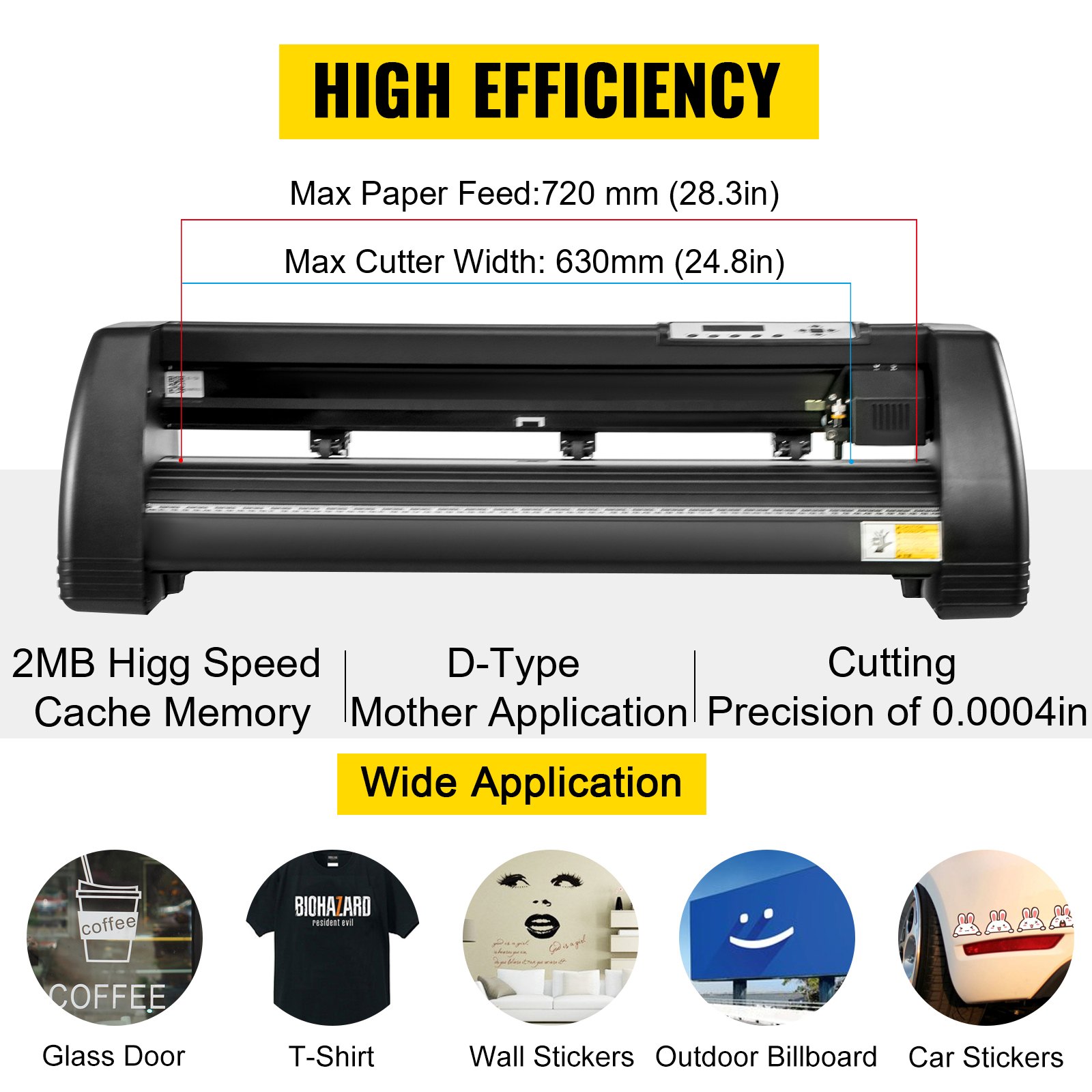

Feeding and Cutting Capacity

• Professional vinyl cutting plotter. Maximum paper feeding capacity: 720 mm (28.3 inch). Maximum actual cutting width: 630 mm (24.8 inch). Advanced design allows adjustment of cutting force and speed while working.

Large 12" x 15" Transfer Element

• Heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc. 4/5" thick heating board with built-in structural support to maintain flatness. Warms up quickly and offers even heating.

Signmaster Software

• Extremely easy-to-use program with endless possibilities allows you to cut virtually any shape or design with your cutting machine. Gives you the ability to use your fonts, import custom artwork, and draw on your own shapes!

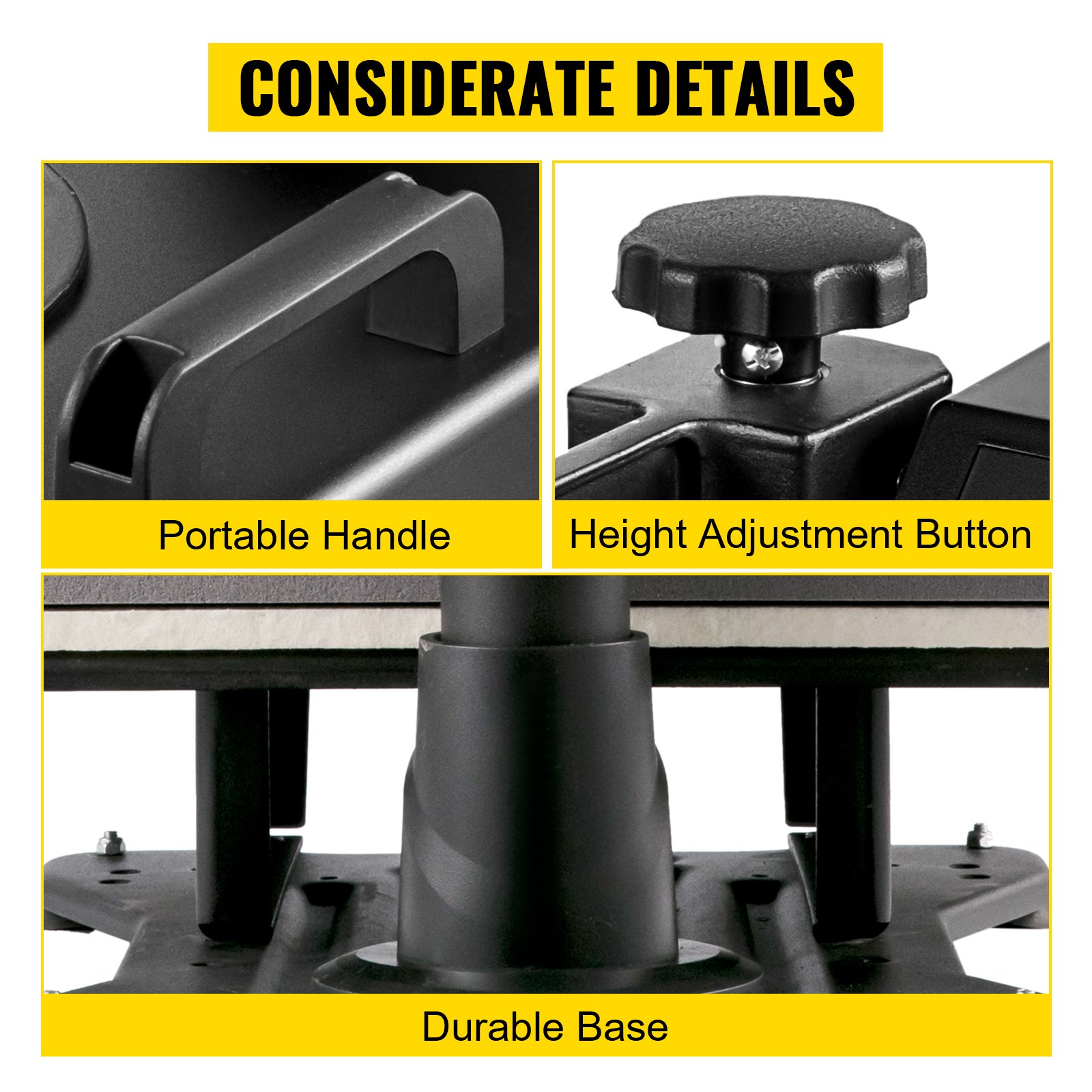

Humanized Design

• Full-range adjustment knob allows heat transfer pressure to be adjusted according to material thickness. Comfortable 2 4/5" long rubber grip for everyday use. Detachable lower platform is elevated with dual supports. Easy exchange to other elements.

Overload Protector Replacement

• A small red button on the control box of heat press will pop-up when voltage is unstable or too high, thus providing protection for control box as well as heat platen.

Power and USB Interface

• USB connection of vinyl cutter is accomplished through serial conversation to support the long-distance data transmission. Equipped with 110V 60Hz power cable, perfectly used in USA.

5 in 1 15" x 12" Heat Press Machine

• Temperature Range: 200-450 °F（95-232 °C）
• Timer Control: 0 - 999 seconds
• Adjustable Height: 13 1/2" to 17"
• Wattage: 1250W
• Power Input: 220V
• Cord Length: 4.5"
• Platen Press (telfon-coated): 12" x 15" (38X30cm)
• Hat/Cap Press: 6"x 3" (curved)
• Mug Press:3"-3.5"diameter (11OZ)
• Plate Press #1: 5" max diameter
• Plate Press #2: 6" max diameter

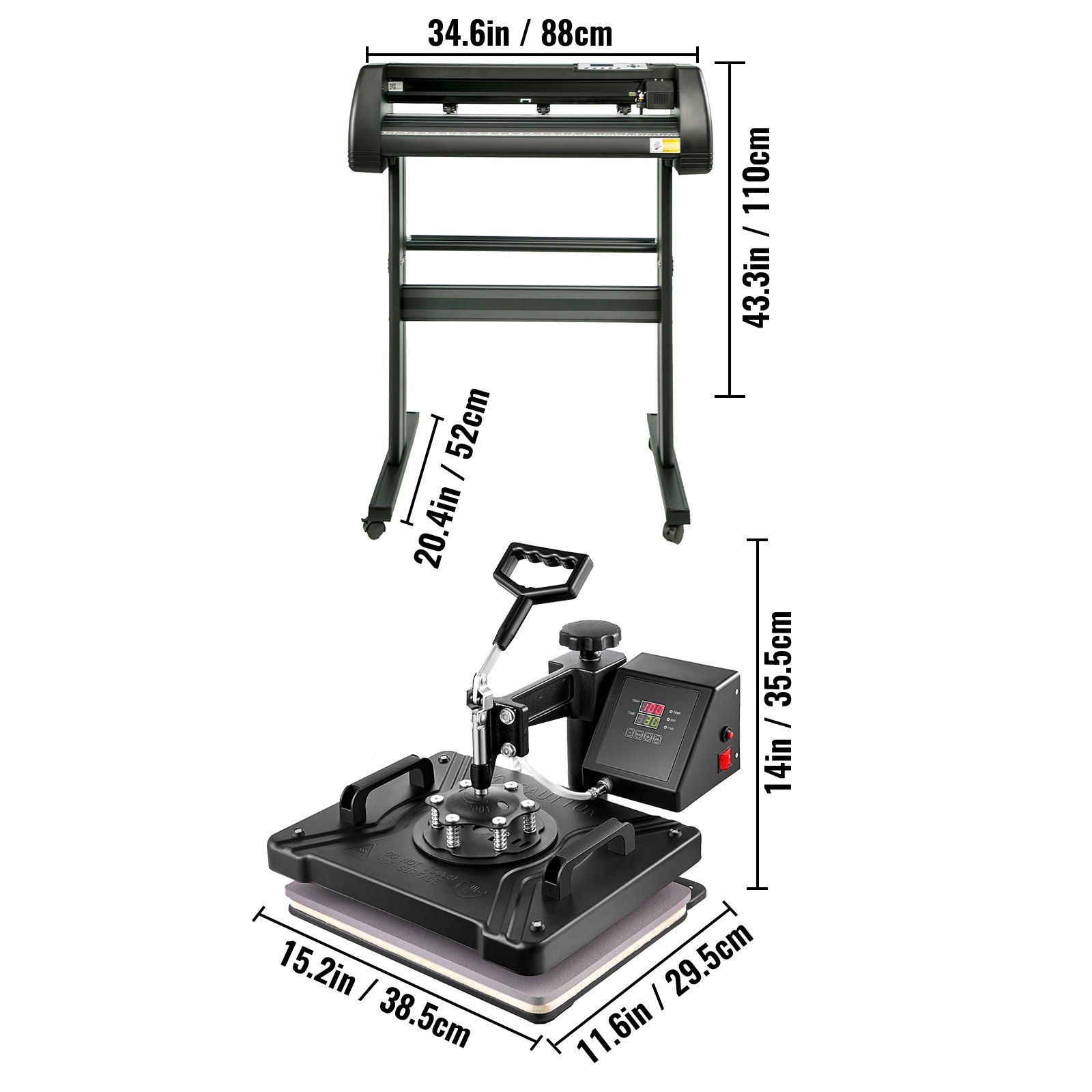

• Product Size：38.5 x 29.5 x 35.5 cm/15.15 x 11.61 x 13.97 inch

• Package Size：47.5 x 45 x 52 cm/18.7 x 17.72 x 22.83 inch


28 Inch Vinyl Cutter Machines with Signmaster Software

• Voltage: 220V AC, 50 Hz
• Blade Types: Standard, Roland Compatible, 2 mm Dia
• Software: Signmaster
• Motor Type: Stepper motor
• Interface: USB port
• Max Paper Feed: 720 mm (28.3 inch)
• Max Cutter Width: 630 mm (24.8 inch)
• Cutter Pressure: 10-500g
• Cutting Speed: 10-800 mm per second
• Number of Pinch Rollers: 2
• Memory: 128K-2M
• Positioning: Manual
• Language: DM/PL, HP/GL
• Repetition Accuracy: 0.0004" (0.01 mm)
• System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64)
• Gross Weight: 41.8 lb (19 kg)
• Package Dimensions (L x W x H): 37.4" x 13.4" x 16.5" (95 x 34 x 42 cm)

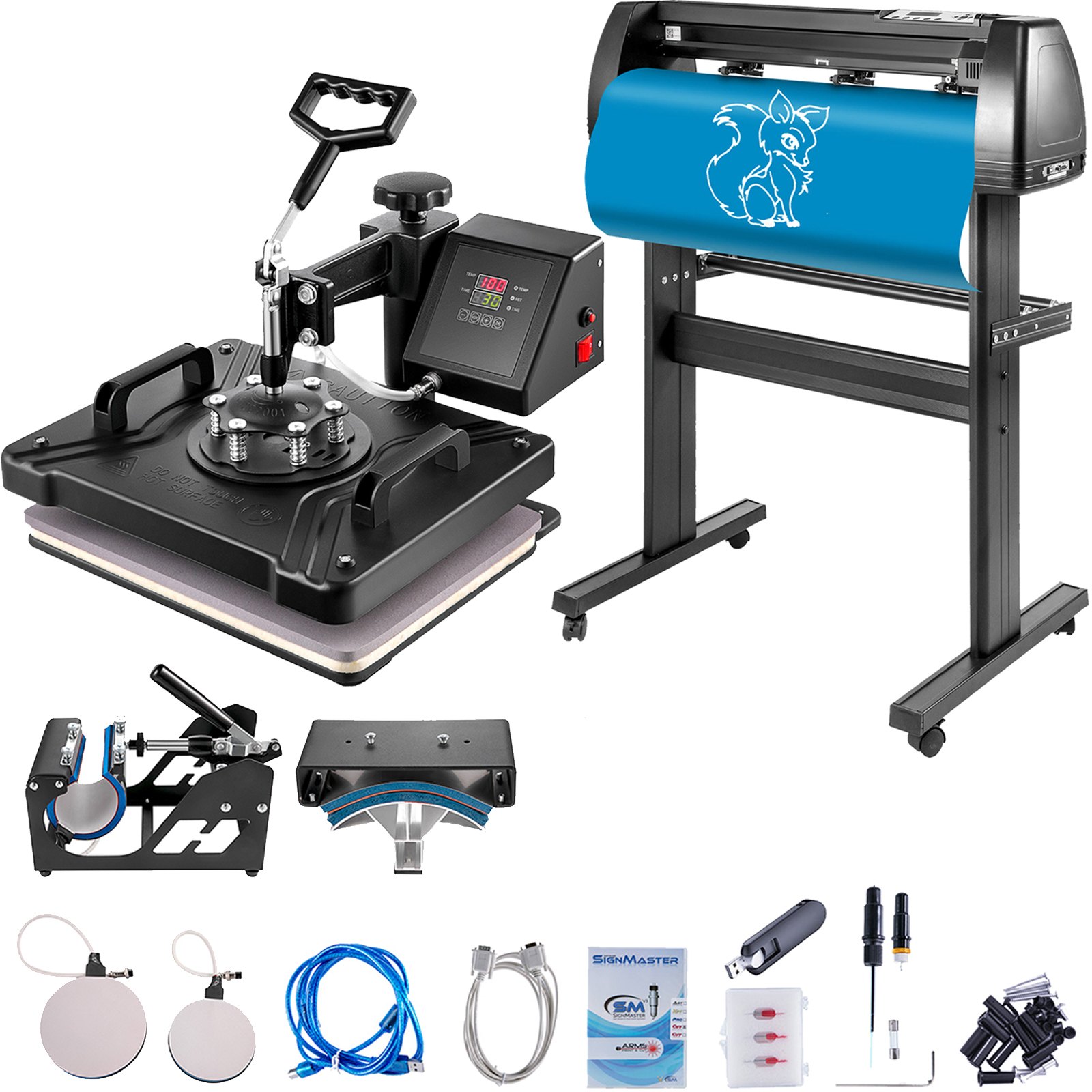

5 in 1 12" x 15" (30x38 cm) Heat Press Machine

• 1 x Fully-assembled Machine with Platen Press
• 1 x Hat Press
• 1 x Mug Presses
• 2 x Plate Presses
• 1 x Removable Silicone Pad and Cotton Pad
• 1 x Wrench & Screwdriver

• 1 x Operating Manual
• T-shirts, Cups and Hats NOT Included

28" Professional Vinyl Cutting Plotter with Stand

• 1 x 28 Inch Vinyl Cutter Plotter Machine
• 1 x SIGNMASTER Software
• 1 x Blades Holder
• 3 x Blades
• 1 x Pen Holder
• 1 x USB Cable
• 1 x Serial Cable
• 1 x Power Cord
• 1 x USB Driver
• 1 x User Manual
