VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS
ZD400010A600VL55YV0

VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

4000 Counts

  • 4000 Counts
  • 6000 Counts

About this item

  • Multi-functional & Precise Measurement: This 4000 counts multimeter allows for measuring various electrical parameters such as AC/DC current, voltage, resistance, and capacitance. With true RMS measurement, it ensures the accuracy of the measurement results.
  • Convenient & Easy to Use: Equipped with a large LCD screen and analog bar, this digital multimeter offers user-friendly operation and intuitive data reading. The backlight design with white light ensures easy usage at night, with the backlight lasting for 15 seconds.
  • High Reliability: Our multi testers are designed with overload protection, NCV detection, and true RMS function, ensuring a secure user experience. It is constructed with high-quality materials and precision craftsmanship, providing reliable performance and a long lifespan to withstand harsh work environments.
  • Suitable for Various Applications: In addition to basic current, voltage, and resistance measurements, the digital multimeter tester also has additional functions such as diode testing, duty cycle testing, and capacitance testing. It is suitable for power, railway, manufacturing, electrical testing, and equipment maintenance industries, catering to diverse field requirements.

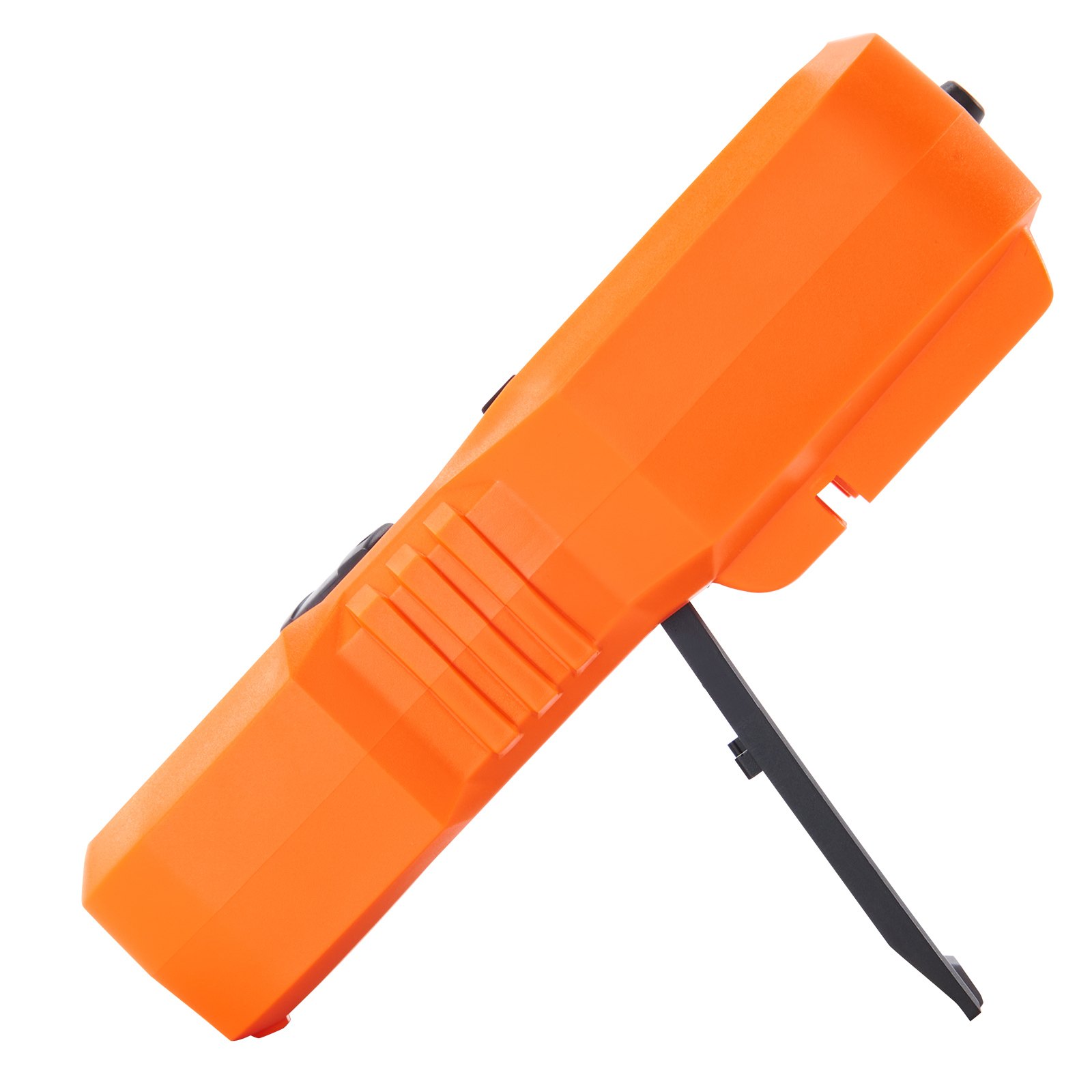

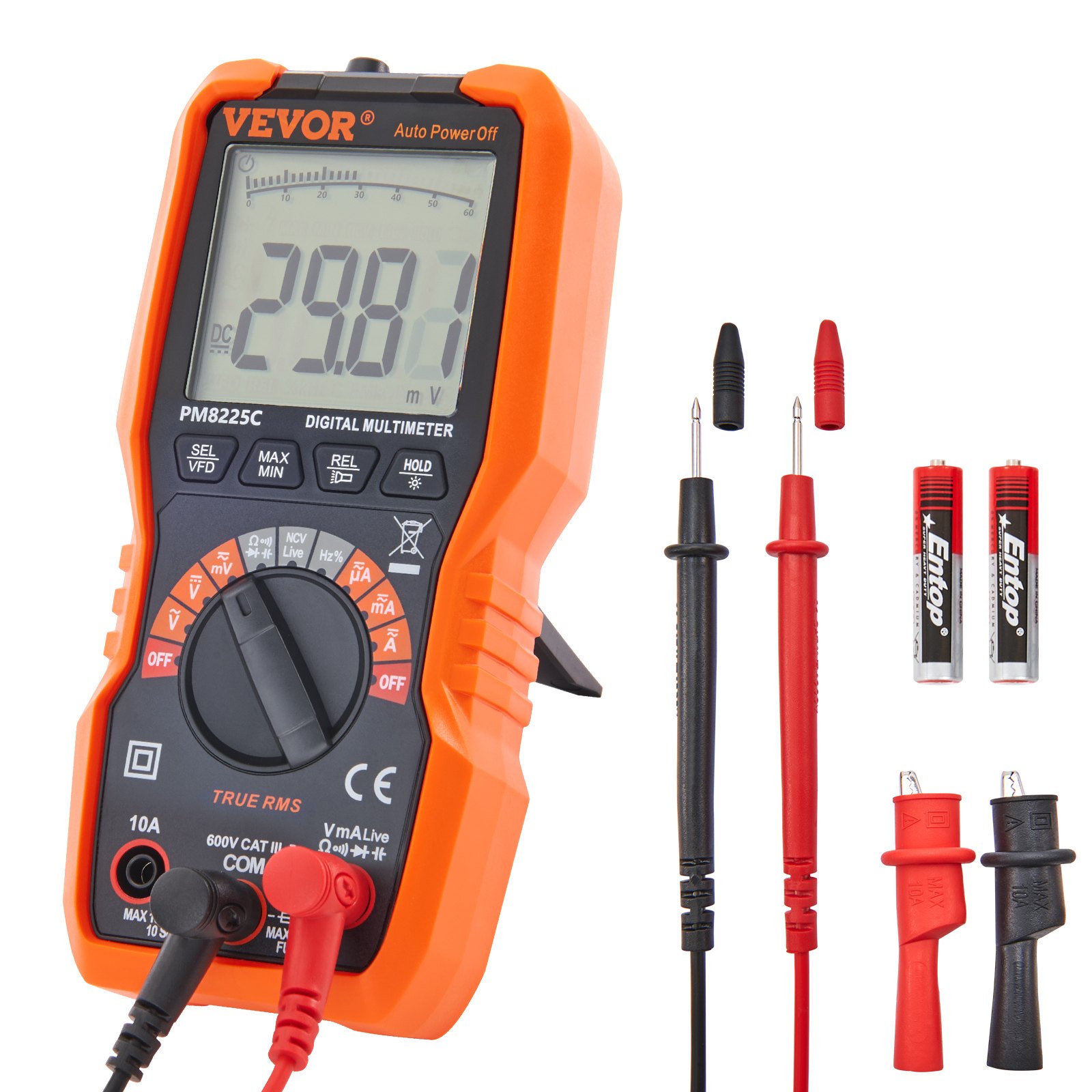

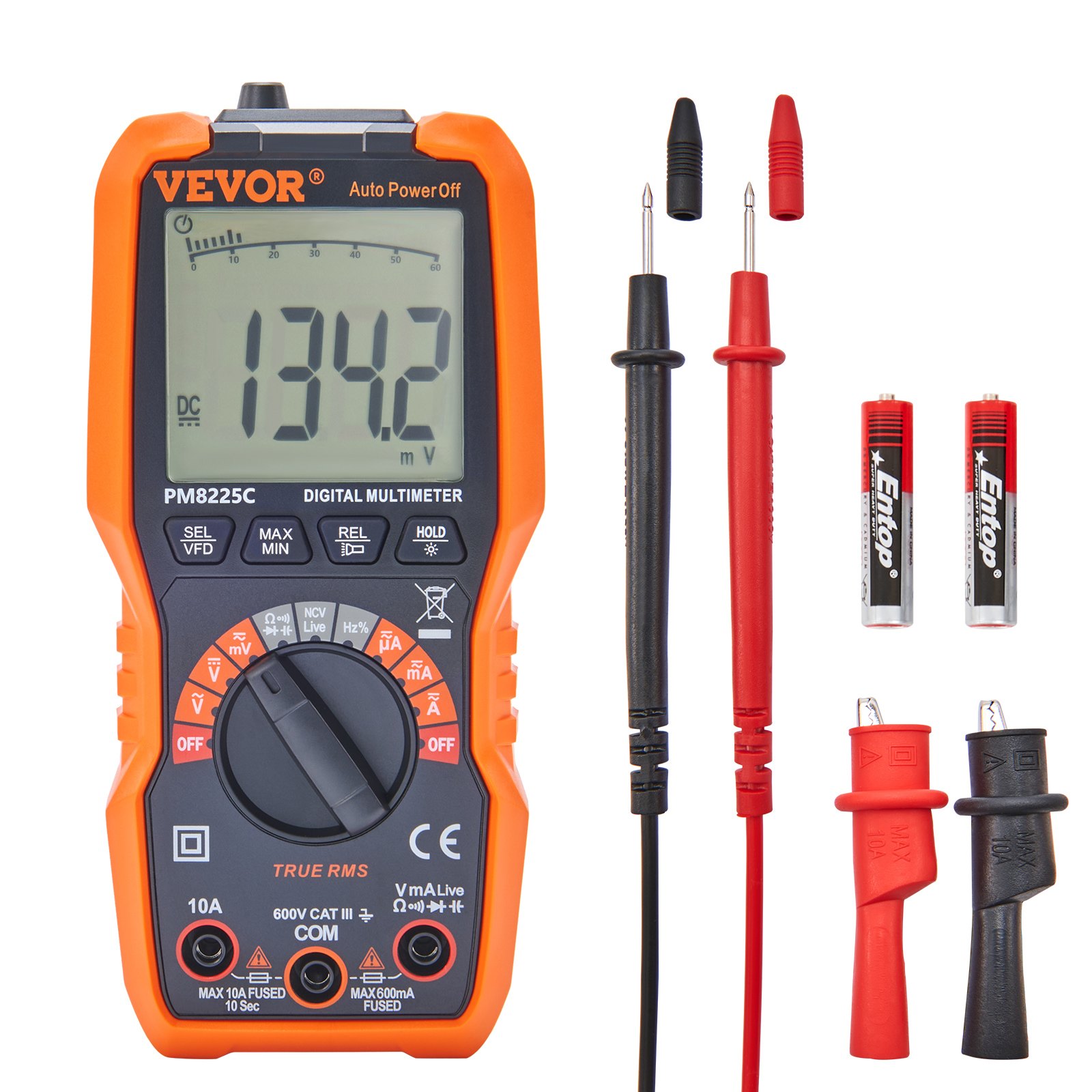

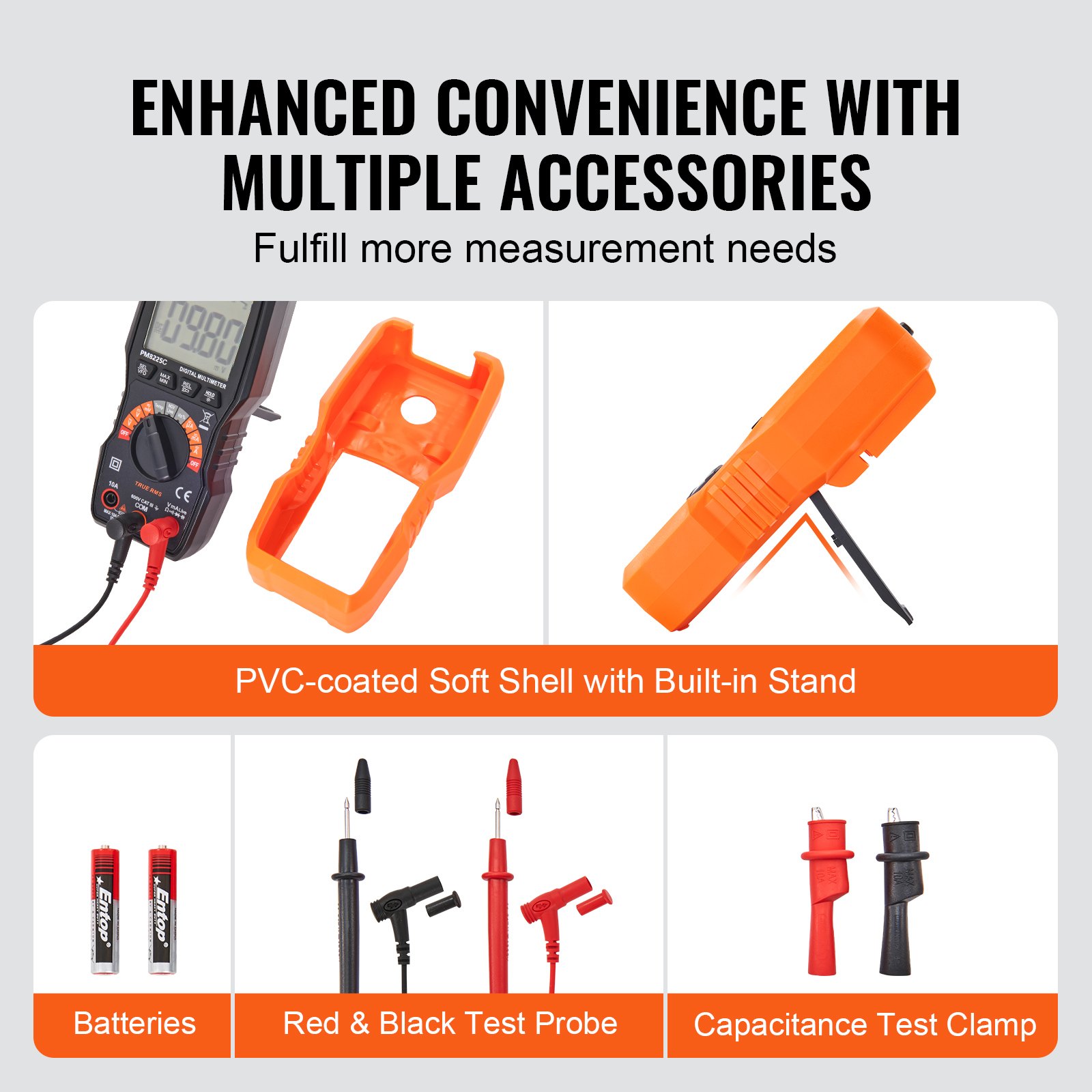

  • User-friendly Design: This electric multi tester is lightweight and portable, equipped with an ABS casing and a built-in stand, including accessories such as batteries, test probes, a capacitance test clamp, and a storage bag, ensuring convenience. The thoughtful battery indicator function provides reminders for battery replacement to ensure uninterrupted operation.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Digital Multimeter, 4000 Counts, Multimeter Tester DC AC Voltmeter NCV, Ohm Volt Amp Tester with Test Probes for Voltage Current Resistance Capacitance Continuity Diode Duty Ratio Frequency TRMS
4000 Counts
vevorA+Template

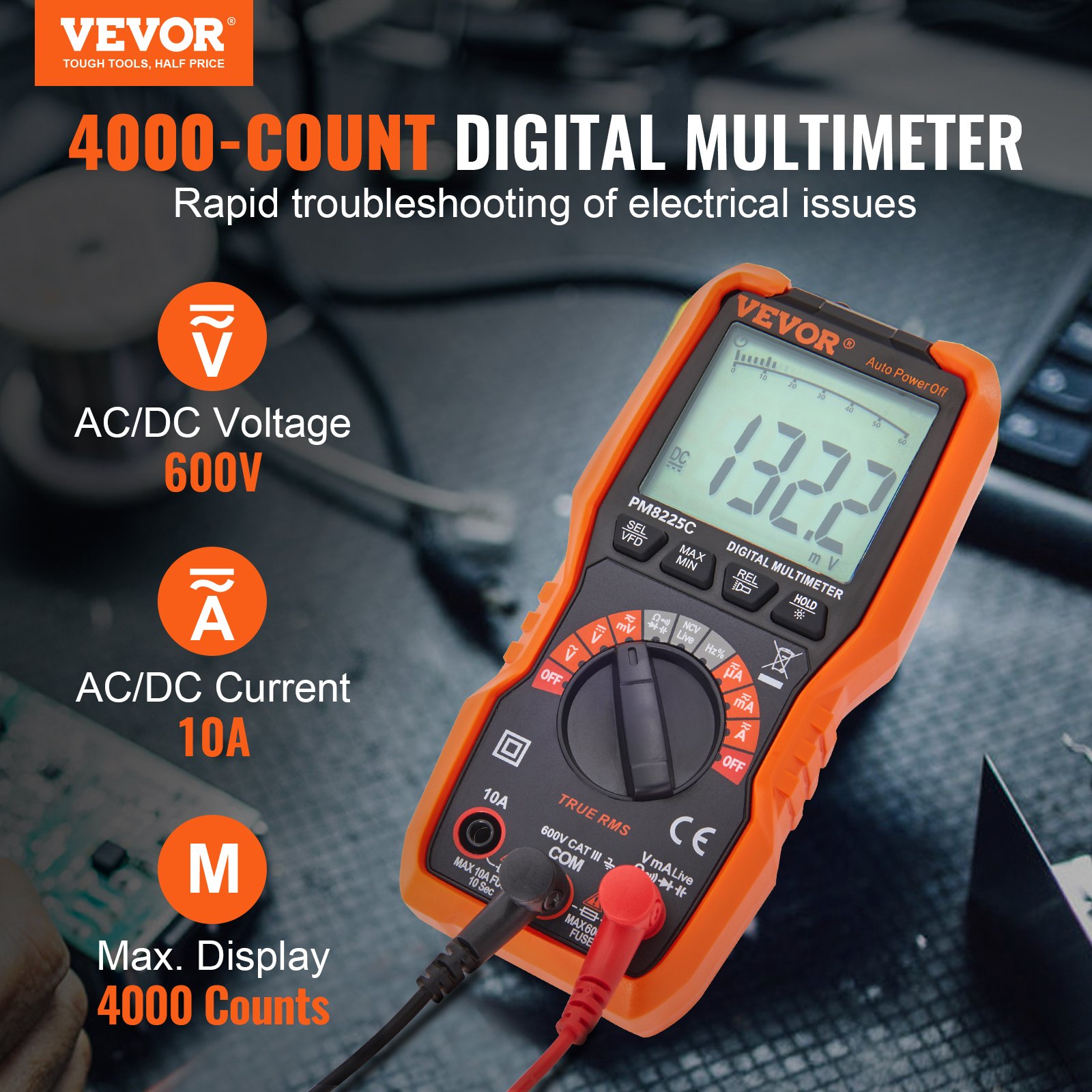

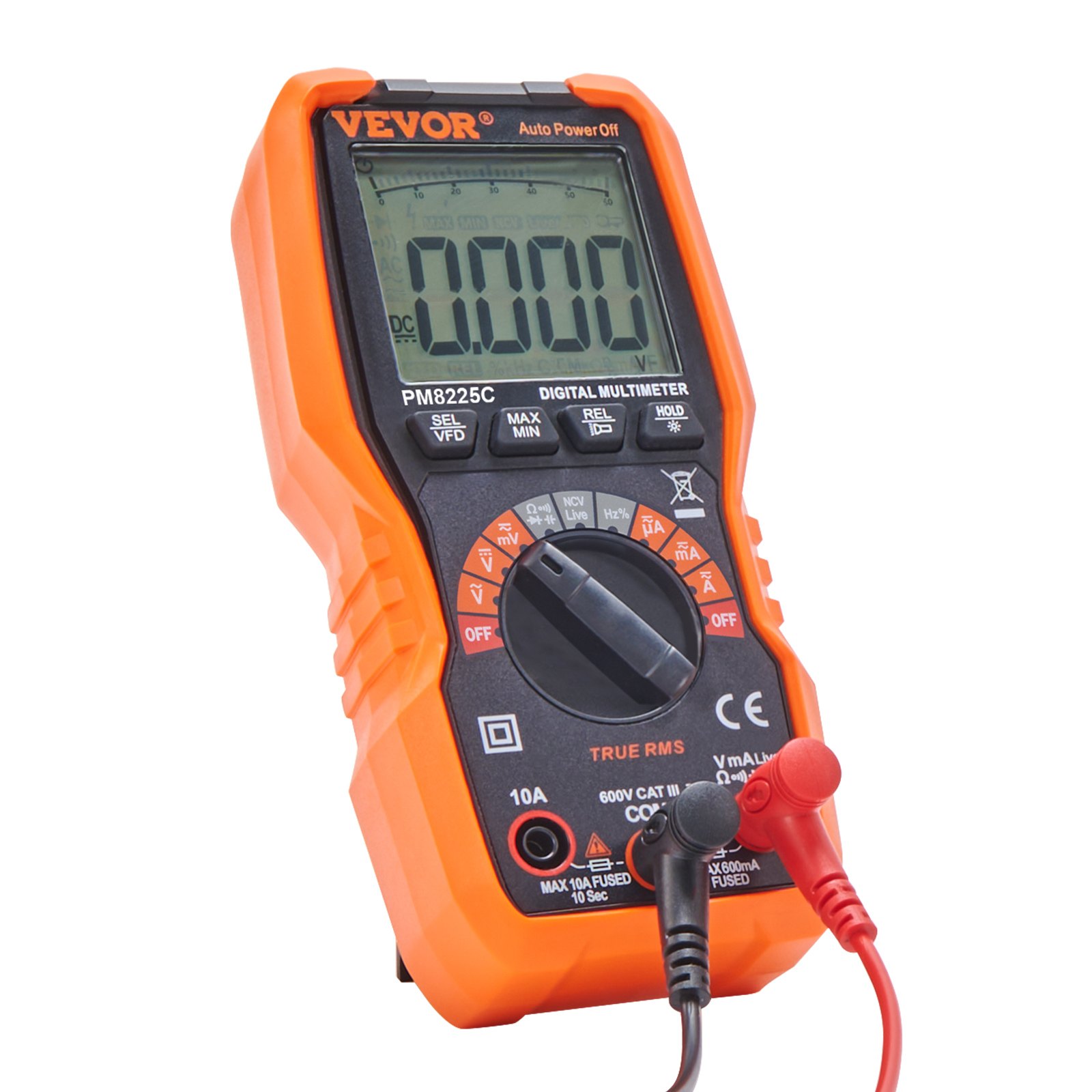

VEVOR 4000-Count Digital Multimeter

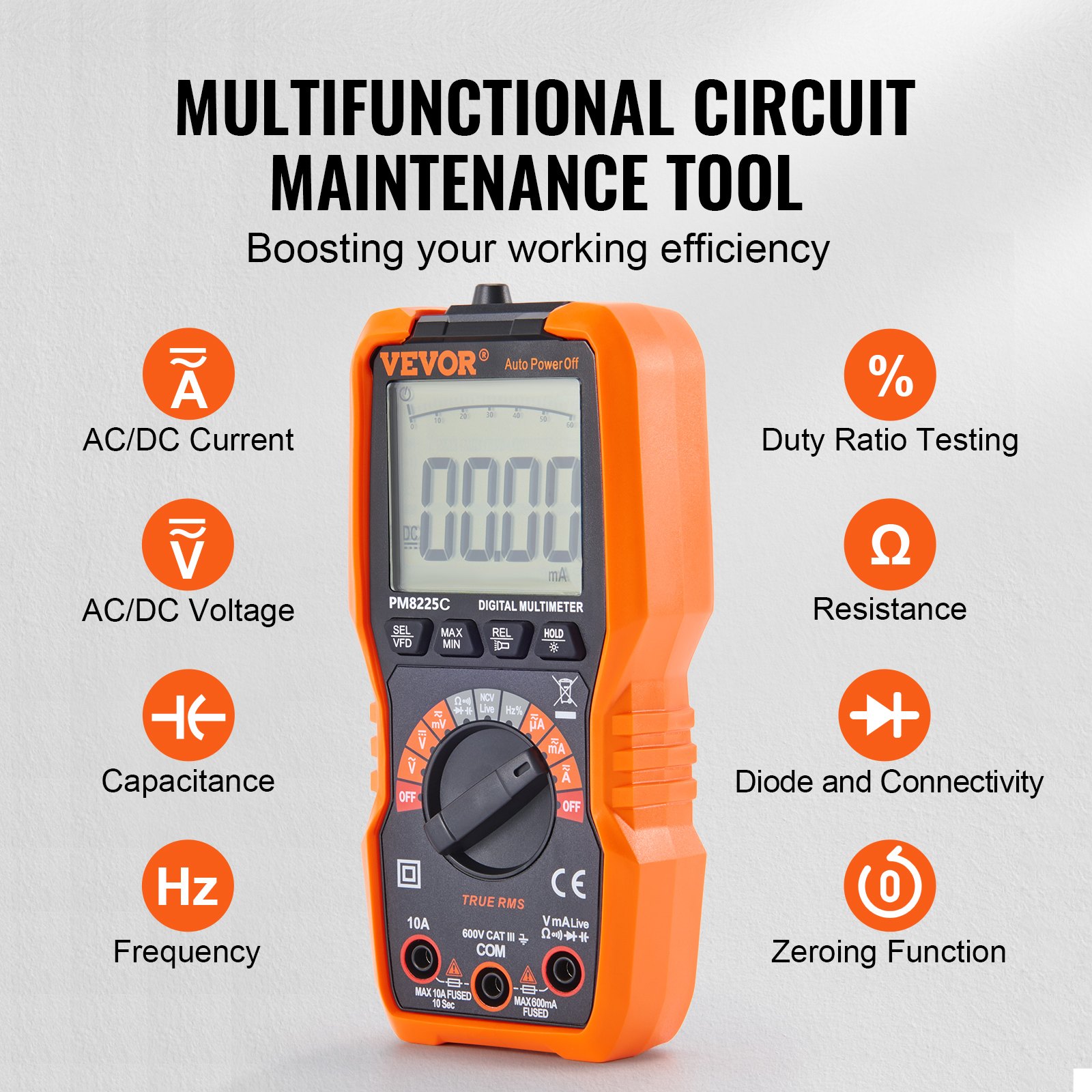

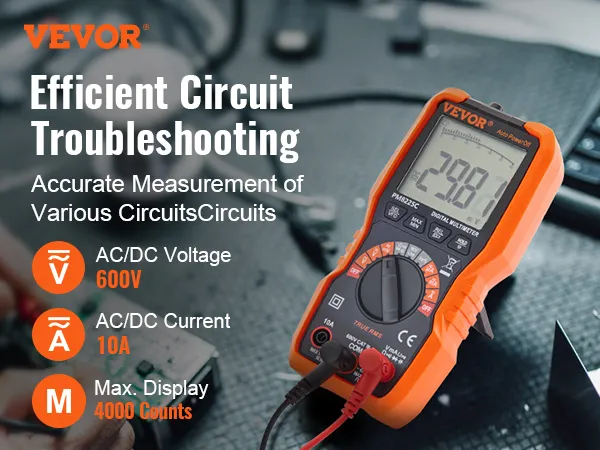

The 4000-count digital multimeter is designed to measure various electrical parameters, including AC/DC current, voltage, resistance, capacitance, frequency, duty ratio testing, and diode, effortlessly solving electrical problems.

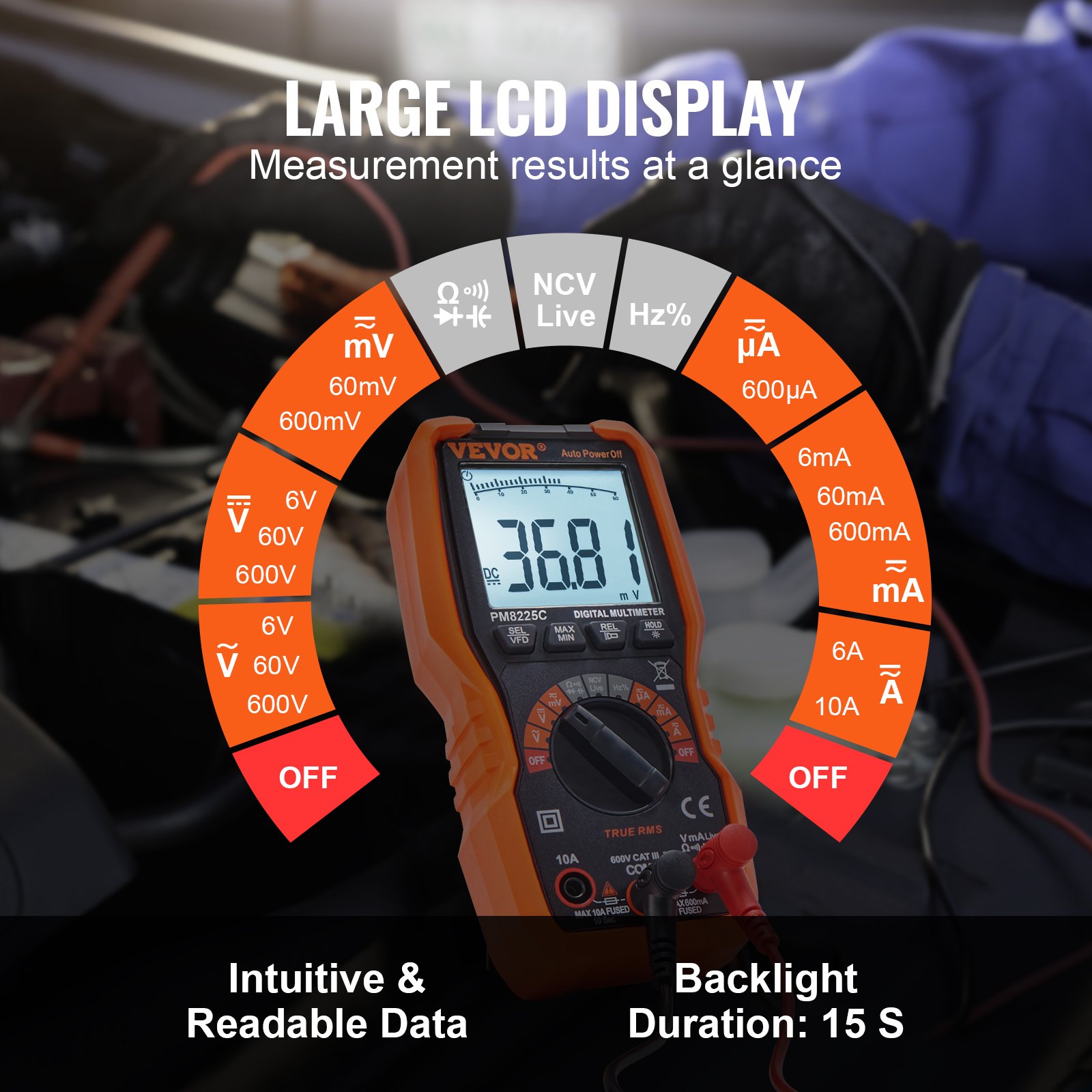

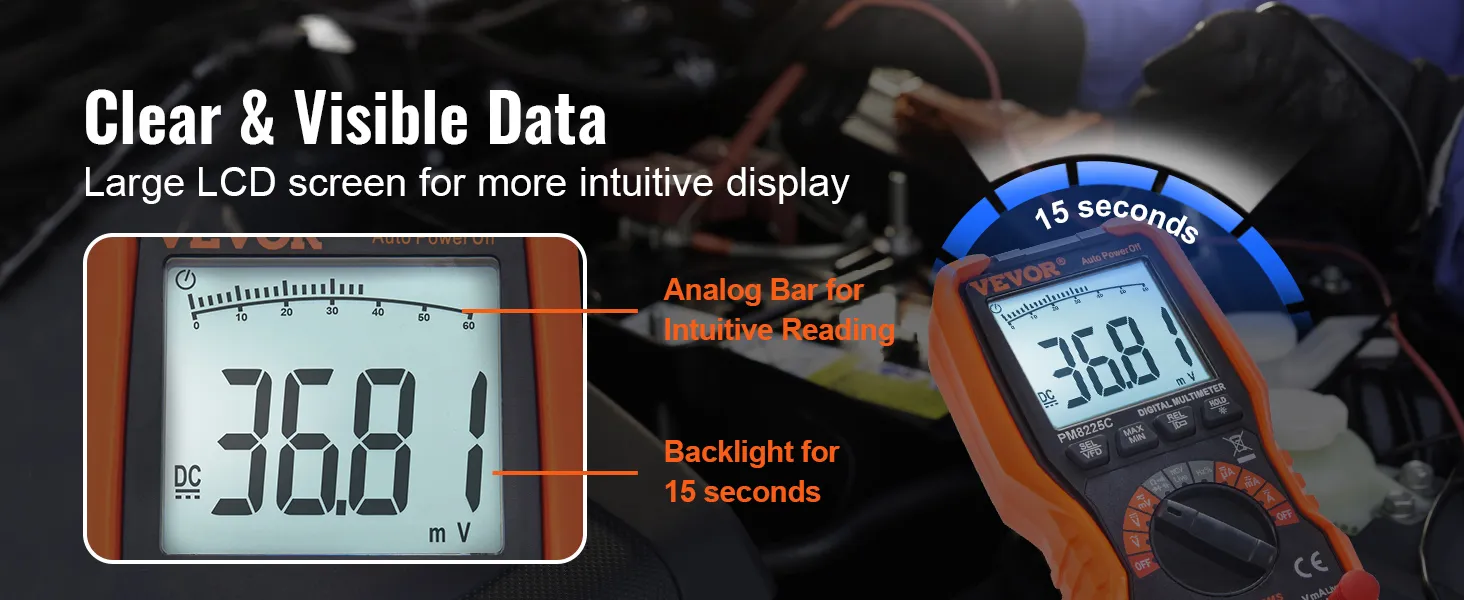

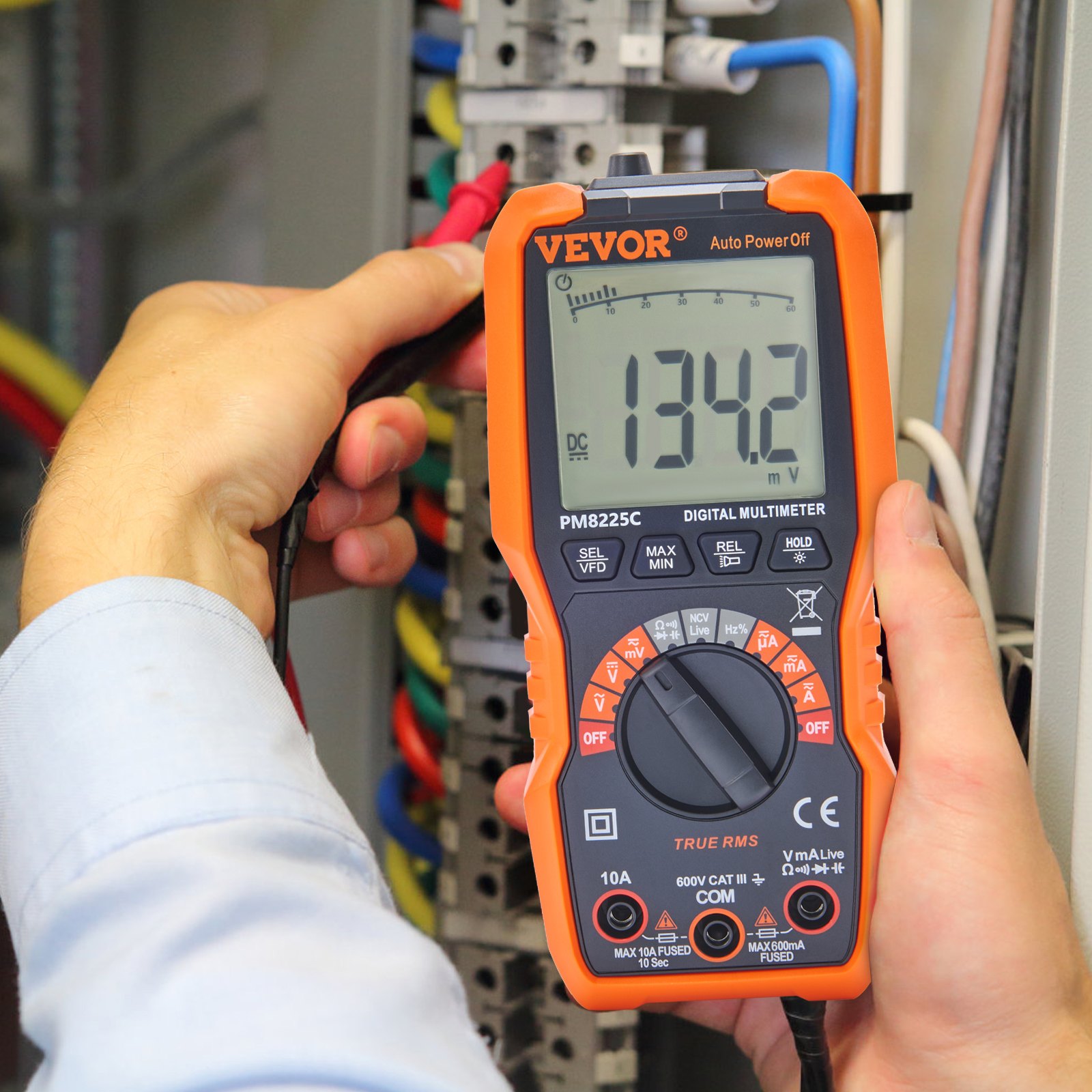

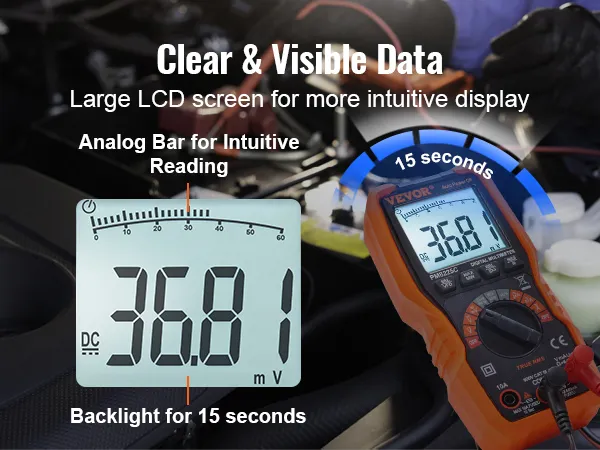

Equipped with a large LCD display, our digital multimeter tester offers easy operation and intuitive readability. The backlit design ensures convenient nighttime usage, with a backlight duration of 15 seconds.

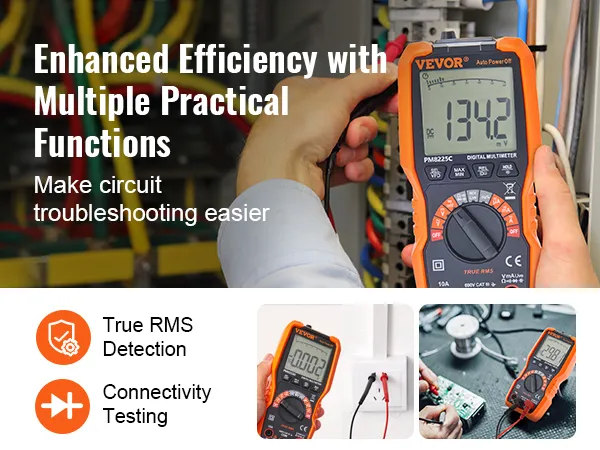

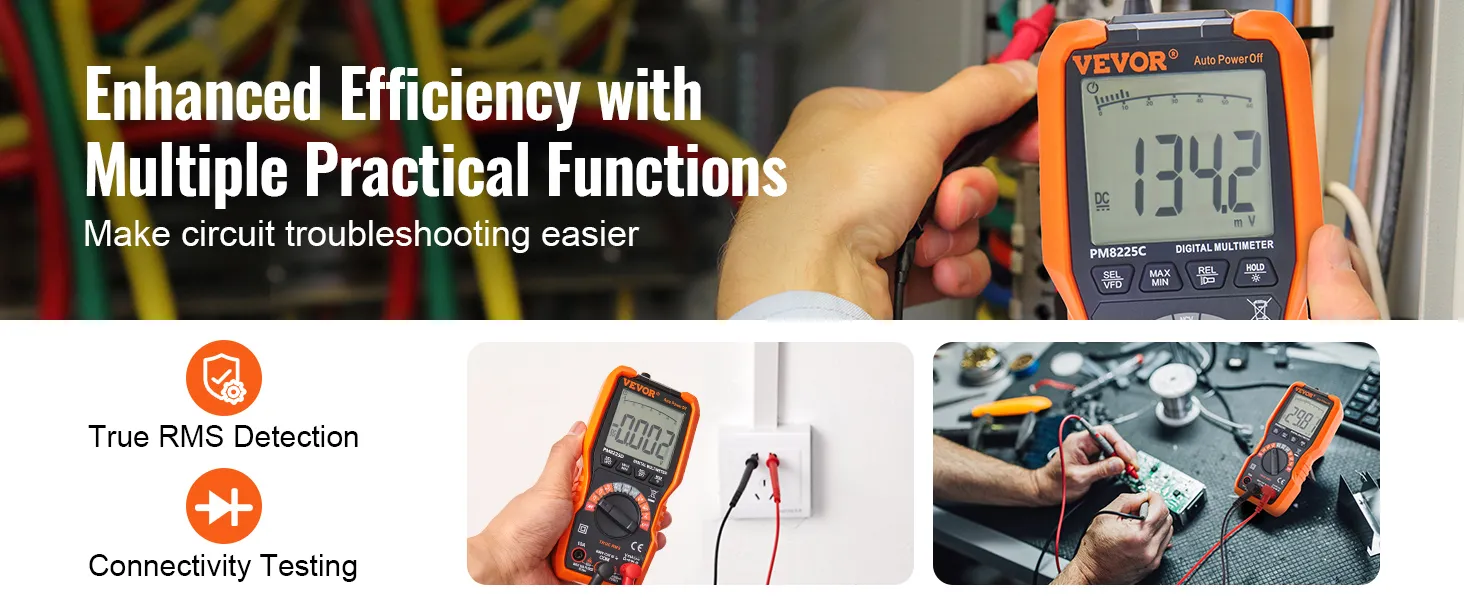

The multimeter tester features overload protection, NCV function, and true RMS detection function to ensure secure usage for users. It is manufactured with high-quality materials and precision technology to withstand the harsh working environment.

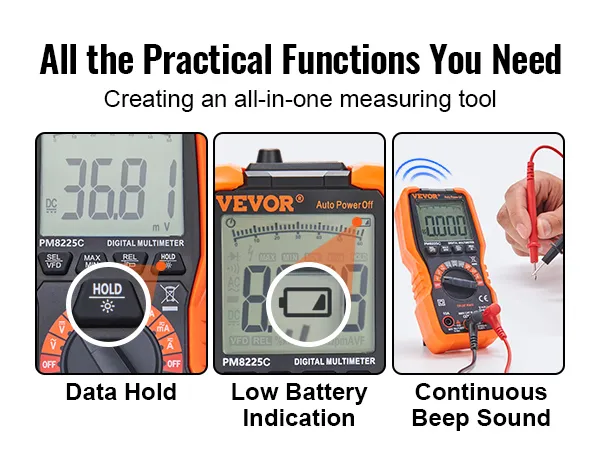

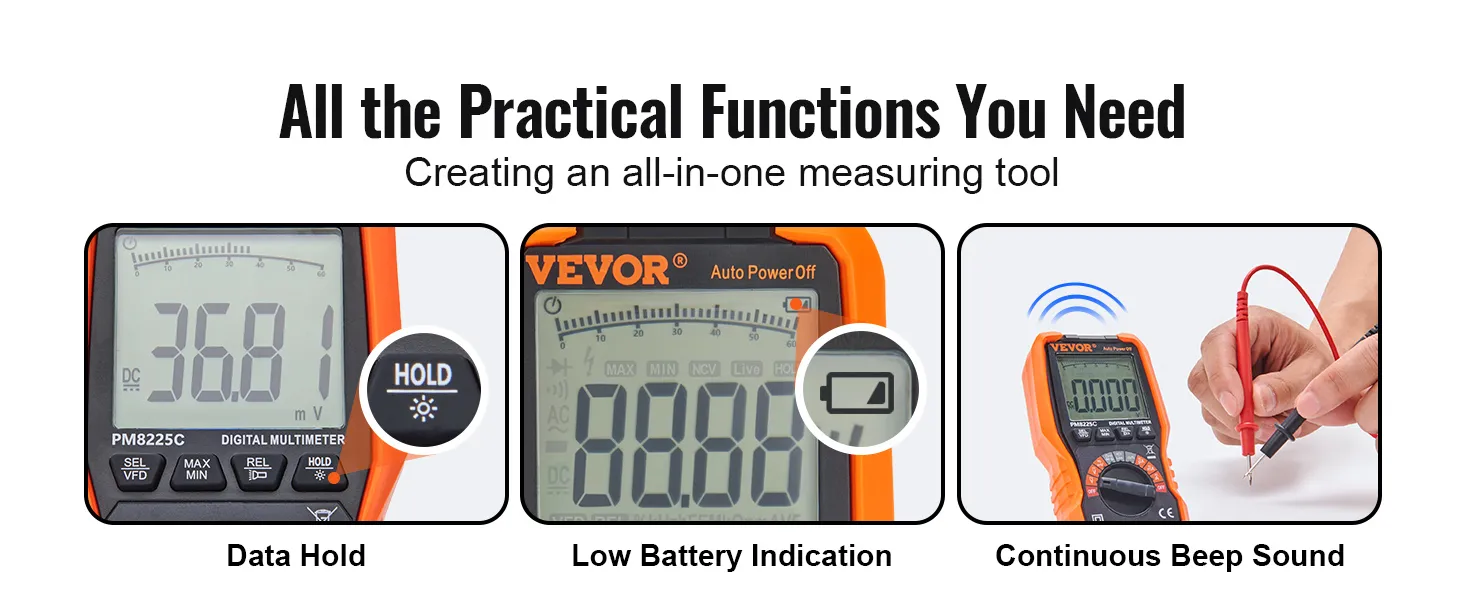

The electric multi tester is built with a data hold function and a battery indicator, which alerts users to replace the batteries to ensure uninterrupted operation.

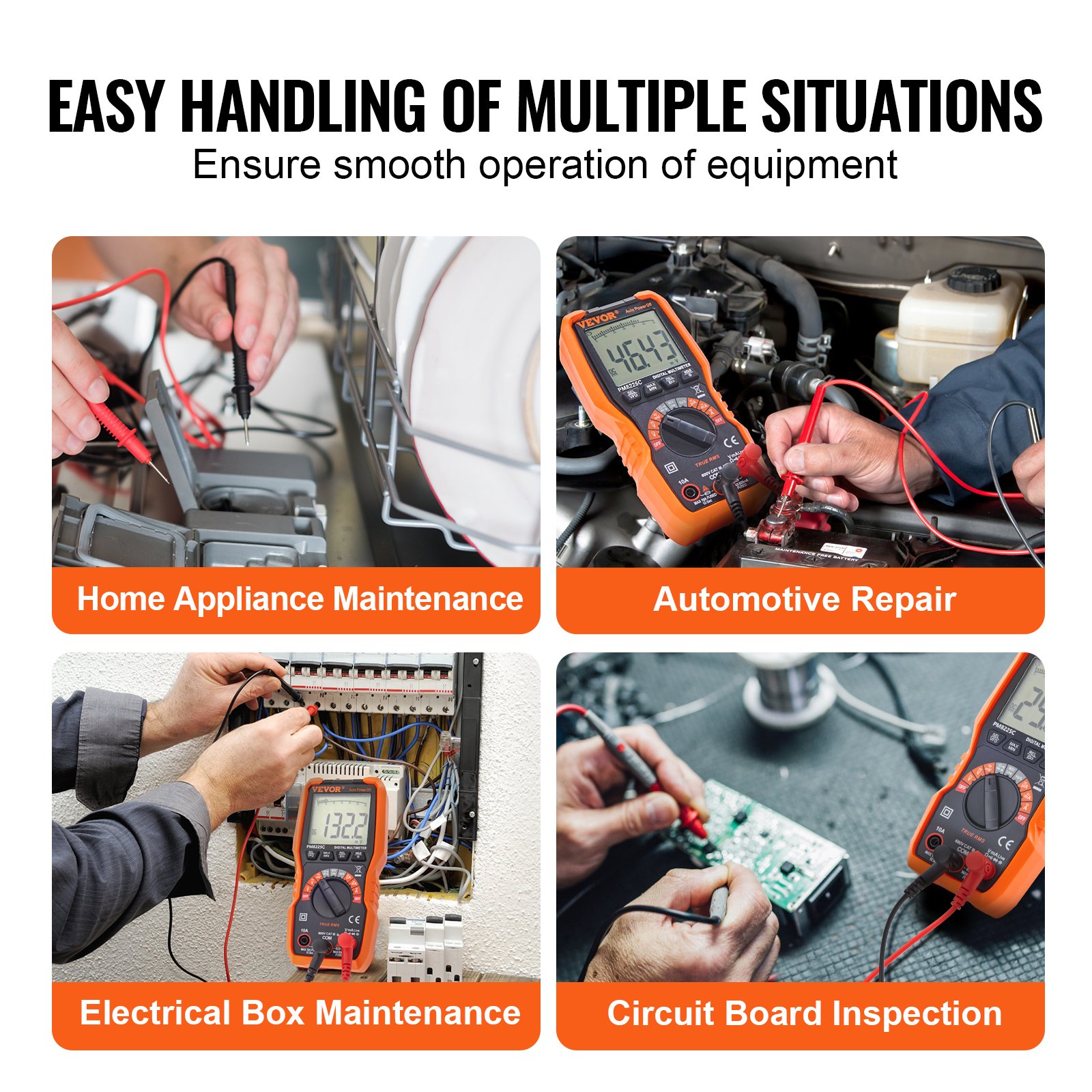

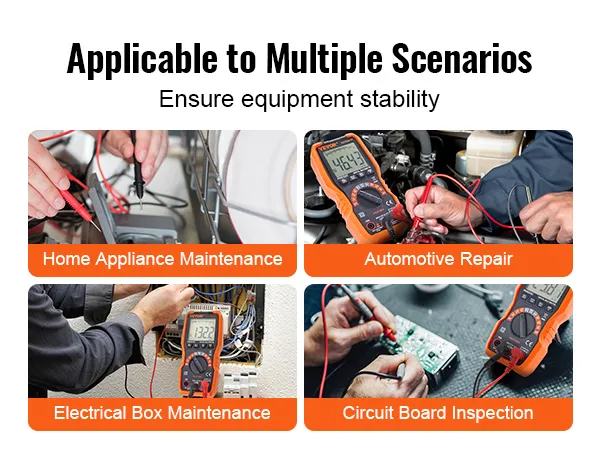

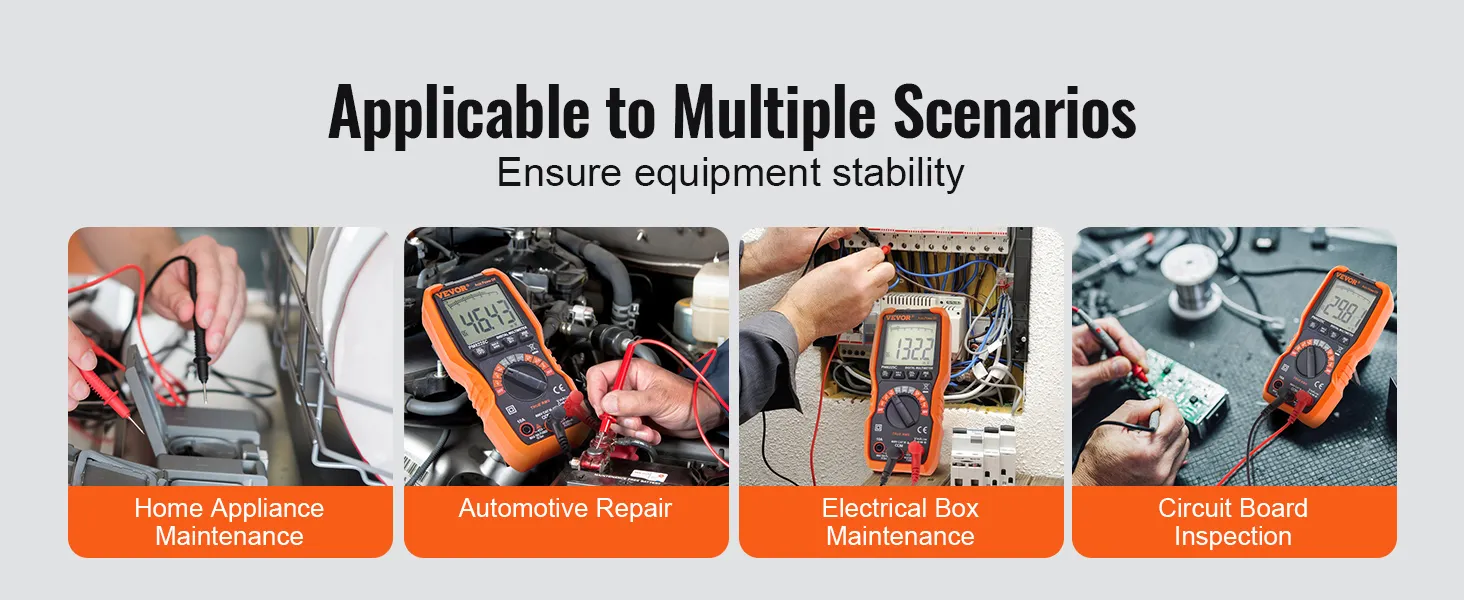

The multi testers measure current, voltage, resistance, diode, duty cycle, capacitance, etc. Suitable for home appliance maintenance, automotive repair, electrical box maintenance, and circuit board inspection.

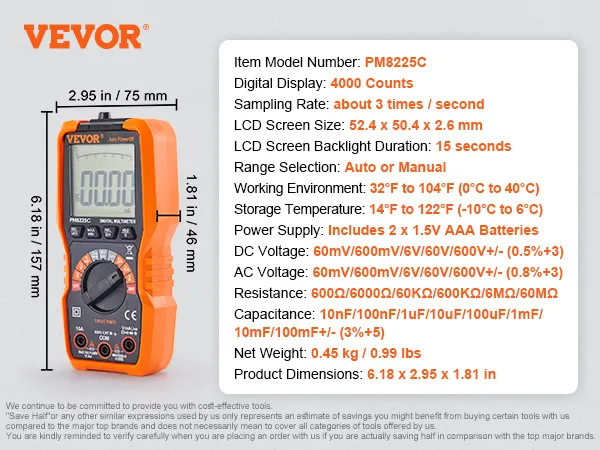

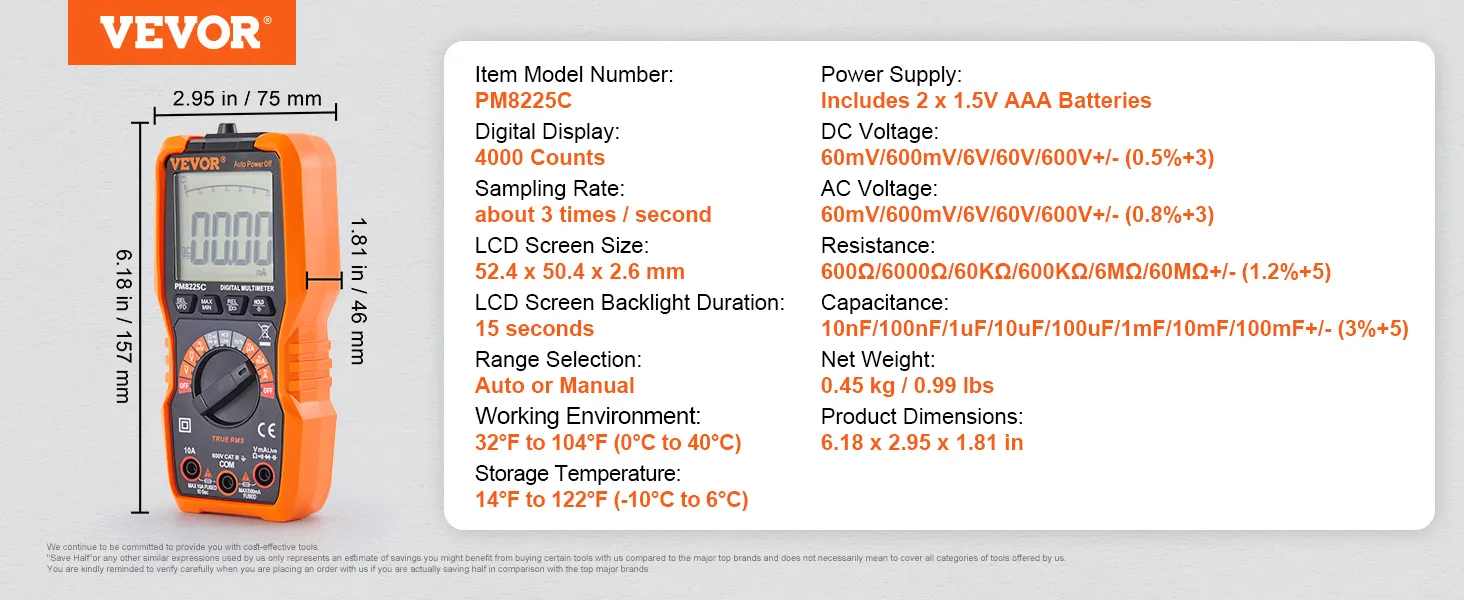

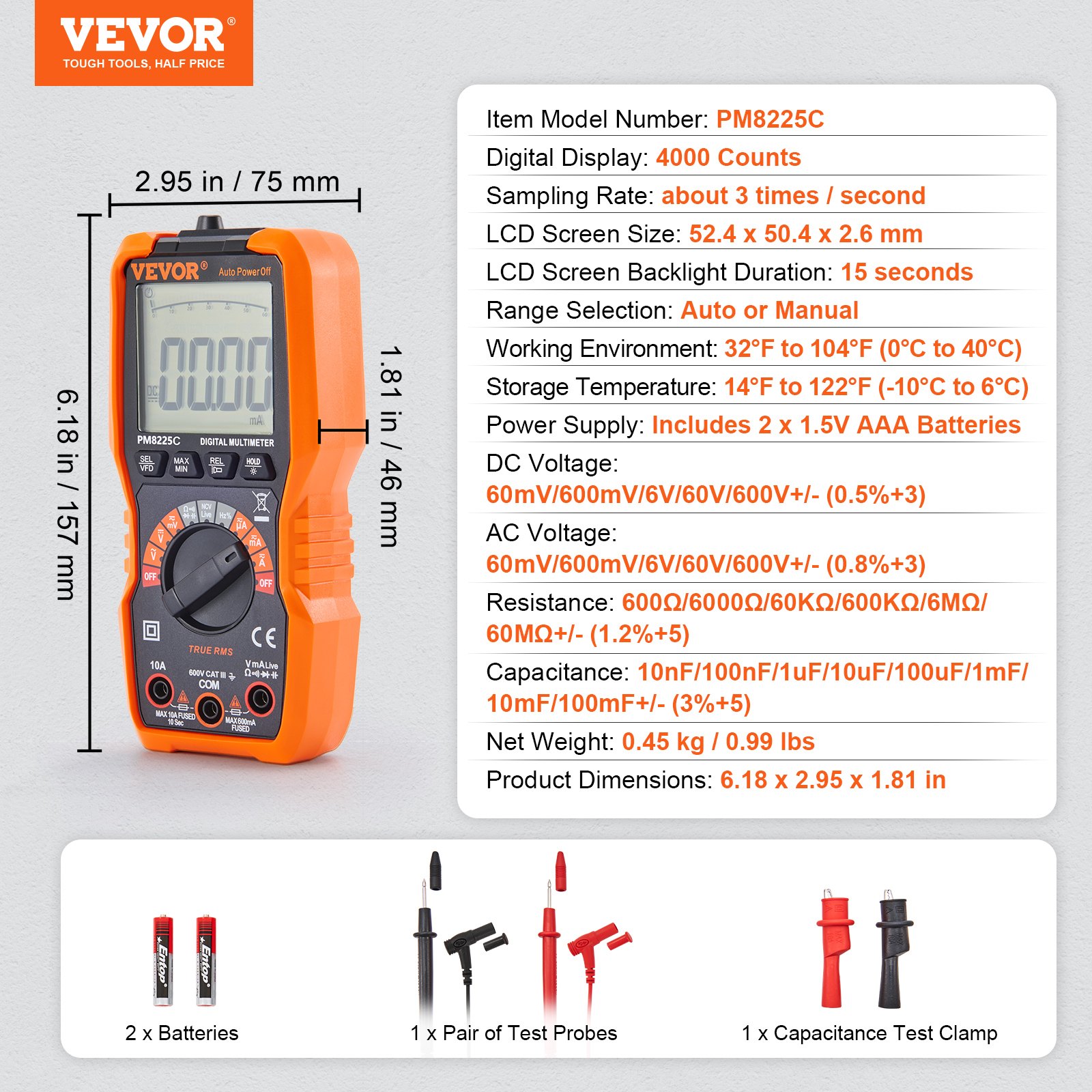

Specification

Item Model Number
PM8225C
Display
4000 Counts
Sampling Rate
about 3 times / second
LCD Screen Size
52.4 x 50.4 x 2.6 mm/2.06 x 1.98 x 0.10 in
LCD Backlight Duration
15 seconds
Range Selection
Auto or Manual
Working Environment
32°F to 104°F (0°C to 40°C); <80% relative humidity
Storage Temperature
14°F to 122°F (-10°C to 50°C); <70% relative humidity
Power Supply
Includes 2 x 1.5V AAA batteries
DC Voltage
60mV/600mV/6V/60V/600V+/- (0.5%+3)
AC Voltage
60mV/600mV/6V/60V/600V+/- (0.8%+3)
Resistance
600Ω/6000Ω/60KΩ/600KΩ/6MΩ/60MΩ+/- (1.2%+5)
Capacitance
10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF+/- (3%+5)
Net Weight
0.45 kg/0.99 lbs
Product Dimensions
157 x 75 x 46 mm/6.18 x 2.95 x 1.81 in
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

14 Review(s)
Clear filters
Katrina Katrina
I love the auto-settings in this multimeter
This guy is way better quality than I anticipated! I am used to multimeters that you have to set the volts in increments yourself and this one doesn't need you to do it. It's also an additional digit more capable (appearing to be a bit more accurate in the process) than my old one. There were more than enough capabilities for what I'm doing, and it's great that it uses a common battery type (my old one used A23s which were considerably more expensive). I am normally a fairly harsh critic (see my profile) and don't give 5stars very easily. I'm super happy.
Hemi Hemi
As advertised
Only used it 1 time and it works well so far. I do like the quality for an inexpensive multi meter. I replaced a so called higher end meter with this one, and the vevor is built much better with better probes. I like the vevor line of equipment. Not top of the line but good. For home use DIY, I recommend this meter.
Danny Danny
Amazing product
Great product, A+++ transaction
Ridel Ridel
Lo recomiendo
Muy buen equipo para tener en casa y económico.
newftrekker newftrekker
Quality unit
Everything works. Easy to read. I would recommend it.
Mr Mick Mr Mick
Mick
Very happy with this unit price and features extremely competative I am not a "power user' But it will do for me. Temperature will come in handy but will need another probe for my foundry work
Craig Solly Craig Solly
Excellent
Excellent value. Functions correctly and accurately. I can't fault vevor tools. I shop with vevor regularly and recommend to anyone
Excellent, perfect just what I needed for the hot Excellent, perfect just what I needed for the hot
Does what was designed to do.
Excellent product
Jodogz Jodogz
Better then most brand stores have for half the cost
Like it. Great tool for the money
Stanley Stanley
Good hand size unit
Ease of set up and good easy of read out's.
