VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
TSJSCCWSDJ210EZH9V3

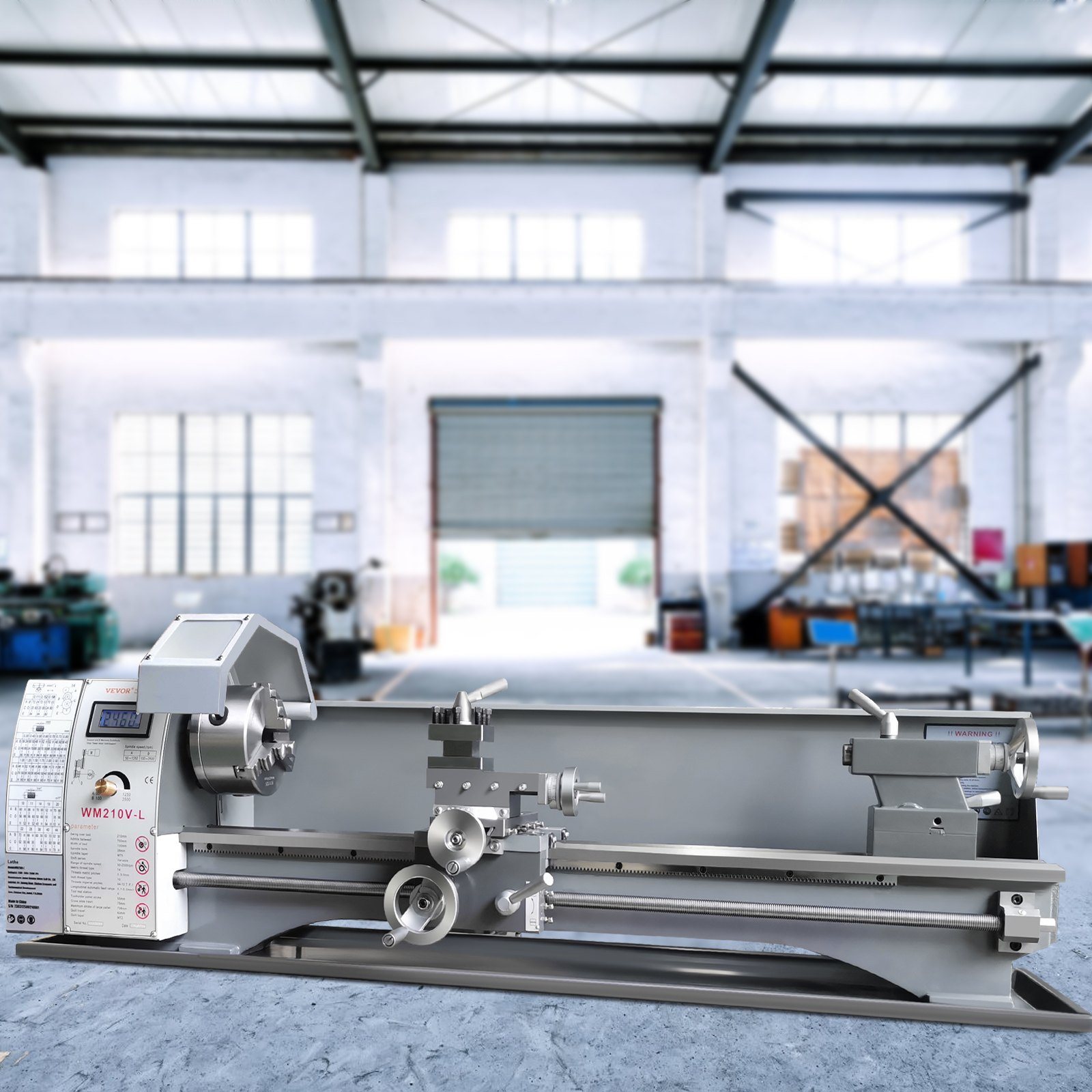

VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

210 mm

  • 200 mm
  • 210 mm
  • 180 mm

About this item

  • Widely Used: Our metal lathe machine, measuring 210mm x 750mm, is perfect for processing precision parts and models. It has a wide range of turning pitches that can create 24 different kinds of threads, including 14 metric system (ranging from 0.3-3mm) and 10 imperial system (ranging from 10-44 TPI) threads.
  • Built to Last: Our power metal lathes are built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.
  • 750W Brushless Motor: Our benchtop metal lathe features a 750W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.

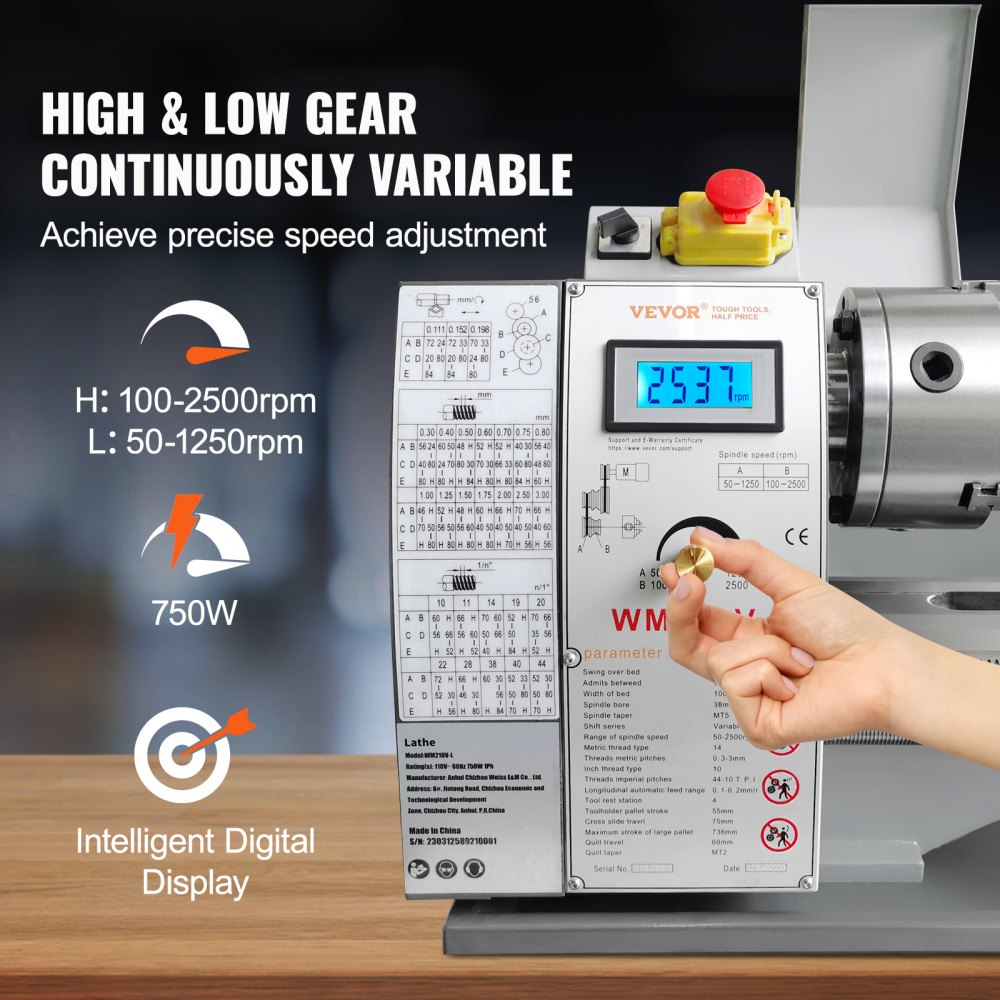

  • Continuously Variable: Features a spindle that can turn in both forward and reverse directions, with two-speed options: a high gear of 100-2500 rpm and a low gear of 50-1250 rpm. It also has intelligent electric speed controls and a digital display, allowing for accurate speed adjustments and making your work easier. The height of the lathe tool is not adjustable.
  • Security Comes First: Our metal lathe machine has multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, pulley set housing power off switch, and a main control panel security switch.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe Machine, 210 mm x 736 mm, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
210 mm

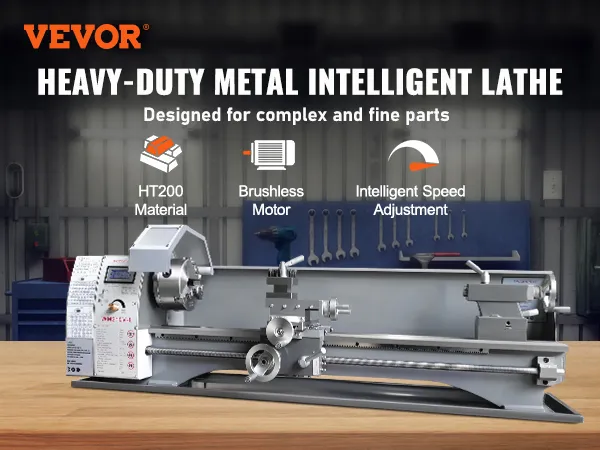

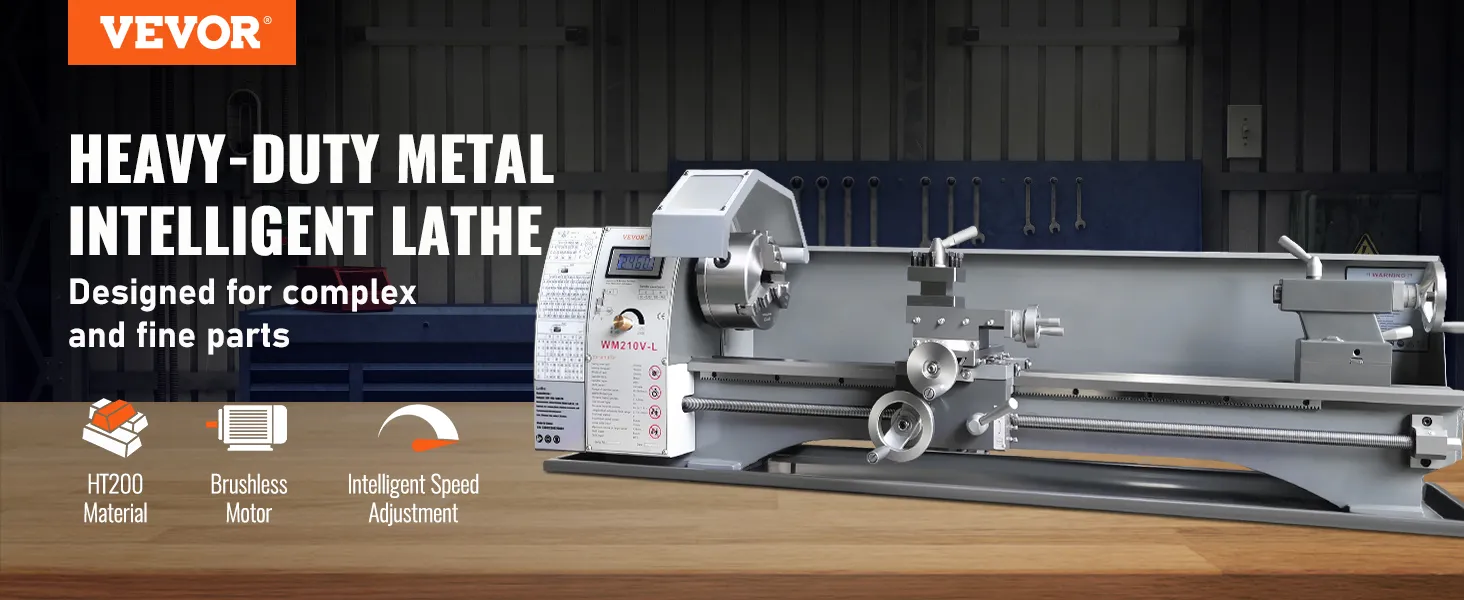

Heavy-Duty Metal Lathe

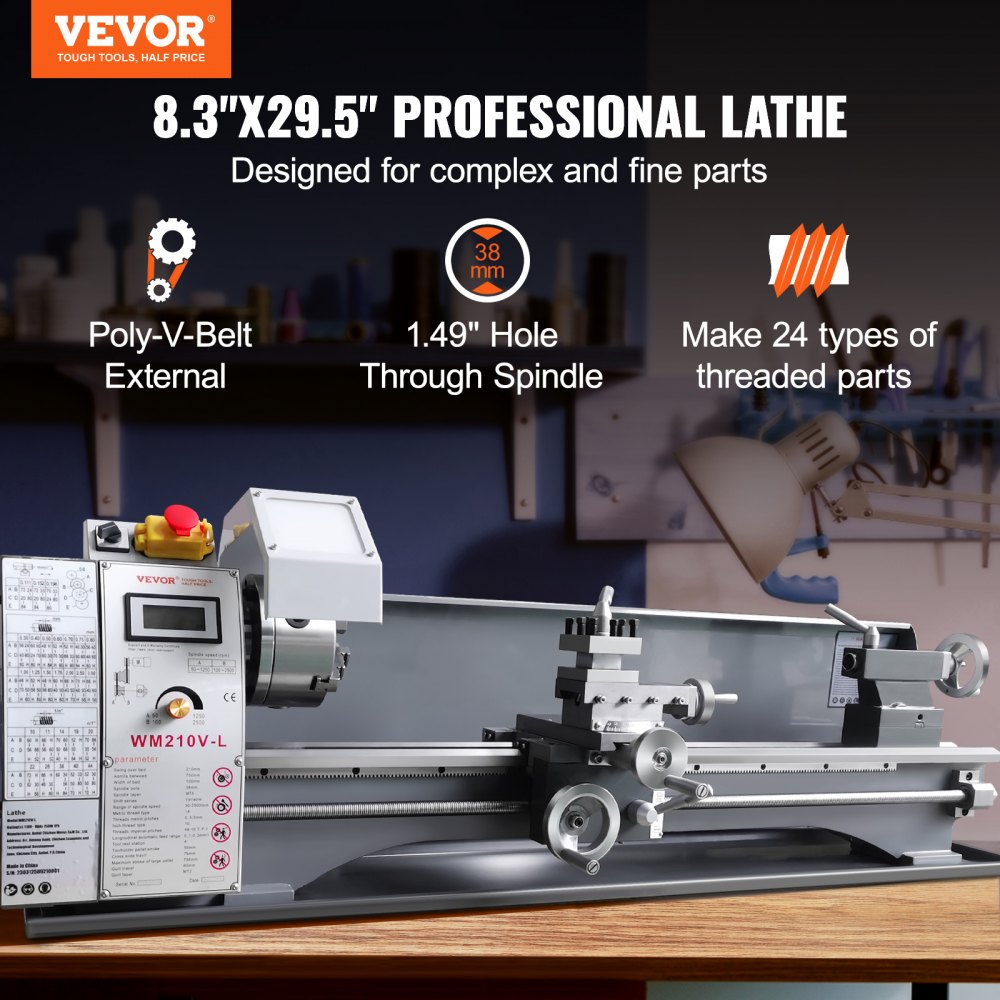

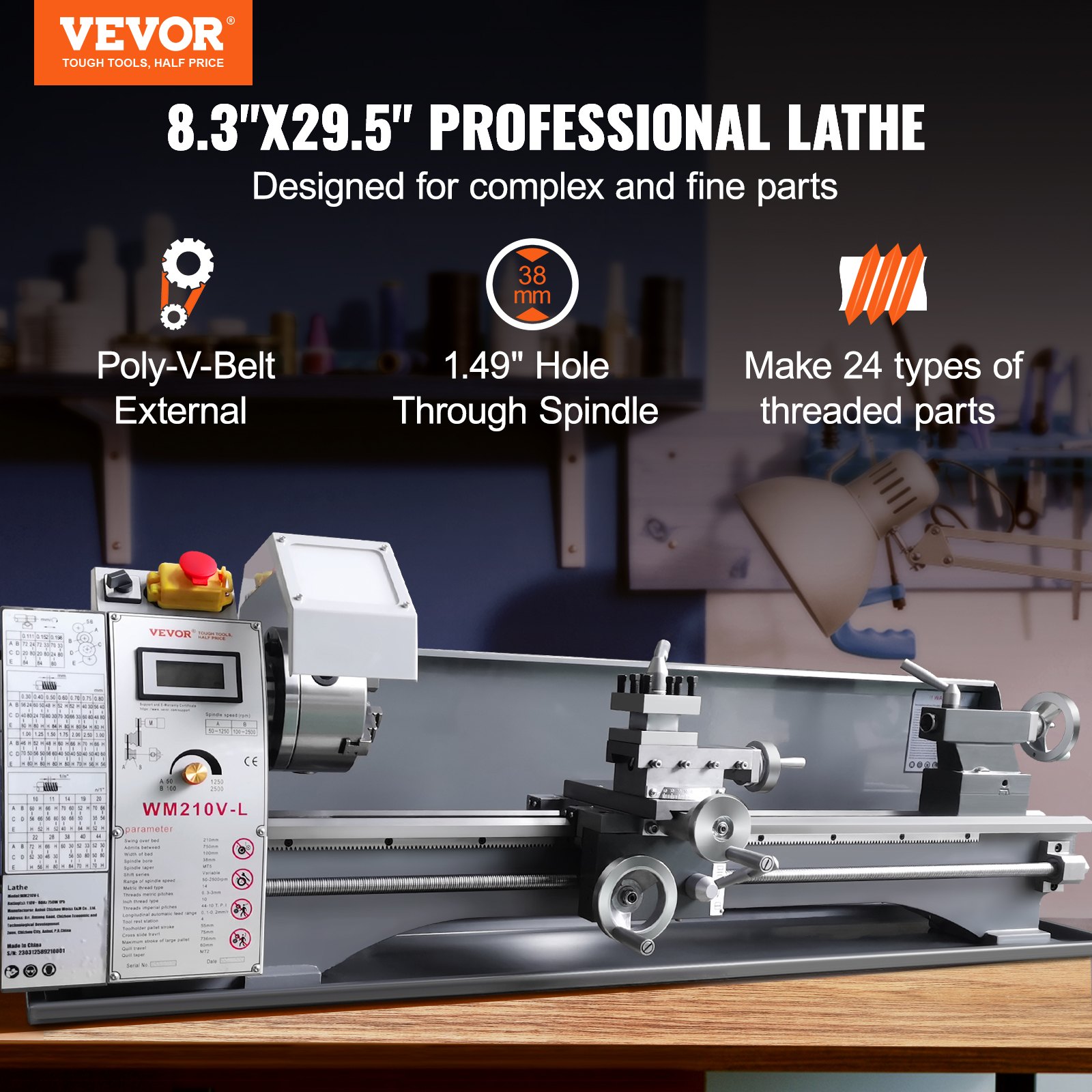

Are you ready to get more done? Our benchtop metal lathe measures 210mm x 750mm and features a powerful 750W motor for longer service life. The external poly-V belt ensures smooth transmission. VEVOR metal lathe is specifically designed for creating complex and fine parts.
  • VEVOR metal lathe with adjustable speeds, digital display, and electronically controlled settings.
  • VEVOR metal lathe with 750w brushless motor for sufficient power and stable output.
  • upgraded 3 protection devices on VEVOR metal lathe: overload protection, high-speed reverse, chuck cover protection.
  • VEVOR metal lathe with adjustable speeds, digital display, and electronically controlled settings.
  • VEVOR metal lathe with 750w brushless motor for sufficient power and stable output.
  • upgraded 3 protection devices on VEVOR metal lathe: overload protection, high-speed reverse, chuck cover protection.

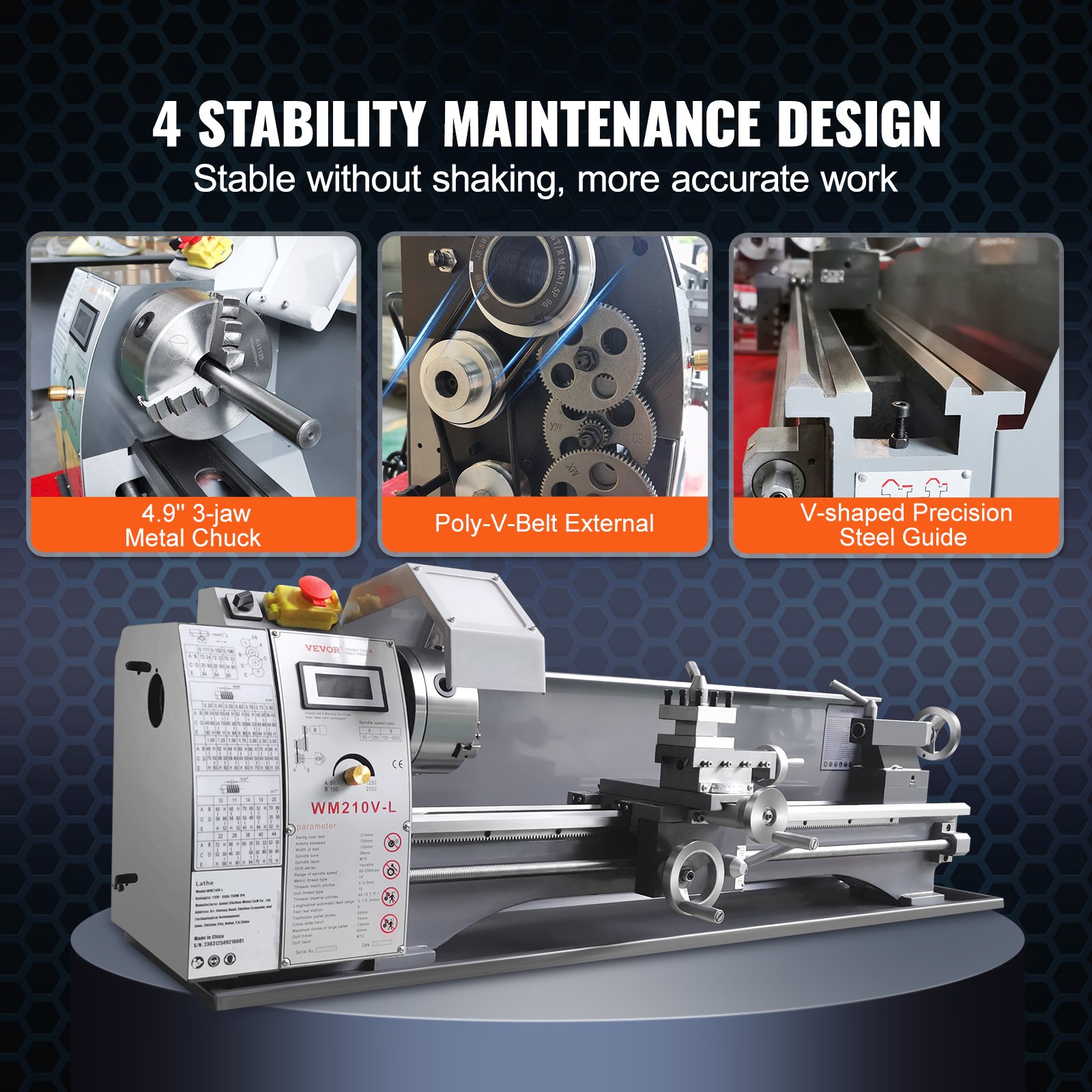

  • VEVOR metal lathe with external poly-v-belt for smooth transmission, easy replacement for novices.

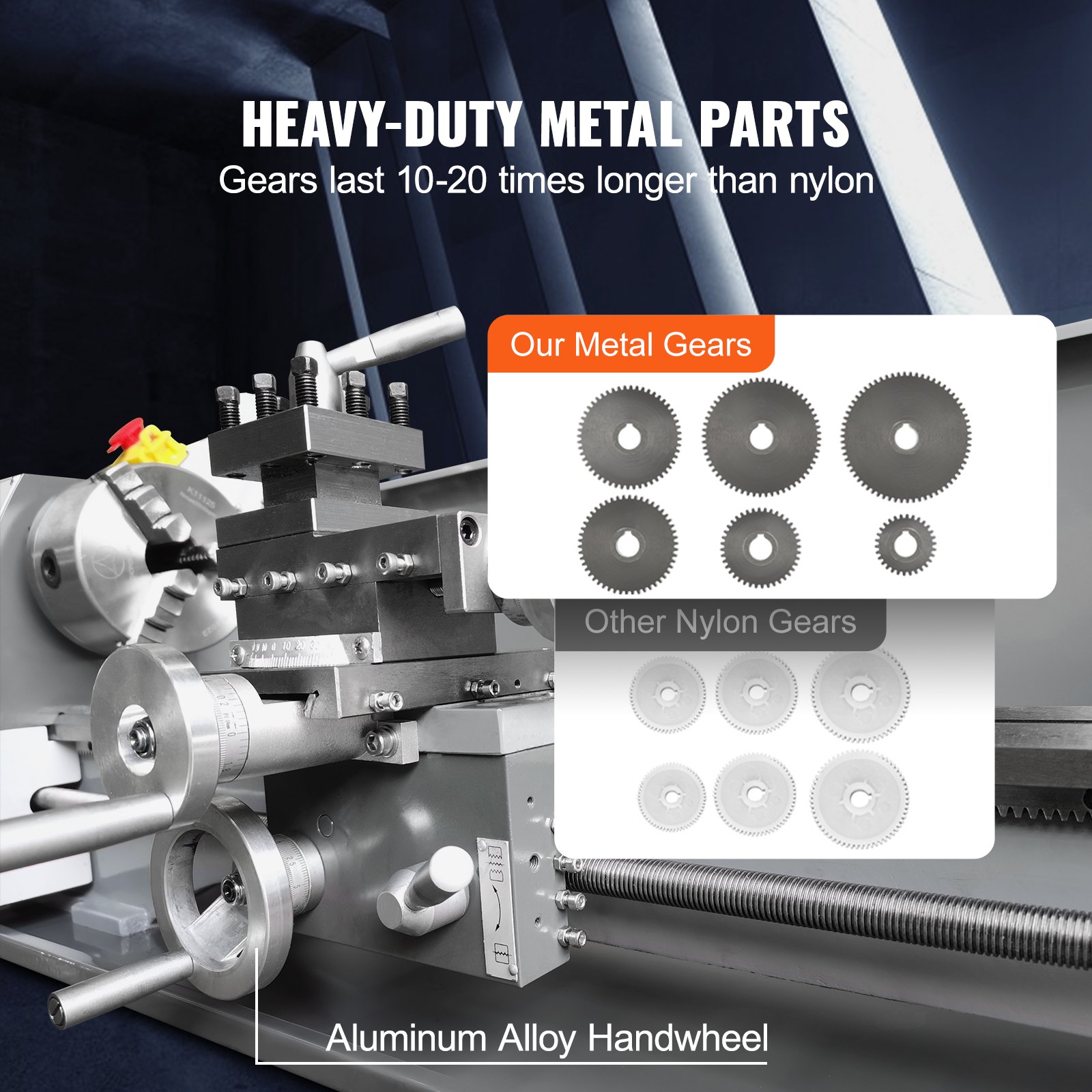

  • heavy-duty VEVOR metal lathe gears vs nylon gears, showcasing durability and longevity comparison.
  • 4.9" 3-jaw metal chuck on VEVOR metal lathe, highlighting multi-directional clamping.
  • VEVOR metal lathe with external poly-v-belt for smooth transmission, easy replacement for novices.
  • heavy-duty VEVOR metal lathe gears vs nylon gears, showcasing durability and longevity comparison.
  • 4.9" 3-jaw metal chuck on VEVOR metal lathe, highlighting multi-directional clamping.

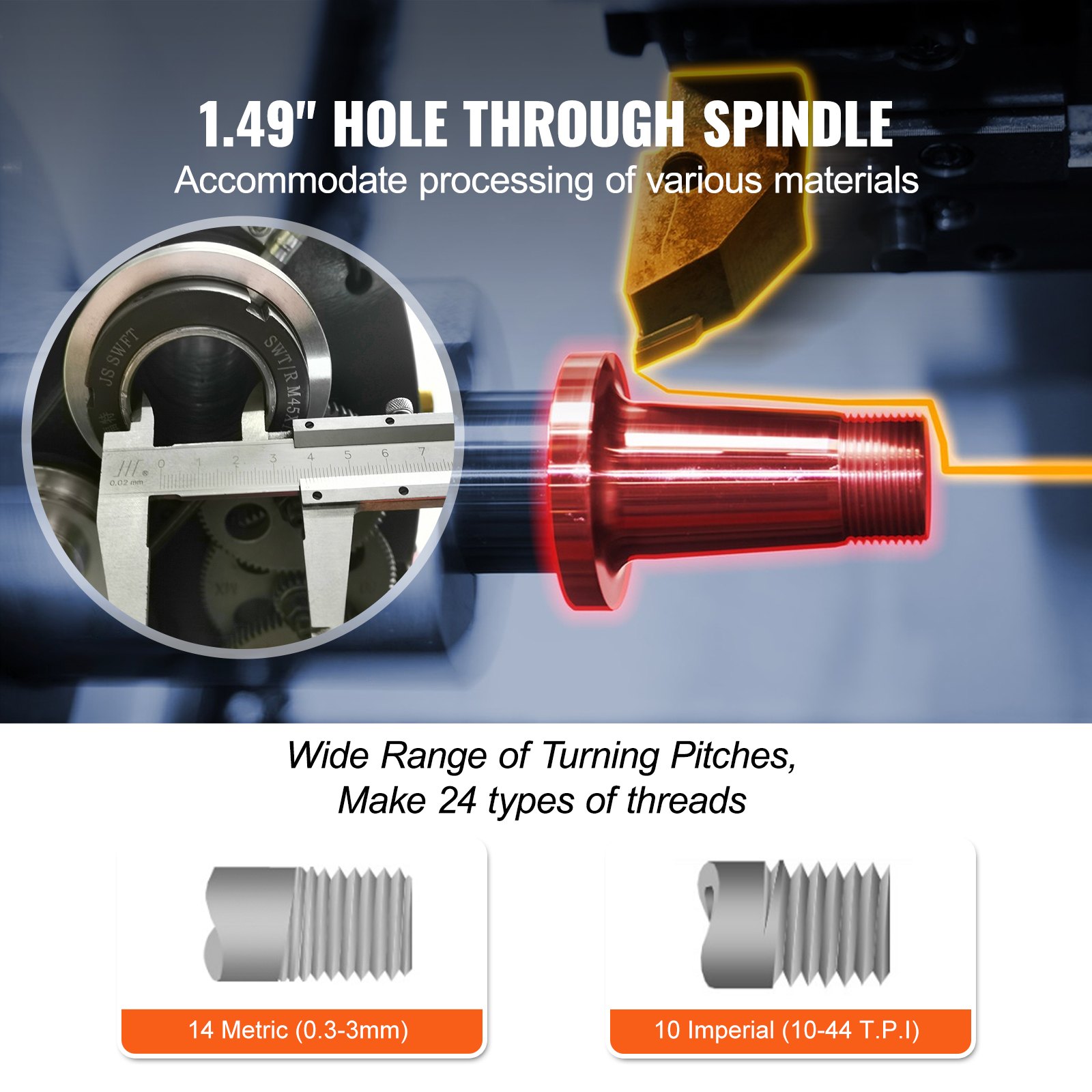

  • wide range of turning pitches for VEVOR metal lathe, create 24 types of threaded parts, metric and imperial.
  • VEVOR metal lathe for processing metals and wood, showcasing stainless steel and wooden workpieces.
  • machining fine parts with VEVOR metal lathe showcasing turning, drilling, thread turning, and knurling.
  • wide range of turning pitches for VEVOR metal lathe, create 24 types of threaded parts, metric and imperial.
  • VEVOR metal lathe for processing metals and wood, showcasing stainless steel and wooden workpieces.
  • machining fine parts with VEVOR metal lathe showcasing turning, drilling, thread turning, and knurling.
Key Features

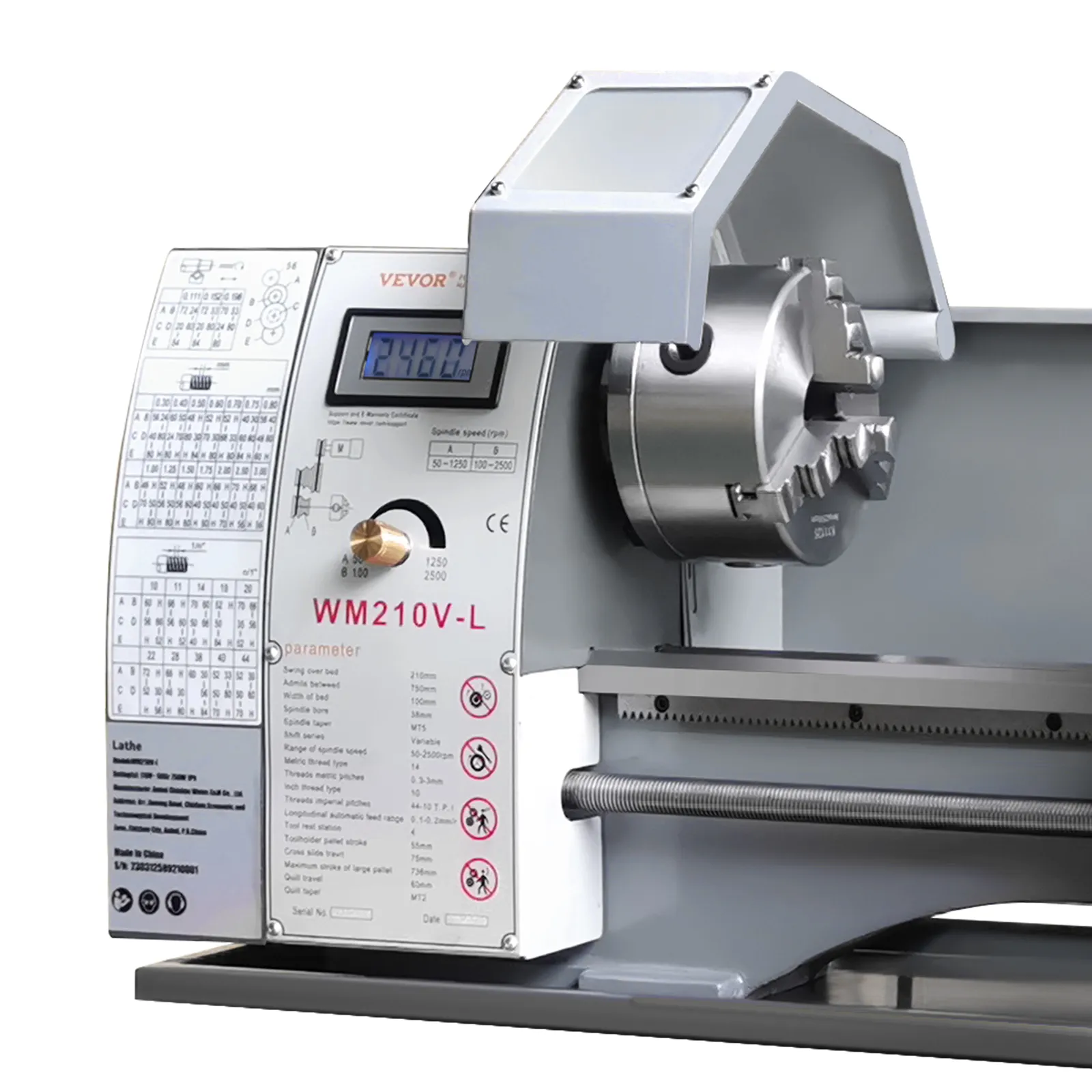

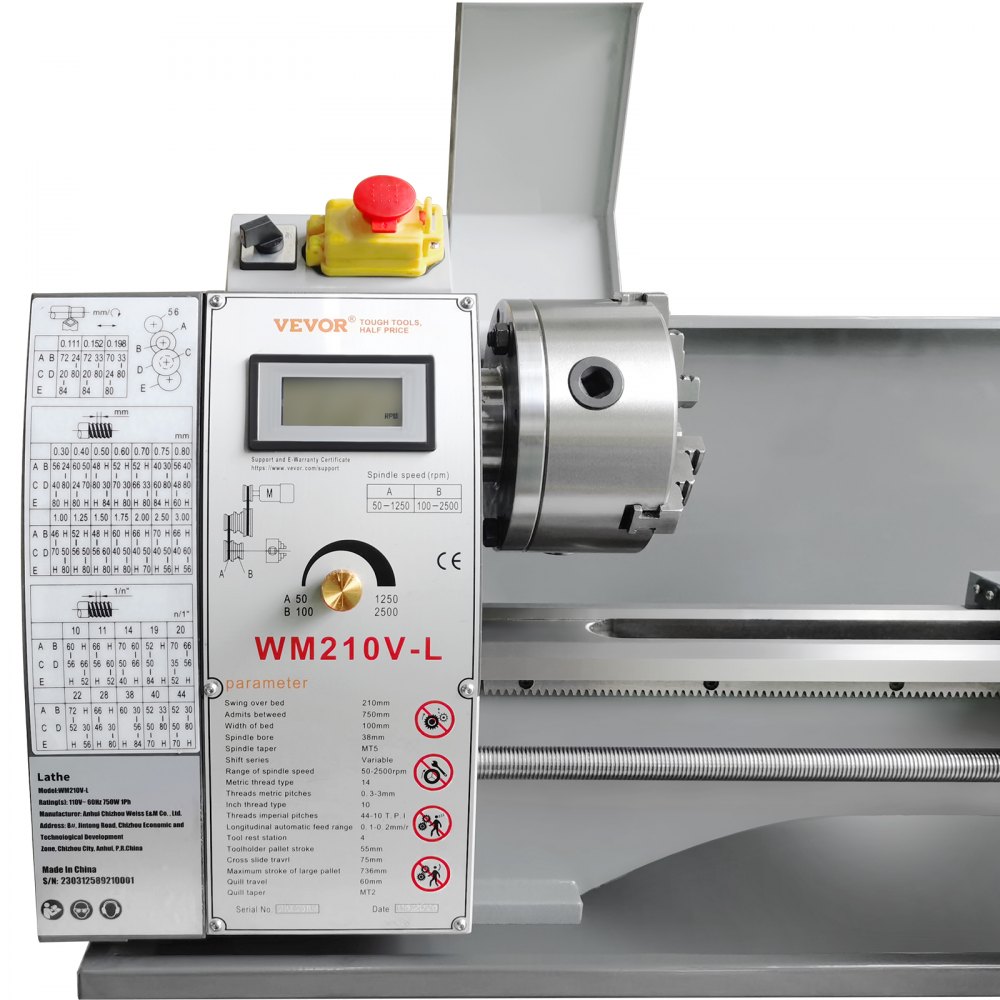

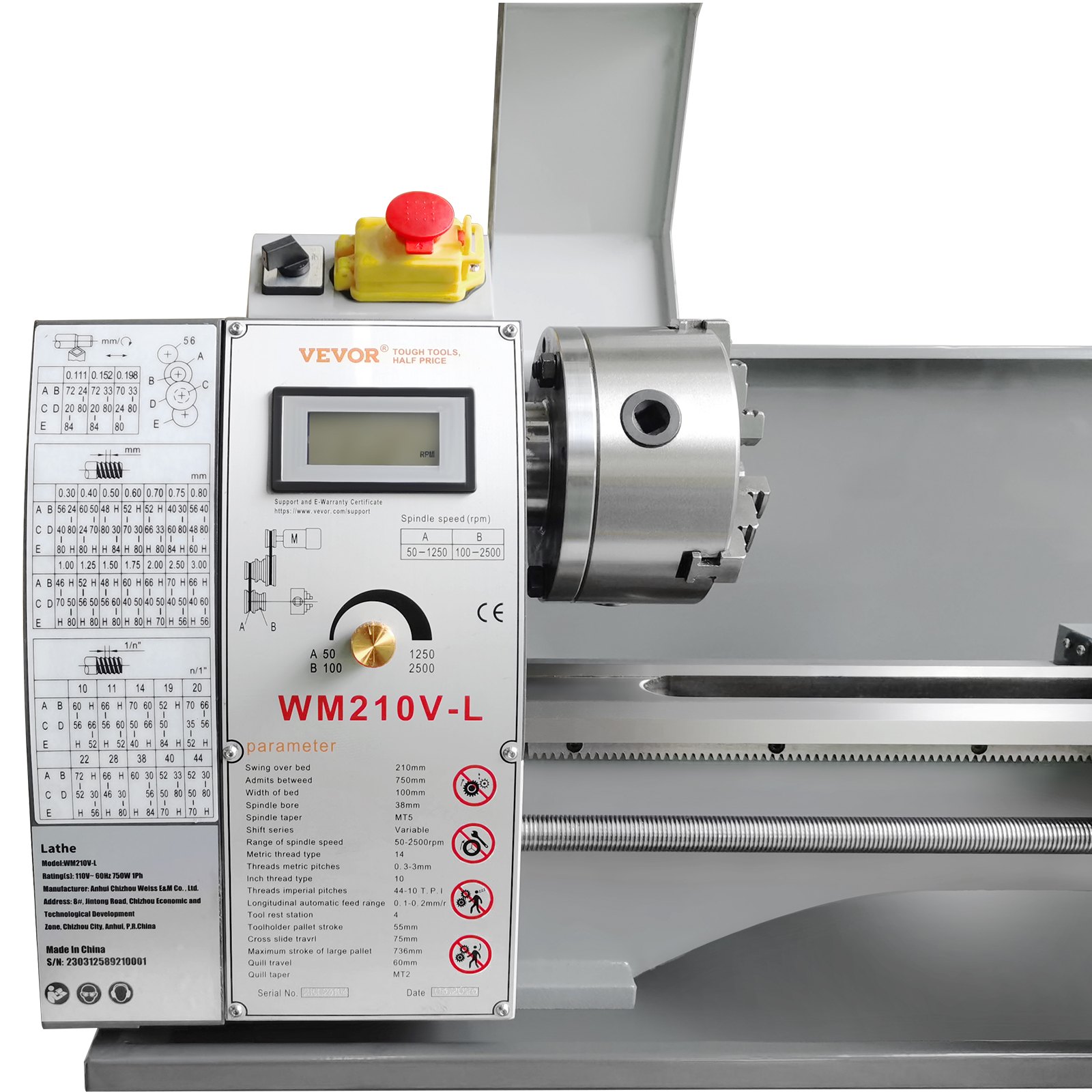

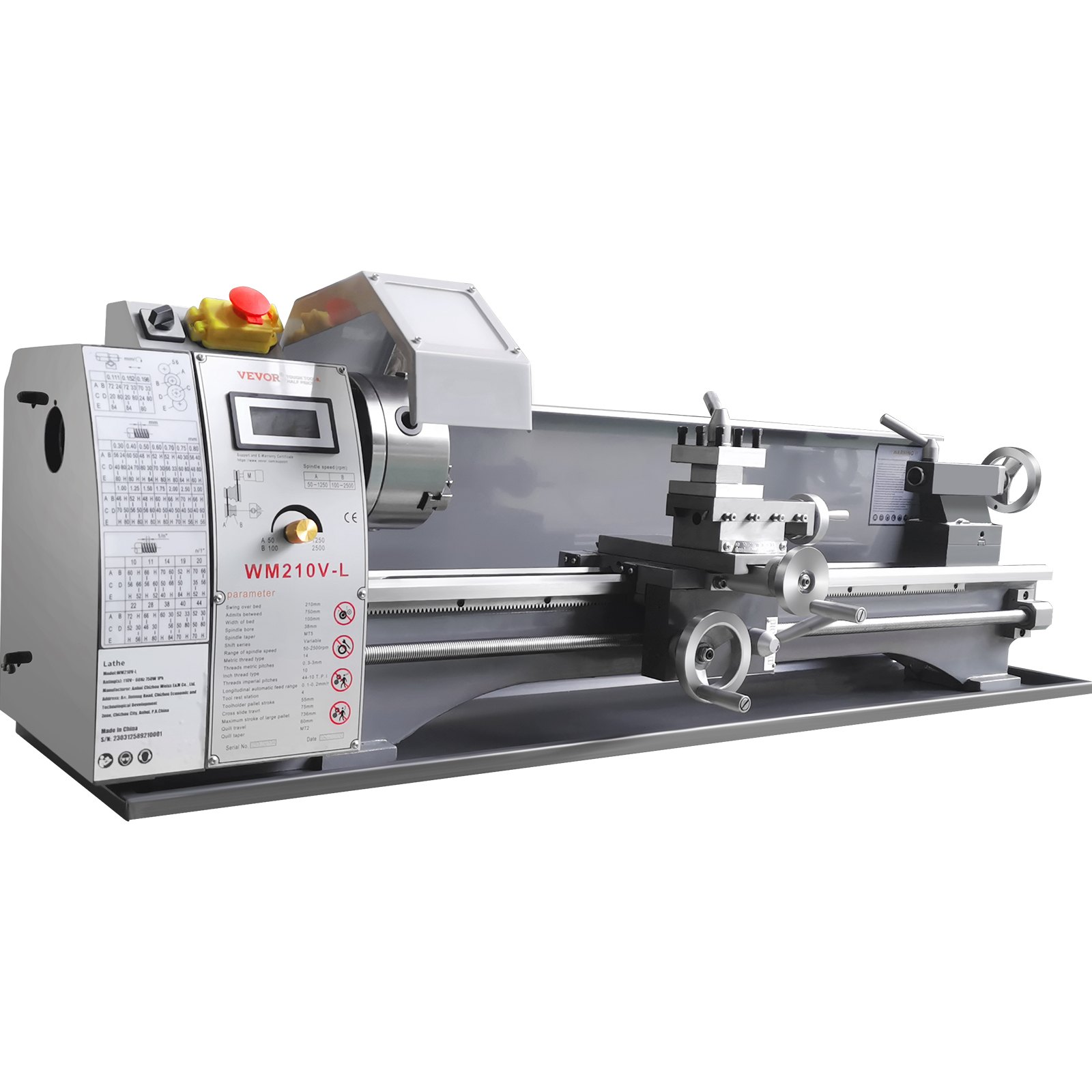

VEVOR metal lathe wm210v-l close-up with control panel, digital display, and chuck mechanism.
Convenient Tool Holder
The 4-way rotation tool holder allows you to install 4 common turning tools simultaneously. To change tools, simply open the latch and rotate it.
silver-toned VEVOR metal lathe close-up showcasing spindle and tool holder.
Protection Devices
Overload protection, high-speed reverse fool-proofing device, and chuck cover disconnection protection make the processing more secure.

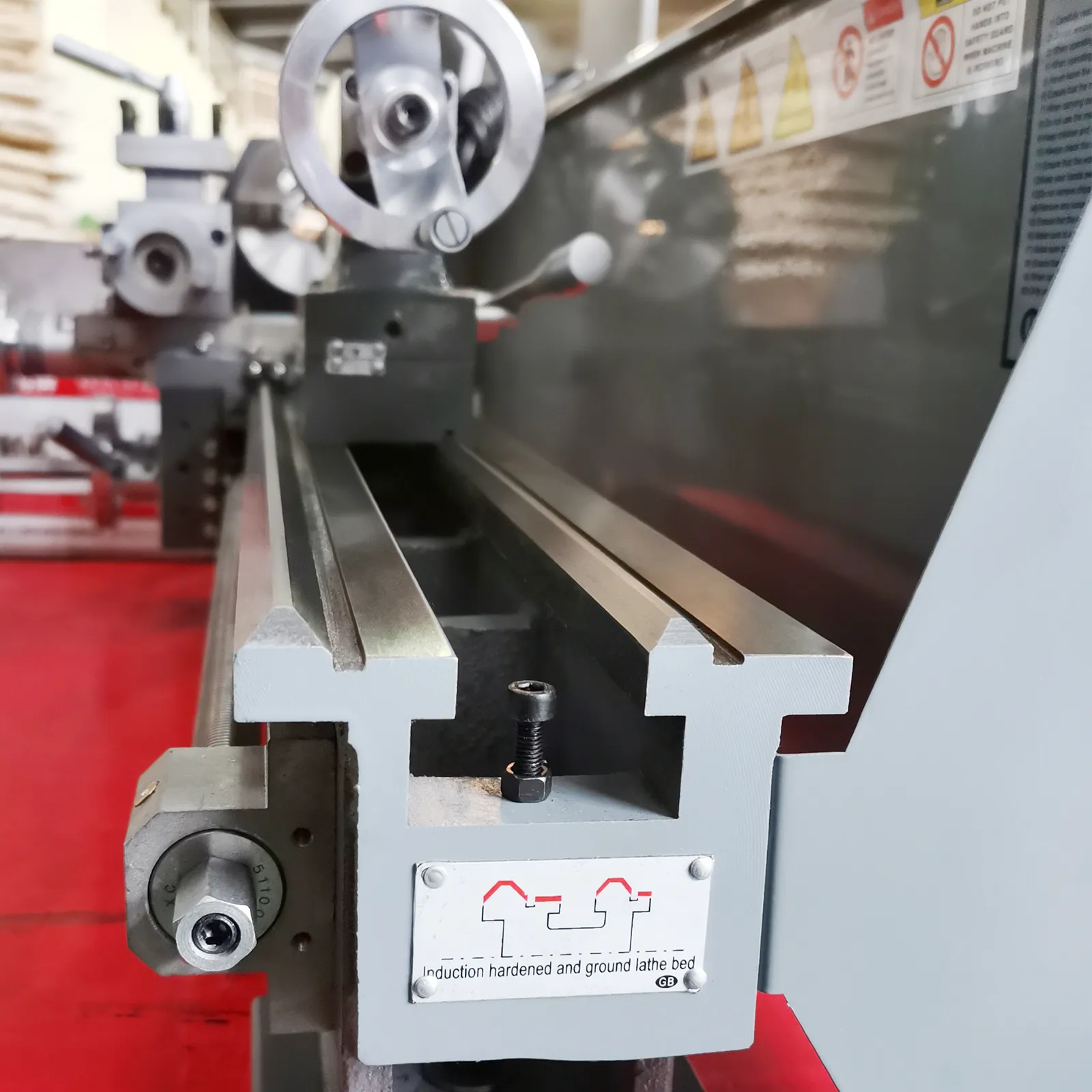

VEVOR metal lathe with precision bed, hardened and ground for accuracy, against a red industrial background.
Precision Steel Guide
The V-shaped precision steel guide has an automatic feed screw and high strength, ensuring the parallelism of the main axis and lathe body.

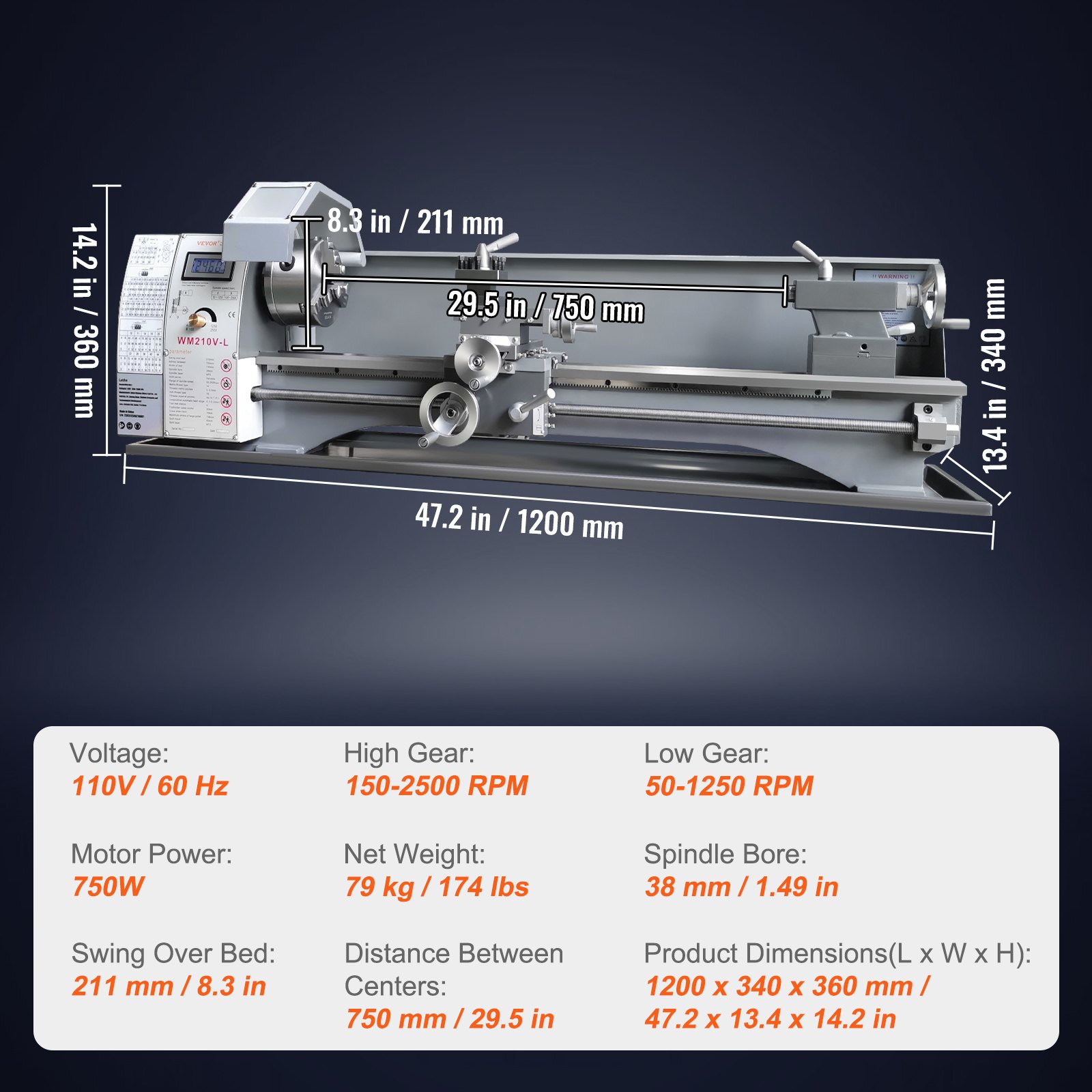

VEVOR metal lathe with ht200 cast iron, 750w motor, rpm ranges 150-2500, and 29.5 in between centers.VEVOR metal lathe with ht200 cast iron, 750w motor, rpm ranges 150-2500, and 29.5 in between centers.

Specification

Model
WM210V-L
Main Material
HT200 Cast Iron
Lifespan
3 Years
Spindle Speed
50-2500 RPM
Hole Through Spindle Diameter
38 mm / 1.49 in
Spindle Taper
MT5
Tail Stock Taper
MT2
Motor Power
750W
Voltage
220V, 50 Hz
Chuck Diameter
125 mm / 4.9 in
Net Weight
79 kg / 174 lbs
Product Dimensions(L x W x H)
1200 x 340 x 360 mm / 47.2 x 13.4 x 14.2 in
Questions and Answers
9 Questions
Does this have automatic feed? Can you adjust the feed speed?
This one comes with an electronic knife feeder. It can automatically feed.
By vevor
Does it screw cut ? What size tooling will fit in tool post.
12 x 12 mm fits this tool post.
By vevor
Will this lathe work on 240 volts
Yes.
By vevor
you were selling this item before at $1,700 plus can you still do it at the old price?
The old price is expired, we can not do it at the old price.
By vevor
Can I buy a 3 axis RDO to suit this lathe?
Yes, you can buy a 3 axis RDO to suit this lathe.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
12 Review(s)
Clear filters
Ed H Ed H
Lathe
I purchased a lathe but it was never delivered. Vevor made no attempt to find it. Vevor solved the problem by issuing me a refund. I never asked for a refund. I just wanted the item.
Howard Beever Howard Beever
Retired
It is a nice machine , it needs a lot adjustment to work like it should. I love 4 different speed ranges,which makes great for threading. I .would buy again
One Bone One Bone
Arrived earlier than expected
Arrived slightly beat up from handling. Just a few dents, but nothing that was not fixable. I am impressed with the quality. It actually had metal gears. I thought the start solenoid PB was faulty. The company is sending a replacement. But further investigation: After further investigation I discovered that the coil connects between terminal #4 (120 vac supply) then once the PB is pushed then to termina A1. A1 needs a neutral connection to hold the contacts in. This lathe was wired incorrectly as the A1 wire went to forward reverse switch terminal 9 then to terminal 10 which connected to the supply terminal on the board. That wire connected to the F/R switch #10 should have been connected to the neutral J1 terminal on the board, not the supply. So, it appears that the original switch was not bad, only a wiring mistake at Vevor. Even their print is incorrect. Check it out!
Rusty Shackleford Rusty Shackleford
Seems to be a good machine
Works well. Has more power and is more precise out of the box than I was expecting. The shipping took several weeks longer than advertised, when I contacted Vevor they said it was lost and offered a refund, then it finally arrived, so no refund. Weeks of precious project time were tied up in waiting for it to arrive. It seems to be a good machine, though time will tell. Just don't expect it to arrive without significant delay.
zero zero
Don't believe NEGATIVE reviews
I'm a beginner lathe wannabe. I read dozens of reviews and a good of those reviews number TRASHED Vevor lathes. Lots of complaints about the need to work on the lathe to obtain maximum accuracy. YES, right out of the crate will give you an accuracy measured in tenths(!). I finally ordered Vevor and KNEW I'd have to mess with it to get the advertised maximum accuracy and make numerous adjustments to this mass produced ~200 pound hunk of Chinese metal. No problem. Good thing I experienced in tearing down and rebuilding car engines. I have many talents and skills and tools as far as machines are concerned. So I spent several days FINE TUNING this thing. Now it's working well (but I'm not fully familiar with metal lathe operations). I'm getting closer to reliable thousandths. MY POINT: The thing was shipped around the world and got knocked around during shipment. How can anybody expect a 200 pound chunk metal to be accurate to thousandths right out if the box?? YOU MUST SPEND HOURS WITH IT TO TUNE IT UP! PLUS? we have hundreds off guys on the net who are very willing to offer helpful advice if you were to come up against a problem that resists your DIY skills. Vevor. They make thousands of these machines so I trusted them to send me (us) a product which definitely has the POTENTIAL to be very accurate AFTER the new buyer spends hours tuning it.
kasey johnsrud kasey johnsrud
Great hobby machine.
It didn't come perfect but for the price to get started its great!
archie archie
GM
Very good quality and good price, it is made with good materials which gives the operator the ease of working with various materials and not worrying about changing parts at all times
john w. walsh john w. walsh
quality product, precision lathe, a perfect tool for the home workshop
super quality, fast delivery, it came in a wooden crate when was the last time you saw that,a super machine, don't fool around if you need a mini precision lathe, this is the one , thanks John
ds5150 ds5150
Great product for the price
I had been looking at mini lathes for some time when this one became available for a substantial discount so I decided to buy it. Honestly, I don’t know how they can produce these things at this price. It arrived on time and mostly in tact, some of the tooling was loose in the crate and suffered from it, and the chip shield was bent, nothing I couldn’t get past. The machine itself is well made and functioning as it should. I immediately made modifications to accommodate a quick change tool post which only showed the quality of the build of this machine and now I have repeatable ability for tooling setup. This machine is built for hobbyists and DIYers but the specific design adds functionality beyond that. I absolutely recommend this tool for anyone looking to get into machine work.
GOT GOT
Great machine for the money
Initial setup doesn't show any issues. Great lathe for the price.
