VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts
TSJSCCYSDJ1806AD7V3

VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

180 mm

  • 200 mm
  • 210 mm
  • 180 mm

About this item

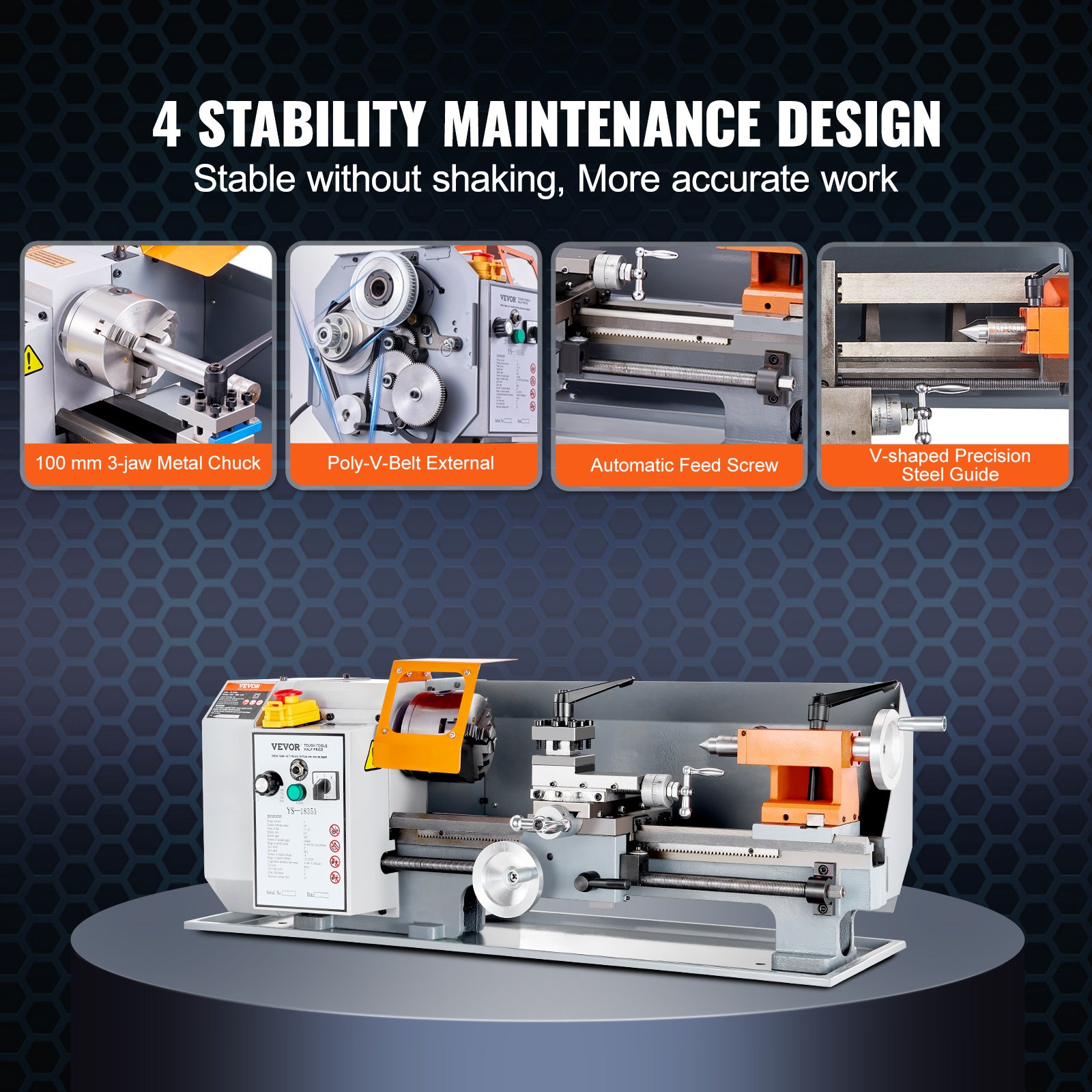

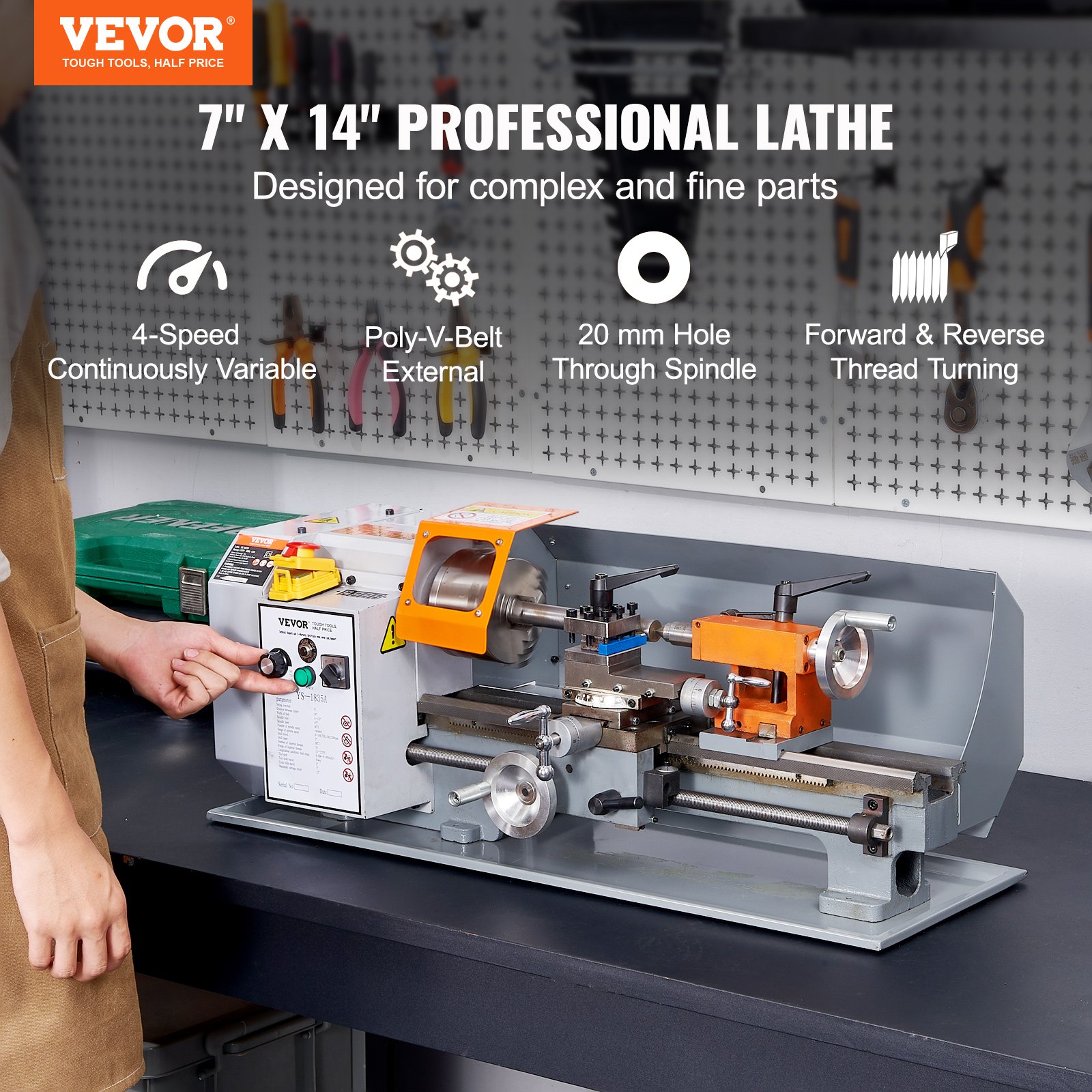

  • 7" x 14" Metal Lathe: Our metal lathe machine adopts external poly-V-belt drive technology. The output torque is increased by 3 times, up to 1:9, so you can turn 45# steel bar easily. With 20 mm / 0.79 in hole through spindle diameter, you can process all kinds of rotating surfaces and end faces of rotating bodies.
  • 4-Speed Adjustment: The benchtop metal lathe adopts a 4-speed continuously variable function so that you can adjust spindle speed flexibly from 0 to 2200 rpm according to your demand. Intelligent electric control speed regulation and digital display equipment are more convenient for you to adjust and operate accurately.
  • High Accuracy & Professionalism: The tailstock spindle features an MT2 taper with top-press thread quick-lock technology for user-friendly use without effort. The precision dial is provided in the tailstock handle so that you can work more accurately and professionally.

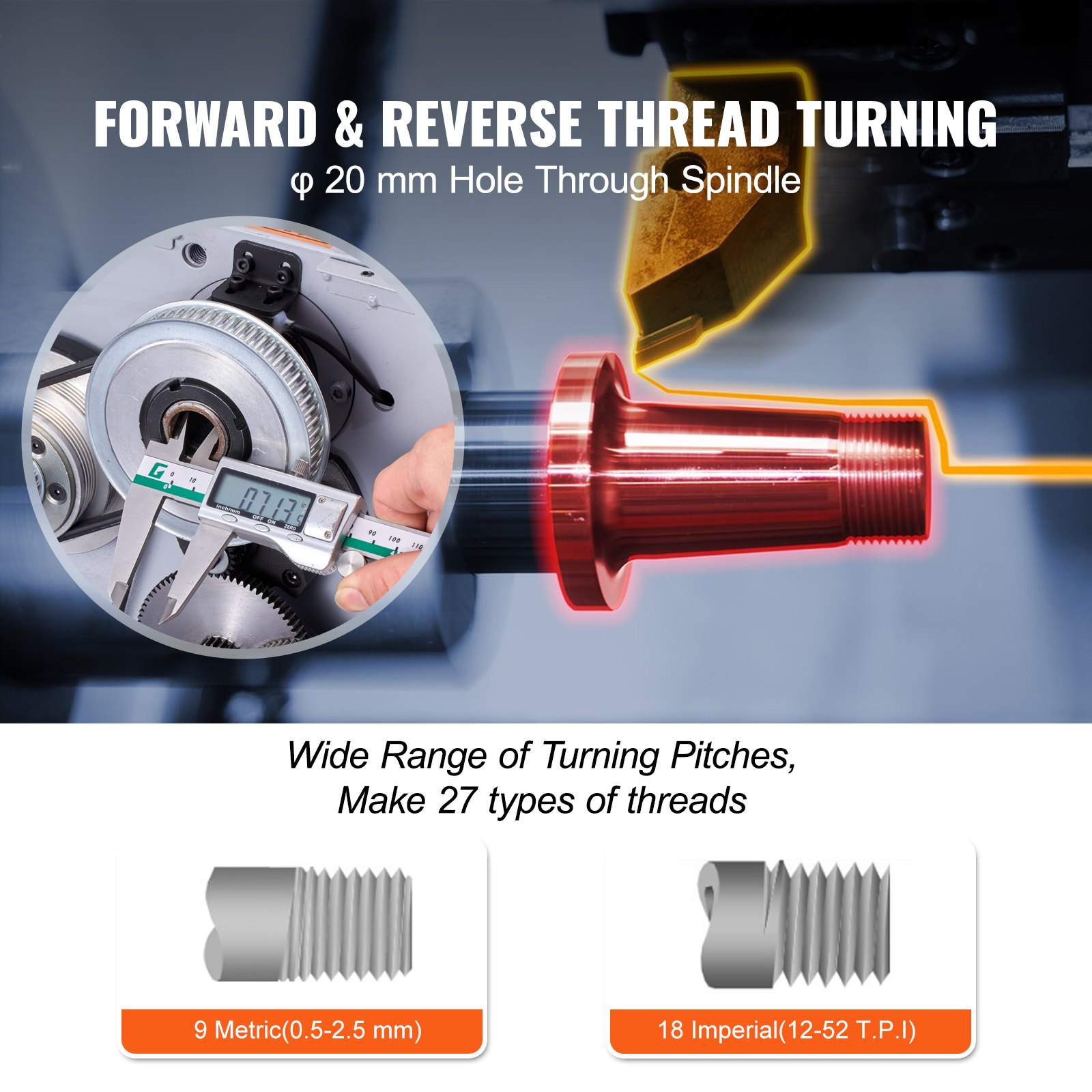

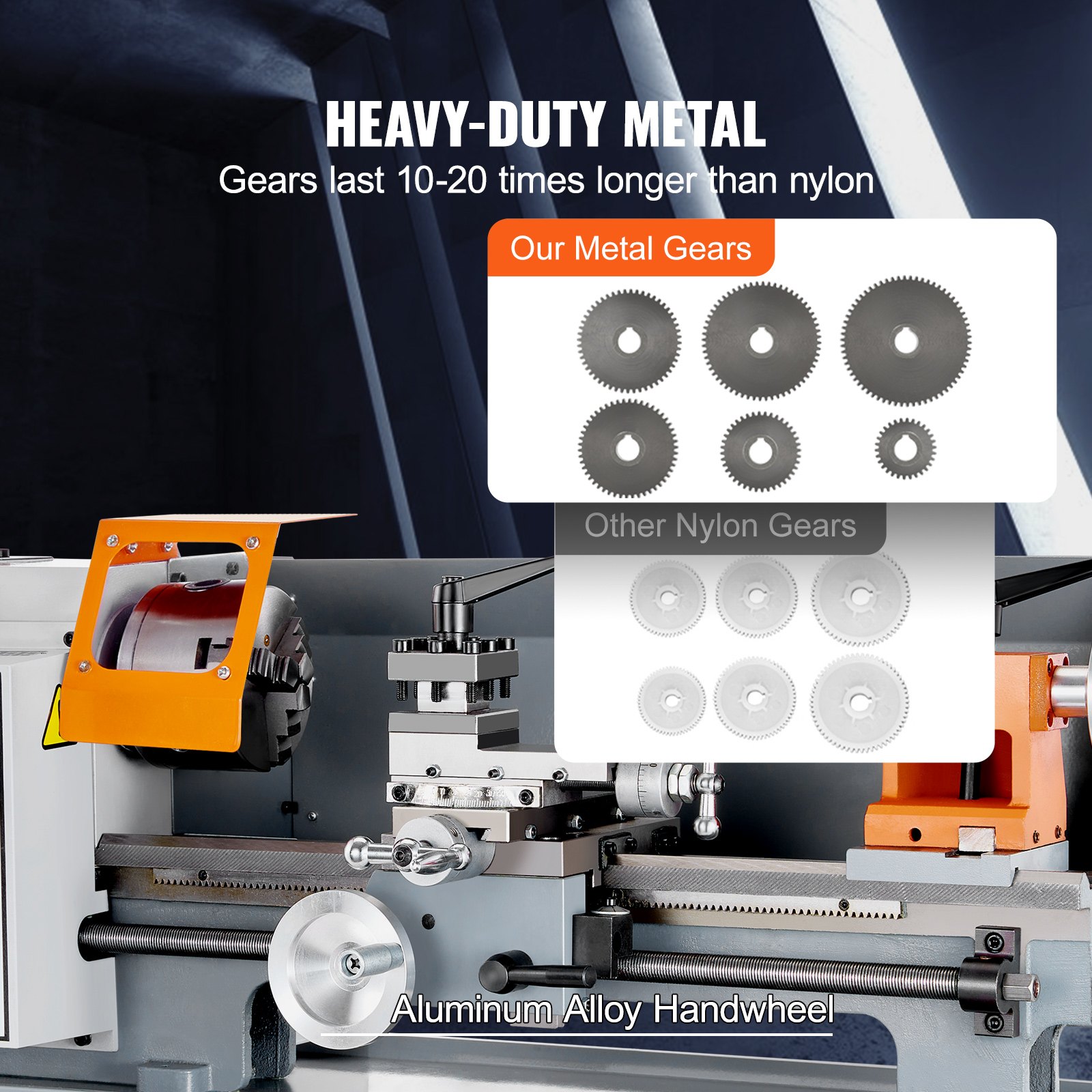

  • Forward & Reverse Thread Turning: All gears of the power metal lathe are made of high-quality metal material, ensuring a longer service life. It can turn 9 types of metric threads (0.5-2.5 mm) in both forward and reverse.
  • Security Comes First: The benchtop metal lathe has chuck cover disconnection protection, automatic overload protection, and an added circuit board protector to avoid high-speed reverse short circuits, which protects the security of the operator and the machine motor.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe Machine, 180 mm x 350 mm, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts
180 mm
Heavy-Duty Metal Lathe
VEVOR metal lathe machine for precise parts, ht200 material, 500w motor, 4-speed, poly-v-belt drive.
VEVOR metal lathe machine for precise parts, ht200 material, 500w motor, 4-speed, poly-v-belt drive.
7'' x 14'' benchtop metal lathe features a powerful 500W motor and a robust HT200 cast iron body, ensuring durability and sturdiness. With a 20 mm / 0.79" hole through spindle, it accommodates various parts and threading tasks, allowing the processing of stainless steel, iron, wood, etc.

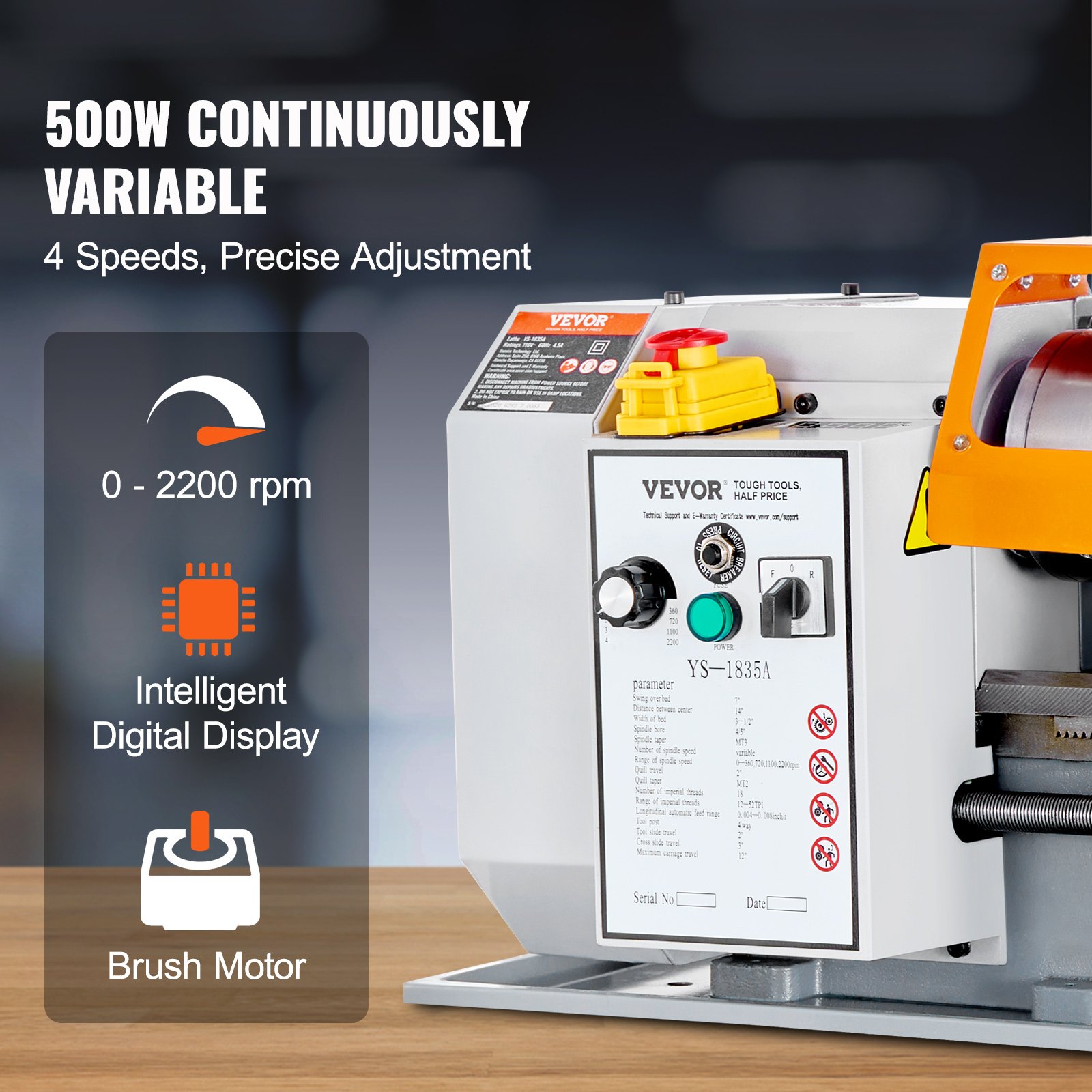

VEVOR metal lathe machine with 4-speed digital control, 0-2190 rpm, user adjusting settings.
VEVOR metal lathe machine with 4-speed digital control, 0-2190 rpm, user adjusting settings.
The metal lathe machine has a 4-speed continuously variable function, and you can flexibly adjust the speed within the range of 0 - 2200 rpm. Intelligent electric control and digital display make it more convenient for precise adjustment and operation.
VEVOR metal lathe machine security upgrade with chuck cover, overload protection, and high-speed reverse.
VEVOR metal lathe machine security upgrade with chuck cover, overload protection, and high-speed reverse.
Our power metal lathe features multiple protections that make processing more secure, including overload protection, high-speed reverse fool-proofing, and chuck cover disconnection protection.
VEVOR metal lathe machine with external poly-v-belt, easy turning of 45# steel bars, digital display
VEVOR metal lathe machine with external poly-v-belt, easy turning of 45# steel bars, digital display
The metal lathe utilizes external poly-V-belt transmission technology, and the output torque is increased by 3 times, reaching up to 1:9, effortlessly enabling the turning of 45# steel bars for smoother transmission and easy replacement.
VEVOR metal lathe machine performing turning, drilling, thread turning, and knurling tasks.
VEVOR metal lathe machine performing turning, drilling, thread turning, and knurling tasks.
The tail stock spindle adopts an MT2 taper featuring the top-pressing thread quick-lock technology for ease of use. The precision dial is provided on the tailstock handle, allowing you to work more accurately and professionally.

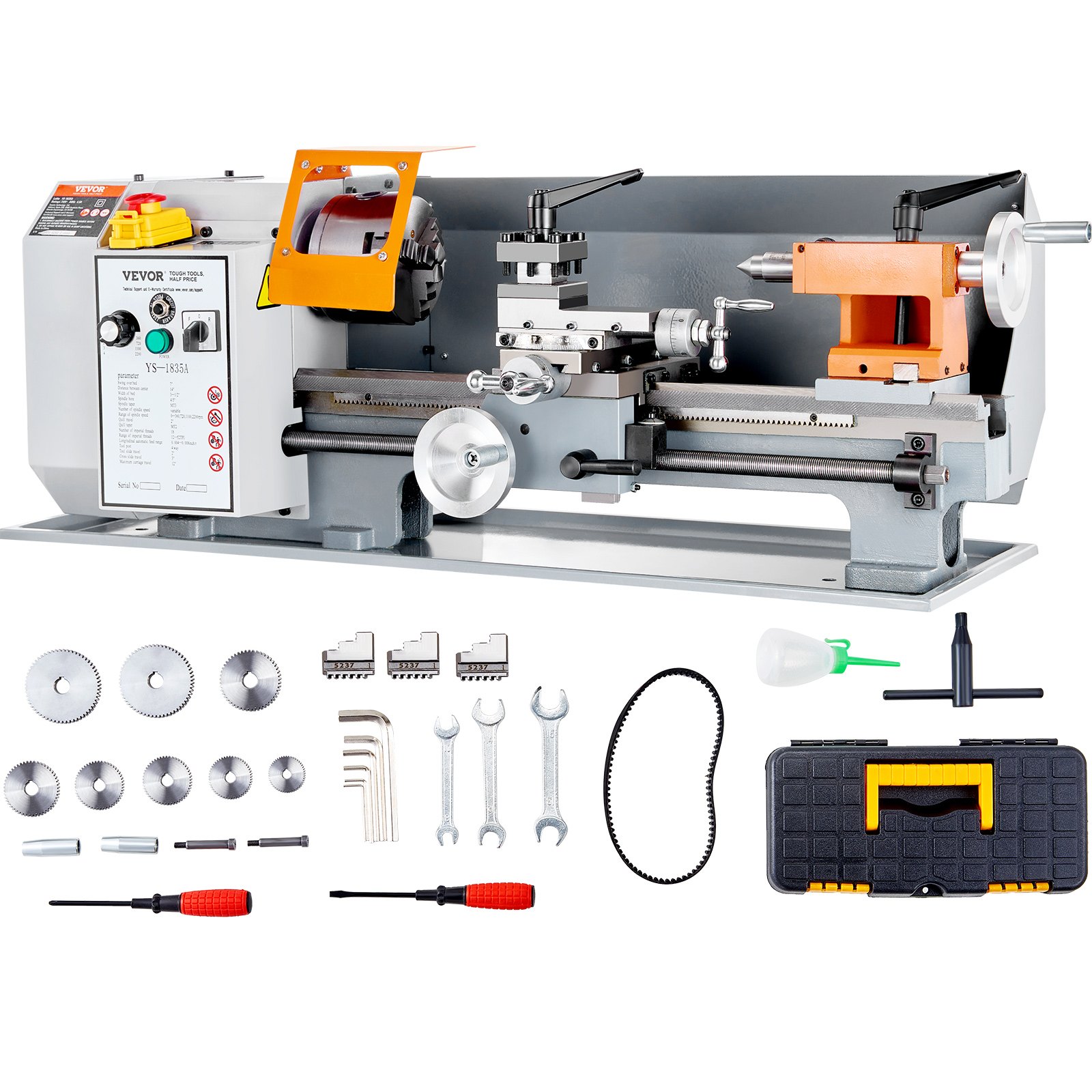

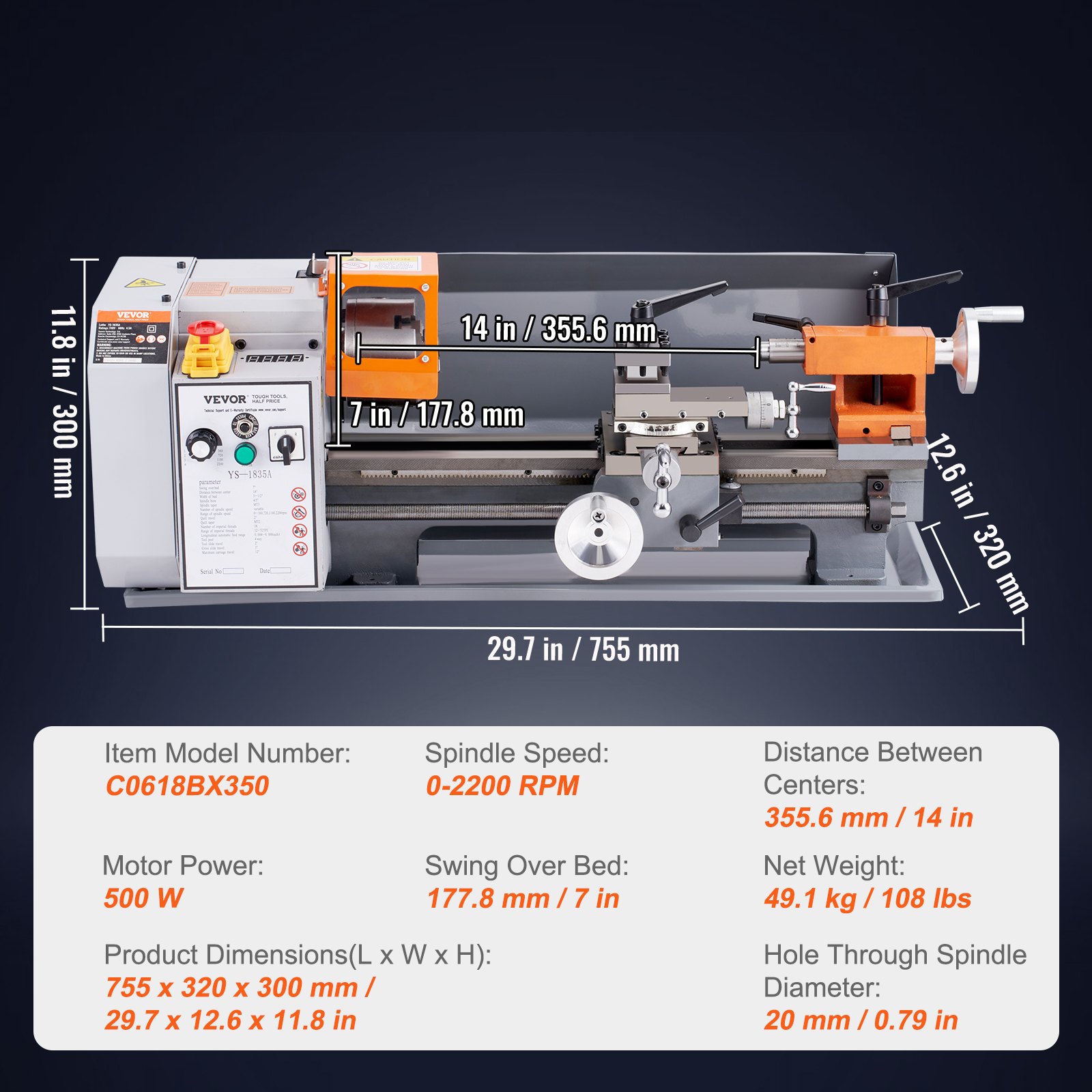

VEVOR metal lathe machine specifications and dimensions displayed with package content list.
VEVOR metal lathe machine specifications and dimensions displayed with package content list.

Specification

Item Model Number
C0618BX350
Main Material
HT200 Cast Iron
Spindle Speed
0-2200 RPM
Hole Through Spindle Diameter
20 mm / 0.79 in
Spindle Taper
MT3
Tail Stock Taper
MT2
Motor Power
500W
Chuck Diameter
φ100 mm / 3.9 in
Net Weight
49.1 kg / 108 lbs
Product Dimensions(L x W x H)
755 x 320 x 300 mm / 29.7 x 12.6 x 11.8 in
Manual
Download Link
Questions and Answers
3 Questions
The picture shows there lathe has a thread chaser dial but the manual does not show it. Does this model have the threadchaser dial
Yes, this model has the threadchaser dial.
By vevor
Hi there. The manual for this machine (C0618BX3500 indicates it can cut imperial threads as well as metric. Is this correct? Regards, Carl
This one has metric threads.
By vevor
Can I attach a rear 3 jaw chuck at the back hole? If it is possible, could you recommend your item please? I’d like to hold tightly a long wood stick using front and back both chucks together. Here is the link about the back hole position from your detail page screenshot. https://we.tl/t-IXDmMipl8K Thanks!
No, the rear 3 jaw chuck can't be attached at the back hole.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
12 Review(s)
Clear filters
Ed H Ed H
Lathe
I purchased a lathe but it was never delivered. Vevor made no attempt to find it. Vevor solved the problem by issuing me a refund. I never asked for a refund. I just wanted the item.
Howard Beever Howard Beever
Retired
It is a nice machine , it needs a lot adjustment to work like it should. I love 4 different speed ranges,which makes great for threading. I .would buy again
One Bone One Bone
Arrived earlier than expected
Arrived slightly beat up from handling. Just a few dents, but nothing that was not fixable. I am impressed with the quality. It actually had metal gears. I thought the start solenoid PB was faulty. The company is sending a replacement. But further investigation: After further investigation I discovered that the coil connects between terminal #4 (120 vac supply) then once the PB is pushed then to termina A1. A1 needs a neutral connection to hold the contacts in. This lathe was wired incorrectly as the A1 wire went to forward reverse switch terminal 9 then to terminal 10 which connected to the supply terminal on the board. That wire connected to the F/R switch #10 should have been connected to the neutral J1 terminal on the board, not the supply. So, it appears that the original switch was not bad, only a wiring mistake at Vevor. Even their print is incorrect. Check it out!
Rusty Shackleford Rusty Shackleford
Seems to be a good machine
Works well. Has more power and is more precise out of the box than I was expecting. The shipping took several weeks longer than advertised, when I contacted Vevor they said it was lost and offered a refund, then it finally arrived, so no refund. Weeks of precious project time were tied up in waiting for it to arrive. It seems to be a good machine, though time will tell. Just don't expect it to arrive without significant delay.
zero zero
Don't believe NEGATIVE reviews
I'm a beginner lathe wannabe. I read dozens of reviews and a good of those reviews number TRASHED Vevor lathes. Lots of complaints about the need to work on the lathe to obtain maximum accuracy. YES, right out of the crate will give you an accuracy measured in tenths(!). I finally ordered Vevor and KNEW I'd have to mess with it to get the advertised maximum accuracy and make numerous adjustments to this mass produced ~200 pound hunk of Chinese metal. No problem. Good thing I experienced in tearing down and rebuilding car engines. I have many talents and skills and tools as far as machines are concerned. So I spent several days FINE TUNING this thing. Now it's working well (but I'm not fully familiar with metal lathe operations). I'm getting closer to reliable thousandths. MY POINT: The thing was shipped around the world and got knocked around during shipment. How can anybody expect a 200 pound chunk metal to be accurate to thousandths right out if the box?? YOU MUST SPEND HOURS WITH IT TO TUNE IT UP! PLUS? we have hundreds off guys on the net who are very willing to offer helpful advice if you were to come up against a problem that resists your DIY skills. Vevor. They make thousands of these machines so I trusted them to send me (us) a product which definitely has the POTENTIAL to be very accurate AFTER the new buyer spends hours tuning it.
kasey johnsrud kasey johnsrud
Great hobby machine.
It didn't come perfect but for the price to get started its great!
archie archie
GM
Very good quality and good price, it is made with good materials which gives the operator the ease of working with various materials and not worrying about changing parts at all times
john w. walsh john w. walsh
quality product, precision lathe, a perfect tool for the home workshop
super quality, fast delivery, it came in a wooden crate when was the last time you saw that,a super machine, don't fool around if you need a mini precision lathe, this is the one , thanks John
ds5150 ds5150
Great product for the price
I had been looking at mini lathes for some time when this one became available for a substantial discount so I decided to buy it. Honestly, I don’t know how they can produce these things at this price. It arrived on time and mostly in tact, some of the tooling was loose in the crate and suffered from it, and the chip shield was bent, nothing I couldn’t get past. The machine itself is well made and functioning as it should. I immediately made modifications to accommodate a quick change tool post which only showed the quality of the build of this machine and now I have repeatable ability for tooling setup. This machine is built for hobbyists and DIYers but the specific design adds functionality beyond that. I absolutely recommend this tool for anyone looking to get into machine work.
GOT GOT
Great machine for the money
Initial setup doesn't show any issues. Great lathe for the price.
