200mm Linear Scale Encoder With 3m Cable
Here we offer you 200mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
- High Performance
- Durable Aluminum Body
- Double Seal+Signal Cable
- Stable Slide Part
- Convenient & Practical

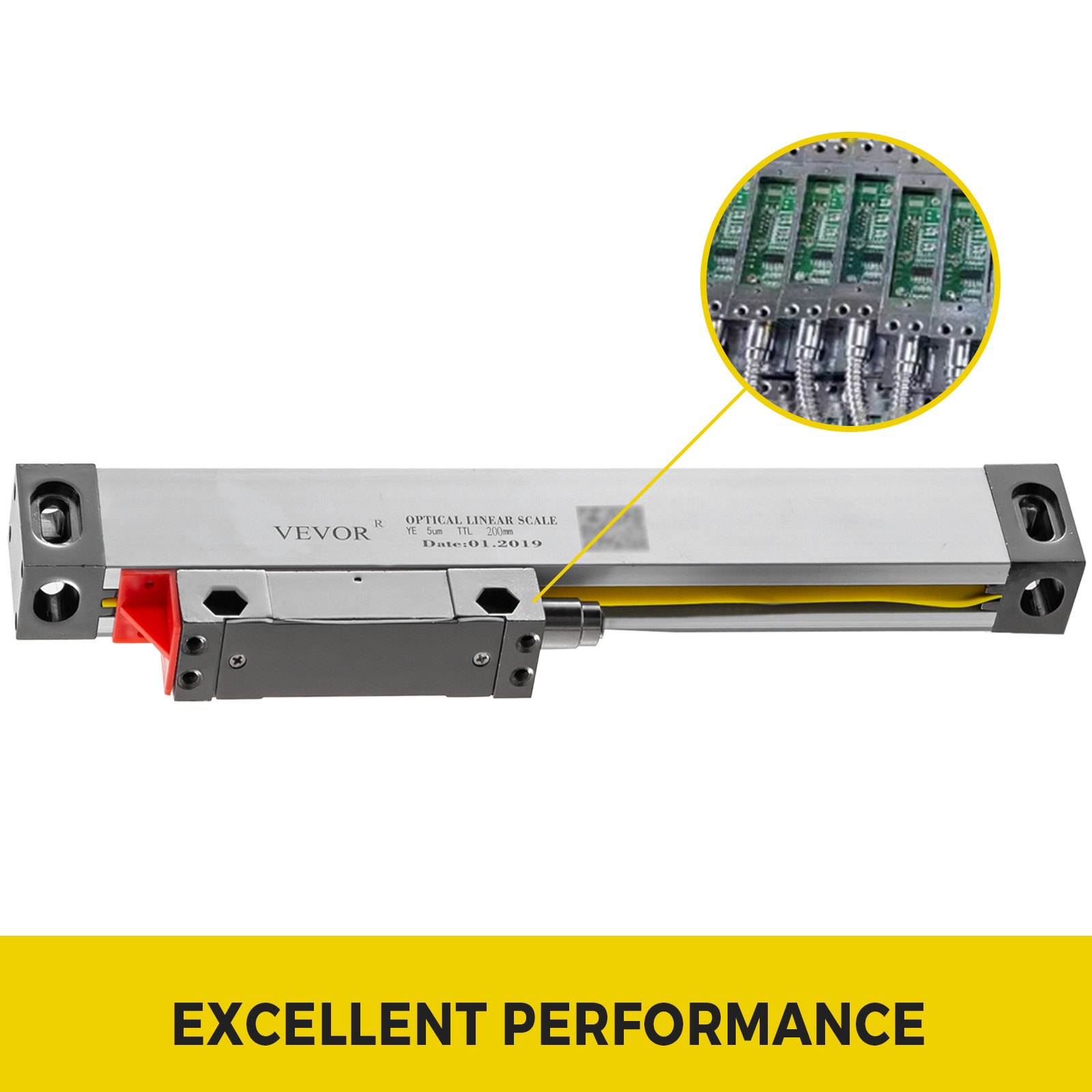

Excellent Performance
The Linear scale applies intelligent chip with travel length 0-200mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.

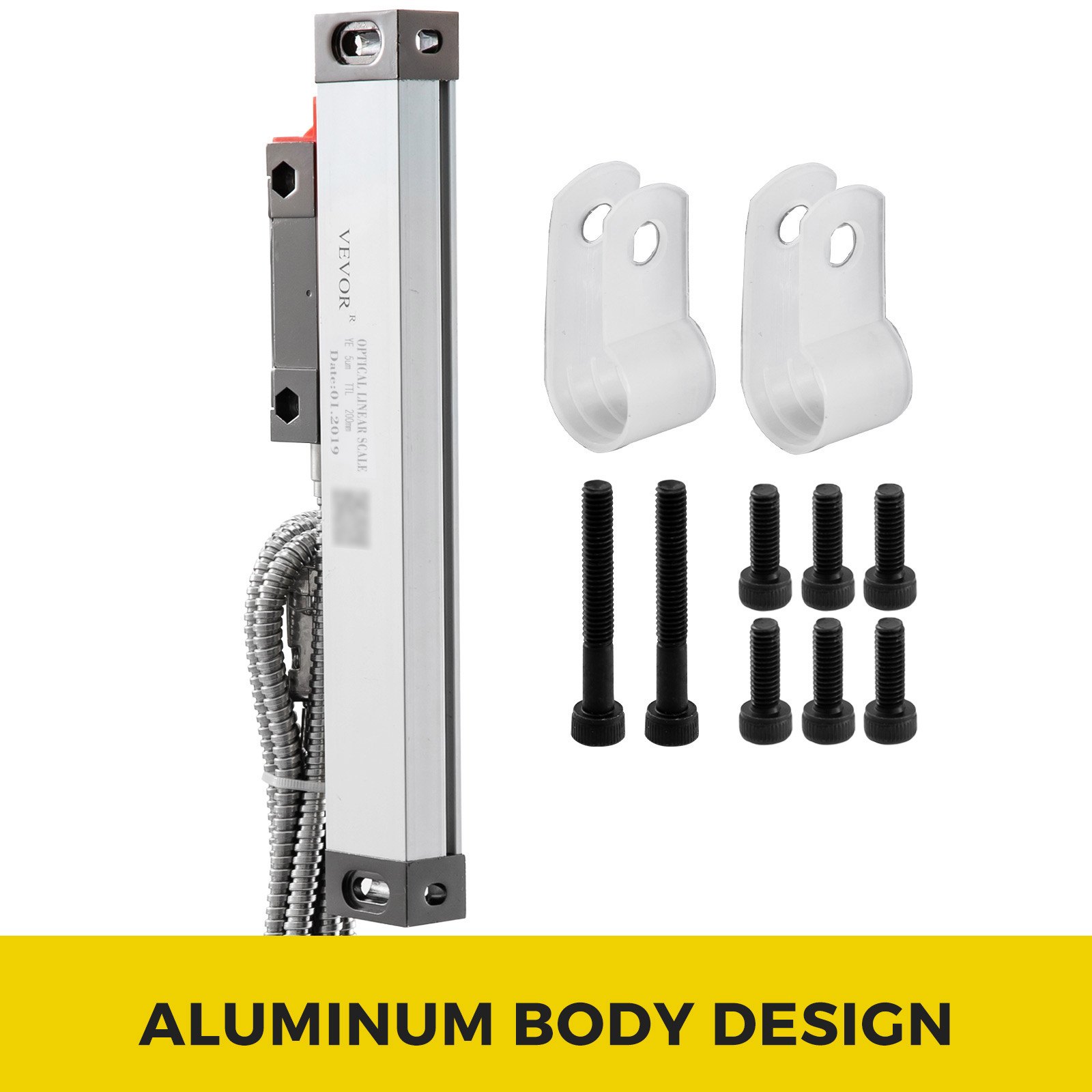

Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.

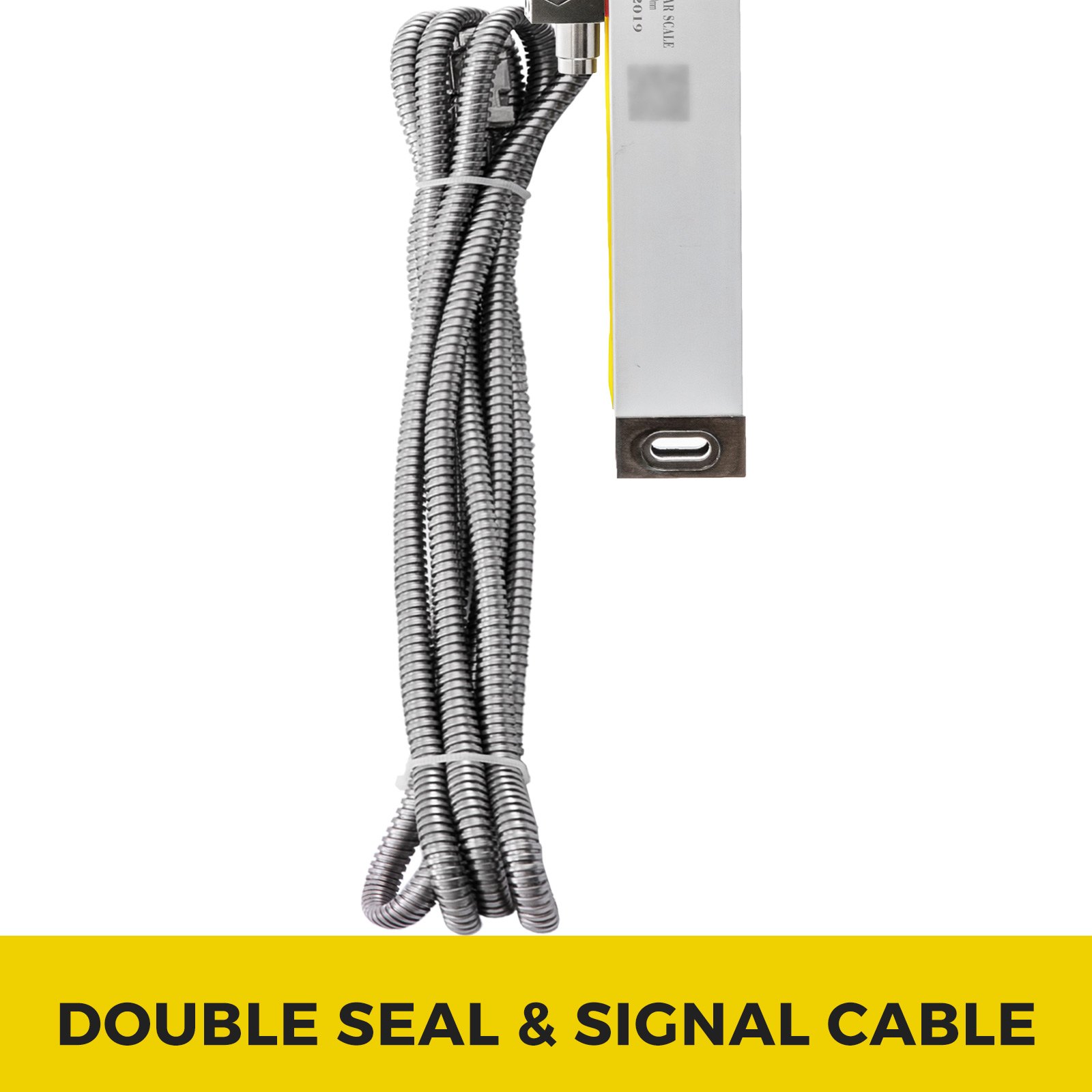

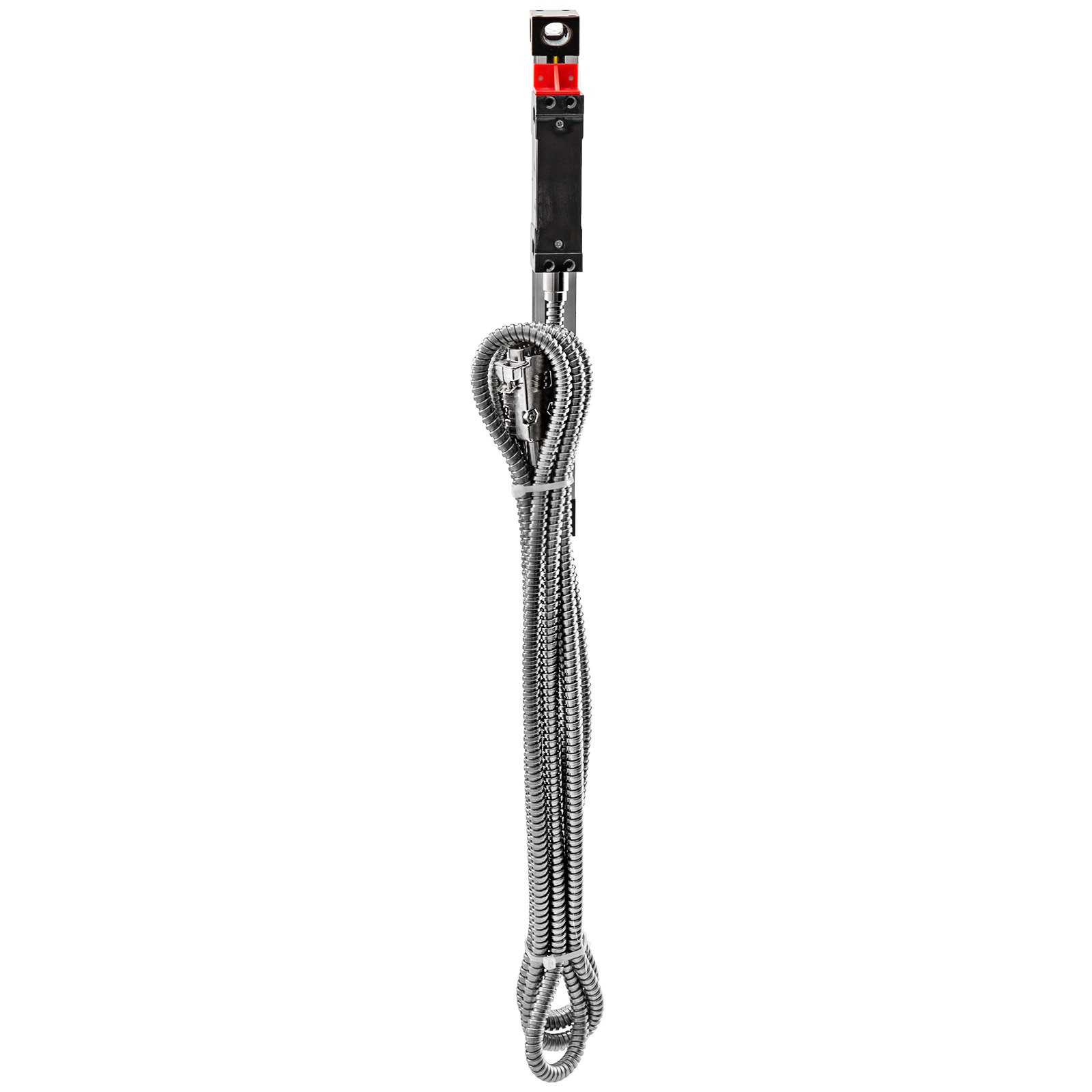

Double Seal+Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.

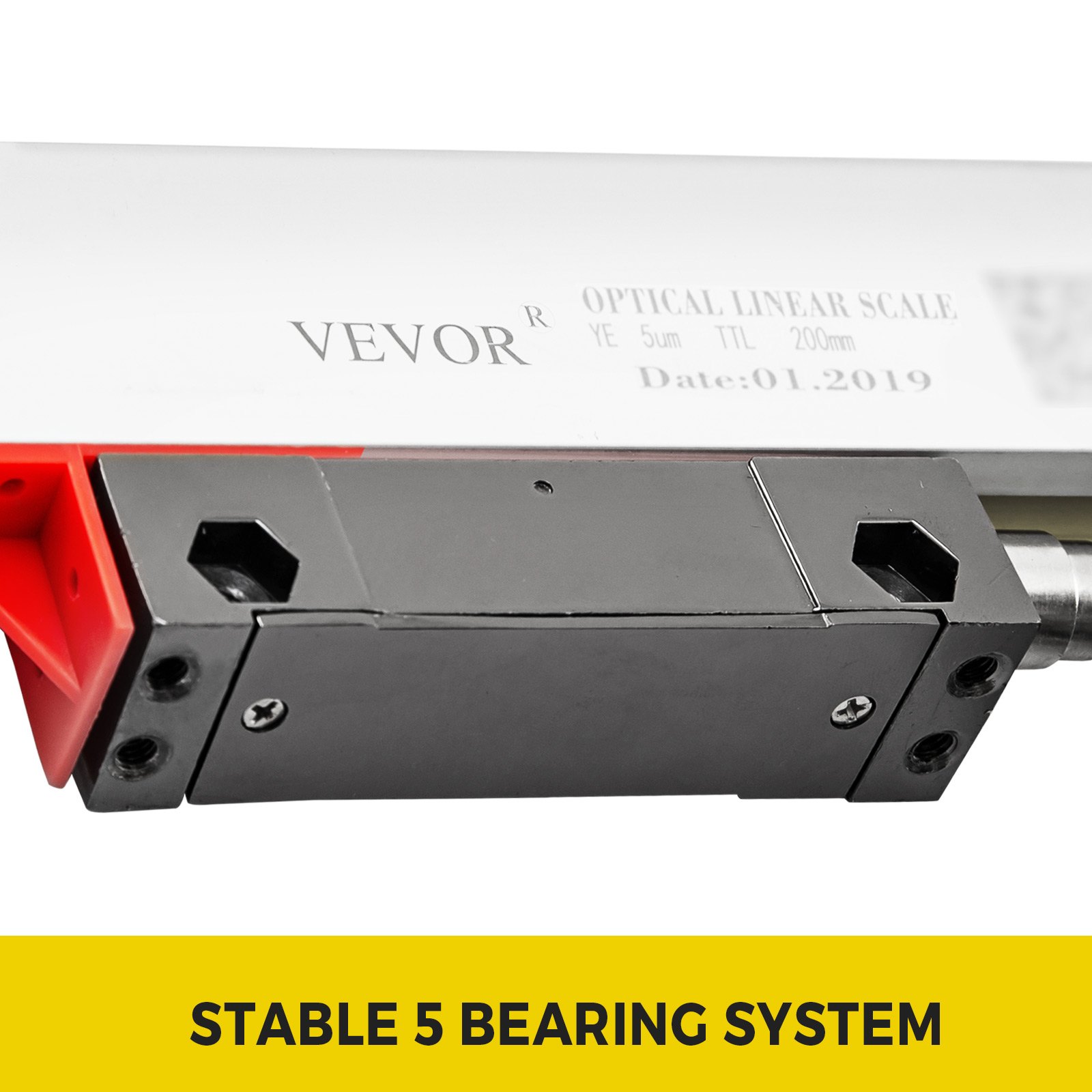

Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.

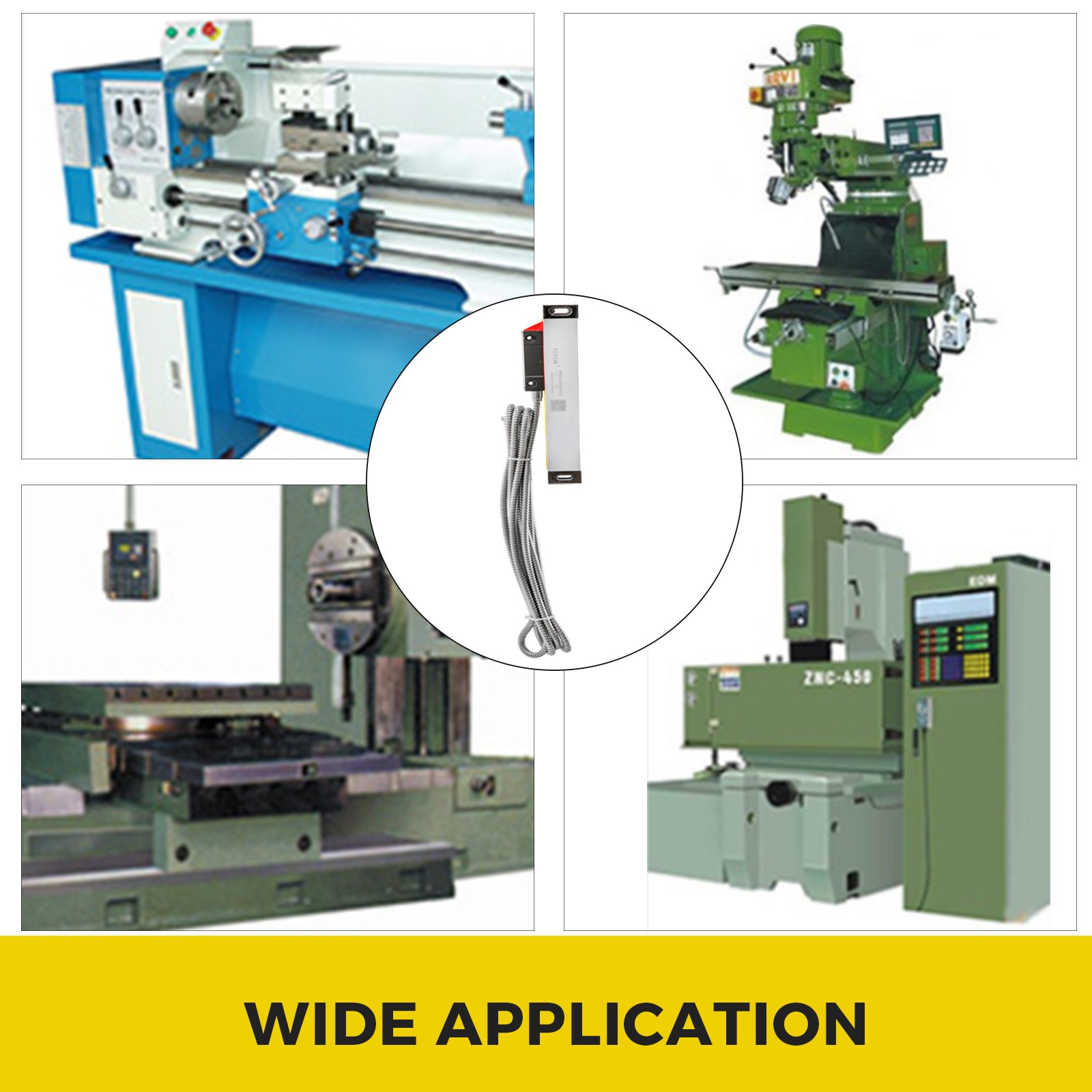

Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.

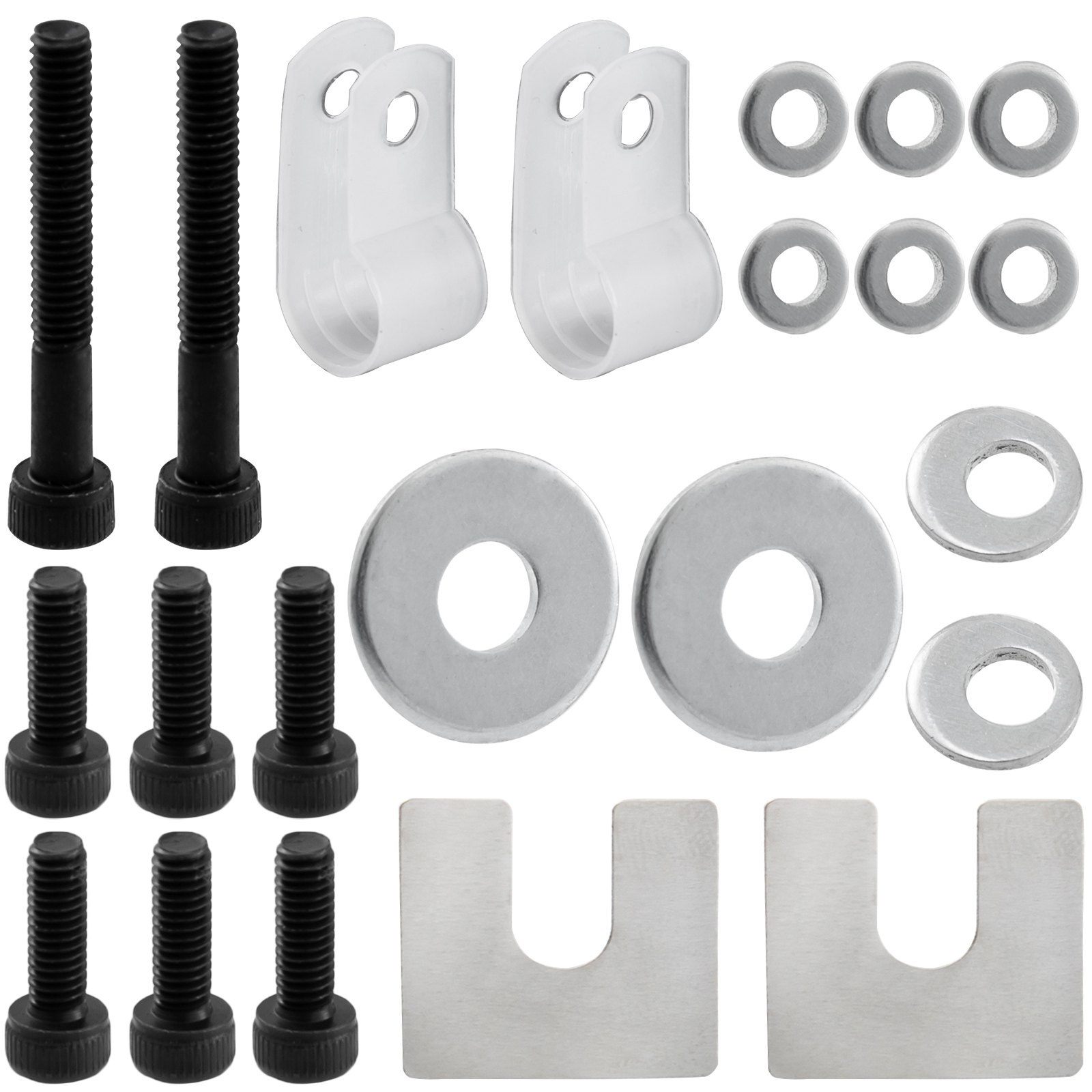

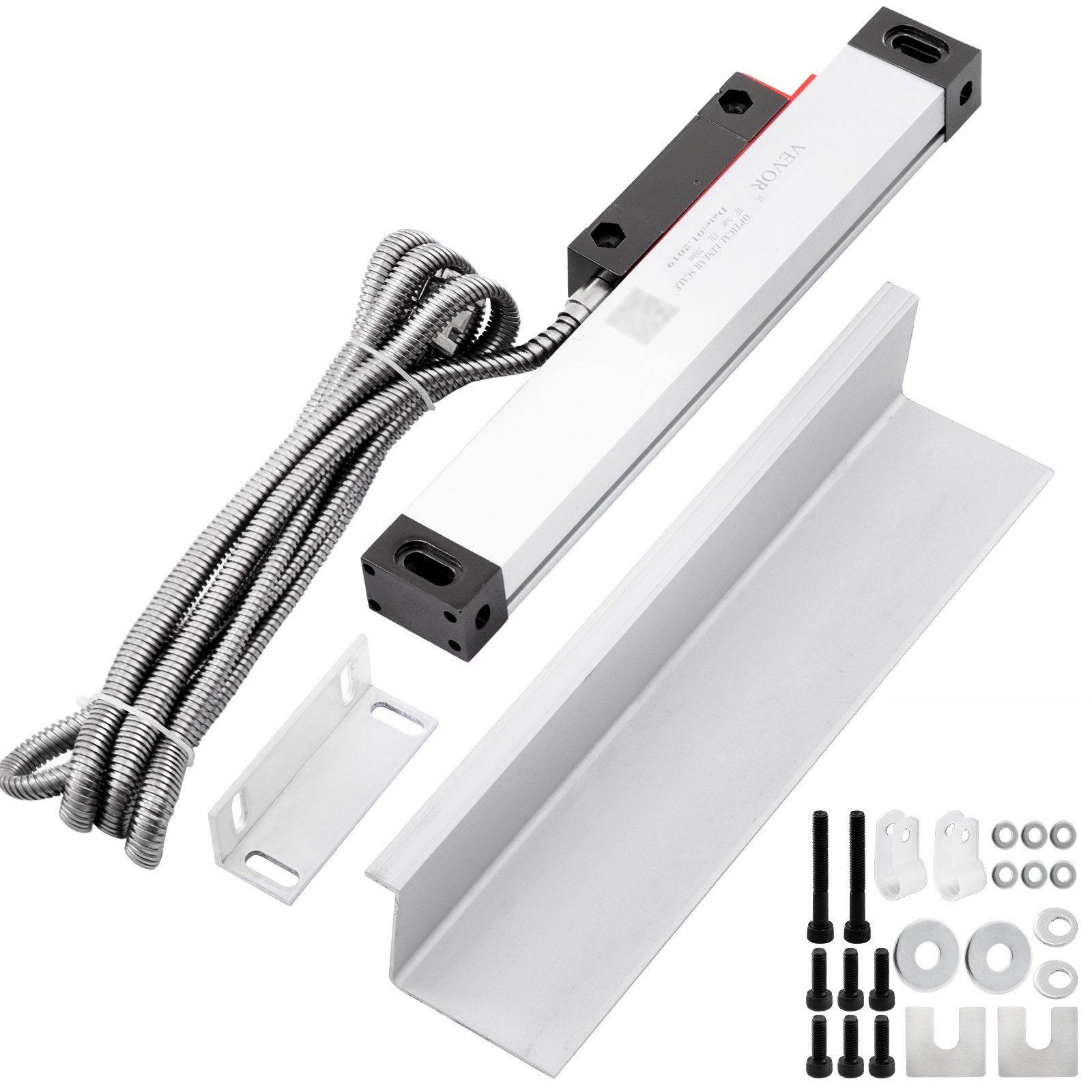

Package Content
- 1 x Linear Scale Encoder
- 1 x Set of Accessory
Specifications
- Voltage: 5V DC
- Current: 50mA
- Travel Length: 200mm
- Grating Pitch: 0.02mm (50LP/min)
- Resolution: 5μm (0.005mm) 0.0002"
- Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
- Response Speed: 60m/min or 40inch/sec
- Cable Length: 3m
- Sealing: Double seal
- IP Class: 53

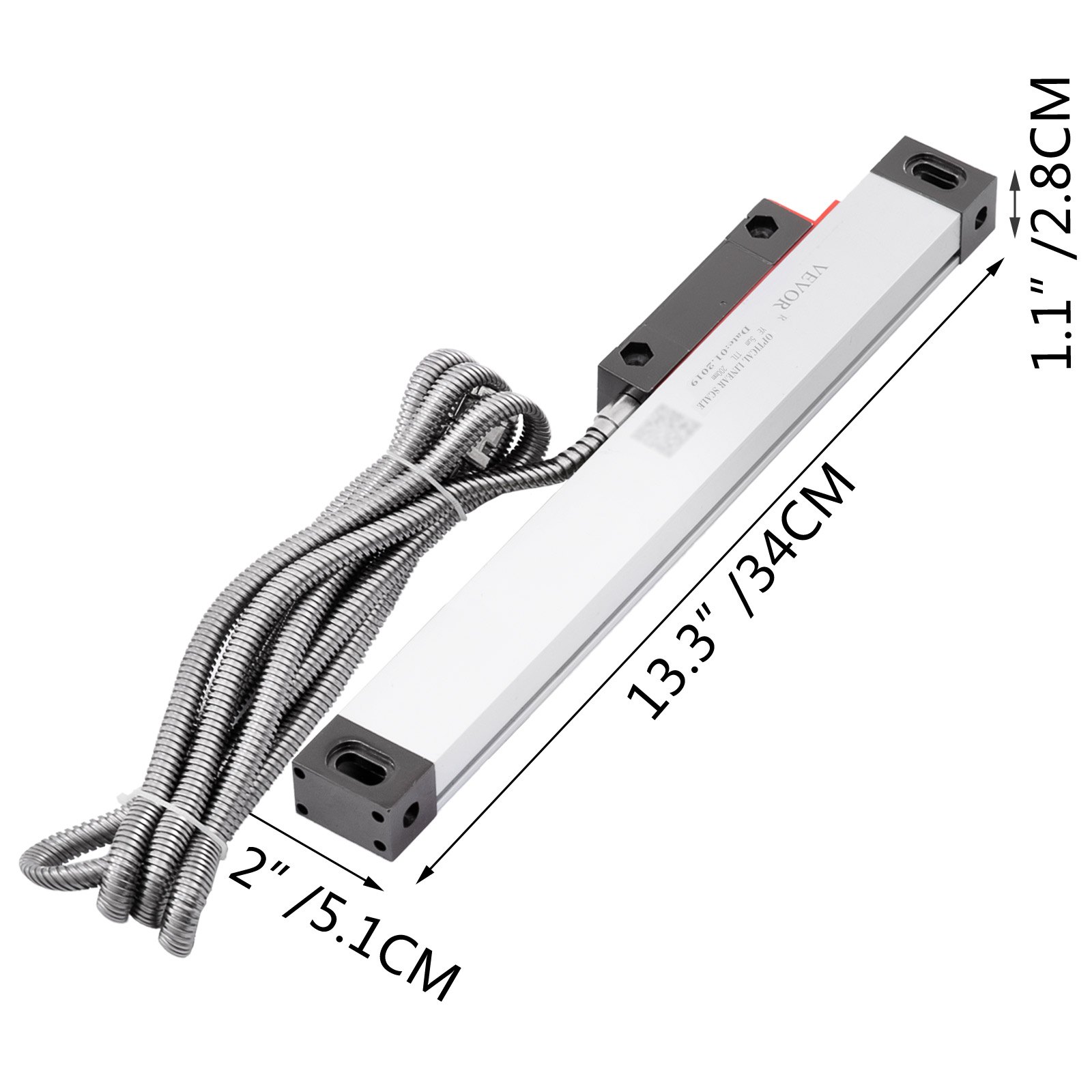

- Product Dimention(LxWxH): 34 x 2 x 5cm (13.39" x 0.79" x 1.97")
