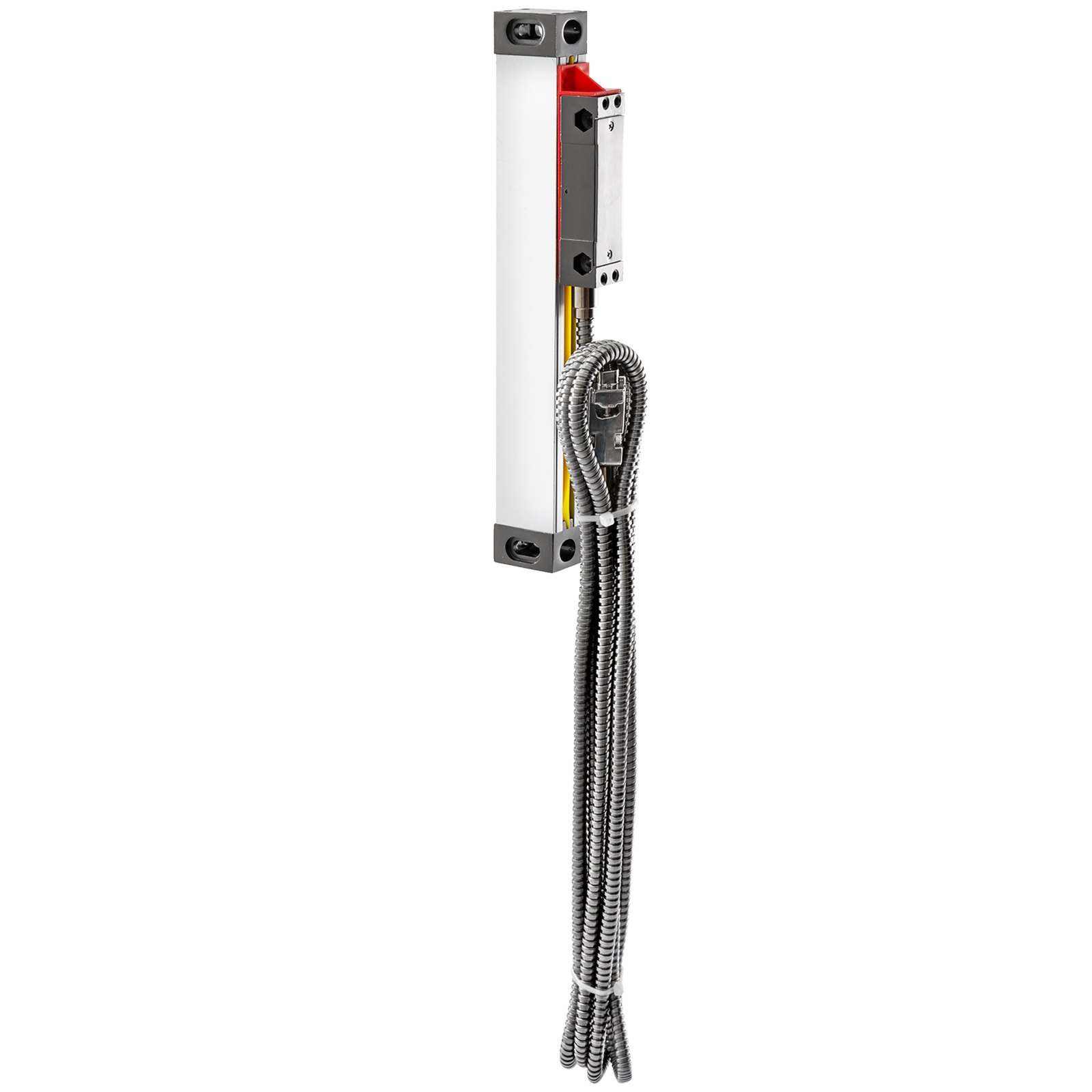

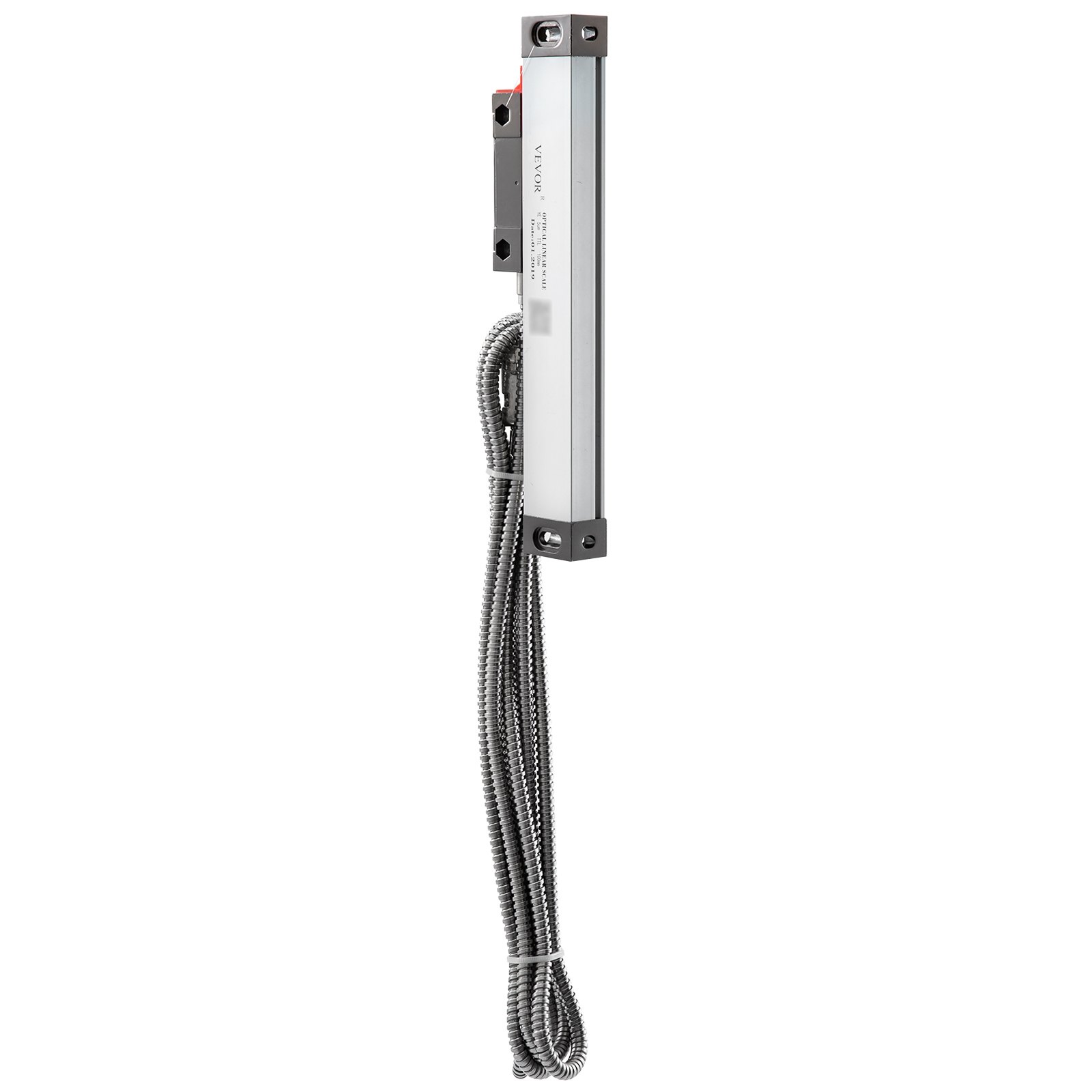

VEVOR Lathe Linear Scale 150 mm Linear Glass Scale, High Accuracy 0.0002" Optical Length, Precision Linear Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
GSC150MMDC0000001V0

VEVOR Lathe Linear Scale 150 mm Linear Glass Scale, High Accuracy 0.0002" Optical Length, Precision Linear Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories

See All Customer Reviews
13 Reviews
AU $46.99
Limited time deal
Earn at least AU $0.94 (94 points) back calculated at checkout. Details
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download
Free delivery to Australia
Get it as soon as Tues. Apr. 29 Details
Shipping Rates & Policies
All products are currently free shipping, except in some remote areas. please verify your delivery address to ensure accurate shipping cost information is displayed.
Unless noted otherwise in the ordering pipeline, ships all items within two days of receiving an order.
The delivery date is for reference only and may be adjusted according to the delivery address. Please refer to the actual delivery time.
In Stock
Add to Wish List

About this item

  • 【HIGH PERFORMANCE】- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 150mm, Accuracy: ±0.005 mm, Resolution: 5μm. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
  • 【DURABLE ALUMINUM BODY】- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
  • 【DOUBLE SEAL & SIGNAL CABLE】- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high abrasive resistance. 3m signal cable applies multilayer shielded wire steel and metal shell protection.
  • 【STABLE SLIDE PART】- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.
  • 【CONVENIENT & PRACTICAL】- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Lathe Linear Scale 150 mm Linear Glass Scale, High Accuracy 0.0002" Optical Length, Precision Linear Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
AU $4699 Only 1 Left, order soon
In Stock
Description Specification Questions and Answers Reviews
150mm Linear Scale Encoder With 3m Cable
Here we offer you 150mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

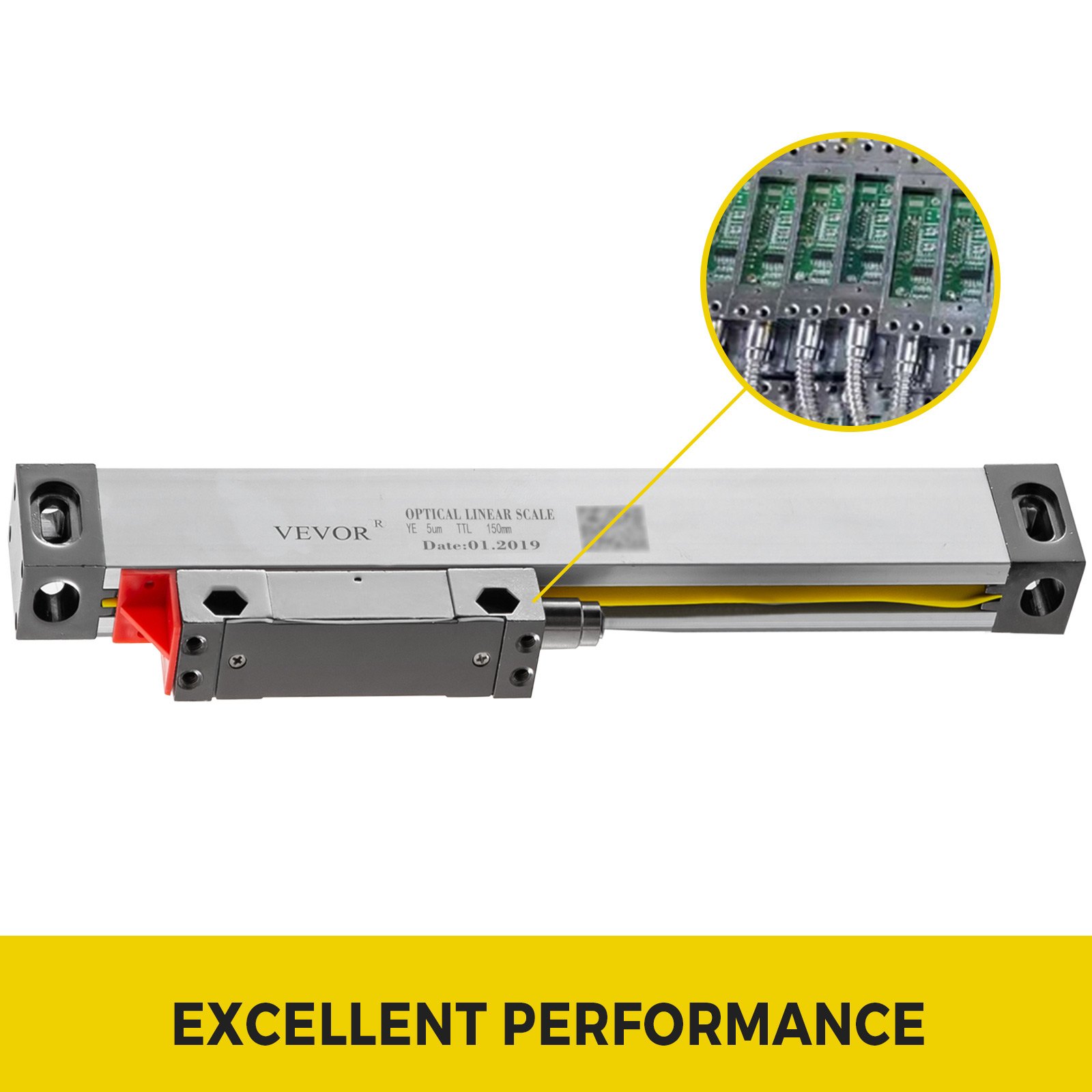

Excellent Performance
The Linear scale applies intelligent chip with travel length 0-150mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.

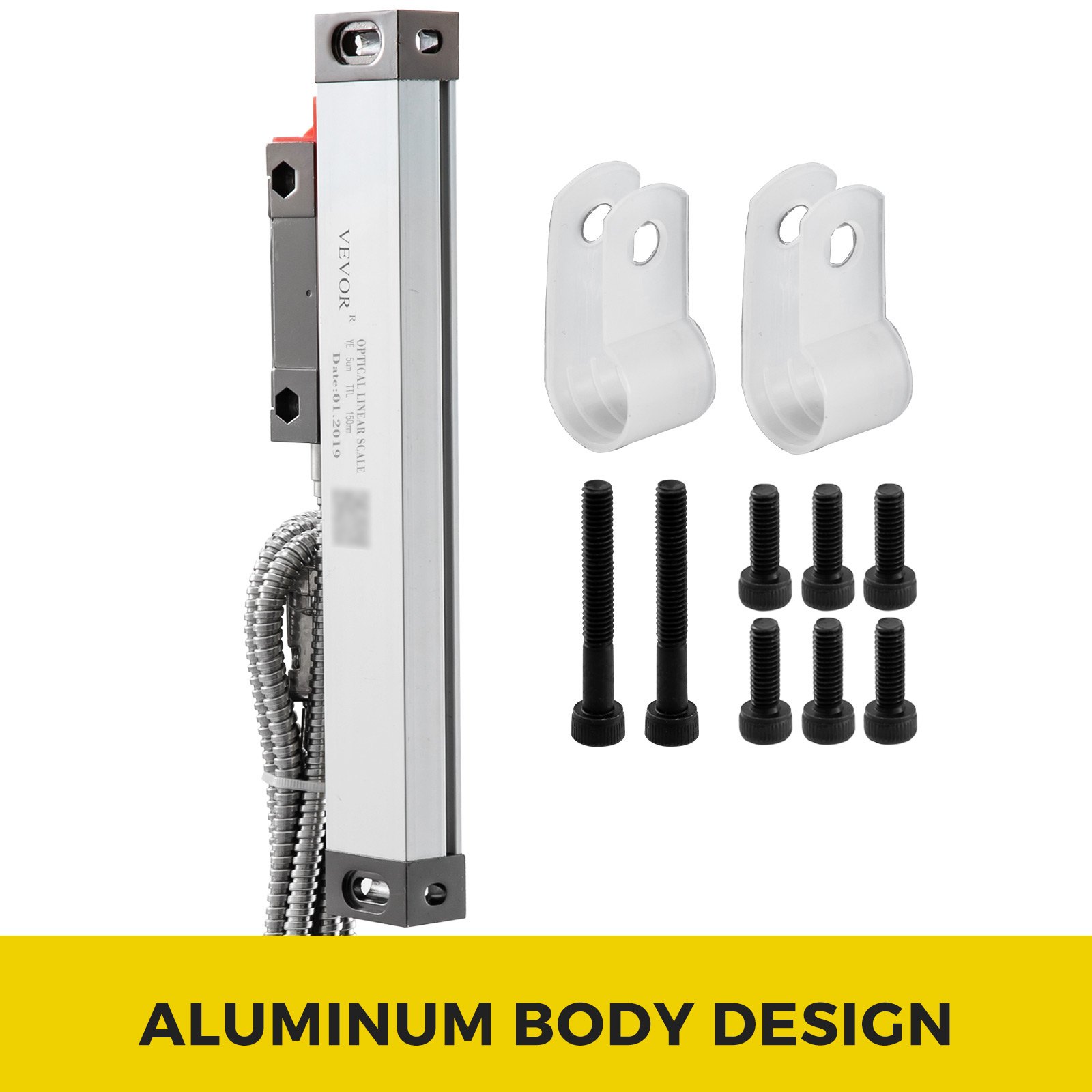

Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.

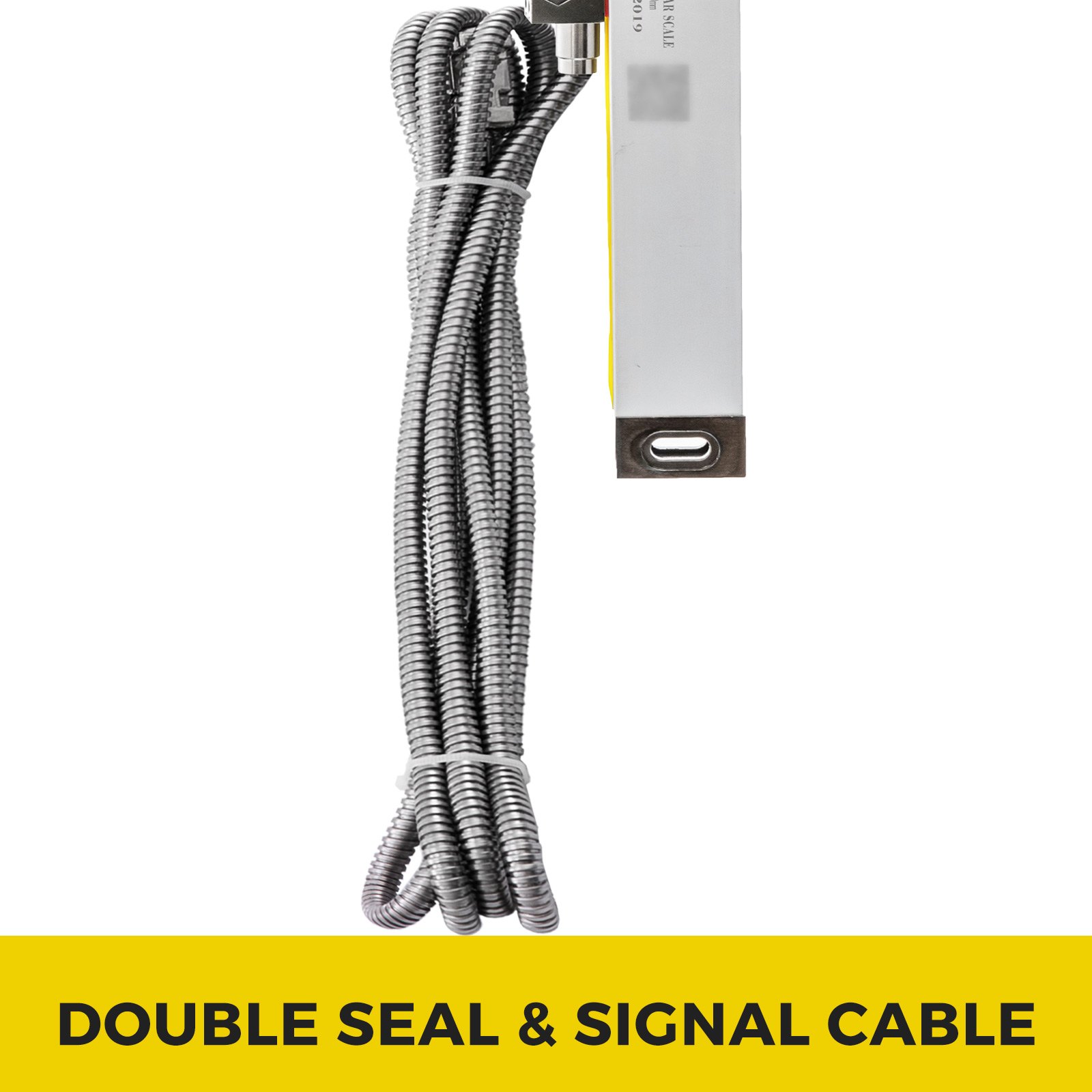

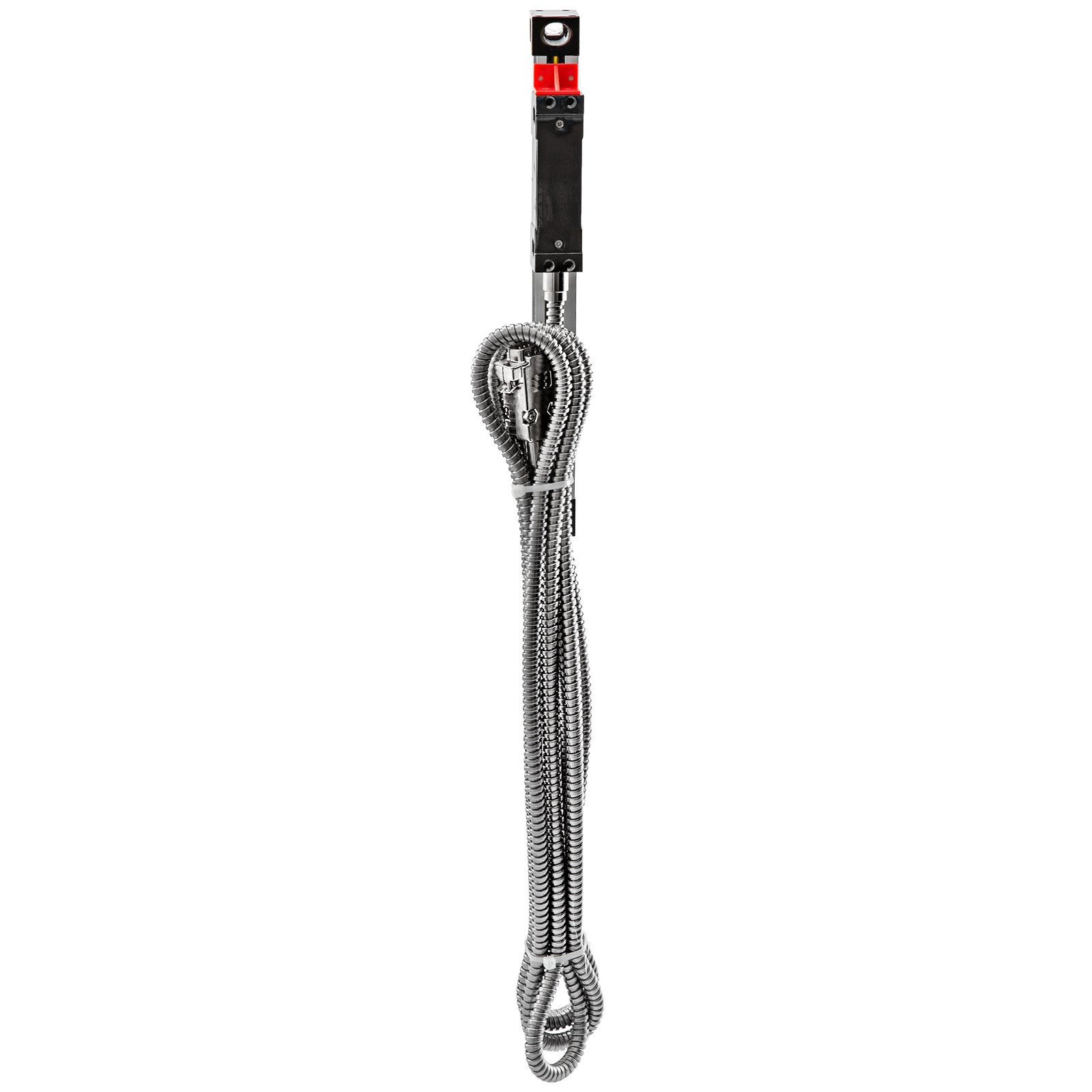

Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.

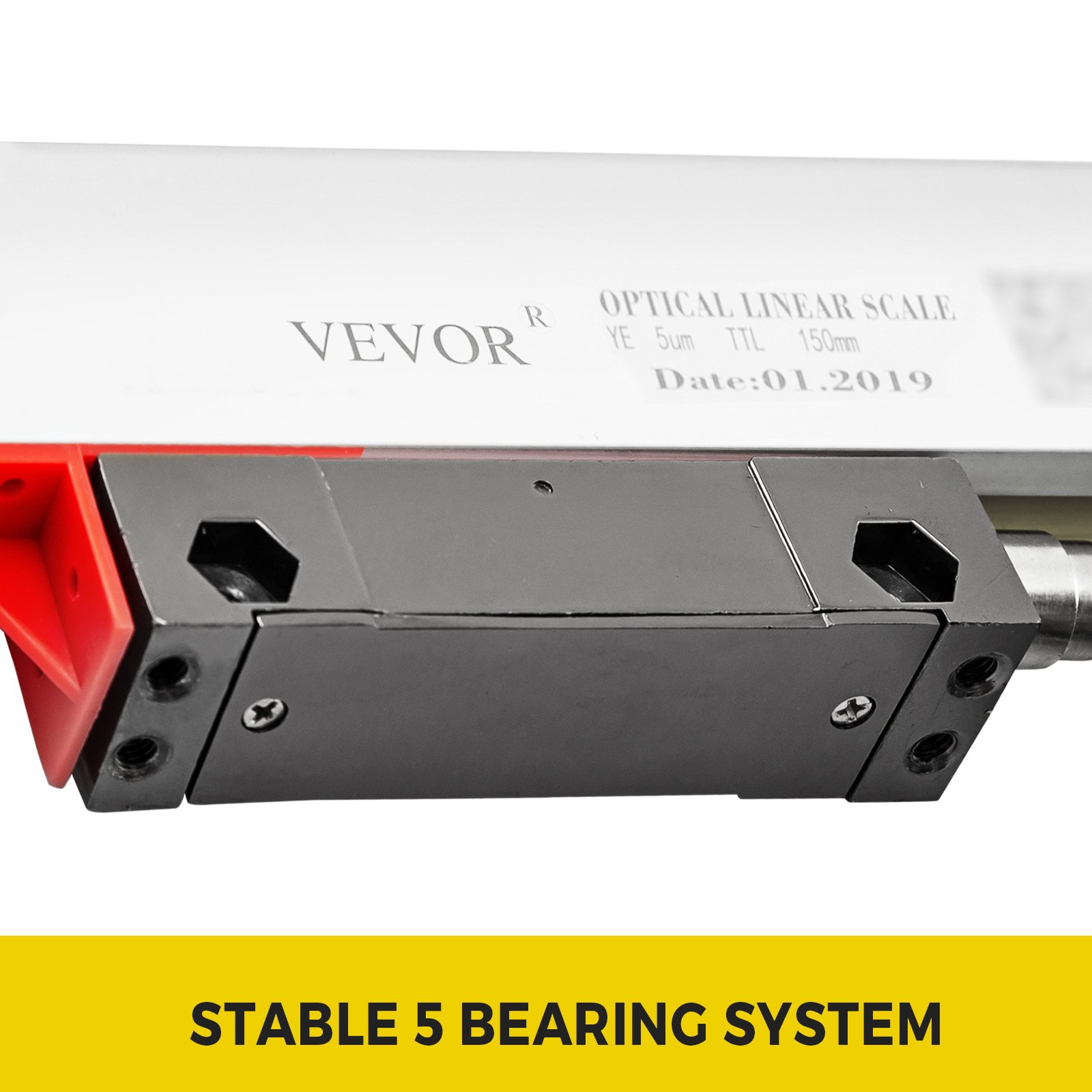

Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.

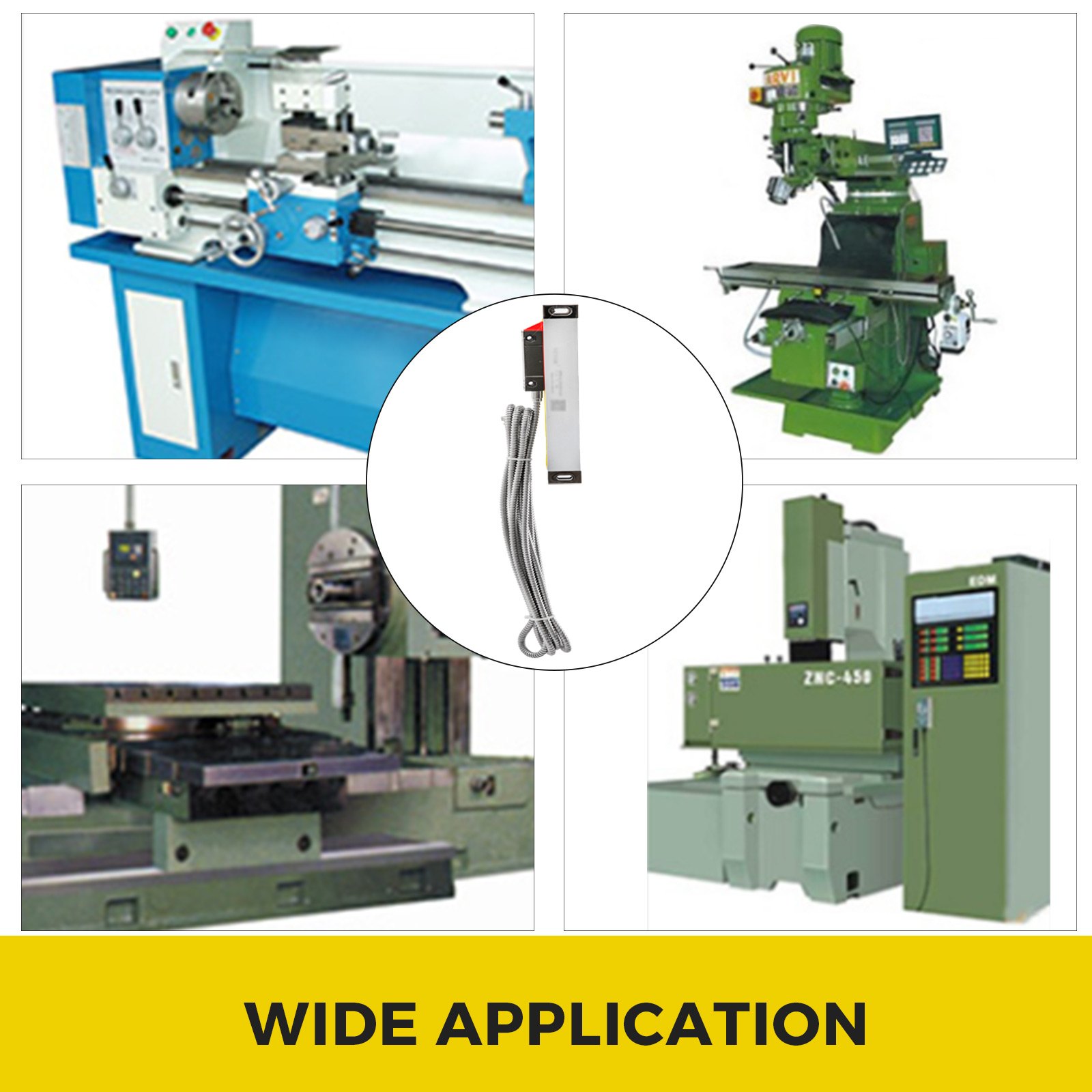

Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 150mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53

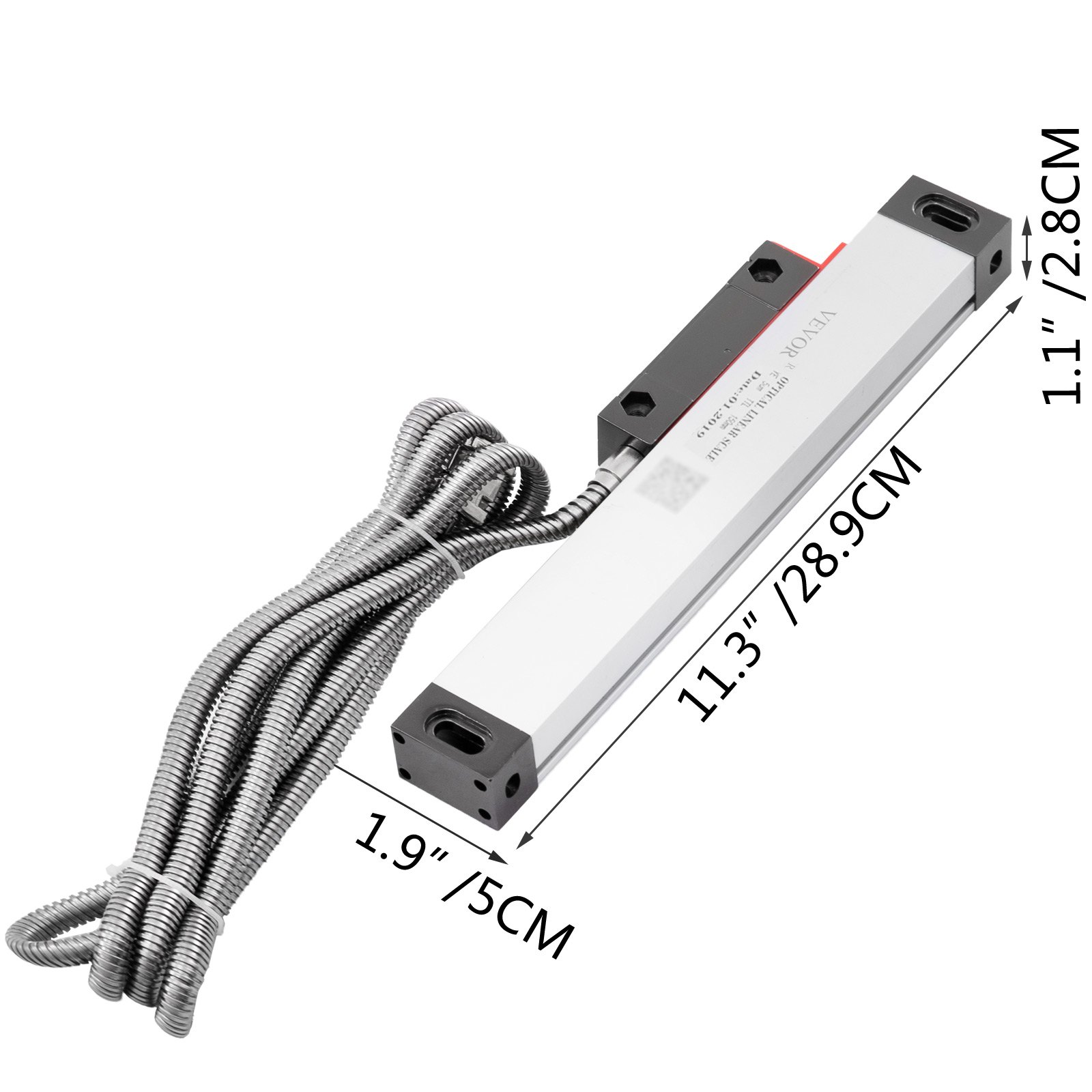

  • Product Dimension(LxWxH): 29 x 2 x 5cm (11.42" x 0.79" x 1.97")

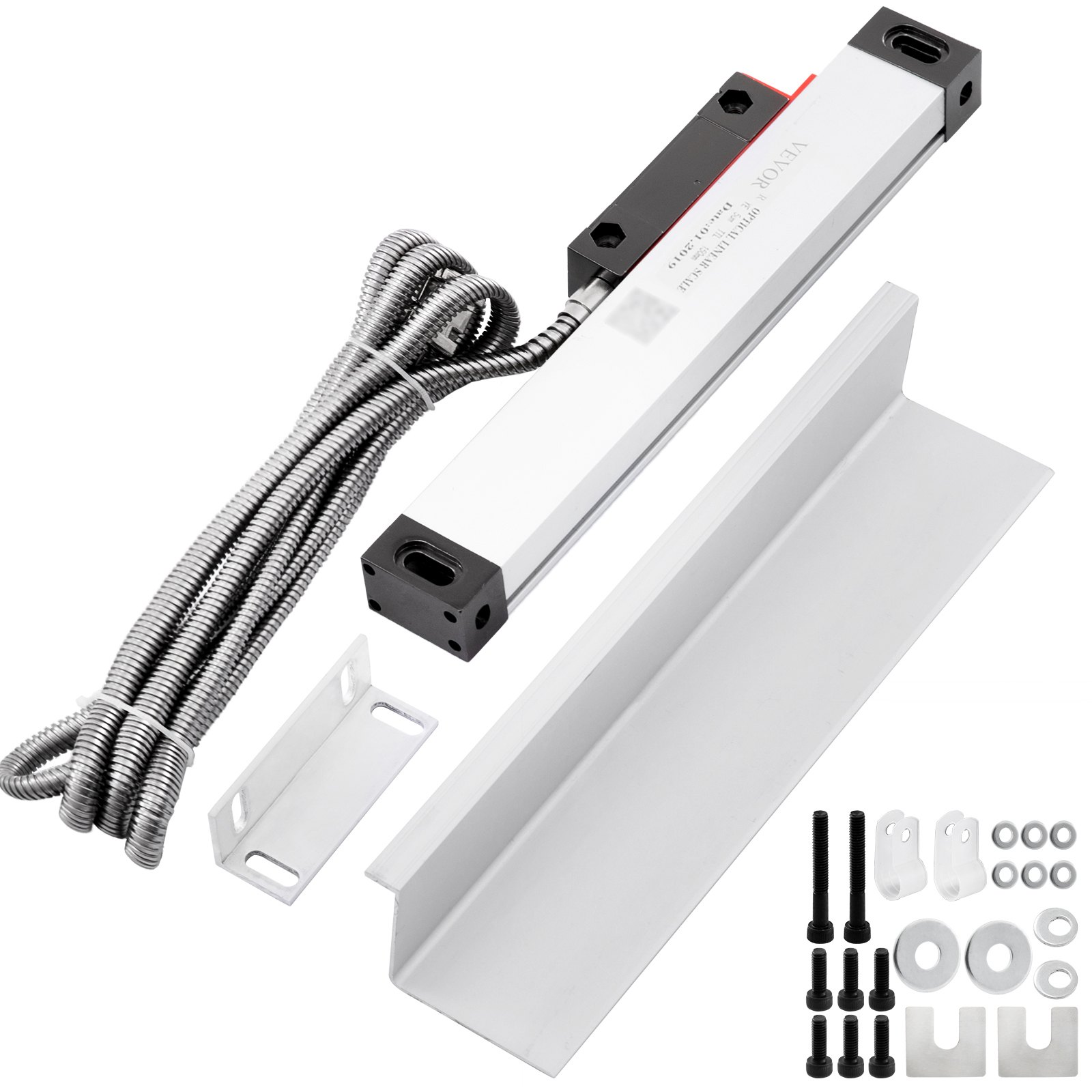

Package Content
  • 1 x Linear Scale Encoder

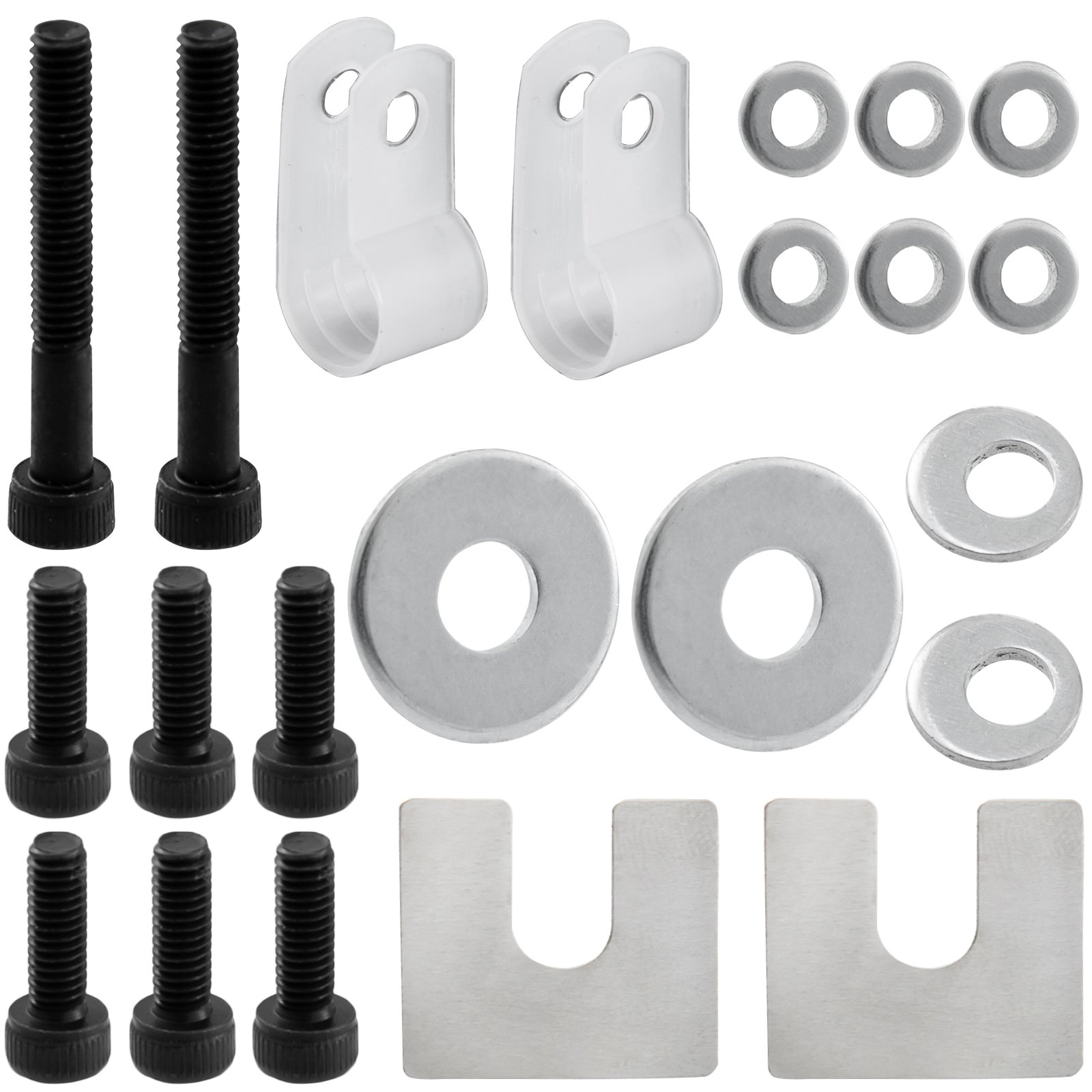

  • 1 x Set of Accessory
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
150mm Linear Scale Encoder With 3m Cable
Here we offer you 150mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-150mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 150mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimension(LxWxH): 29 x 2 x 5cm (11.42" x 0.79" x 1.97")

Specification

Voltage
5V DC
Current
50mA
Travel Length
150mm
Grating Pitch
0.02mm (50LP/min)
Resolution
5μm (0.005mm) 0.0002"
Accuracy
±0.005 mm or 0.0002" (at 20 deg C)
Response Speed
60m/min or 40inch/sec
Cable Length
3m
Sealing
Double seal
IP Class
53
Product Dimension(LxWxH)
29 x 2 x 5cm (11.42" x 0.79" x 1.97")
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.8 Out of 5
Based on 13 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
13 Review(s)
Text, image, video
Text, image, video
Photos Only
Videos Only
All star
All star
5 star Only
4 star Only
3 star Only
2 star Only
1 star Only
Most Recent
Most Recent
Most Helpful
Clear filters
Martin Falls Martin Falls
3 scale DRO
Mounting this equipment onto a Pinnacle Verticle milling machine took some time as only the rear of the table was a plumb & flat surface. Took a bit of imagination to work out heavy duty covers to stop heavy objects from damaging the dust covers, scales and read heads. Now to become familiar with the various functions : )
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Alan Lobley Alan Lobley
Mr
These digital readouts are very easy to set up and use , I have now bought several of these and never had any problems with them
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Steve Steve
Ford
Not really suited to the y axis on my mill due to mounting constraints. I have it fitted and use it but a rotary encoder really should be used
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
AussieDave63 AussieDave63
Great DRO
This is a very easy to use DRO. It’s just a pity all the mounting brackets for the readout don’t fit and for some reason all these budget DRO’s always come with the wrong size scale mounting bolts. Apart from the hardware issues, these DRO’s are good value for money.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Digital readout Digital readout
Check the dimensions
Great quality product and would definitely purchase again. Just be sure to check the dimension of the the scale readers for their actual length, not their measuring length. Its a bit confusing in the description.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
M A Price M A Price
Mr
Grate value and quality, only let down was the instructions included, but soon found a youtube video that helped
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Mick Mick
Mr
Bought to add a 3rd reference to a sino dro. Scales came with an additional converter that went between the cable connections which worked perfectly. Same quality as other Asian made scales. Worked perfectly and no issue with resolution. Came with cover and all screws for fitting. Price with promo codes was excellent value. Delivery from vevor was about 3 days in Australia. Would recommend if you need a replacement scale or new.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Rockape49 Rockape49
DRO for a milling machine
Installed it with other two linear scales (550 & 300) and 3 axis digital readout on SIEG SX2.7L Mill. The installation required purchase of additional screws and alu brackets from a local hardware store. Using it for a year without any issues. Can not imagine milling without DRO anymore.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Rockape49 Rockape49
DRO for a milling machine
Installed it with other two linear scales (550 & 200) and 3 axis digital readout on SIEG SX2.7L Mill. The installation required purchase of additional screws and alu brackets from a local hardware store. Using it for a year without any issues. Can not imagine milling without DRO anymore.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Rockape49 Rockape49
DRO for milling machine
Installed on SIEG SX2.7L Mill. The installation required purchase of additional screws and alu brackets from a local hardware store. Using it for a year without any issues. Can not imagine milling without DRO anymore.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
