VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection
CGXXZXQ6INCHMYUQYV9

VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection

See All Customer Reviews
5 Reviews 1 answered questions
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.
  • Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
  • Versatility Unleashed: VEVOR's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!
  • IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)
  • Key Specifications: Stroke Length: 6 inch (150mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 10.82" (275mm); Extended Length: 16.82" (425mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Actuator 12V 6Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection
Description Specification Questions and Answers Reviews
Move Faster, Work Smarter: Enable Automation in Every Step
Experience 0.55"/s high-speed movement and 220lbs strong actuation force with VEVOR 6-inch linear actuator! Powered by robust motor and offering precise rotation, it delivers strong support and high-efficiency motion for furniture adjustment, automation systems, mechanical equipment, and more.
Seamlessly integrating into your living spaces, our linear motion actuator not only facilitates automatic raising and lowering of curtains and height adjustment systems but also drives electric door systems. It delivers more convenient, comfortable, and intelligent living experiences.
With an IP54 protection rating, our electric linear actuator provides reliable protective performance, maintaining stability in the face of dust, splashing water, and light humidity.(Caution: Water should not penetrate the interior of the motor, as it may result in motor burnout)

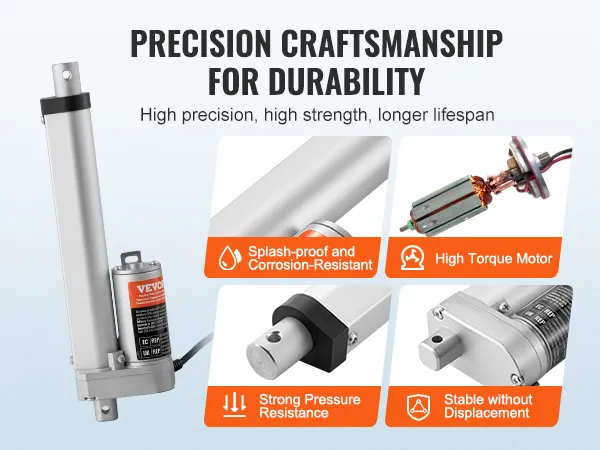

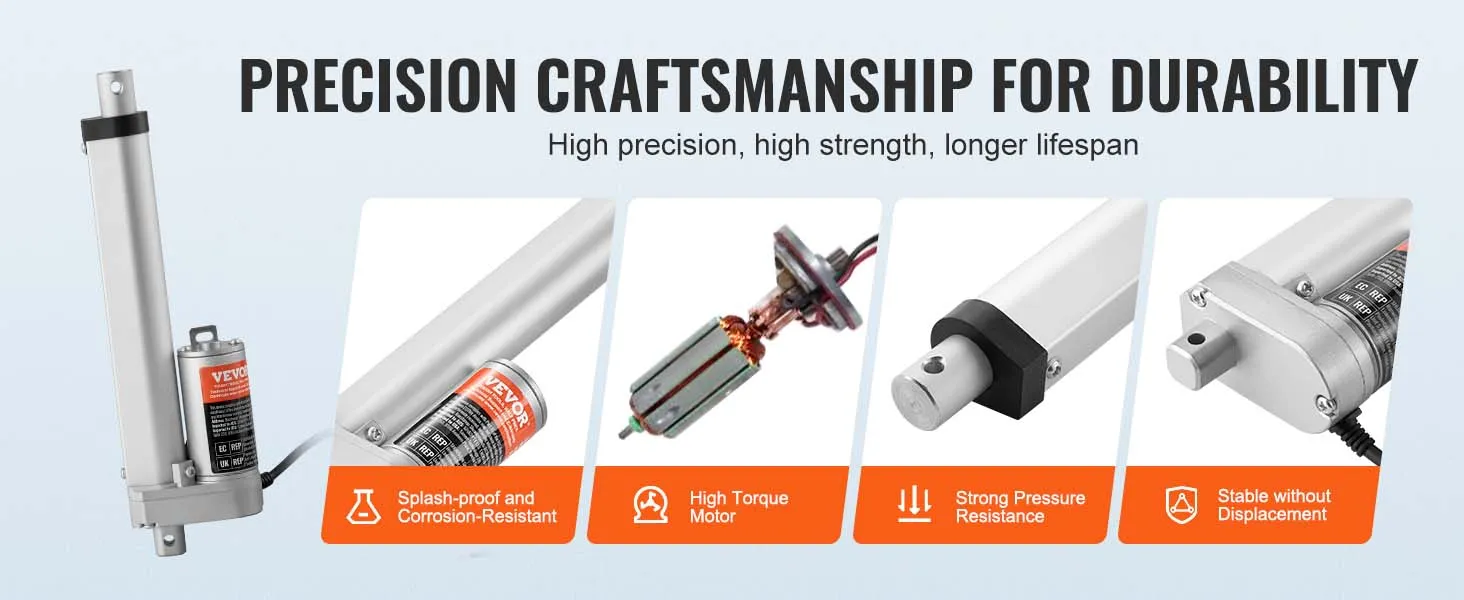

Crafted with precision and using high-quality materials, our stroke linear actuator ensures high precision and strength, significantly extending its lifespan. Engineered to endure frequent use, it maintains high stability, offering steadfast support for your various tasks.

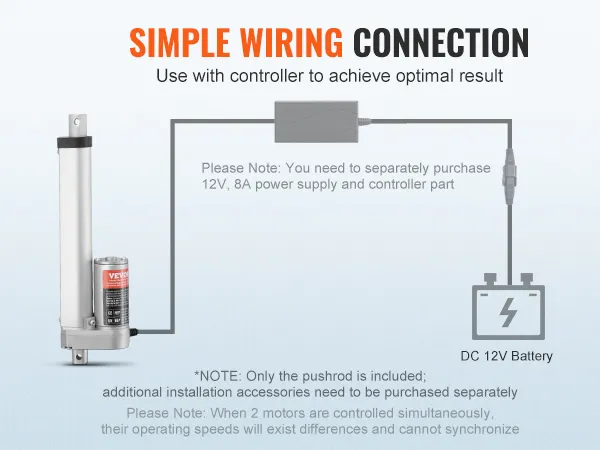

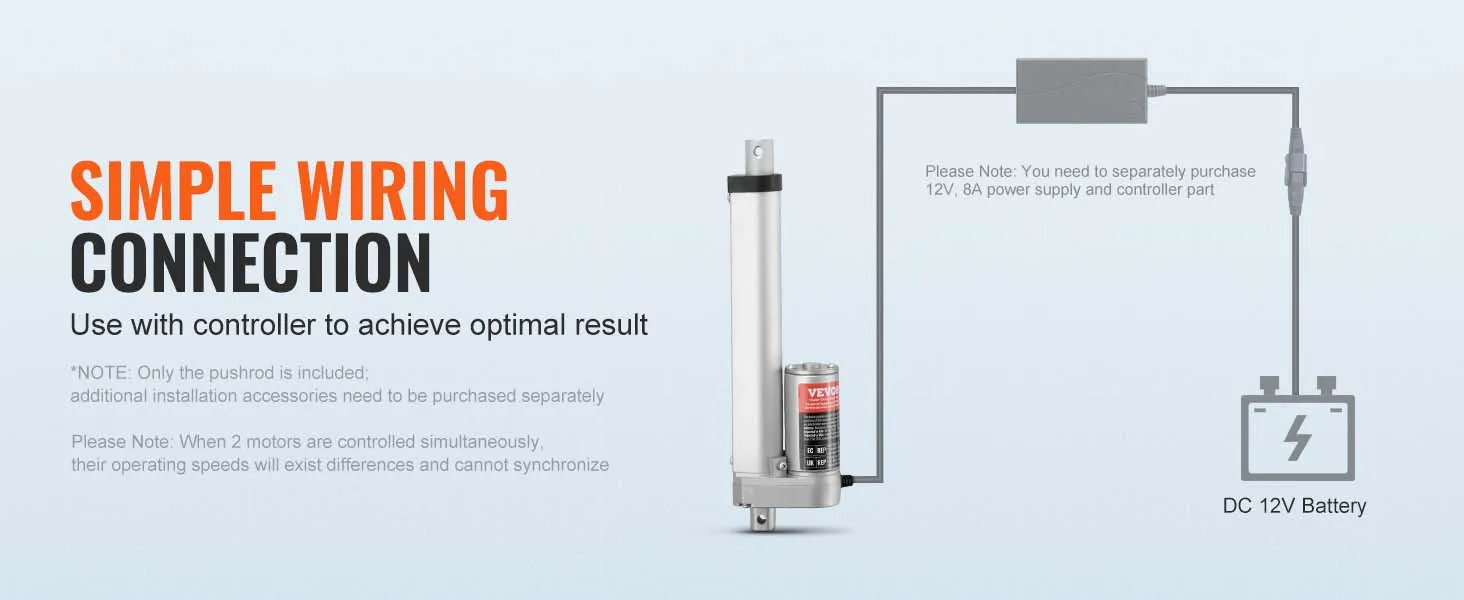

For optimal performance, we recommend using the linear actuator in conjunction with a controller, enabling more precise movement control. Please note that this product only includes the push rod; additional equipment required for installation need be purchased separately.

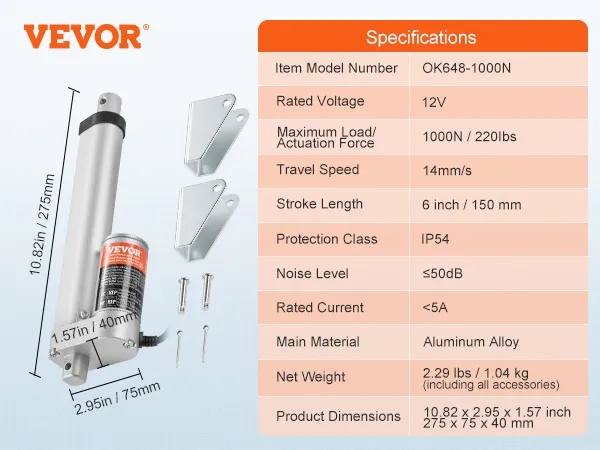

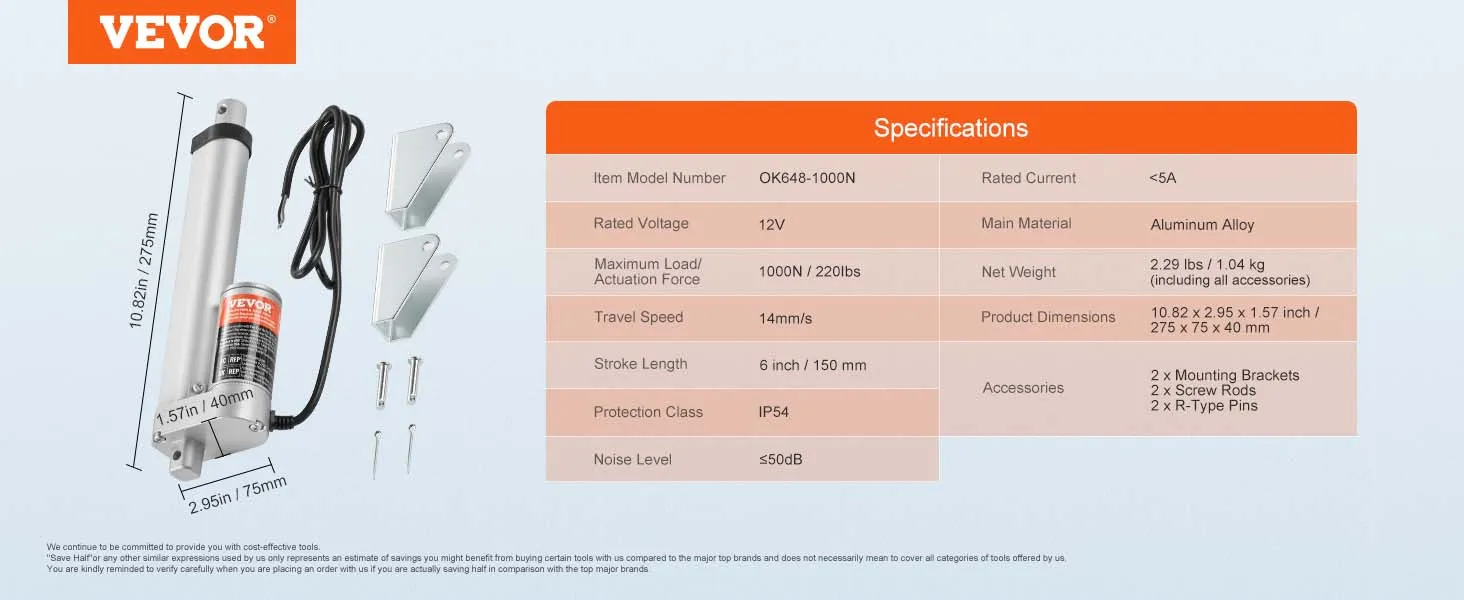

Specification

Item Model Number
OK648-1000N
Rated Voltage
DC12V
Maximum Load/Actuation Force
1000N
Travel Speed
>0.55 inch/s / >14mm/s
Stroke Length
6 inch / 150 mm
Protection Class
IP54
Noise Level
≤50dB
Rated Current
<5A
Main Material
Aluminum Alloy
Net Weight
2.29 lbs / 1.04 kg (including all accessories)
Product Dimensions
10.82 x 2.95 x 1.57 inch / 275 x 75 x 40 mm
Questions and Answers
1 Questions
or Ask a Question
Dose the product have internal limt switches
Answer This Question
Yes, the product has limit switches.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 5 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
5 Review(s)
Clear filters
Fabricator Fabricator
Buy one rated for 2x the weight you expect to lift.
Was a little disappointed upon unpacking. Seemed kinda of flimsy. After installation I was pleased with the function, but using two in parallel takes some setting. And they no where near lift 220lb each or 440lb for the pair. More likely about 150 for the pair. About 60% loss. But this is likely due to a leverage disadvantage in the design of my project. I have ordered the 660lb units, again a pair. I'm hoping that a 1320lb capacity will give me at least 350lb of lift.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Lancelot Lancelot
Fonctionne bien
Je l'utilise pour mettre mon panneau solaire en angle
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Wayne Lloyd Wayne Lloyd
Mr
Product works as described, delivered before expected Very happy. Would purchase this product again if needed.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Chris Maples Chris Maples
Long lasting workmanship
I have bought a couple of these and for the price you can’t beat it. I use them for automatic chicken doors so they are outside 24/7 and not covered from the rain entirely. They have lasted an extremely long time considering the abuse. I bought a back up one just in case one breaks one of these days but it’s still on the shelf due to the endurance of the product. I’m sure if you covered them and took care of them properly they might last for years and years. They can lift a good amount of weight and I was kinda surprised by overall strength of the device. I’m sure the more weight you lift that might affect the lifetime of it but I’ve had nothing but good experience with these so far. Mine go up and down 2 times a day in case anyone was wondering and do so with about 30 pounds of weight with ease. I use one to lift the chicken feed off the ground to protect from pests and other uninvited guests at night as well.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
harbourvision harbourvision
Mr
Works better than expected as it has end stop auto shut off. Is quiet and plenty of power. Consumes very little power to operate.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
