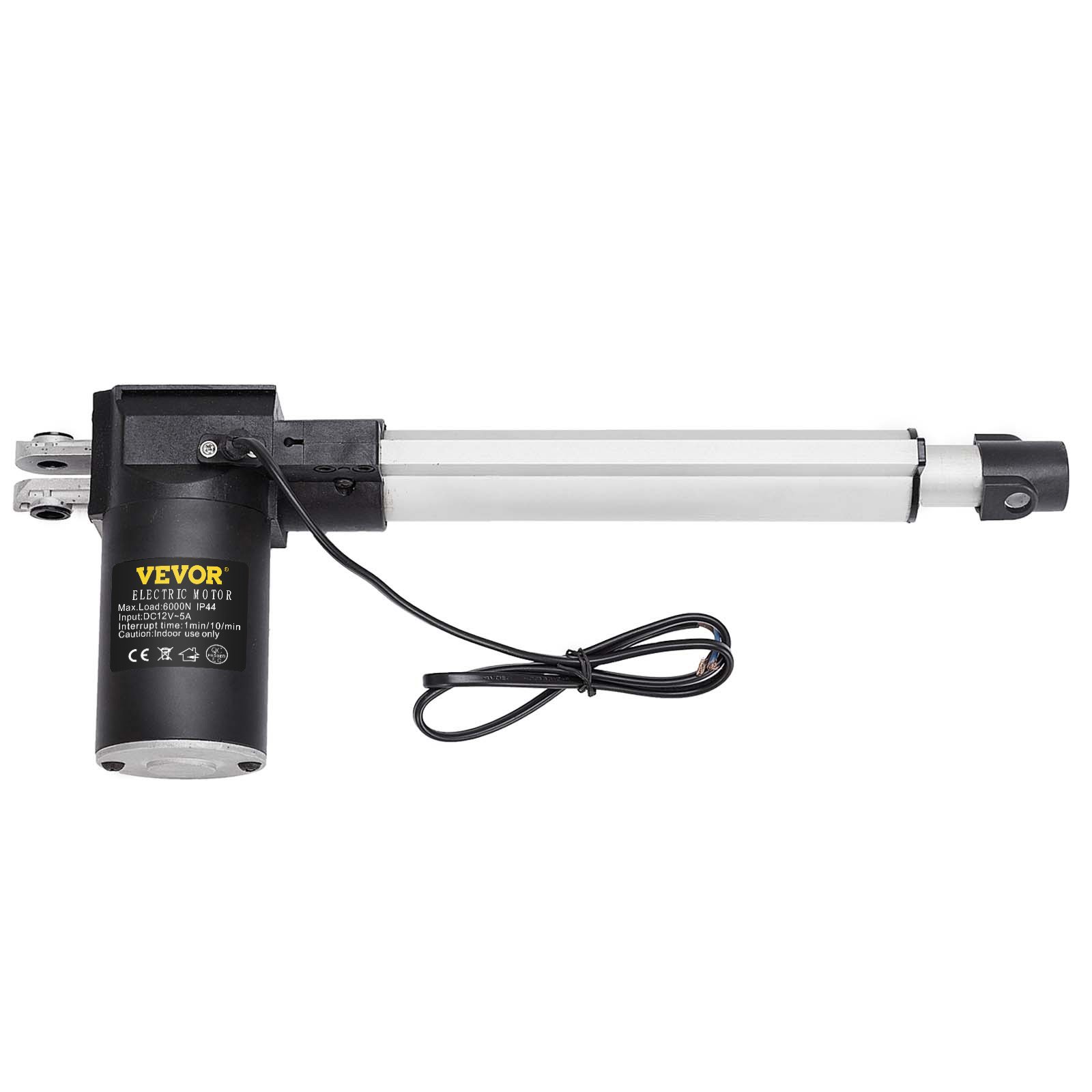

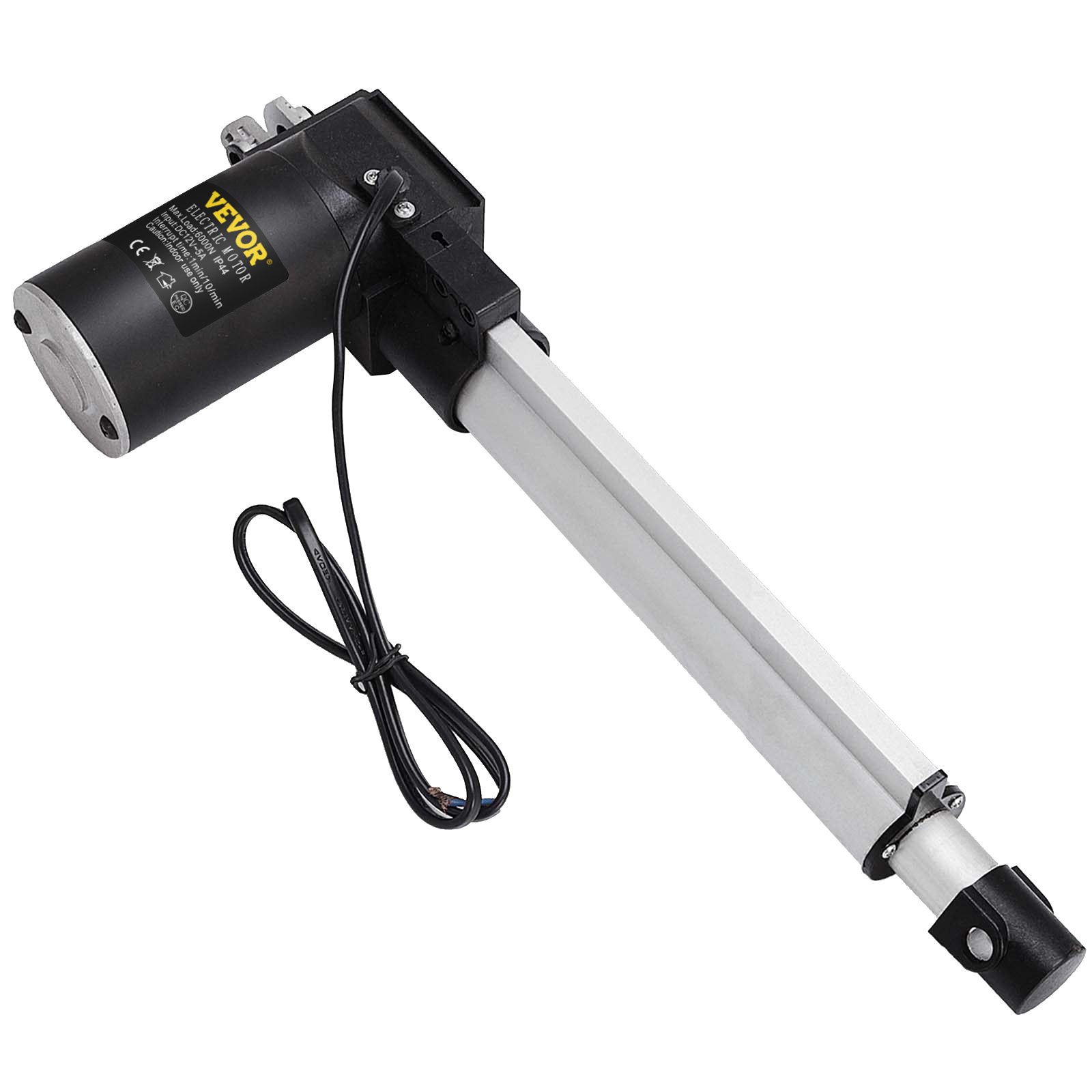

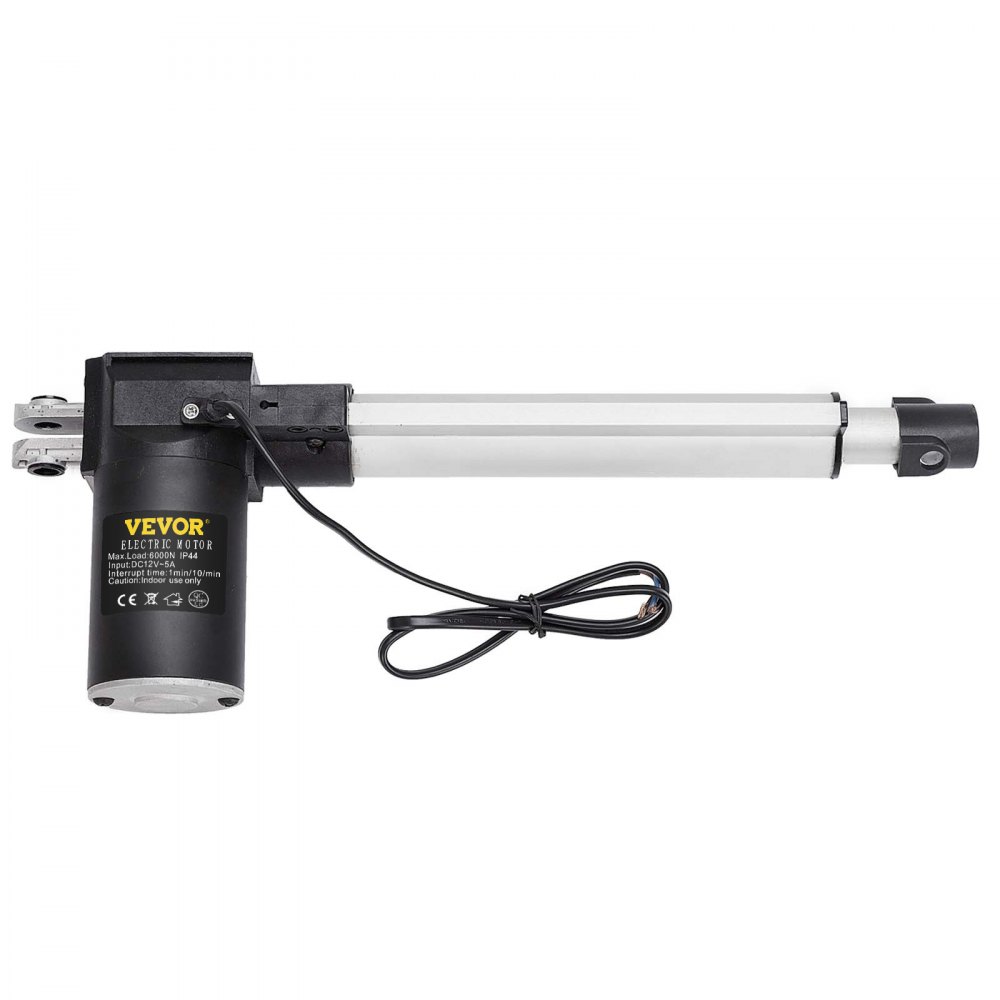

VEVOR electric actuator with black motor and white rod, includes mounting hardware. VEVOR electric actuator with powerful, fast performance and ip44 rating. VEVOR electric actuator with adjustable length, showing retracted and extended dimensions. VEVOR electric actuator installation guide with dc 12v power supply diagram. VEVOR electric actuator with noise level indicators and powerful motor equipped. VEVOR electric actuator with durable aluminum alloy material. uses for VEVOR electric actuator: massage chair, standing desk, lift table, and medical bed.
XXZXQ6000NXC150MMV0

VEVOR 12V Heavy Duty Electric Linear Actuator Motor 150mm Stroke Lift 6000N

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【PREMIUM QUALITY】- Type: Heavy-duty actuator; Stroke Length: 6"; Travel Speed: 5 mm/s; Power: DC 12V; Limit Switch: Built-in; This linear actuator features φ24 mm thick aluminum alloy tube and the metal construction for functional load capacity and durability. It is sturdy, well-sealed, and has IP44 level protection. Notice: We recommend using our product with a power supply with DC 12V output voltage and 8-9A output current.
  • 【RETRACT & EXTEND FUNCTION】- This electric linear actuator can powerfully lift or down recliner, industrial equipment, etc. Retracted length 12.8" and extended length 18.7". Stop at any place you want. Metal gears make movement more smooth.
  • 【POWERFUL MOTOR RUN】- Equip with a strong 6000 N motor(most powerful motor on the market). Provide max.6000 N pushing force and 4000 N pulling force. Works with only 48dB, quiet, and not to create annoying sound.
  • 【QUICK & EASY ASSEMBLY】- It is quick to attach this 12-volt linear actuator to electric devices. Reliable performance & stable running. It also has two limit switches on each side to protect the motor.
  • 【DIVERSE USE SCENARIOS】- It can be used to open doors, lift tables, raise flat screens, adjust recliners for the headset, footrests, relaxation beds, and floor cleaning machines, mobile traffic signs. It can adapt stretchers, procedural tables, hospital beds, wheelchairs.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 12V Heavy Duty Electric Linear Actuator Motor 150mm Stroke Lift 6000N
heavy-duty VEVOR electric actuator next to a reclining massage chair in a modern living room.

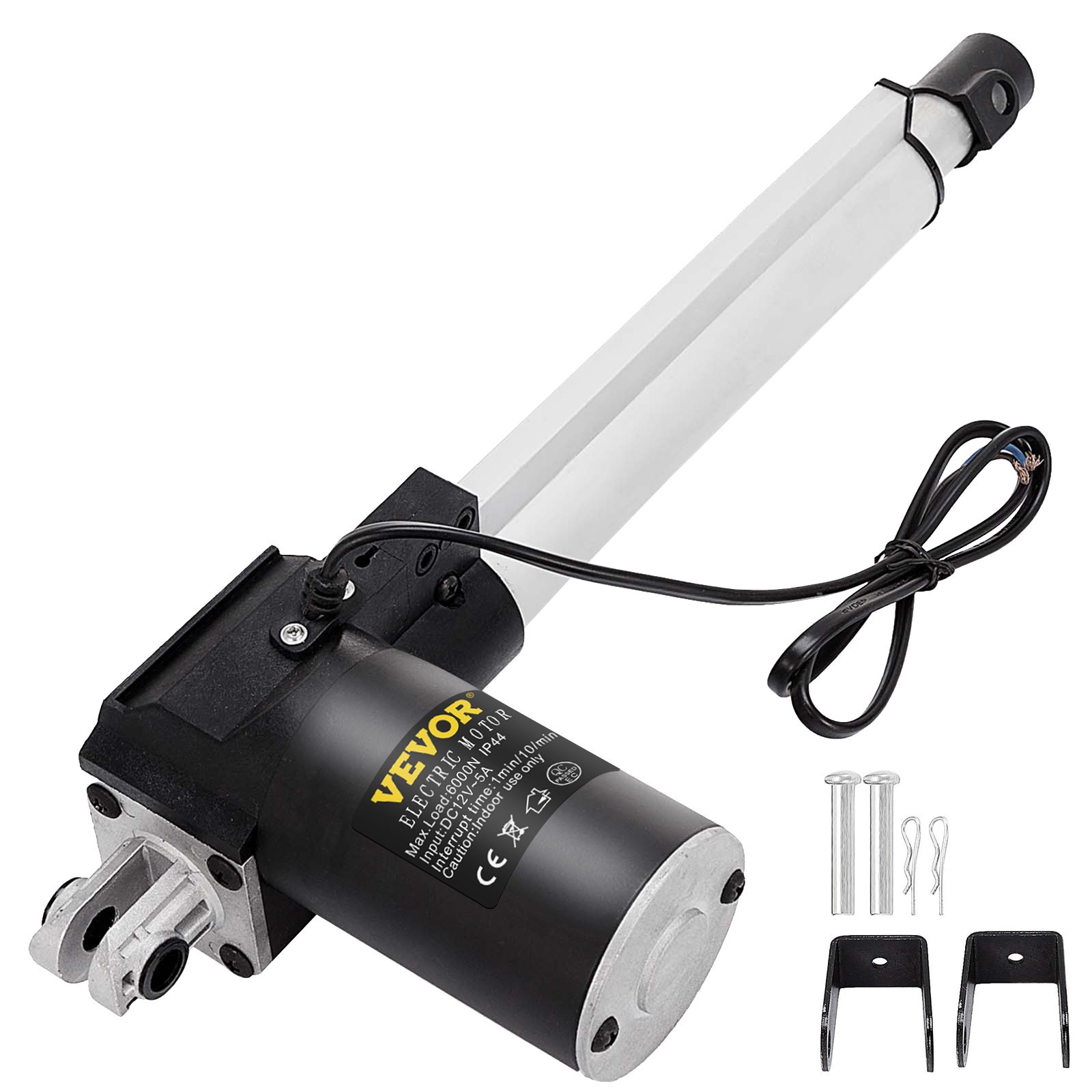

VEVOR electric actuator with bracket and screws included
6000 N Heavy-Duty Actuator
DC 12V linear actuator is used to get the purpose of moving things in a straight line(up and down, or side to side). Our 6" product is a robust and reliable actuator with 6000 N power. It has built-in limit switches and designed with IP44 level protection. It is suitable for a massage sofa, recliner, TV lifter, lifting table, electric window opener, etc. Quite a practical device for heavy-duty works.
  • Premium Quality
  • Retract & Extend
  • Powerful Motor Run
  • Quick & Easy Assembly
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

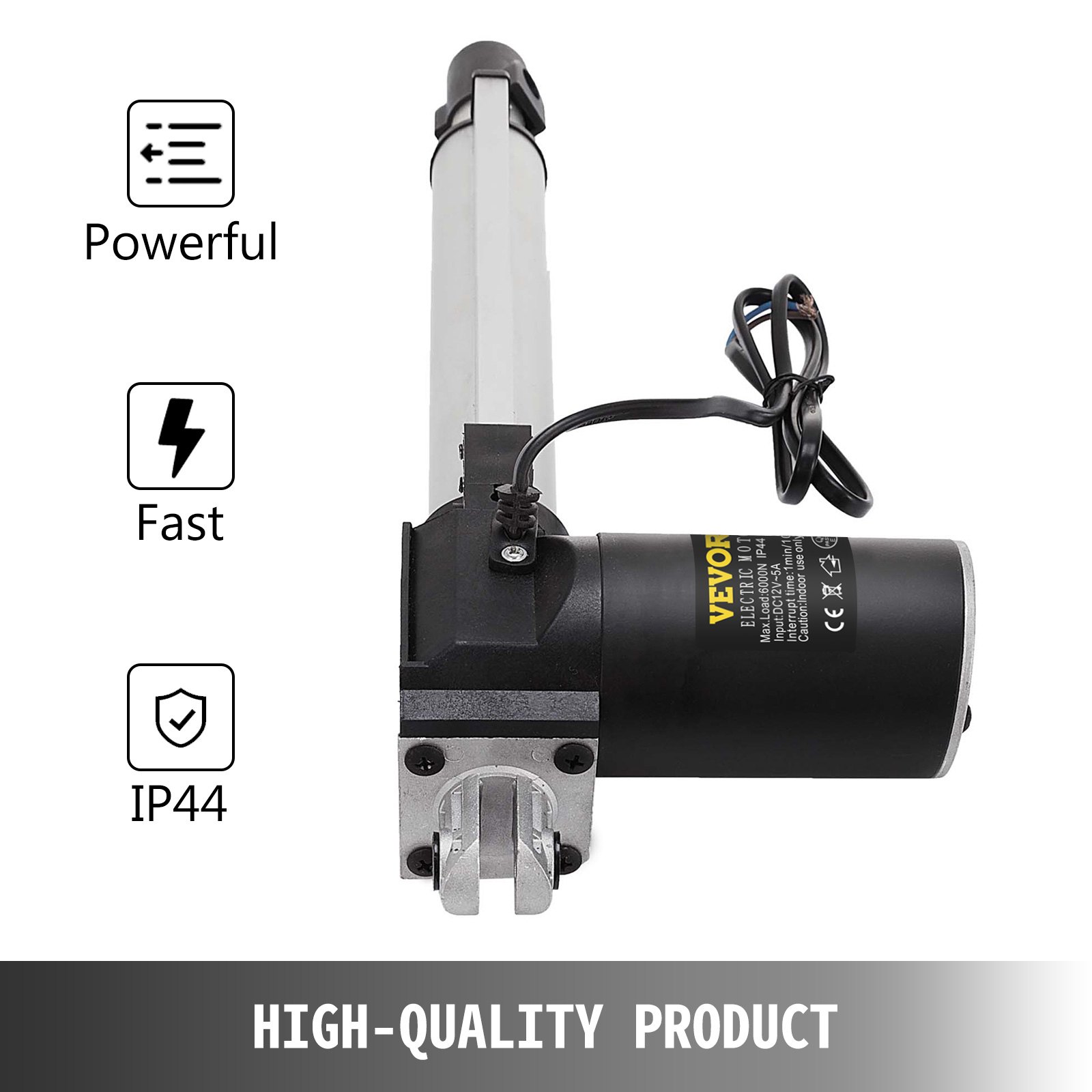

VEVOR electric actuator with powerful and fast performance, ip44 rated, high-quality product.
High-Quality Product
DC 12V electric actuator can run stably and has an excellent performance. Travel with 5 mm/s speed, quicker than most products, and has IP44 level protection.

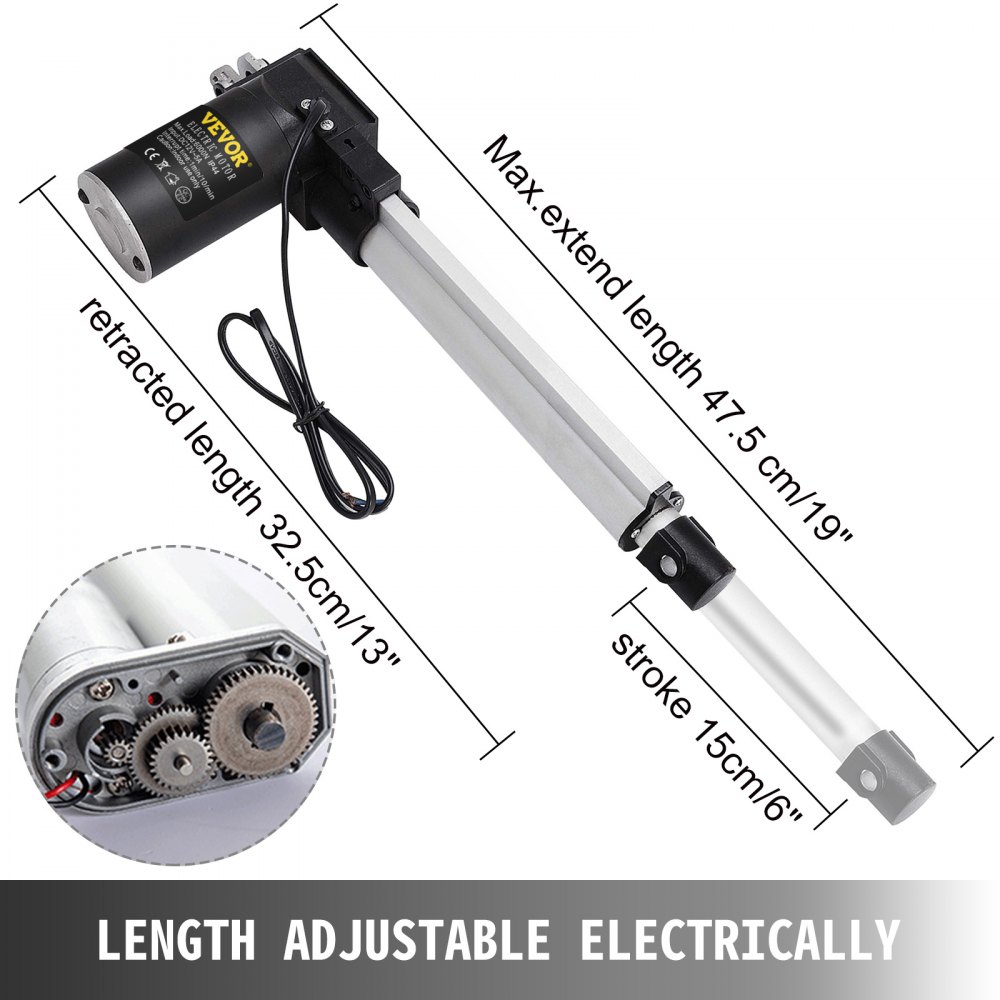

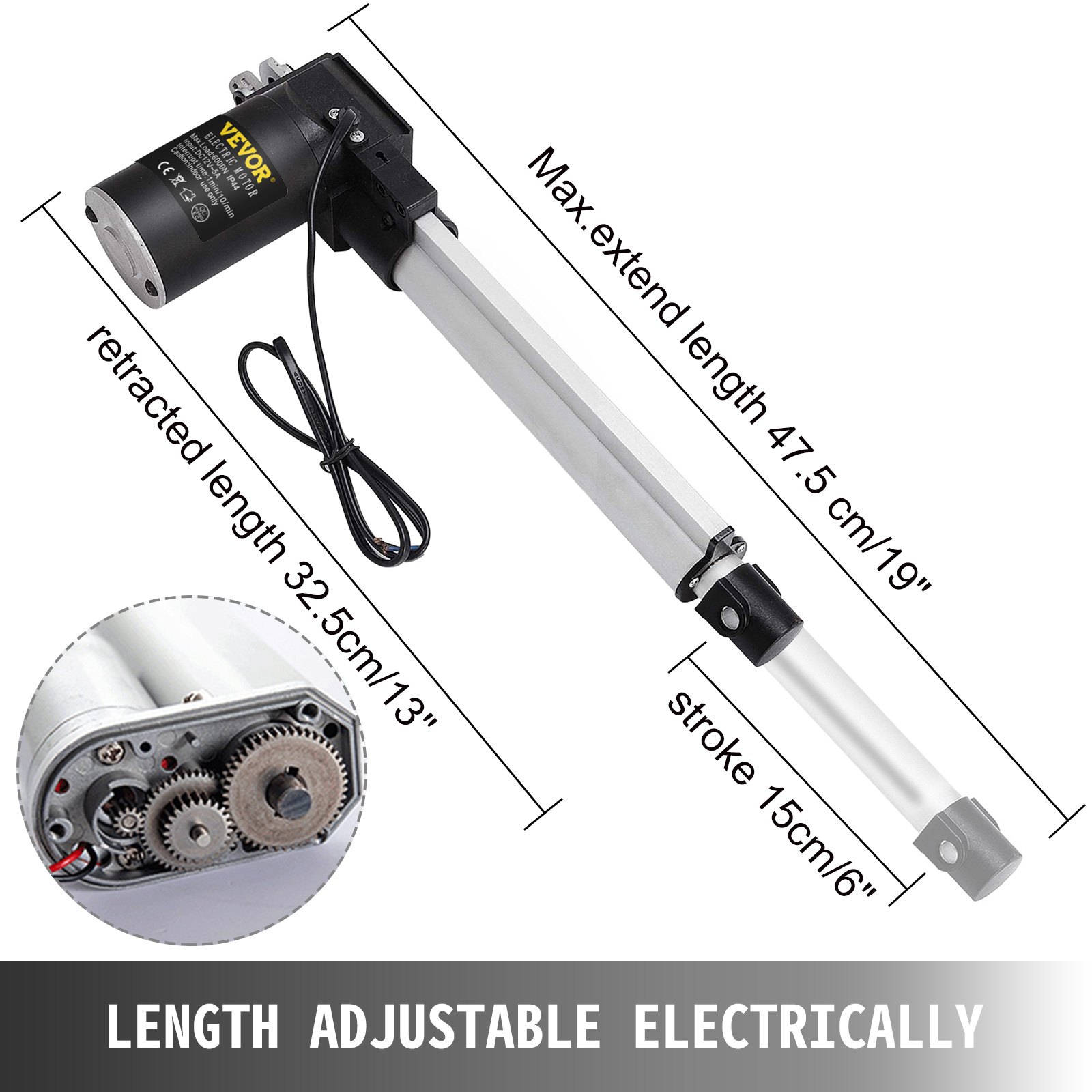

VEVOR electric actuator with retractable length 32.5 cm and max extend length 47.5 cm
Length Adjustable Electrically
This actuator supports both the retraction and extension movement of the electric device. 6" stroke length, 12.8" retracted length, and 18.7" extended length.

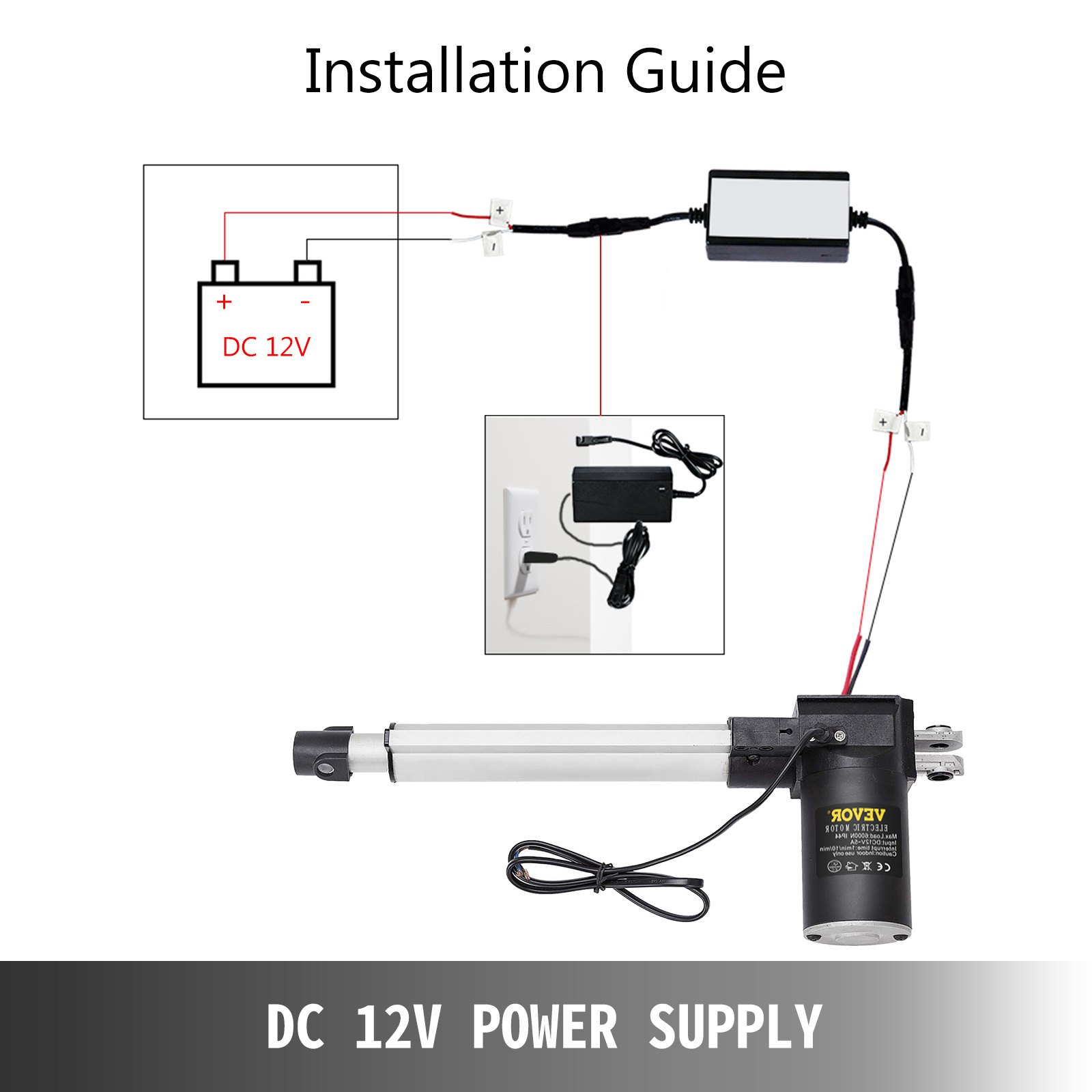

installation guide for VEVOR electric actuator with dc 12v power supply diagram.
DC 12 V Power Supply
This actuator should be connected to DC 12 V power supply to protect the motor and central parts of the electronic device.

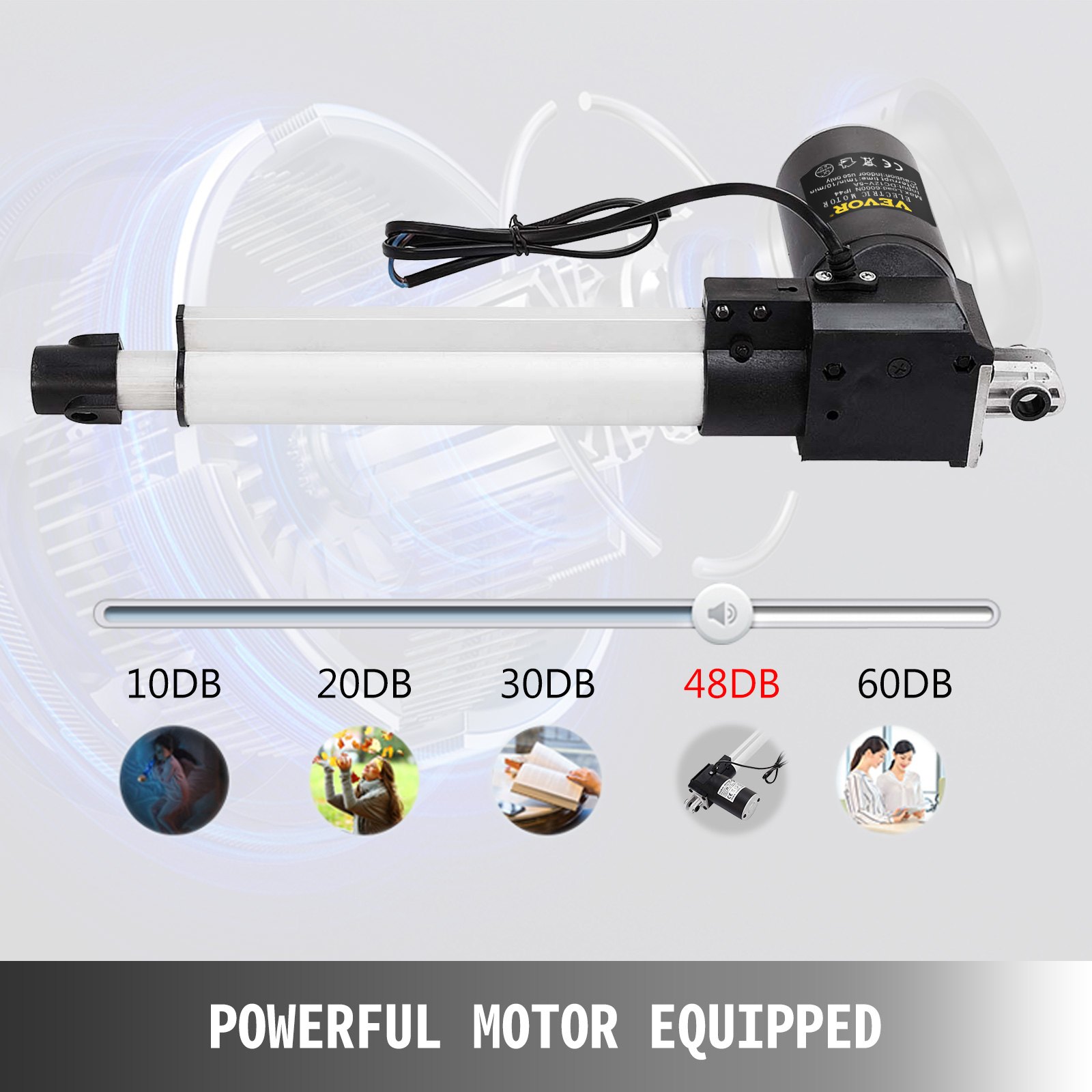

VEVOR electric actuator with powerful motor, noise level indicator ranging from 10db to 60db.
Powerful Motor Equipped
We deploy a heavy-duty 6000 N motor for lifting or down. It travels at 5 mm/s speed, while silent on working.

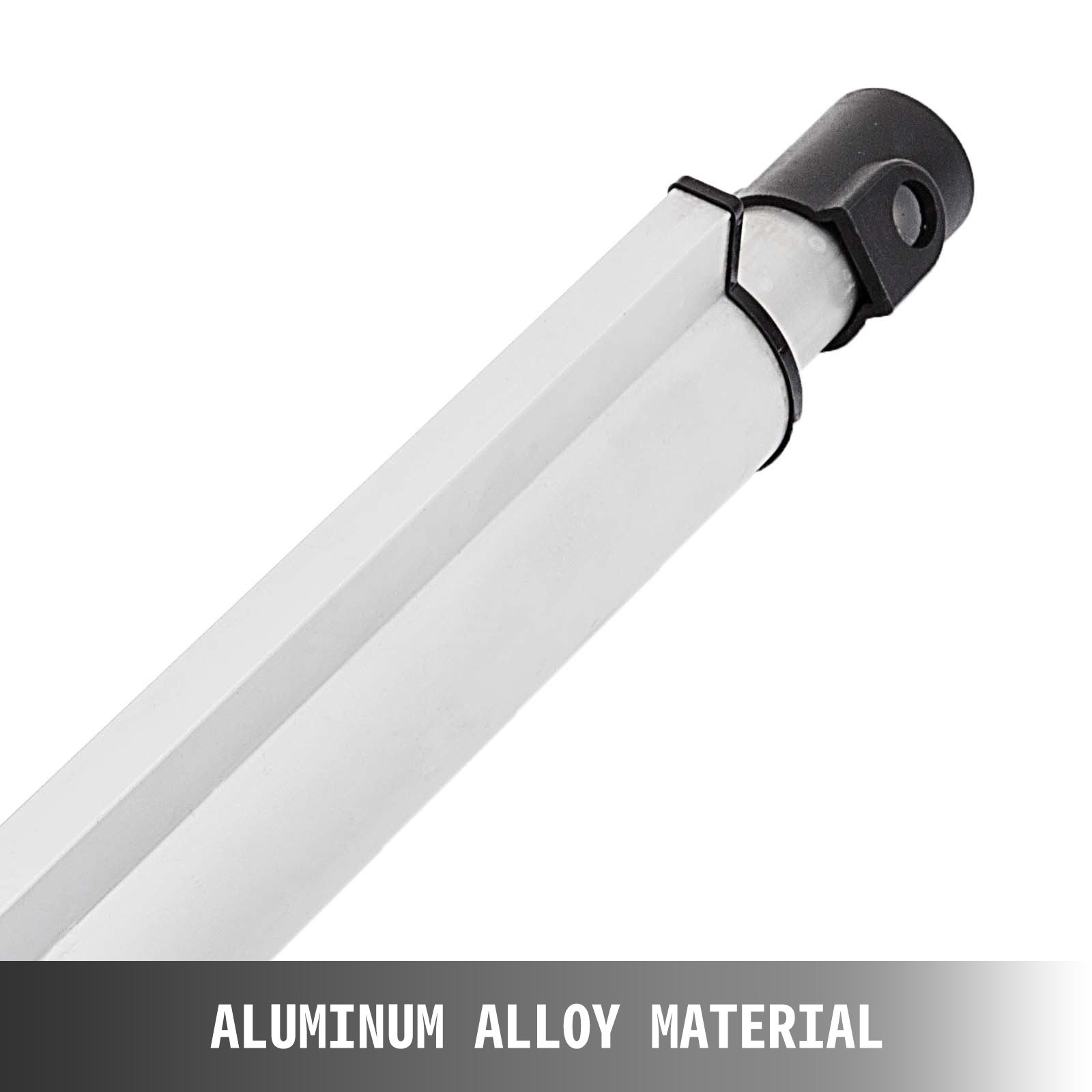

VEVOR electric actuator with durable aluminum alloy material.
Aluminum Alloy Material
This product adopts the excellent aluminum alloy case, which is thick, sturdy, and powder-coated on the surface for anti-rust.

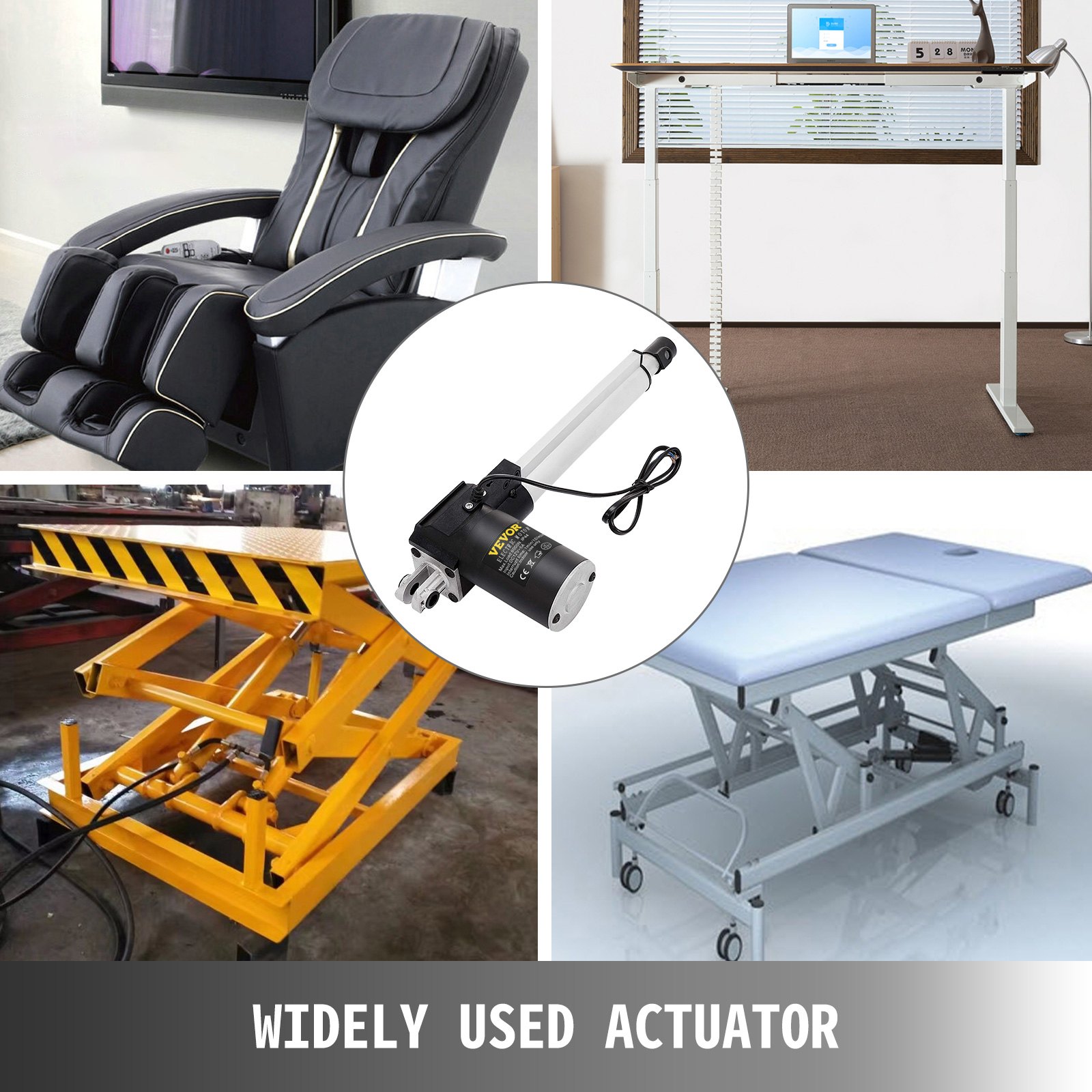

VEVOR electric actuator used in massage chair, standing desk, lift table, and medical bed.
Wide Application Places
It can be used for some heavy works in different fields like home furniture, hospital & health care, industry, etc.

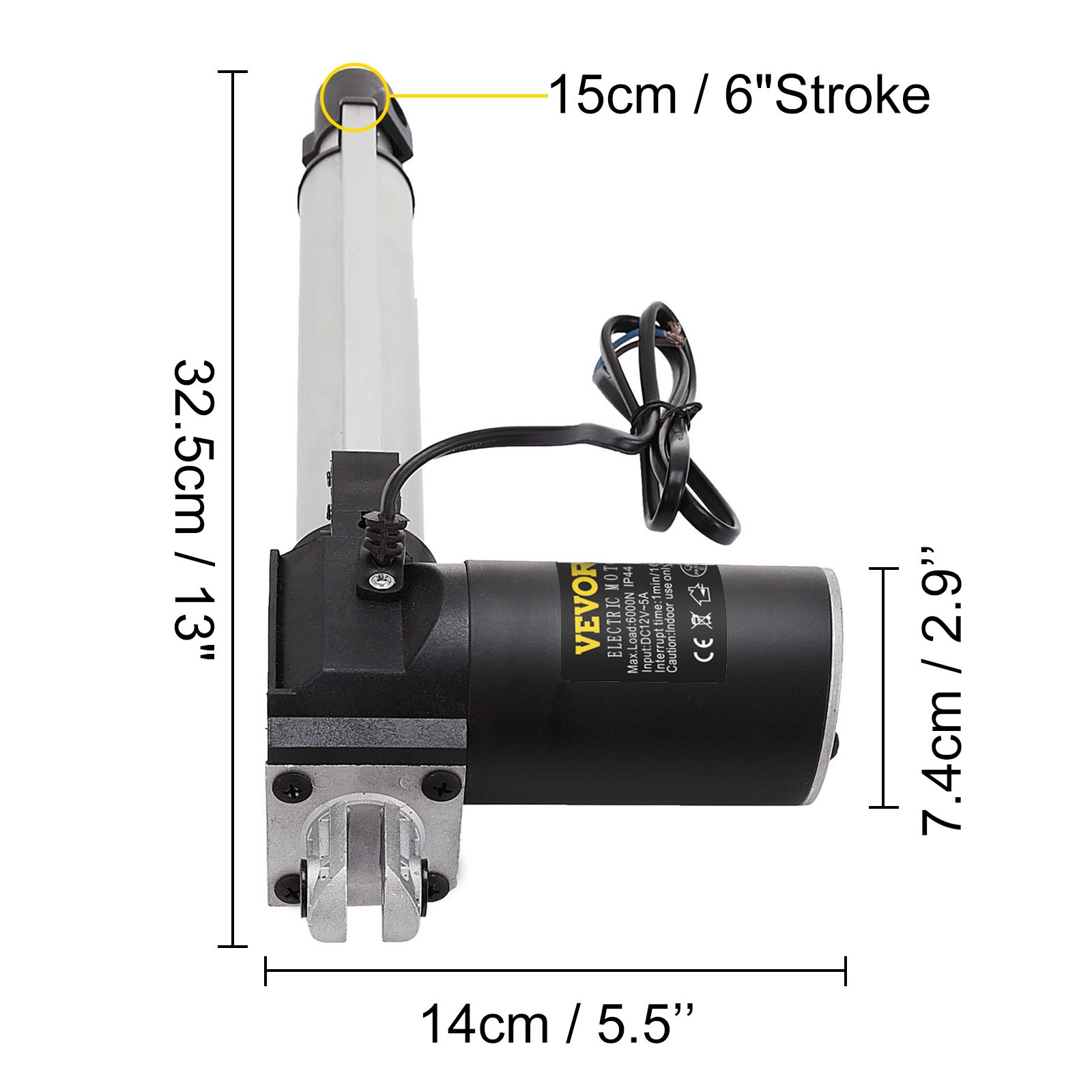

VEVOR electric actuator, 15cm/6" stroke, dimensions: 32.5cm x 14cm x 7.4cm.
Specifications
  • Stroke Length: 15.24 cm/ 6"
  • Max. Pushing Force: 6000 N
  • Max. Pulling Force: 4000 N
  • Travel Speed: 5 mm/s
  • Input Voltage: DC 12 V
  • Min. Retract Length: 32.5 cm/12.8"
  • Max. Extend Length: 47.5 cm/18.7"
  • Material: Aluminum Alloy

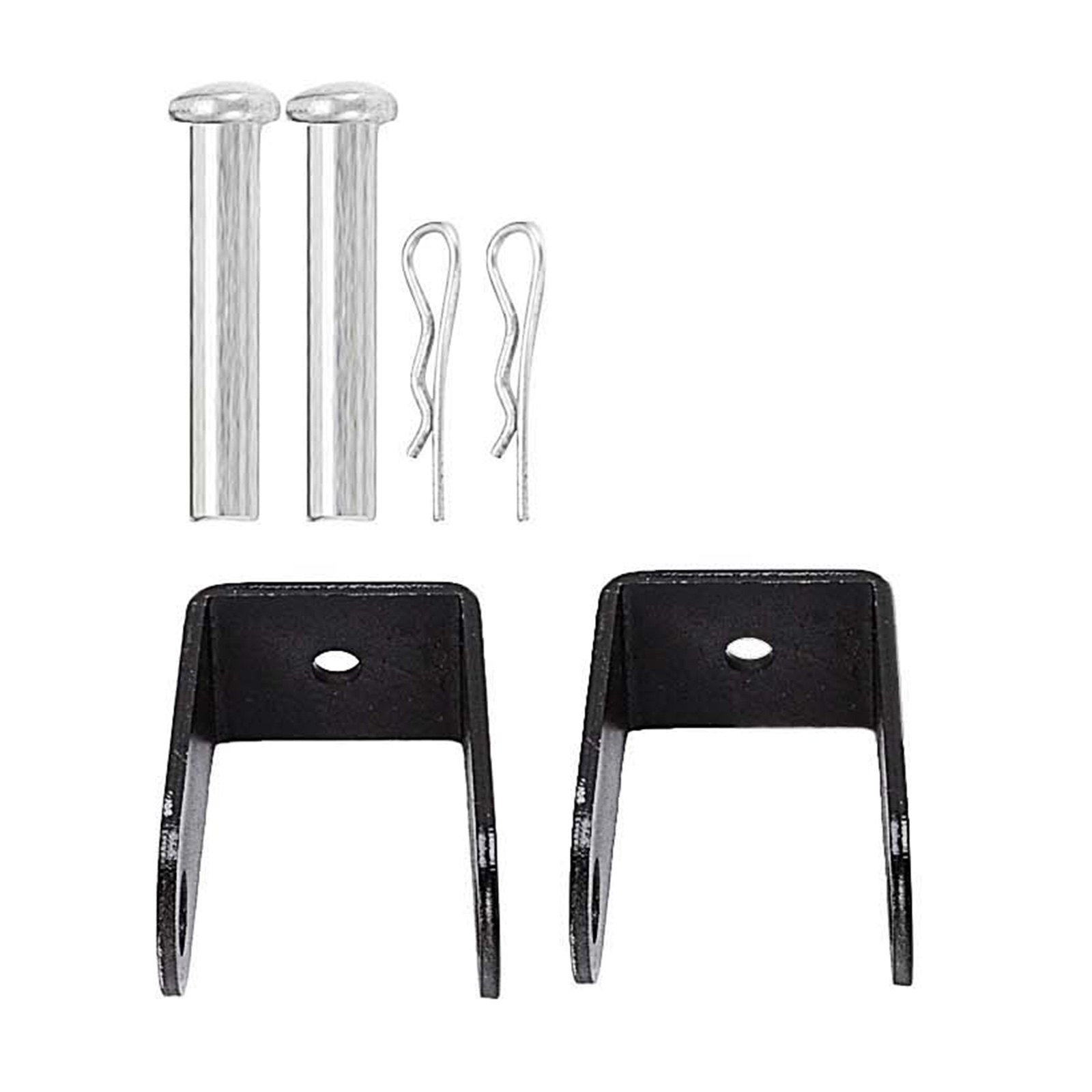

VEVOR electric actuator parts showing two brackets, pins, and retaining clips
Package Content
  • 1 x Linear Actuator
  • 1 x Screw Set
  • 2 x Mounting Brackets
heavy-duty VEVOR electric actuator next to a reclining massage chair in a modern living room.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR electric actuator with bracket and screws included
6000 N Heavy-Duty Actuator
DC 12V linear actuator is used to get the purpose of moving things in a straight line(up and down, or side to side). Our 6" product is a robust and reliable actuator with 6000 N power. It has built-in limit switches and designed with IP44 level protection. It is suitable for a massage sofa, recliner, TV lifter, lifting table, electric window opener, etc. Quite a practical device for heavy-duty works.
  • Premium Quality
  • Retract & Extend
  • Powerful Motor Run
  • Quick & Easy Assembly
VEVOR electric actuator with powerful and fast performance, ip44 rated, high-quality product.
High-Quality Product
DC 12V electric actuator can run stably and has an excellent performance. Travel with 5 mm/s speed, quicker than most products, and has IP44 level protection.
VEVOR electric actuator with retractable length 32.5 cm and max extend length 47.5 cm
Length Adjustable Electrically
This actuator supports both the retraction and extension movement of the electric device. 6" stroke length, 12.8" retracted length, and 18.7" extended length.
installation guide for VEVOR electric actuator with dc 12v power supply diagram.
DC 12 V Power Supply
This actuator should be connected to DC 12 V power supply to protect the motor and central parts of the electronic device.
VEVOR electric actuator with powerful motor, noise level indicator ranging from 10db to 60db.
Powerful Motor Equipped
We deploy a heavy-duty 6000 N motor for lifting or down. It travels at 5 mm/s speed, while silent on working.
VEVOR electric actuator with durable aluminum alloy material.
Aluminum Alloy Material
This product adopts the excellent aluminum alloy case, which is thick, sturdy, and powder-coated on the surface for anti-rust.
VEVOR electric actuator used in massage chair, standing desk, lift table, and medical bed.
Wide Application Places
It can be used for some heavy works in different fields like home furniture, hospital & health care, industry, etc.
VEVOR electric actuator parts showing two brackets, pins, and retaining clips
Package Content
  • 1 x Linear Actuator
  • 1 x Screw Set
  • 2 x Mounting Brackets
VEVOR electric actuator, 15cm/6" stroke, dimensions: 32.5cm x 14cm x 7.4cm.
Specifications
  • Stroke Length: 15.24 cm/ 6"
  • Max. Pushing Force: 6000 N
  • Max. Pulling Force: 4000 N
  • Travel Speed: 5 mm/s
  • Input Voltage: DC 12 V
  • Min. Retract Length: 32.5 cm/12.8"
  • Max. Extend Length: 47.5 cm/18.7"
  • Material: Aluminum Alloy

6 Inch Stroke Electric Actuators for Versatile Applications

They're perfect for a variety of projects. No matter if you'll be working on a recliner, an electric sofa, or a sex massage bed, these 6-inch stroke electric actuators are up to the task. The 6-inch stroke length allows for smooth and precise movement. These actuators are ideal for lifting or lowering different parts of furniture or machinery. They have an incredibly compact size, so you can easily install them in tight spaces. Their versatility makes it easy to add them to any DIY enthusiast's toolkit.


Heavy Duty 6000N Actuators Ensure Powerful Lifting Capacity

VEVOR heavy duty 6000N actuators are rated for a maximum pushing force of 6000N. This makes them ideal for heavy-duty applications, such as lifting heavy furniture or machinery parts. The strong design ensures that the actuator can handle significant weight without any issues. No matter if you're working on a recliner, a massage bed, or an electric sofa, these actuator devices provide the power you need. Their ability to lift heavy loads makes it incredibly useful for any heavy-duty project.


Linear Actuators for Recliner Offer Smooth and Precise Movement

These linear actuators for recliner are ideal for recliners, providing smooth and precise movement. The actuator systems ensure that your recliner operates flawlessly, enhancing your comfort. Because the actuator is slow and steady, it prevents any sudden jerks or movements. This makes them perfect for applications where gentle movement is required. Our actuator models are designed to provide a consistent and controlled motion, guaranteeing an eloquent user experience.


Electric Sofa Actuators Feature Easy Installation and Durable Aluminum Alloy Construction

This makes the electric sofa actuators easy to install. They are so simple to set up, making them accessible for DIY enthusiasts. The durable aluminum alloy construction ensures that they can withstand regular use. Material is resistant to wear and tear, ensuring long-lasting performance. These actuators come with mounting brackets, simplifying the installation process. Sturdy construction means you can count on these actuator devices for years to come, with easy installation and durable construction.


Reliable Performance in Diverse Settings

These actuators work well in a variety of settings. It doesn’t matter if you're working at home, office, or workshop. They excel with their robust design. Their strong design ensures they can handle various tasks without issues. The actuator is designed to provide consistent performance, making it ideal for multiple applications. This reliability means you can trust them for both simple and complex projects. This versatility ensured that you get the most out of your investment.


Efficient and Durable Actuators for Long-Term Use

They are efficient and durable, making them suitable for long-term use. Their efficient operation ensures that they consume minimal power while delivering maximum performance. The durable construction means they can withstand regular wear and tear. Whether you are using them for a recliner, electric sofa, or any other application, these actuators provide reliable service. These actuator systems offer value for your money.


Designed for Quiet Operation, Ideal for Noise-Sensitive Environments

It is important to note that these actuators are designed with quiet operation. This makes them ideal for noise-sensitive environments. Their low noise levels ensure they do not disrupt your surroundings, making them perfect for use in home theaters, offices, or any other place where noise can be an issue. The quiet operation guarantees a peaceful and comfortable environment. So, their noise-free performance makes us able to work on any project where silence is necessary.


See More

Specification

Stroke Length
15.24 cm/ 6"
Max. Pushing Force
6000 N
Max. Pulling Force
4000 N
Travel Speed
5 mm/s
Input Voltage
DC 12 V
Min. Retract Length
32.5 cm/12.8"
Max. Extend Length
47.5 cm/18.7"
Material
Aluminum Alloy
Questions and Answers
4 Questions
Can I use these on swing gates?
These are suitable for telescoping not for swiveling.
By vevor
What sort of weight will this unit handle to push against. Thinking of an auto leveling unit for a caravan weighing 3000kg. With 4 actuators carring about 500 kg each
It is not recommended to use it in this way. First, the caravan is 3000 kg and the four push rods are 2400 kg. The load is too heavy. Second, if multiple motors are used together, the speed cannot be fully synchronized and the motors may be easily damaged.
By vevor
How much does this weigh?
It weighs about 2.22kg.
By vevor
Waterproof? Can use to lift an outboard engine on a motorboat ?
No, it isn't.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
181 Review(s)
Clear filters
Jimmy Jimmy
Know the weight of what you want to move or lift
Product arrived on time and was as advertised. Good value for the money
BigJohn BigJohn
Great 5 stars fast shipping works good. Thanks
Great 5 stars fast shipping works good. Thanks
Mark Griffiths Mark Griffiths
Mr
Love it. Works a treat Helps lift the bed in the caravan. No more falling on our heads. Or struggling with the bed
Kelvin Kelvin
Owner
This one takes about 15-20 seconds to cycle, which is great for our adjustable computer cart. A little noisier than the first one I purchased, but it's a trade off for the speed. I would purchase this again should the need arise.
Wilso Wilso
Mr
Works a treat on my Electric Chicken Coup door I designed and built, opens & shuts automatically keeping the foxes from eating my chickens.
Steve Steve
mr
The actuator works great and is as described, it is very strong and can lift what is is rated for, it is well worth it.
Curtis Hook Curtis Hook
Great product
Works great for my project (engine hatch opener) seems to be good quality and function . Made from aluminum and powder coated brackets . Very happy with purchase
Anthony Cunningham Anthony Cunningham
Slow but powerful
Bought two of these to raise and lower the bed in my 1968 F100 truck.
Michael Schaffer Michael Schaffer
As advertised
DW DW
Great for the money.
Seems to work great. Using it to drive a solar panel, to track the sun.
