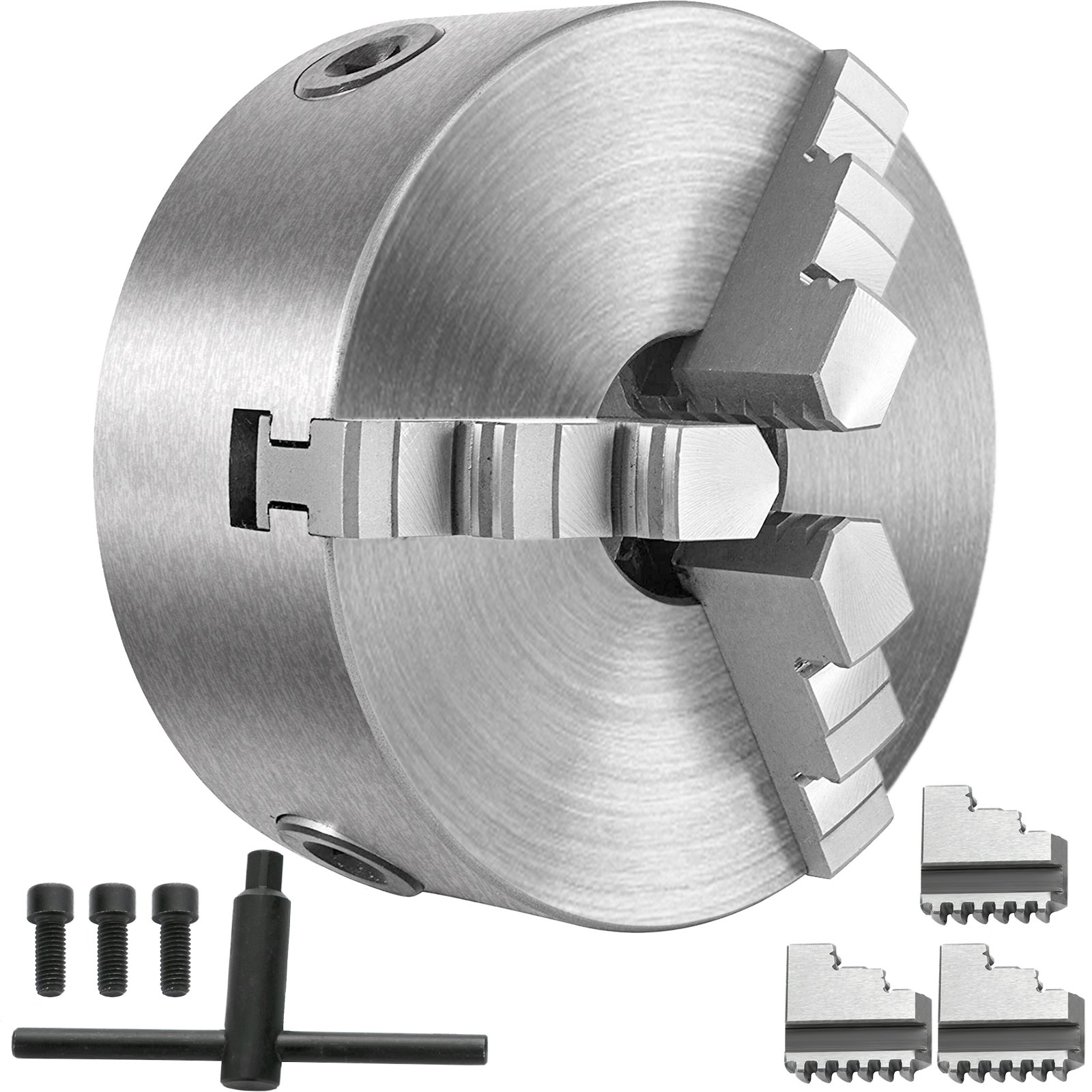

VEVOR lathe chuck with accessories including screws and wrench. VEVOR lathe chuck with 3 jaws, compatible with lathe, grinder, and milling machines. VEVOR lathe chuck with internal and external jaw diagrams, clamping range details. VEVOR lathe chuck with reversible jaws, self-locking, and accurate bearings for stable clamping. VEVOR lathe chuck assembly guide with mounting bolts, wrench, safety chuck key, and external jaws. VEVOR lathe chuck made from ht 300 cast iron with anti-rust oil coating. VEVOR lathe chuck, 6.3 in / 160 mm, 3.8 in / 100 cm, 18.4 lbs / 8.35 kg.
KPK11-160KPZFZ001V0

VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Quality Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • High Precision: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • 2 Sets of Jaws: This chuck includes two sets of internal and external jaws. The clamping range of this chuck is between 0.12" / 3 mm - 6.3" / 160 mm, which is suitable for clamping a variety of industrial parts.
  • Fast Clamping Speed: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
  • High Adaptability: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
VEVOR lathe chuck with precise self-centering and 3-m8 mounting thread.
VEVOR lathe chuck with accessories, including bolts and a t-handle key.
6.3-inch 3 Jaw Lathe Chuck
Self Centering & 0.002" High Accuracy & with Two Sets of Jaws
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.12" / 3 mm - 6.3" / 160 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories
  • Quality Material
  • High Precision
  • 2 Sets of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

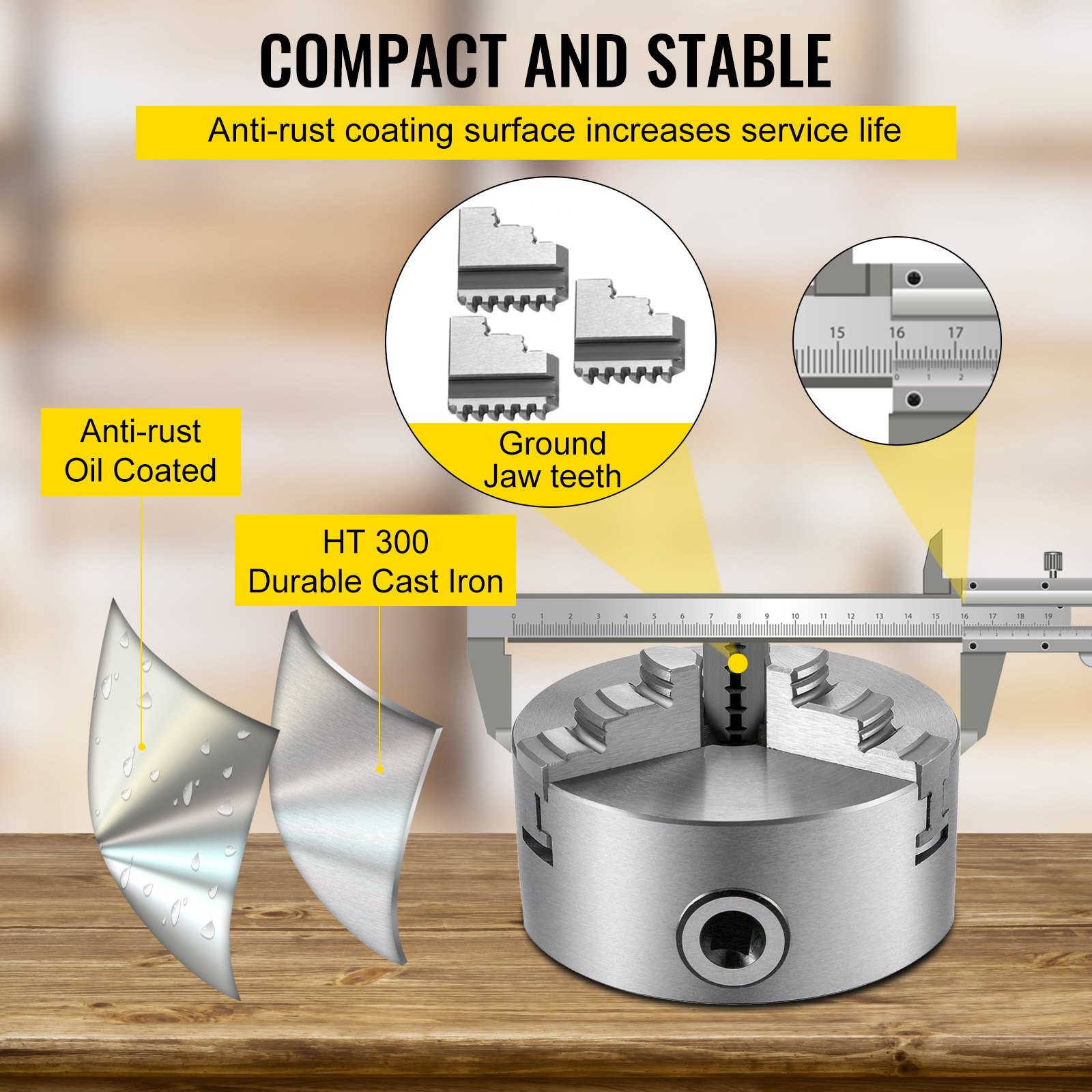

VEVOR lathe chuck made of hardened steel and ht 300 durable cast iron.
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR lathe chuck showcasing self-centering with flexible linkage design and yellow arrows.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.

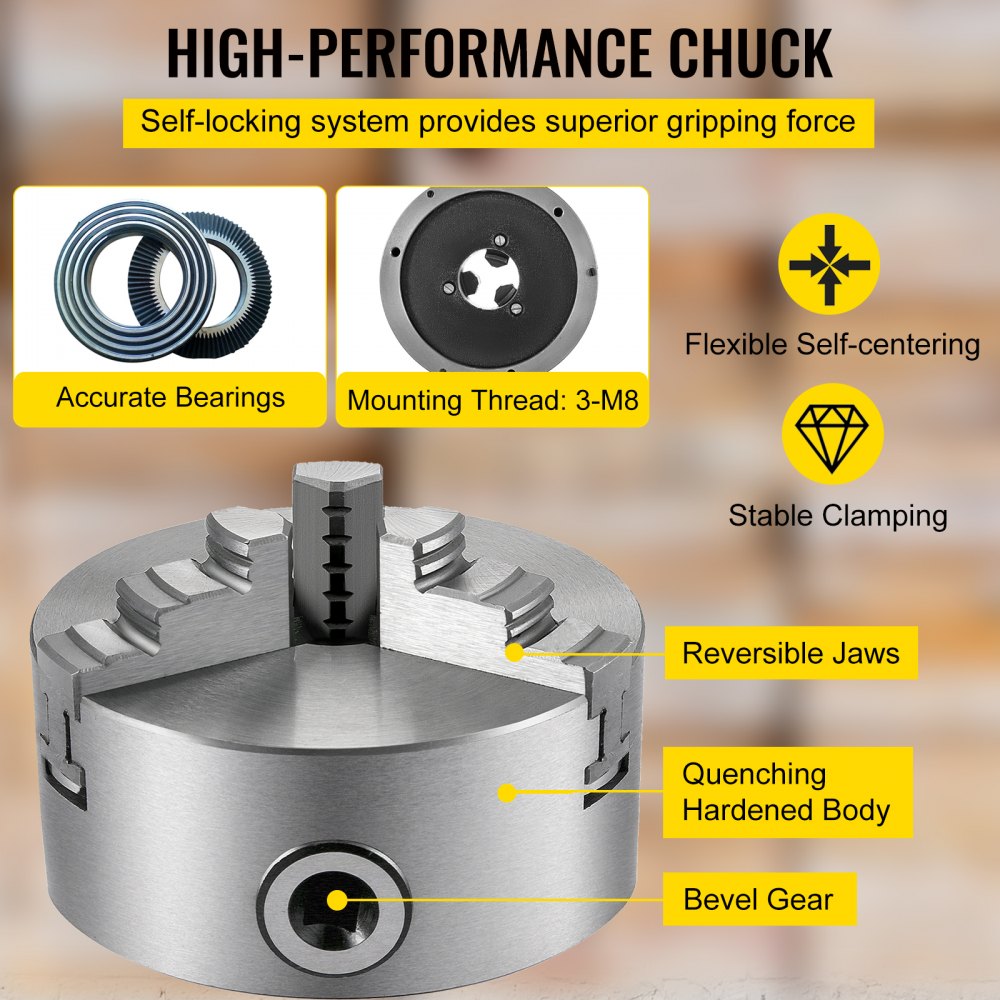

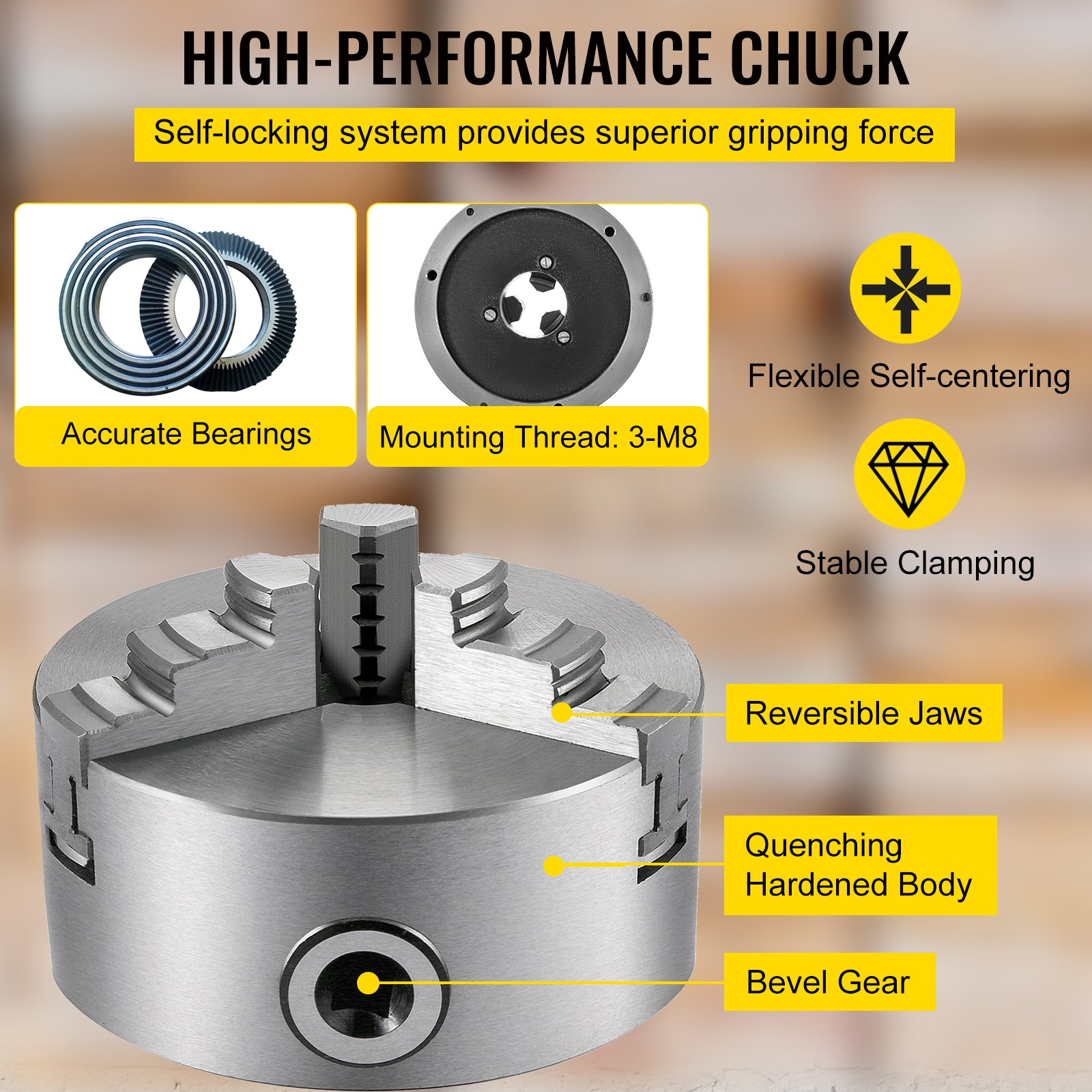

high-precision VEVOR lathe chuck with 0.001 accuracy, bevel and pinion gears.
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.

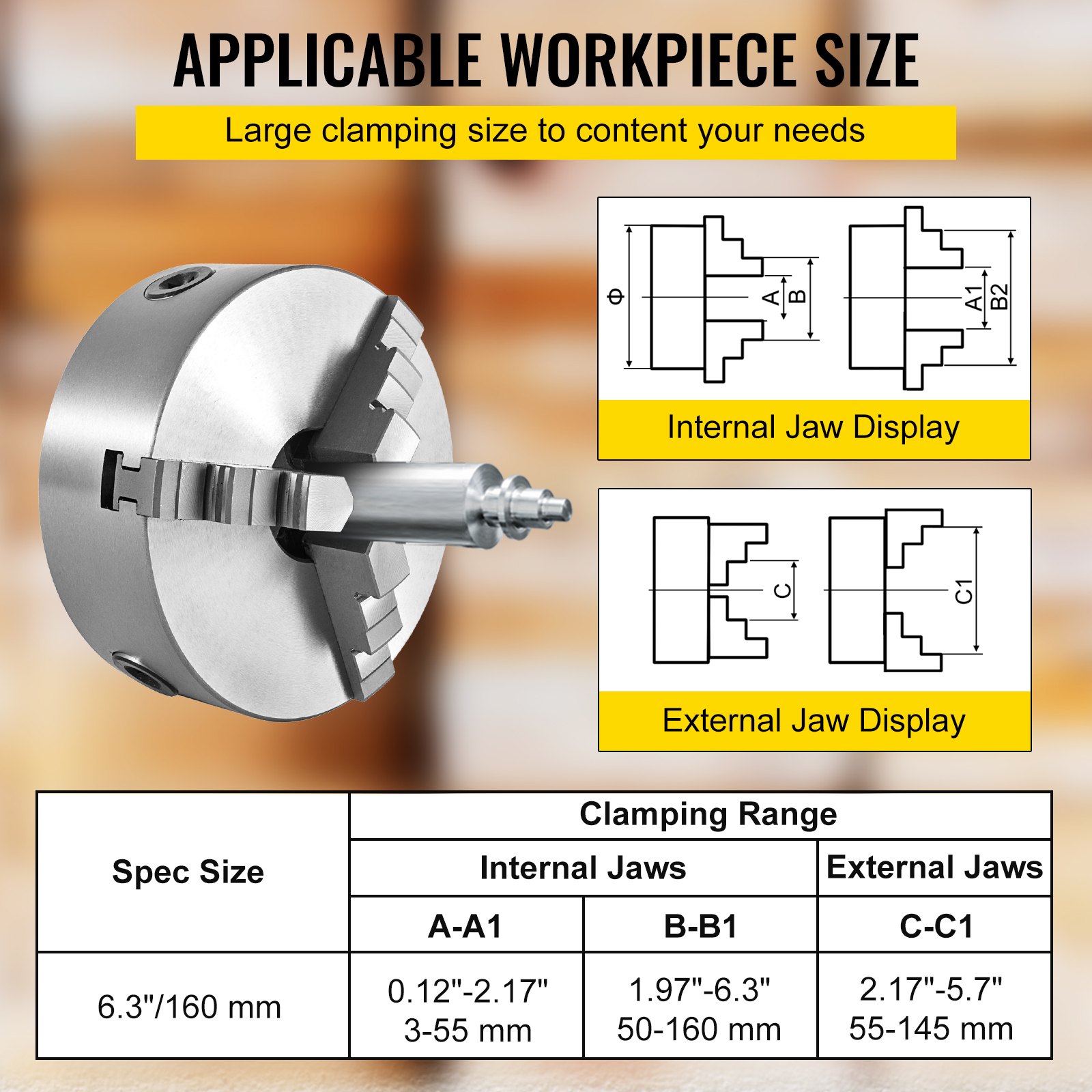

VEVOR lathe chuck showing internal and external jaw display with large clamping range.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.

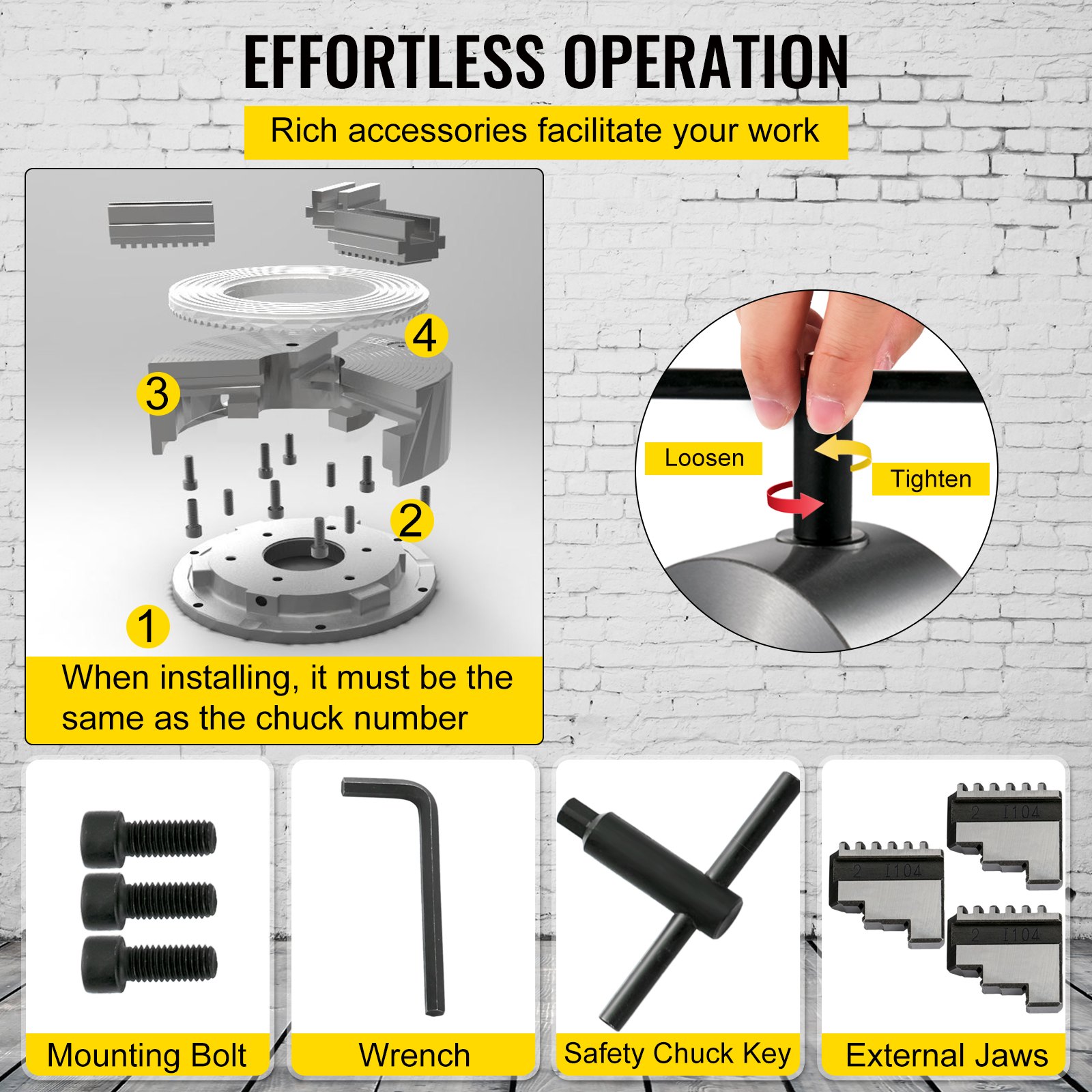

VEVOR lathe chuck parts diagram with internal and external jaws, mounting bolts, and chuck key.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.

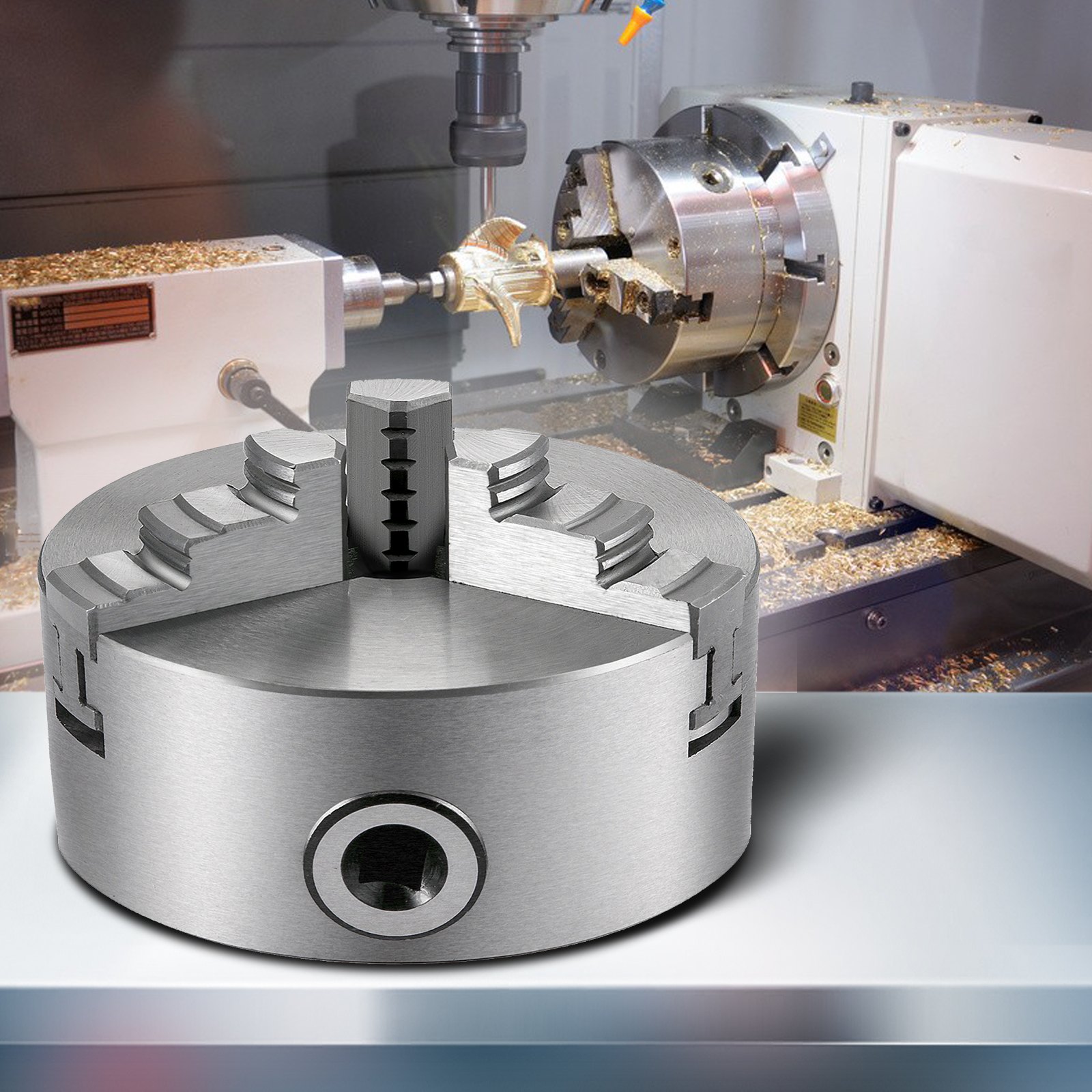

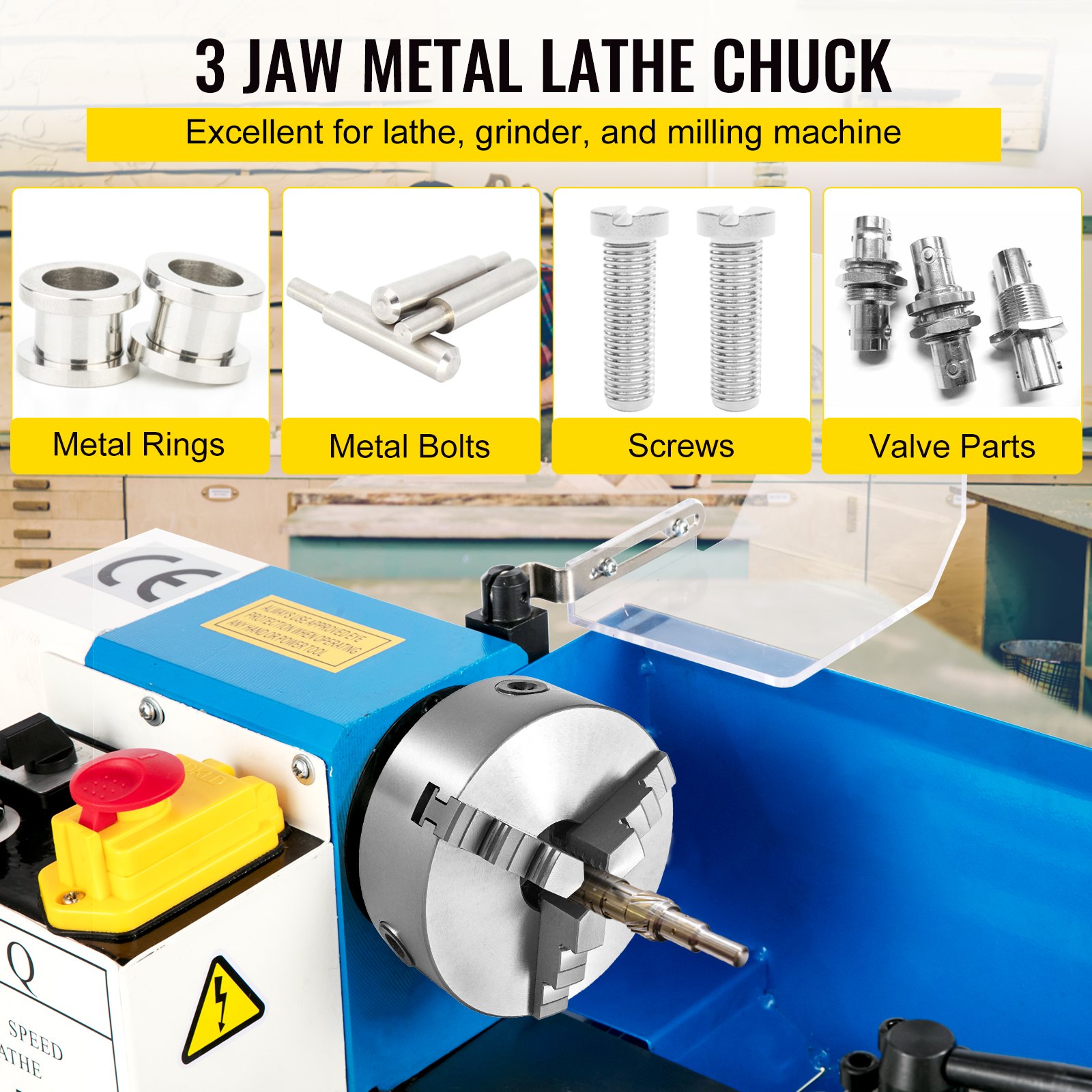

wide application of the VEVOR lathe chuck for wood and metal lathes, drilling, milling.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

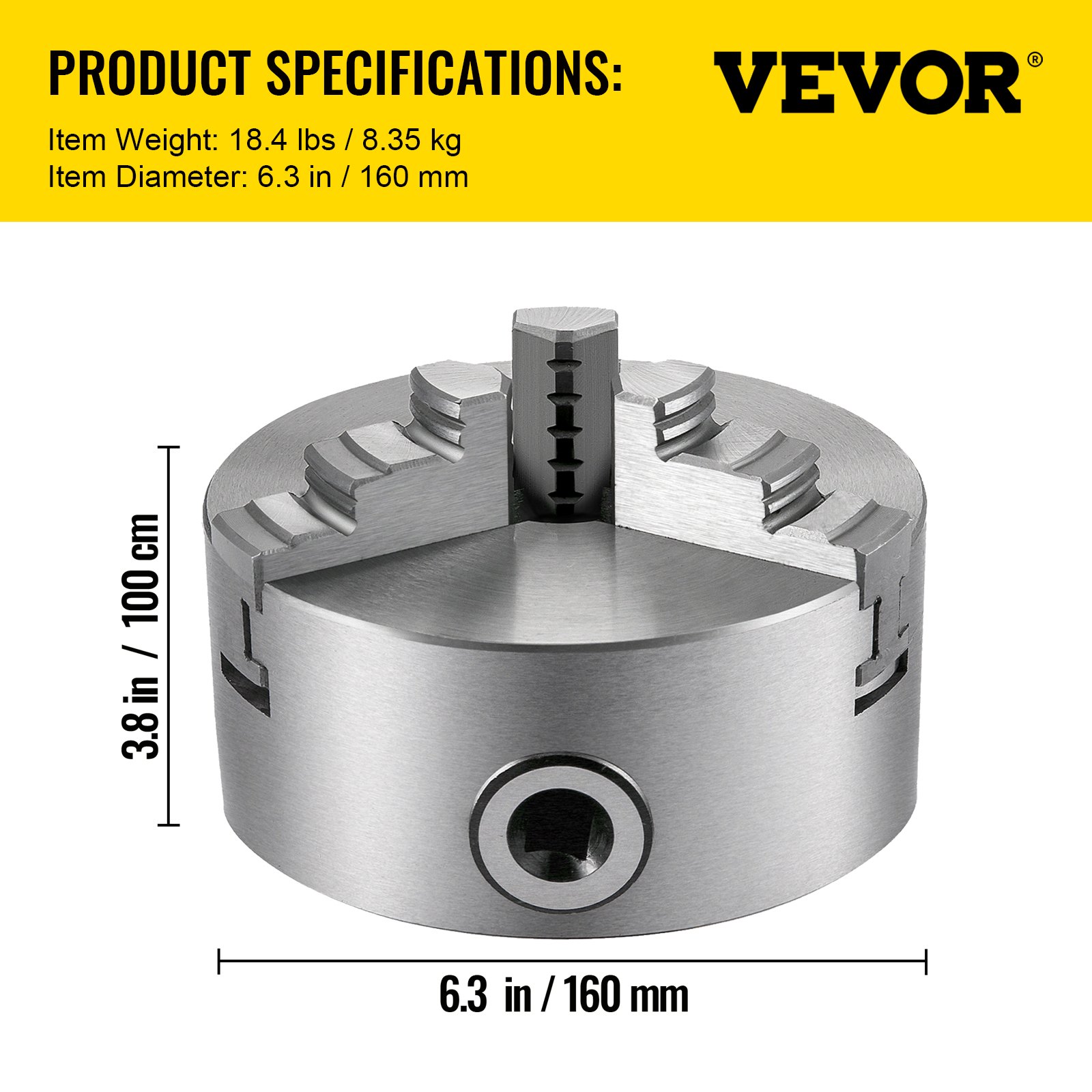

VEVOR lathe chuck, 160 mm / 6.3 in diameter, 100 mm / 3.8 in height.
Specifications
  • Material: Hardened Steel
  • Model: K11-160
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Color: Silver
  • Mounting Thread: 3-M8
  • Lathe Chuck
  • Size: 6.3" / 160 mm
  • Outside Diameter: 6.3" / 160 mm
  • Bolt Circle Diameter: 5.59" / 142 mm
  • Center Thru Hole Diameter: 1.77" / 45 mm
  • Chuck Body Thickness: 2.56" / 65 mm
  • Internal Jaw Clamping Range (A-A1): 0.12"-2.17" / 3-55 mm
  • Internal Jaw Jamming Range (B-B1): 1.97"-6.3" / 50-160 mm
  • External Jaw Clamping Range (C-C1): 2.17"-5.7" / 55-145 mm
  • Accuracy: 0.002" / 0.051 mm
  • Item Weight: 18.4 lbs / 8.35 kg
  • Package Dimensions (L x W x H): 8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm
VEVOR lathe chuck with four jaws, t-handle chuck key, and extra screws on white background.
Package Content
  • 1 x 6.3" / 160 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck with precise self-centering and 3-m8 mounting thread.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with accessories, including bolts and a t-handle key.
6.3-inch 3 Jaw Lathe Chuck
Self Centering & 0.002" High Accuracy & with Two Sets of Jaws
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.12" / 3 mm - 6.3" / 160 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories
  • Quality Material
  • High Precision
  • 2 Sets of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR lathe chuck made of hardened steel and ht 300 durable cast iron.
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR lathe chuck showcasing self-centering with flexible linkage design and yellow arrows.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
high-precision VEVOR lathe chuck with 0.001 accuracy, bevel and pinion gears.
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR lathe chuck showing internal and external jaw display with large clamping range.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR lathe chuck parts diagram with internal and external jaws, mounting bolts, and chuck key.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
wide application of the VEVOR lathe chuck for wood and metal lathes, drilling, milling.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR lathe chuck with four jaws, t-handle chuck key, and extra screws on white background.
Package Content
  • 1 x 6.3" / 160 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck, 160 mm / 6.3 in diameter, 100 mm / 3.8 in height.
Specifications
  • Material: Hardened Steel
  • Model: K11-160
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Color: Silver
  • Mounting Thread: 3-M8
  • Lathe Chuck
  • Size: 6.3" / 160 mm
  • Outside Diameter: 6.3" / 160 mm
  • Bolt Circle Diameter: 5.59" / 142 mm
  • Center Thru Hole Diameter: 1.77" / 45 mm
  • Chuck Body Thickness: 2.56" / 65 mm
  • Internal Jaw Clamping Range (A-A1): 0.12"-2.17" / 3-55 mm
  • Internal Jaw Jamming Range (B-B1): 1.97"-6.3" / 50-160 mm
  • External Jaw Clamping Range (C-C1): 2.17"-5.7" / 55-145 mm
  • Accuracy: 0.002" / 0.051 mm
  • Item Weight: 18.4 lbs / 8.35 kg
  • Package Dimensions (L x W x H): 8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm

Lathe Chuck: Perfect for Precision Grinding and Milling

This VEVOR lathe chuck is ideal for precision grinding and milling tasks. It offers high precision with an accuracy of 0.002". This ensures your workpieces are perfectly centered. The hardened steel material ensures durability and reliability. It is suitable for various machines, including lathes and milling machines. The 6-inch size provides enough clamping range. This makes it ideal for both small and large projects. The self-centering allows quick setup. This tool is suitable for both hobbyists and professionals. This chuck is a great addition to any workshop.


Easily Adaptable to Various Lathes and Projects

The VEVOR Lathe Chuck is highly versatile. It fits various lathes and projects. The chuck's adaptability allows for different setups, and you might need an adapter plate, which you can either buy or make. This flexibility makes it suitable for different setups. The chuck is compatible with metal lathes, making it ideal for metalworking tasks. The bolt circle diameter of 5.59 inches allows for compatibility. This feature ensures a secure fit on your machine. The chuck's versatility enhances its usefulness for both small and large-scale projects. We are able to meet diverse machining needs.


Great Value with High-Quality Performance

The price is great for this lathe chuck. It combines high-quality performance with affordability. Hardened steel construction ensures durability. The 0.002" precision meets high standards. This chuck is well-made and performs reliably. It is a cost-effective solution for precision tasks. The package includes two sets of jaws. You get a high-quality product without breaking the bank. It is an excellent investment for any workshop. The chuck’s performance justifies its cost. They deliver consistent results, making it an invaluable tool.


Easy Setup and Maintenance for Beginners and Professionals

This lathe chuck is easy to set up and maintain. The self-centering feature simplifies alignment. This makes it user-friendly, even for beginners. The professionals will appreciate the ease of use. You may need to clean and lubricate it before installation. It ensures smooth operation. Maintenance is minimal, saving you time. We have provided quick adjustments to the chuck's design. This feature enhances productivity. The simplicity of setup and maintenance makes it a useful tool for both hobbyists and professionals.


Reliable for Everyday Use with Minimal Runout

This lathe chuck is reliable for everyday use. It has minimal runout, ensuring precise work. The accuracy of 0.002" reduces errors. This reliability is essential for consistent results. The chuck holds workpieces securely and is suitable for various materials. The minimal runout improves the quality of your projects. You can trust this tool for different tasks. It is a reliable partner in your machining endeavors. Consistent performance guarantees high-quality results.


Well-Made with Durable Hardened Steel Construction

The VEVOR Lathe Chuck is a well-made product. It features hardened steel construction. This material ensures durability and strength. The chuck can handle demanding tasks. Hardened steel resists wear and tear. So, this durability means long-lasting performance. We build our churning machine to withstand heavy use. It is dependable for different machining needs; the strong construction adds to its value. You get the exceptional quality that lasts. These durable qualities make it worth the investment.


Suitable for a Wide Range of Clamping Sizes

This lathe chuck offers a wide clamping range. It is suitable for both small and large workpieces. The internal jaw clamping range is 0.12"-2.17". The external jaw clamping range is 2.17"-5.7". This flexibility makes it ideal for various projects. You can clamp different sizes securely. This feature enhances its utility. The chuck meets diverse needs easily. No matter if you're working on small details or large parts, it performs well. The wide clamping range adds to its versatility. You can use this versatile tool for various machining tasks, making it an excellent addition to any workshop.


See More

Specification

Material
Hardened Steel
Model
K11-160
Jaw
3 Jaw
High Precision
≤0.002" / 0.05 mm
Color
Silver
Mounting Thread
3-M8
Lathe Chuck
Size
6.3" / 160 mm
Outside Diameter
6.3" / 160 mm
Bolt Circle Diameter
5.59" / 142 mm
Center Thru Hole Diameter
1.77" / 45 mm
Chuck Body Thickness
2.56" / 65 mm
Internal Jaw Clamping Range (A-A1)
0.12"-2.17" / 3-55 mm
Internal Jaw Jamming Range (B-B1)
1.97"-6.3" / 50-160 mm
External Jaw Clamping Range (C-C1)
2.17"-5.7" / 55-145 mm
Accuracy
0.002" / 0.051 mm
Item Weight
18.4 lbs / 8.35 kg
Package Dimensions (L x W x H)
8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm
Manual
Download Link
Questions and Answers
1 Questions
I am lookin for a chuck self Centering that will hold alloy truck rims with a 300mm diameter do you have anything like that meaning I want to wind the chuck out to grab the inside of the rim if you understand what i mean
Sorry, we don't have a product that suits you.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
75 Review(s)
Clear filters
matthew matthew
Welder rollout wheel
Very satisfied with product and upgrade to my toolbox. Compact, good quality item.
Don’t know Don’t know
Never used
this seems to be well made, I never got to use it as it will not fit the lathe I bought it with. It was over a year before I found this out because I became extremely ill after buying the unit. A good system would see two related items being bought on the same order that were not compatible with each other and throw a red flag.
Francesca Lenzi Francesca Lenzi
mandrino
ottimo rapporto prezzo/qualità
Giuseppe Giuseppe
Per il prezzo ne vale la pena
Ho preso questo mandrino per questioni di necessità nel lavorare pezzi più grande, ho dovuto creare la contropiasta direttamente sul tornio, non credevo ai miei occhi tolleranza eccentrica inferiore di parecchio a quello.originale del tornio, quasi allo zero....per quanto costa me vale la pena
Alfredo Alfredo
Excelente producto
Muy bien producto
Timo R. Timo R.
Great accuracy
I tried jaws to my old chuck, they fitted and accuracy is 0.01mm.
F. Verrier F. Verrier
Malheureusement il n'y a pas d'adaptateur perceuse
Mais le produit semble solide et de qualité, attention il est lourd, il n'y a pas d'adaptateur perceuse mais il doit être parfait pour un tour.
Sandra MJ Sandra MJ
Está muy bien
Me equivoqué en el tamaño, pero aún así le pude dar uso. Lo recomiendo
Fabrizio Fabrizio
ottimo mandrino
utilizzato frequentemente sembra essere ben fatto, serraggio ottimo
paco paco
seriedad
calidad buena y bien embalaje
