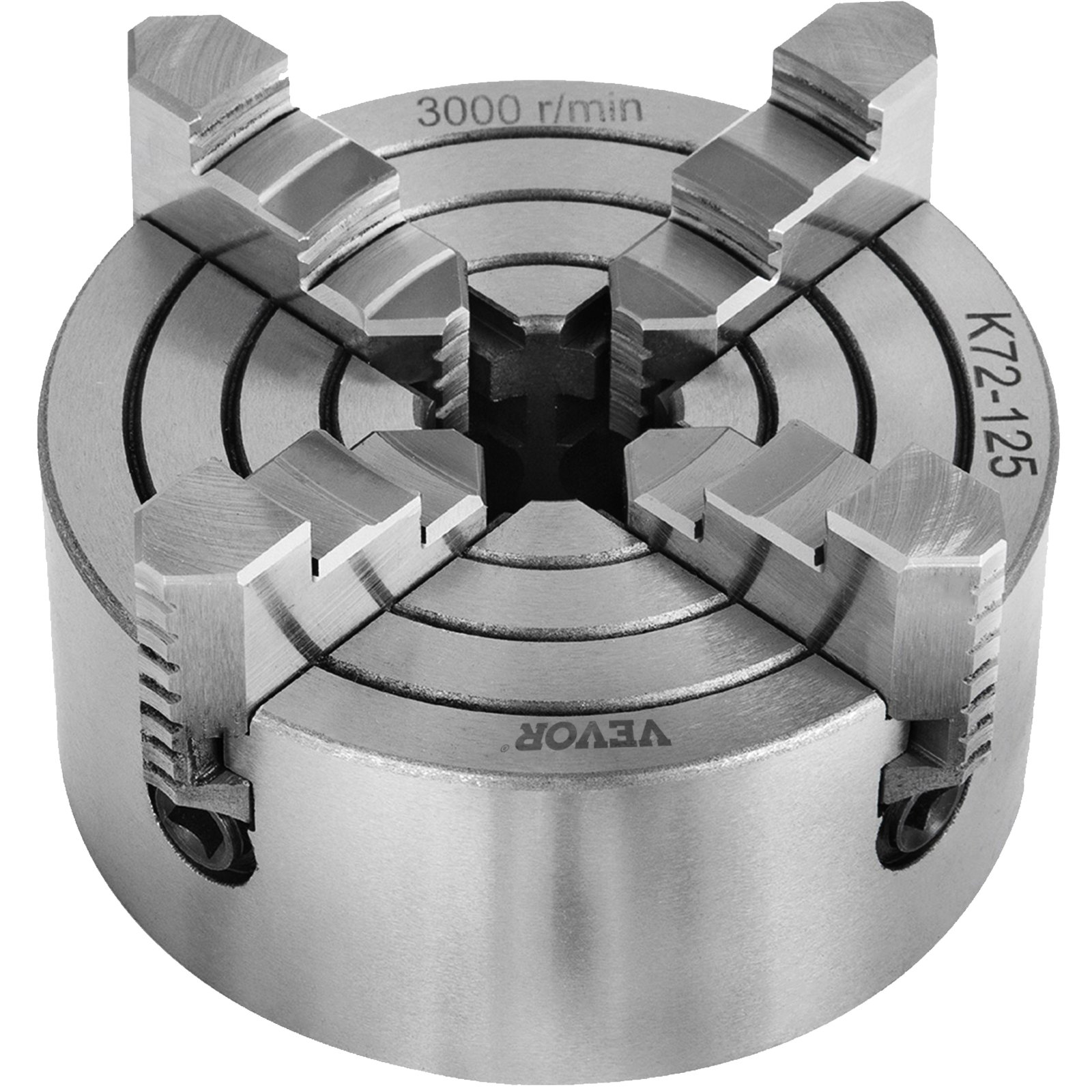

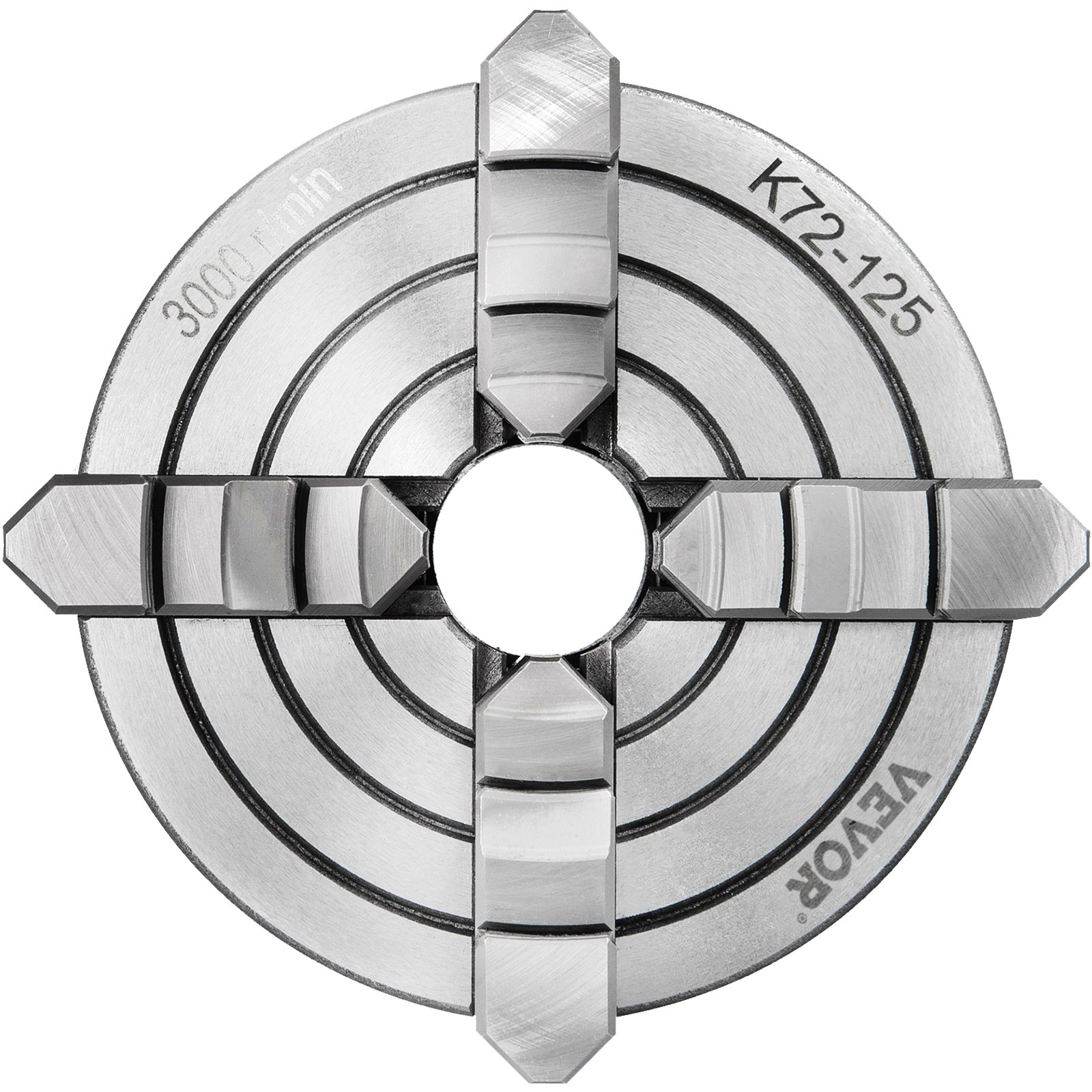

VEVOR lathe chuck with four jaws, handle, and four bolts, 3000 rpm capacity. VEVOR lathe chuck with metal rings, bolts, screws, and valve parts for machines. VEVOR lathe chuck with internal and external jaw dimensions for various workpiece sizes. VEVOR lathe chuck with self-locking system, accurate bearings, and reversible jaws. effortless operation of VEVOR lathe chuck with mounting bolts and safety chuck key. VEVOR lathe chuck, ht 300 cast iron, anti-rust oil, ground jaw teeth measuring 12.5 inches. VEVOR lathe chuck showing 4-jaw design, weighs 10.9 lbs, 4.9 in diameter.
KPK72-12500000001V0

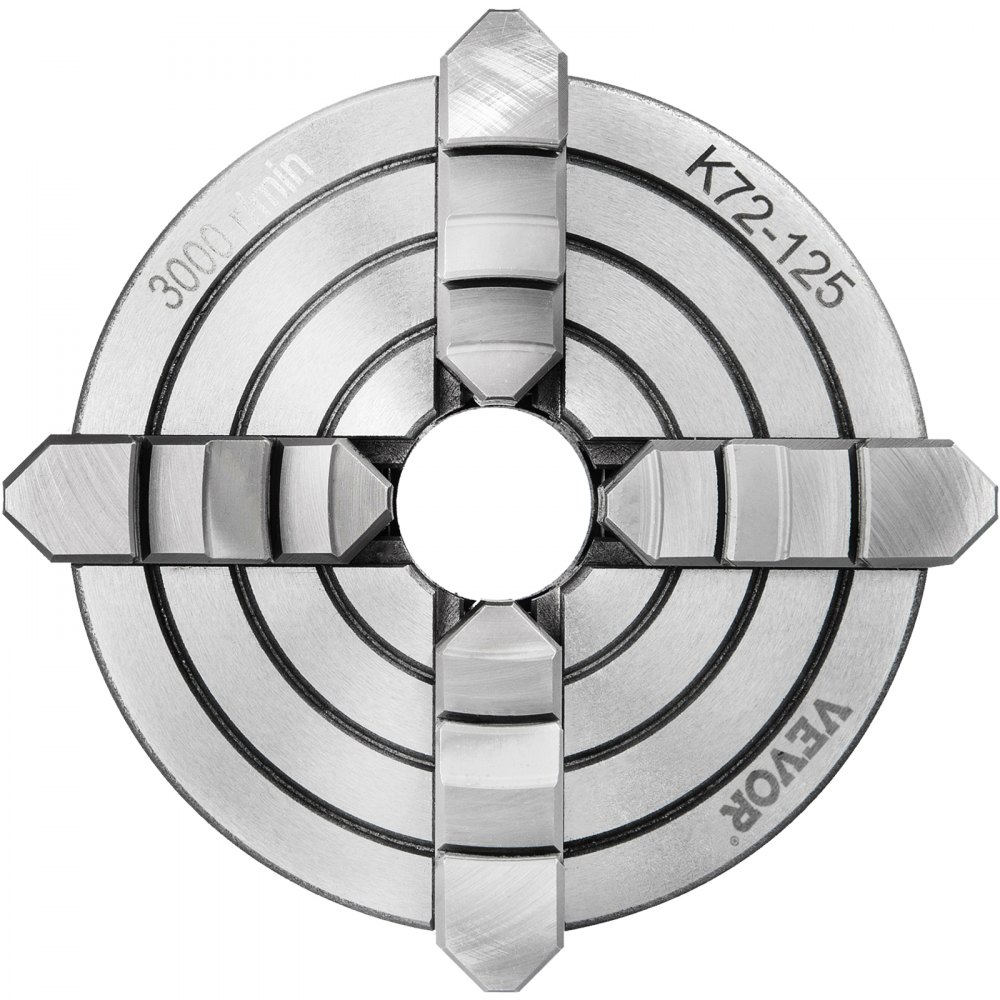

VEVOR Metal Lathe Chuck 4-Jaw Independent 5 inch Cast Iron Milling Turning CNC

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Premium Material: Diameter: 5 inch / 125 mm. The 4-jaw mini lathe chuck body is made of cast iron that has passed rigorous quality tests. It has high strength and toughness, compression resistance and durability, and long service life.
  • Reversible Jaw Set: The lathe chuck is equipped with 3 inward stepped jaws that can be stepped inward or outward to hold raw materials of different shapes. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • Enhanced Flexibility: The T shape chuck key of the lathe part allows the installation of various workpieces. And effortless operation reduces changeover time for your convenience. Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm. External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm.
  • High Precision: The 4-jaw lathe chuck works accurately, bearing tolerance is of ≤ 0.003 inch / 0.07 mm to ensure satisfying metal processing. The accessory screws make the scroll chuck highly adaptable and can be used with the same series of jaws as the chuck.
  • Remarkable Versatility: This 4-jaw independent metal lathe chuck has a compact construction. It is suitable for installation on multiple kinds of metal lathe chuck and clamping workpieces of various shapes.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe Chuck 4-Jaw Independent 5 inch Cast Iron Milling Turning CNC
VEVOR lathe chuck with 4 jaws, max speed 3000 rpm, durable service, quenching hardened.
VEVOR lathe chuck, 4-jaw, 3000 rpm, with key and mounting bolts.
K72-125 4-Jaw Independent Lathe Chuck
Large Clamping Range & Flexible Adjustment & w/ Chuck Key
The 5-inch independent lathe chuck is composed of a strong cast iron body and four hardened steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle. It is ideal for your lathe
  • Premium Material
  • Reversible Jaw Set
  • Enhanced Flexibility
  • High Precision
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

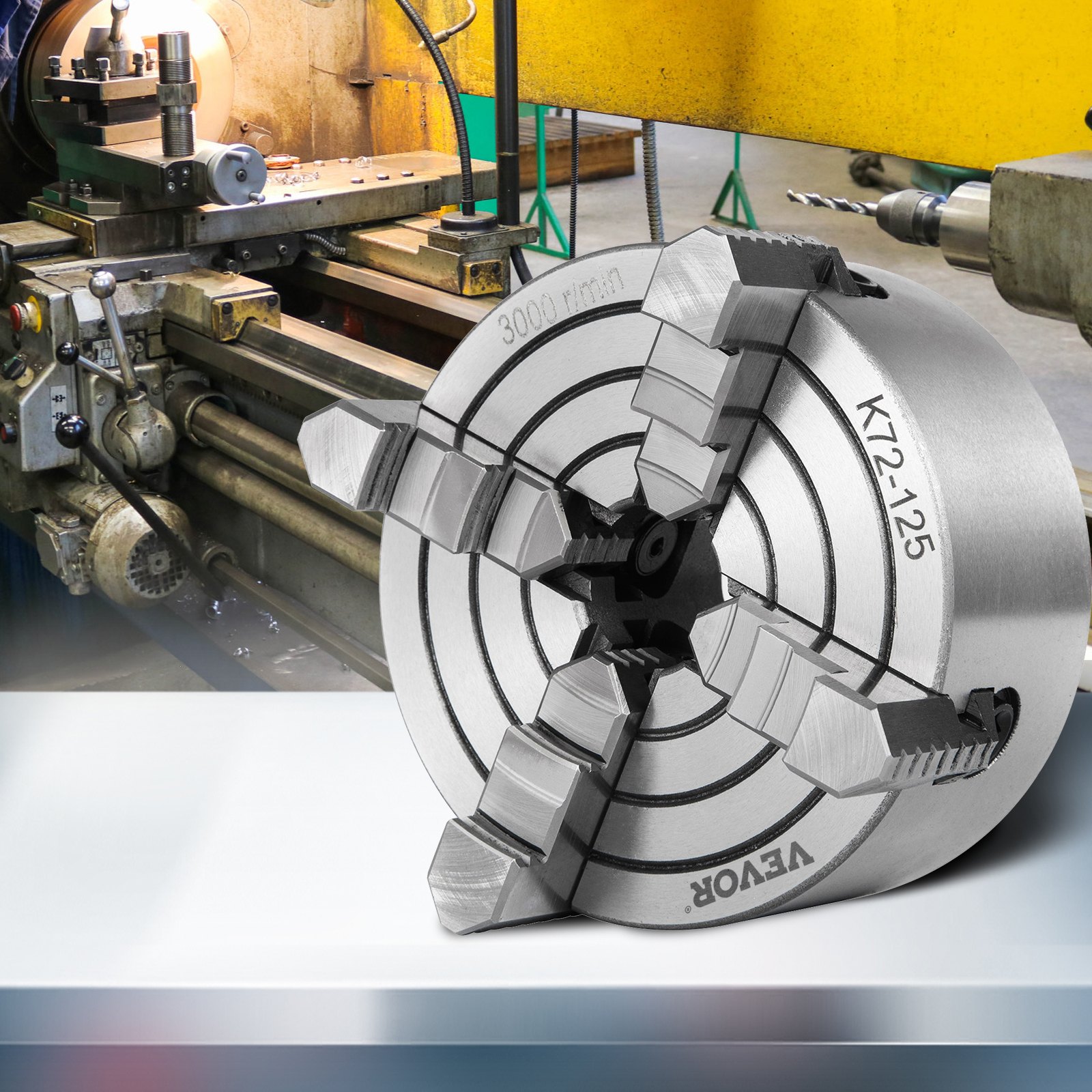

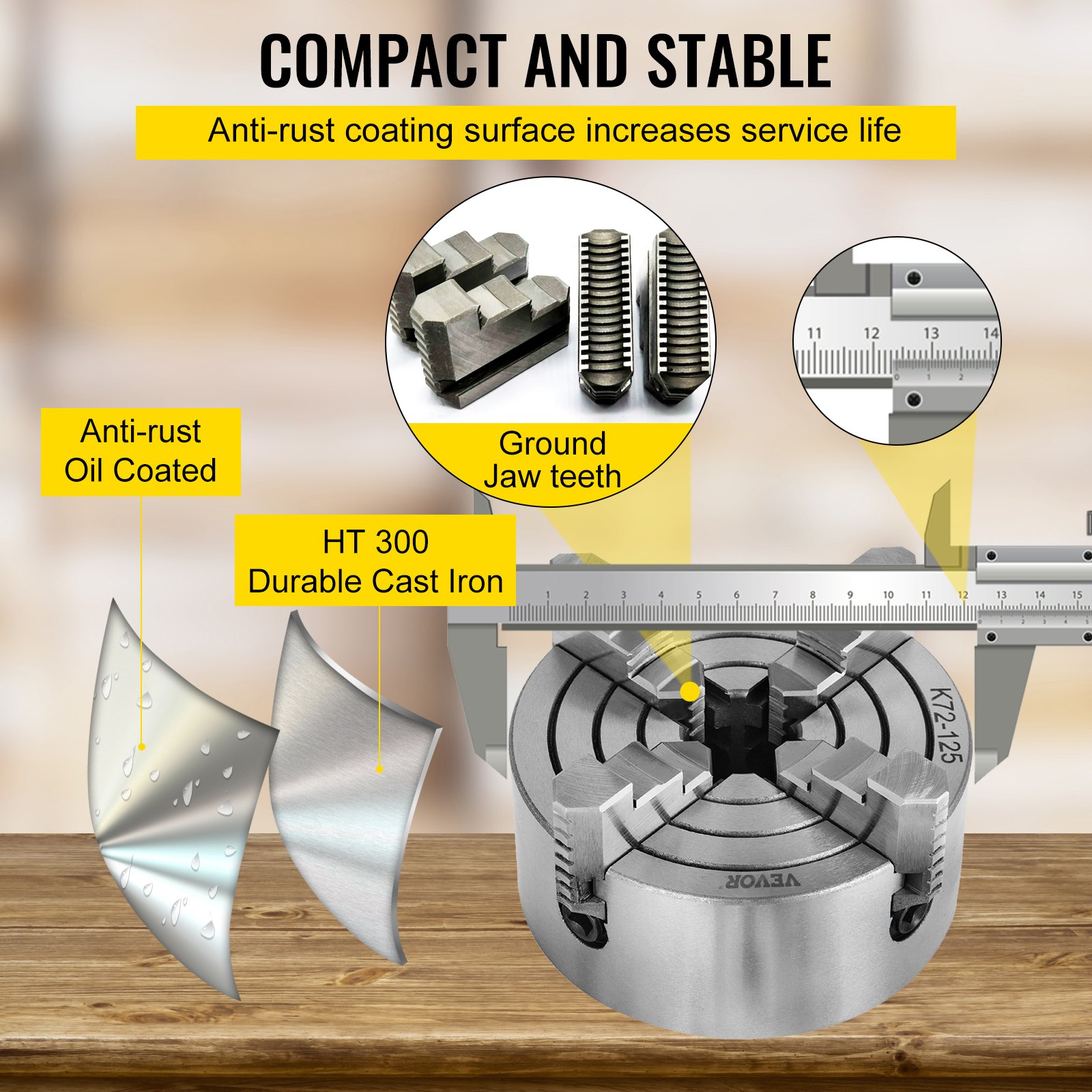

VEVOR lathe chuck made from ht 300 durable cast iron.
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron that is rigid and durable, and it looks low-profile.
VEVOR lathe chuck with 4 reversible jaws and flexible linkage chuck for precision.
4 Reversible Jaws
The chuck jaws can step either inward or outward so that it’s easy for you to deal with various materials.

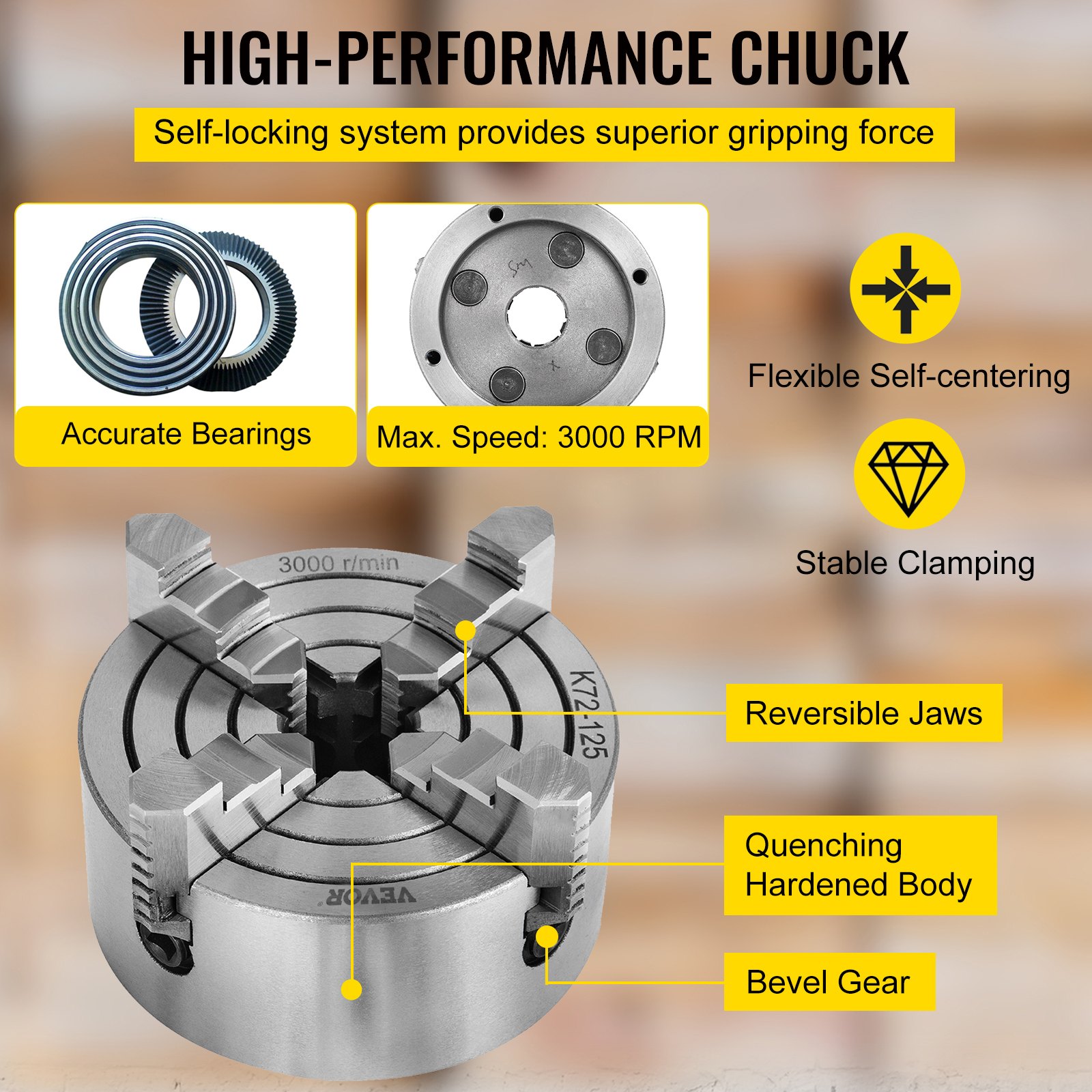

VEVOR lathe chuck with high-precision 4-jaw design, bevel and pinion gears, 0.001 accuracy.
With Great Accuracy
The K72 lathe machine chuck works with few vibrations, ensuring you will get accurate finished parts.

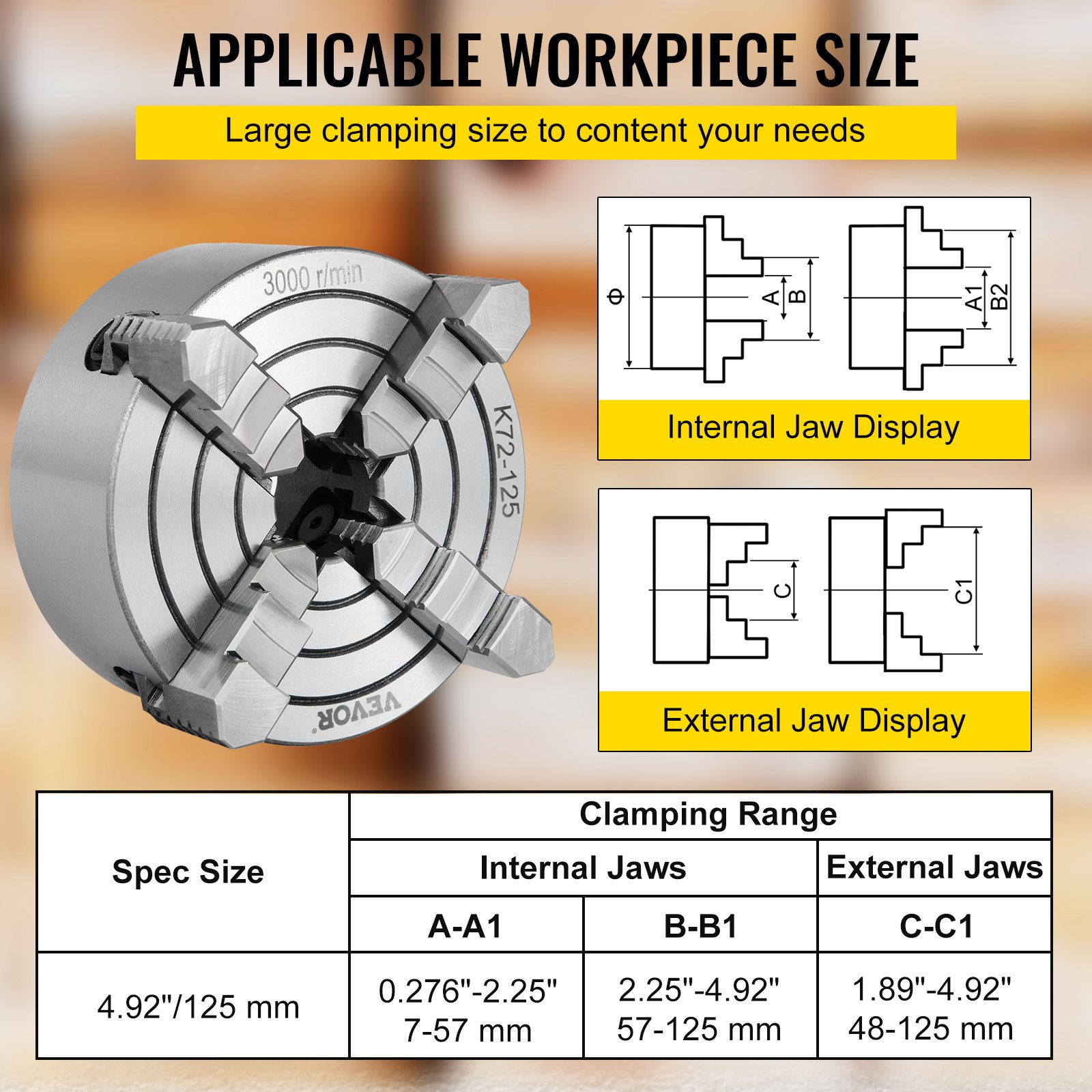

VEVOR lathe chuck with large clamping range, internal and external jaw displays.
Independent Jaws
The mini lathe chuck features four independent jaws. Each of them is set respectively and can stop in different places.

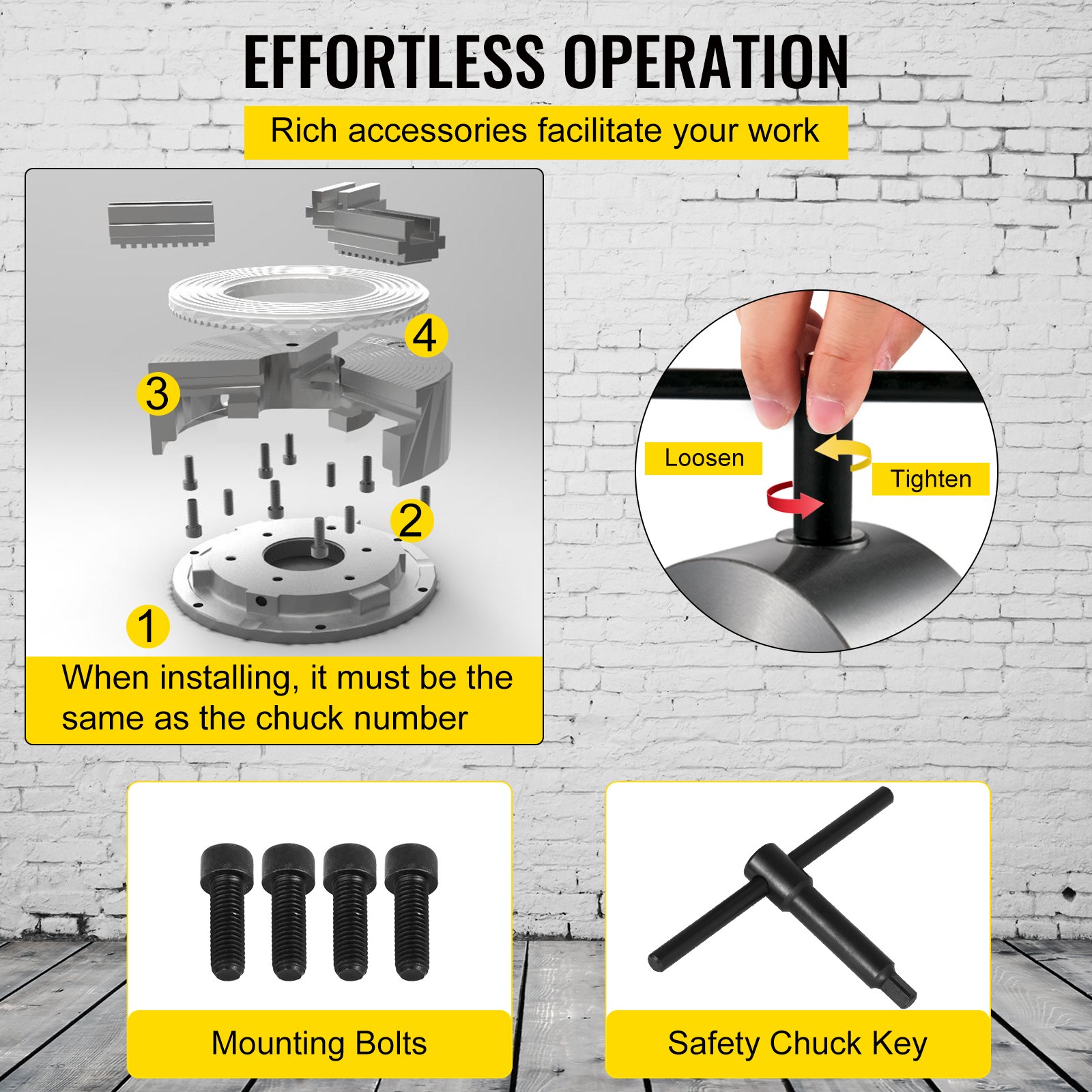

VEVOR lathe chuck with internal jaw, chuck body, mounting bolts, and safety chuck key. easy installation.
Easy to Operate
The lathe collet chuck comes with a T wrench, with which you can easily loosen or tighten the jaws.

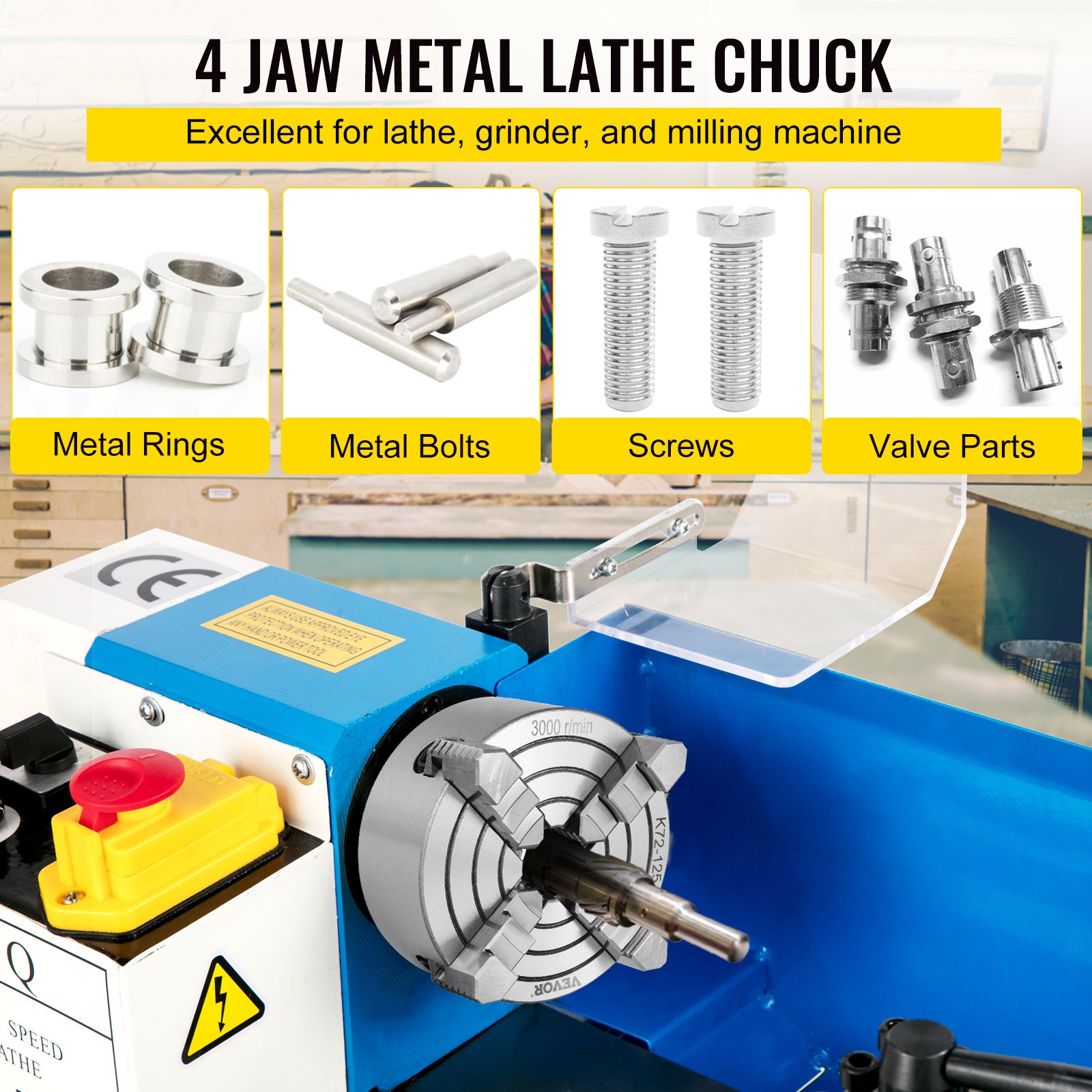

four types of machinery: wood lathe, metal lathe, drilling machine, and milling machine. VEVOR lathe chuck enhances versatility.
Wide Application
The 4-jaw independent chuck is light and convenient, and it is the perfect choice for your lathe machine.

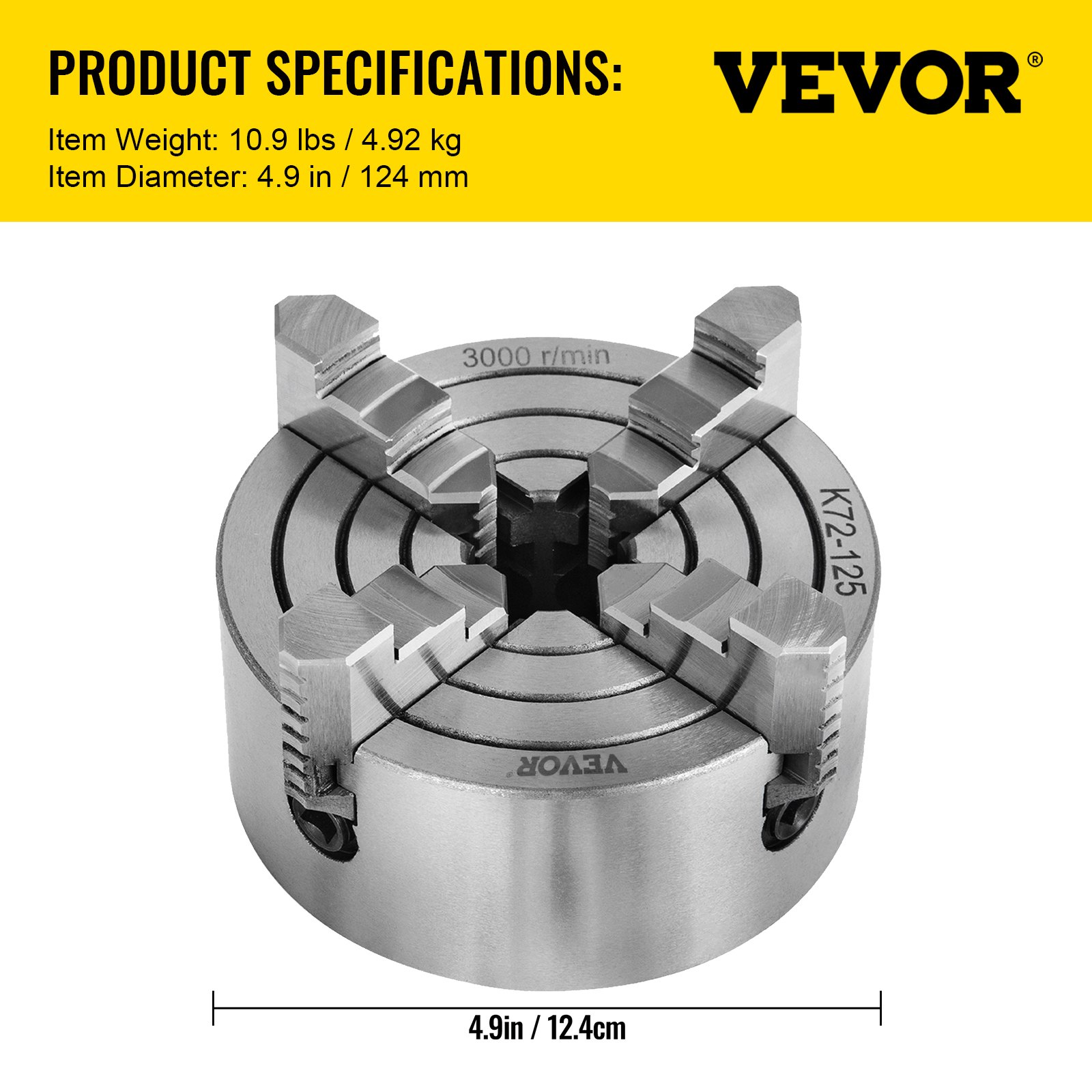

VEVOR lathe chuck with four jaws, 4.9in diameter, 3000 rpm, k12-125 model.
Specifications
  • Chuck Body Material: Cast Iron
  • Color: Silver
  • Jaws Material: 40CR Steel
  • Bevel Gear Material: 40CR Steel
  • Pinions Material: 20CR Steel
  • Chuck Diameter: 4.92" / 125 mm
  • Center Hole: 1.2" / 30 mm
  • Circle Diameter: 4.3" / 108 mm
  • Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm
  • External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm
  • Tolerance: ≤ 0.003" / 0.07 mm
  • Accuracy: 0.002" / 0.051 mm
  • Maximum Speed: 3000 RPM
  • Item Weight: 10.9 lbs / 4.92 kg
  • Package Dimensions (L x W x H): 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm
VEVOR lathe chuck with 4 jaws, wrench, and screws against a white background.
Package Content
  • 1 x Lathe Chuck
  • 4 x Mounting Screws
  • 1 x Chuck Key
VEVOR lathe chuck with 4 jaws, max speed 3000 rpm, durable service, quenching hardened.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

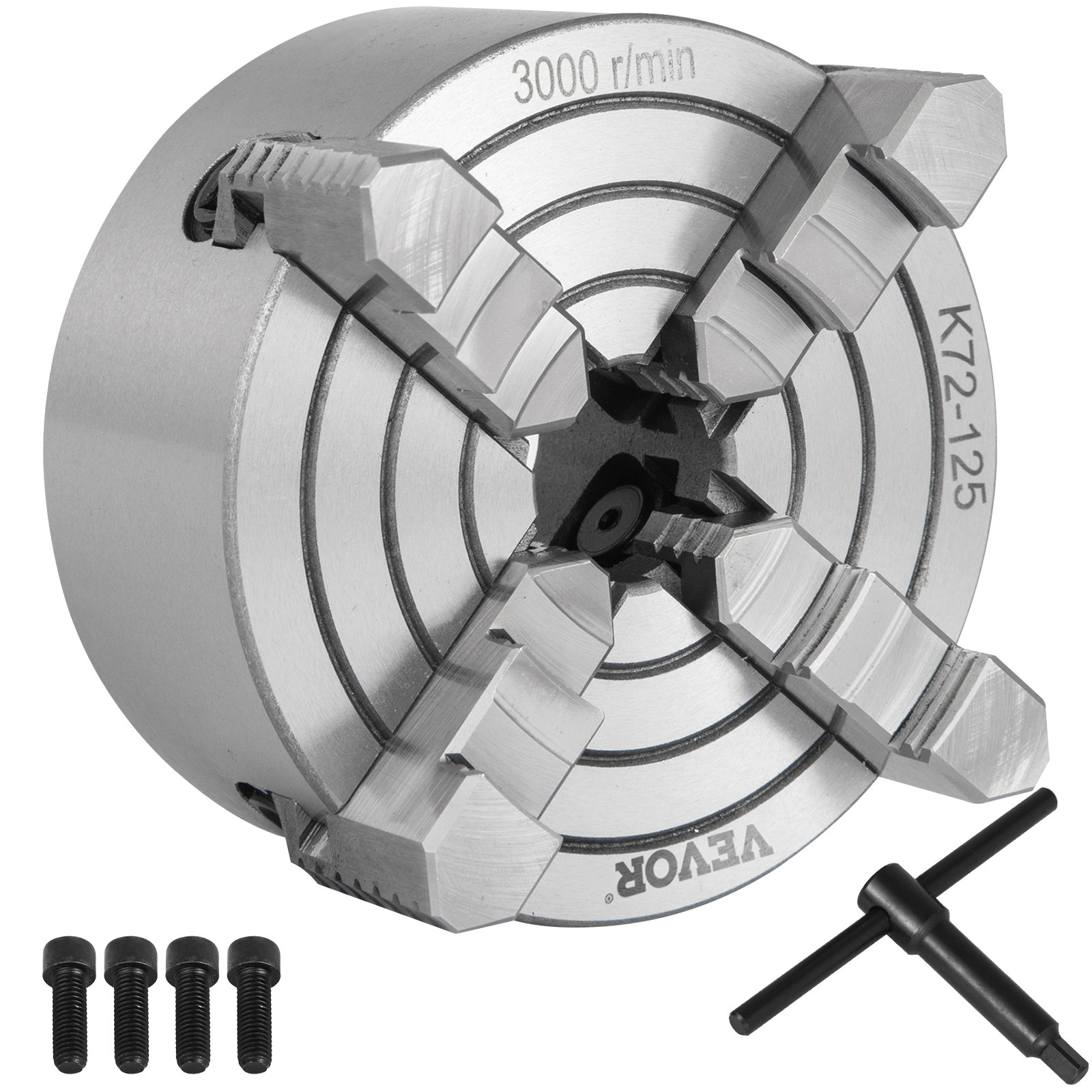

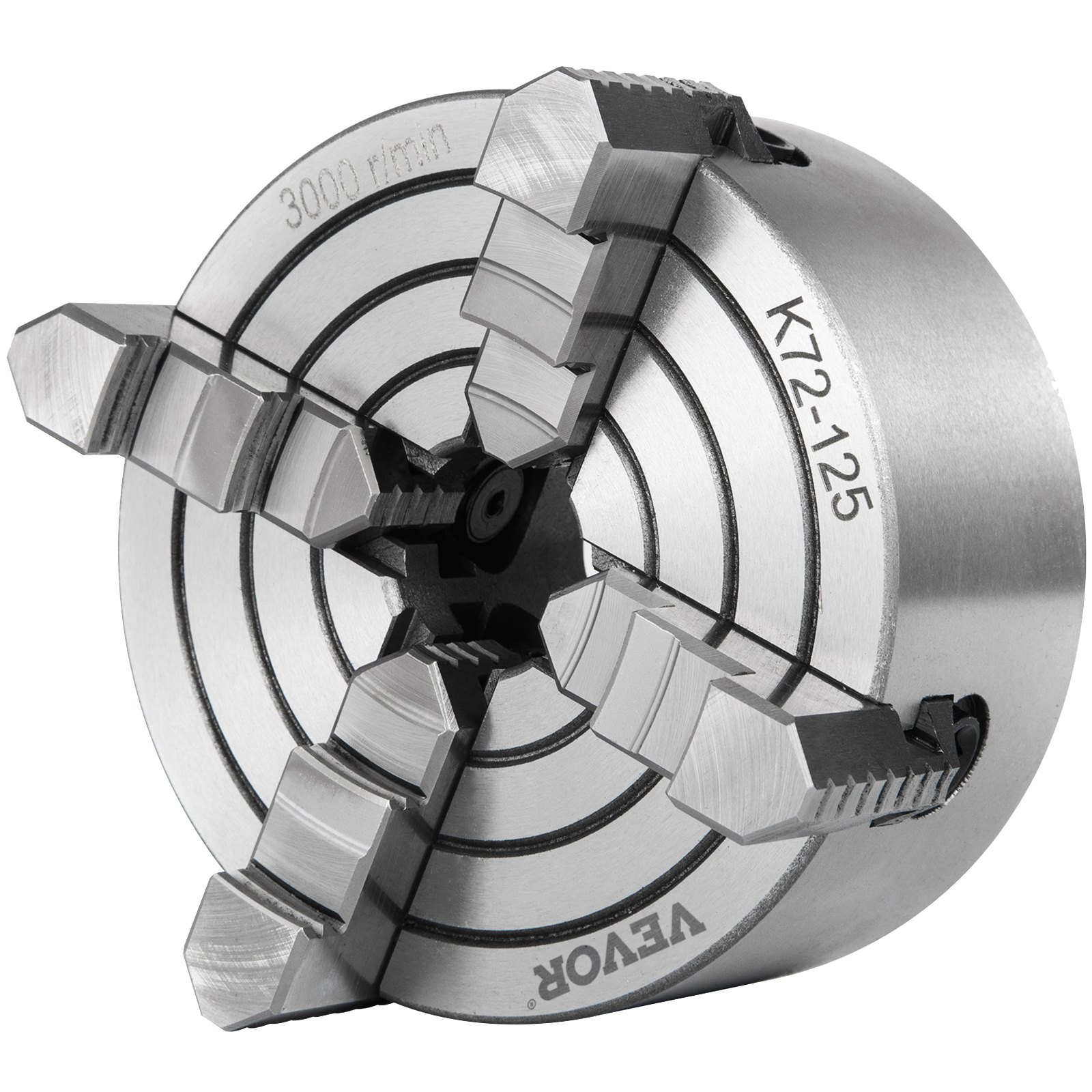

VEVOR lathe chuck, 4-jaw, 3000 rpm, with key and mounting bolts.
K72-125 4-Jaw Independent Lathe Chuck
Large Clamping Range & Flexible Adjustment & w/ Chuck Key
The 5-inch independent lathe chuck is composed of a strong cast iron body and four hardened steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle. It is ideal for your lathe
  • Premium Material
  • Reversible Jaw Set
  • Enhanced Flexibility
  • High Precision
VEVOR lathe chuck made from ht 300 durable cast iron.
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron that is rigid and durable, and it looks low-profile.
VEVOR lathe chuck with 4 reversible jaws and flexible linkage chuck for precision.
4 Reversible Jaws
The chuck jaws can step either inward or outward so that it’s easy for you to deal with various materials.
VEVOR lathe chuck with high-precision 4-jaw design, bevel and pinion gears, 0.001 accuracy.
With Great Accuracy
The K72 lathe machine chuck works with few vibrations, ensuring you will get accurate finished parts.
VEVOR lathe chuck with large clamping range, internal and external jaw displays.
Independent Jaws
The mini lathe chuck features four independent jaws. Each of them is set respectively and can stop in different places.
VEVOR lathe chuck with internal jaw, chuck body, mounting bolts, and safety chuck key. easy installation.
Easy to Operate
The lathe collet chuck comes with a T wrench, with which you can easily loosen or tighten the jaws.
four types of machinery: wood lathe, metal lathe, drilling machine, and milling machine. VEVOR lathe chuck enhances versatility.
Wide Application
The 4-jaw independent chuck is light and convenient, and it is the perfect choice for your lathe machine.
VEVOR lathe chuck with 4 jaws, wrench, and screws against a white background.
Package Content
  • 1 x Lathe Chuck
  • 4 x Mounting Screws
  • 1 x Chuck Key
VEVOR lathe chuck with four jaws, 4.9in diameter, 3000 rpm, k12-125 model.
Specifications
  • Chuck Body Material: Cast Iron
  • Color: Silver
  • Jaws Material: 40CR Steel
  • Bevel Gear Material: 40CR Steel
  • Pinions Material: 20CR Steel
  • Chuck Diameter: 4.92" / 125 mm
  • Center Hole: 1.2" / 30 mm
  • Circle Diameter: 4.3" / 108 mm
  • Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm
  • External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm
  • Tolerance: ≤ 0.003" / 0.07 mm
  • Accuracy: 0.002" / 0.051 mm
  • Maximum Speed: 3000 RPM
  • Item Weight: 10.9 lbs / 4.92 kg
  • Package Dimensions (L x W x H): 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm

Secure Your Workpieces for Precise Machining — Lathe Chuck 5-Inch

The VEVOR lathe chuck 5-inch is a great tool for anyone who needs a precise and easy-to-use machine. It securely holds workpieces and delivers accurate machining results. It’s perfect for small home projects and bigger professional jobs. It is long-lasting because it is made of sturdy cast iron. It can be used for various jobs because it is simple to set up and operate. This lathe chuck is ideal for use in a professional setting or taking on smaller home projects requiring more skill. This 4-jaw lathe chuck guarantees that everything you create will be precise and meet your expectations.


Efficient Precision Performance

This independent reversible jaw is extremely accurate. It can handle workpieces with an error margin of only 0.003 inches (0.07 mm). It can make very small and precise adjustments. This kind of accuracy is really important for getting detailed and reliable results. It ensures that every piece you work on is exactly right. With this level of precision, you can be confident in the quality of your finished projects. This lathe machine turning chuck makes your work easier and more dependable.


High Flexibility & Adaptability

The VEVOR lathe chuck 5-inch's T-shaped chuck key enhances its flexibility. This design helps you quickly and easily set up different types of workpieces, meaning you can switch between tasks faster. The chuck can grip materials of different sizes, both inside and outside. Whether you’re working on small or large projects, the chuck adjusts to fit your needs. This makes it very flexible and useful for many different jobs. Its strong grip keeps your workpieces stable, so you can work with confidence.


Easy Maintenance and Setup

Maintaining and setting up the VEVOR 4-jaw lathe chuck is straightforward. While initial cleaning and deburring are required, the process is simple and quick. The chuck has clear instructions and all necessary accessories, including mounting bolts and a safety chuck key. These features simplify the setup process, even for those new to using lathe chucks. The chuck’s durable construction also requires minimal maintenance over its long lifespan.


Premium Quality Construction

These metal lathe chuck accessories are made from strong and durable cast iron. This material is known for being tough and lasting a long time. The chuck has been carefully tested to handle lots of use and tough conditions. You can trust it to work well over time. Its long lifespan means you won't have to replace it too often. The cast iron also gives the chuck a smooth and nice look. This quality makes it both useful and attractive. This independent reversible jaw ensures reliable performance for all your machining needs.


Simple to Use

The VEVOR lathe machine turning chuck is designed for ease of use. It features four reversible jaws that can step either inward or outward. This flexibility lets you hold different materials, whether round, odd-shaped, or round. The chuck comes with a T-shaped tool that makes it easy to adjust the jaws. Once set up, the chuck helps you finish your machining tasks more quickly and easily. The simple design also reduces setup time, so you can start working on your projects immediately.


Suitable for All Your Needs

This independent reversible jaw is incredibly versatile. This tool is compatible with many types of equipment, including metal and wood lathes. It also works well with drills and milling machines. It can hold workpieces of different sizes and shapes. It can hold onto objects on the inside and outside, regardless of size. Its wide clamping range and adaptability ensure it easily meets various project needs. This 4-jaw lathe chuck is a great choice for both newbies and professionals.


See More

Specification

Chuck Body Material
Cast Iron
Color
Silver
Jaws Material
40CR Steel
Bevel Gear Material
40CR Steel
Pinions Material
20CR Steel
Chuck Diameter
4.92" / 125 mm
Center Hole
1.2" / 30 mm
Circle Diameter
4.3" / 108 mm
Internal Jaw Clamping Range
0.276"-2.244" / 7-57 mm
External Jaw Clamping Range
1.89"-4.92" / 48-125 mm
Tolerance
≤ 0.003" / 0.07 mm
Accuracy
0.002" / 0.051 mm
Maximum Speed
3000 RPM
Item Weight
10.9 lbs / 4.92 kg
Package Dimensions (L x W x H)
5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm
Questions and Answers
2 Questions

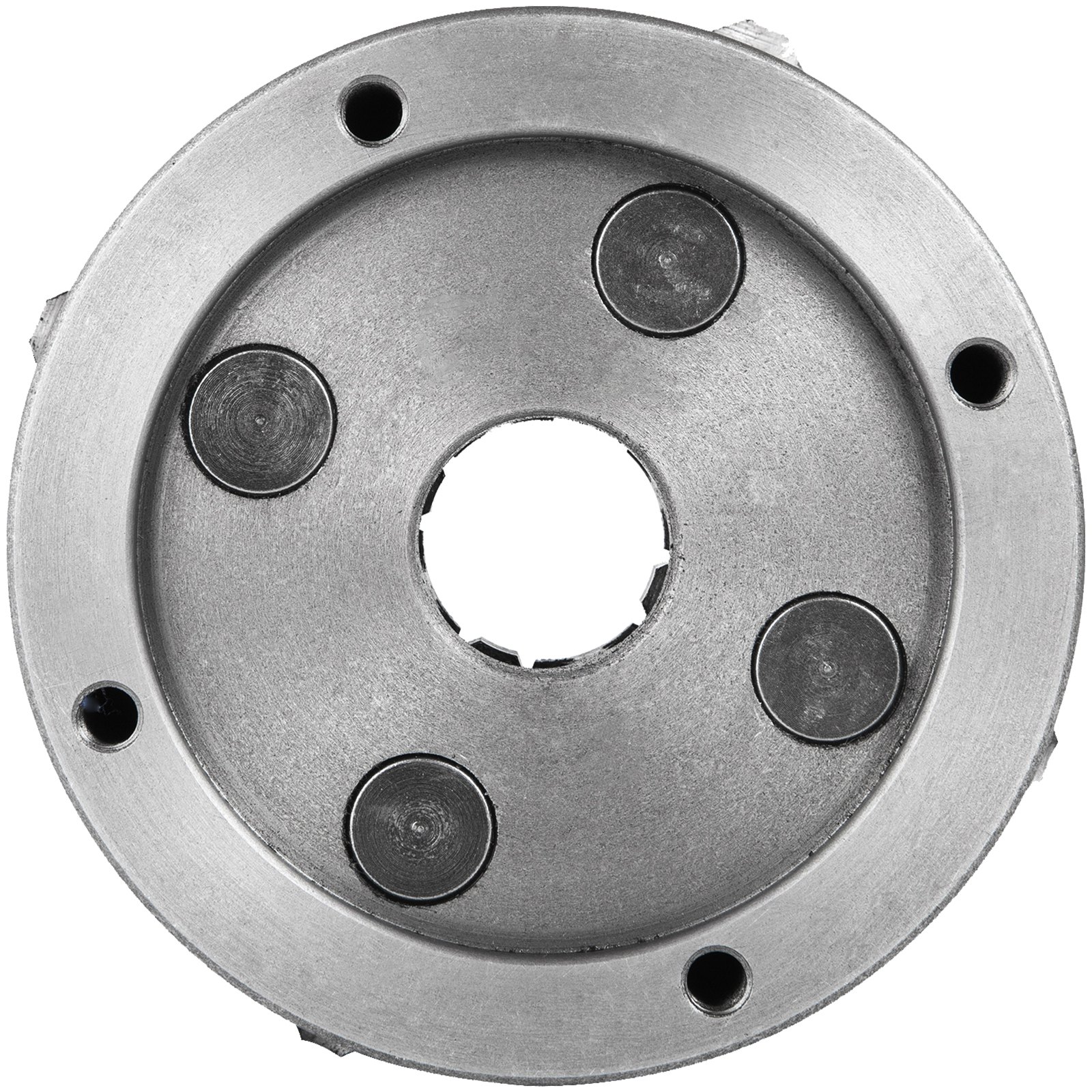

What is the spindle boss registration diameter?
It is 95mm.
By vevor
What is the mounting thread dimensions?
The chuck has no threads.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
50 Review(s)
Clear filters
gerry mckown gerry mckown
Mr.
Great value 4 jaw chuck for the price. It came in clean without much dirt or grime from manufacturing. I only needed to remove the jaws, give it wipe down, and mount it on the lathe. Keep in mind this chuck has 4 bolt pattern for mounting.
Alan W. Bycroft Alan W. Bycroft
Good four jaw chuck for minilathe
My minilathe came with a three-jaw chuck, so I needed a four-jaw for times when odd shaped materials won’t work in the 3-jaw. It came well packaged and completely covered with a machine oil to prevent rust, and it took a bit to clean it all off. The jaws all needed sharp edges smoothed off, and once re-lubricated and assembled, it works fine. Just taking a star off for the sharp edges.
Ron Ramsey Ron Ramsey
Great for my purpose!
I got this to use on my old Atlas 12 \" lathe. The original 4 jaw is way too big for small stuff. I have a three jaw that I use mostly, but I need something to hold small irregular pieces. This fits my needs fine. I found a backplate on EBAY that just happened to fit PERFECTLY after I received it. Took a fine face cut to insure no run-out. It's typical Chinese quality, But it serves my purpose. Don't recommend for fine precision jobs though.
Dick Dick
CEO
Br advised that this chuck requires 4 mtg studs. I was unaware and tried to mount it on my three hole back plate??? Need adapter plate or redrill back plate
Mac Mac
Where did the threads go?
The chuck is not threaded; so you will need to purchase a threaded plate to attach. Ensure the attachment plate has the correct threads to attach to the lathe. The chuck is of good quality and a strong value for the dollar.
One Bone One Bone
The chuck is quality
I found the 8.0x1.25 mounting bolts to be Allen bolts instead of allen studs and nuts. Bolts will not work. One had to buy 40 mm long mm bolts and cut them to fit.
David S David S
Well made, easy to use.
This little chuck is a dandy. Overall finish is excellent, and it fits a 4\" rotary table perfectly. Would buy again.
HEM HEM
Mr
Installed on Vevor MX-S716G lathe. Requires an adapter plate (convert 4 hole bolt mount to 3 hole stud mount) and 3 studs if you want to leave the original studs in your 3 jaw chuck. The adapter is available on AliExpress as shown in attached picture. Note the adapter PN 1692 from littlemachineshop.com will not work because the 3 stud holes are for a smaller bolt circle. Still hard to beat the total cost/value.
Rich Haas Rich Haas
Shop owner
It is a great product. Unfortunately I can't use it because I ordered the wrong one for my lathe. I Would like to return it.
Matt Rich Matt Rich
Works great
Having a 4-jaw chuck is critical for the lathe work I do, which uses mostly square or rectangular stock. Completely happy with this chuck. My only compliant is that the bolts included are too long to install in my Vevor mini-lathe. If I cut them down short enough to install, they are too short to hold the chuck. Not a big deal to use the 3 original studs, but the chuck has a four-hole pattern so I will have to make a fourth stud.
