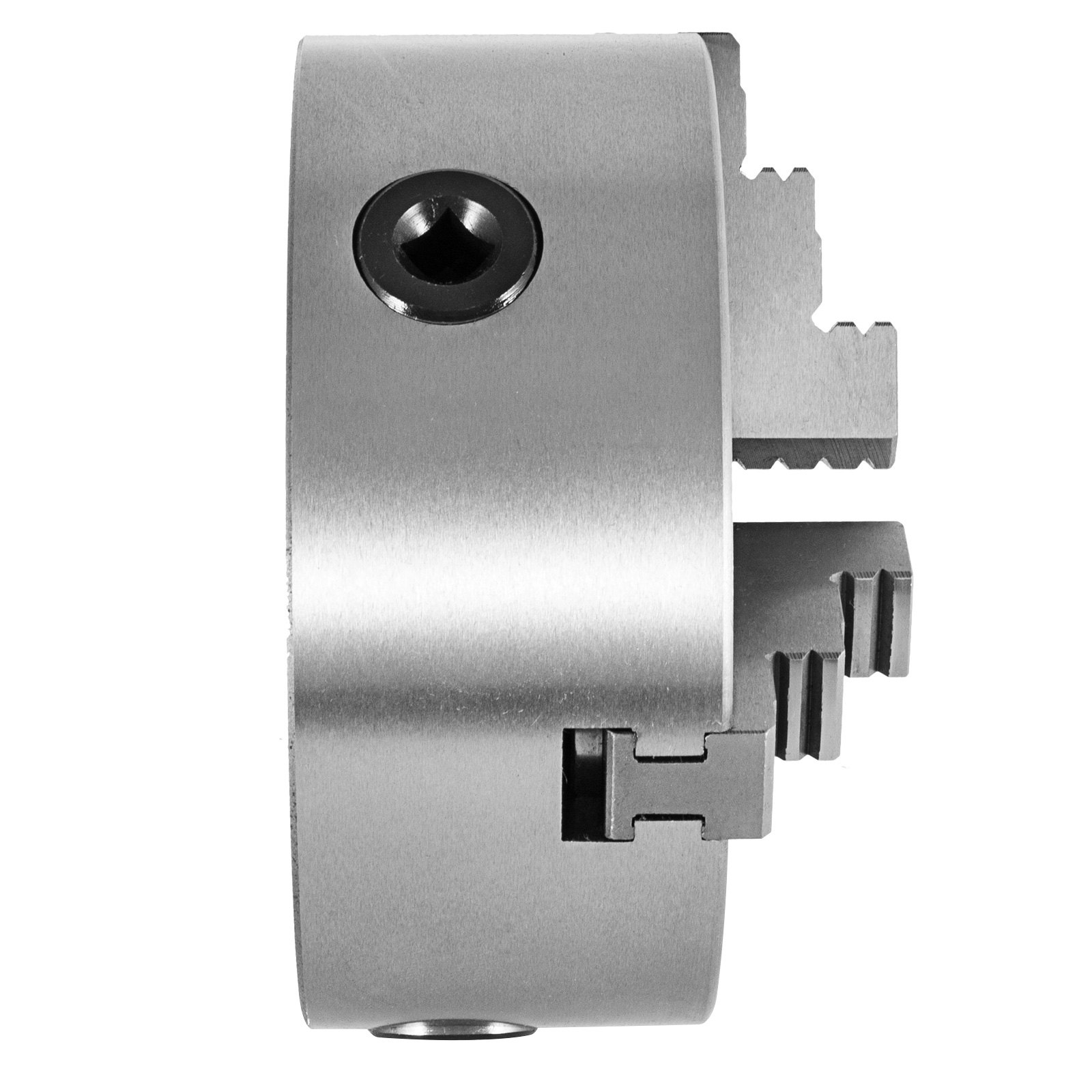

K11-80 3-Jaw Self-Centering Chuck
The self-centering lathe chuck is composed of a strong cast iron body and three steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle.
- Premium Material
- Internal & External Jaws
- Of High Precision
- With High Efficiency

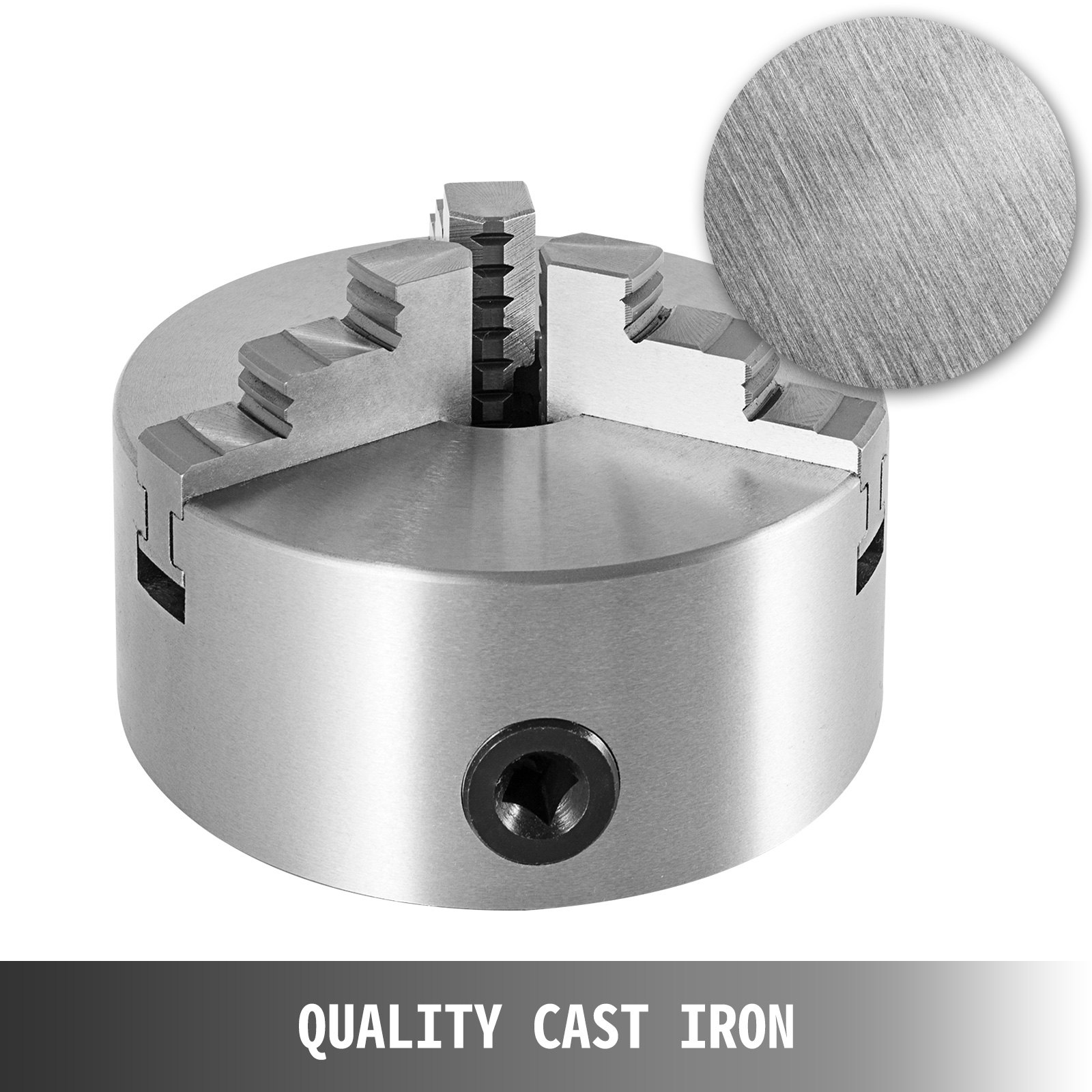

Quality Cast Iron
The lathe chuck body is made of high-quality cast iron. The surface is nicely ground with a nice radius on all external edges.

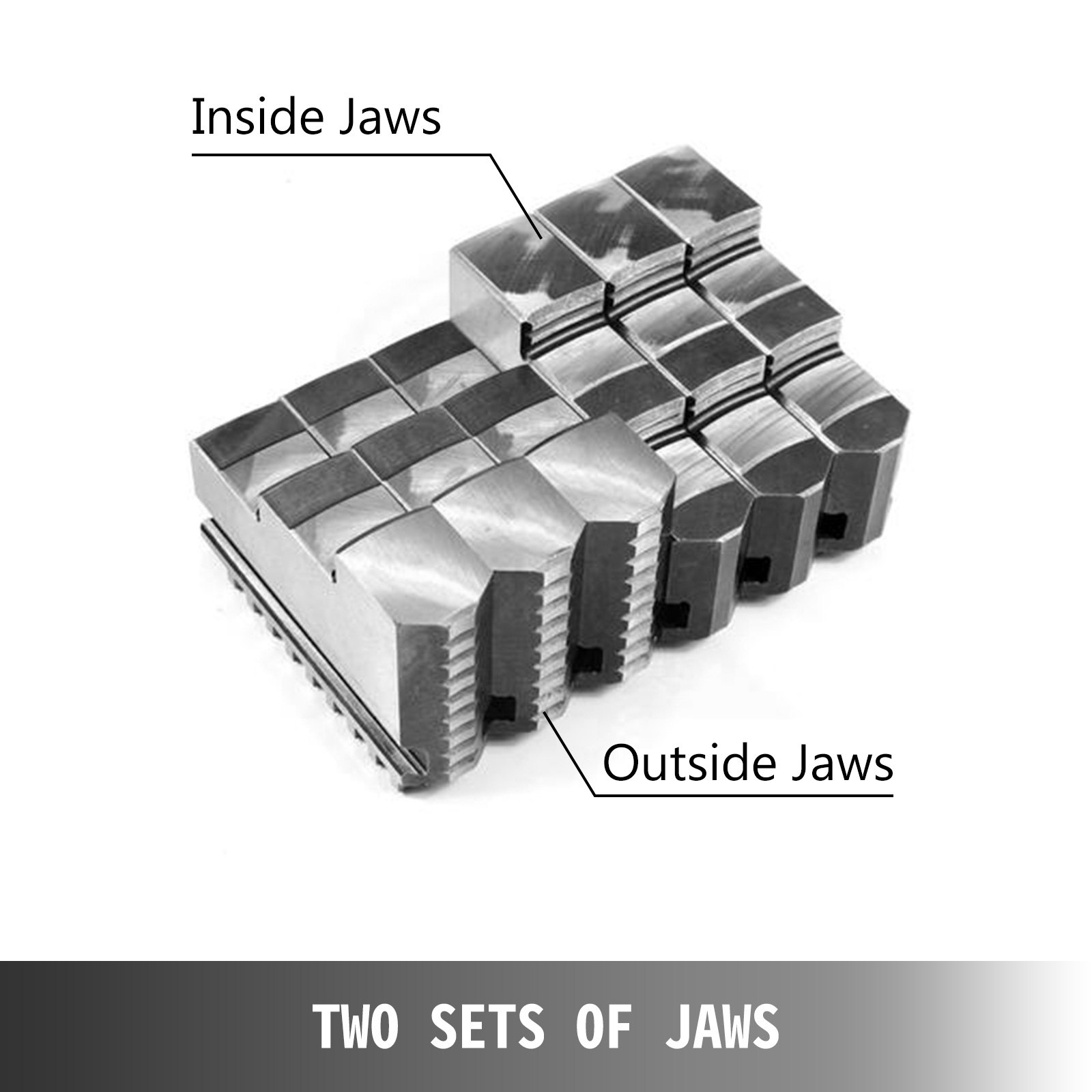

Two Sets of Jaws
The lathe collet chuck comes with inward and outward stepped jaws that enable the chuck to turn larger diameter stock.

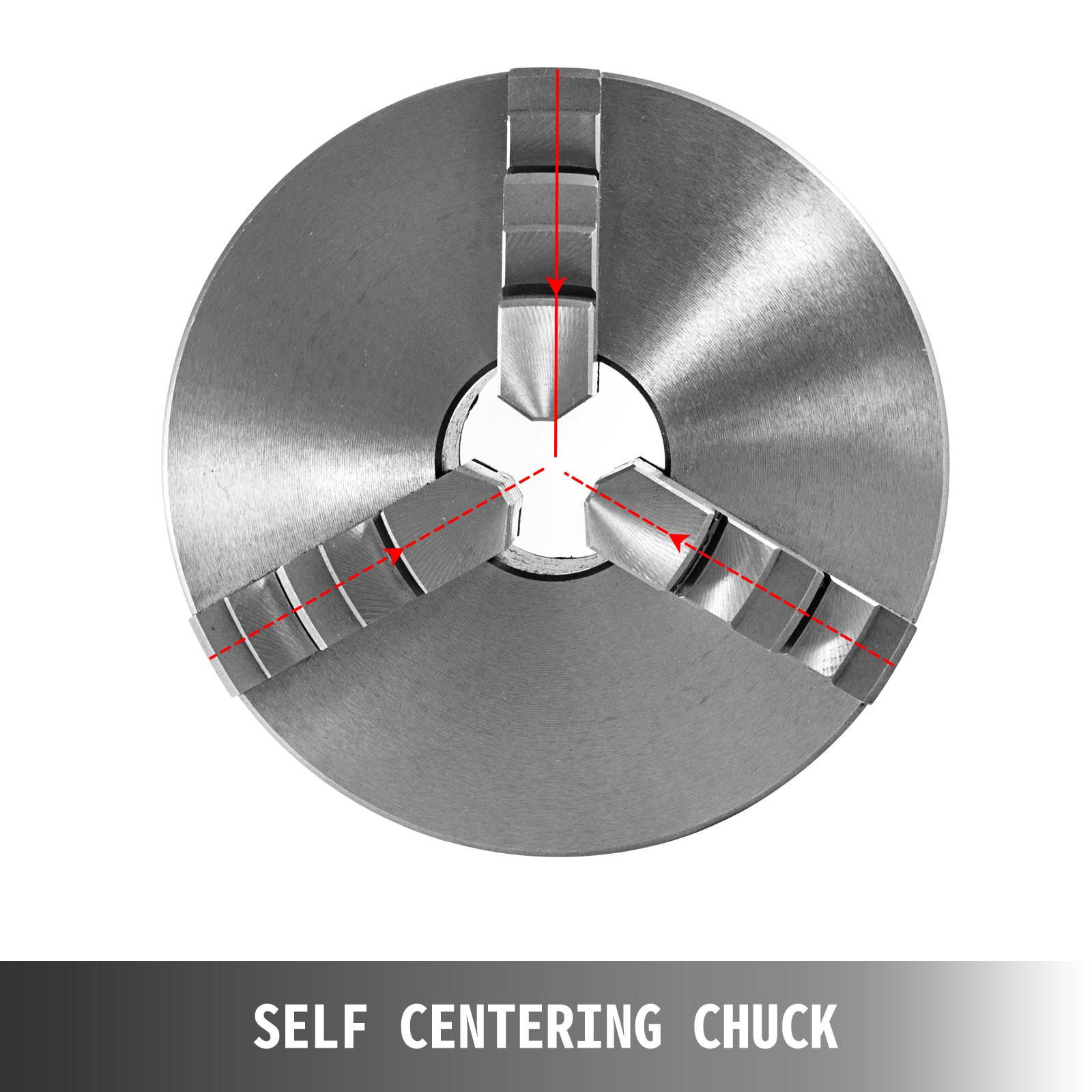

Self Centering Chuck
The three jaws will efficiently push the material to be processed from 3 directions simultaneously until it is held tightly.

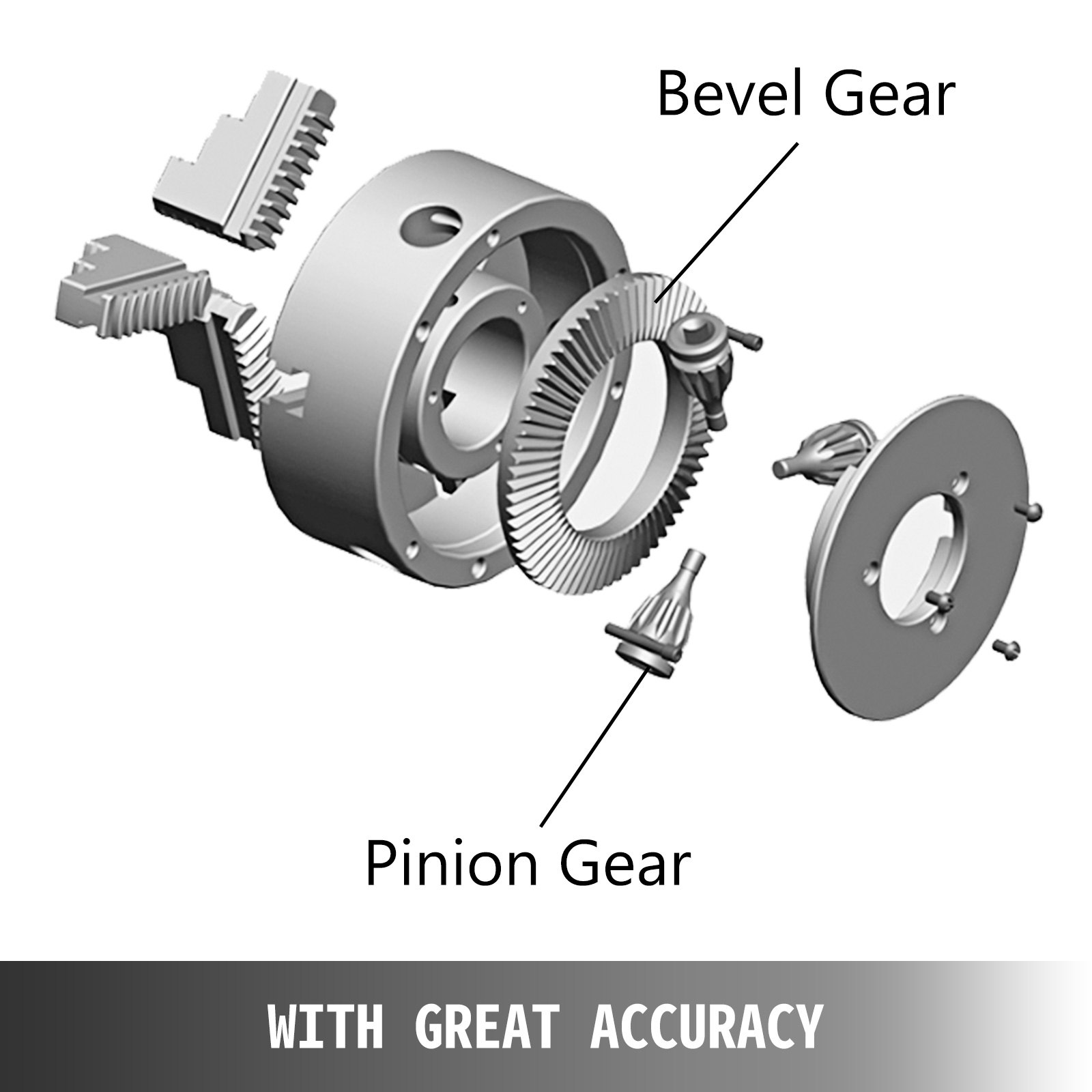

With Great Accuracy
The 3-jaw mini lathe chuck of the tolerance ≤0.002 in works with few vibrations, ensuring accurate finished parts.

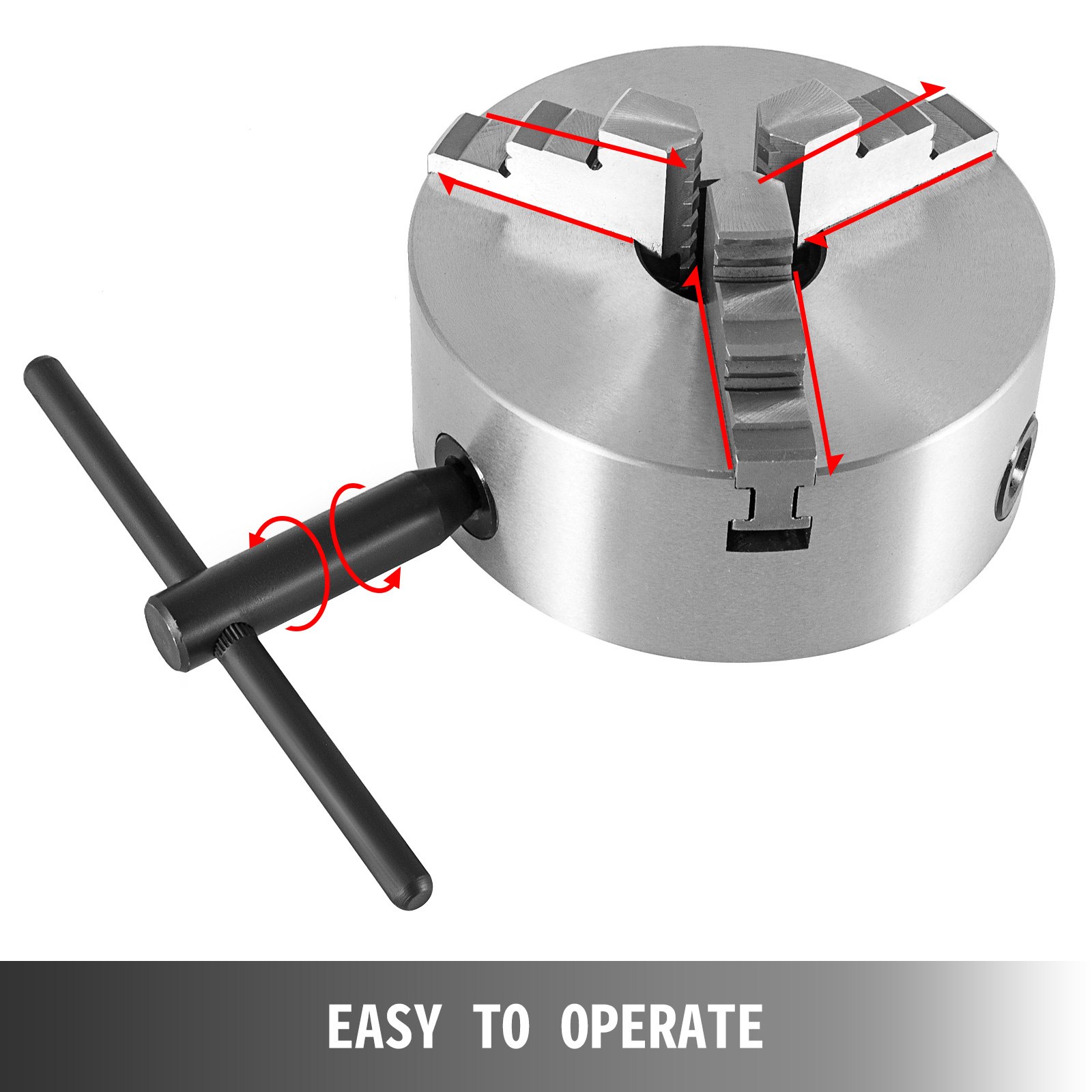

Easy to Operate
It is easy for you to adjust the jaws by turning the chuck key. Quicker installation leaves more time for real work.

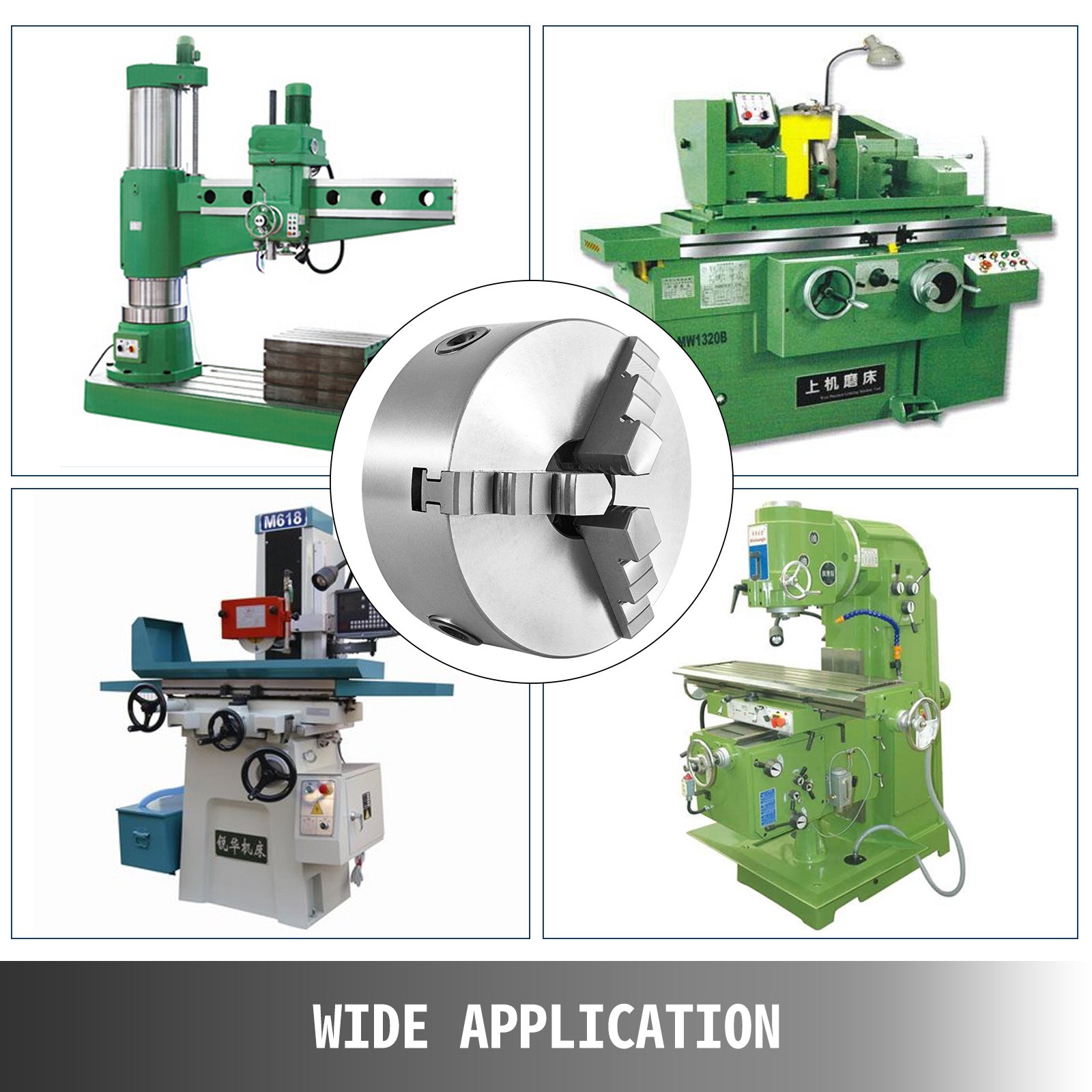

Wide Application
The manual self-centering chuck is compact and convenient, and it is the perfect choice for your lathe machine, grinding machines, or milling machines.

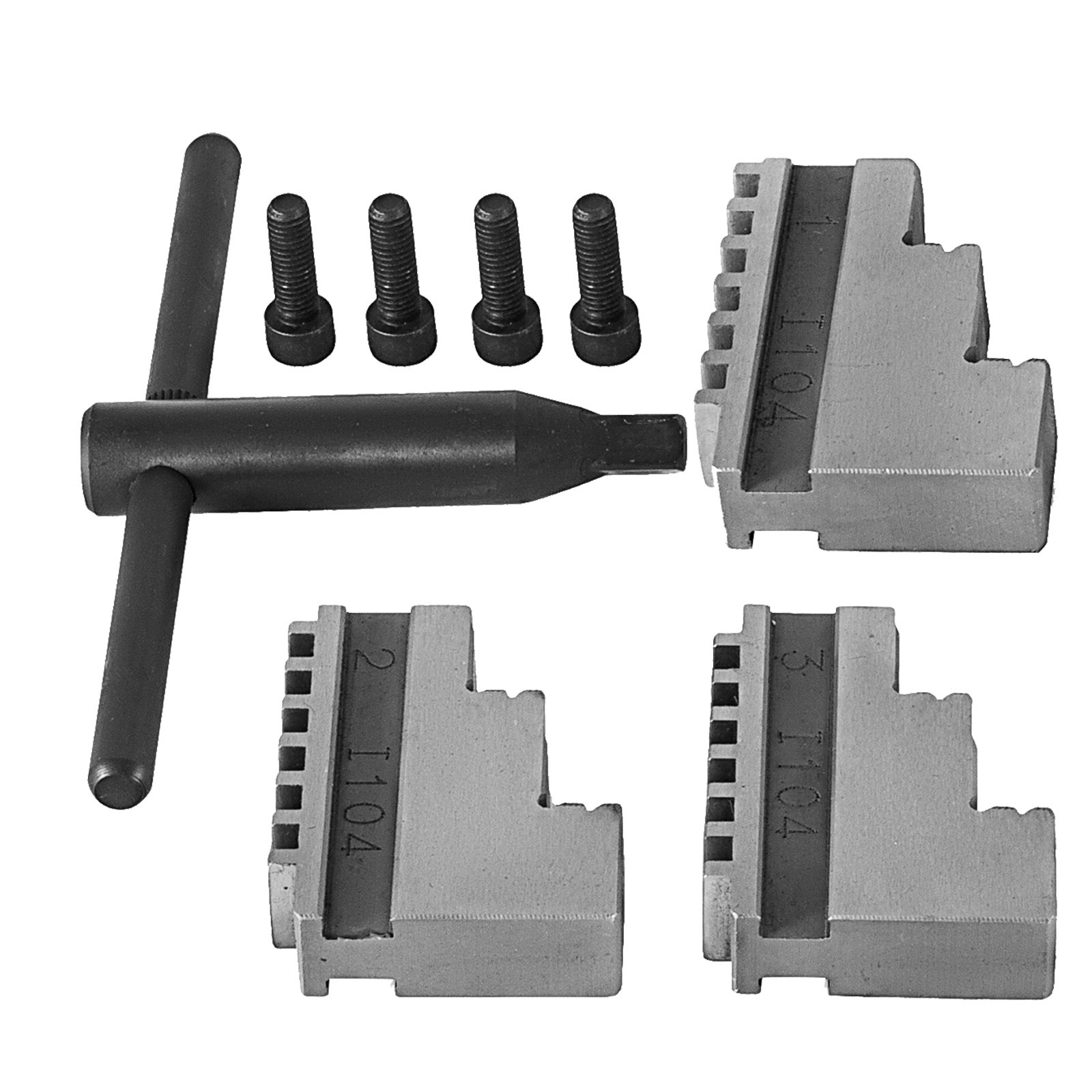

Package Content
- 1 x Lathe Chuck Body
- 3 x Internal Jaws
- 3 x External Jaws
- 3 x Mounting Bolts
- 1 x Chuck Key
Specifications
- Chuck Body Material: Cast Iron
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel

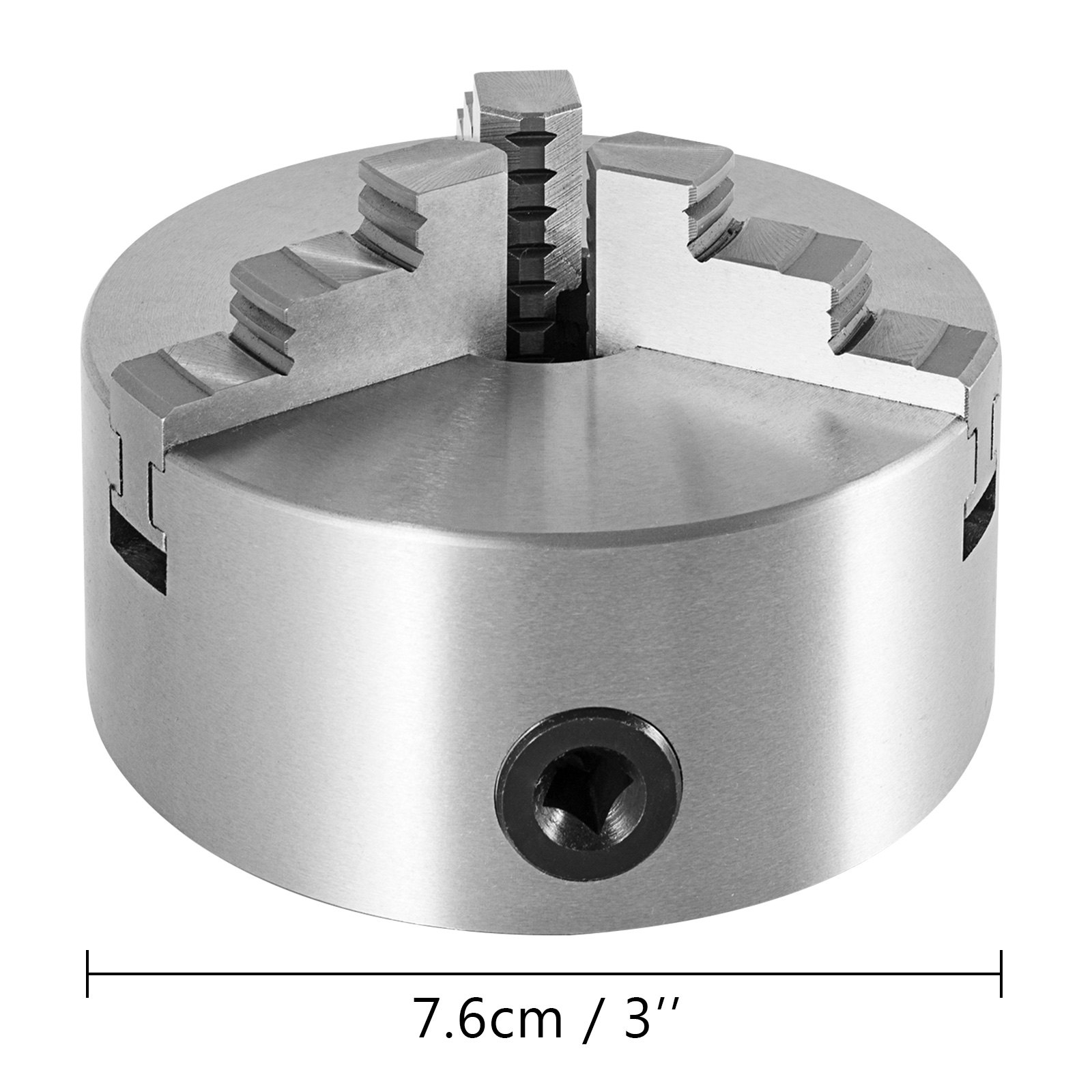

- Size: 80 mm (3.15")
- Center Hole Diameter: 16 mm (0.63")
- Internal Jaw Clamping Range (A-A1): 2-22 mm (0.078"-0.866")
- Internal Jaw Jamming Range (B-B1): 25-70 mm (0.98"-2.756")
- External Jaw Clamping Range (C-C1): 22-63 mm (0.866"-2.48")
- Hardness: HRC 58-62
- Gross Weight: 4 lb (1.81 kg)
- Package Dimensions (LxWxH): 4.7"x4.7"x4.7" (12x12x12 cm)
