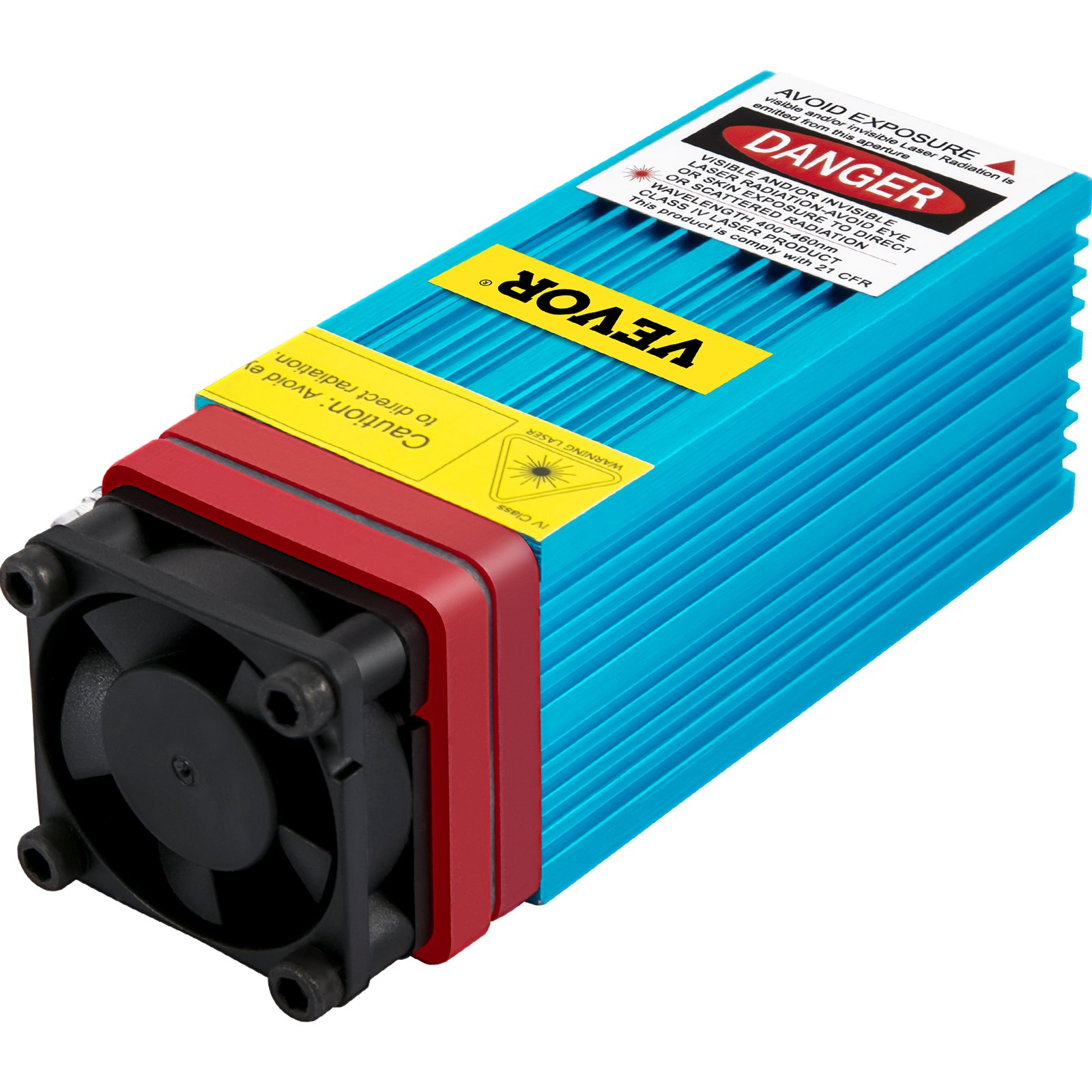

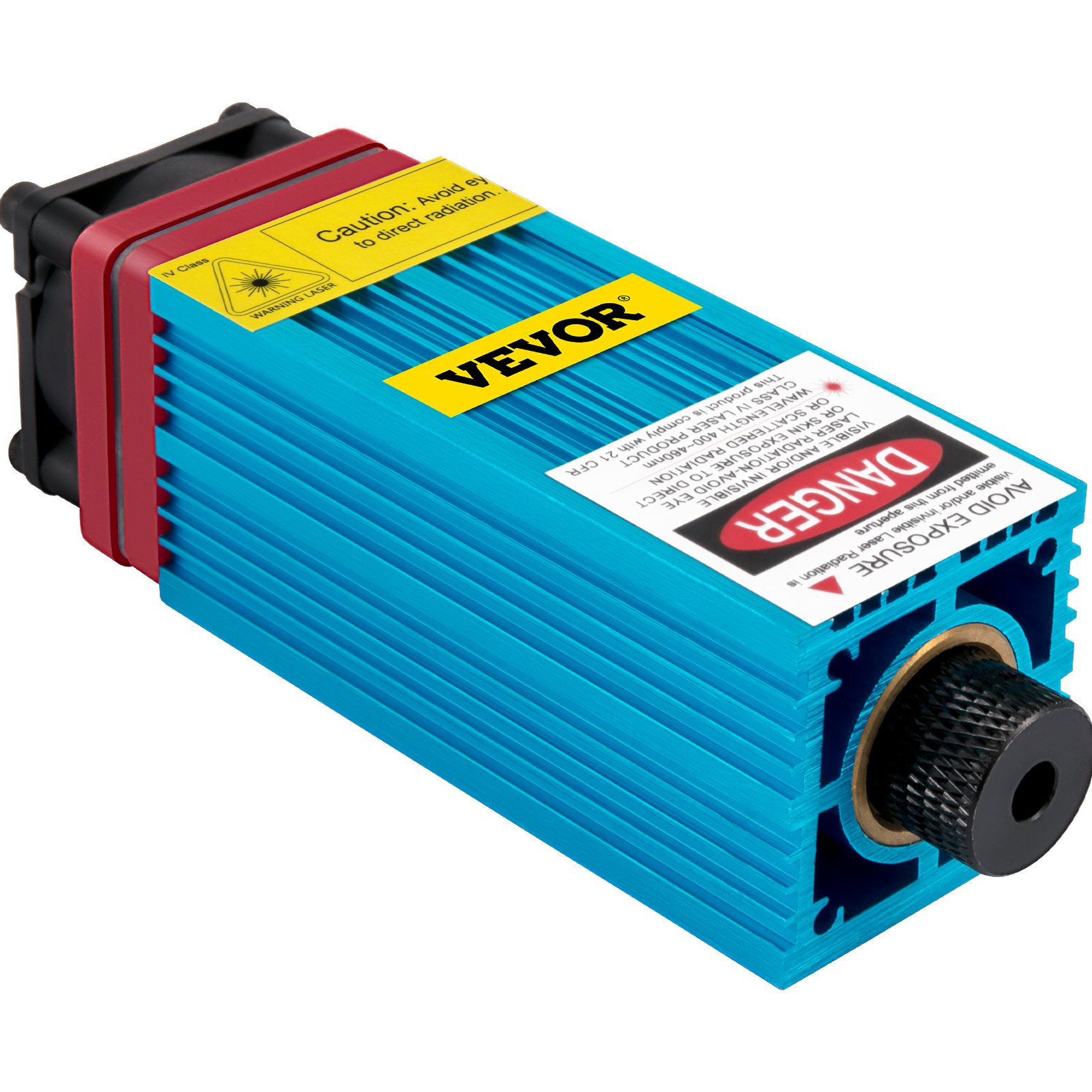

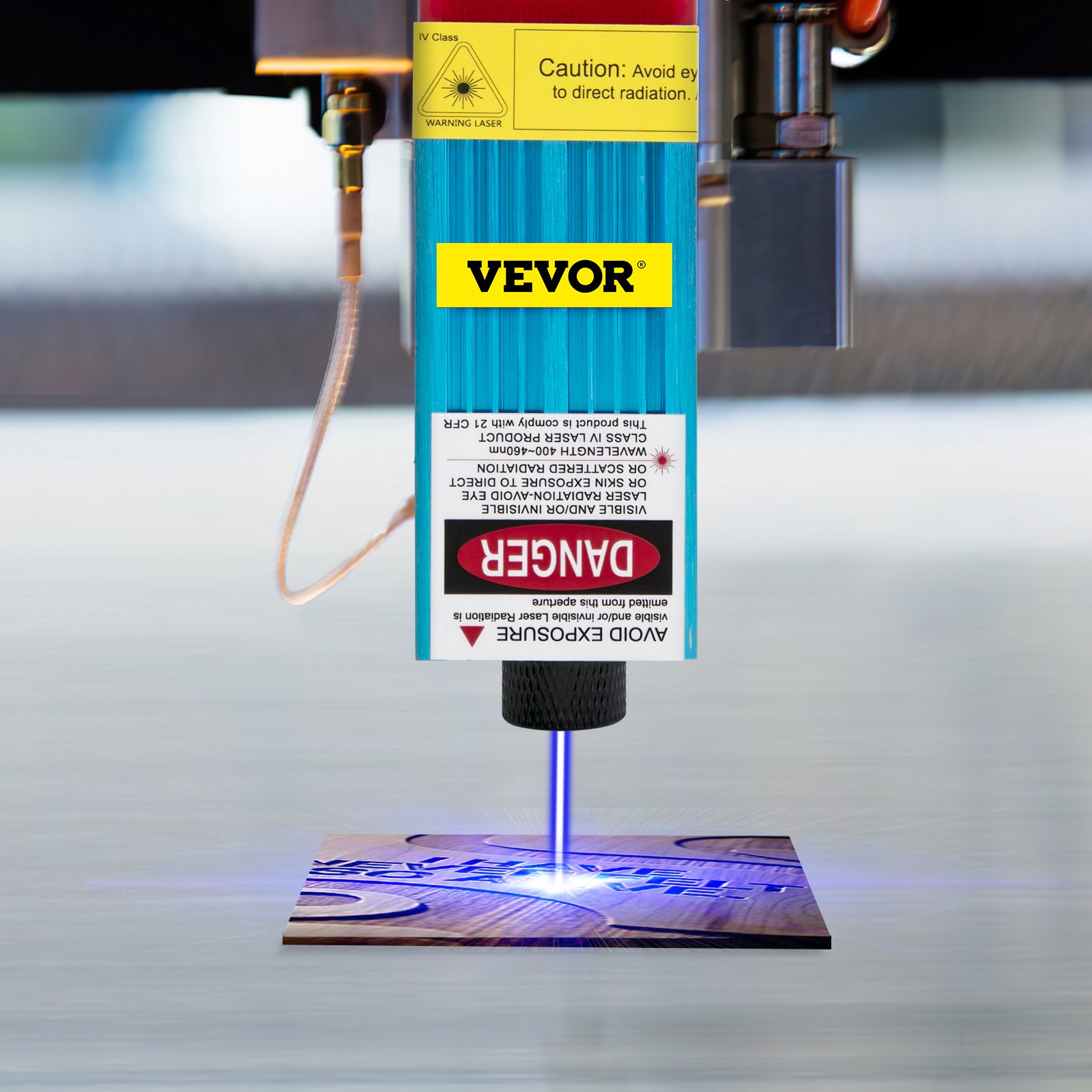

5500mw Engraving Laser Head
This laser head adopts the intelligent feedback control circuit & external constant current drive mode, bringing the excellent laser beam quality. Work with the radiator and fan to dissipate heat quickly, suitable for amateurs, DIY handymen, or artists to unleash your creativity.
- Brilliant Performance
- Dual Heat Dissipation
- Adjustable Focus
- Accessories Included

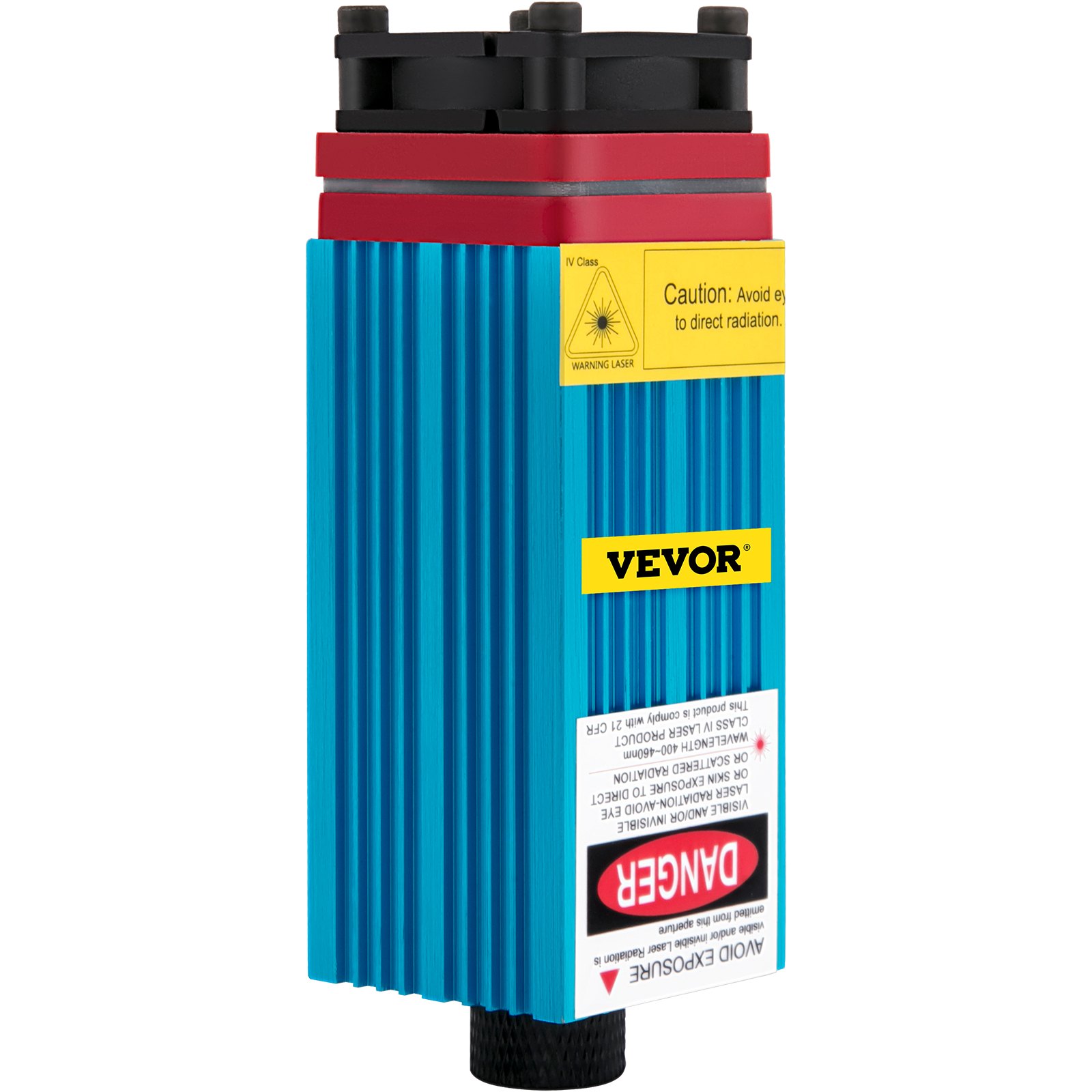

Durable Aluminum
The 5500mw laser module's shell is mainly aluminum + brass, light in weight, high in strength, and stable in structure for long service life.

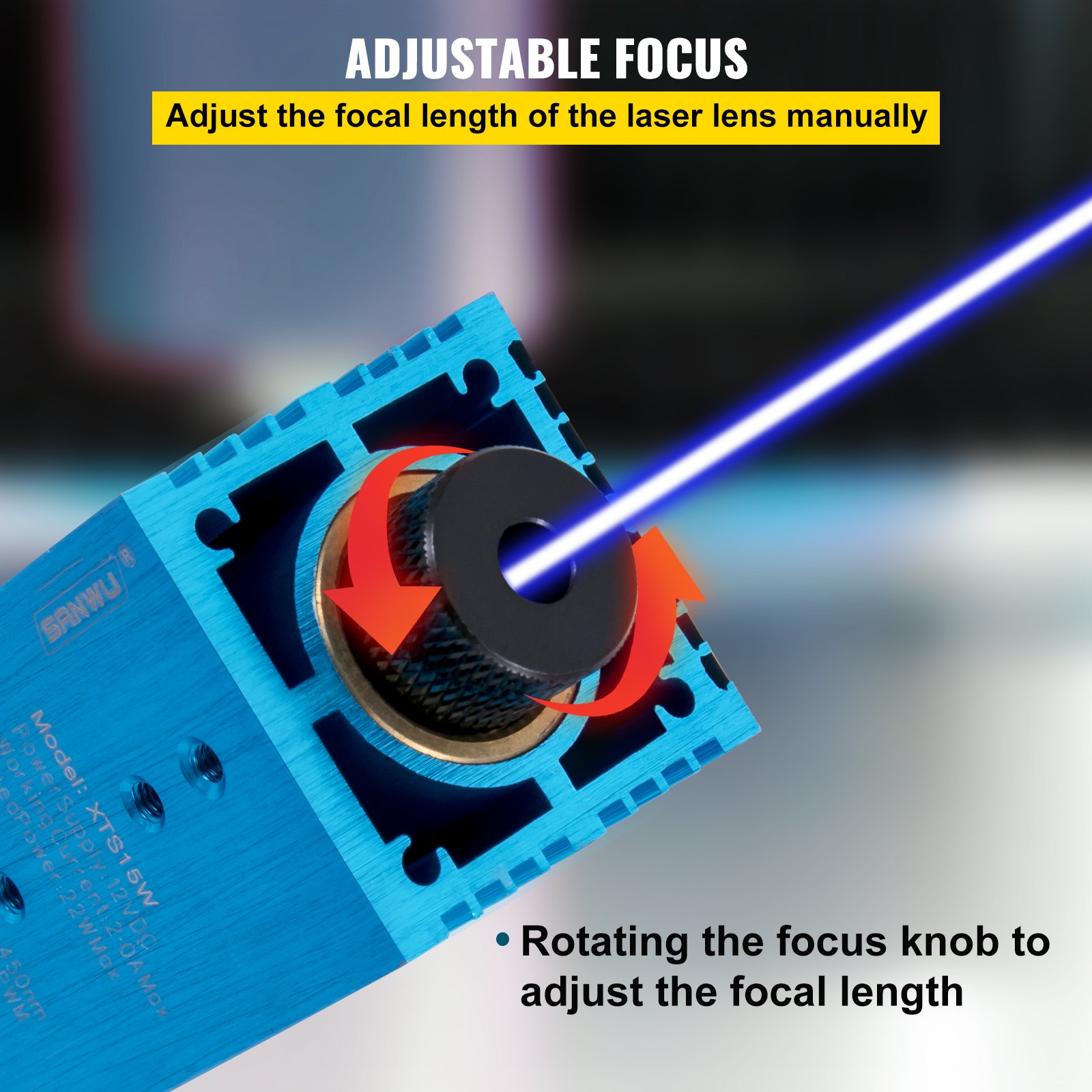

Adjustable Laser
The focal length of the laser lens can be adjusted according to your needs. This can be done by rotating the laser lens.

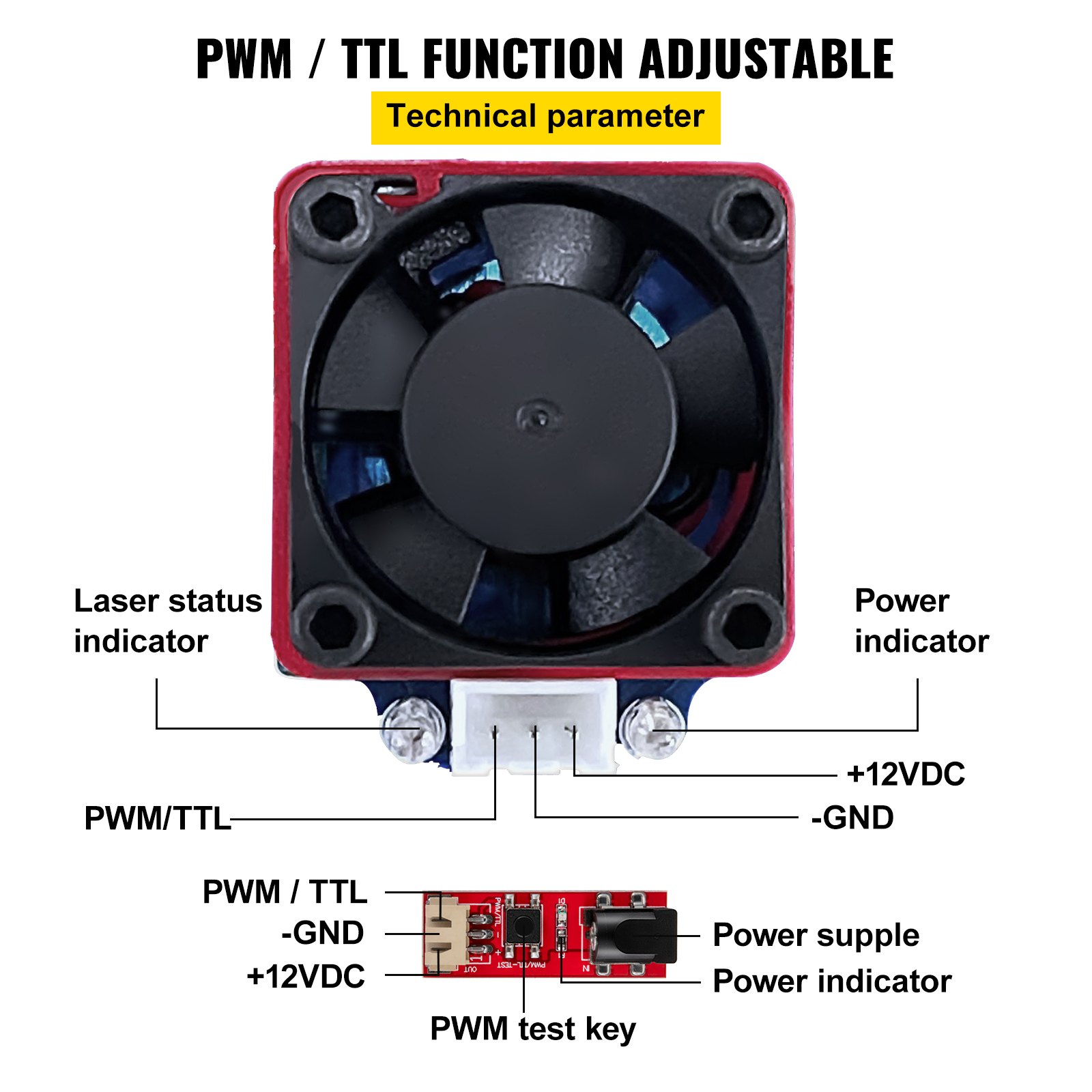

Technical Parameter
The laser head driver board has PWM/ TTL, so we can control the laser head's power and speed through some parameters.

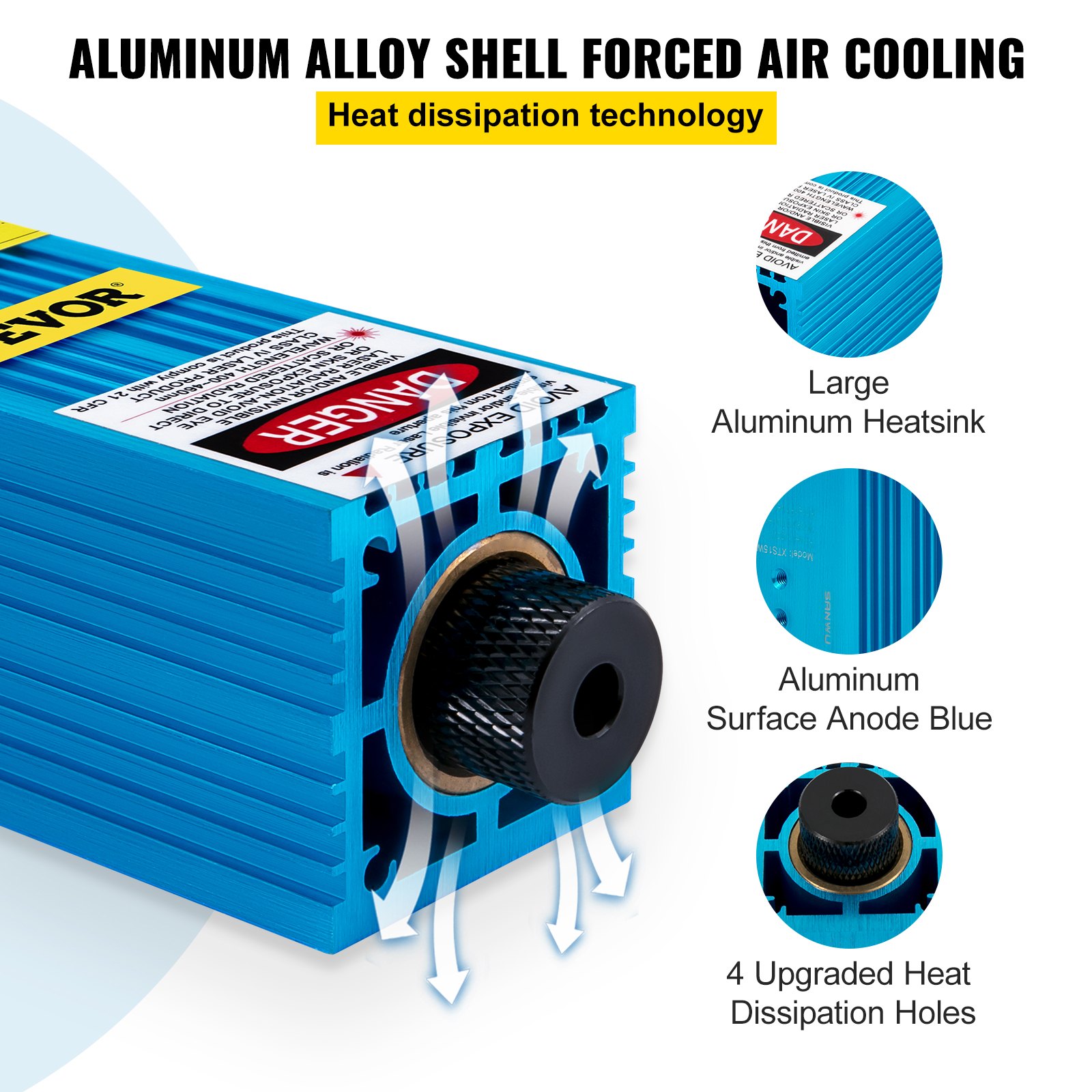

Great Heat Dissipation
The large-area aluminum heatsink & the upgraded 4 heat dissipation holes increase the heat dissipation efficiency by 15%-20%. The timely dissipation of heat helps protect the laser and ensure its continuous operation.

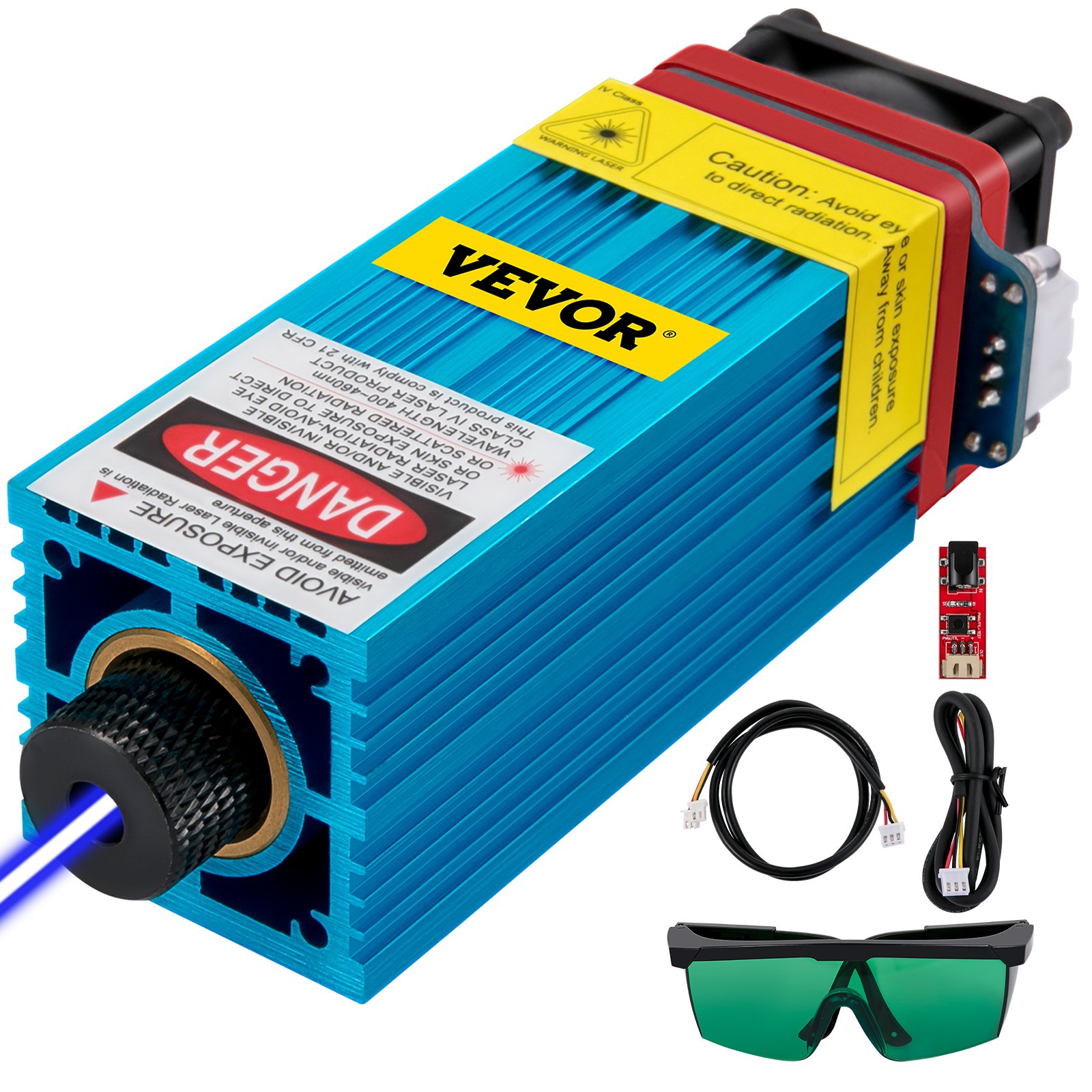

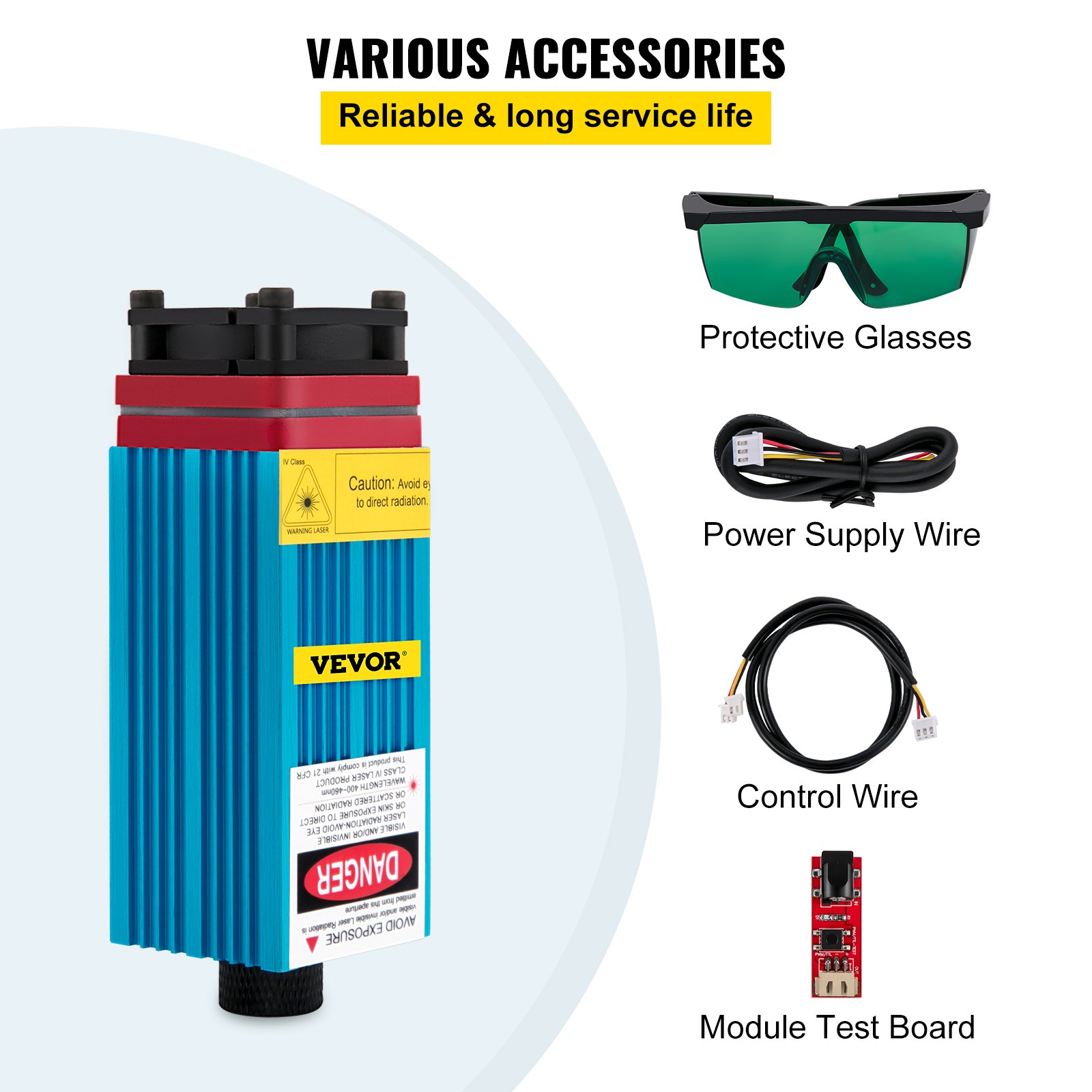

Complete Accessories
We have prepared some commonly-used accessories for your convenience, including a pair of glasses, a power supply wire, a control wire and a module test board.

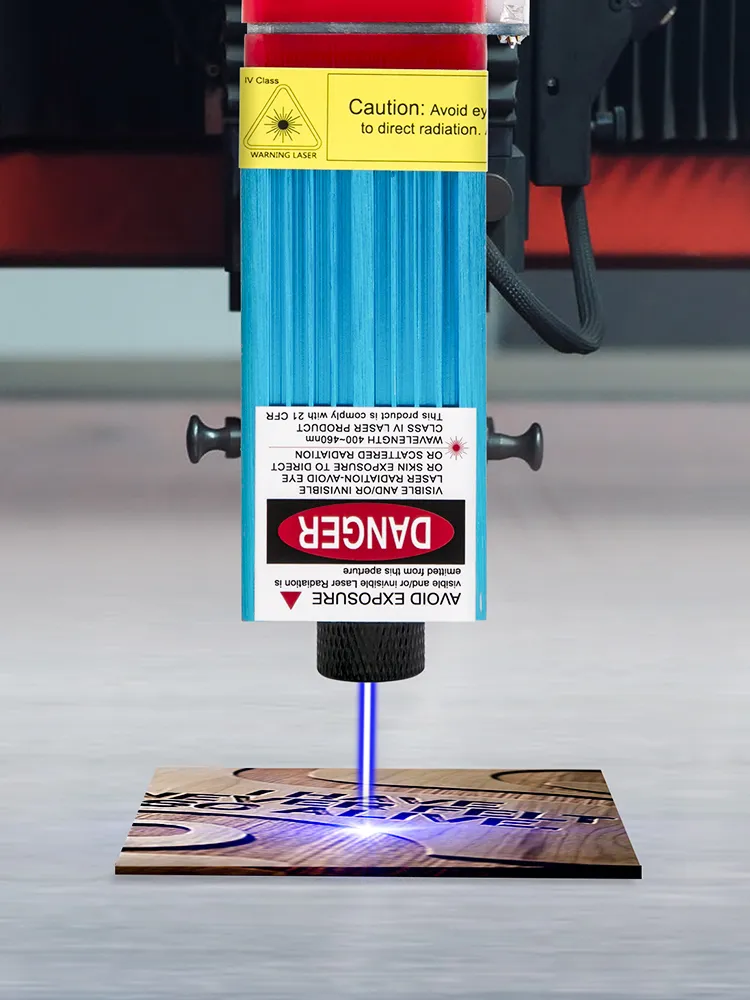

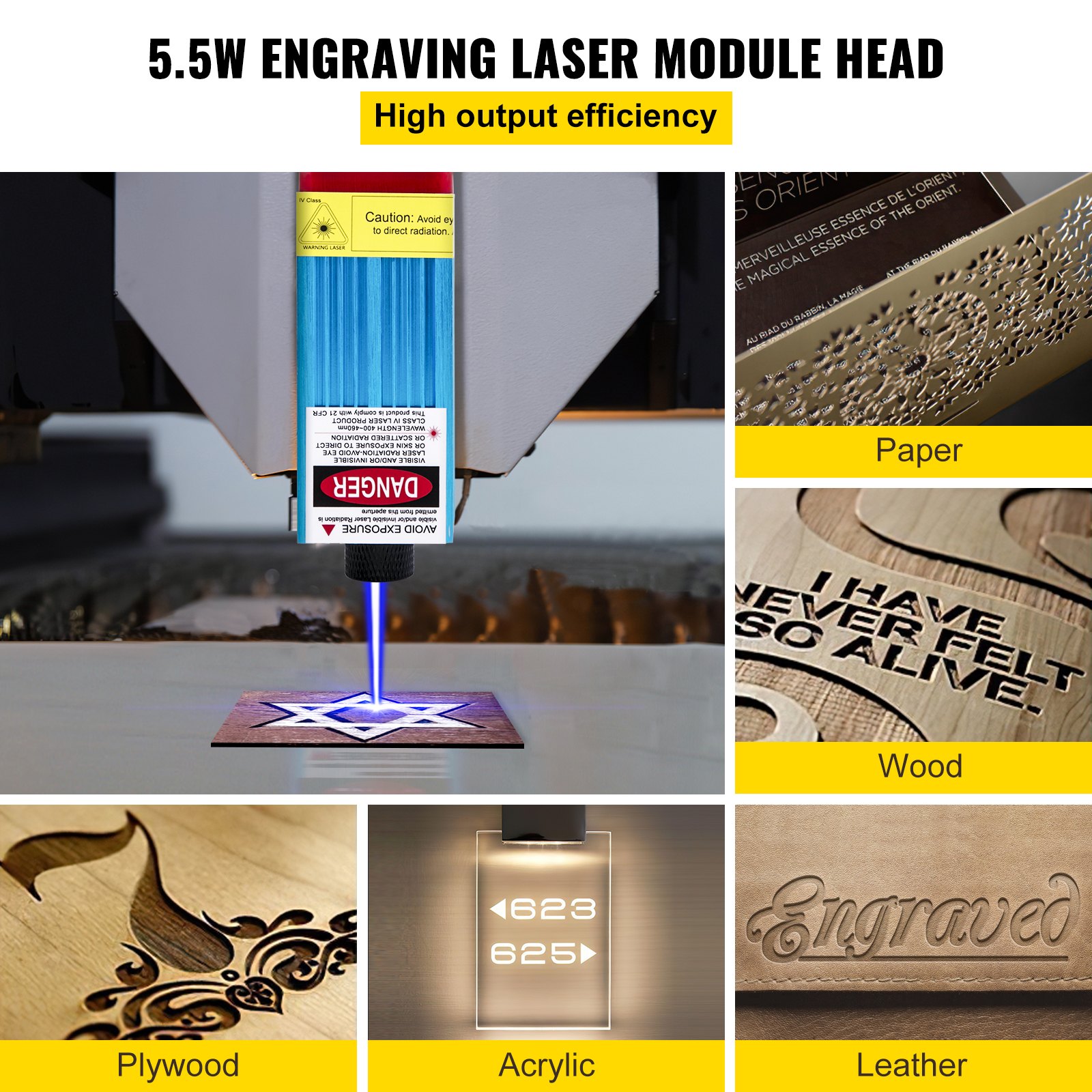

Wide Application
Laser cutter modules are mainly used in industrial laser engraving machines, ideal for engraving, cutting, scribing, and drilling. Applied materials: balsa/paper/wood/fabric/plastic/leather/plywood.
Package Content
- 1 x Laser Head
- 1 x Power Supply Wire
- 1 x Control Wire
- 1 x Pair of Glasses
- 1 x Module Test Board
- 1 x English Manual
Specifications

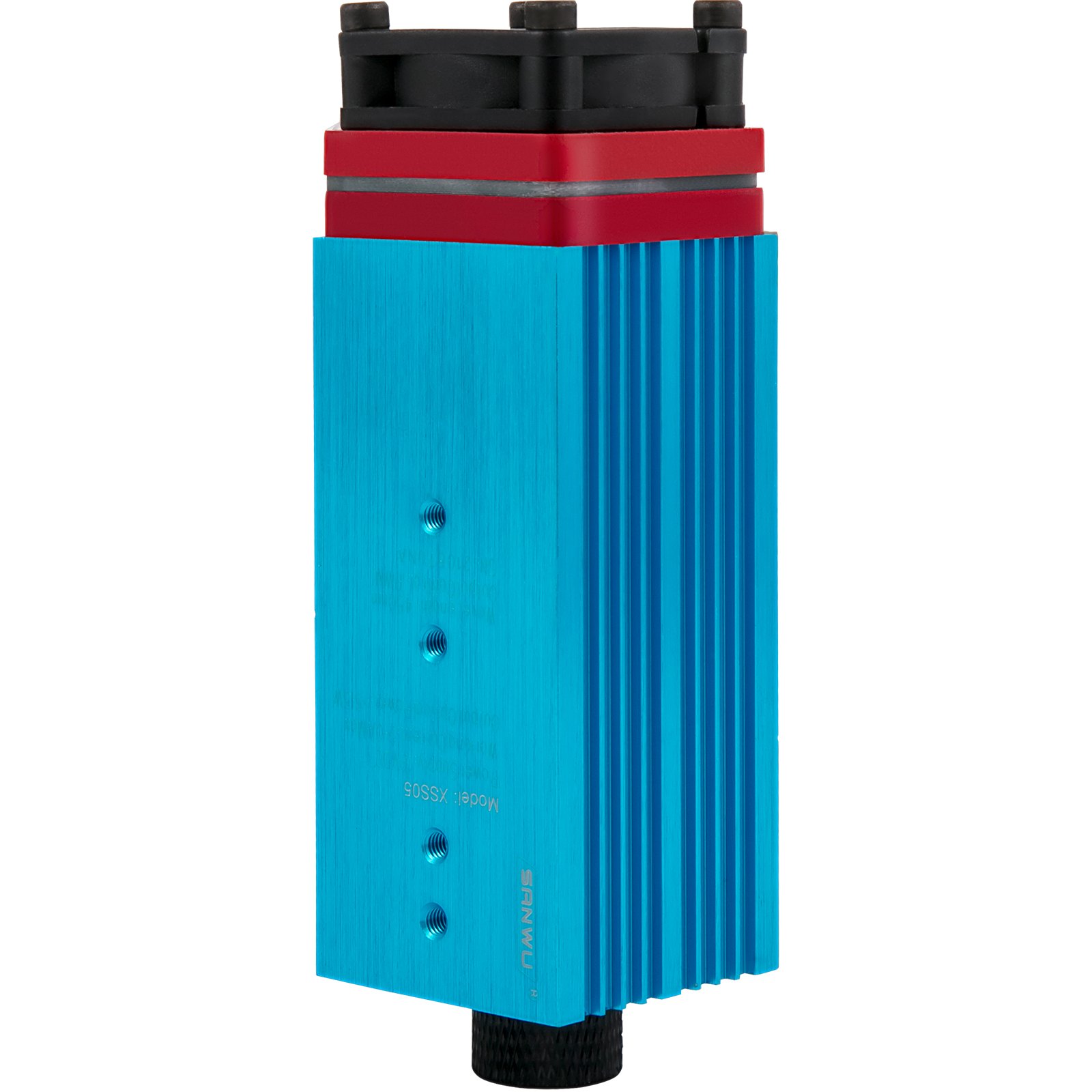

- Model: XSS05
- Supply Voltage: 12VDC
- Working Current: 2.0A Max
- Output Optical Power: >5.5W
- Laser Power: 5.5W
- Laser Wavelength: 445nm-455nm
- Facula Type: Dot (Adjustable Focus)
- Driving Mode: Built in ACC Constant Current Drive
- Laser Output Control: PWM/TTL
- Power Supply & Control Interface: 2.54 3PIN
- Shell Material: Aluminum Surface Anode Blue
- Module Material: Brass
- Collimating Lens: K9 Optical Glass & High Antireflection Coating
- Heat Dissipation Mode: Aluminum Alloy Shell Forced Air Cooling
- Net Weight: 0.34 lbs / 153 g

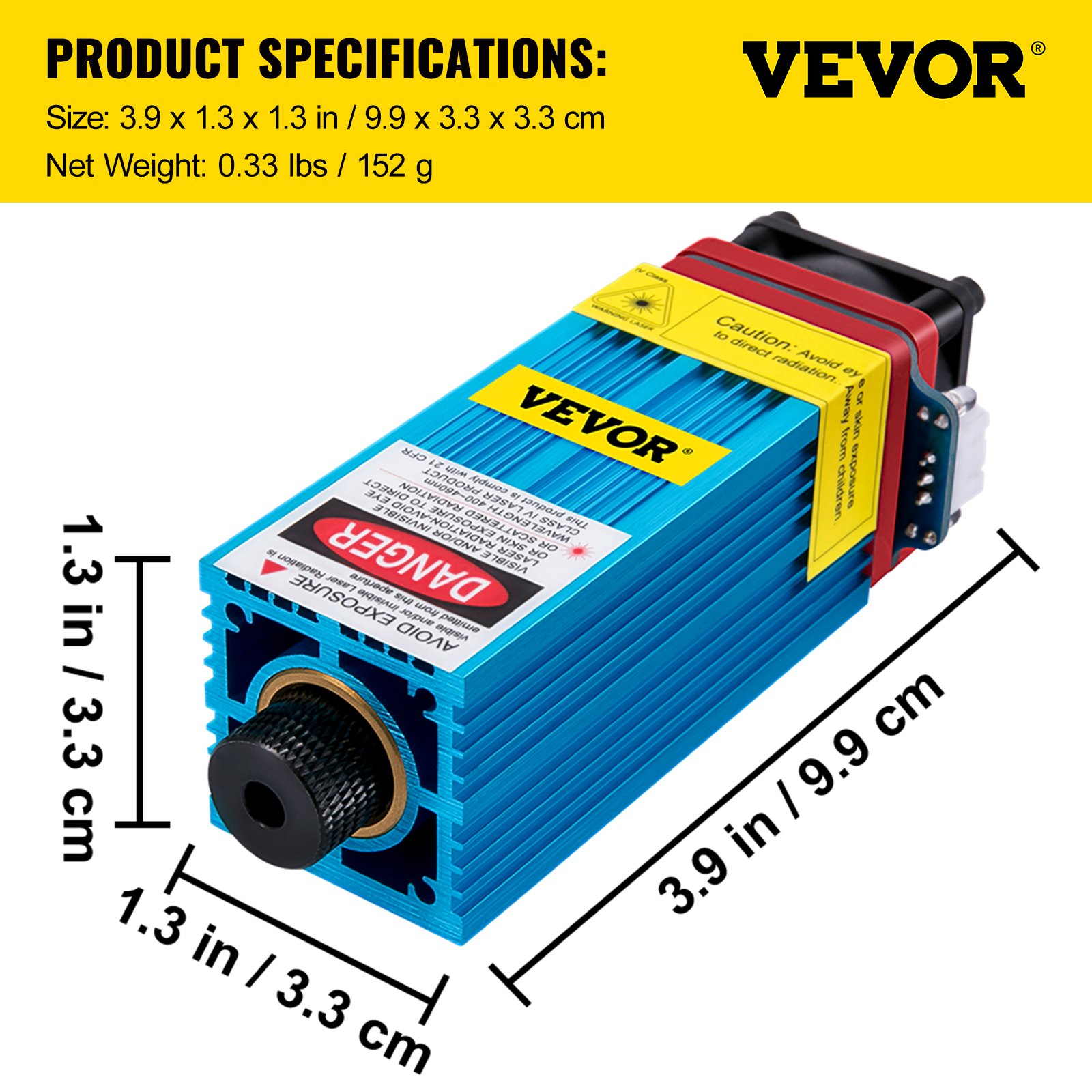

- Product Size: 3.9 x 1.3 x 1.3 in / 9.9 x 3.3 x 3.3 cm
