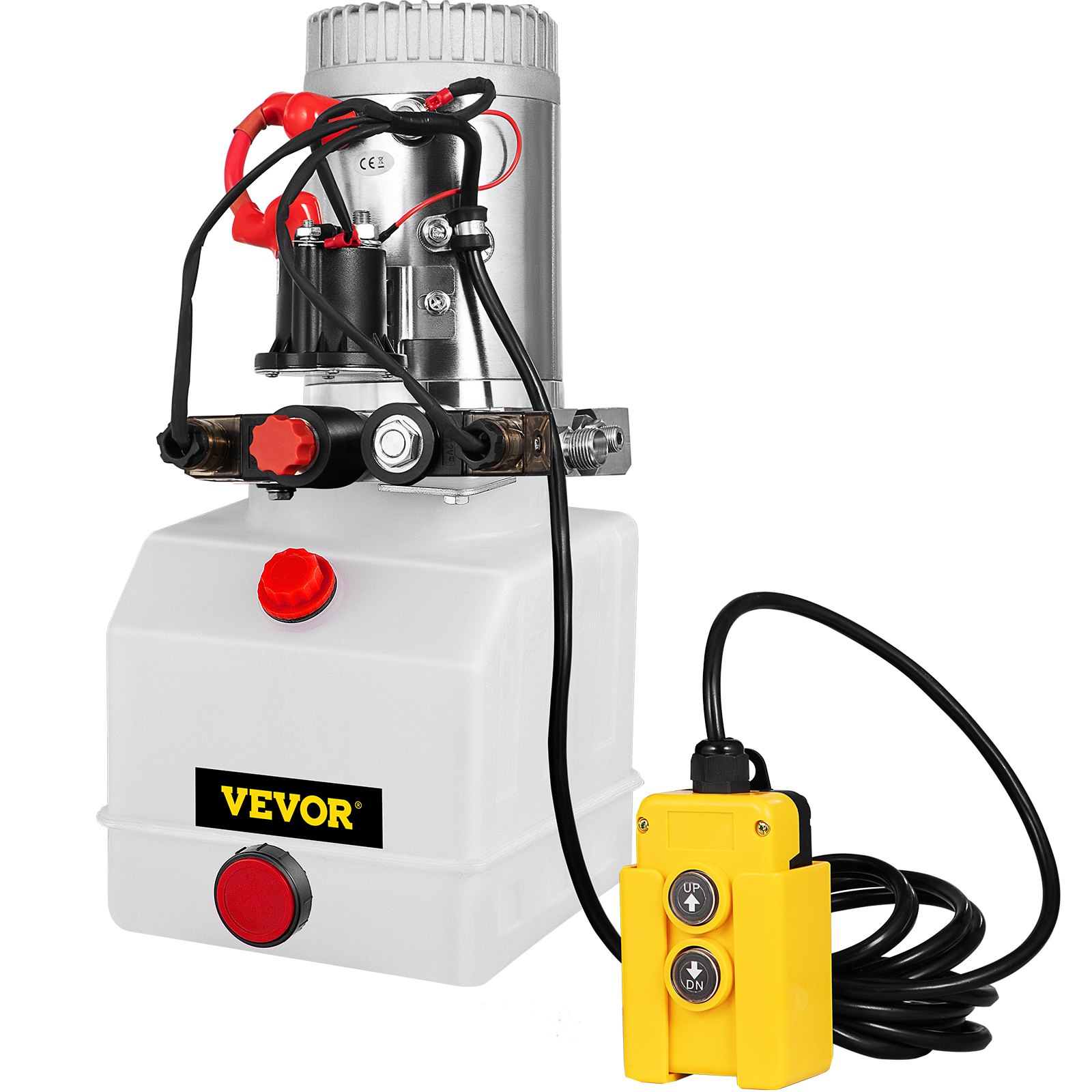

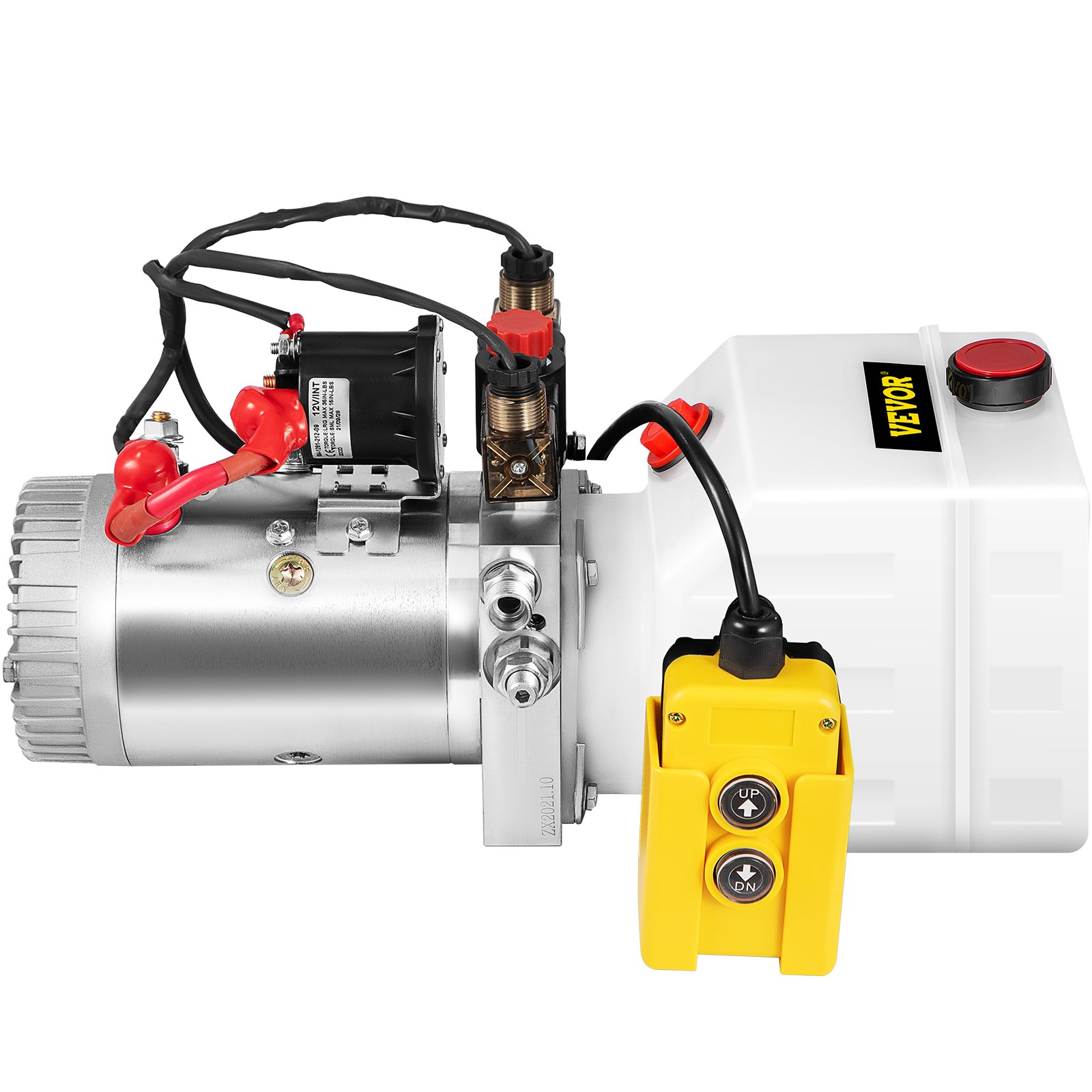

VEVOR hydraulic pump with a white reservoir, attached wires, and a yellow control switch. VEVOR hydraulic pump with control panel and yellow dump truck in background. VEVOR hydraulic pump for double acting lifting in trucks. VEVOR hydraulic pump with remote control and sae#6 connectors. fully assembled. VEVOR hydraulic pump with labeled parts including motor, reservoir, and remote control. VEVOR hydraulic pump installation on dump truck, scissor lift, and boom lift. VEVOR hydraulic pump with specifications; dimensions shown: 8.2in x 16.5in x 7.4in.
CZYYB3KTSLSZY0001V0

Vevor 3 Quart Double Acting Hydraulic Pump Dump Trailer 12v Unit Pack Control Kit

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; and it is a double-acting pump for both power up and power down.
  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. 4 SAE#6 connectors and one 15 ft remote control are included in the package.
  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with relief valves, it avoids overpressure, safer and reliable.
  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

Frequently Bought Together

People Who Bought This Item Also Bought

Vevor 3 Quart Double Acting Hydraulic Pump Dump Trailer 12v Unit Pack Control Kit

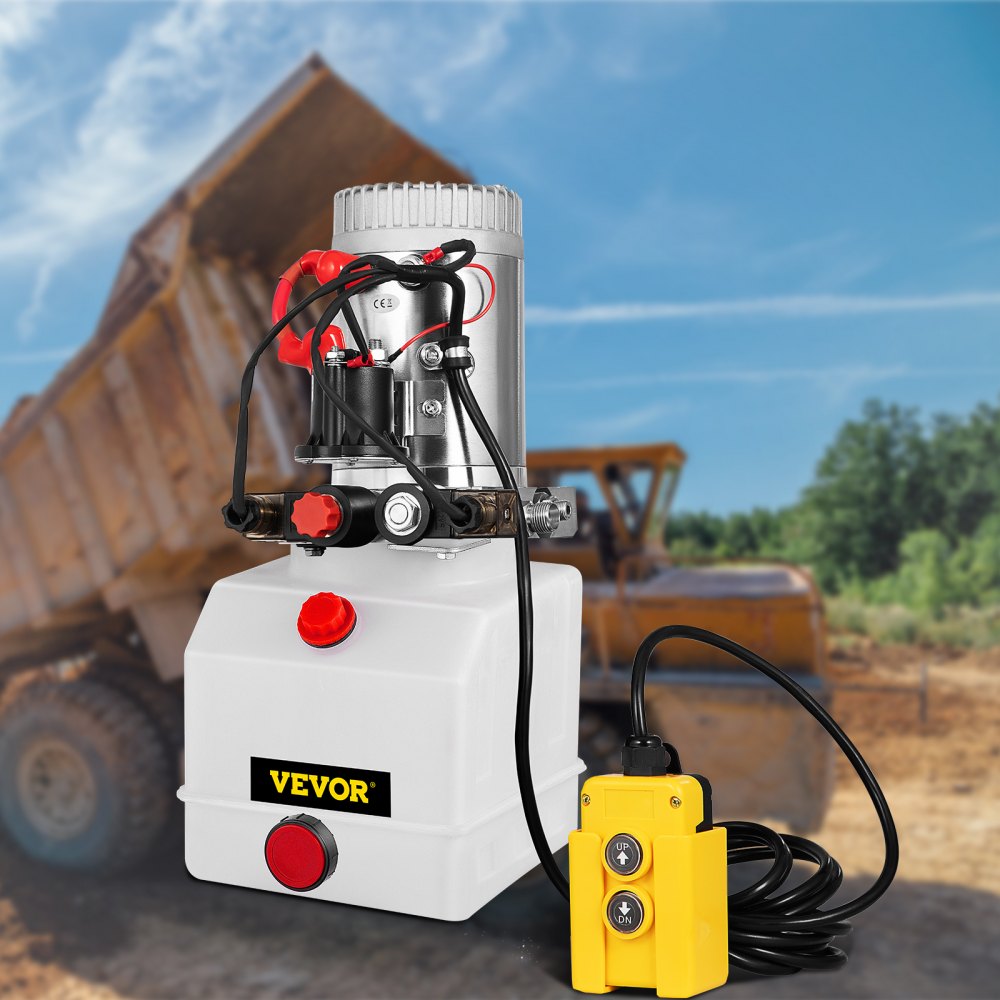

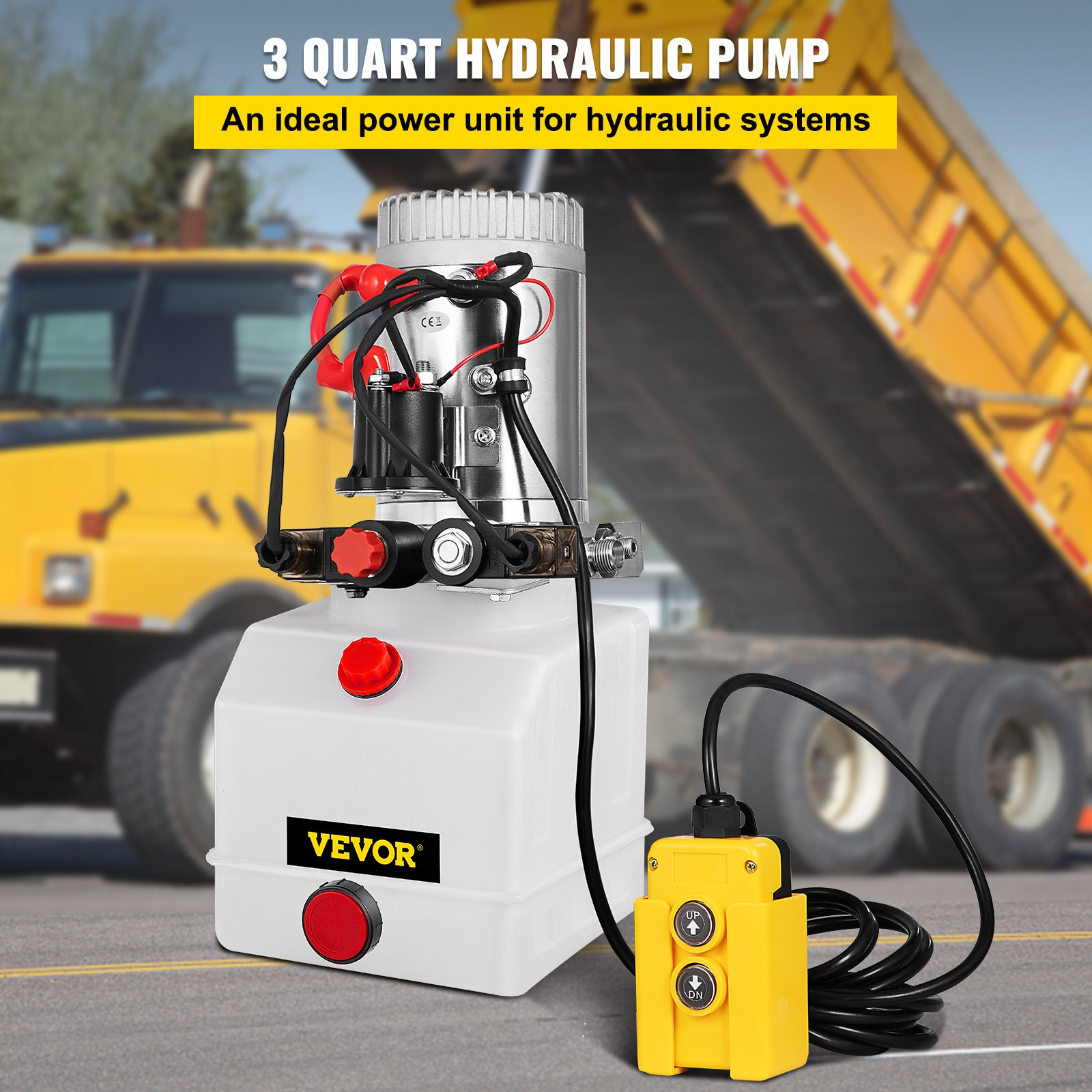

VEVOR hydraulic pump for dump trailer, 3 quart double acting, next to a dump truck.

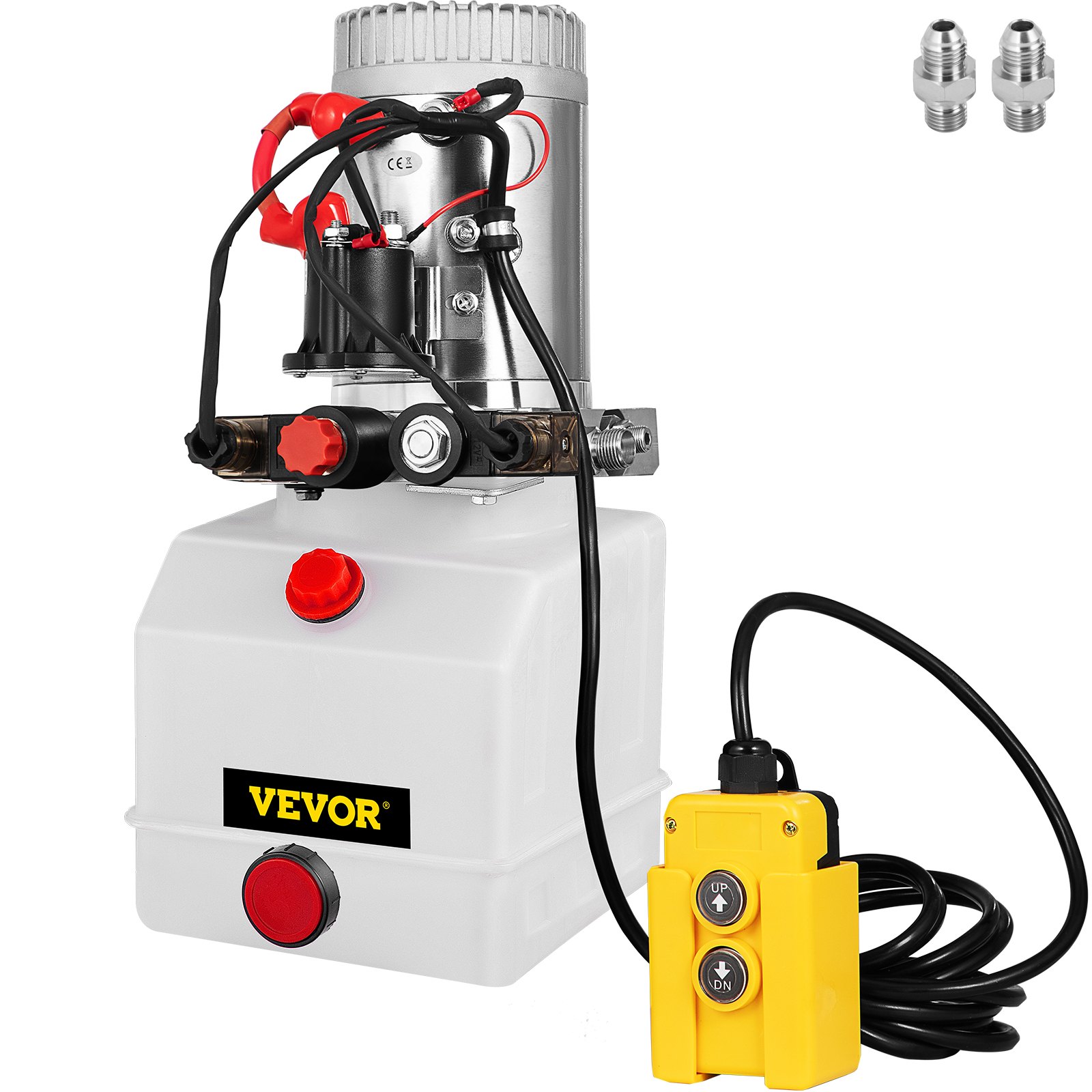

VEVOR hydraulic pump with control switch and two metal fittings.
3 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 3-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
  • Wide Application
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic pump with control unit, 1.6-3.0 kw, 12v dc, 3-quart capacity.
Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 3-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. Rated speed: 2850 r/min.

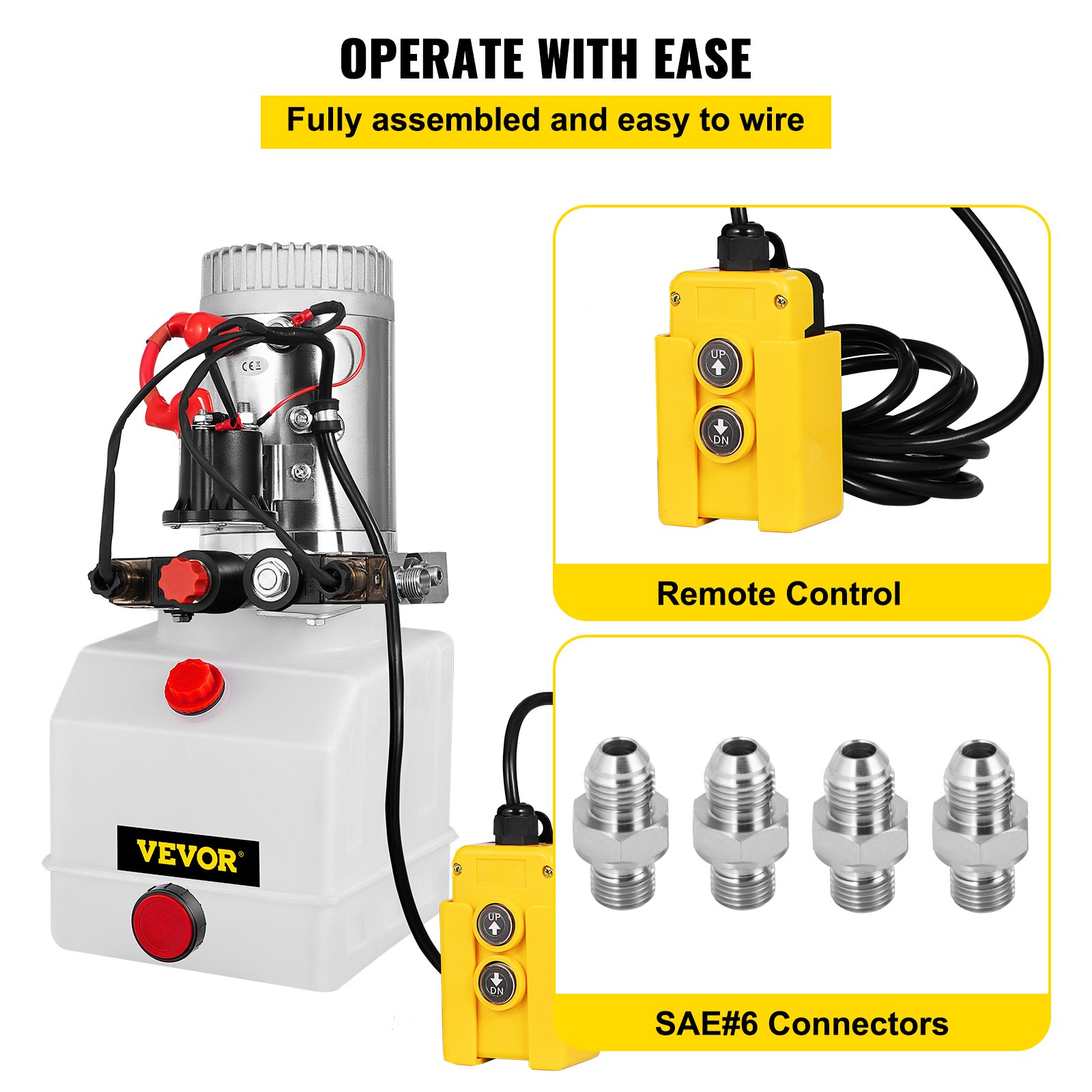

VEVOR hydraulic pump with 3-quart reservoir, sae#6 connectors, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 4 SAE#6 connectors. The whole power unit is easy to wire and easy to operate.

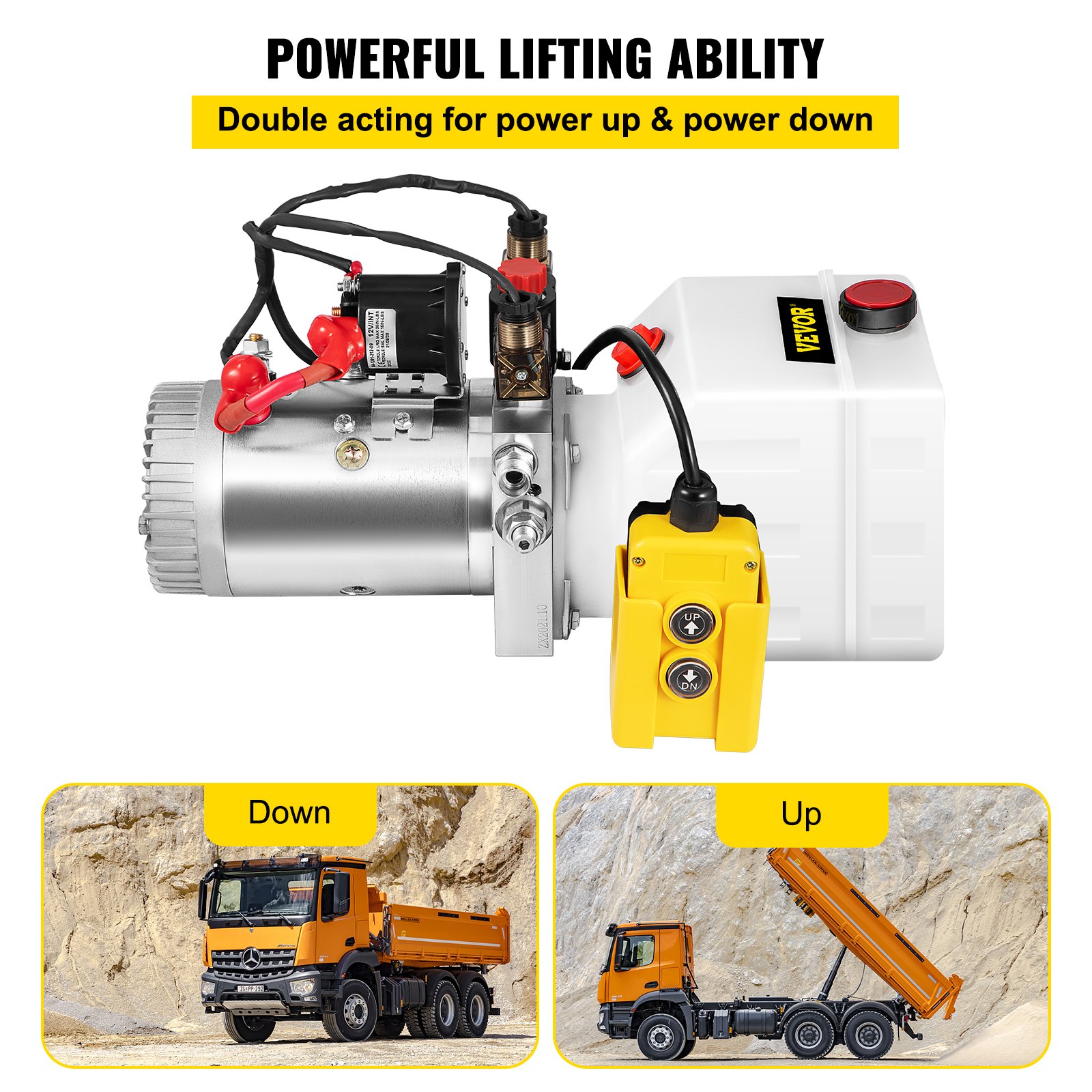

VEVOR hydraulic pump for quick start and lifting with power up and down control.
Quick Start&Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.

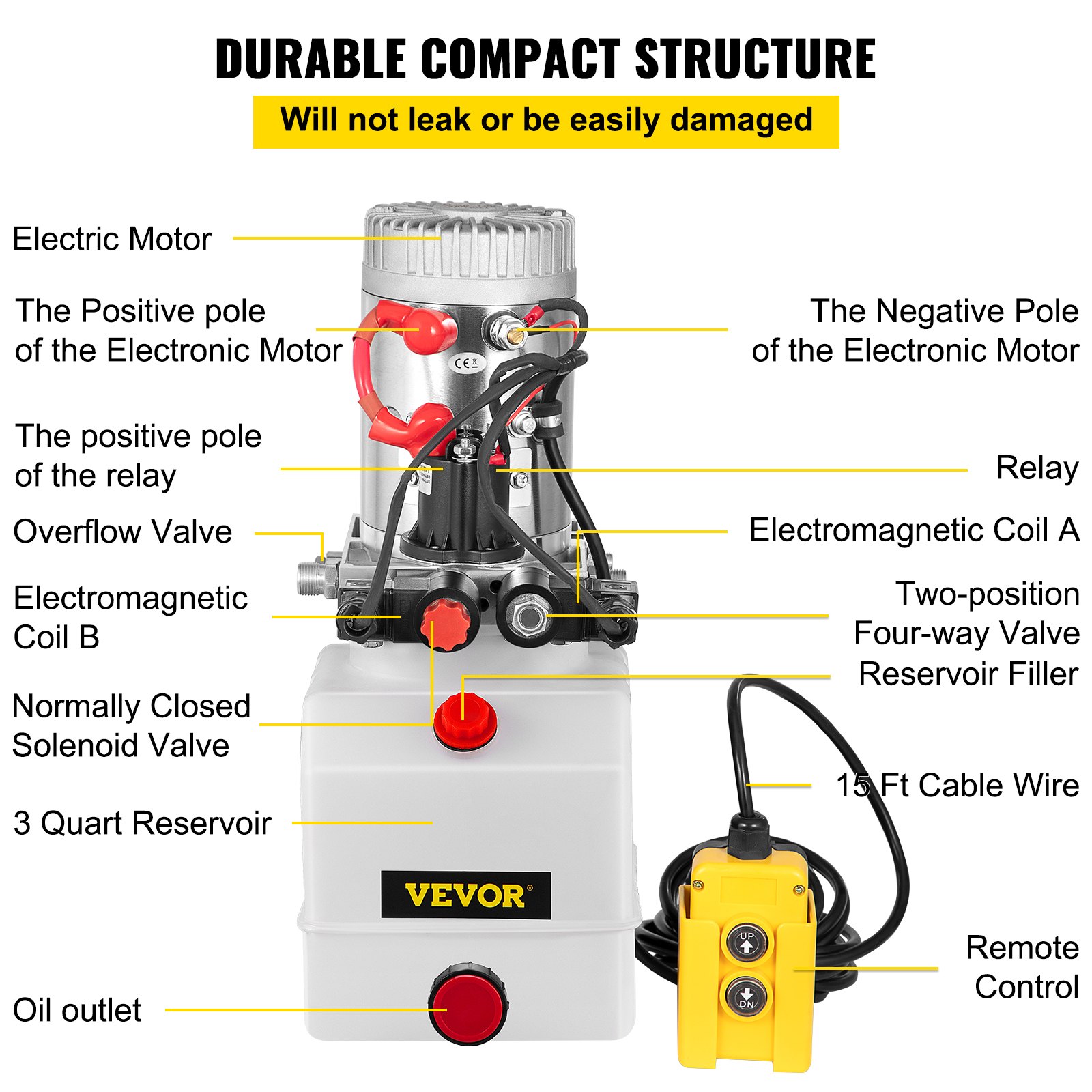

VEVOR hydraulic pump with a sturdy plastic tank, powerful electric motor, reinforced structure
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

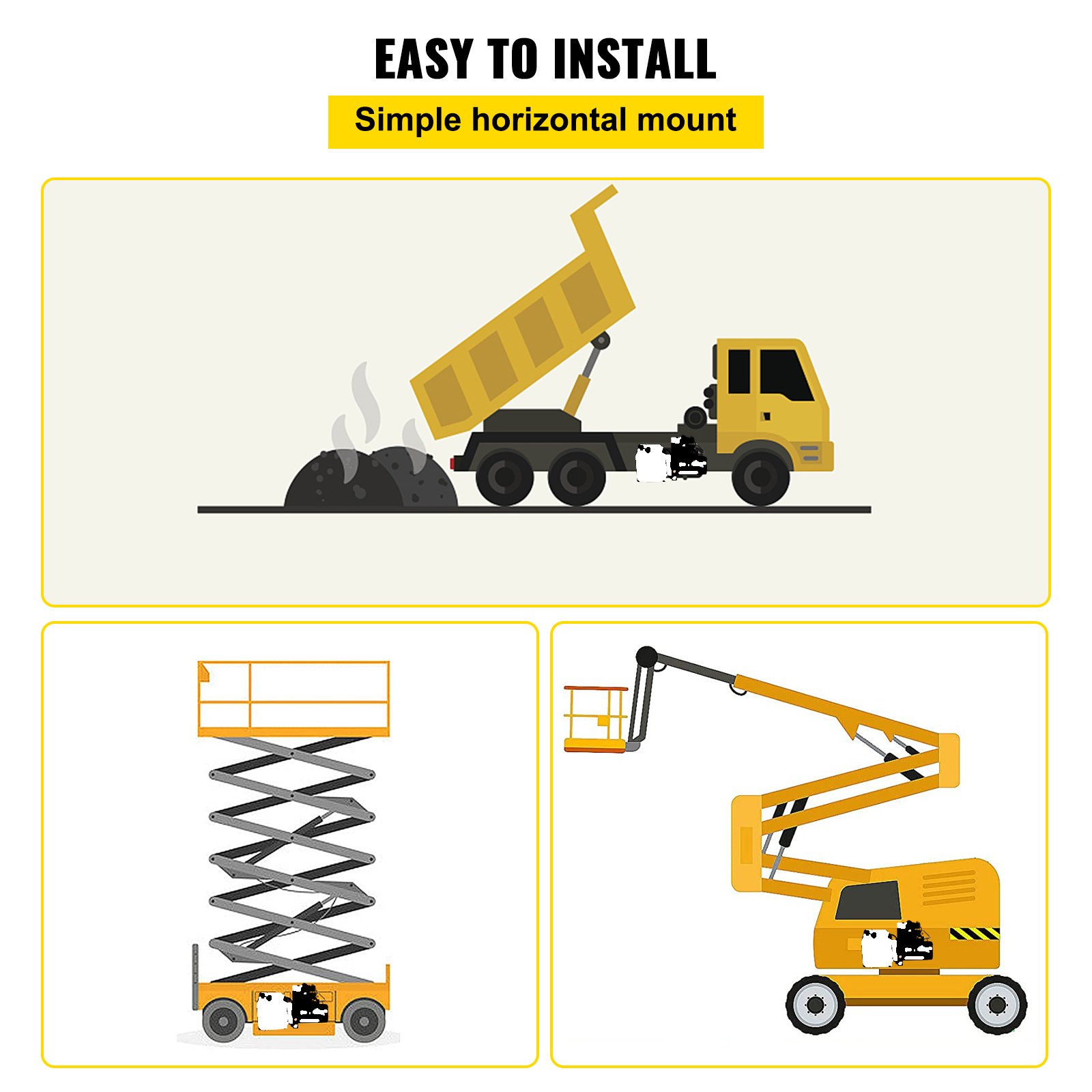

VEVOR hydraulic pump with simple installation for horizontal mounting on trucks.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic pump featured with crane, forklift, and dump truck applications.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

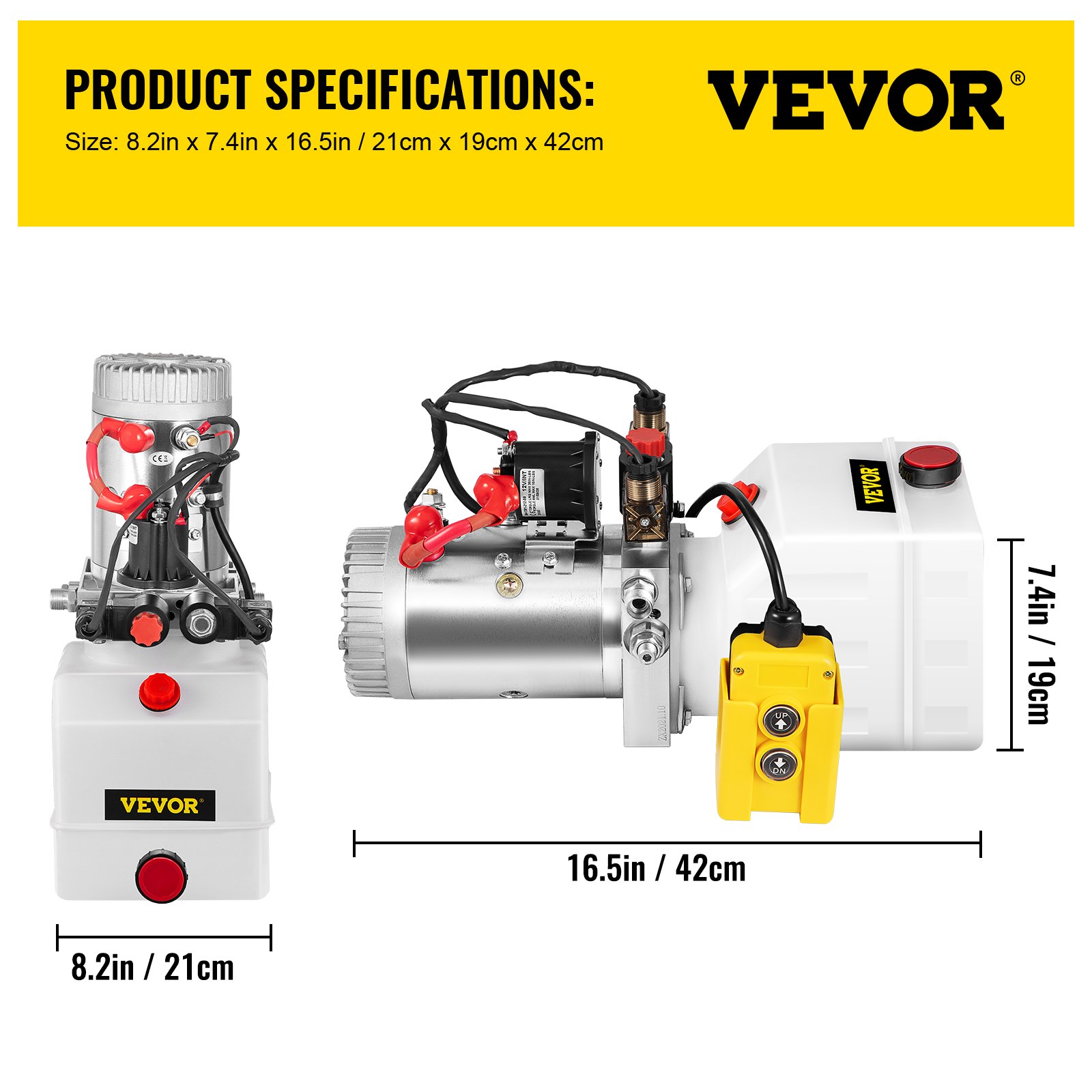

front and side views of the VEVOR hydraulic pump with dimensions displayed.
Specifications
  • Mode: Double-Acting Power-Up/ Power-Down
  • Tank Material: Plastic (Translucent)
  • Tank Capacity: 3L/ 3Quart/ 0.75 Gal
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Rated Speed: 2850R/MIN
  • Voltage: DC12V
  • Power: 1.6KW (Rated), 3.0KW (Max)
  • Duty: 3 Min
  • Traffic: 1.1 cc/r
  • Rotation: Clockwise
  • Connector: SAE # 6
  • Mount Position: Horizontal/ Vertical
  • Control: Solenoid and Handheld Pendant
  • Pendant Control Length: 15ft/ 4.5 m
  • Gross Weight: 29.1 lb (13.2 kg)
VEVOR hydraulic pump with electric control unit, fluid tank, and fittings.
Package Content
  • 1 x 3 Quart Double Acting Hydraulic Pump
  • 1 x English Manual
  • 2 x SAE # 6 Connectors
VEVOR hydraulic pump for dump trailer, 3 quart double acting, next to a dump truck.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic pump with control switch and two metal fittings.
3 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 3-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
  • Wide Application
VEVOR hydraulic pump with control unit, 1.6-3.0 kw, 12v dc, 3-quart capacity.
Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 3-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. Rated speed: 2850 r/min.
VEVOR hydraulic pump with 3-quart reservoir, sae#6 connectors, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 4 SAE#6 connectors. The whole power unit is easy to wire and easy to operate.
VEVOR hydraulic pump for quick start and lifting with power up and down control.
Quick Start&Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
VEVOR hydraulic pump with a sturdy plastic tank, powerful electric motor, reinforced structure
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
VEVOR hydraulic pump with simple installation for horizontal mounting on trucks.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic pump featured with crane, forklift, and dump truck applications.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
VEVOR hydraulic pump with electric control unit, fluid tank, and fittings.
Package Content
  • 1 x 3 Quart Double Acting Hydraulic Pump
  • 1 x English Manual
  • 2 x SAE # 6 Connectors
front and side views of the VEVOR hydraulic pump with dimensions displayed.
Specifications
  • Mode: Double-Acting Power-Up/ Power-Down
  • Tank Material: Plastic (Translucent)
  • Tank Capacity: 3L/ 3Quart/ 0.75 Gal
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Rated Speed: 2850R/MIN
  • Voltage: DC12V
  • Power: 1.6KW (Rated), 3.0KW (Max)
  • Duty: 3 Min
  • Traffic: 1.1 cc/r
  • Rotation: Clockwise
  • Connector: SAE # 6
  • Mount Position: Horizontal/ Vertical
  • Control: Solenoid and Handheld Pendant
  • Pendant Control Length: 15ft/ 4.5 m
  • Gross Weight: 29.1 lb (13.2 kg)

3 Quart Double Acting Hydraulic Pump: Powerful and Reliable Performance

The VEVOR 3-quart double-acting hydraulic pump is powerful and efficient. It features a 12V DC motor with a power range of 1.6-3.0 kW. This motor ensures quick, reliable performance. Our pump is designed for both power-up and power-down functions, making it versatile and suitable for various applications. The strong plastic tank is transparent, so you can easily monitor the oil level. Additionally, the pump comes with relief valves to prevent overpressure. These features ensure safe and reliable operation. The 3-quart reservoir provides ample capacity for extended use. The dump trailer hydraulic pump design is made for dump trailers, dump beds, and lifting platforms. With this feature, you get strong power for heavy lifting tasks. Therefore, we recommend that professionals should always consult our guide on how to do so.


Easy to Use with Pre-Assembled Design and Simple Wiring

This 12v hydraulic control kit comes pre-assembled, making it easy to use. The simple wiring design simplifies the installation process. It includes a 15-foot remote control for convenient operation, allowing you to operate the pump from a safe distance. The package also includes four SAE#6 connectors, ensuring secure and reliable connections. The easy-to-use design and user-friendly features make this pump accessible even for beginners, saving time and effort during setup.


High-Quality Build Ensures Durability and Safety

The pump is made from high-quality materials, ensuring durability. The plastic oil tank is strong and resistant to cracking, so it lasts for a long time while remaining reliable. It also comes with relief valves to prevent overpressure, enhancing safety during operation. The strong construction of our pump allows it to handle heavy loads without damage. The durable design makes it suitable for intensive use in demanding environments.


Rapid Start-Up and Quick Oil Output for Efficient Lifting

The double-acting hydraulic power unit features a powerful motor for quick start-up. It quickly produces oil, providing strong power for lifting tasks. This makes it efficient for heavy-duty applications, completing lifting jobs in a short time, which saves time and effort and enhances overall productivity. Quick start-up ensures you can get tasks done promptly, making it ideal for time-sensitive operations. Efficient oil output ensures smooth and effective performance, which is important for maintaining productivity in demanding environments.


Versatile Application for Dump Trailers, Jack Legs, and More

It is a direct replacement for 12V DC remotely controlled hydraulic systems. Its compatibility with multiple systems makes it versatile and convenient to use. The wide range of applications ensures it meets diverse needs efficiently, making it a dependable choice for various hydraulic tasks.


Convenient 15-foot Remote Control for Safe Operation

This hydraulic pump for dump trailer includes a 15-foot remote control for safe operation, allowing you to control it from an appropriate distance and enhancing overall convenience. The long length of the remote control ensures flexibility during use, which is important for tasks that require precise control. The proximity feature adds an extra layer of safety, reducing the risk of accidents. Therefore, it is suitable for demanding and hazardous environments. The convenience of a remote control boosts the pump's overall usability.


Compact and Efficient Design Suitable for Various Environments

The dump trailer hydraulic pump features a compact and efficient design. Its small size makes it easy to install in various environments. The design ensures it occupies minimal space while delivering maximum performance. This makes the pump suitable for both indoor and outdoor applications. Our efficient system ensures that it operates smoothly and effectively in different conditions. Additionally, the compact size allows for convenient transportation and storage, making it ideal for professionals who need to move equipment frequently. The efficient design guarantees it performs well in different settings, improving its utility.


See More

Specification

Mode
Double-Acting Power-Up/ Power-Down
Tank Material
Plastic (Translucent)
Tank Capacity
3L/ 3Quart/ 0.75 Gal
Flow
2.0 GPM
Max. Relief Valve Setting A Port
3200 PSI
Max. Relief Valve Setting B Port
1500 PSI
Rated Speed
2850R/MIN
Voltage
DC12V
Power
1.6KW (Rated), 3.0KW (Max)
Duty
3 Min
Traffic
1.1 cc/r
Rotation
Clockwise
Connector
SAE # 6
Mount Position
Horizontal/ Vertical
Control
Solenoid and Handheld Pendant
Pendant Control Length
15ft/ 4.5 m
Gross Weight
29.1 lb (13.2 kg)
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
3 Review(s)
Clear filters
Samuel J. Normand Samuel J. Normand
Works perfect
Smaller reservoir than the old one which worked perfect
Tjrib Tjrib
Hydraulic pump
The unit powers a hydraulic manifold used to move a loader bucket on my tractor.
Jamie Jamie
Works great but
This pump works great and is very well built. It does lift heavy stuff but it does it at a high rate of speed. You can't raise or lower slowly. I used it for trailer jack leg and I have to tap the buttons very fast to get it to slow down. It's ok for the up but down it's hard to make sure you're on the gooseneck ball without banging into the bed if you miss.
