Name: ATEX Certified Ventilators Explosion Proof Fan 16 Inch for Ventilation in Office Oil
Brand: VEVOR
SKU: ZLFJYJ16CFB000001V7
Price: 530.99 AUD
Availability: Discontinued
Rating: 4.8 (81 reviews)

ATEX Certified Ventilators Explosion Proof Fan 16 Inch for Ventilation in Office Oil

Price including GSTSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive AU $5.00 off for your first three orders on the App.

Download Now

Exclusive AU $5.00 off for your first three orders on the App.

Scan the QR code to download

About this item

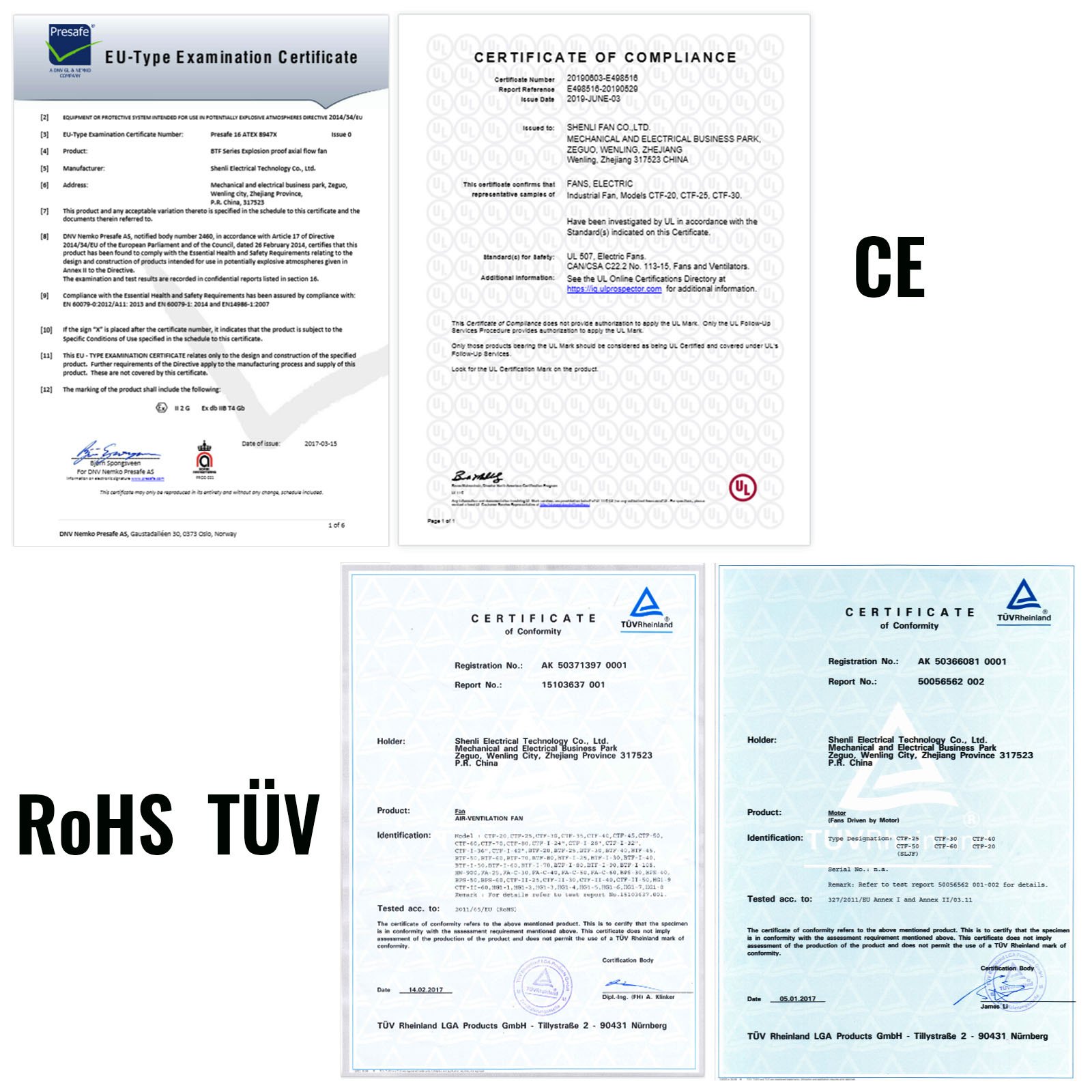

16'' Explosion-Proof Axial Fan: EX Certified explosion-proof fan is designed with an explosion-proof switch. Power: 1100W. Voltage: 220V. Frequency: 60 Hz. Current: 10.0A. Fan Diameter:16 in / 400 mm. Noise: 79 dB(A). Static Pressure: 780 Pa. Axial Fan Bearing Type:6204. Certification: ATEX, CE, UL, RoHS, TÜV.
1100W Pure Copper Motor: The explosion fan features an explosion-proof, high-velocity, 100% copper winding motor. 3450 RPM motor speed is suitable for long-term ventilation. It can move a large amount of air quickly with low noise at only 79 dB (A). Keep the air in your working area clear and avoids build-ups.
7200 m³/h Large Air Flow: The axial fan exhaust can control a large air volume of the 4237 CFM / 7200 m³/h, and the 8 metal blades provide fast and effective ventilation. It extracts the maximum amount of air and maintains high-efficiency work. Besides, 2 high-density grills ensure portable ventilators work continuously and safely.
Sturdy & Humanized Design: The ventilator explosion is equipped with a durable 0.079 in / 2.0 mm steel sheet housing, bringing excellent durability and extending its service life. 4 stable wheels at the bottom are offered for easy movement to preferred locations. Extra 2 wheels are provided for easy replacement.
Ventilate Anywhere: The explosion-proof exhaust fan is perfectly connected to a 16'' anti-static flexible air duct. It is widely used in most places where airflow is needed, ideal for air exhaustion in factories, warehouses, offices, workshops, laboratories, gas stations, military plants, etc.

See More See Less

16" atex ventilator, VEVOR explosion proof fan, orange, on wheels with background smoke.

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Tough Equipment & Tools, Pay Less

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

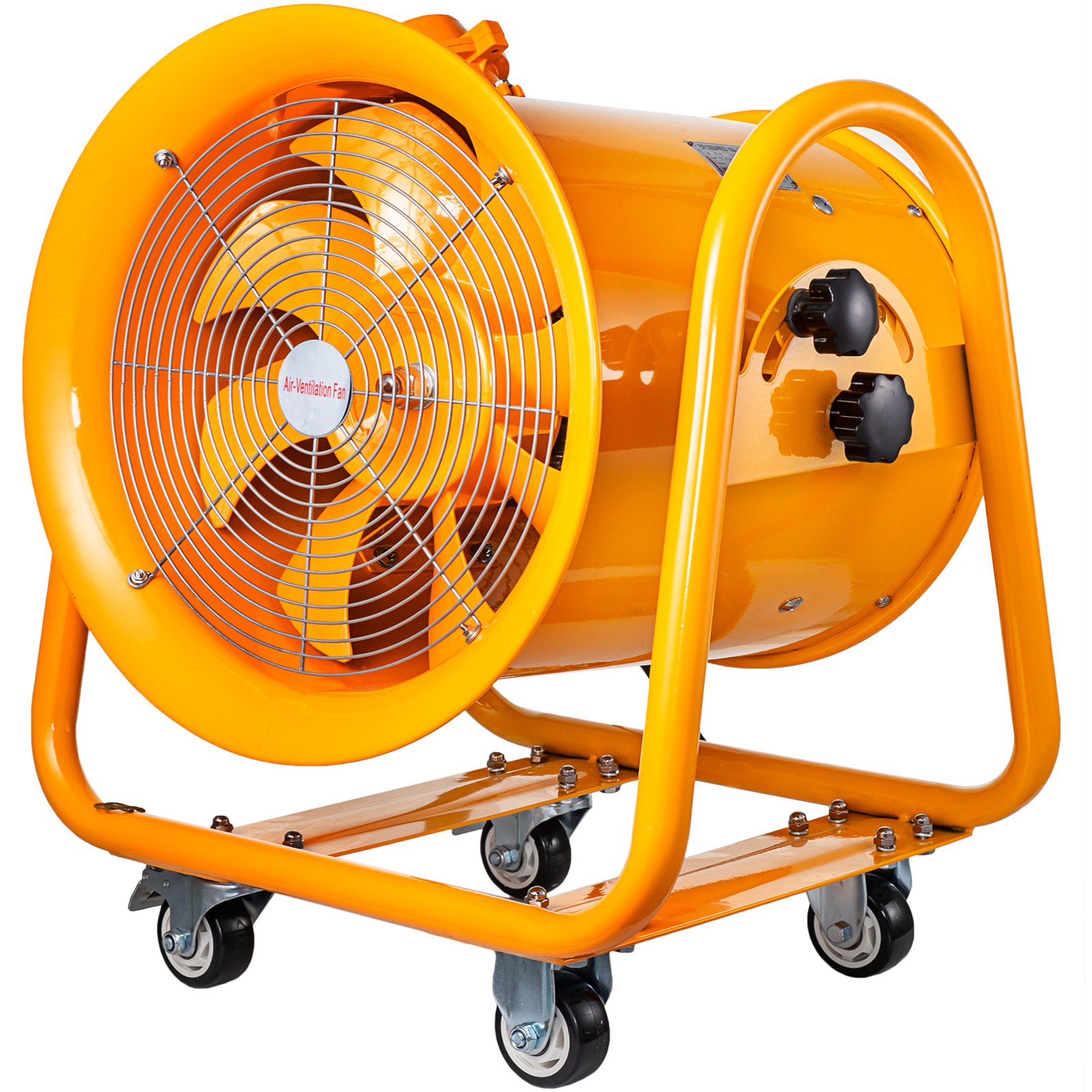

orange VEVOR explosion proof fan with four blades and mounted on casters for mobility.

16 Inch Atex Certified Ventilators 1100W Explosion Proof Fan

The 400mm axial flow fan is designed to be heavy duty and compact. Explosion Proof Motor of speed: 2920Rpm offers large flow 105m3/min and reliability, suitable for even the most demanding industrial, construction and workshop applications.

16" Explosion Proof Fan
High Performance Motor
Portable & Compact
Large Air Flow
Easily Moveable

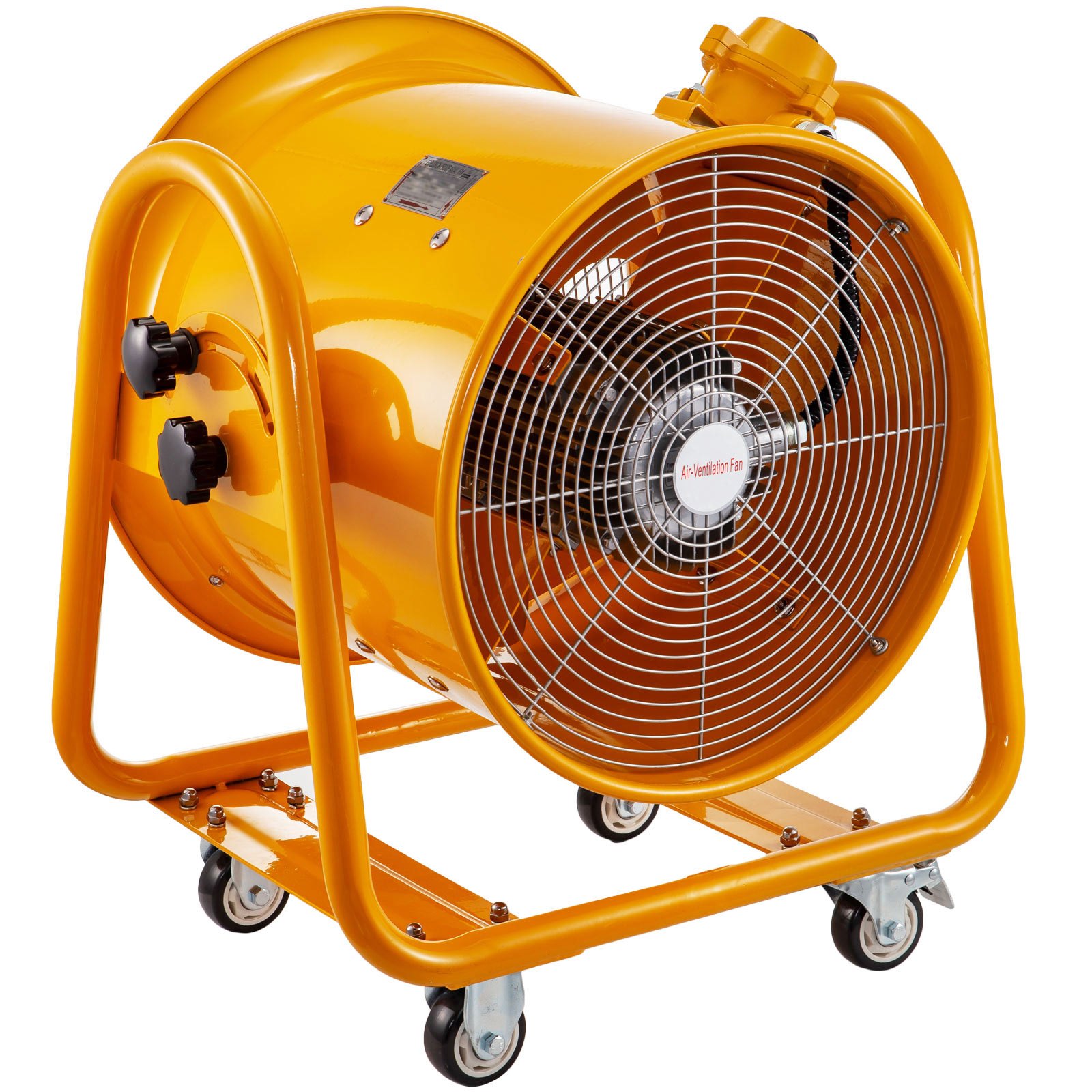

16" VEVOR explosion proof fan, atex certified ventilator in yellow with control panel.

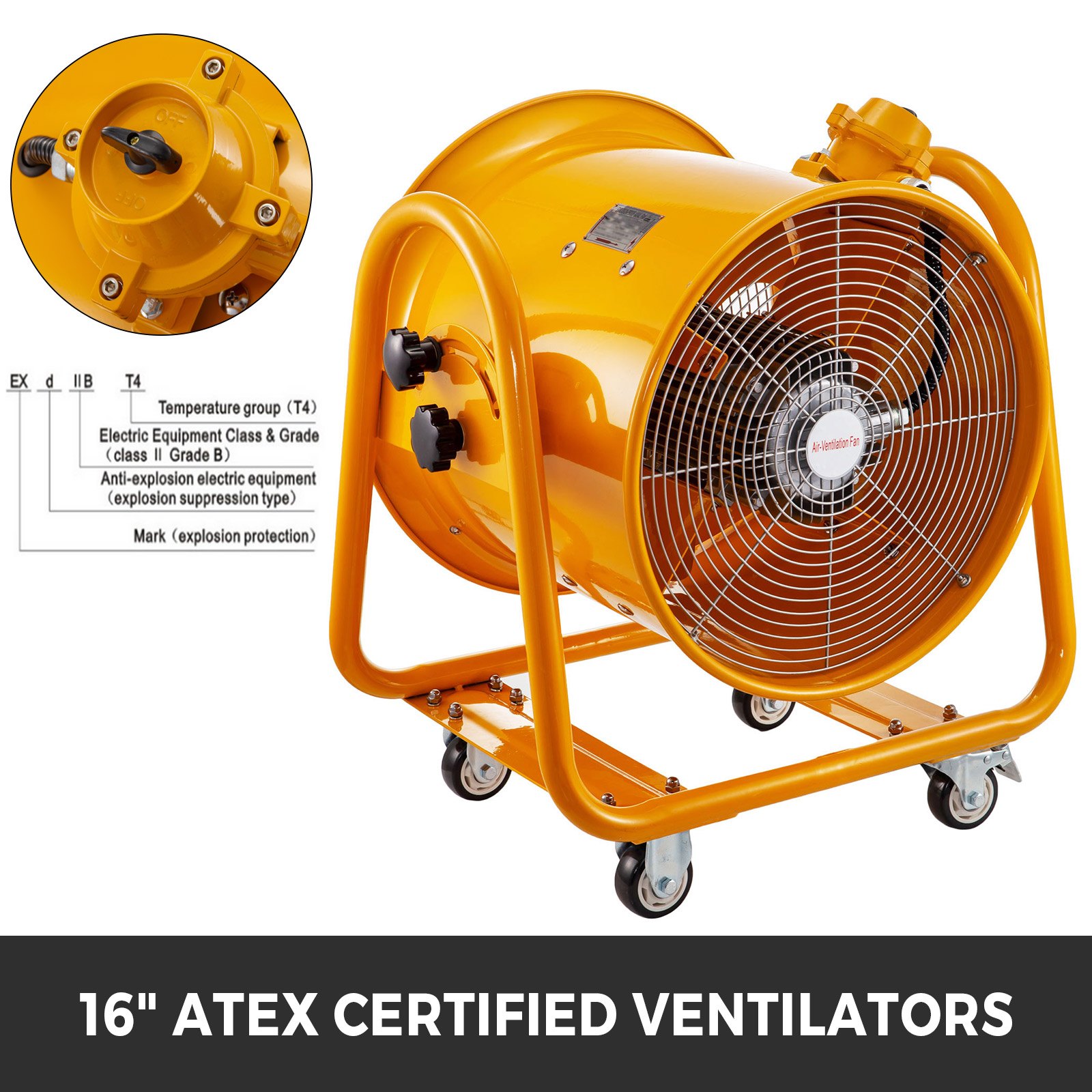

16" ATEX Certified Ventilator

Watts: 1100W. EX Certified explosion proof fan.

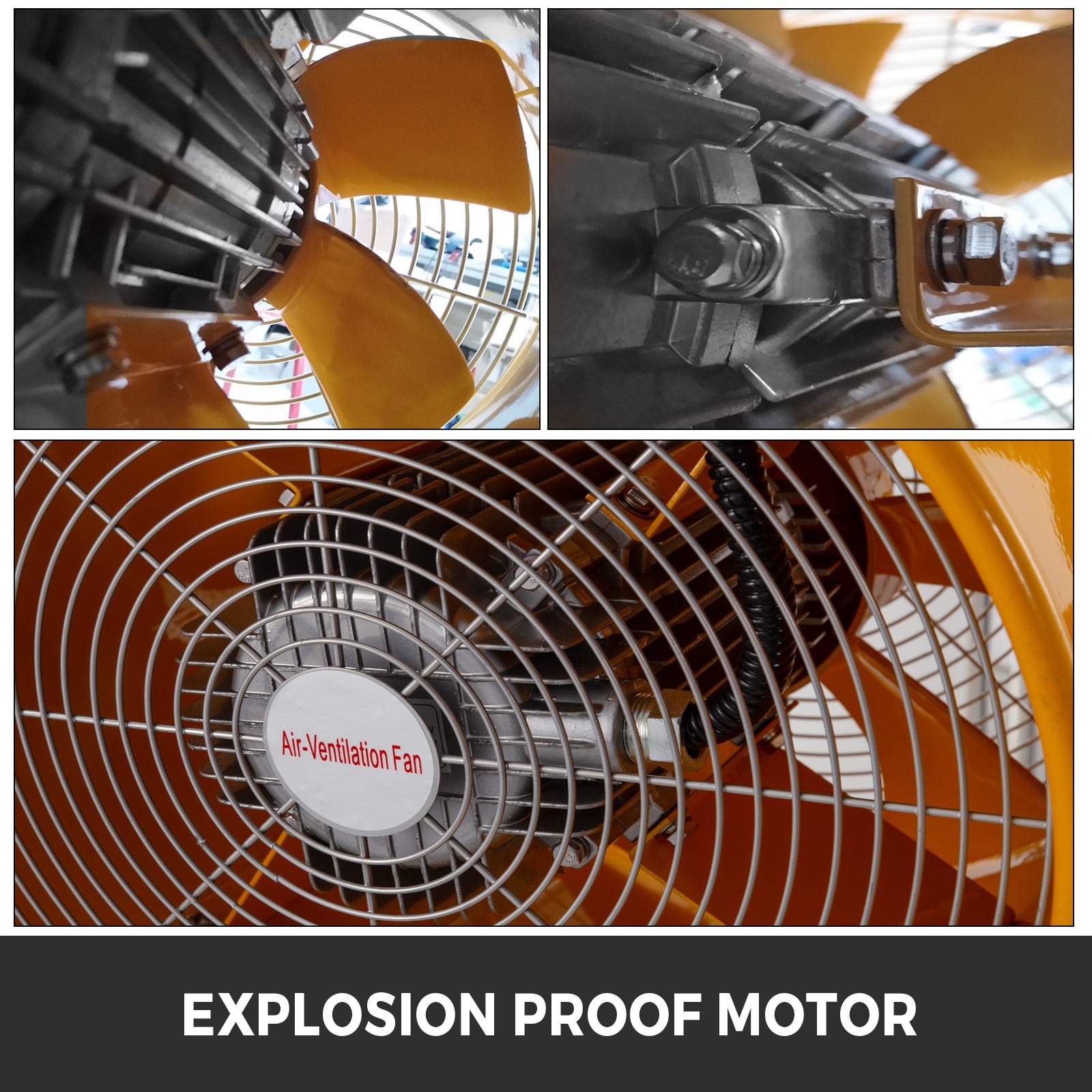

VEVOR explosion proof fan with orange blades and protective metal grill.

Explosion Proof Motor

Fast Speed: 2920Rpm. Low Noise: 79dB(A).

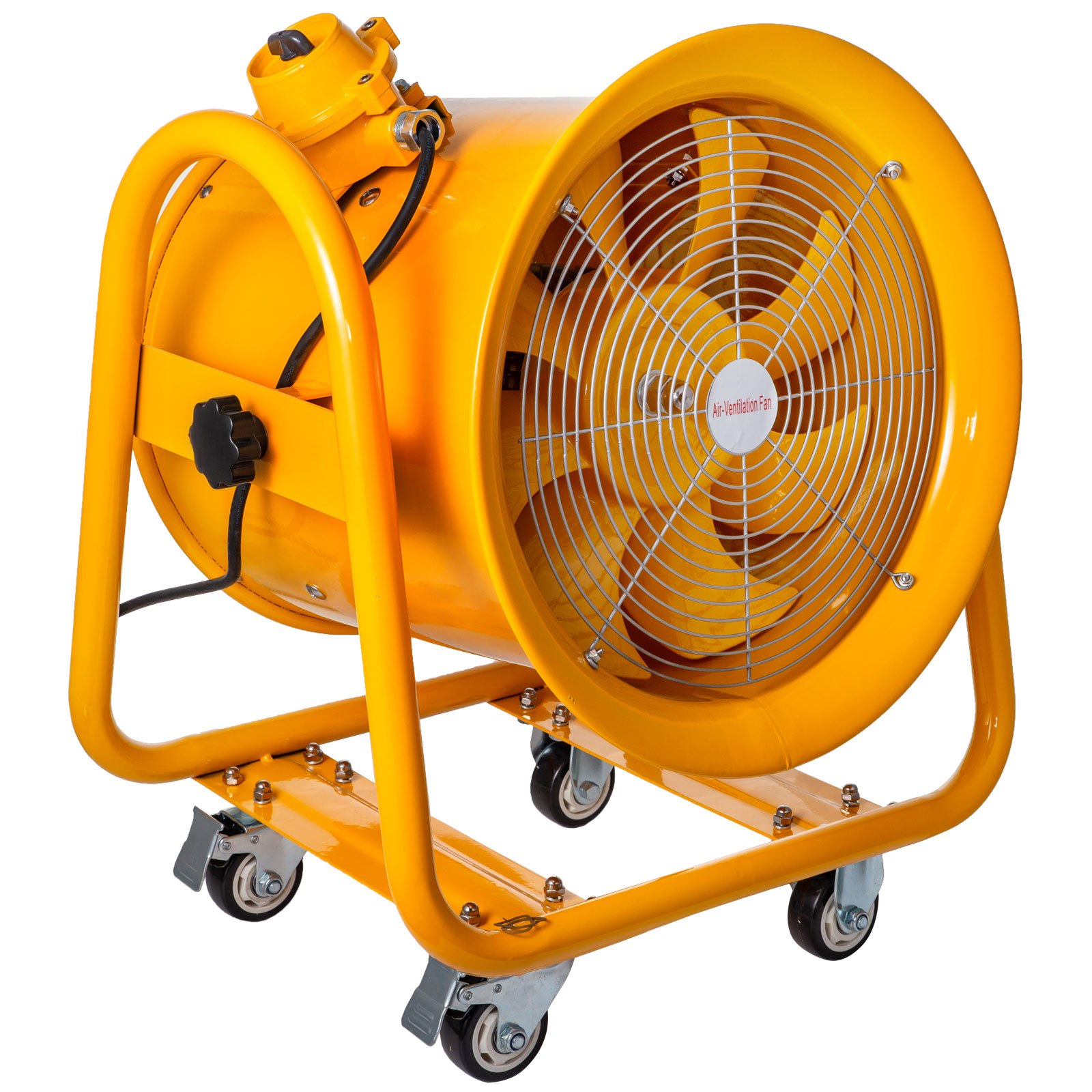

VEVOR explosion proof fan with metal frame, four wheels, and control knobs.

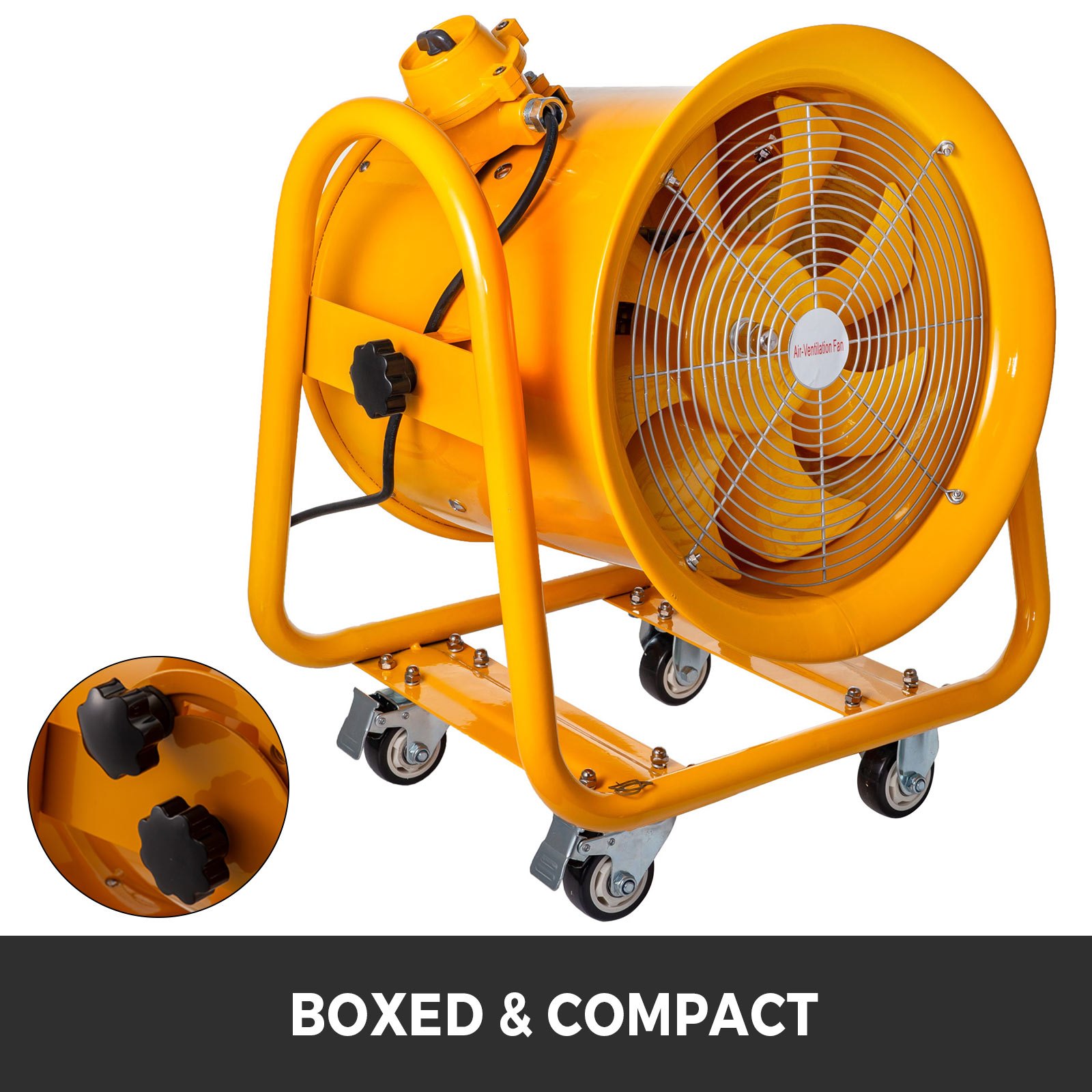

Boxed & Compact

boxed and heavy duty metal fan, metal construction, easy use and storage.

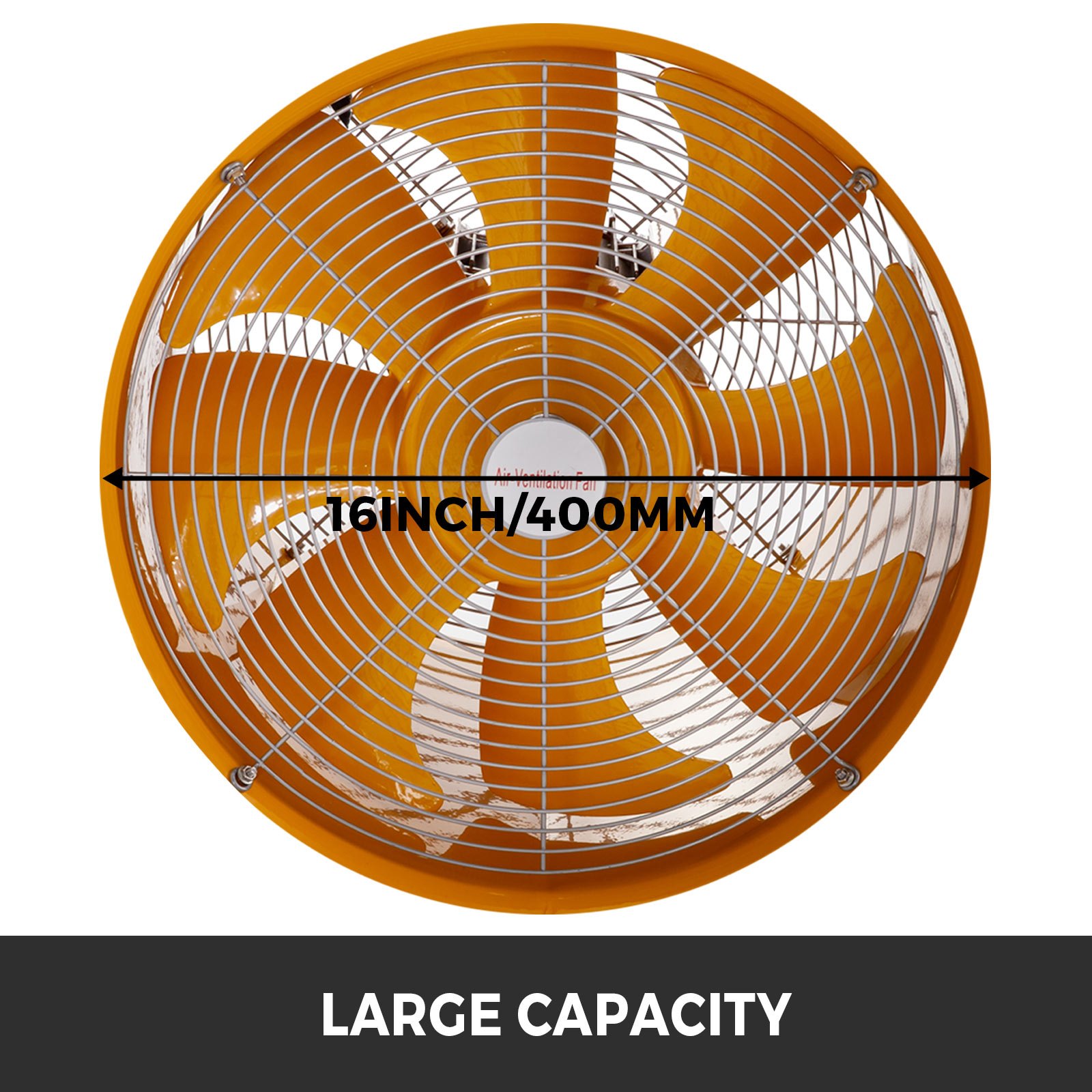

Large Capacity

Diameter: 16"(400mm), Capacity: 105m3/min with 2 durable grills.

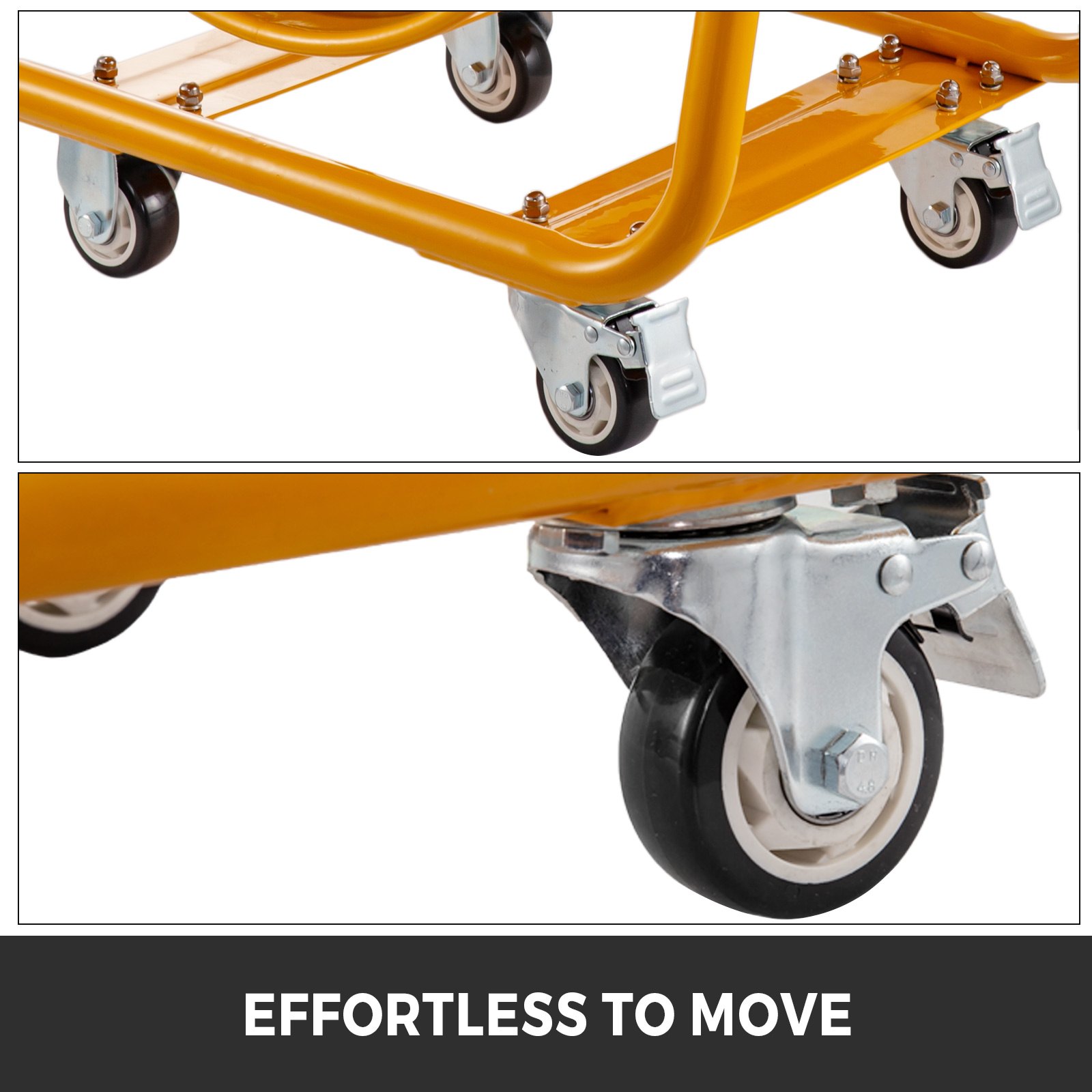

yellow wheeled base of VEVOR explosion proof fan with durable caster wheels.

Effortless to Move

4 wheels for effortless to move. 2 more wheels free for easy replacement.

VEVOR explosion proof fan shown in various industrial and outdoor applications.

Wide Application

Widely used for ventilation in office,oil,military industry,chemical industry,medicine,metallurgy,etc.

orange VEVOR explosion proof fan with sturdy frame and wheels for portable use.

Package Content

1 x ATEX Certified Ventilator

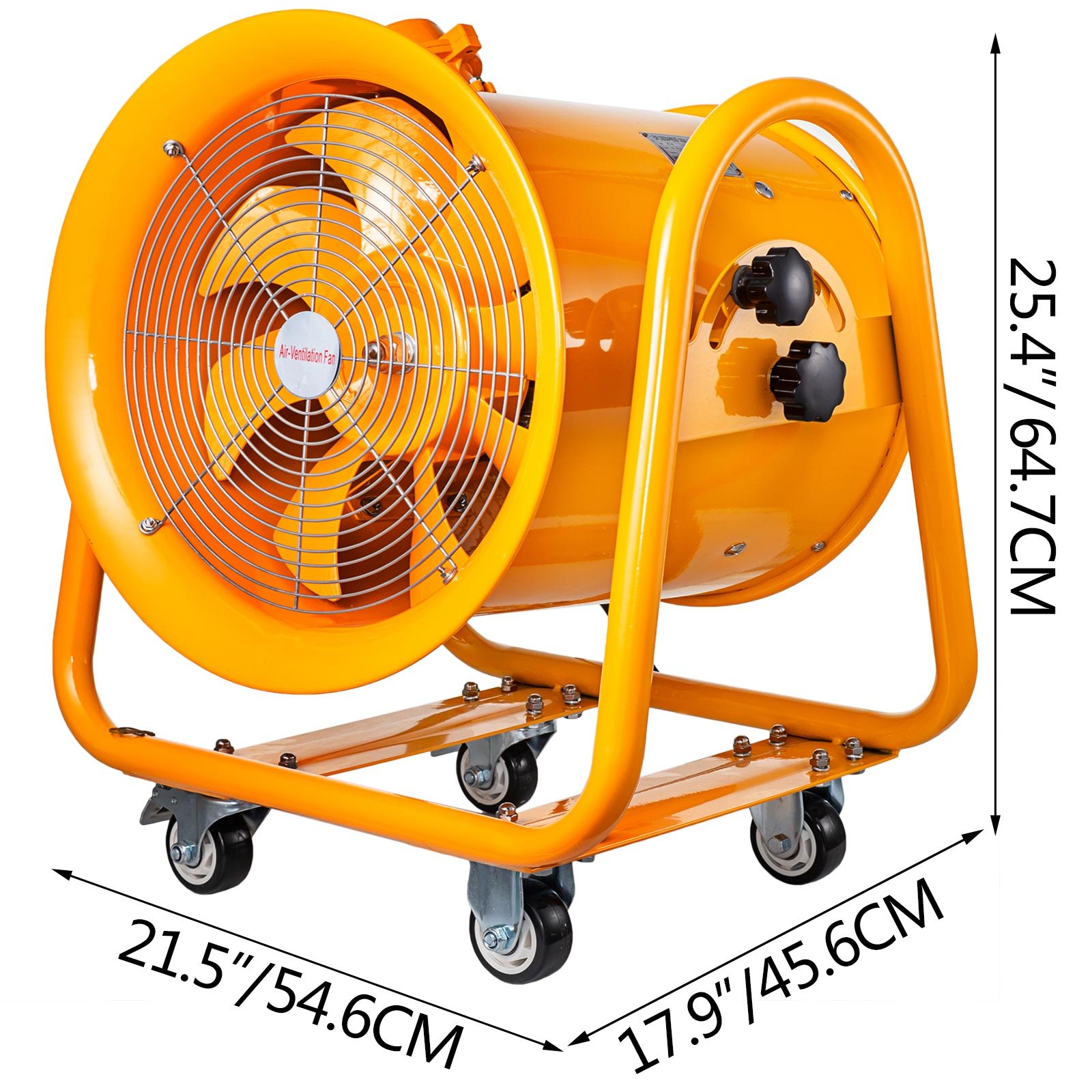

VEVOR explosion proof fan, orange casing, dimensions: 21.5"x17.9"x25.4".

Specifications

Diameter: 16" / 400 mm
Watts: 1100W
Speed: 2920 RPM
Capacity: 105 m3/min
Static: 700Pa
Noise: 79 dB(A)
Fan Size: 18.5" x 24.4" x 30.3" / 47 x 62 x 77 cm
Ex Mark: EX db IIB T4 Gb Certified by DNV

Specification

Color: Orange

Power: 1100W

Voltage: 220V

Frequency: 60 Hz

Current: 10.0A

Motor Speed: 3450 RPM

Air Flow: 4237 CFM / 7200 m³/h (120 m³/min)

Fan Diameter: 16 in / 400 mm

Noise: 79 dB(A)

Static Pressure: 780 Pa

Motor Type: 100% Copper, Explosion-proof

Ex Mark: EX db IIB T4 Gb Certified by DNV

CE Certificate Number: CN208A1Z 001

UL Certificate Number: E498516

Other Certification: RoHS, TÜV

Fan Material: 0.079 in / 2.0 mm Steel Sheet

Blades Material: Aluminum Alloy

Axial Fan Bearing Type: 6204

Fan Dimensions(L x W x H): 18.5 x 24.4 x 30.3 in / 47 x 62 x 77 cm

Net Weight: 61.73 lbs / 28 kg

Great fan for the price. It arrived with some damage but customer service was quick to respond and they took care of the issue really fast. I would definitely purchase from them again.

This fan is great and really powerful. I run a small cabinet shop and use this for my spay booth and I can’t be more happier. I been using a fan from harbor freight and by the grace of God I’m still alive because I was ignorant on explosion proof fans until I seen a video on YouTube explaining how they are a must. The fan is loud but I’m in’s industrial area and I’ll usually spray later in the day when majority of people are off . The fan is built very well and I recommend it to anyone and you can beat the price compared to other explosion proof fans that run in the thousands that even used on Craigslist

I have ordered 3 of these. One was defective upon arrival but it was replaced. The two units have been super reliable running 24/7’ for two years non stop. The amount of air they exhaust is insane at about 4200 CFM’s … the air being exhausted is 80 to up to 90 Celsius 176-194 Fahrenheit.

Customer Reviews

4.8 Out of 5

Based on 81 reviews

Ratings by Features

Price 4.9
Quality 4.7
Features 4.7
Easy to Use 4.8
See More See Less

81 Review(s)

Clear filters

VEVOR Customer

Great customer service

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Jim Phelan

Good performance.

I am using this 12" explosion proof ventilator for a temporary paint booth. It provides good performance at an acceptable noise level.

Robbo

Purchased 2 exhaust fans- great value and easy to use came via shipment very quickly, presently being used in our paint shop

Ckwoodworks

Spray booth fan

Brad Biondo

Superior air flow extremely durable

New spray guy

Not that loud

I am only writing this review to rebut some of the reviews that I have seen. Firist I want to say that I read the description and bought a plug and installed it. Second as far as the noise goes I find that all I hear is the volume of air movement and no motor noise.It would be nice if the fan was equipped with a variable speed motor even at a slightly increased price but overall I am happy with the purchase

Cooper Town

These fans work.

Created a home paint booth with these. Have to assume the explosion proof is true, but they move some air. They are a little noisy, but work great for my needs.

Ken Jones

Excellent quality

Very easy to install and easy to use.

Robert Stano

fast transportation

Logistics is fast, recommended.

Travis Burcham

exterior appearance

The material of the product is very good, it looks good but not cheap.
