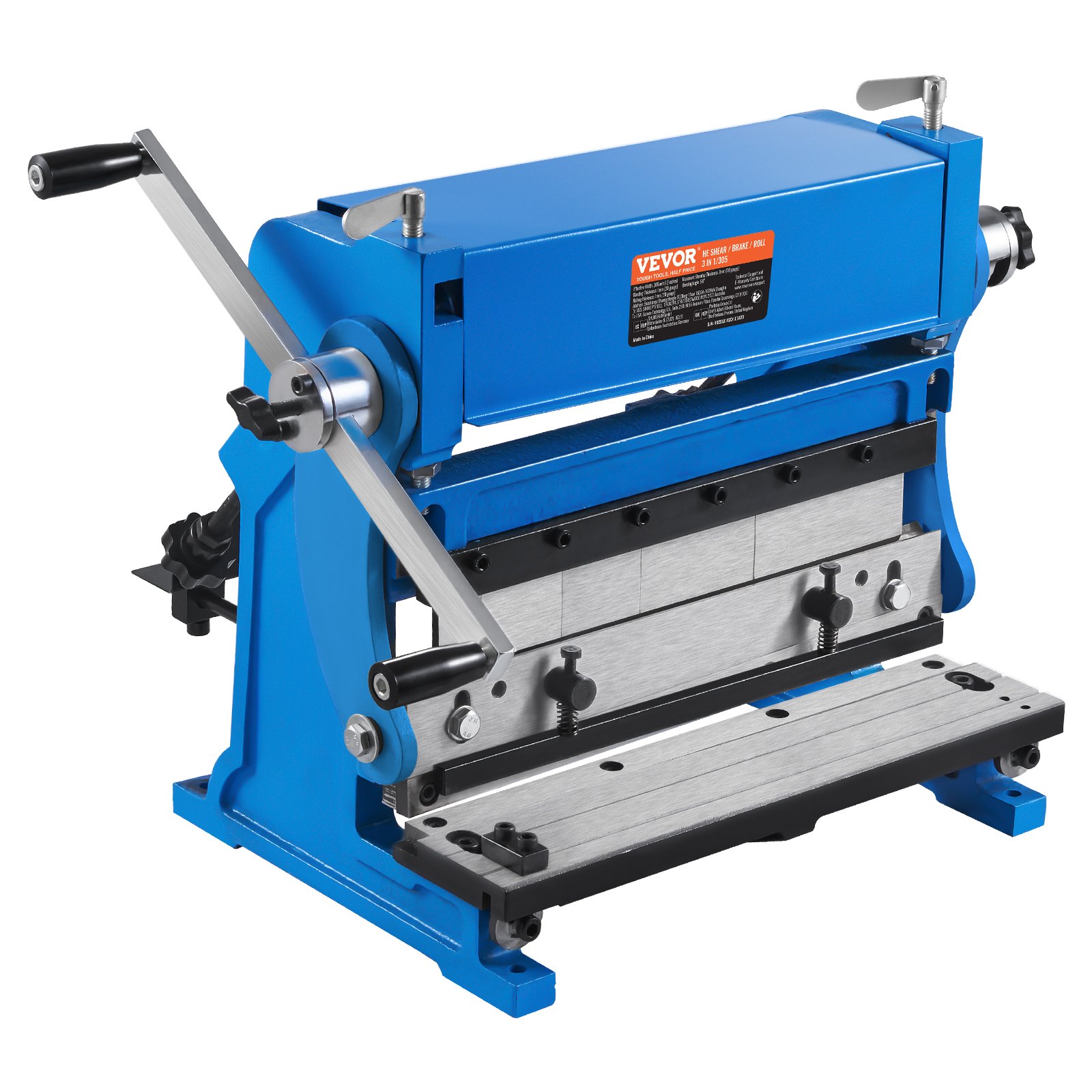

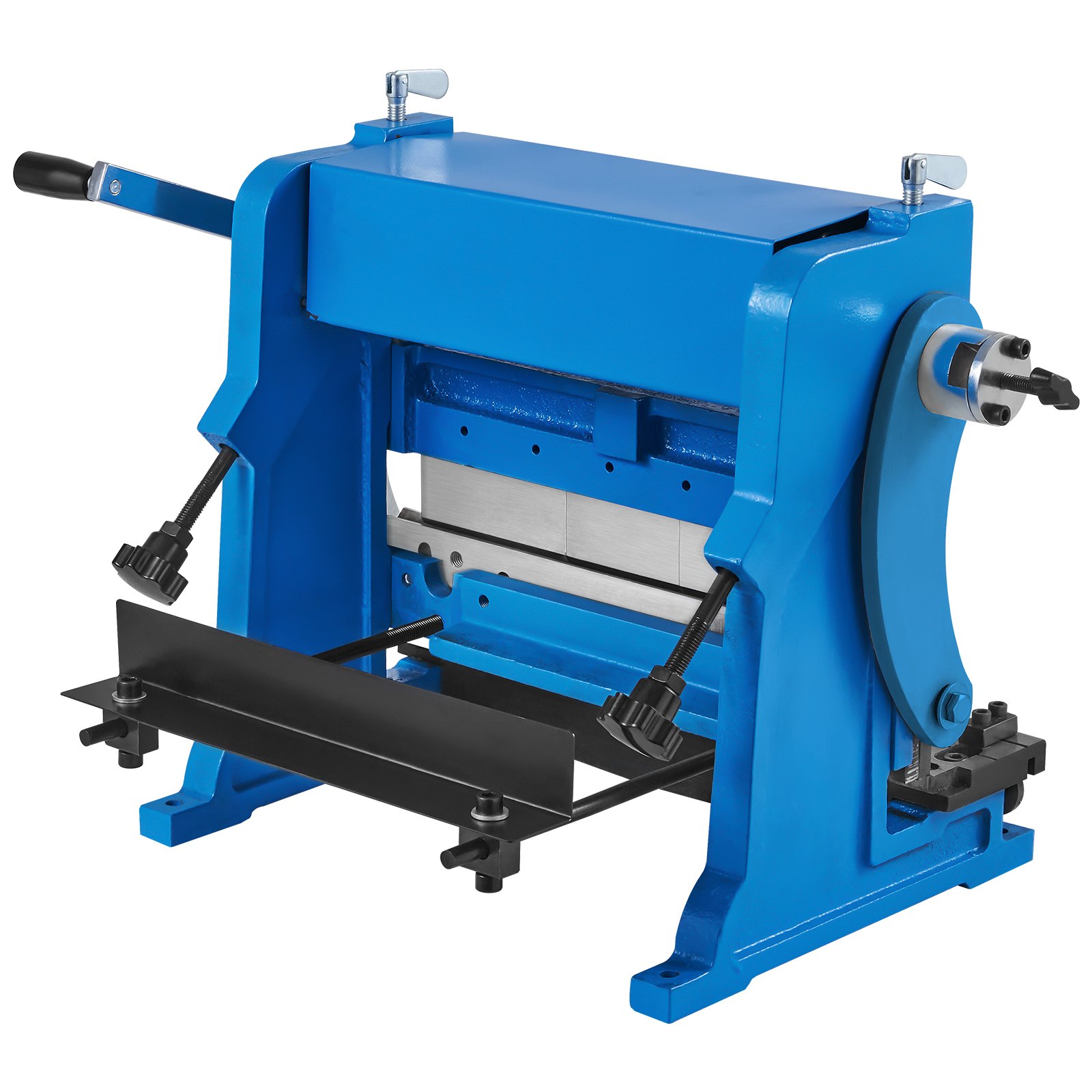

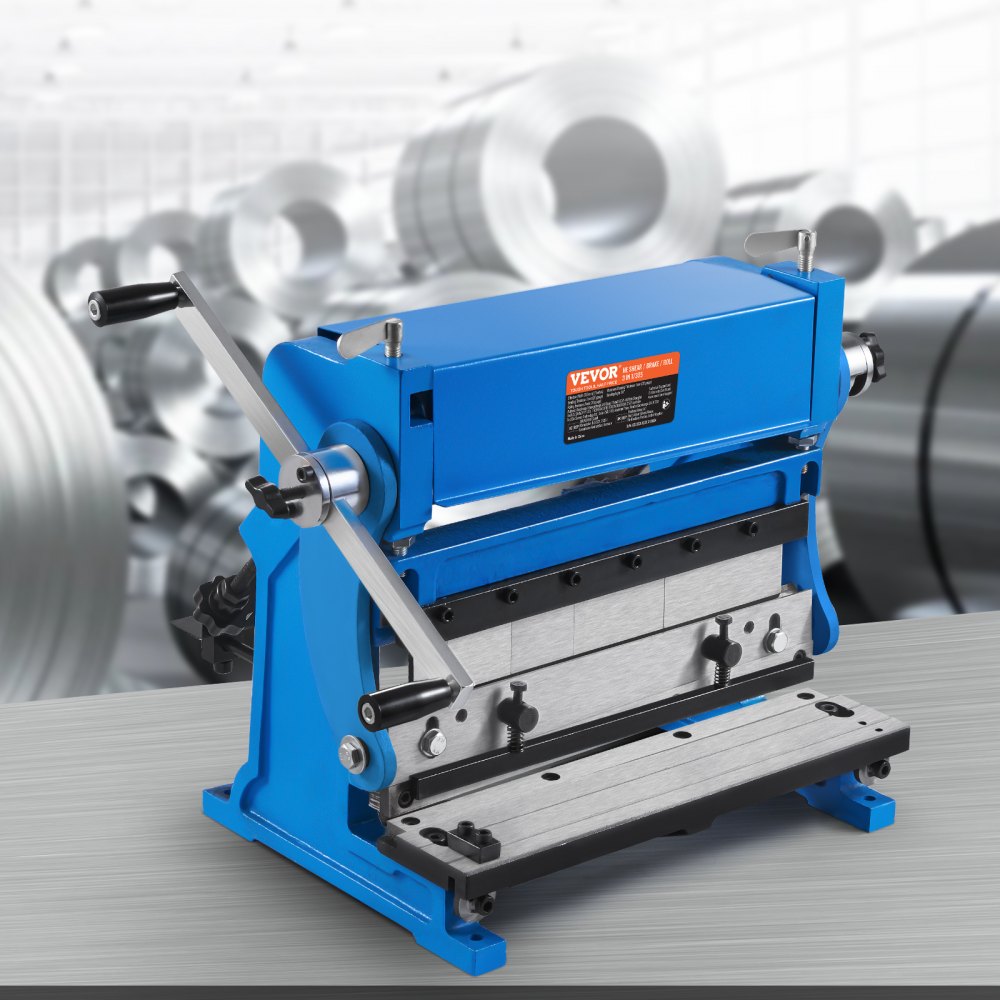

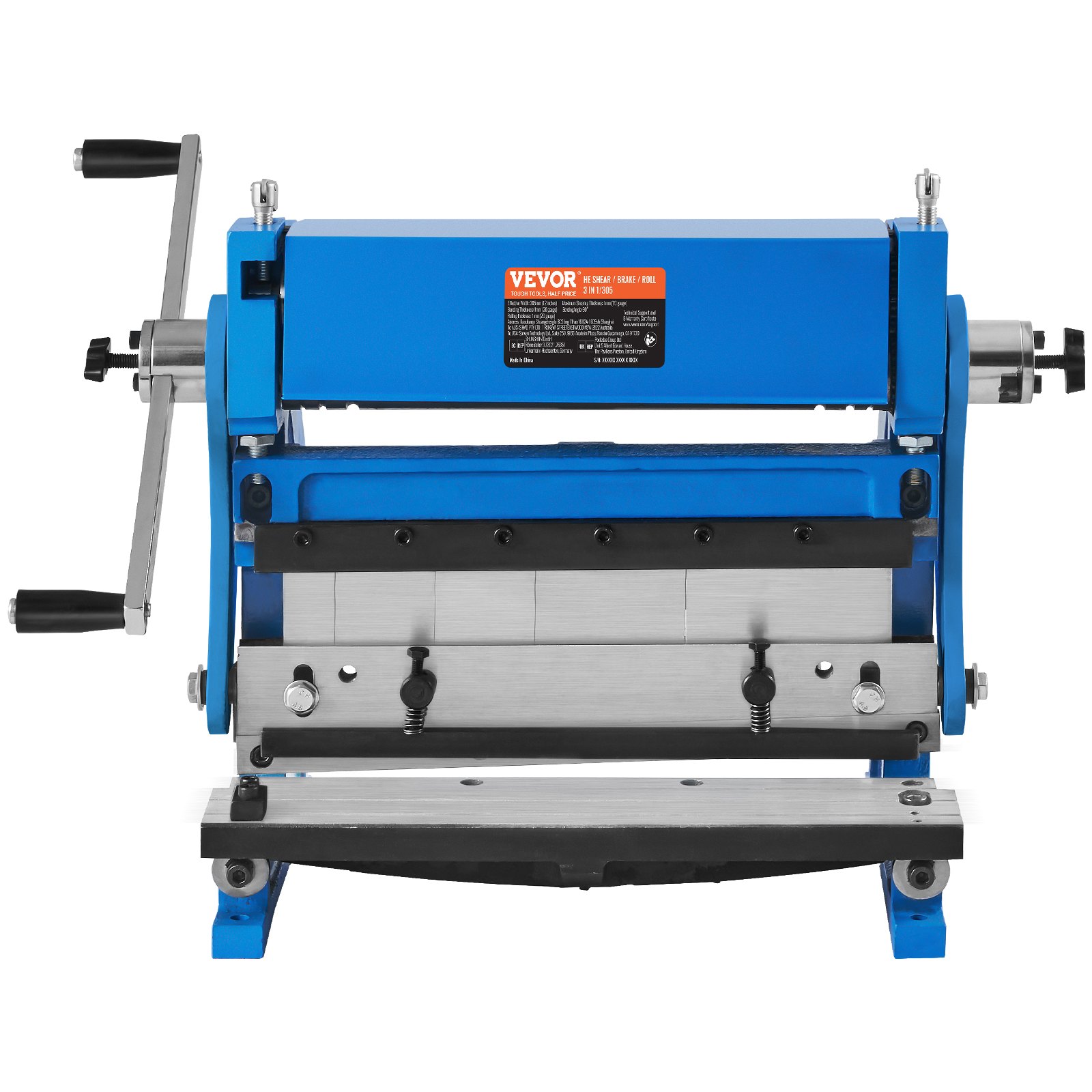

VEVOR sheet metal brake with blue and silver design, featuring adjustable handles and clamps. VEVOR sheet metal brake 3-in-1 machine for sheet rolling, bending, and cutting on a wooden table. VEVOR sheet metal brake supports 20 ga thickness, 12-inch width, and 90° bending angle for efficient work. blue VEVOR sheet metal brake for metal sheet processing with high hardness components and specifications. VEVOR sheet metal brake with segmented bending blades and detachable components for flexible molds. VEVOR smooth roller surface for sleek and flat sheet metal rolling. VEVOR sheet metal brake with measurements, specifications, and blue 3-in-1 model displayed.
ZHBJJ12YC20G7HIIJV0

VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • All-in-One Functionality: Our 3-in-1 combination sheet metal machine offers the functions of a bending machine, shearing machine, and rolling machine all in a single unit. Say goodbye to the hassle of purchasing multiple independent machines and the tedious switching process. It is a must-have for your factory and workshop, enhancing overall work efficiency.
  • Exceptional Compatibility: Our sheet metal brake supports sheet materials with a 12 in/ 305 mm Max. Width and 20 GA / 1 mm Max. Thickness. With 90° Max. Bending angle and a blade clearance of less than 0.0027 in/0.07 mm provides a wide range of options for your processing tasks.
  • Robust Construction: This shear press brake features HT200 material casting built to last. The shearing blade is made of T10 material, cutting without burrs. Both the bending blade and the roller are constructed from 45# material, offering exceptional durability and resistance to deformation. It easily processes low-carbon steel, aluminum, brass, copper, lead, plastic, zinc sheet metal, etc.
  • Segmented Bending Versatility: The central bending module of our sheet metal brake press includes five blades with sizes of 1", 2 x 2", 3", and 4".You can customize blade combinations based on your requirements to carry out a wide range of complex sheet metal processing tasks, such as manufacturing exterior wall panels for houses, doors, and window materials. It is widely used in homes, factories, and small workshops.
  • Precision Processing: Utilizing advanced external cylindrical grinding technology, our 3 in 1 combination sheet metal machine reduces friction between the sheet metal and rollers, enhancing machine stability during operation. It also minimizes scraping caused by uneven roller surfaces, improving sheet metal surface smoothness.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Sheet Metal Brake, 305 mm, 3-In-1 Combination Shear Brake Roll Machine, 1 mm Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
VEVOR 3-In-1 Sheet Metal Brake

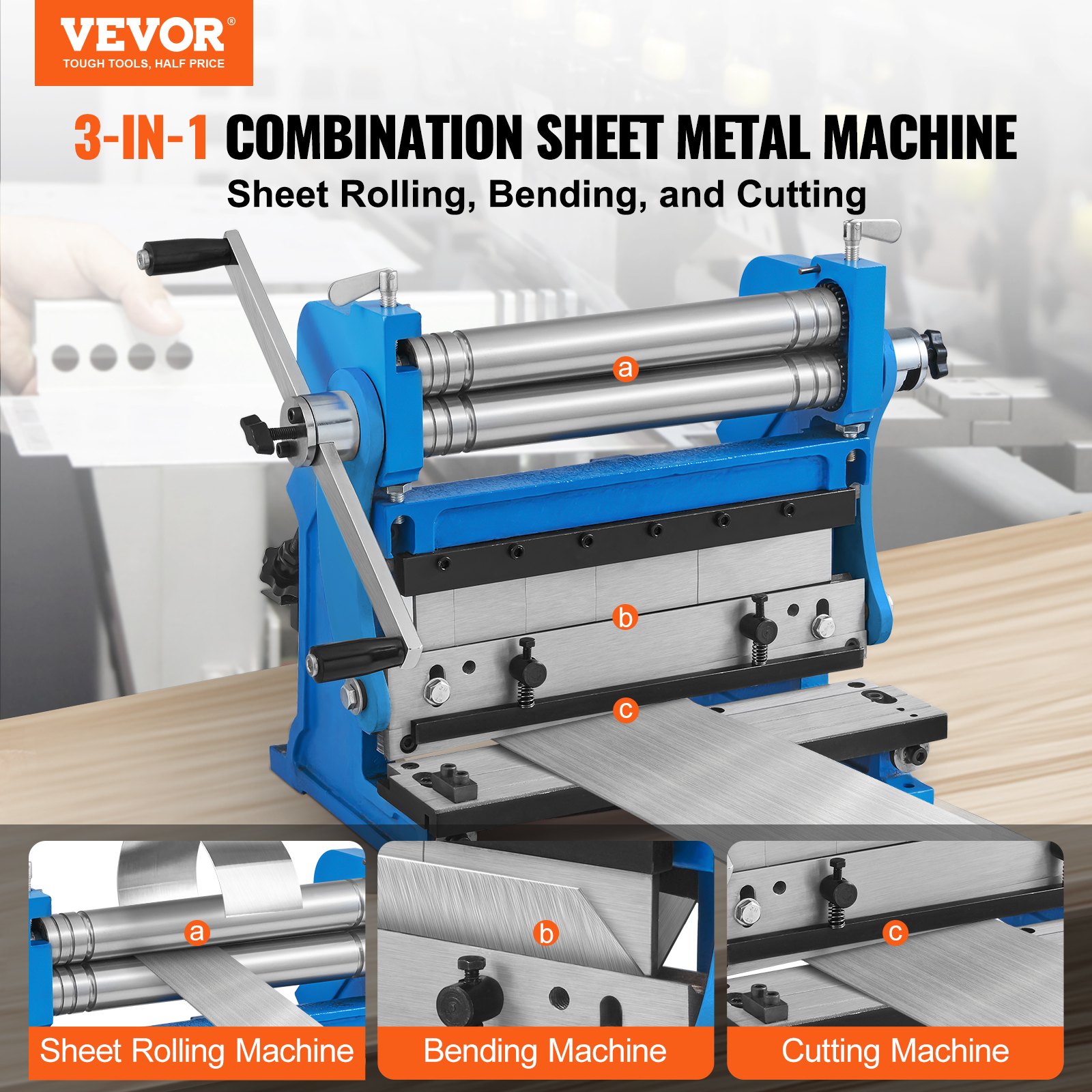

VEVOR sheet metal brake with adjustable rollers, handles 20 ga thickness, 12 in width, 90° bending angle.
VEVOR sheet metal brake with adjustable rollers, handles 20 ga thickness, 12 in width, 90° bending angle.
Our sheet metal machine combines rolling, bending, and shearing functions into one compact unit. It allows you to adjust the roller position with a knob, extend up to 90 degrees, and cut through various sheet materials.
VEVOR sheet metal brake with <0.0027" blade clearance for smooth, edge-free cuts on thin sheets.
VEVOR sheet metal brake with <0.0027" blade clearance for smooth, edge-free cuts on thin sheets.

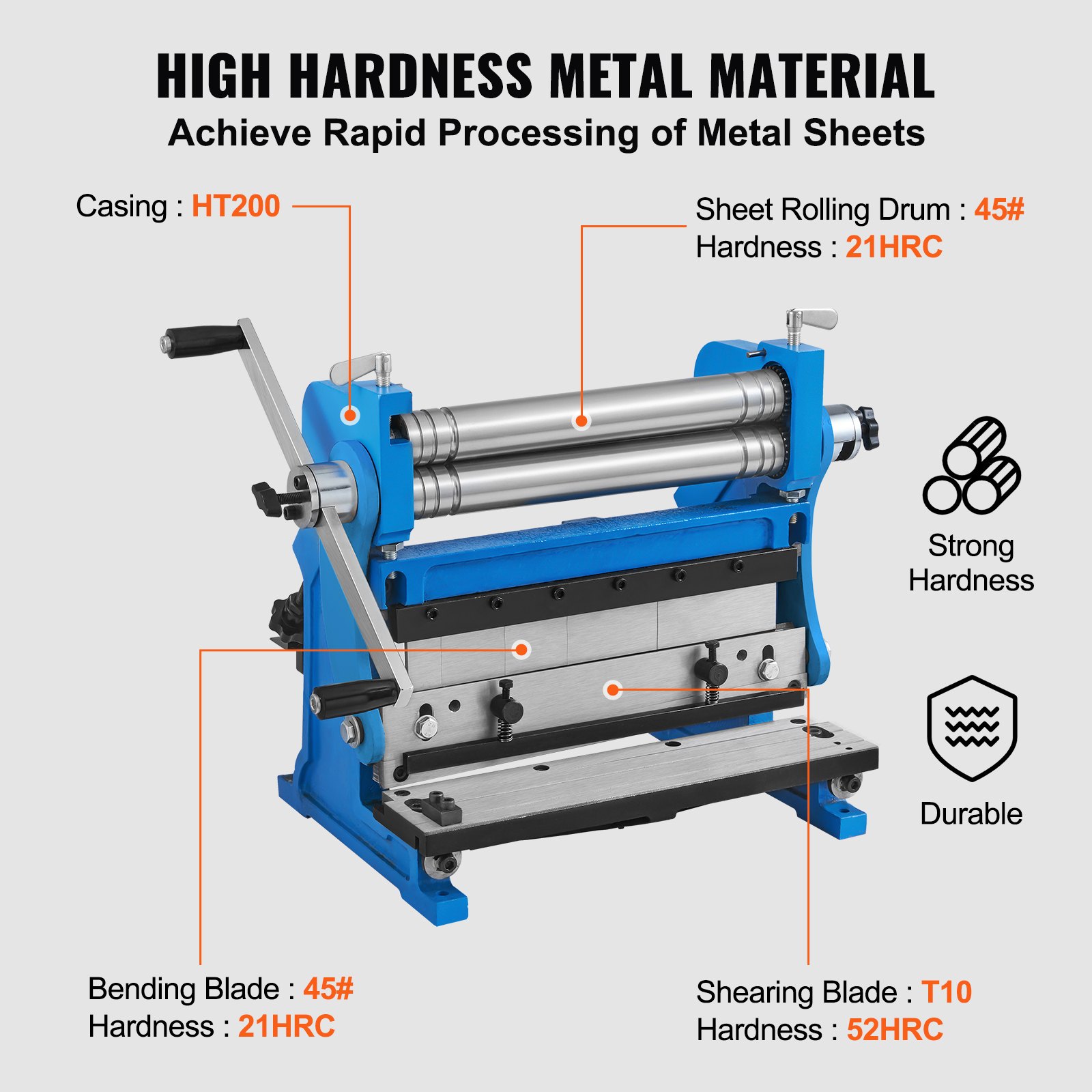

Crafted with care to be your enduring workhorse. This shear press brake is built with carefully selected materials to deliver optimal performance. Industrial-grade materials ensure durability and resistance to wear, ensuring a long lifespan.

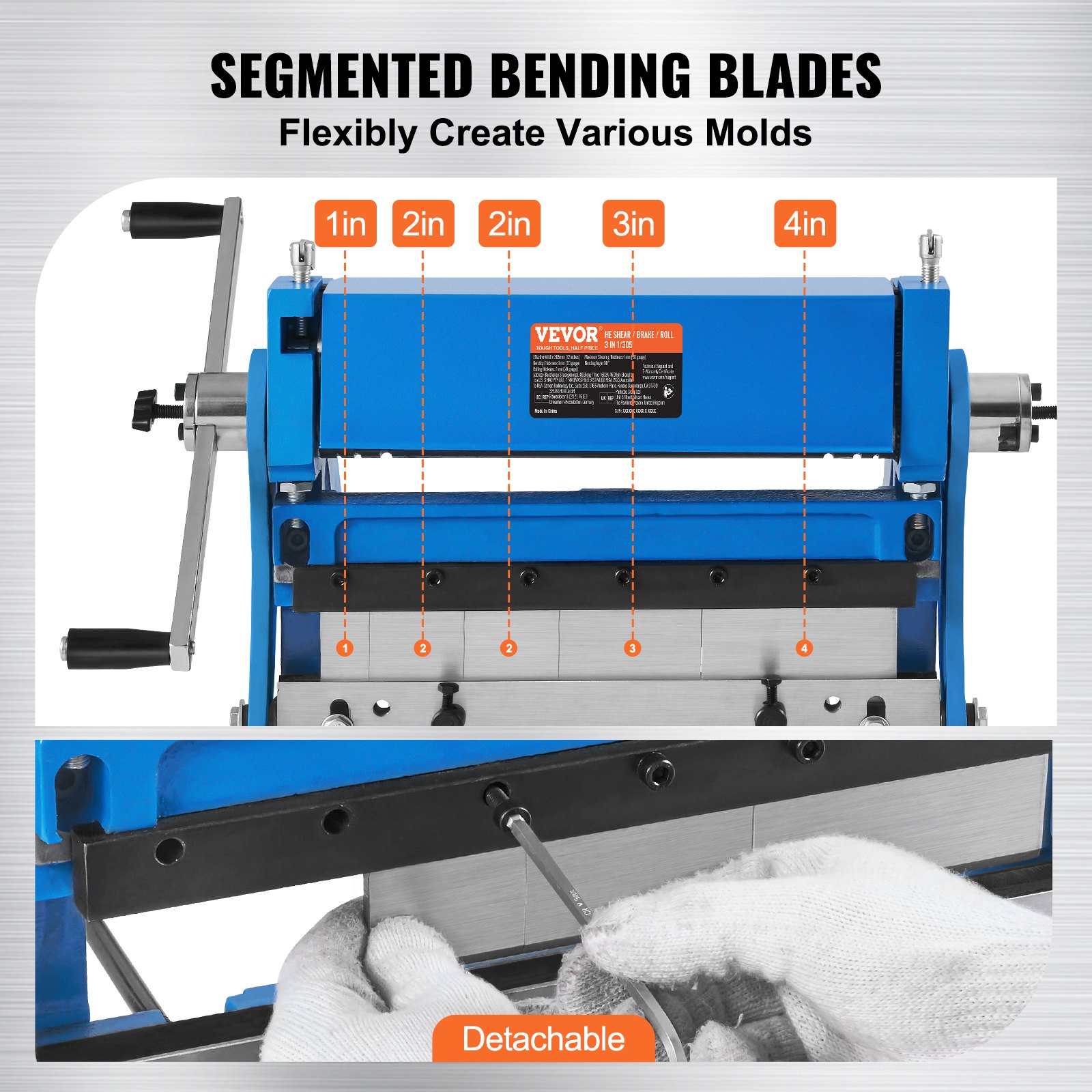

customizable VEVOR sheet metal brake with various size machining needs and flexible segmented bending.
customizable VEVOR sheet metal brake with various size machining needs and flexible segmented bending.
The upper bending tool and lower die module are constructed from sturdy 0.2-inch/5 mm thick #45 material. It comes with five different-sized blades: 1", 2 x 2", 3", and 4", ensuring effortless bending of low-carbon steel and aluminum.

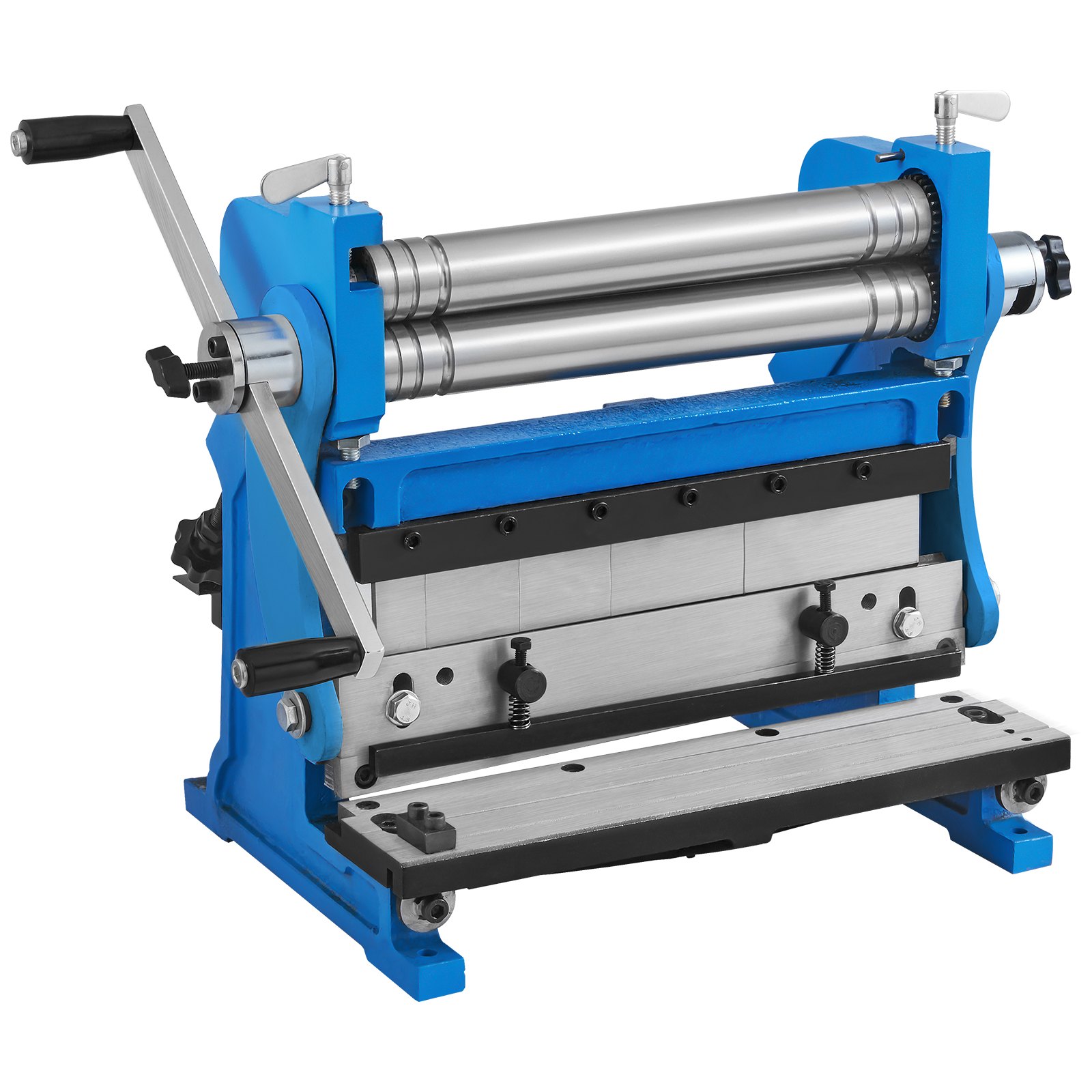

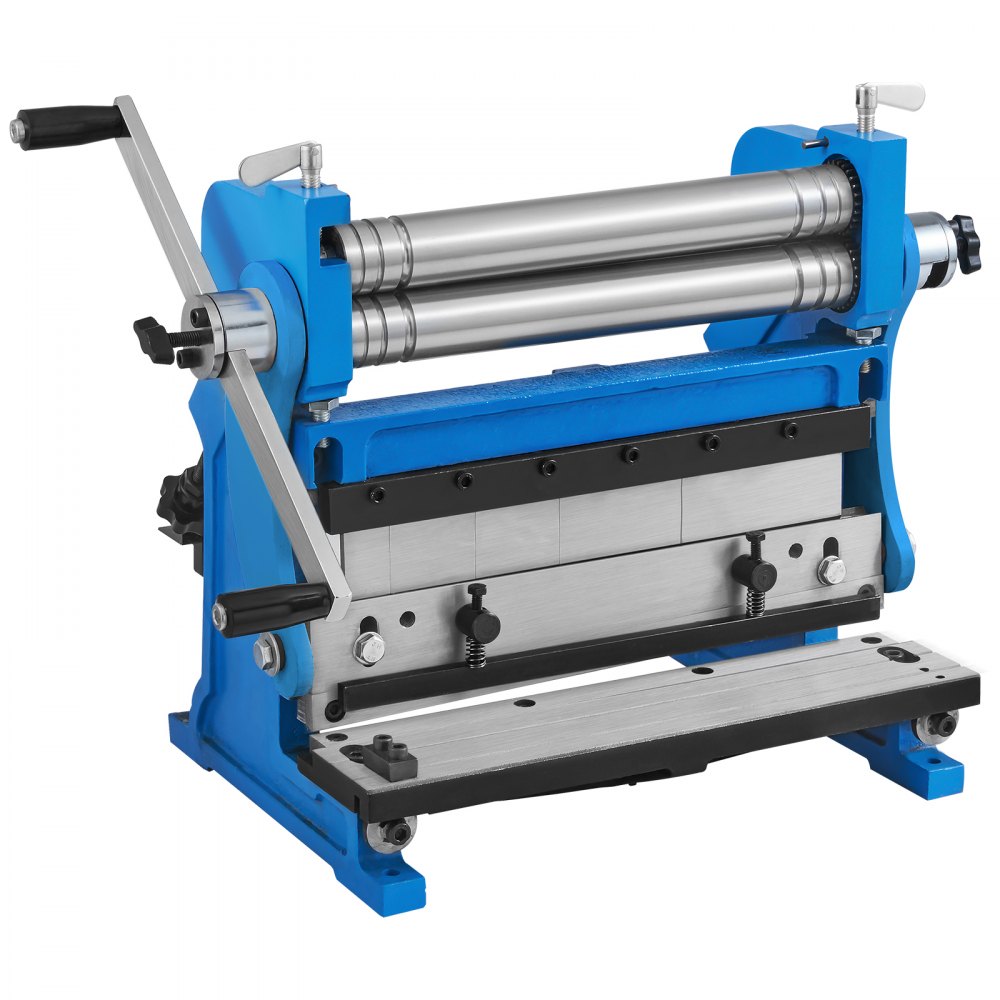

VEVOR sheet metal brake with adjustable rollers for crafting cylindrical and conical products.
VEVOR sheet metal brake with adjustable rollers for crafting cylindrical and conical products.

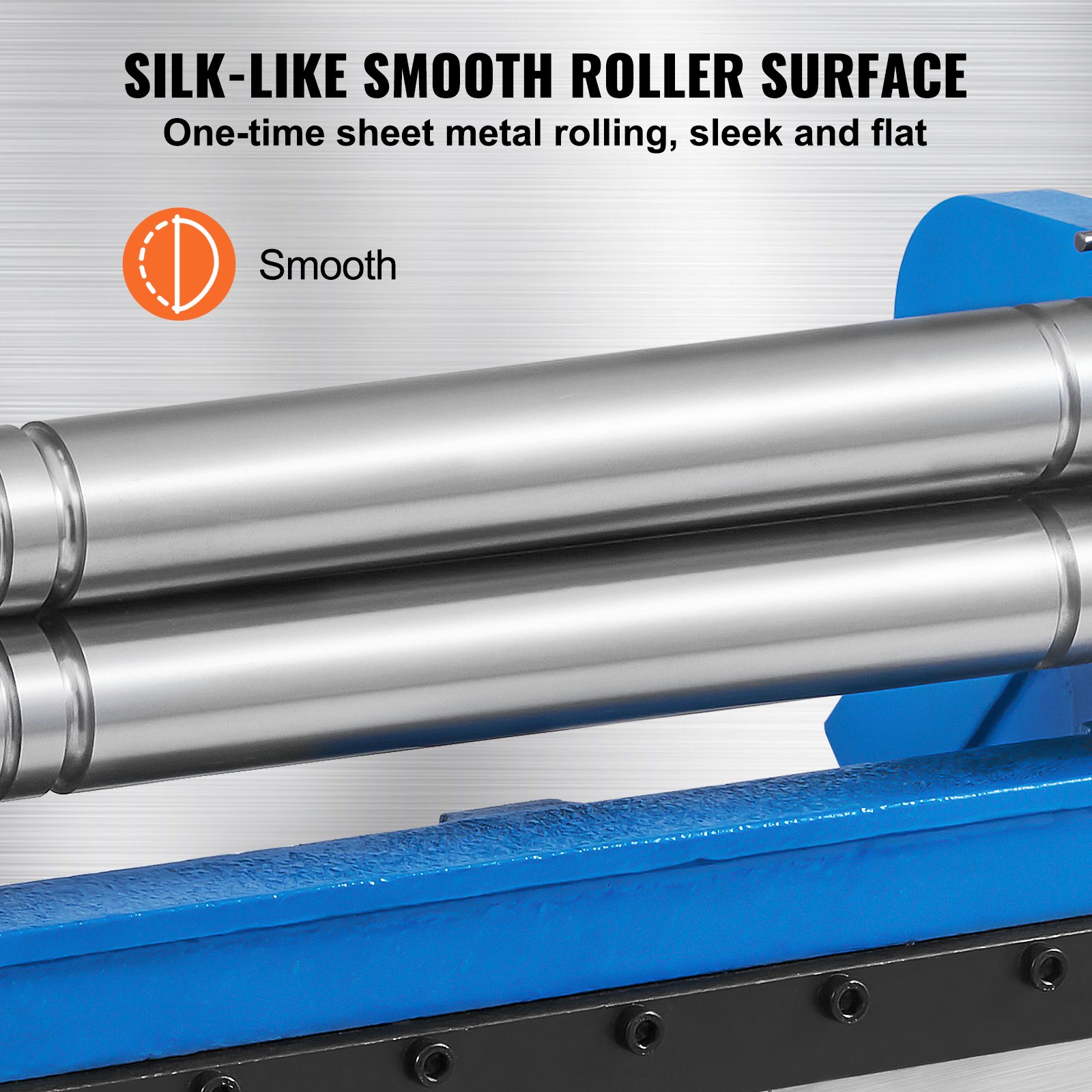

The roller of our sheet metal brake is equipped with precise curvature adjustment technology, allowing you to effortlessly create a wide array of cylindrical and tapered workpieces and result in flawlessly smooth sheet metal.

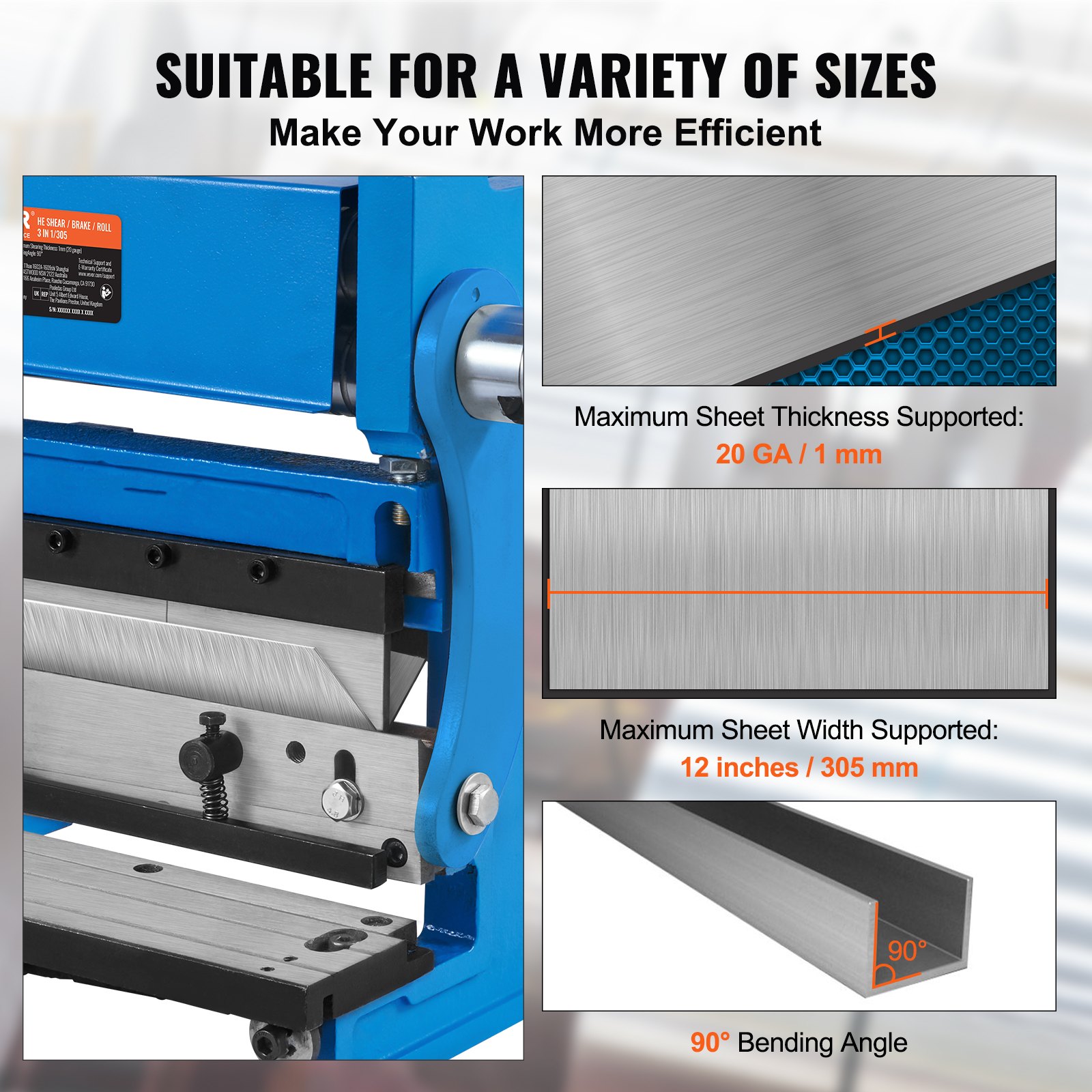

versatile VEVOR sheet metal brake for low carbon steel, stainless steel, and aluminum processing.
versatile VEVOR sheet metal brake for low carbon steel, stainless steel, and aluminum processing.
Our 3-in-1 combination sheet metal machine enables you to easily handle various sheet metal processing requirements and supports sheet materials with 20 GA / 1 mm Max. Thicknesses, 12 in /305 mm Max. Width and also offers a 90-degree bending angle.

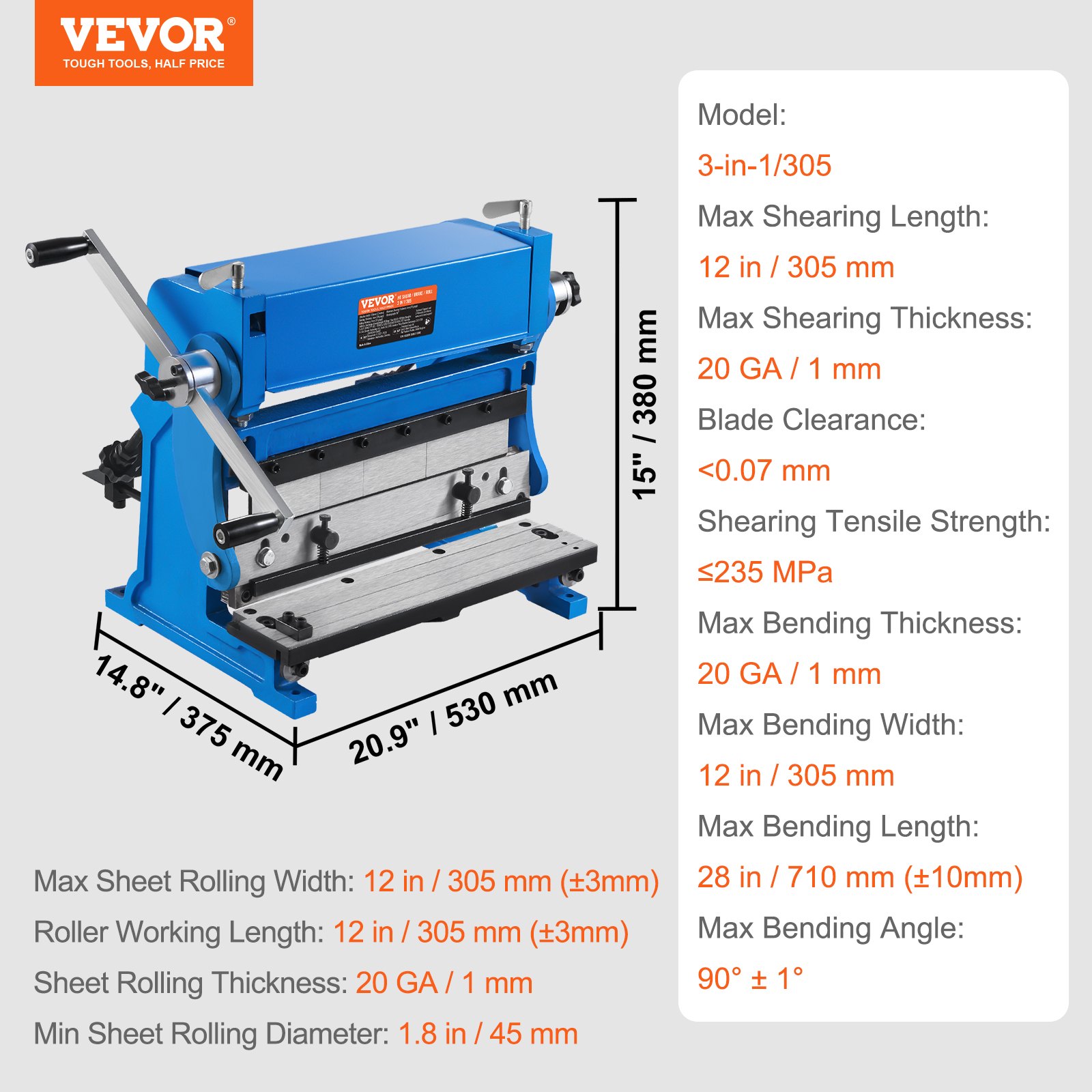

VEVOR sheet metal brake 3-in-1/305, blue machine with specifications for shearing, bending, and rolling.
VEVOR sheet metal brake 3-in-1/305, blue machine with specifications for shearing, bending, and rolling.

Sheet Metal Brake: Precision and Durability for 20-Gauge Capacity

This sheet metal brake is built for precision and durability. It handles 20-gauge metal with ease. The machine ensures accurate cuts and bends. Blade clearance is less than 0.07 mm for precise shearing. Shearing tensile strength is up to 235 MPa. This makes it suitable for various metalworking tasks. Strong construction includes Q235, 45#, and HT200 materials. So you can work on your projects without any trouble. Our strong construction provides long-lasting performance. You can use this machine for both hobbyists and professionals. We provide the best balance of strength with accuracy. The 12-inch shear brake roll machine is a reliable tool for any metal shop.


90° Max Bending Angle: Versatile Bending for Precision Projects

The VEVOR machine has a maximum bending angle of 90°. This versatility allows for precise bends. It ensures accurate results for various projects. You can use it for different projects with ease. Adjusting for different bending needs is also an option for detailed work. The 90-degree angle is ideal for creating clean, sharp bends. Adjustable pinch depth adds to its versatility. The set lock bolts stabilize the frame during flexion. So you get consistent and reliable performance. Our machine is perfect for both small crafts and larger metalworking tasks.


Easy Setup and Adjustment: Quick Start for Immediate Use

Setting up the VEVOR machine is easy. It comes well-packaged to prevent damage during transit. Some minor adjustments may be required after unboxing. This guarantees optimal performance straight from the packaging. You can easily tweak the machine for precise results. Included instructions help with the setup process. These adjustments are intuitive and simple. They allow for quick setup and immediate use. You can also benefit from the machine’s ease of use for beginners and advanced users alike.


Cuts Smoothly and Accurately: Ideal for Various Materials

The VEVOR machine cuts smoothly and accurately. It handles materials like aluminum and plastic sheets with ease. The sharp shear blade ensures clean cuts. This machine is ideal for precise projects. You can adjust it for different materials and thicknesses. So, it’s versatile for various tasks. It protects the cutting edge during transit. A few adjustments make sure it's ready for use. The machine provides both accuracy and smooth cuts, making it a reliable tool.


Heavy-Duty Construction: Sturdy and Reliable for Long-Term Use

This is built to last. It features heavy-duty construction. Materials include Q235, 45#, and HT200. These ensure durability and reliability. The sturdy build can handle regular use. The machine is compact yet robust. You can easily move it despite its substantial weight, which makes it stable during operation. The construction quality offers excellent value for the price. Our machine’s longevity makes this investment worth it.


Fast and Reliable Shearing: Efficient Metalworking Tool

The VEVOR machine shears metal efficiently. The design ensures fast and reliable shearing. The sharp blade ensures clean cuts. The shearing process is smooth and precise. This makes it ideal for quick metalworking tasks. Efficiency saves time and effort. You can work on both small projects and large projects. Reliable performance guarantees consistent results. The machine’s shearing capabilities make it a valuable tool in any metal shop.


Compact and Easy to Move: Ideal for Small Workshops

The VEVOR machine is compact and simple to move. Despite its heavy-duty construction, it’s manageable. The small footprint makes it ideal for small workshops. It’ll be simple to find space for this machine. Portability allows for flexible workspace arrangements. This makes it convenient for various tasks. No matter its size, the machine does not compromise performance. You can use it for any metalworking project or small workshop. Our compact design adds to its versatility and ease of use.


Good Overall Quality for the Price: Affordable and Reliable Tool

The VEVOR machine offers excellent value for the price. It’s an affordable tool without sacrificing quality. The machine’s construction and performance are reliable. They’re ideal for hobbyists and professionals alike. This affordable price makes it available for various budgets. Our machine is high-quality, so you can confidently work on metalworking projects. Cost-effective solution: You get long-lasting performance through this machine. The price is a cost-effective solution for metalwork needs. A combination of affordability and quality makes it worth buying.


See More

Specification

Item Model Number
3-in-1/305
Max Shearing Length
12 in / 305 mm
Max Shearing Thickness
20 GA / 1 mm
Blade Clearance
<0.07 mm
Shearing Tensile Strength
≤235 MPa
Max Bending Thickness
20 GA / 1 mm
Max Bending Width
12 in / 305 mm
Max Bending Length
28 in / 710 mm (±10mm)
Max Bending Angle
90° ± 1°
Max Sheet Rolling Width
12 in / 305 mm (±3mm)
Roller Working Length
12 in / 305 mm (±3mm)
Sheet Rolling Thickness
20 GA / 1 mm
Min Sheet Rolling Diameter
1.8 in / 45 mm
Surface Treatment and Color
Painted
Primary Materials
Q235, 45#, HT200
Net Weight
90 pounds / 41 kg
Product Dimensions
20.9 x 14.8 x 15 in / 530 x 375 x 380 mm
Shearing Blade
Thickness
Upper Bending Tool
Straight Blade, Thickness
Lower Bending Die
V-shaped Die, Thickness
Sheet Rolling Drum
Diameter
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
29 Review(s)
Clear filters
Jon Pincus Jon Pincus
3 in one shear, brake, and roll
Description in the manual are similar but not the same as the item. Directions for assembly and adjustments are not easy to follow. Pictures of parts do not match the parts. On the machine! Some of the paint on the machine is chipped and scraped off. Disappointing on a brand new tooll!
Customer Service Reply: We are very sorry, about your product problems, please contact our after-sales team by email, and provide relevant pictures or videos. Our after-sales team will try their best to help you solve the problem of the product. Please refer to the contact information in the link below. https://www.vevor.com/pages/contact-us
Bob G Bob G
I can recommend this tool for the advanced hobbyist.
The tool arrived well packaged and undamaged. I had a small boat project waiting for it, and the tool arrived needing no immediate adjustment. The sheer worked perfectly on 0.050" aluminum. The slip roller needs some patience, but I think that is typical, especially when making non uniform curves. I can recommend this tool for the advanced hobbyist.
Michael Robinson Michael Robinson
Upon reassembling everything
Upon reassembling everything, it becomes very apparent where all of the adjustments are. I was able to fine tune it and it works great. I tested it with 22 gauge steel and it handled it. I’m currently using 24 gauge aluminum and it cuts, bends and rolls like butter. I’m just doing some arts and crafts projects and this thing works perfectly for me.
Troy Troy
Overall, great
Overall, great, little machine for the price. Easy to put together, needs a bit of clean up, works nice for my needs.
Chris chandler Chris chandler
It comes covered with oil to prevent rust in transit.
It comes covered with oil to prevent rust in transit. A few paper towels and it's clean and shiny. Don't crank the crank until the blade is adjusted correctly or you may damage the cutting edge. Have fun.
Chris Chris
Works great!
Used to cut 1mm aluminum and plastic sheets. Just needed a little adjustment to the perpendicularity of the guide.
Rockmole Rockmole
It cuts like a champ.
This is my birthday present a day early (wasn't supposed to get it until next week). It shear cuts, rolls and bends. Got it half price off Amazon as an open box (everything was there). The bonus... 2 inch black EVA foam the tool came packaged in. It cuts like a champ... very worth the money for light gauge metals. Very accurate.
Robert Robert
Thank you for fast delivery.
Thank you for fast delivery. Husband says it really does the job. Stay safe.
PatriotsFabrication PatriotsFabrication
Good overall quality for the price.
I still need to learn how to avoid over bending and under bending. I was under the impression that the bend angle would be fixed at 90 degrees max, but either it takes some practice or I’m just doing it wrong. Could use more instructions. Shearing works very well. Good overall quality for the price.
Amish Militant Amish Militant
For me it’s great
For me it’s great, but I don’t cut metal. I use it to cut printed circuit boards. It cuts smoothly. I also don’t use the rollers. For a metal shop I’m not a good reference. It is small and fairly easy to move, but is heavy.
