VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine
TSZCBS50A12MIPNMTV3

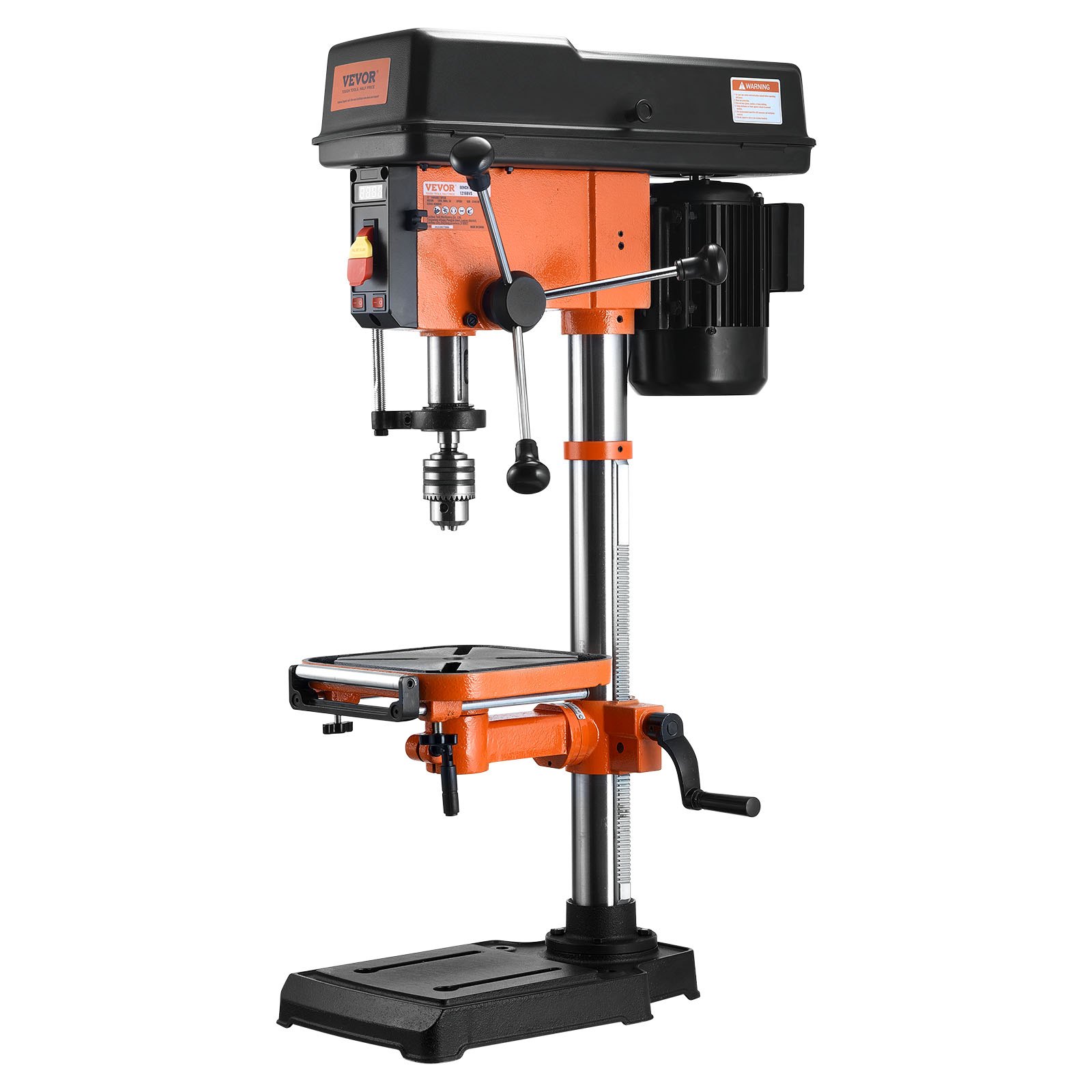

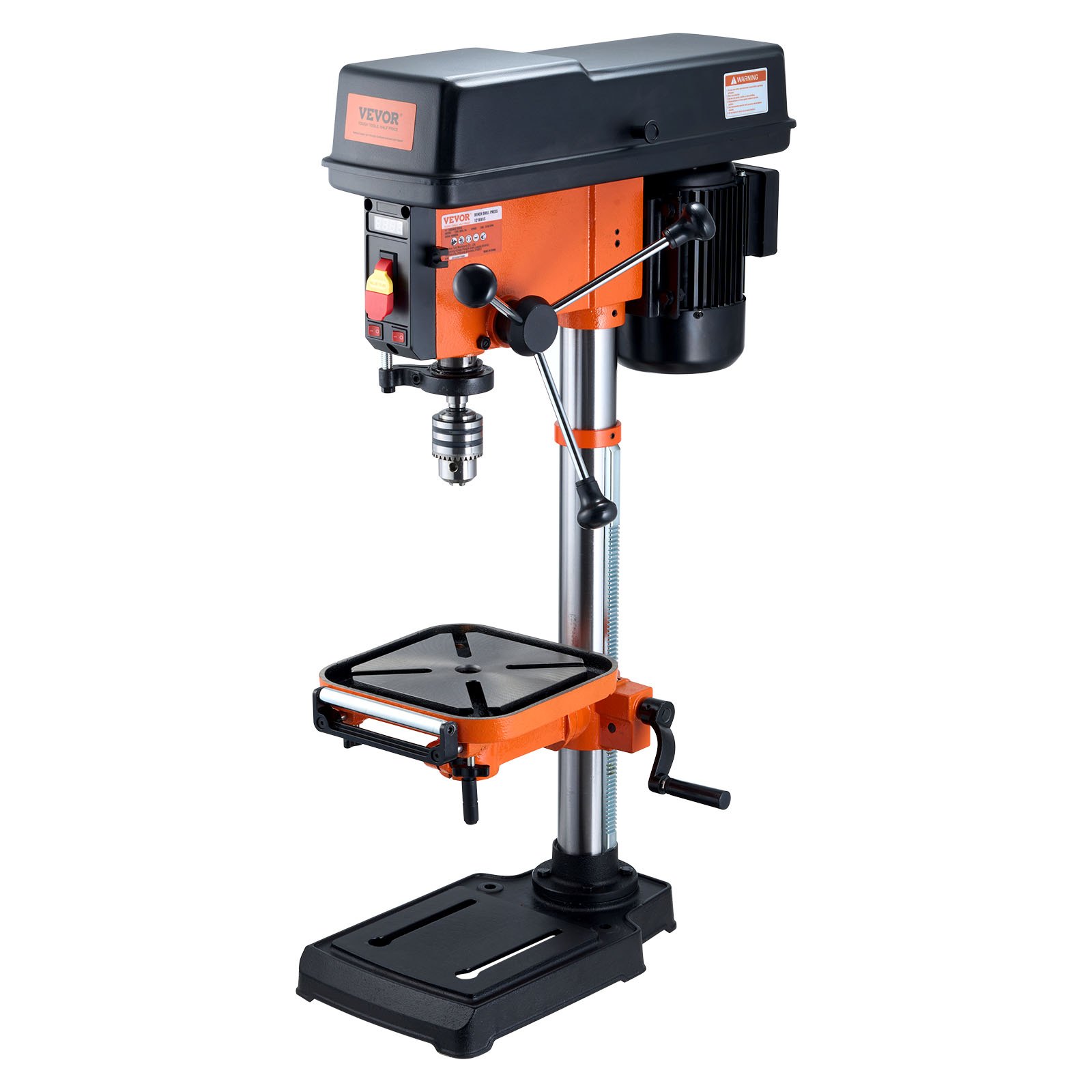

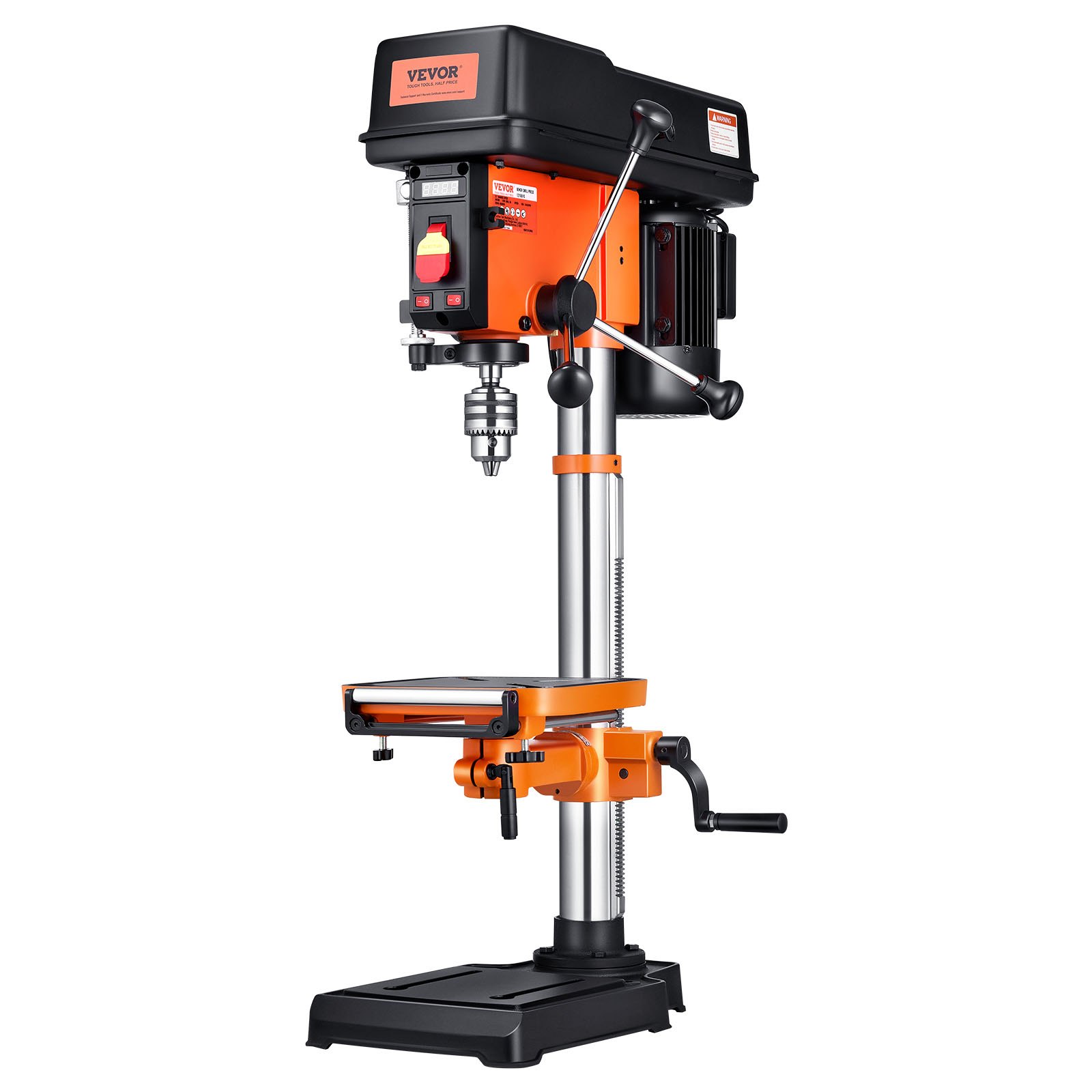

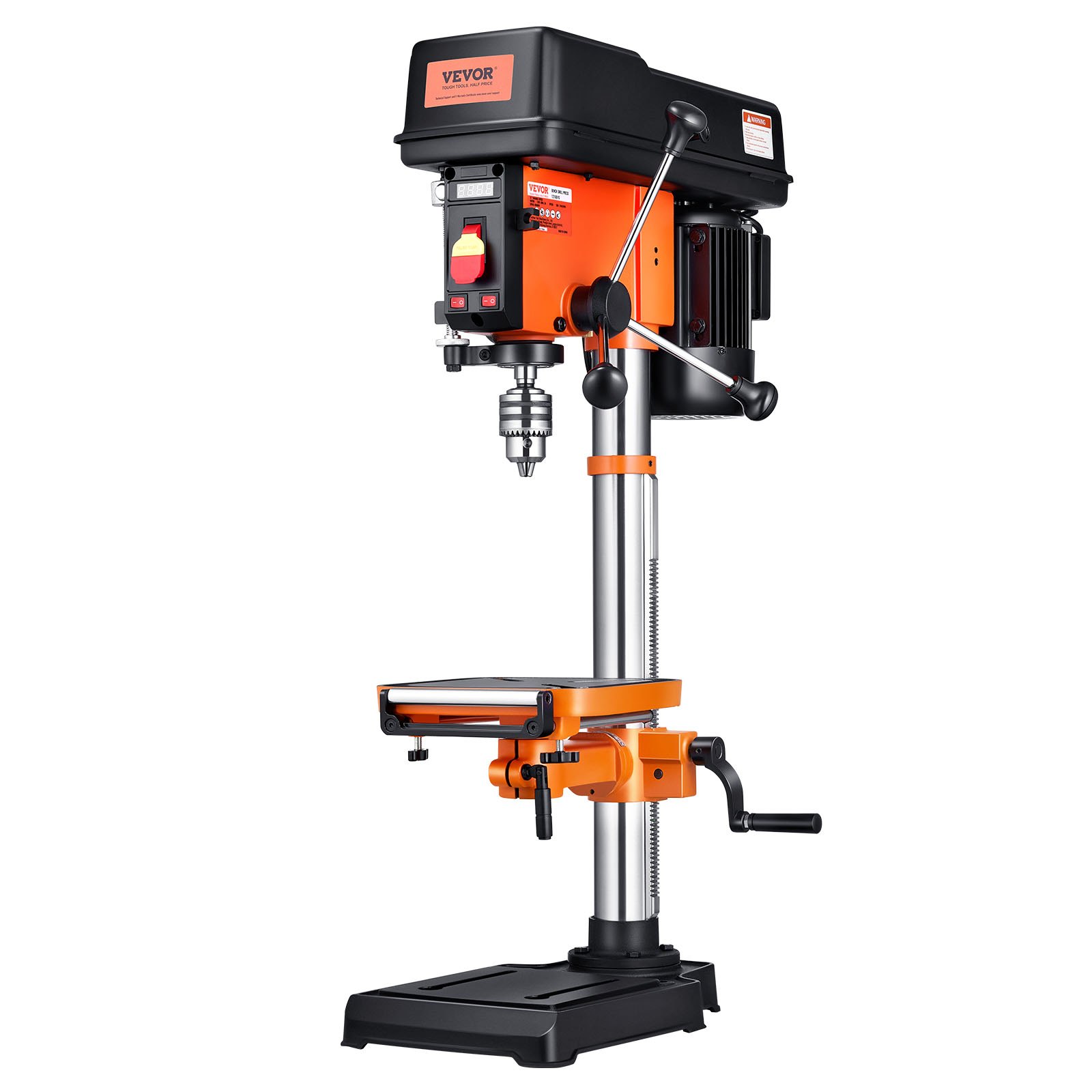

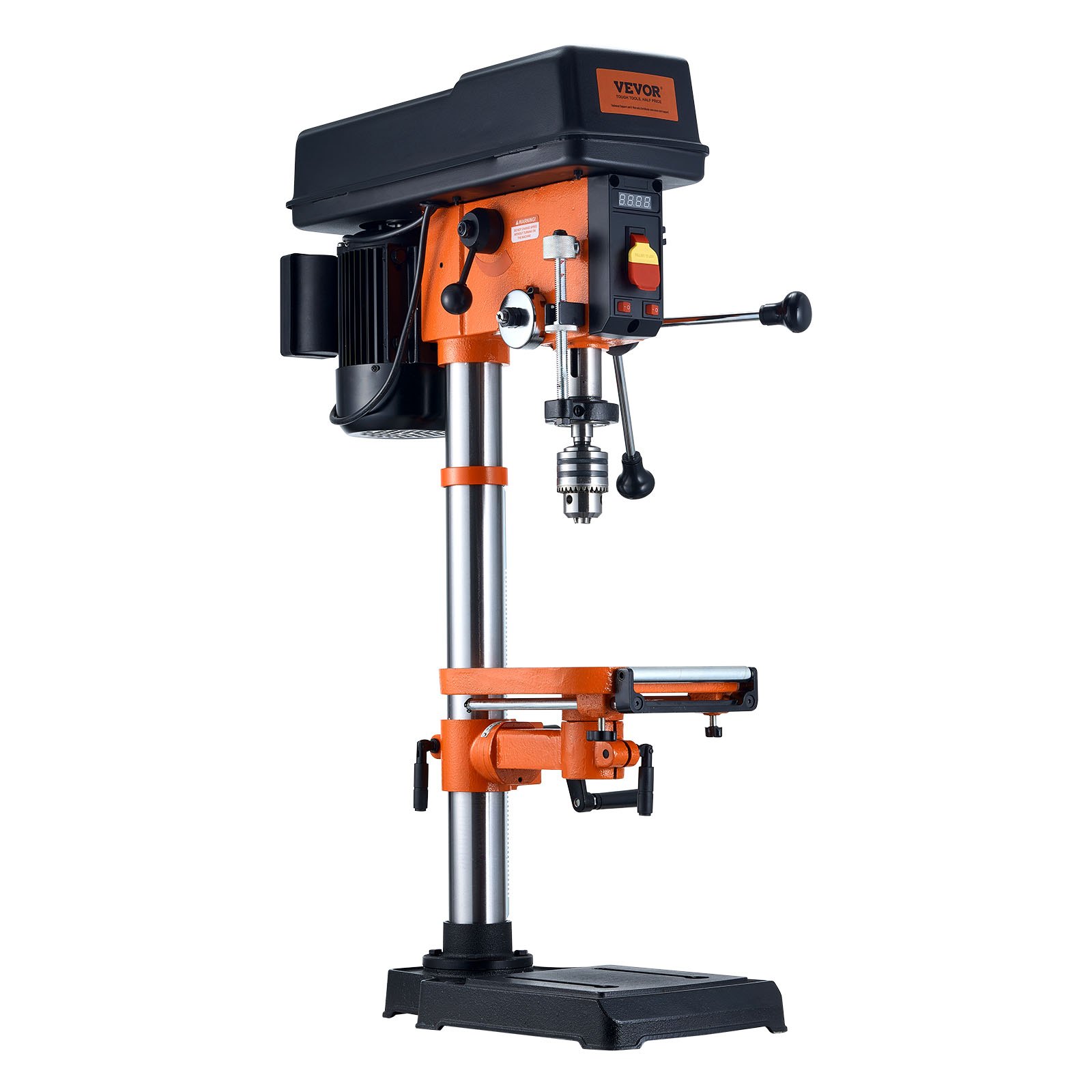

VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

304.8 mm

  • 254 mm
  • 304.8 mm
  • 203.2mm

About this item

  • Exceptional Drilling Performance: Equipped with a powerful induction motor delivering up to 750W of output, this benchtop drill press ensures enhanced power and stability during extended operations. Enjoy consistent performance even during prolonged use.
  • Continuously Variable Speed Adjustment: The speed adjustment lever allows for stepless control of the bench drill press speed, ranging from 440 RPM to 2580 RPM, with speeds clearly displayed on a digital screen. Tackle any material or complex task with ease!

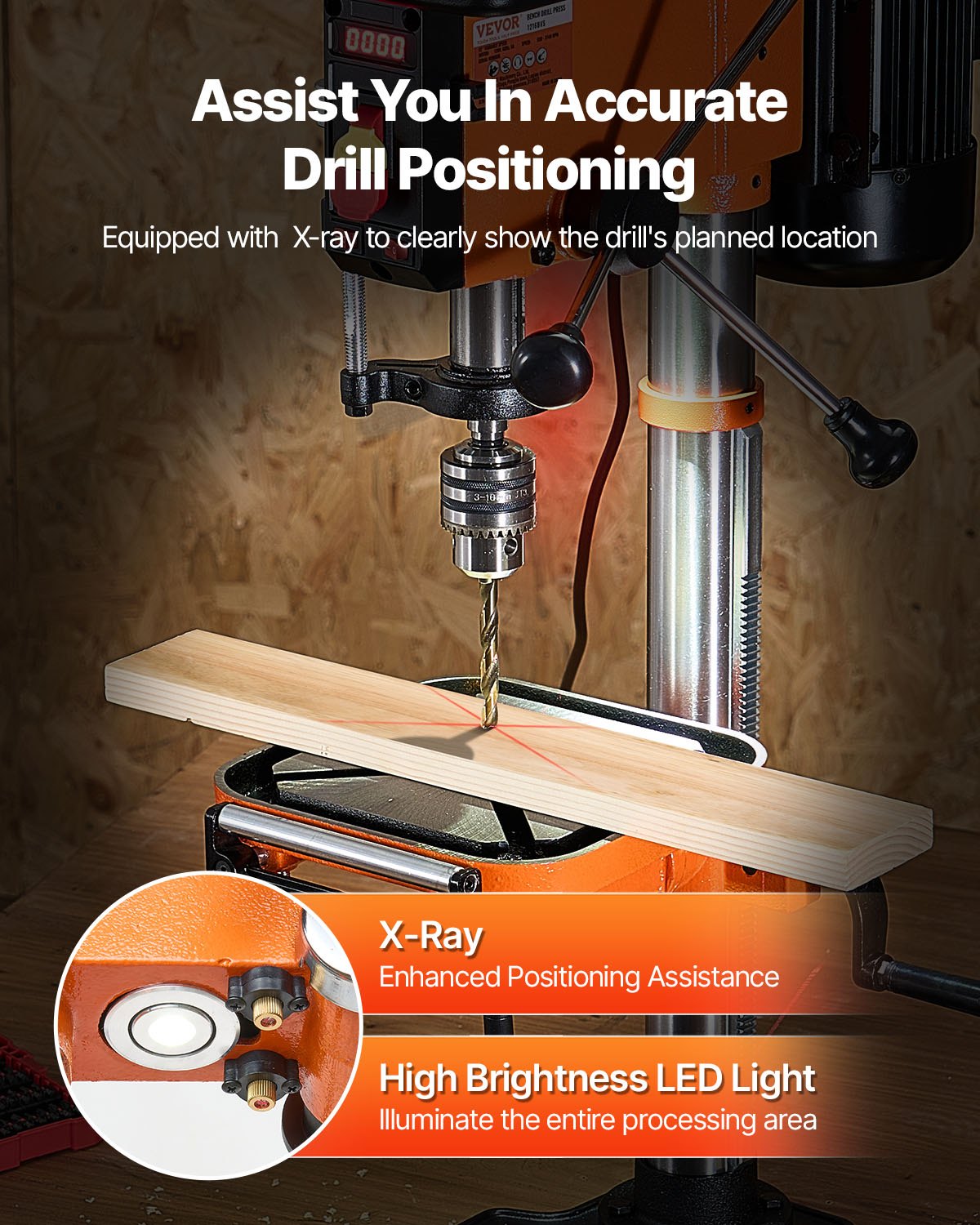

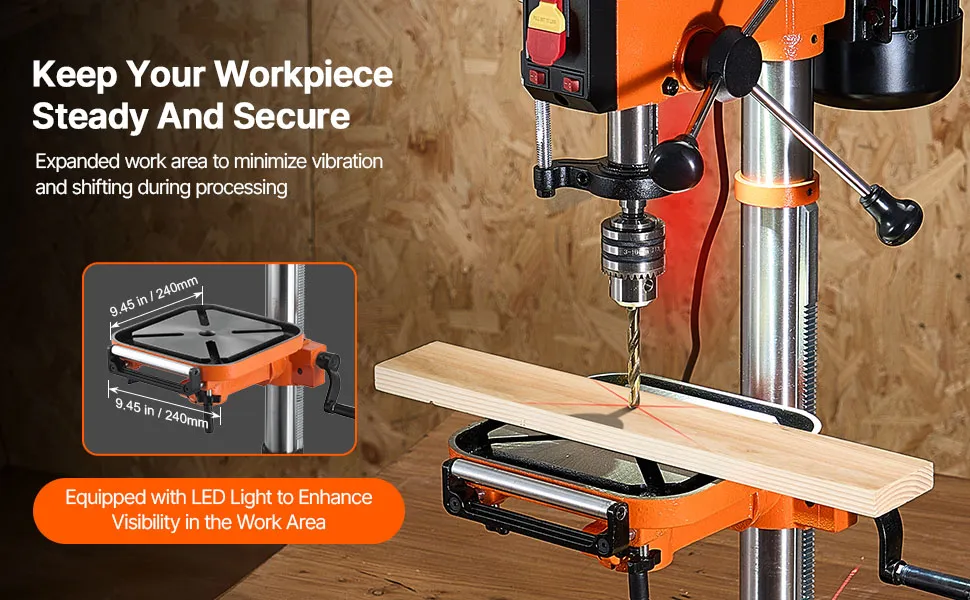

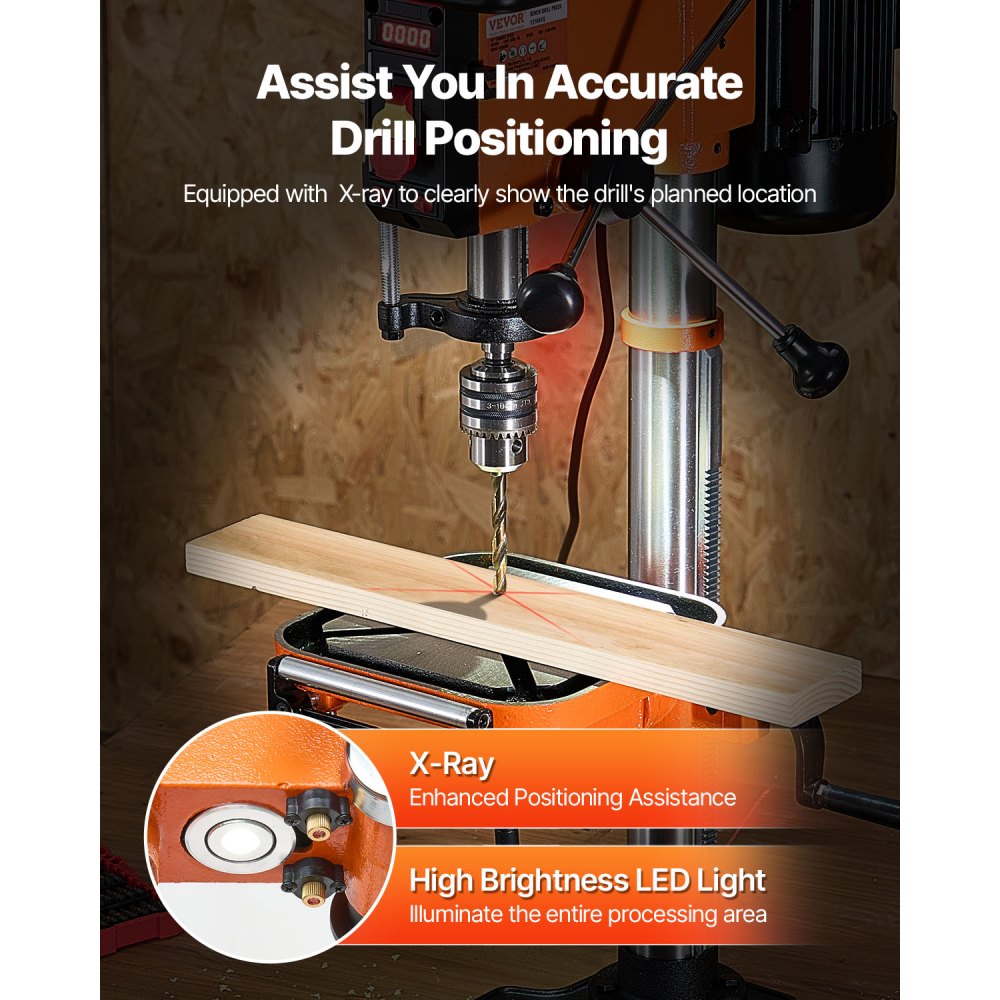

  • LED Lighting & X-Ray Positioning: Never miss a detail with the our LED work light and X-ray positioning system. Our benchtop drill press ensures you have a clear view of your work area, even in low-light conditions. The X-ray positioning system helps you accurately locate drilling spots for precision work.

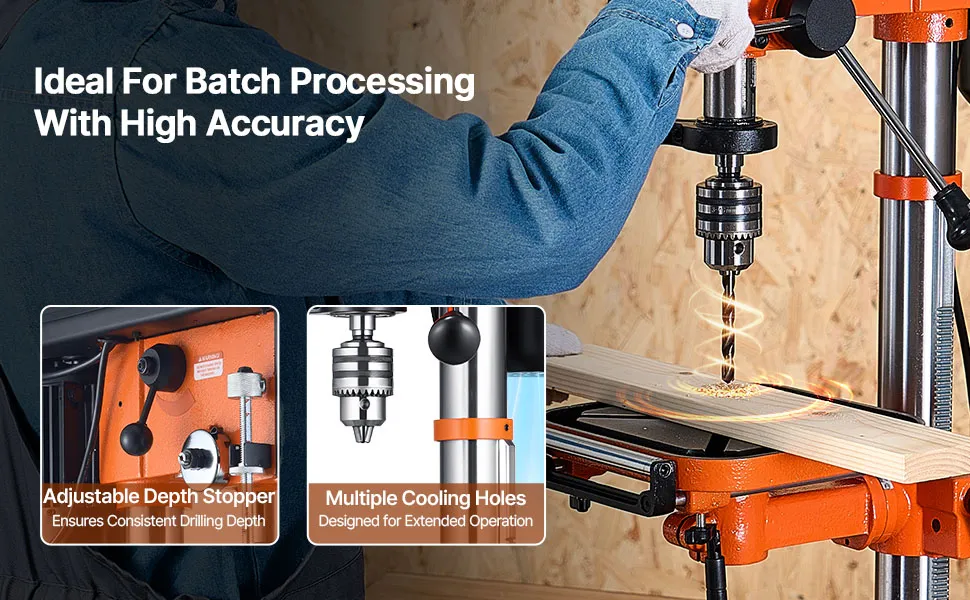

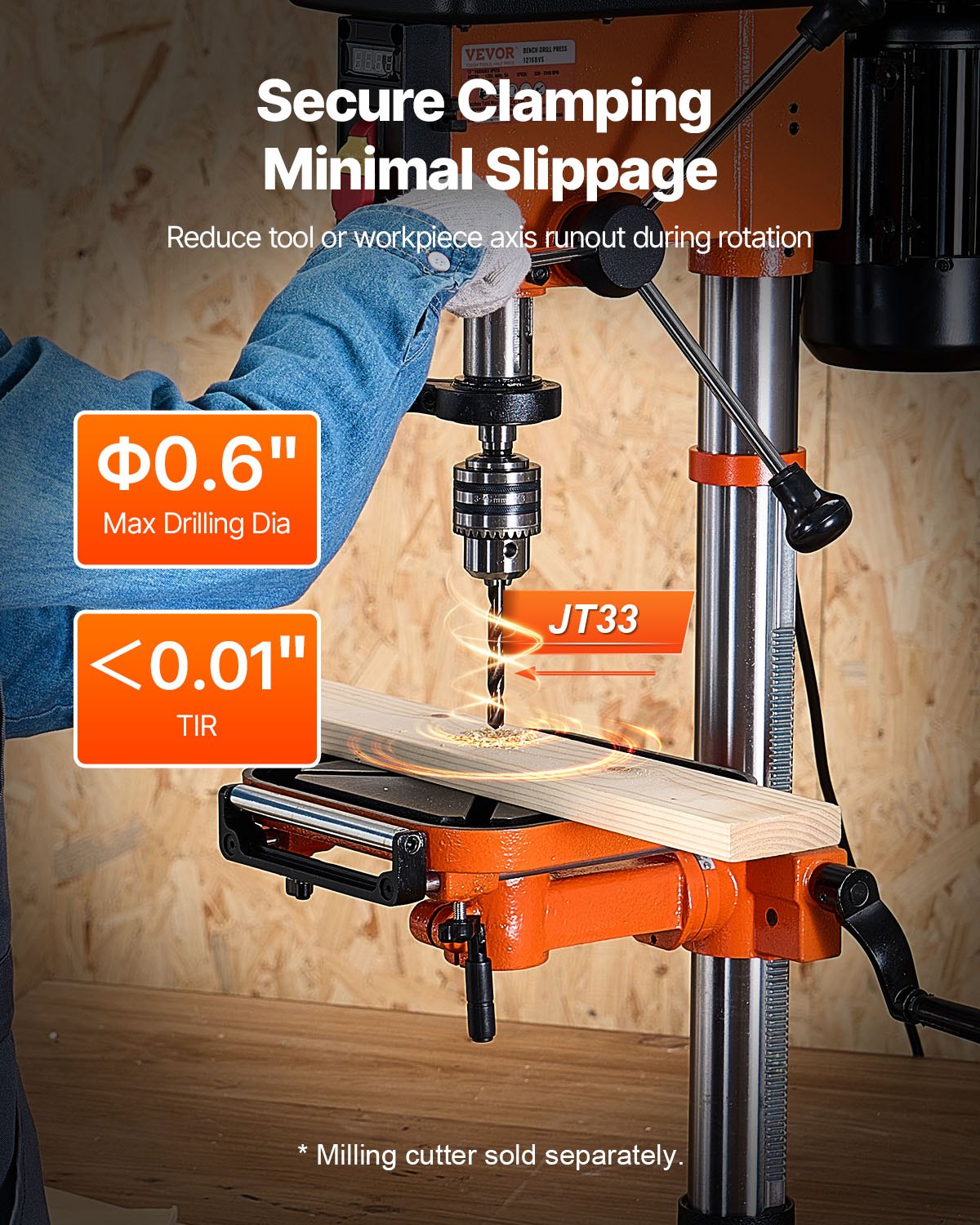

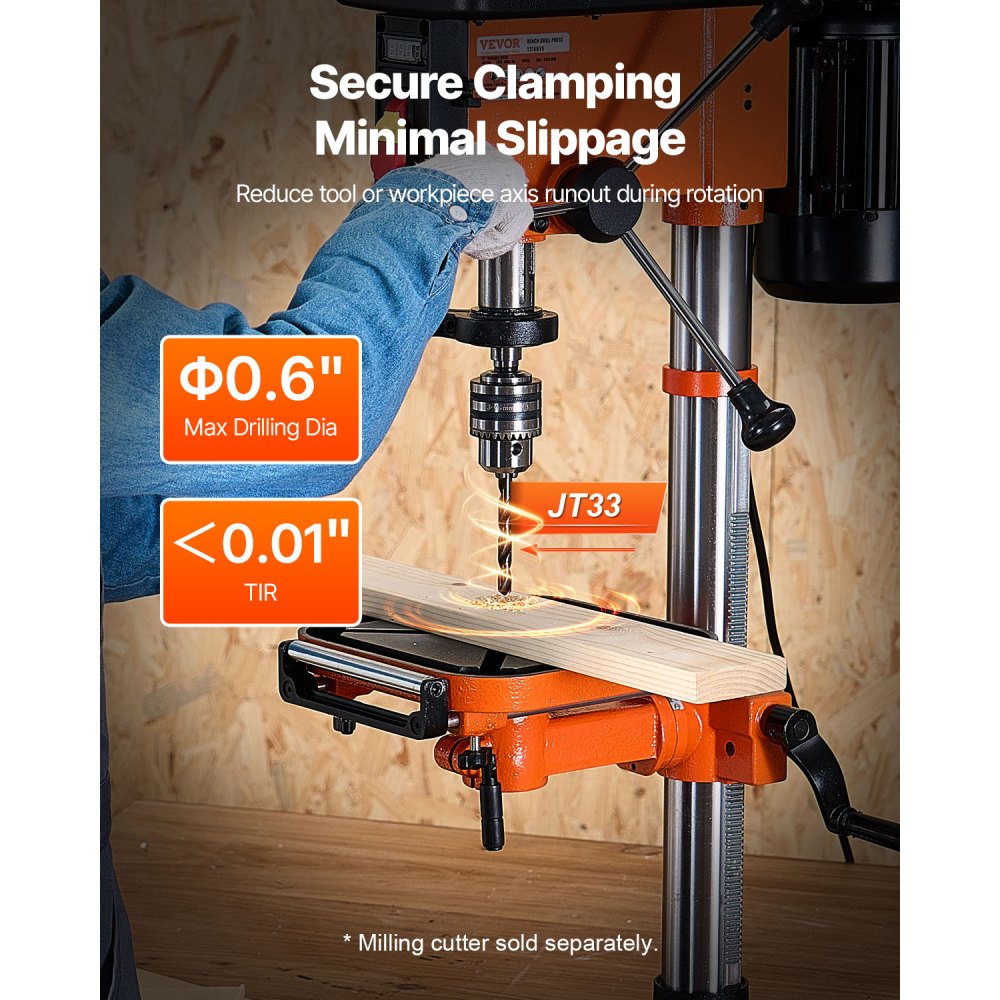

  • Exacting Drilling Precision: Benefit from minimal radial runout and a maximum drill diameter of 16 mm. With an adjustable depth stop and 80 mm spindle travel, you can customize drilling depths for every project, ensuring unparalleled precision.

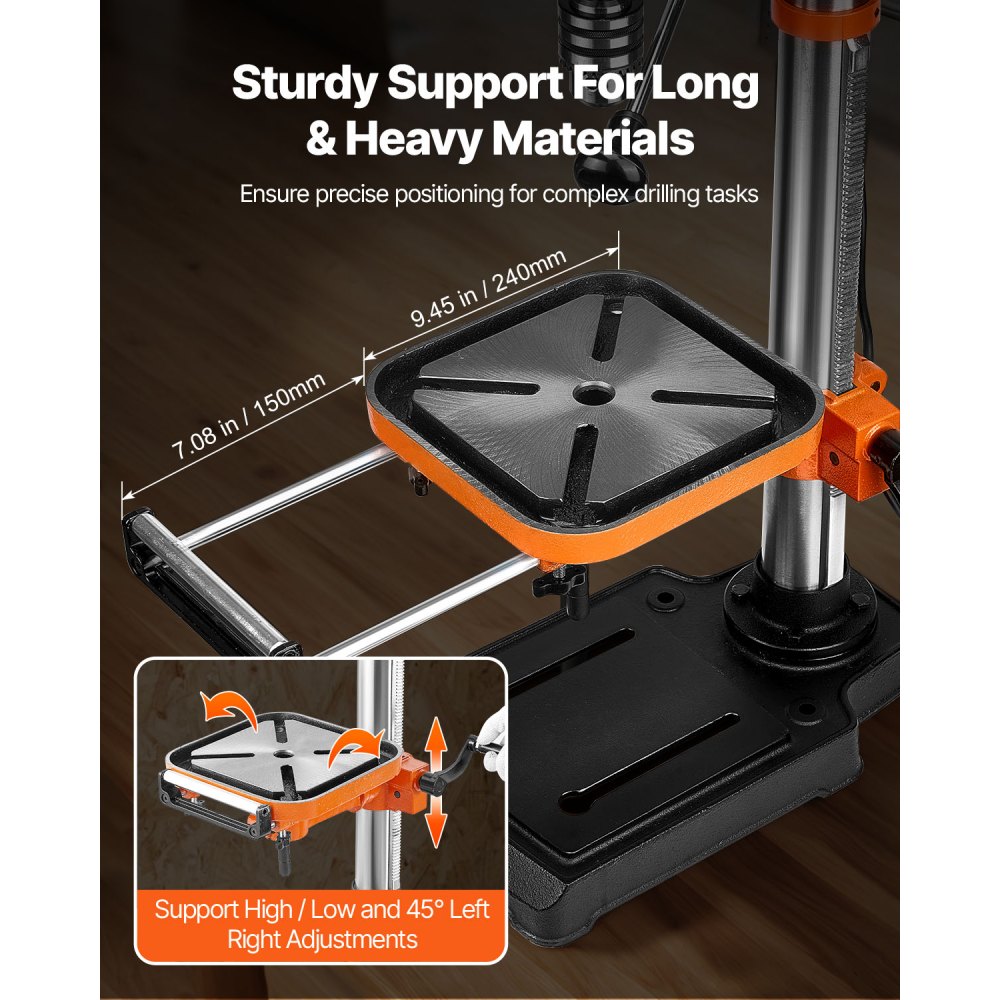

  • Adjustable Worktable: The thickened metal worktable supports a 150 mm extension and offers height and 45° angle adjustments. Enjoy the flexibility and stability you need for complex drilling tasks, making this drill press an essential tool for any DIY enthusiast.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 304.8 mm Benchtop Drill Press 750W 440-2580RPM Bench Drilling Machine
304.8 mm
Key Features
Powerful Motor
Equipped with a full copper induction motor, this benchtop drill press delivers a maximum output of 750W, providing ample power to easily drill through various materials and meet all your machining and DIY needs.

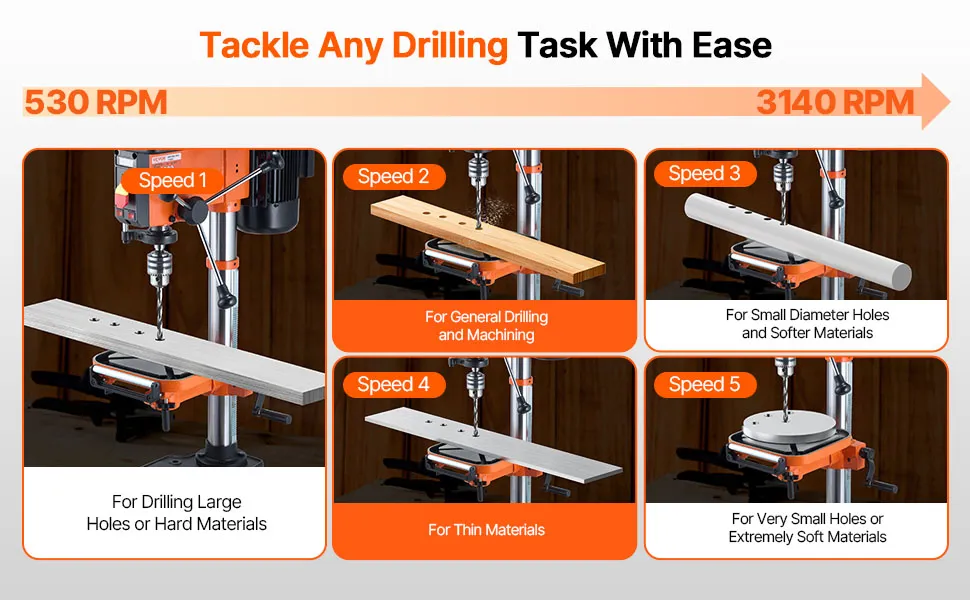

Versatile Speed Adjustment
Adjust the speed via the control lever on the bench drill press body to accommodate different materials and workpiece sizes. This ensures optimal RPM for enhanced processing efficiency and precision.
Stable Worktable
Constructed with thickened metal for excellent stability, the worktable supports height and 45° angle adjustments, allowing for precise positioning and handling of complex drilling tasks.

Specification

Item Model Number
DP12VL
Swing
12 in/304.8 mm
Maximum Power
750W
Speed
440-2580RPM
Main Material
Q235, HT150
Chuck Capacity
≤16 mm
Net Weight
80.5 lbs/36.5 kg
Product Dimensions (L x W x H)
20.9 x 13.4 x 37.4 in/530 x 340 x 950 mm
Questions and Answers
3 Questions
Can it run on 240 volts for Australia
It can run on 240 volts for Australia .
By vevor
What size/type chuck arbor is supplied? MT2?
The Chuck taper is B16.
By vevor
What depth can it drill to?
It can drill to 80mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
58 Review(s)
Clear filters
Boars Rock Boars Rock
Functional drill
Drill press works as expected, easy to mount to slide out on back of truck for mobile use. All parts provided readily.
Gene Taylor Gene Taylor
Mr
This is a very heavy duty drill press. As always, The deliveries are always timely. I will continue to shop Vevor products, the quality is always upper end
Steven Ross Steven Ross
Needs setup; Great for home or hobby
Setting up out of the box: The user needs to attach the press tower to the powder-coated cast-iron base (using your own wrench), the cast and machined-flat table to the press tower, and the drive assembly to the top of the tower. Once this is complete, the user needs to clean the mating surfaces of the chuck and spindle, then use a hammer to attach the chuck onto the spindle. I did this, tested the trueness of my chuck assembly, and discovered some wobble. A couple more medium whacks with the hammer, and the chuck was set nice and true. The table on mine was not squared to the drill bit axis. I used a long Philips screwdriver stuck in the chuck, handle side down, with a small carpenter's square, to get the left-to-right (X-axis) alignment correct. The indicators for degrees of tilt on the table should not be trusted out of the box. Luckily, the table is square front to back (Y-axis), as this is not adjustable on this model. I then adjusted the pulleys to the lowest speed, easily done with no tools. My impressions: Once set up, I was able to rattle off several small home and hobby projects that had been held up due to needing good, 90-degree holes made, including counter-sinking, using the chuck stop on the left side of the press. Get yourself some small C-clamps for holding work steady on the table (different hardnesses in the wood grain can can make pull your project out of alignment) and supply your own work light to shine on the project area, as one is not included with this model. *For the money* this is a good little beginner drill press that has met and, in some cases exceeded, my expectations. If you want more bells, whistles and convenience, spend more on another more expensive model. For occasional home and hobby uses, this is a great little press.
Christina Hughes Christina Hughes
Intuitive set up and operation.
It's heavy for its size and that's a plus. First use was flawless - drilling a 1/32" hole to a depth of 1/8" to modify and repair a camera part. One more similar repair and the drill press will have paid for itself.
Zachary Bennett Zachary Bennett
Compact yet effective!
This drill press performs exceptionally well. I primarily utilize it for constructing birdhouses, but I have no doubt it excels in other applications as well. The assembly process was quick, taking only 5 to 10 minutes, and the instructions were straightforward and easy to follow. I would highly recommend this drill press to anyone engaged in small woodworking projects as a hobby.
Diane Powell Diane Powell
Precision and Power in a Compact Design!"
Constructed with a durable cast iron base, this drill press ensures stability and reduces vibration, resulting in more accurate and controlled drilling. The 5-speed settings cater to various materials and project requirements, offering flexibility and precision. The easy-to-adjust depth stop and spindle travel enhance the overall user experience, allowing for consistent drilling depths. Assembly is a breeze with clear instructions, and the black and orange color scheme adds a touch of style to the workspace. The adjustable worktable and beveling feature accommodate a range of angles and project demands, proving the versatility of this drill press. While the 8-inch size may not be suitable for industrial-scale projects, it is ideal for hobbyists and those with limited space.
Sean Hughes Sean Hughes
Quality
Well made easy to assemble and change speeds.
Julia Rogers Julia Rogers
Outstanding value!
Haven't cleared a space for permanent mounting so the wife agreed to let me use her dining room table! I'm using two panel meters and two SPST illuminated switches so holes needed drilling. Fortunately the panel switches included a hole saw so all I had to do was buy the appropriate size saw for the meters! After determining how best to clamp the work, I enlisted the wife to help hold the laser panel while I torqued it all up. As you can see, the drill press performed FLAWLESSLY! Out of the box and 10 minutes later? JOB DONE! Excellent value and quality!
Vincent Russell Vincent Russell
Great buy
A good little drill press I have drilled several large holes with forshner bits and a hole saw. Looks like it is well built and will last a long time. I have not drilled any metal yet and that’s not what I bought it for so I imagine it would drill thin steel but if you are expecting miracles for a hundred dollars you better buy something much larger. It will be perfect for my needs. I added a ply wood base to clamp it to my bench and to the table for a larger surface so I could use my drum sander.
Amy Price Amy Price
Use it for knives and wood work
Works like it's supposed to and hasn't had any issues
