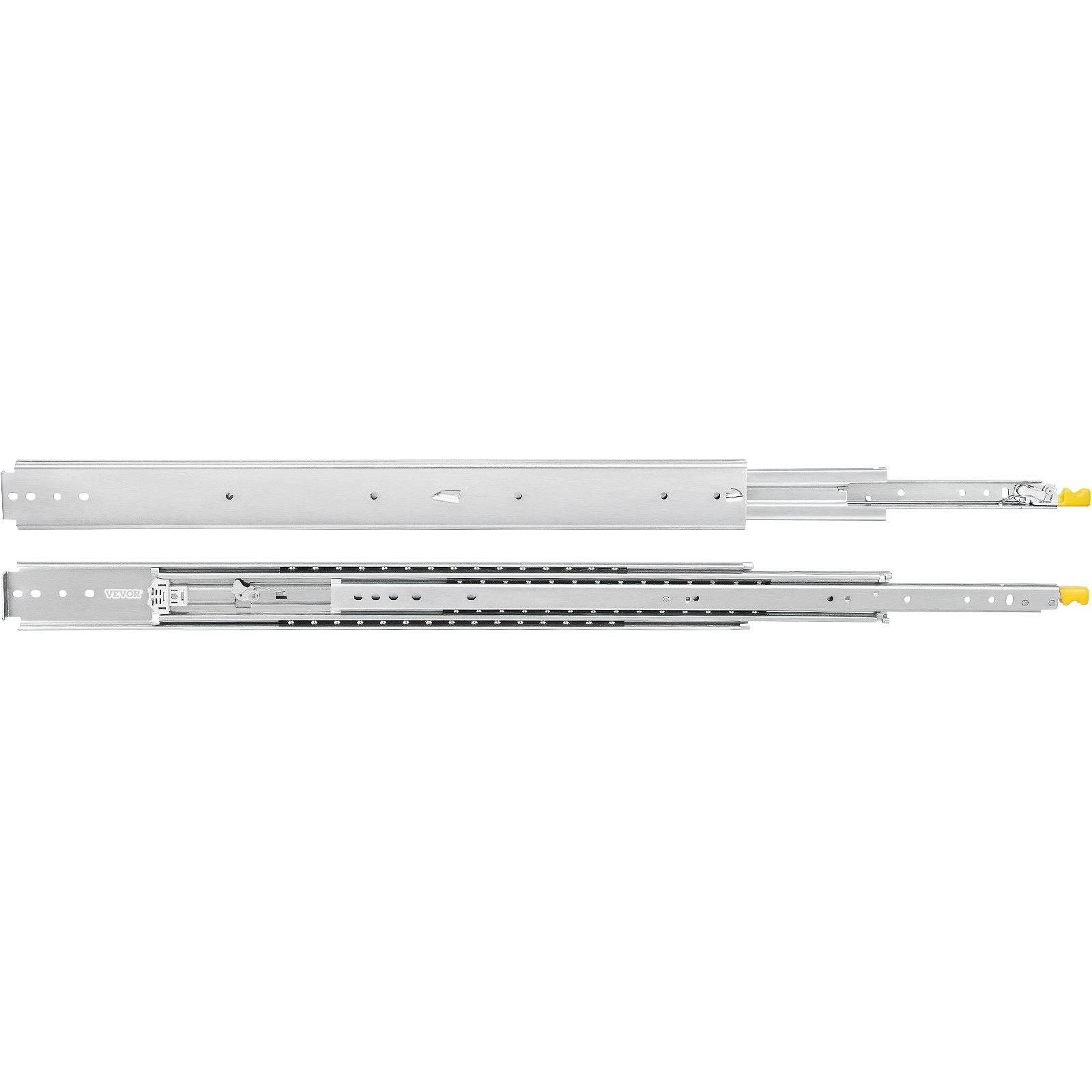

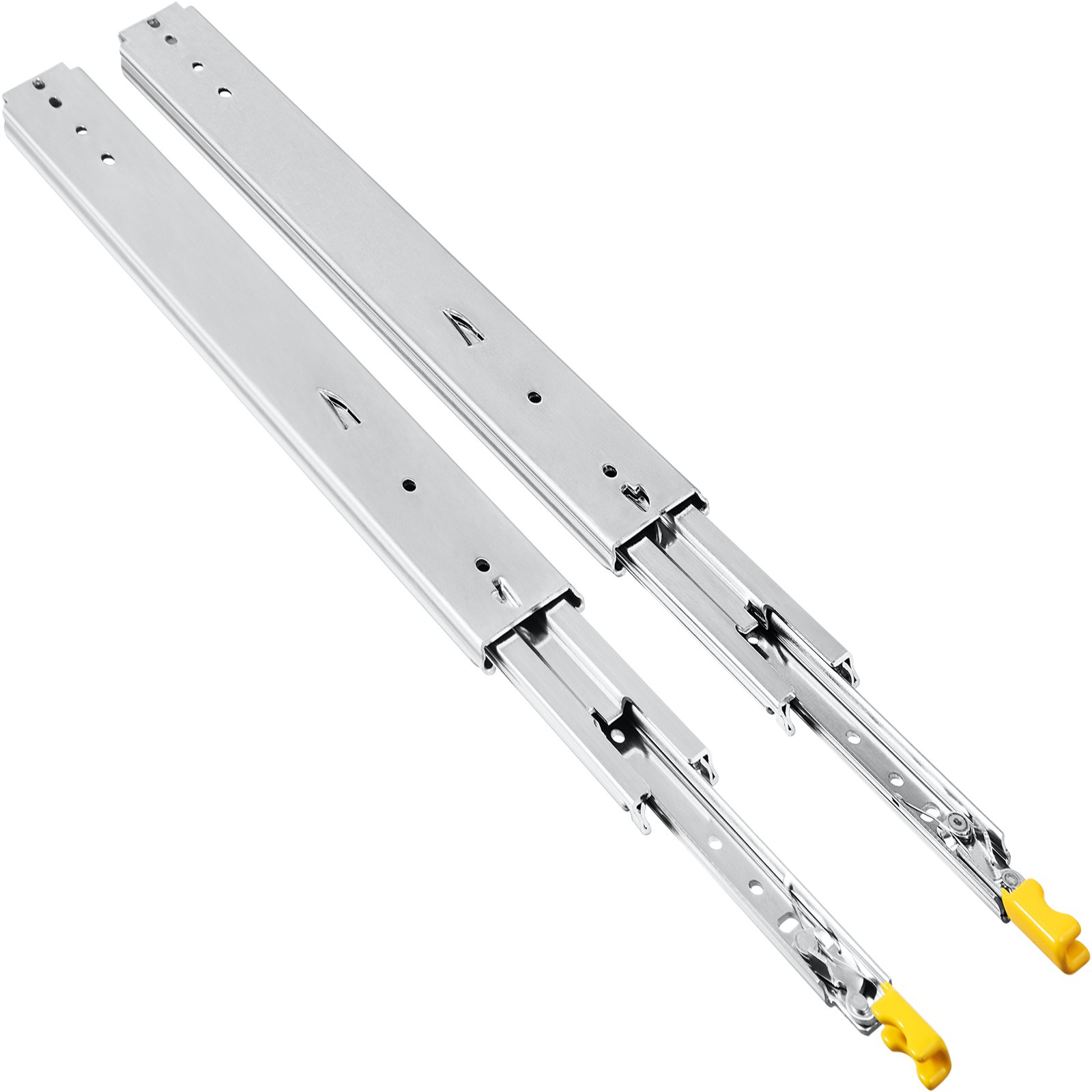

VEVOR drawer slides with screws, showing extended and folded positions. VEVOR drawer slides with three-section full extension for diverse storage solutions. VEVOR drawer slides with lock function, smooth steel ball-bearing action, nylon buffer. cold-rolled steel VEVOR drawer slides with 500 lbs load capacity and 19mm thickness. VEVOR drawer slides selection guide with dimensions and installation states. effortless installation guide for VEVOR drawer slides with illustrations and instructions. VEVOR drawer slides with detailed dimensions and product specifications in yellow box.
SDSSSCTD38500K9U4V0

VEVOR Drawer Slides with Lock Drawer Slide 96.5cm Ball Bear 225kg Full Extension

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

38 inch

  • 28 inch
  • 36 inch
  • 38 inch

About this item

  • Three-Section Drawer Slides: You can get 1 pair of drawer slides: 38"/ 96.5 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. A 3-fold full extension design, allows the entire drawer to be extended and reached. A great helper to maximally utilize your drawer's space(fully closed length: 38", fully extended length: 76"/ 193 cm).
  • Sturdy Steel & 500 lbs Bearing: Constructed with 0.75"/ 19 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 500 lbs/ 225 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The zinc-plated surface stays the extension drawer slide be rust-proof and abrasion-proof, ensuring lifetime use. The slides can be applied to goods shelves, cabinets, the industrial drawers, RVs, trucks, vending machines, etc.
  • Softly & Quietly Slide with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Different from those without locks or only one lock, our dual lock design provides more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.
  • Choose the Right Size: Full extension drawer slides are compatible with most major drawer and cabinet types. How to determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should not be less than or equal to drawer depth.
  • Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as industrial drawers, commercial equipment, and retrofitted vehicles.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Drawer Slides with Lock Drawer Slide 96.5cm Ball Bear 225kg Full Extension
38 inch
VEVOR drawer slides: red toolbox with organized tools and 500 lbs bearing lock device.

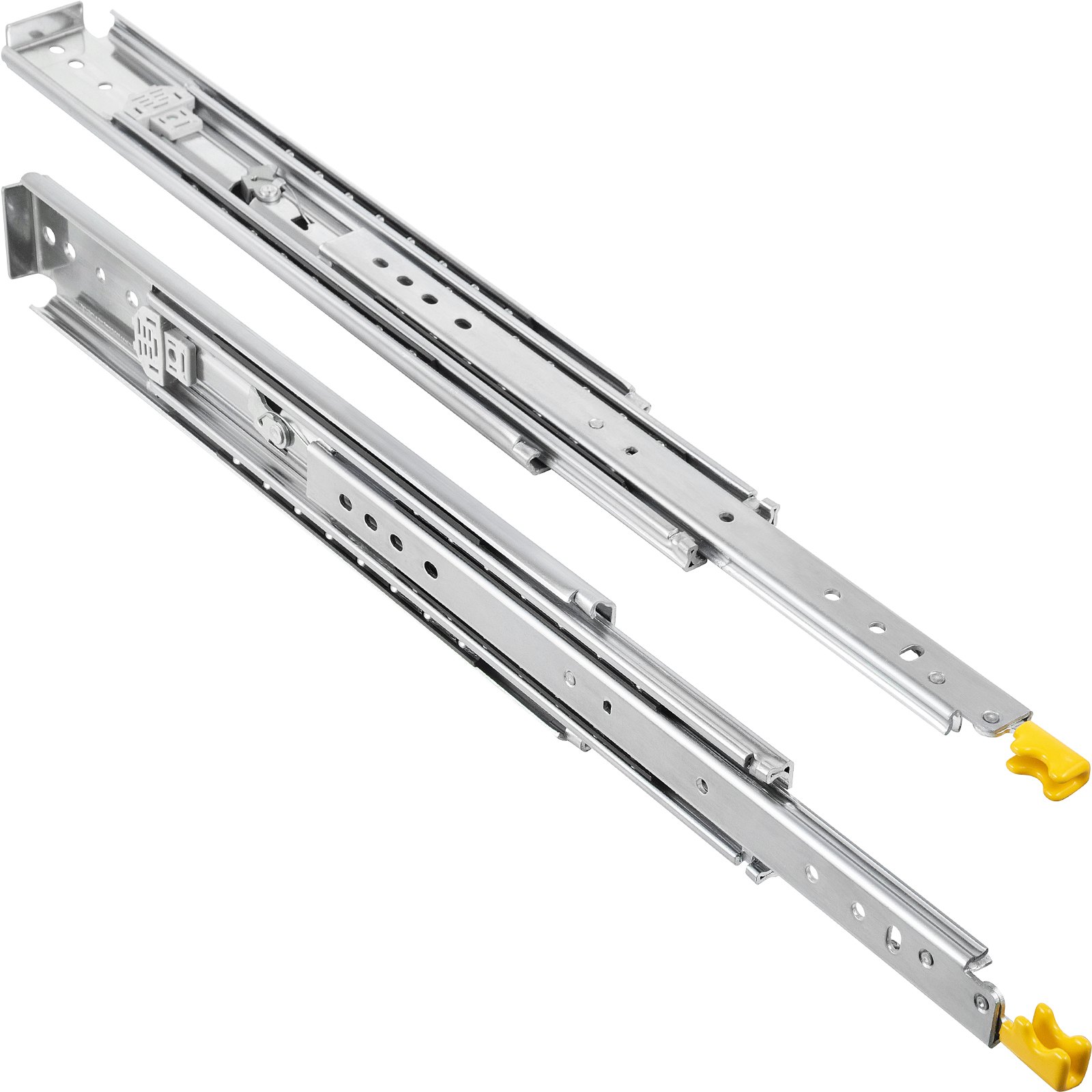

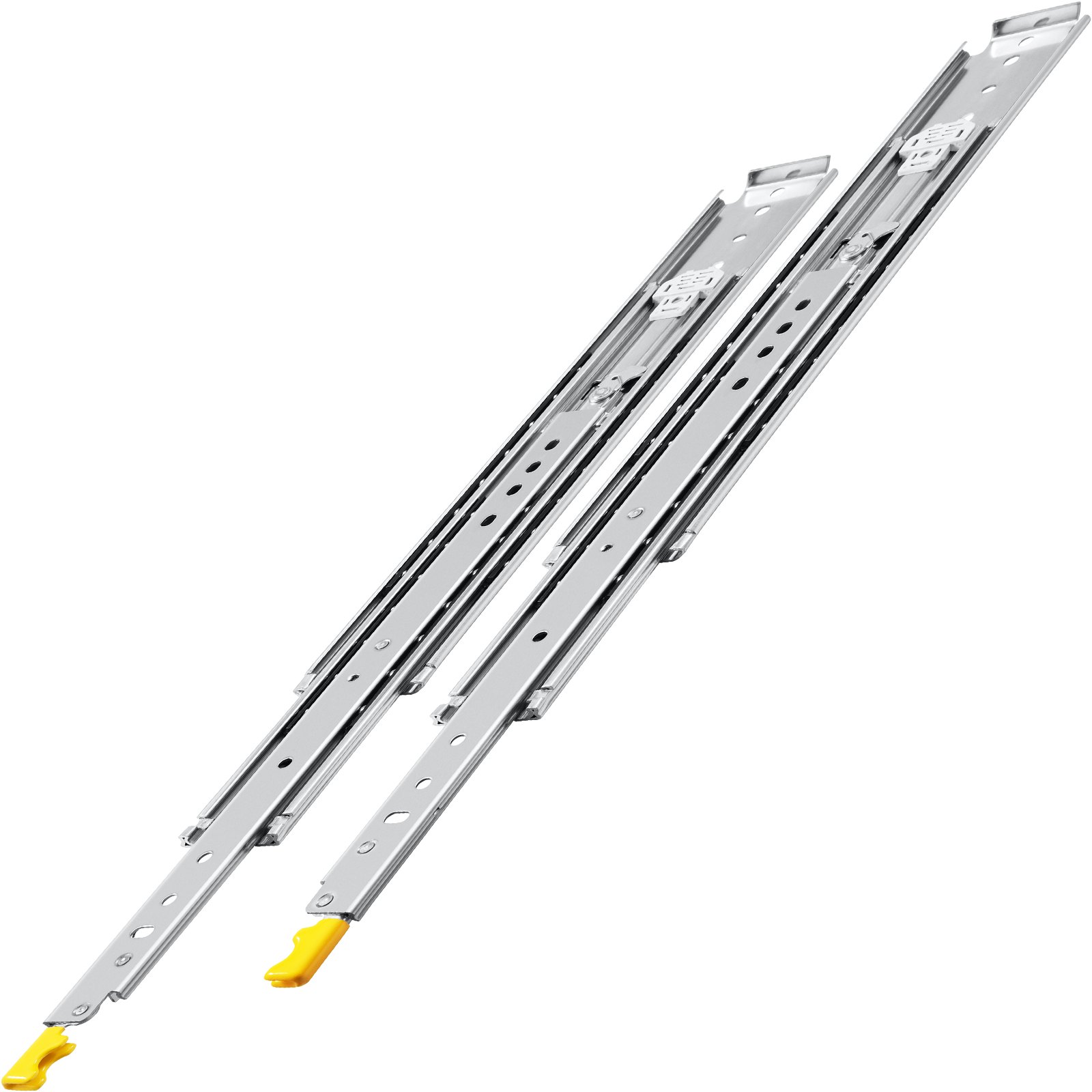

VEVOR drawer slides with screws, featuring two metal slides and yellow ends.
Full Extension Slide Drawers
Low Noise & Smooth Slide & with Dual Lock
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Drawer Slides
  • Sturdy Steel & 500 lbs Bearing
  • Softly & Quietly Slide with Lock
  • Choose the Right Size
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

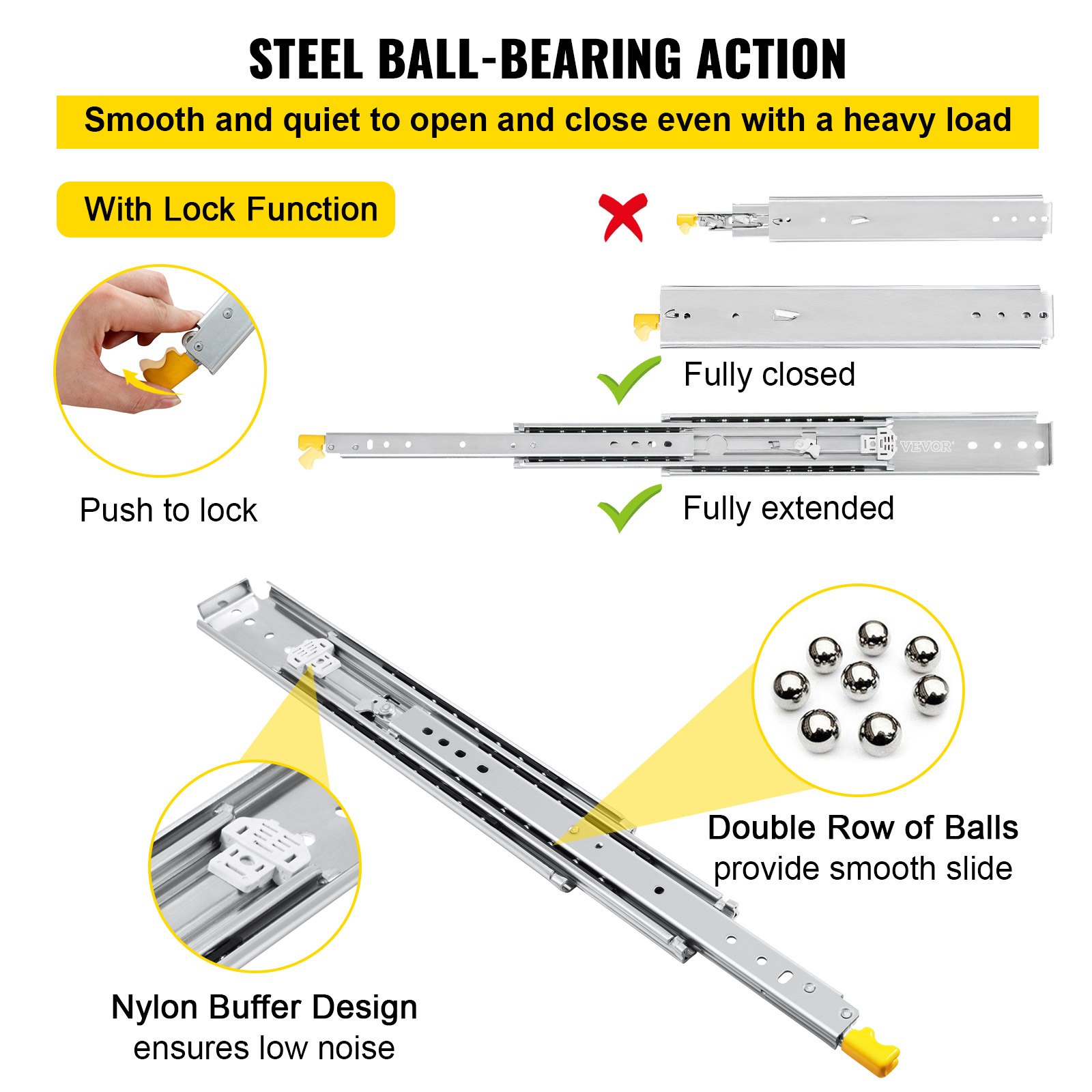

VEVOR drawer slides with lock feature, demonstrating slides and locking mechanism.
with Lock Function
Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
VEVOR drawer slides, smooth and quiet performance, dual-row ball-bearing, nylon buffer design.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.

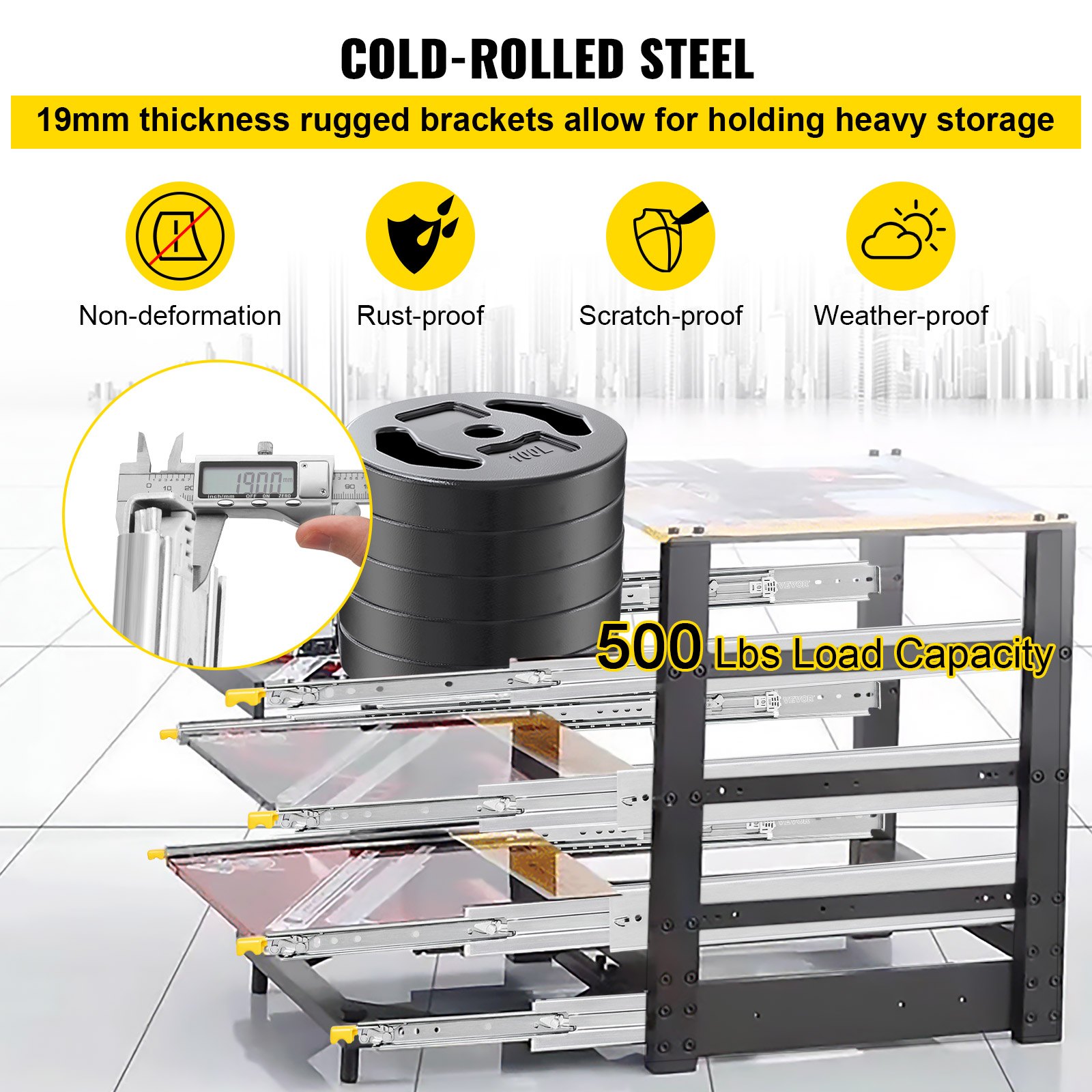

VEVOR drawer slides, 19mm thickness bracket, 500 lbs load capacity, cold-rolled steel.
Cold Rolled Steel
High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.

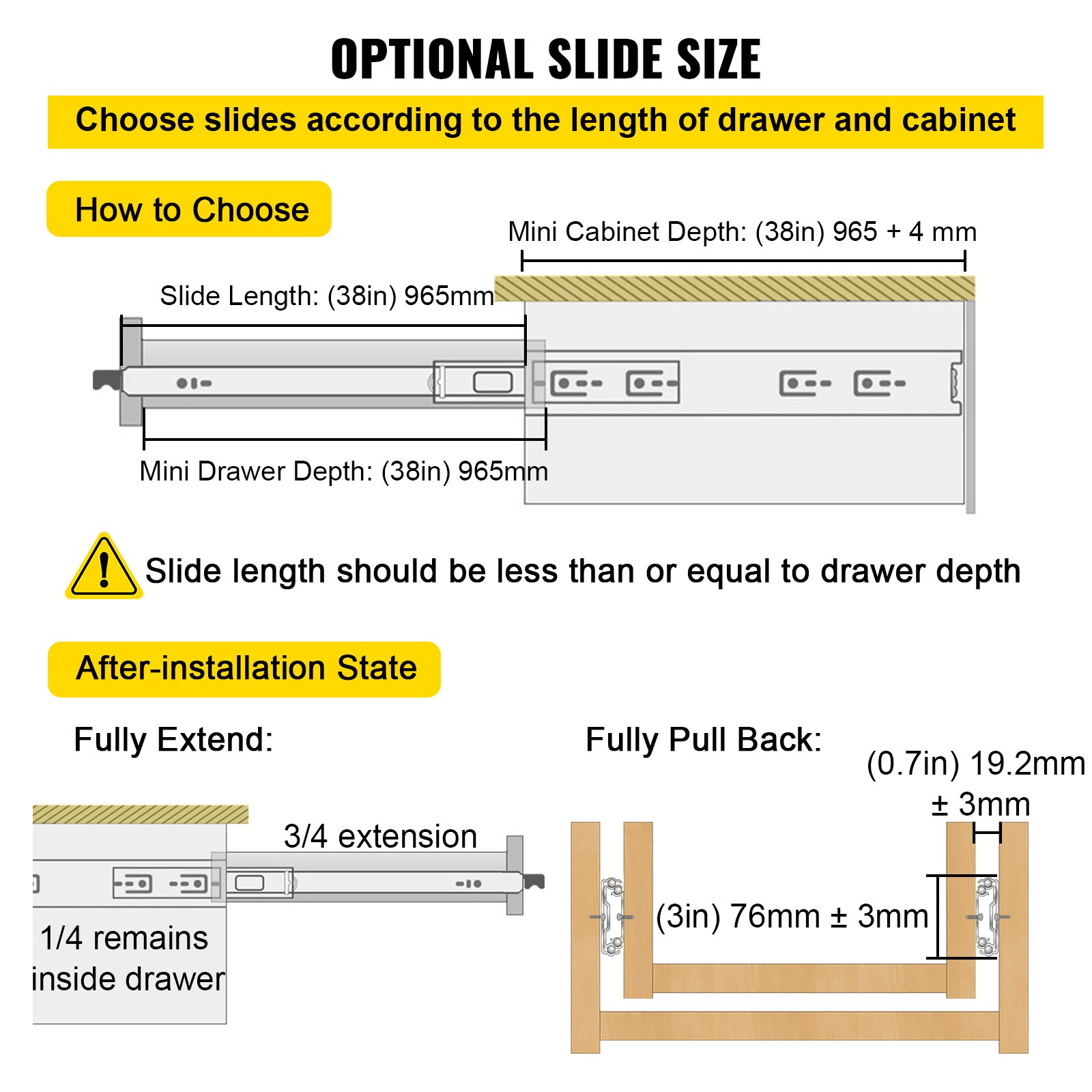

right size slide diagram for mini drawer and cabinet with VEVOR drawer slides dimensions.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.

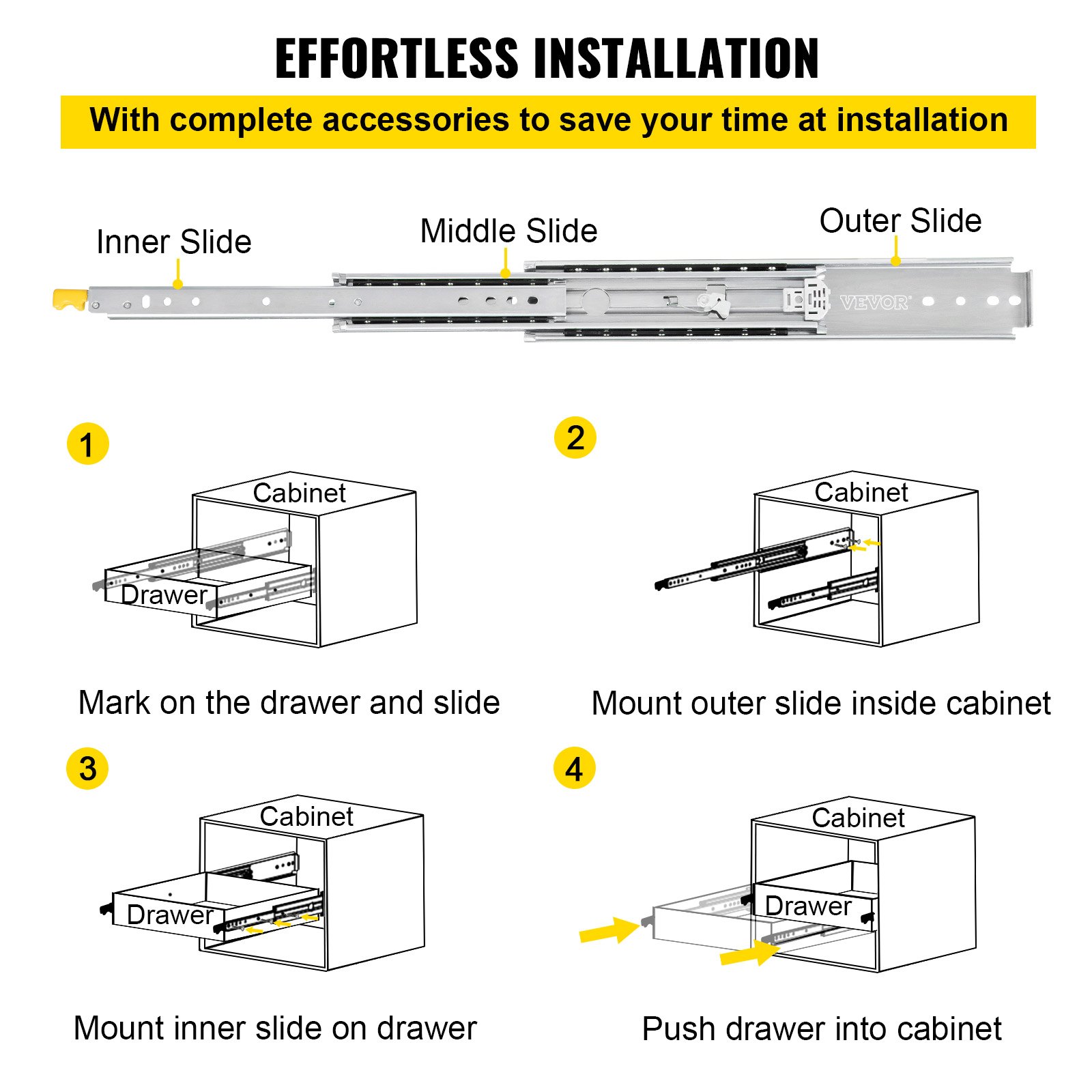

effortless installation steps of VEVOR drawer slides with marking, mounting, and sliding.
Easy & Quick Assemble
In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.

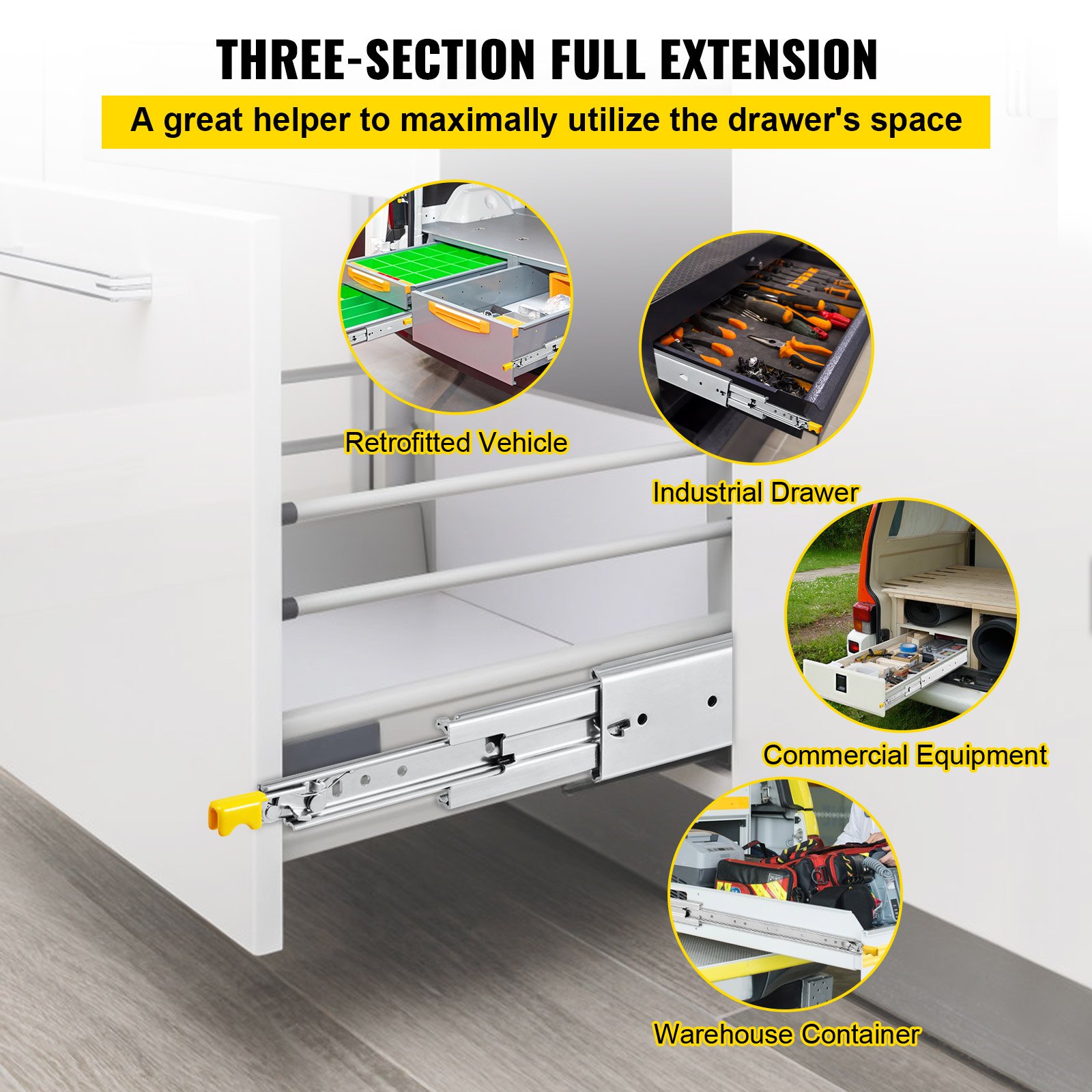

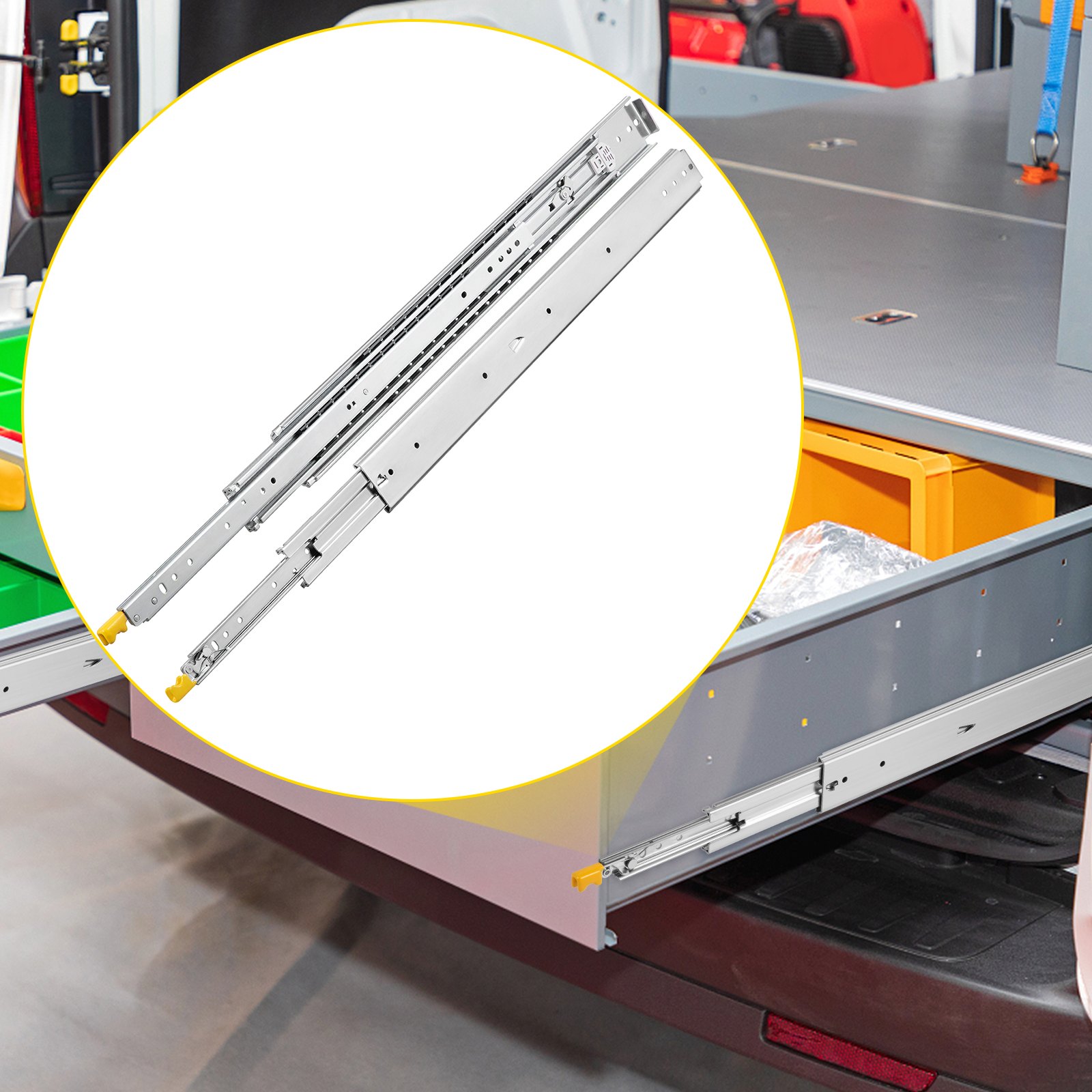

VEVOR drawer slides in van lifts, tool drawers, and wheelchair ramps for wide applications.
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.

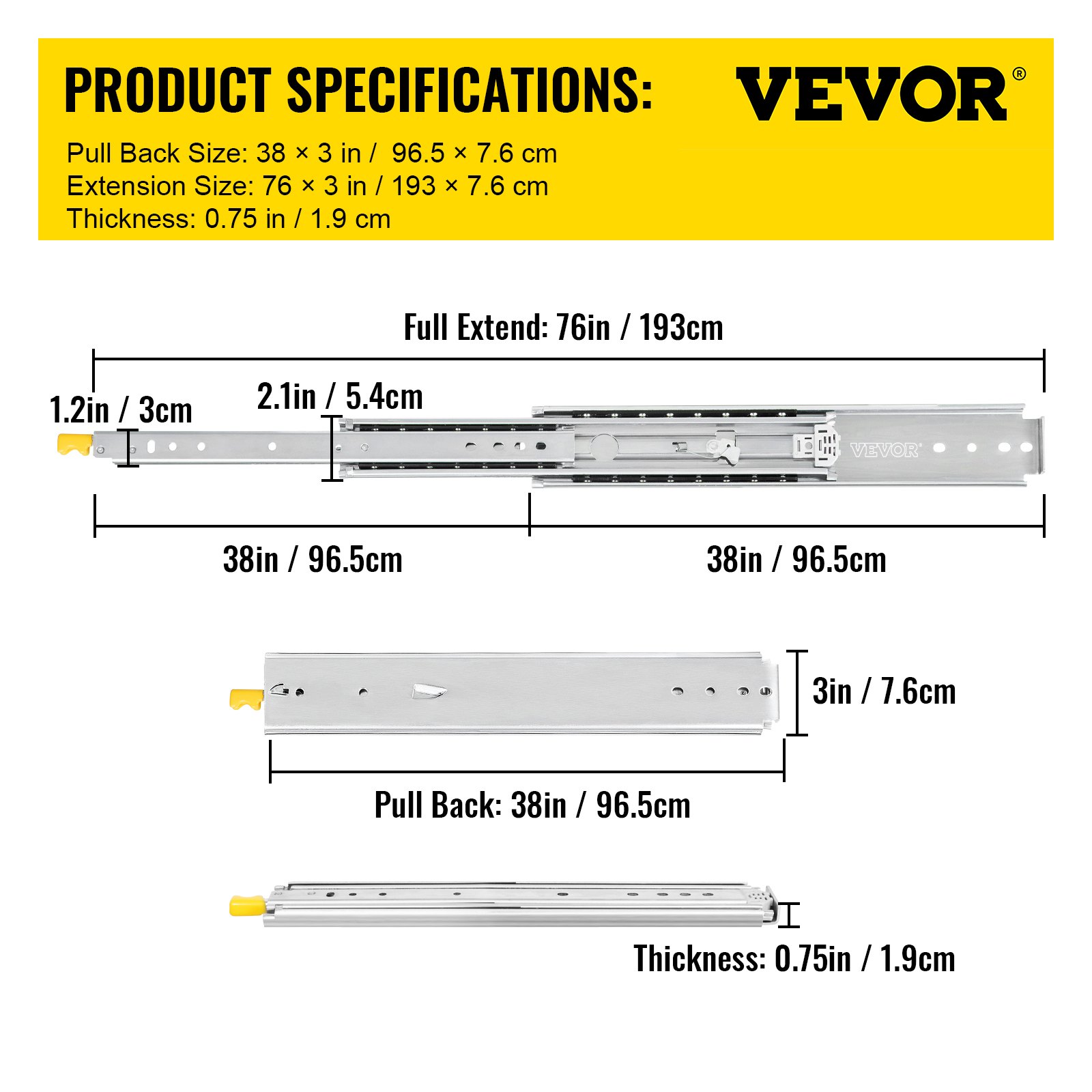

VEVOR drawer slides extendable to 76in, pull back at 38in, thickness 0.75in.
Specifications
  • Model: VV-SJTTDGDS-38IN
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 500 lbs/ 225 kg
  • Fully Pull-Out Length: 76"/ 193 cm
  • Fold Product Size: 38" x 3" x 0.75"/ 96.5 x 7.6 x 1.9 cm
  • Inner Size (L x W): 38" x 1.2"/ 96.5 x 3 cm
  • Middle Size (L x W): 38" x 2.1"/ 96.5 x 5.4 cm
  • Outer Size (L x W): 38" x 3"/ 96.5 x 7.6 cm
  • Slide Lock: Support

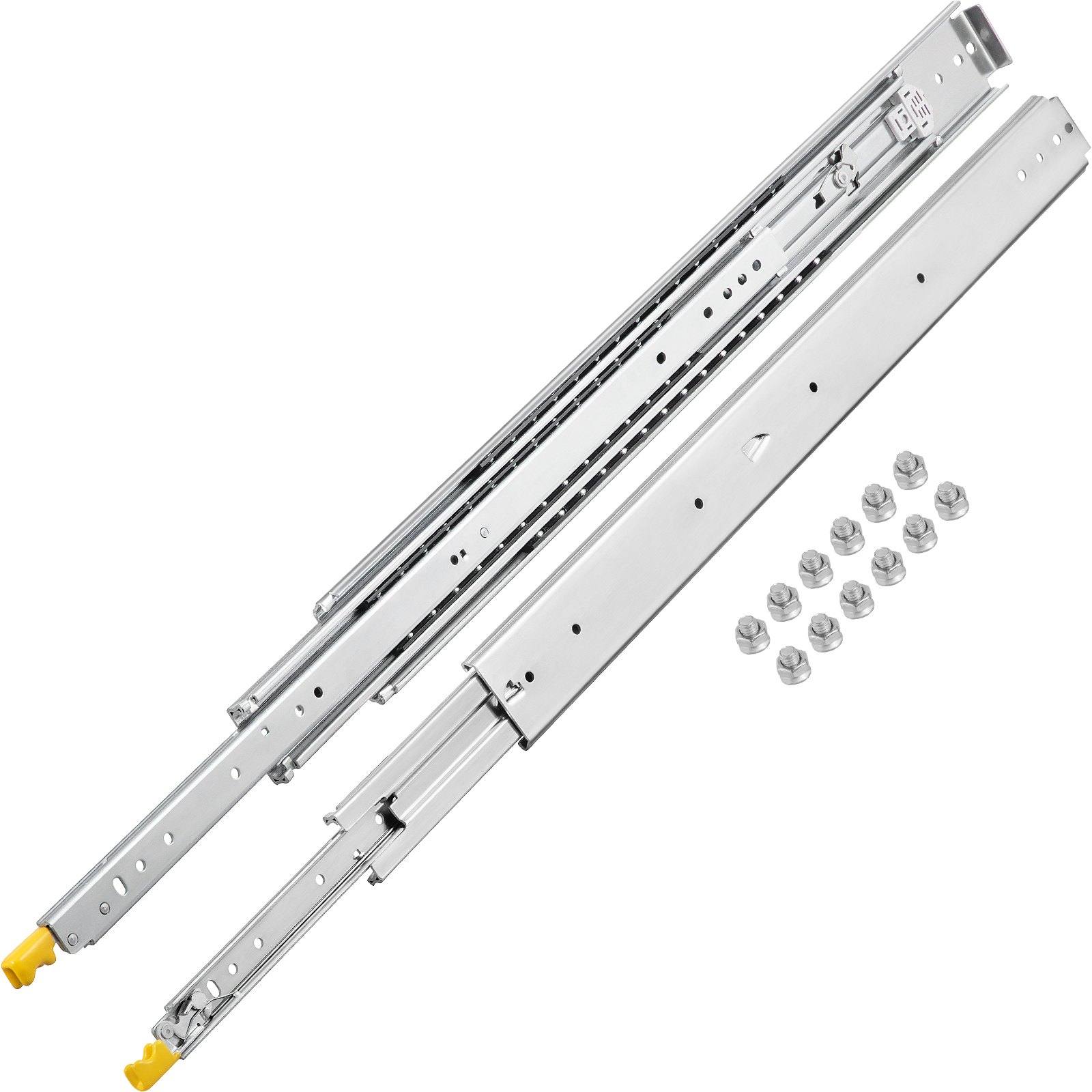

VEVOR drawer slides with screws, featuring durable metal construction.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR drawer slides: red toolbox with organized tools and 500 lbs bearing lock device.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR drawer slides with screws, featuring two metal slides and yellow ends.
Full Extension Slide Drawers
Low Noise & Smooth Slide & with Dual Lock
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Drawer Slides
  • Sturdy Steel & 500 lbs Bearing
  • Softly & Quietly Slide with Lock
  • Choose the Right Size
VEVOR drawer slides with lock feature, demonstrating slides and locking mechanism.
with Lock Function
Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
VEVOR drawer slides, smooth and quiet performance, dual-row ball-bearing, nylon buffer design.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
VEVOR drawer slides, 19mm thickness bracket, 500 lbs load capacity, cold-rolled steel.
Cold Rolled Steel
High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
right size slide diagram for mini drawer and cabinet with VEVOR drawer slides dimensions.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.
effortless installation steps of VEVOR drawer slides with marking, mounting, and sliding.
Easy & Quick Assemble
In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
VEVOR drawer slides in van lifts, tool drawers, and wheelchair ramps for wide applications.
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.
VEVOR drawer slides with screws, featuring durable metal construction.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR drawer slides extendable to 76in, pull back at 38in, thickness 0.75in.
Specifications
  • Model: VV-SJTTDGDS-38IN
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 500 lbs/ 225 kg
  • Fully Pull-Out Length: 76"/ 193 cm
  • Fold Product Size: 38" x 3" x 0.75"/ 96.5 x 7.6 x 1.9 cm
  • Inner Size (L x W): 38" x 1.2"/ 96.5 x 3 cm
  • Middle Size (L x W): 38" x 2.1"/ 96.5 x 5.4 cm
  • Outer Size (L x W): 38" x 3"/ 96.5 x 7.6 cm
  • Slide Lock: Support

Heavy-Duty Drawer Slides for Robust Performance and Durability

These drawer slides are made from cold-rolled steel. They can handle up to 500 lbs, making them ideal for heavy-duty applications. Whether you're building a custom cabinet or upgrading old drawers, these slides are up there with the task. Their robust construction ensures they won't fail underweight, which is crucial for long-lasting use. This reliability is important for lasting use in both home and industrial settings. You can trust these slides to hold up well over time. Durability is a testament to their high-quality design. Built to last and perform well.


Full Extension Heavy-Duty Drawer Slides for Easy Access

The drawer slides offer full extension. This enables you to extend the drawer fully. It allows you to access the entire drawer easily. This feature is especially useful for deep drawers. You won't have to struggle to reach items at the back anymore. The full extension makes it convenient to organize and use the space efficiently. This is a practical advantage for any drawer system, making your life easier.


Smooth Operation with Ball Bearing Mechanism

The ball bearing mechanism guarantees smooth operation. The drawer slides effortlessly in and out. This smooth movement makes opening and closing the drawer easy. It's a major upgrade from older, rougher slides. Ball bearings are well-lubricated for optimal performance. This mechanism reduces wear and tear and prolongs the lifespan of the slides. Also minimizes noise. You get quieter operations. That smoothness adds luxury to your drawer system. It's one thing you’ll appreciate every day.


Side Mount Installation for Easy Setup

These drawer slides use a side mount installation. This makes them easy to set up. You don't need special tools or skills to install them. The side-mounted design ensures stability and alignment. It’s a rational process that saves you time and effort. Replace old slides or install new ones without any trouble. Installation is secure, making sure the drawer stays stable. This ease of setup is beneficial for both DIY enthusiasts and professionals. It simplifies the installation process significantly.


Lock-in and Lock-out Features for Enhanced Safety

The lock-in and lock-out features enhance safety. They prevent the drawer from accidentally opening or closing. This is important for drawers that hold heavy or valuable items. The locking feature keeps the drawer in place when not in use. It also ensures that the drawer is fully open for safe access. This feature is especially useful in moving vehicles or rough environments. In particular, it ensures the stability and security of the storage drawer. The added safety measure gives you peace of mind. You can trust the cabinet to stay where it should be.


Corrosion Resistance with Zinc Plated Finish

They're not going to rust or degrade, even in harsh environments. This durability makes them suitable for various applications, regardless of whether you work in a kitchen, garage, or industrial setting. Coorrosion-resistance is an essential feature for maintaining the slides' performance over time. You can trust them to stay functional and strong.


Versatile Usage in Various Projects

They are versatile drawer slides. They can be used in many projects. For custom furniture, RVs, and industrial applications, you can use them to build sliding trays, toolboxes, or kitchen cabinets. Their strong construction makes them ideal for any heavy-duty project. This versatility ensures you get the most out of your purchase. They can be used in a variety of ways. They are an excellent addition to any workshop or home improvement project due to their adaptability. Therefore, their adaptability makes them a reliable choice for various needs.


Cost-Effective Solution with High Quality

They offer high quality at a reasonable price. They provide excellent value for money. You get strong performance and durability without breaking the bank. This cost-effectiveness makes them accessible to a wider range of users. Budget constraints do not necessitate sacrificing quality. Their high quality ensures they perform well and last long. This affordability, combined with high quality, makes it a dependable choice. You get a reliable product that meets your budget and needs.


See More

Specification

Model
VV-SJTTDGDS-38IN
Color
Sliver
Material
Cold Rolled Steel
Finish
Zinc Plated
Amount
1 Pack(2 PCs)
Load Capacity
500 lbs/ 225 kg
Fully Pull-Out Length
76"/ 193 cm
Fold Product Size
38" x 3" x 0.75"/ 96.5 x 7.6 x 1.9 cm
Inner Size (L x W)
38" x 1.2"/ 96.5 x 3 cm
Middle Size (L x W)
38" x 2.1"/ 96.5 x 5.4 cm
Outer Size (L x W)
38" x 3"/ 96.5 x 7.6 cm
Slide Lock
Support
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
119 Review(s)
Clear filters
Greg Rumsey Greg Rumsey
Owner
I recently picked up the VEVOR 60" Drawer Slides, and even though they were a bit on the pricey side, I think they’re totally worth it. They feel really sturdy, and using them has been a breeze—super smooth operation! Installation was pretty easy, but I do have one suggestion. It would be nice if there were a few more spots to mount them. Also, making the inner slide removable would really help when installing. Overall, I’d definitely recommend these slides if you want something durable and reliable. They’ve made a big difference in my project!
Myles Myles
Great slides for a good price.
I bought these for use in a road case and they fit great, and work like they should! I would definitely purchase again
Dirtrider Dirtrider
Great slide that can handle the weight
Used this for a slide out tray on my van conversions and it works fantastic! Well made and heavy duty to insure smooth operation. Both slides have a lockout which is key! Very happy with the price beating the big A and shipping was quick. Thank you!
Peter Henry Peter Henry
DIYer
I have now purchased 5 sets of these to make truck bed slides for myself and 4 siblings. Great price and sturdy. Locking mechanism works well. Only improvement would be inclusion of wood screws for mounting.
xxx xxx
when the going gets rough...
Good quality. They are harder to install because you cant separate the tracks for installation but that is for safety. Make sure to get the tracks with double locks.
Tyron Tyron
Pretty Decent for the price
look they are draw slides, and believe it or not they work. been used on a 90L camping fridge and a weber q slider for about a year now, no issues
Wayne Wayne
It’s working good
It’s working good for now . Just need to see if they will last the test of time. They are used for my work truck with my tools on it
Krystal Krystal
Ms
Good product, however, the customer support needs a direct phone number and more work. Sending videos to correct the problem is not always a help to what we are seeking.
Alvaro Estarellas Alvaro Estarellas
Espero q si pueda con 500 libras porq la verdad es para lo q lo necesito
Se ve muy fuerte y bueno el material espero q pueda con 500 libras pero si está muy bueno
Rn Rn
Worth the price.
So far so good. I'm using there for solar panels on my transit.. not to sure how they'll hold up to the weather but will find out.. now to get the 60 inch on.
