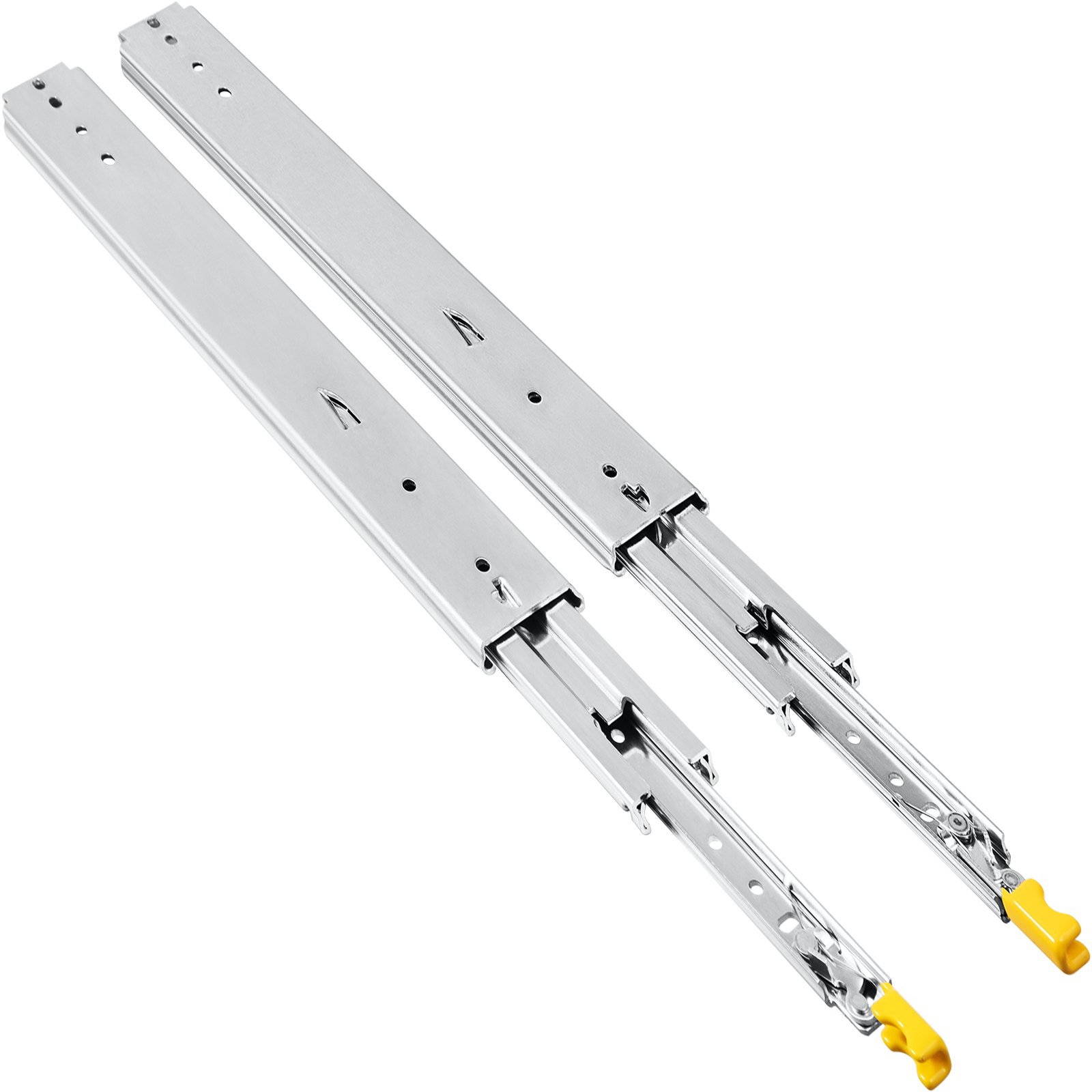

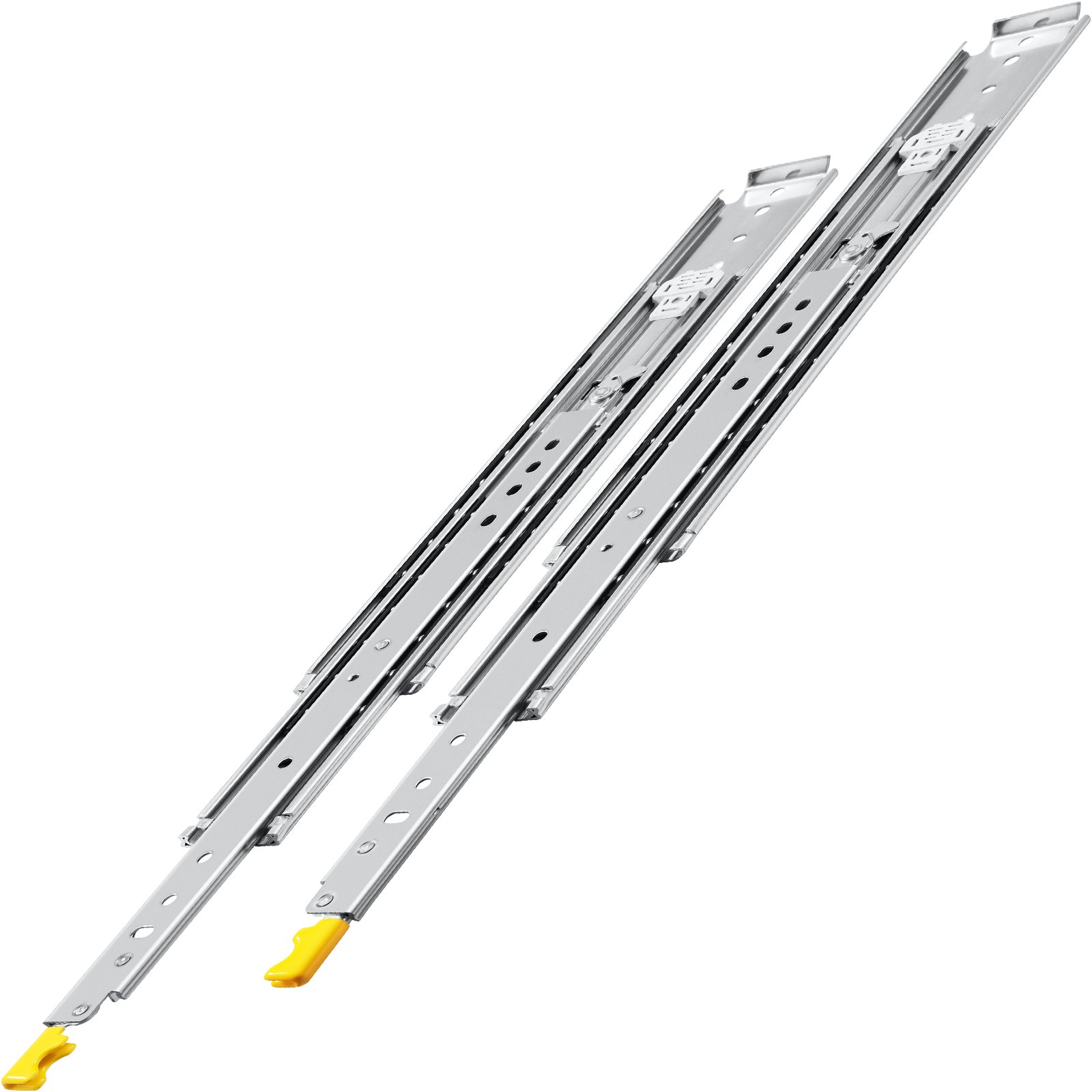

VEVOR drawer slides with installation screws and dual yellow release levers. VEVOR drawer slides displaying full extension in various industrial applications. VEVOR drawer slides with lock function, steel ball-bearing action, nylon buffer design. VEVOR drawer slides with 500 lbs load capacity and 19mm thick cold-rolled steel. optional drawer slide sizes guide for VEVOR drawer slides, showing installation tips. effortless installation steps for VEVOR drawer slides in a cabinet. VEVOR drawer slides measurements and specifications on a yellow background.
SDSSSCTD52500AS51V0

VEVOR Drawer Slides with Lock Drawer Slide 264.2cm Ball Bear 225kg Full Extension

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

52 inch

  • 52 inch
  • 40 inch
  • 48 inch
  • 44 inch
  • 56 inch
  • 60 inch

About this item

  • Three-Section Drawer Slides: You can get 1 pair of drawer slides: 52"/ 132.1 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. A 3-fold full extension design, allows the entire drawer to be extended and reached. A great helper to maximally utilize your drawer's space(fully closed length: 52", fully extended length: 104"/ 264.2 cm).
  • Sturdy Steel & 500 lbs Bearing: Constructed with 0.75"/ 19 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 500 lbs/ 227 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The zinc-plated surface stays the extension drawer slide be rust-proof and abrasion-proof, ensuring lifetime use. The slides can be applied to goods shelves, cabinets, the industrial drawers, RVs, trucks, vending machines, etc.
  • Softly & Quietly Slide with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Different from those without locks or only one lock, our dual lock design provides more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.
  • Choose the Right Size: Full extension drawer slides are compatible with most major drawer and cabinet types. How to determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should not be less than or equal to drawer depth.
  • Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as industrial drawers, commercial equipment, and retrofitted vehicles.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Drawer Slides with Lock Drawer Slide 264.2cm Ball Bear 225kg Full Extension
52 inch
VEVOR drawer slides showcasing organized tools in a red drawer, emphasizing durability and lock device.
VEVOR drawer slides with yellow end caps and mounting screws in a white background.
Full Extension Slide Drawers
Low Noise & Smooth Slide & with Dual Lock
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Drawer Slides
  • Sturdy Steel & 500 lbs Bearing
  • Softly & Quietly Slide with Lock
  • Choose the Right Size
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

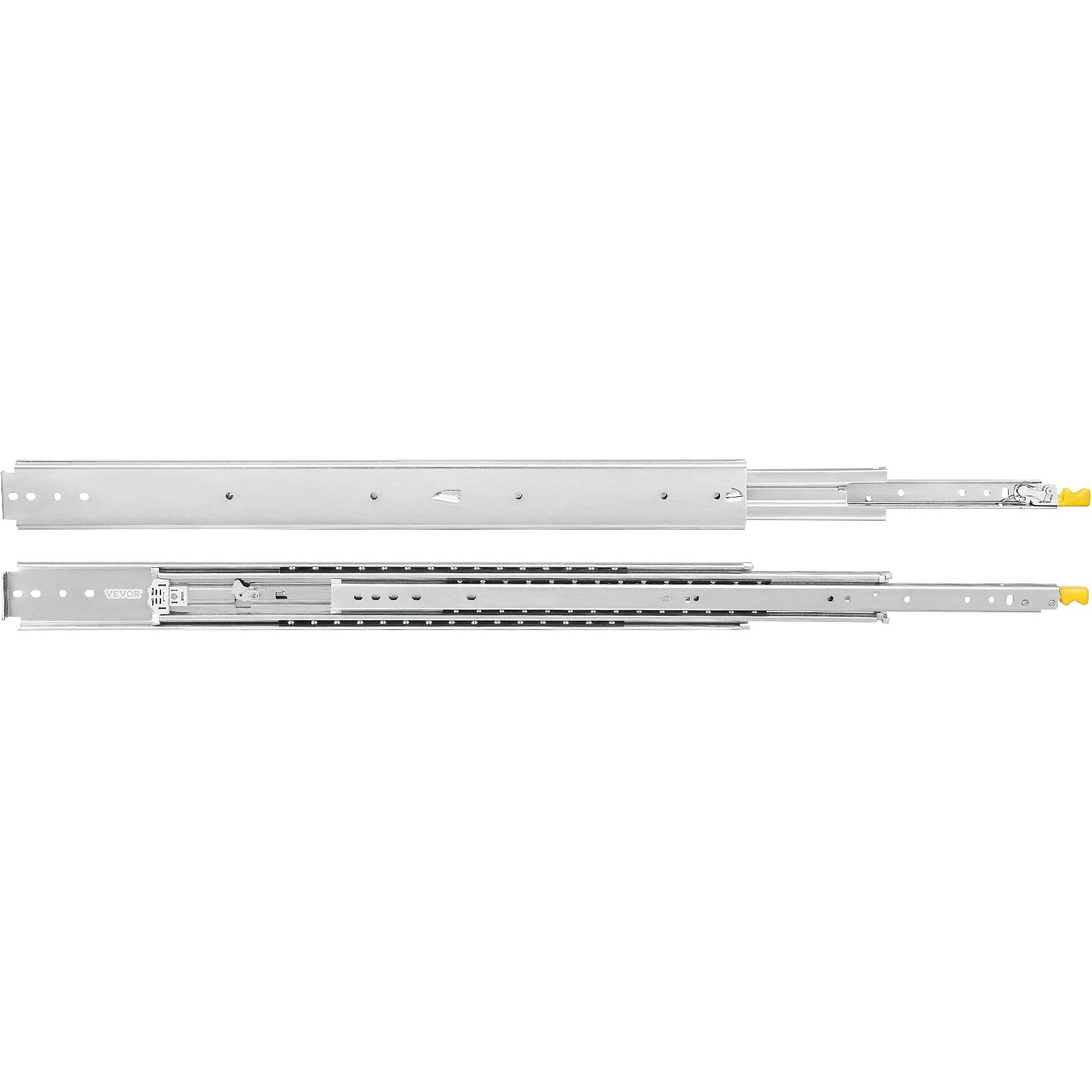

VEVOR drawer slides with lock feature, labeled outer, middle, and inner slides.
with Lock Function
Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.

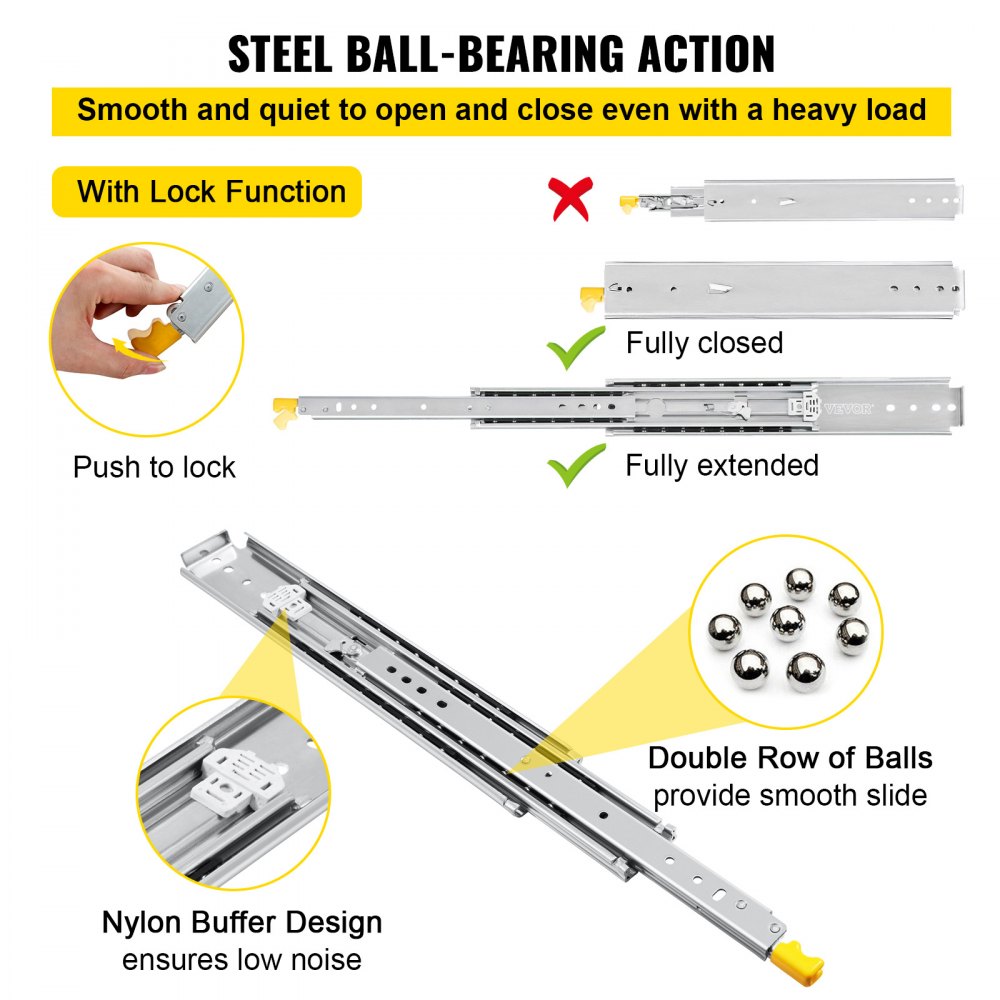

VEVOR drawer slides with dual-row ball-bearing and nylon buffer design for smooth performance.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
VEVOR drawer slides, cold-rolled steel, 19 mm bracket, 500 lbs load capacity.
Cold Rolled Steel
High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.

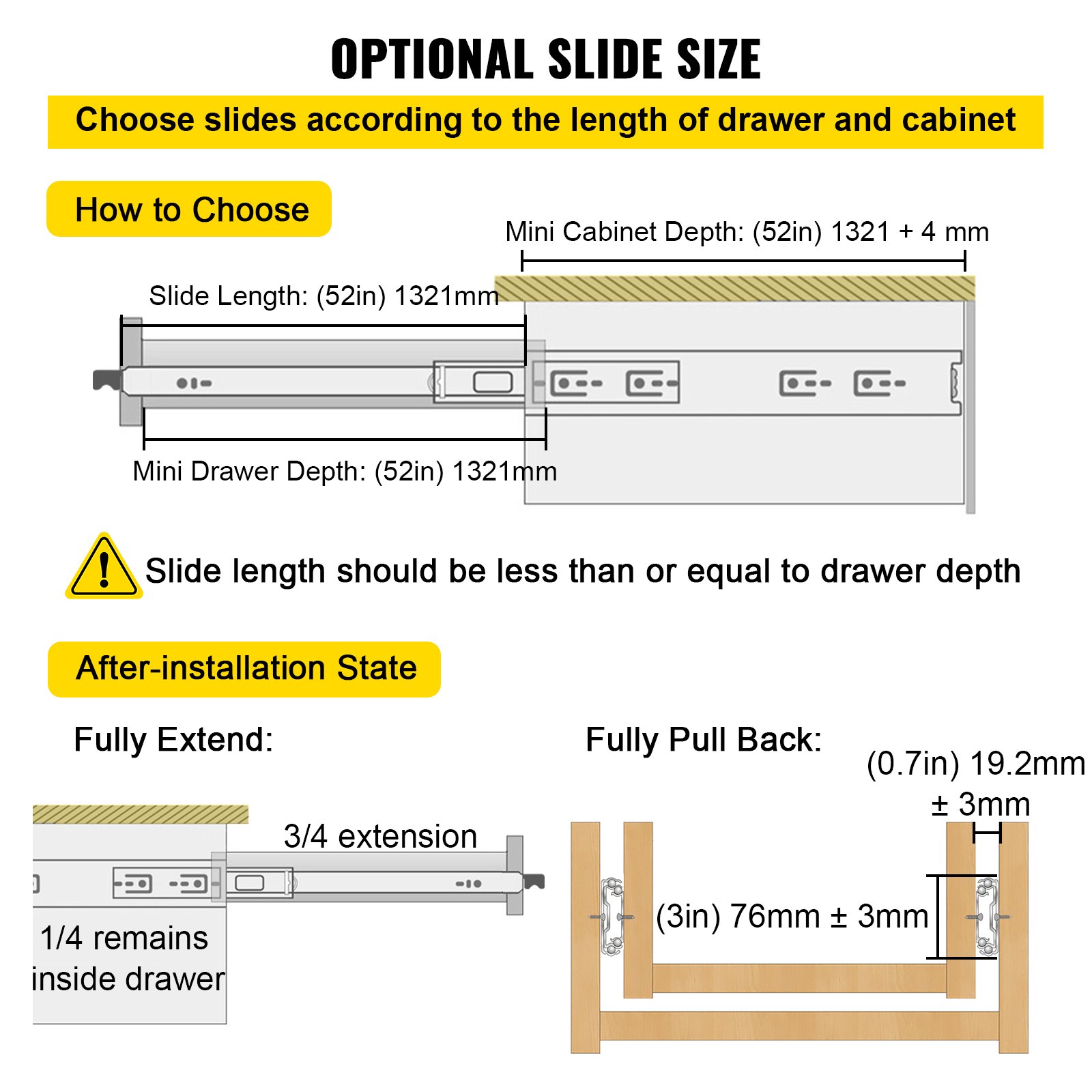

right size guide for VEVOR drawer slides showing dimensions and depth requirements.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.

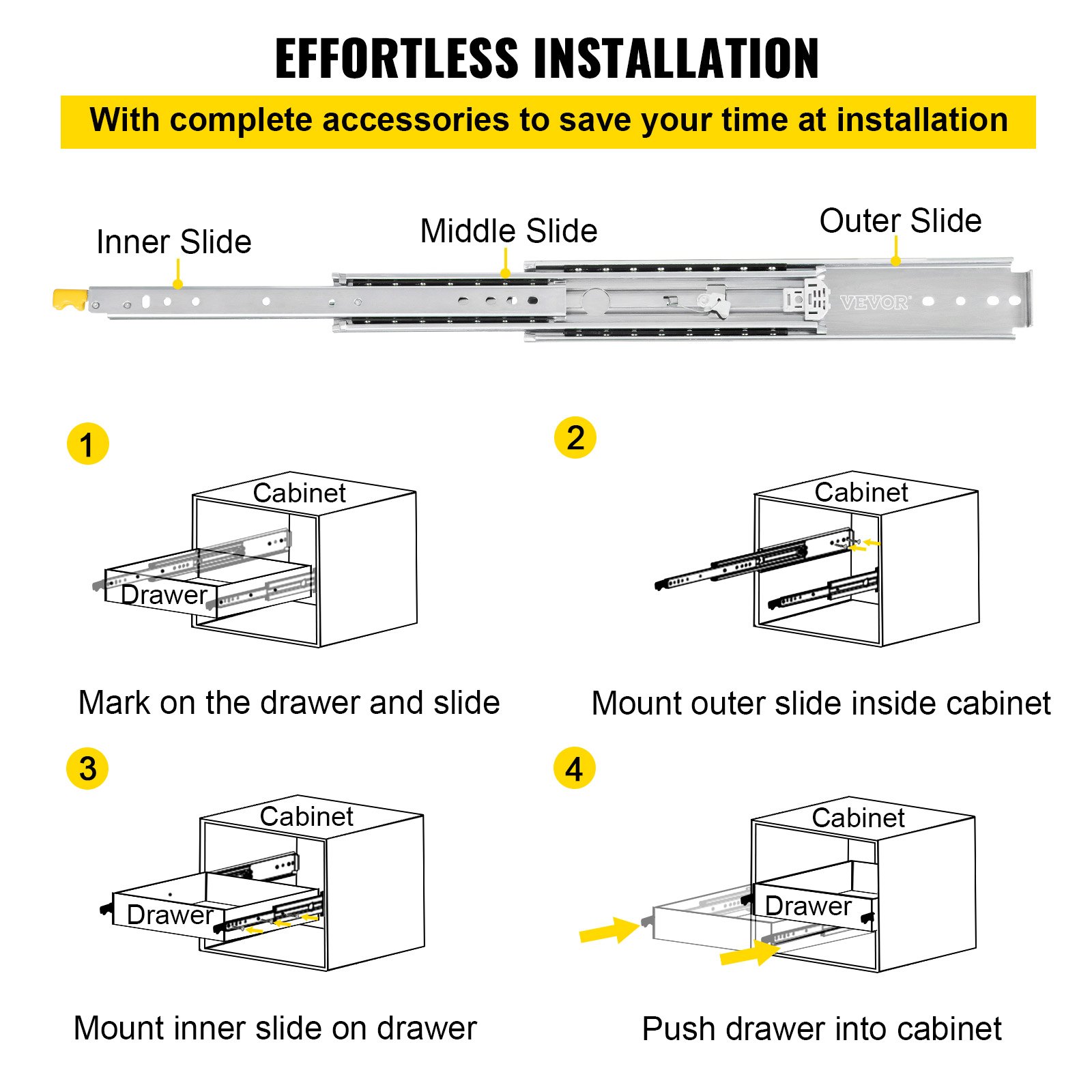

effortless installation steps for VEVOR drawer slides: mark, side mount, and slide.
Easy & Quick Assemble
In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.

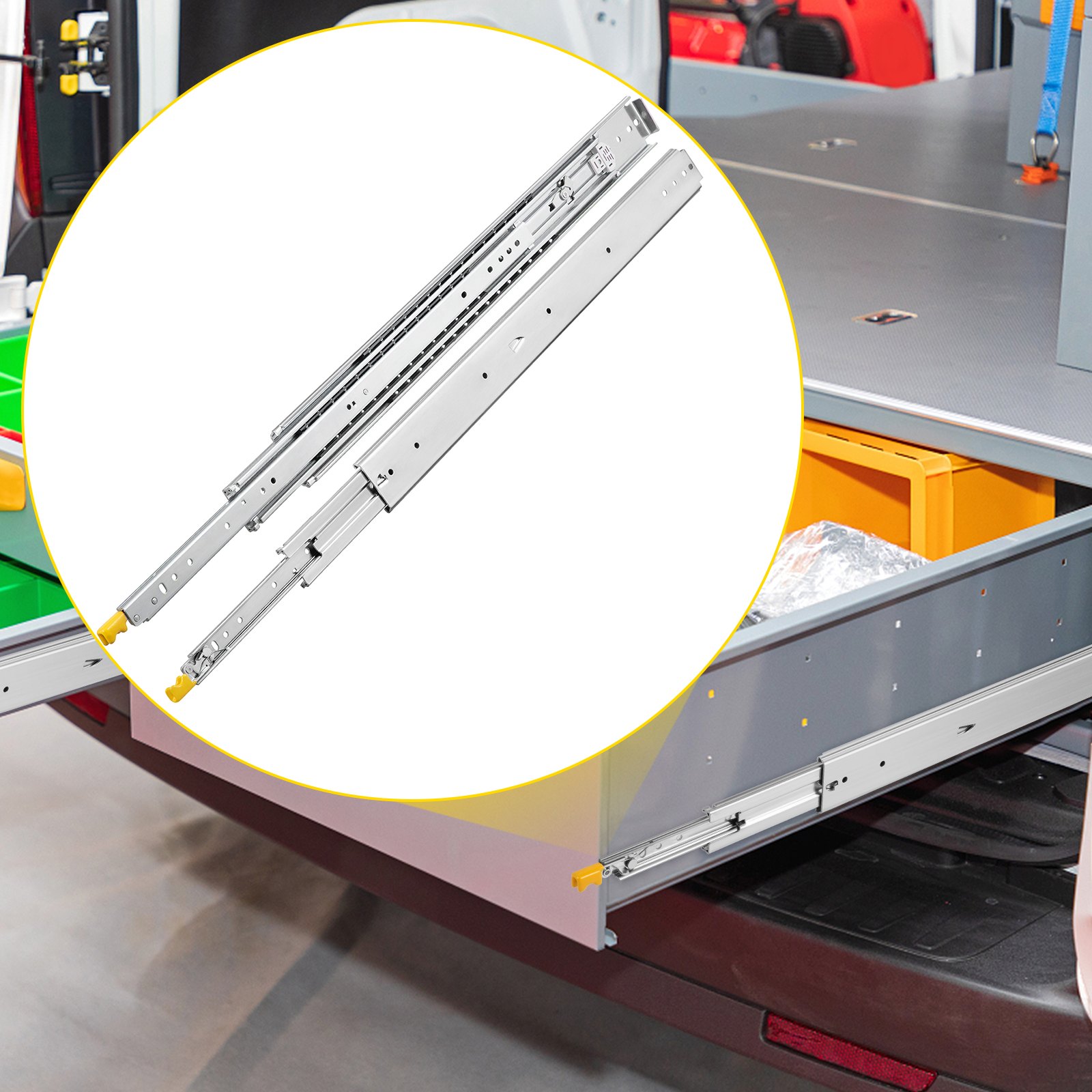

wide application of VEVOR drawer slides in vans, workstations, and tool cabinets
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.

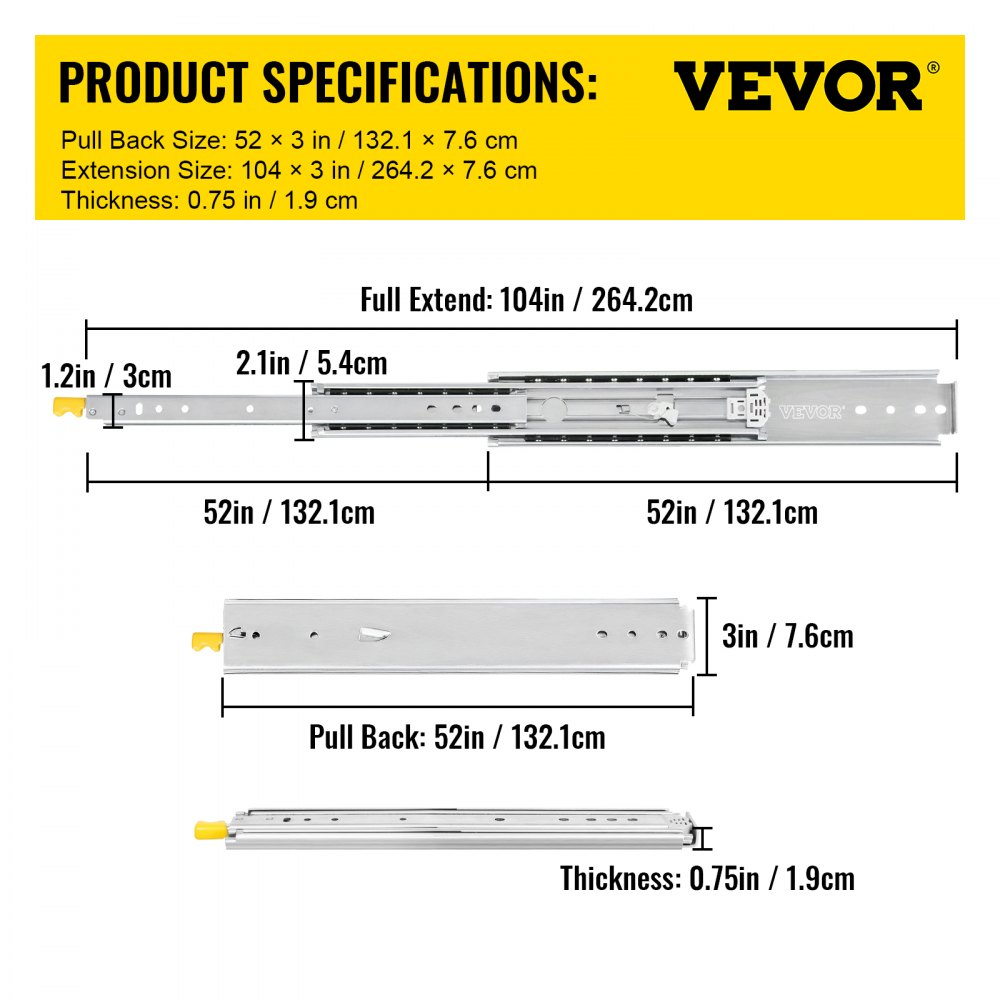

dimensions of VEVOR drawer slides: 104in full extend, 52in pull back, 0.75in thick.
Specifications
  • Model: VV-SJTTDGDS-52IN
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 500 lbs/ 227 kg
  • Fully Pull-Out Length: 104"/ 264.2 cm
  • Fold Product Size: 52" x 3" x 0.75"/ 132.1 x 7.6 x 1.9 cm
  • Inner Size (L x W): 52" x 1.2"/ 132.1 x 3 cm
  • Middle Size (L x W): 52" x 2.1"/ 132.1 x 5.4 cm
  • Outer Size (L x W): 52" x 3"/ 132.1 x 7.6 cm
  • Slide Lock: Support

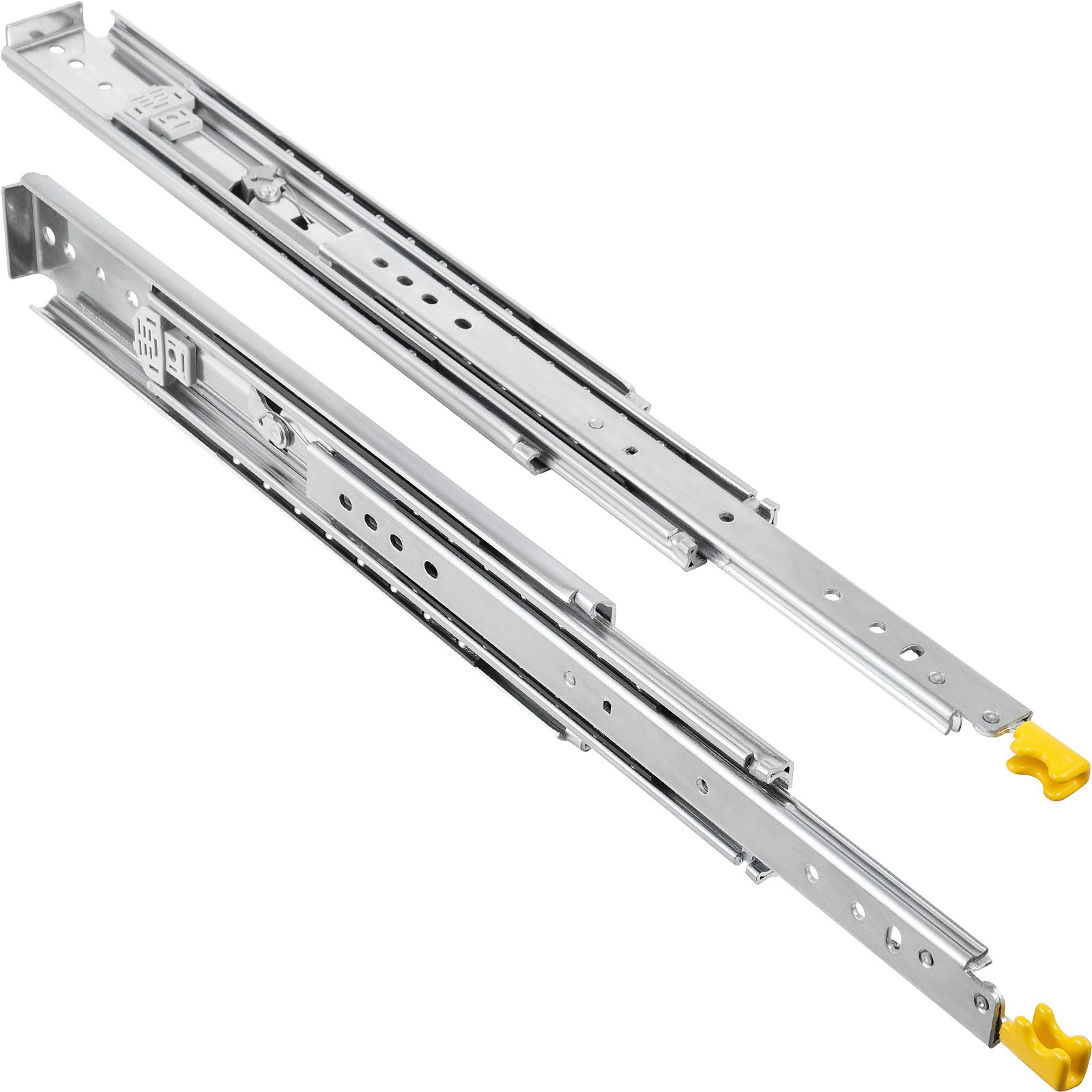

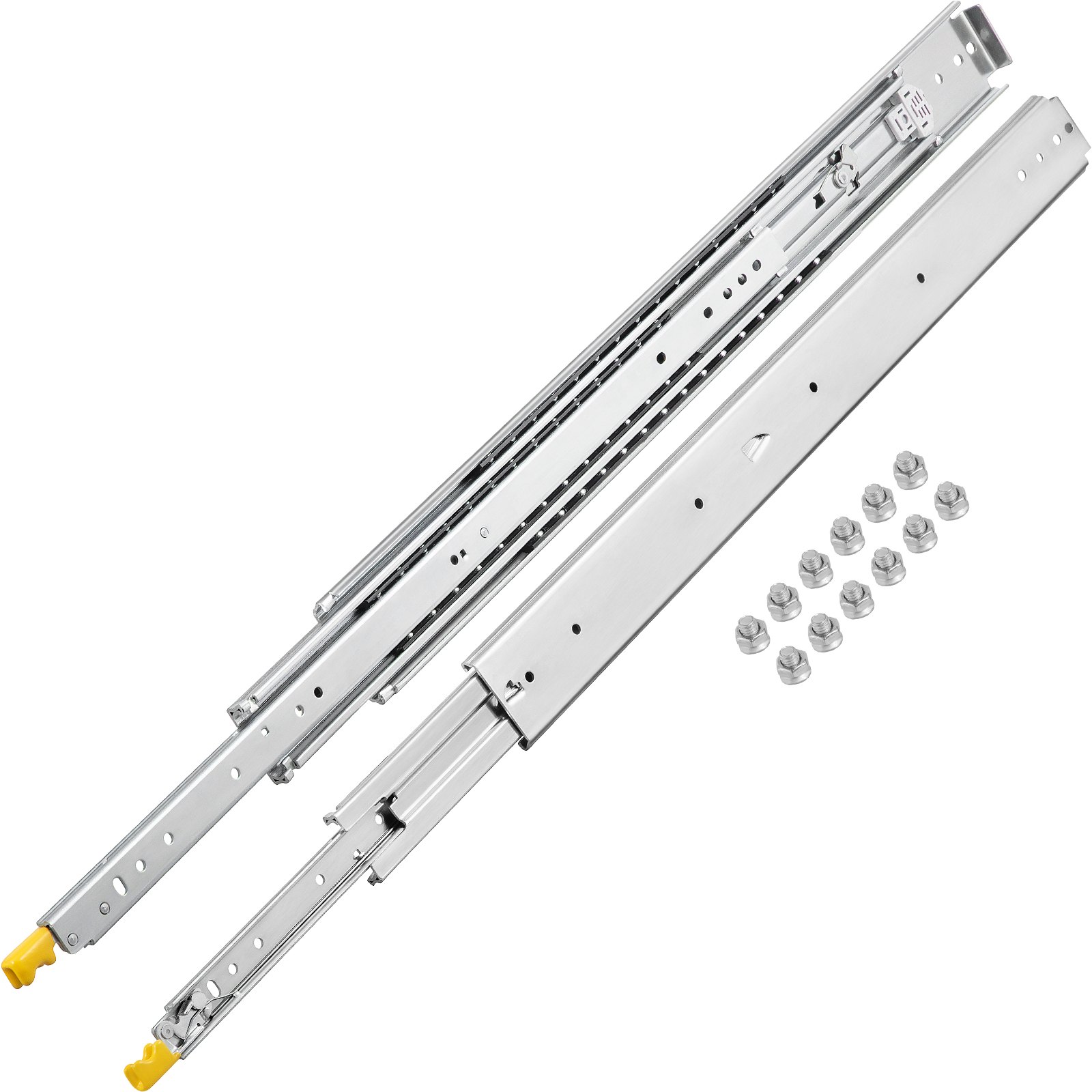

VEVOR drawer slides with screws, featuring sturdy metal construction and smooth operation.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR drawer slides showcasing organized tools in a red drawer, emphasizing durability and lock device.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR drawer slides with yellow end caps and mounting screws in a white background.
Full Extension Slide Drawers
Low Noise & Smooth Slide & with Dual Lock
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Drawer Slides
  • Sturdy Steel & 500 lbs Bearing
  • Softly & Quietly Slide with Lock
  • Choose the Right Size
VEVOR drawer slides with lock feature, labeled outer, middle, and inner slides.
with Lock Function
Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
VEVOR drawer slides with dual-row ball-bearing and nylon buffer design for smooth performance.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
VEVOR drawer slides, cold-rolled steel, 19 mm bracket, 500 lbs load capacity.
Cold Rolled Steel
High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
right size guide for VEVOR drawer slides showing dimensions and depth requirements.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.
effortless installation steps for VEVOR drawer slides: mark, side mount, and slide.
Easy & Quick Assemble
In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
wide application of VEVOR drawer slides in vans, workstations, and tool cabinets
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.
VEVOR drawer slides with screws, featuring sturdy metal construction and smooth operation.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
dimensions of VEVOR drawer slides: 104in full extend, 52in pull back, 0.75in thick.
Specifications
  • Model: VV-SJTTDGDS-52IN
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 500 lbs/ 227 kg
  • Fully Pull-Out Length: 104"/ 264.2 cm
  • Fold Product Size: 52" x 3" x 0.75"/ 132.1 x 7.6 x 1.9 cm
  • Inner Size (L x W): 52" x 1.2"/ 132.1 x 3 cm
  • Middle Size (L x W): 52" x 2.1"/ 132.1 x 5.4 cm
  • Outer Size (L x W): 52" x 3"/ 132.1 x 7.6 cm
  • Slide Lock: Support

Drawer Slides with Lock for Enhanced Security and Control

The features of VEVOR drawer slides include a strong locking mechanism. This feature ensures your drawers stay securely in place. It's perfect for applications where safety matters first. The lock-in and lock-out function provides added control. You can keep your contents safe from accidental movement. That'll be especially useful for heavy-duty applications. Locks ensure your storage doesn't open accidentally during transport or in rough conditions. We've found that this feature makes it a dependable solution for keeping your items secure and your shelves stable.


Heavy-Duty Construction with 500 lbs Capacity

This material ensures that these slides can handle up to 500 lbs of weight. They are ideal for heavy-duty applications. These slides support significant weight, whether you're building industrial cabinets or custom furniture. The strong construction means they won't bend or break under pressure. This makes them ideal for professional and DIY projects. You can trust these slides to hold up in demanding environments. Their high load capacity guarantees long-lasting performance.


Full Extension for Easy Access to Entire Drawer

These slides provide complete access to your drawer with a full 3-fold extension. You can fully open the drawer to access every item inside. This feature is essential for large drawers or those with heavy contents. It eliminates the need to go in and struggle to access items at the back. The full extent makes organizing and using your storage much easier, making it perfect for kitchen cabinets, toolboxes, and industrial applications. You can make sure everything is within reach without any trouble. This feature enhances the functionality and usability of your shelves.


Smooth Ball Bearing Operation for Effortless Use

It's perfect for home, office, and industrial settings. The smooth operation makes using your drawers a pleasant experience! You can trust these slides for consistent performance over time. Opening and closing your shelves becomes easy. You won't have to struggle with stiff or noisy slides. These ball bearings allow for smooth glide every time. This feature is especially useful in environments where noise can be an issue. It’s ideal for homes, offices, and industries. The smooth operations make it enjoyable. Using your wardrobes is hygienic. So, you can depend on these slide books for constant performance over time.


Easy Installation with Side Mount Design

It is straightforward to install these slides because of their side mount design. They make installation so simple. They can be easily attached to your cabinets or drawers. The side mounting design ensures stability and a secure fit. It also allows for simple alignment during installation. This feature is beneficial for DIY enthusiasts and professionals alike. No special tools or expertise are required to set up these slides. The design guarantees an ideal solution without any trouble. Your drawer will be up and running quickly. So they are able to work on any project with ease.


Durable Zinc Plated Finish for Corrosion Resistance

This coating offers excellent corrosion resistance. It ensures the slides remain durable and long-lasting. They can be used in harsh environments without concern. The zinc plating protects against rust and wear. As a result, the slide is suitable for both outdoor and industrial applications. You can trust them to withstand the elements and maintain their performance. The durable finish ensures that the slides look and function well over time. This feature enhances their reliability and longevity.


Versatile Uses in Industrial and Home Projects

These drawer slides are versatile and suitable for various applications. They're perfect for heavy industrial projects. You can use them in toolboxes, kitchen cabinets, and van conversions. Their strong construction makes them ideal for professional and DIY projects, as they support heavy loads and provide smooth operation. This versatility makes it a valuable addition to any project. No matter if you'll be building custom furniture or industrial equipment, these slides meet your needs. It offers a dependable and high-quality solution for all your drawer needs.


See More

Specification

Model
VV-SJTTDGDS-52IN
Color
Sliver
Material
Cold Rolled Steel
Finish
Zinc Plated
Amount
1 Pack(2 PCs)
Load Capacity
500 lbs/ 227 kg
Fully Pull-Out Length
104"/ 264.2 cm
Fold Product Size
52" x 3" x 0.75"/ 132.1 x 7.6 x 1.9 cm
Inner Size (L x W)
52" x 1.2"/ 132.1 x 3 cm
Middle Size (L x W)
52" x 2.1"/ 132.1 x 5.4 cm
Outer Size (L x W)
52" x 3"/ 132.1 x 7.6 cm
Slide Lock
Support
Questions and Answers
1 Questions
Is it possible to remove/disable the lock function?
No.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
119 Review(s)
Clear filters
Greg Rumsey Greg Rumsey
Owner
I recently picked up the VEVOR 60" Drawer Slides, and even though they were a bit on the pricey side, I think they’re totally worth it. They feel really sturdy, and using them has been a breeze—super smooth operation! Installation was pretty easy, but I do have one suggestion. It would be nice if there were a few more spots to mount them. Also, making the inner slide removable would really help when installing. Overall, I’d definitely recommend these slides if you want something durable and reliable. They’ve made a big difference in my project!
Alvaro Estarellas Alvaro Estarellas
Espero q si pueda con 500 libras porq la verdad es para lo q lo necesito
Se ve muy fuerte y bueno el material espero q pueda con 500 libras pero si está muy bueno
Myles Myles
Great slides for a good price.
I bought these for use in a road case and they fit great, and work like they should! I would definitely purchase again
Rn Rn
Worth the price.
So far so good. I'm using there for solar panels on my transit.. not to sure how they'll hold up to the weather but will find out.. now to get the 60 inch on.
Jimmy Hue Jimmy Hue
Great value !
Strong brackets, works great !!!
salty salty
Mr
I got this runner a week ago and i installed them on my canopy where i keep all my tools, so they are taking a fair amount of weight and they have been really good so far. Really stable, strong and reliable. I have done some heavy testing today as i forgot to close the drawers and i drove with both of them fully open for around 15km on a really windy road full of hills. Surprisingly they are still working as new. I could not have done a better testing of the quality of this product.
Phill Phill
Mr
Very happy with these for the price. I’ve used them for long storage drawers in my work trailer. I would definitely buy again.
Phill Phill
Mr
Very happy with these for the price. I’ve used them for long storage drawers in my work trailer. I would definitely buy again.
Dirtrider Dirtrider
Great slide that can handle the weight
Used this for a slide out tray on my van conversions and it works fantastic! Well made and heavy duty to insure smooth operation. Both slides have a lockout which is key! Very happy with the price beating the big A and shipping was quick. Thank you!
Dan Dan
Super strong
Easy to install for my van drawer
