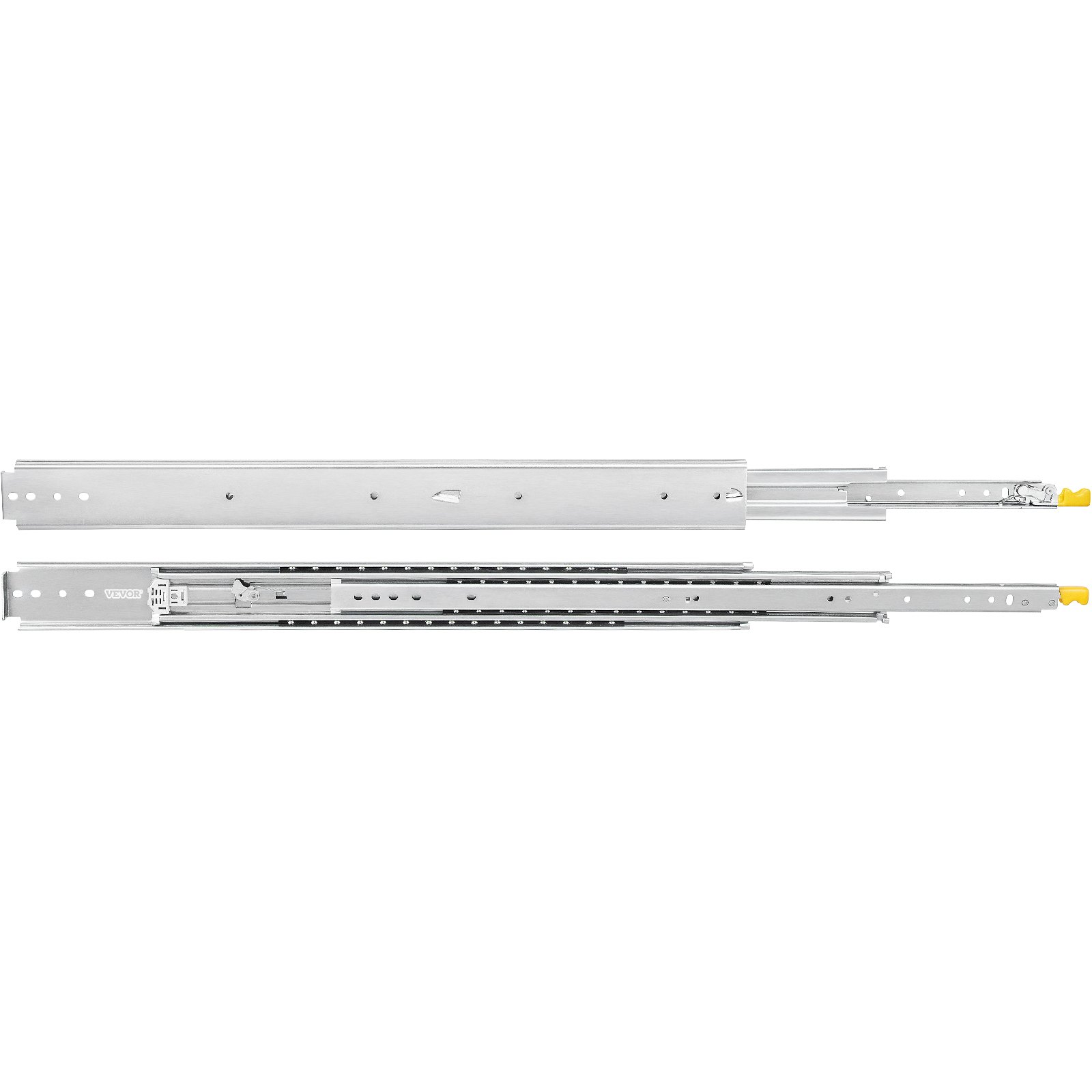

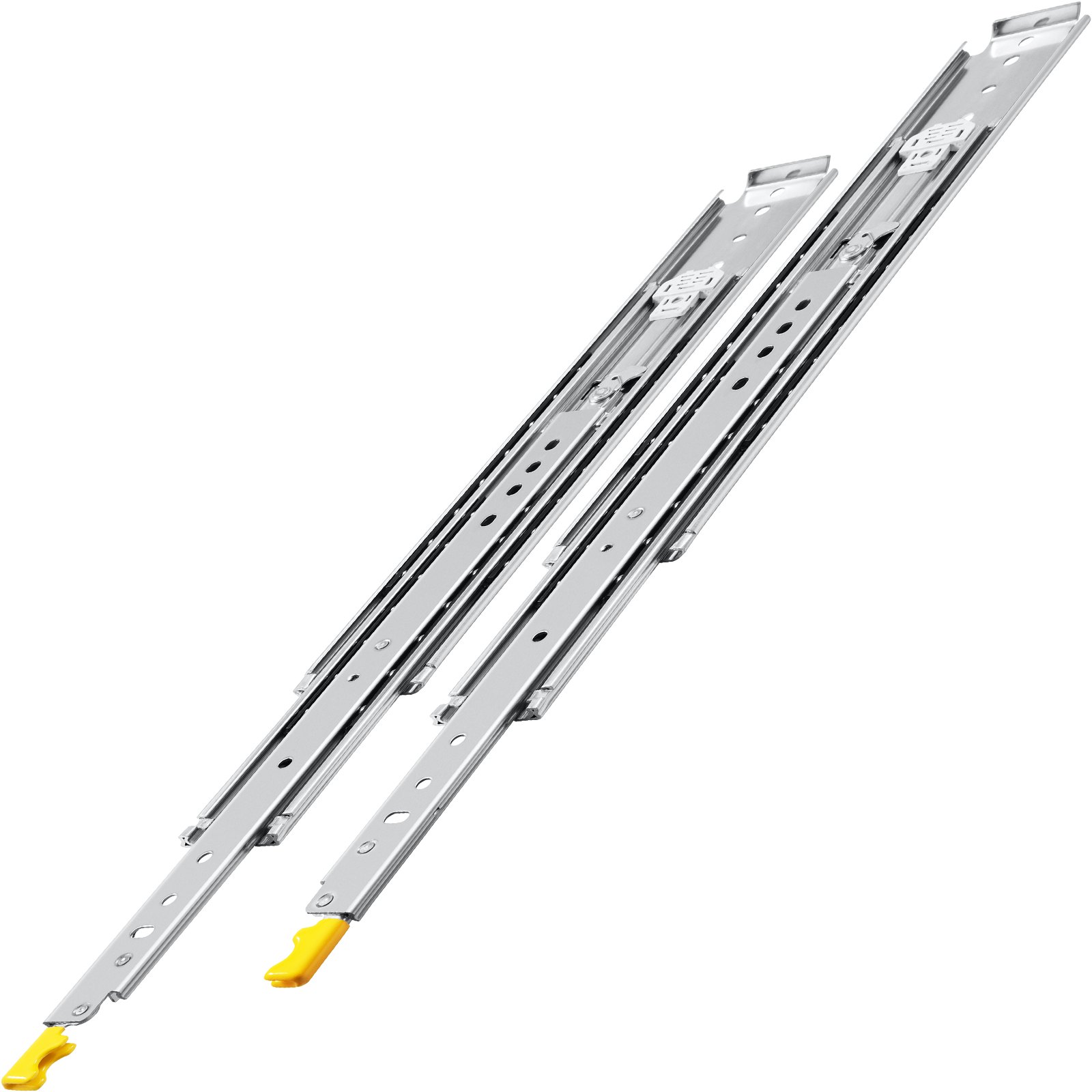

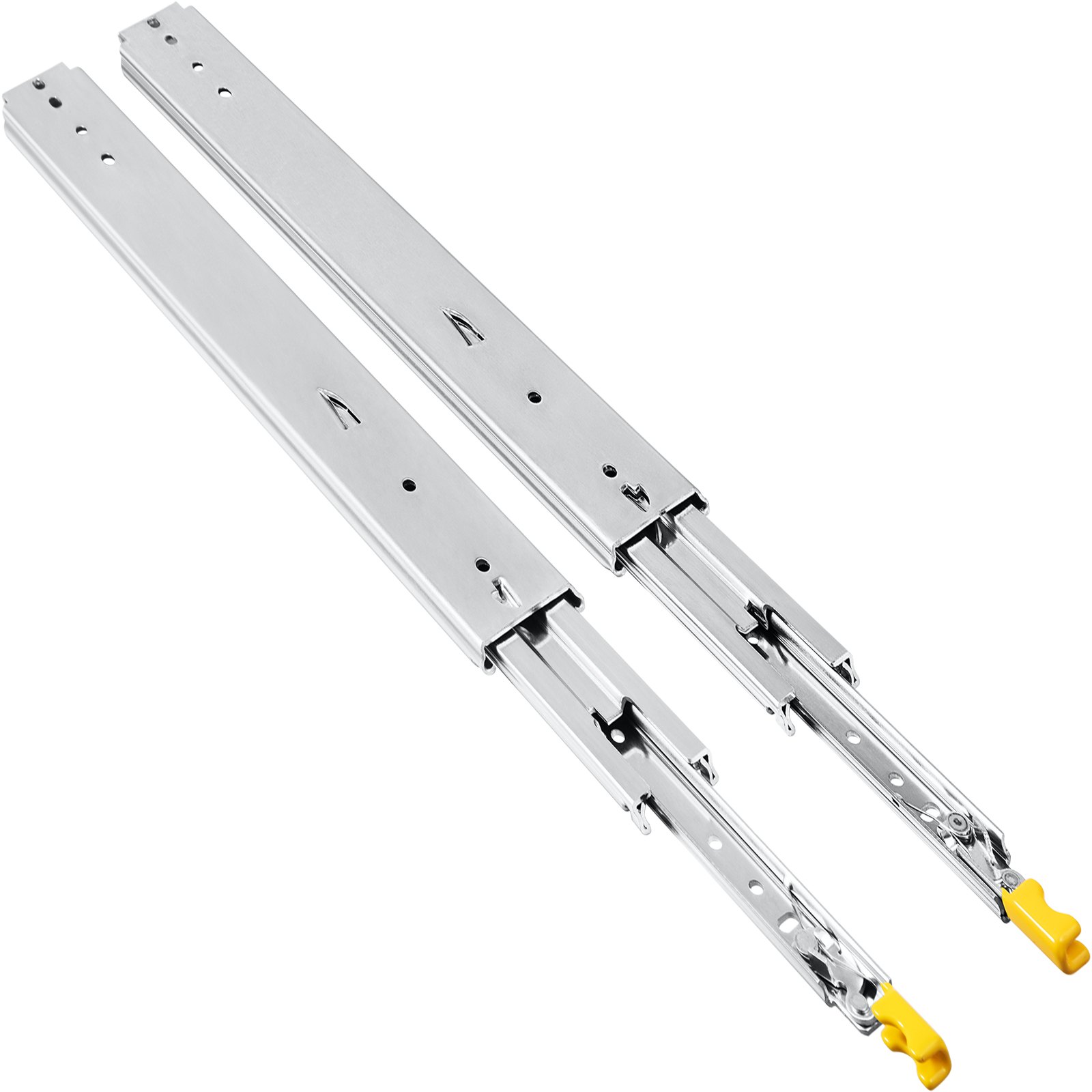

Name: VEVOR Drawer Slides with Lock, 1 Pair 44 inch, Heavy-Duty Industrial Steel up to 500 lbs Capacity, 3-Fold Full Extension, Ball Bearing Lock-in & Lock-Out, Side Mount
Brand: VEVOR
SKU: SDSSSCTD44500IVUOV0
Price: 137.99 AUD
Availability: Discontinued
Rating: 4.9 (119 reviews)

VEVOR Drawer Slides with Lock, 1 Pair 44 inch, Heavy-Duty Industrial Steel up to 500 lbs Capacity, 3-Fold Full Extension, Ball Bearing Lock-in & Lock-Out, Side Mount

Price including GSTSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive AU $5.00 off for your first three orders on the App.

Download Now

Exclusive AU $5.00 off for your first three orders on the App.

Scan the QR code to download

Length: 44 inch

52 inch
40 inch
48 inch
44 inch
56 inch
60 inch

About this item

Three-Section Drawer Slides: You can get 1 pair of drawer slides: 44"/ 111.8 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. A 3-fold full extension design, allows the entire drawer to be extended and reached. A great helper to maximally utilize your drawer's space(fully closed length: 44", fully extended length: 88"/ 223.5 cm).
Sturdy Steel & 500 lbs Bearing: Constructed with 0.75"/ 19 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 500 lbs/ 227 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The zinc-plated surface stays the extension drawer slide be rust-proof and abrasion-proof, enduring lifetime use. The slides can be applied to goods shelves, cabinets, the industrial drawers, RVs, trucks, vending machines, etc.
Softly & Quietly Slide with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Different from those without locks or only one lock, our dual lock design provides more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.
Choose the Right Size: Full extension drawer slides are compatible with most major drawer and cabinet types. How to determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should not be less than or equal to drawer depth.
Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as industrial drawers, commercial equipment, and retrofitted vehicles.

See More See Less

VEVOR drawer slides in a red toolbox organizing yellow-handled tools.

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

VEVOR drawer slides with mounting screws, featuring yellow release levers.

Full Extension Slide Drawers

Low Noise & Smooth Slide & with Dual Lock

Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.

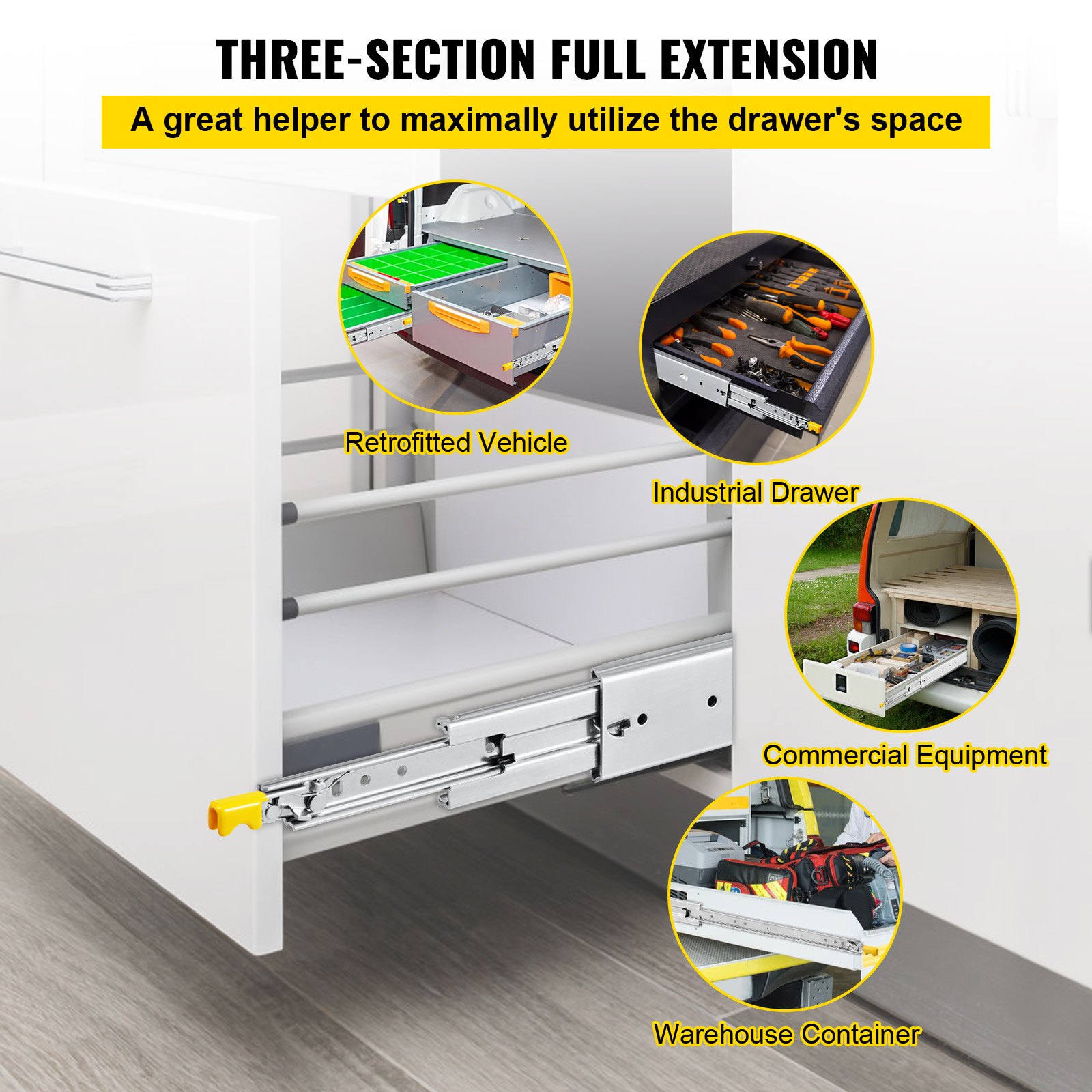

Three-Section Drawer Slides
Sturdy Steel & 500 lbs Bearing
Softly & Quietly Slide with Lock
Choose the Right Size

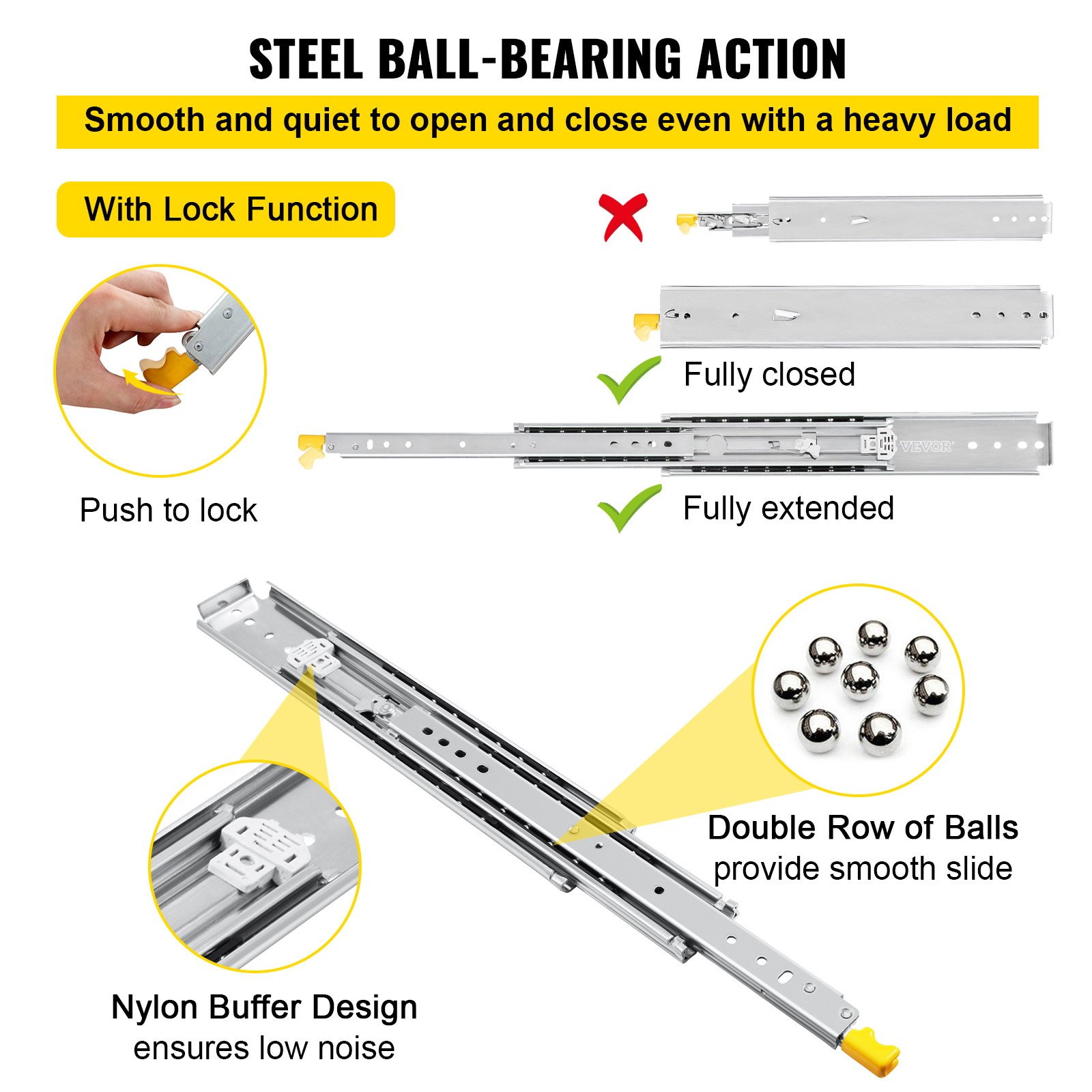

VEVOR drawer slides with lock feature, showing outer, middle, and inner slides.

with Lock Function

Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.

VEVOR drawer slides with dual-row ball-bearing and nylon buffer design for smooth, quiet performance.

Quiet Design Details

Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.

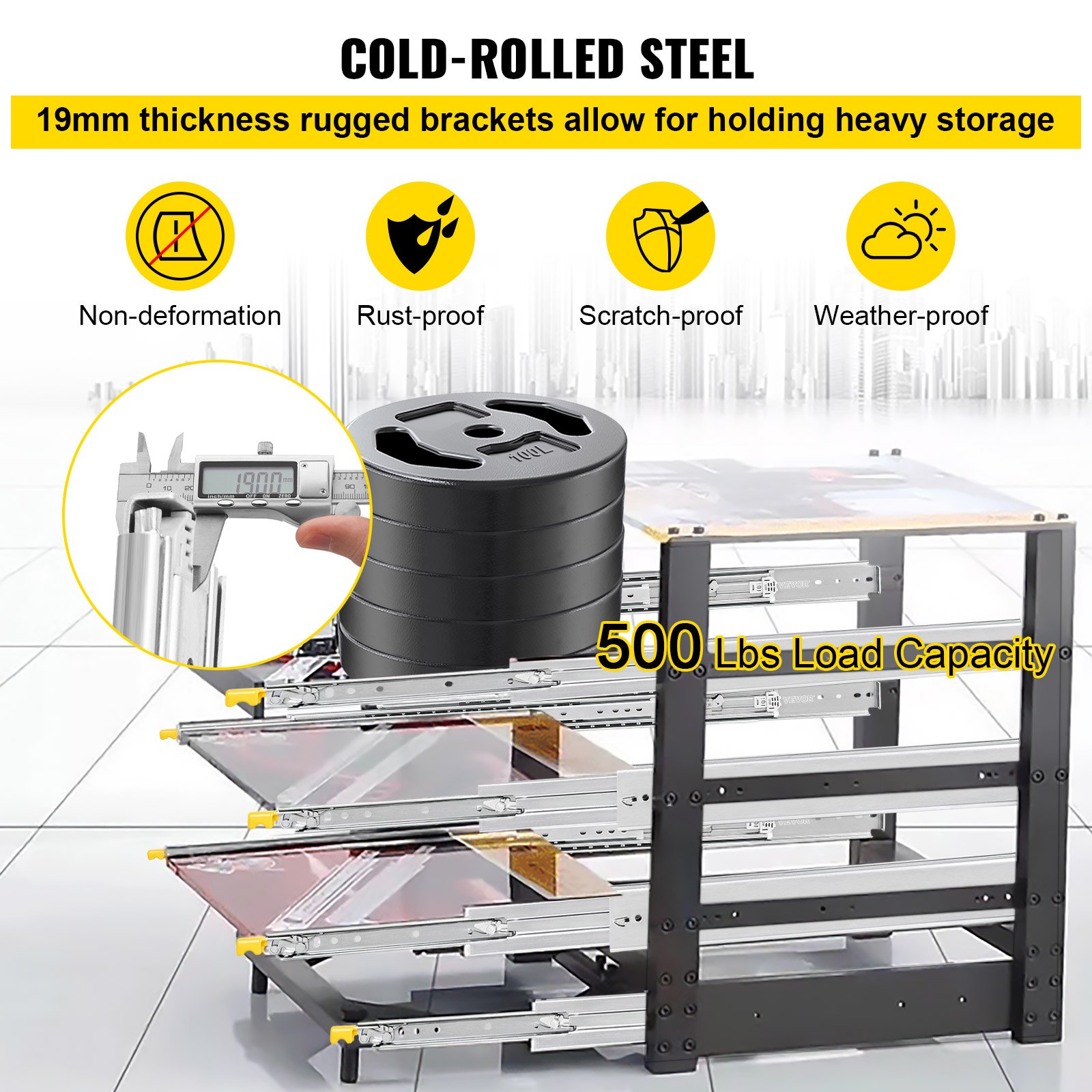

Cold Rolled Steel

High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.

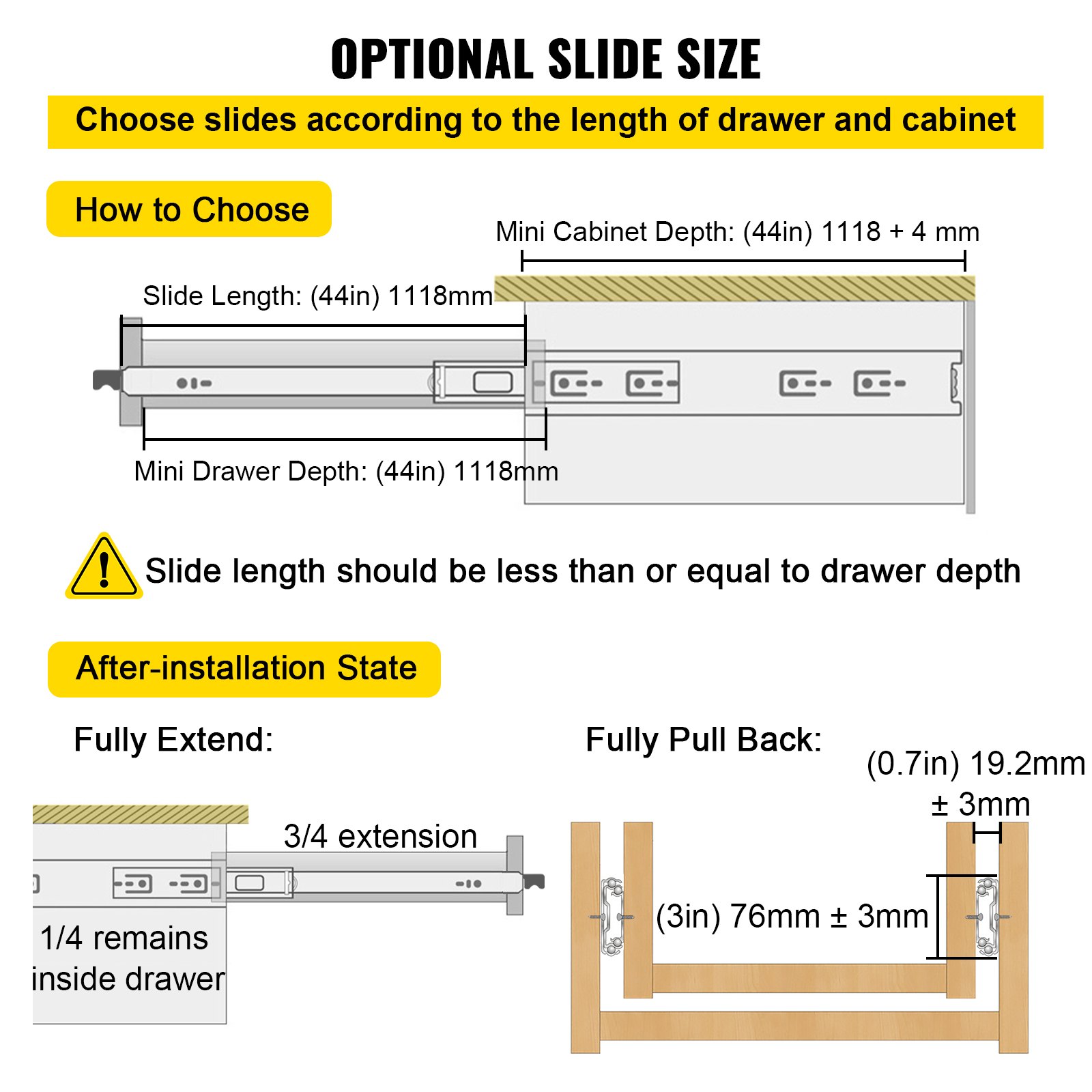

right size VEVOR drawer slides illustration with cabinet and drawer depth dimensions.

Right Size Table

Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.

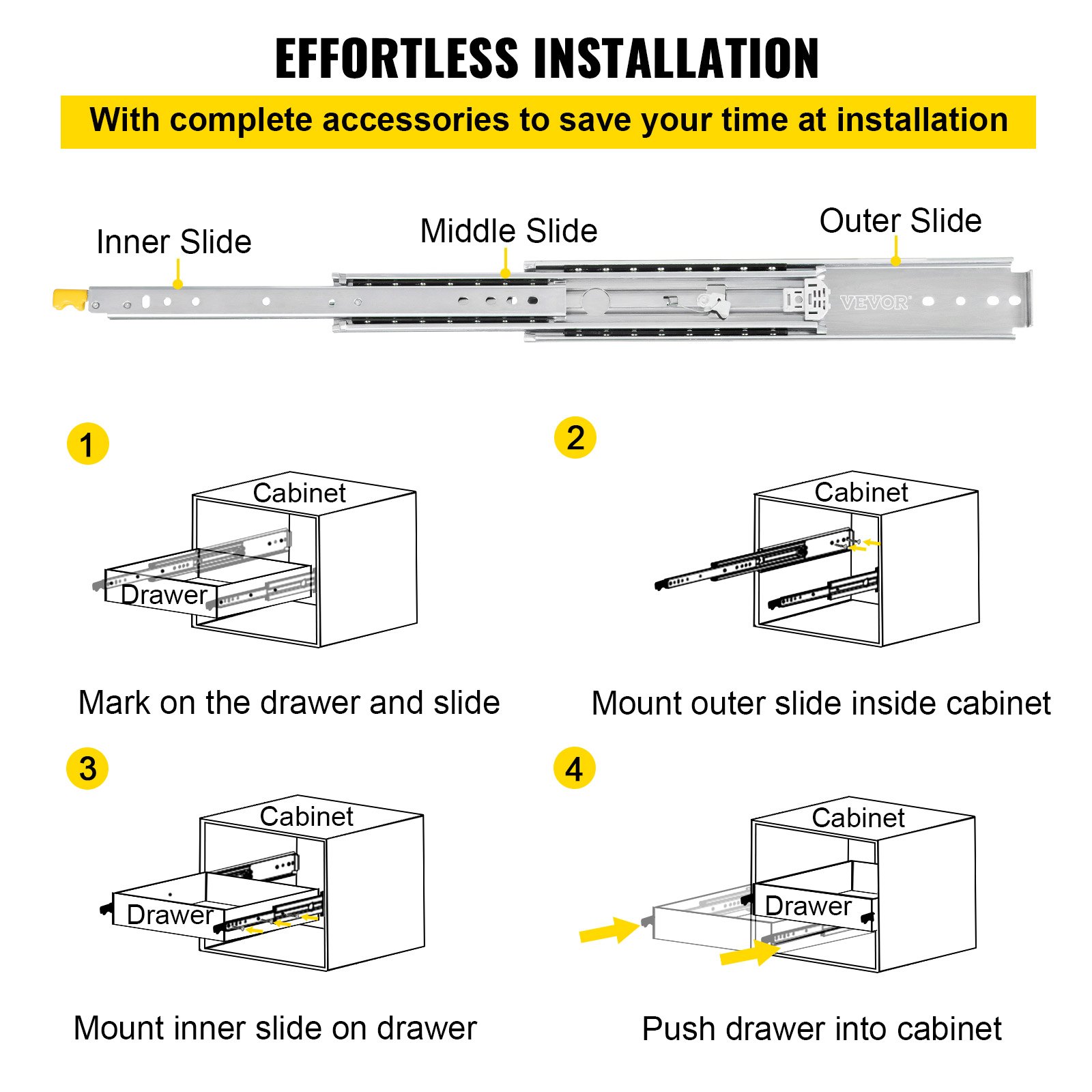

installation steps for VEVOR drawer slides: mark, side mount, attach drawer, and slide in.

Easy & Quick Assemble

In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.

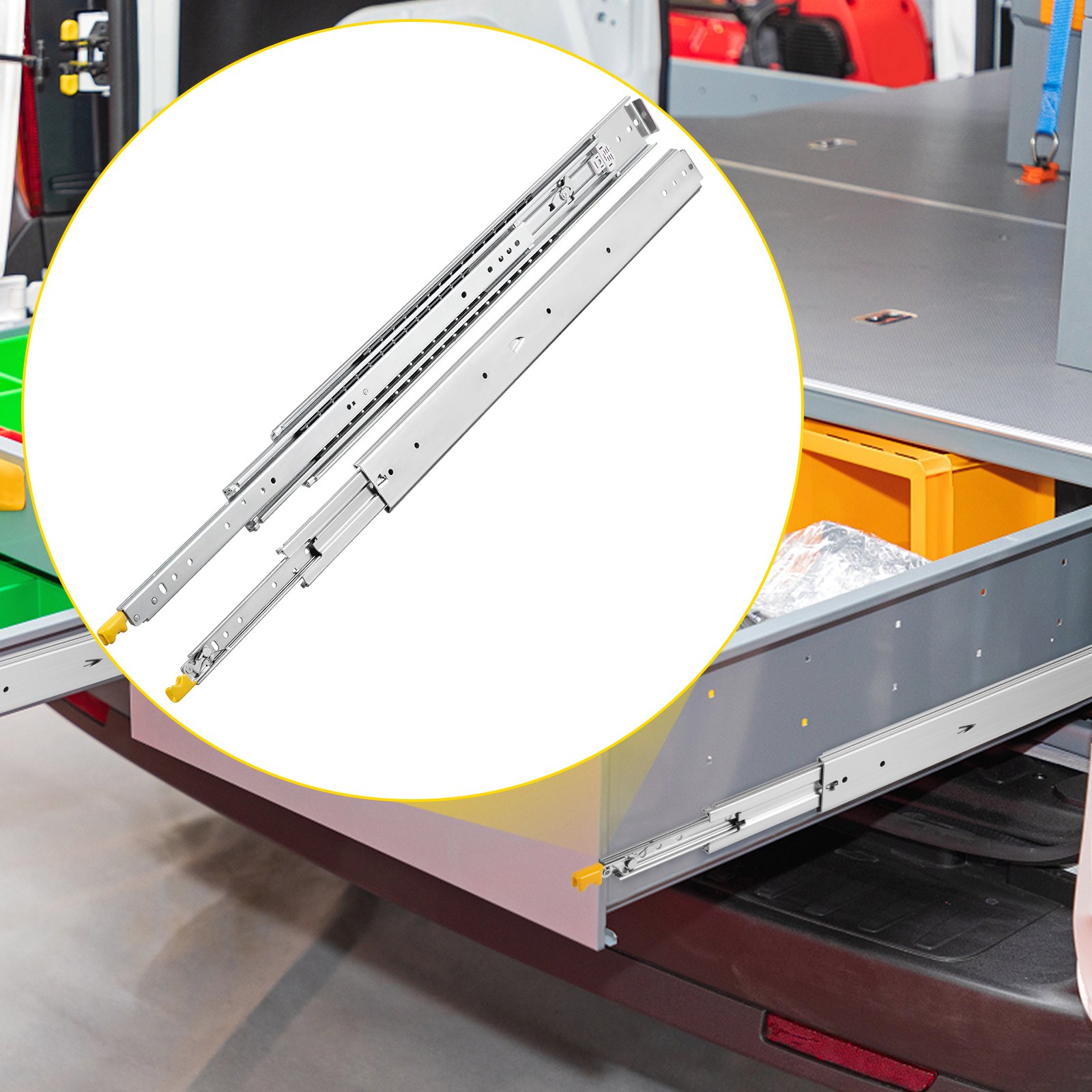

wide application of VEVOR drawer slides in various vehicles and equipment.

Extensive Usage

The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.

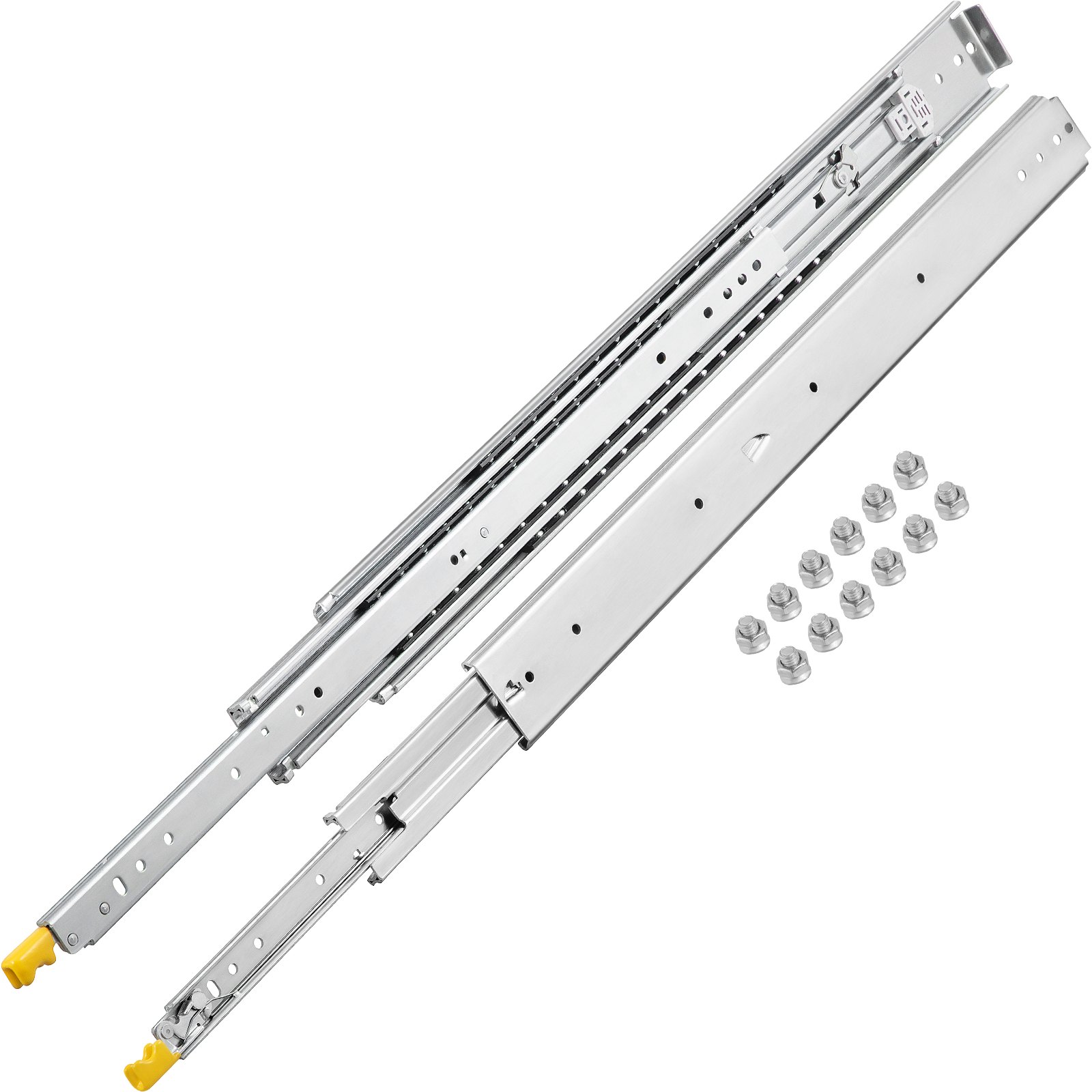

VEVOR drawer slides with 10 mounting nuts, showcasing a durable and sleek design

Package Content

2 x Drawer Slides
12 x M5 Screws
12 x M5 Screw Nuts

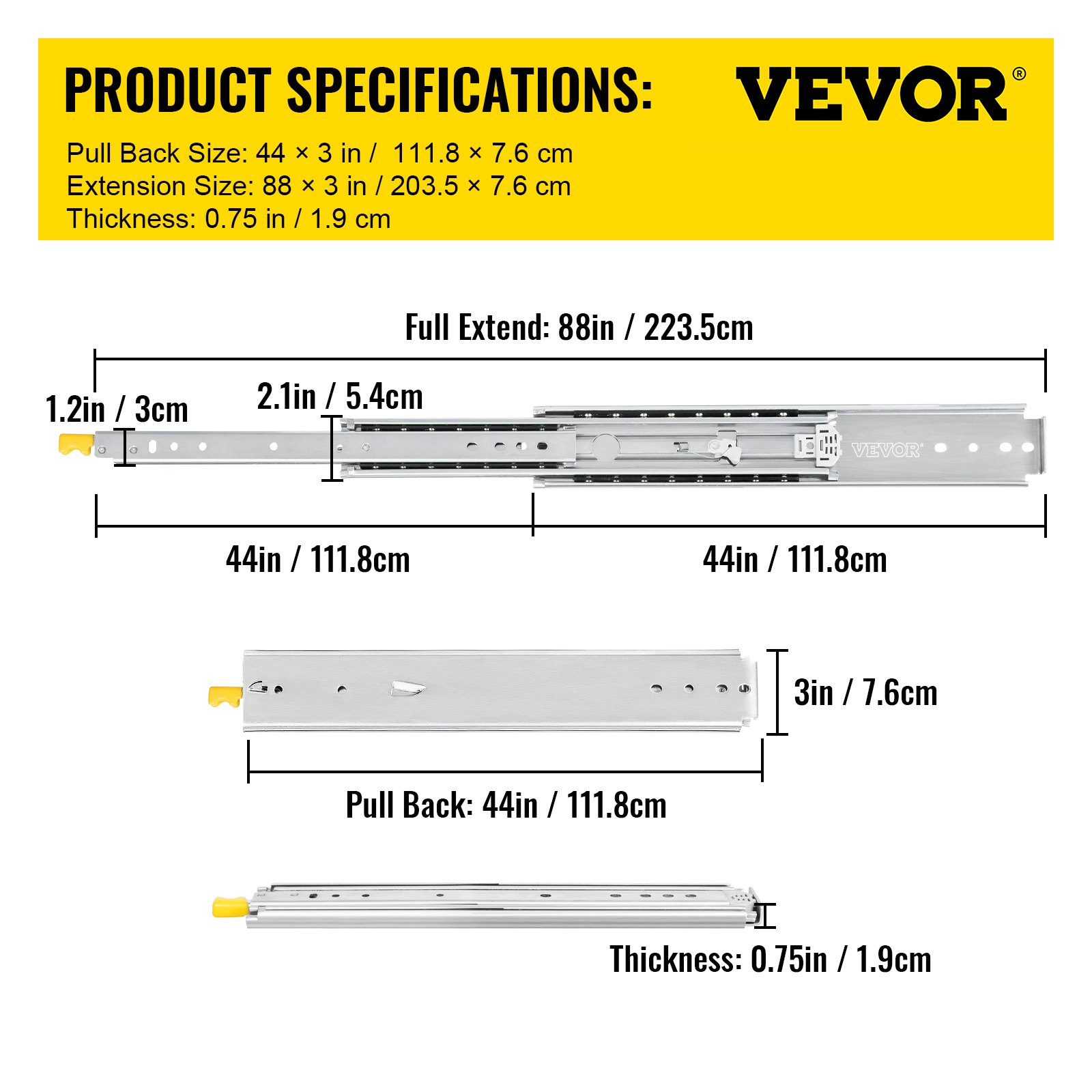

Specifications

Model: VV-SJTTDGDS-44IN
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Amount: 1 Pack(2 PCs)
Load Capacity: 500 lbs/ 227 kg
Fully Pull-Out Length: 88"/ 223.5 cm
Fold Product Size: 44" x 3" x 0.75"/ 111.8 x 7.6 x 1.9 cm
Inner Size (L x W): 44" x 1.2"/ 111.8 x 3 cm
Middle Size (L x W): 44" x 2.1"/ 111.8 x 5.4 cm
Outer Size (L x W): 44" x 3"/ 111.8 x 7.6 cm
Slide Lock: Support

Specification

Model: VV-SJTTDGDS-44IN

Color: Sliver

Material: Cold Rolled Steel

Finish: Zinc Plated

Amount: 1 Pack(2 PCs)

Load Capacity: 500 lbs/ 227 kg

Fully Pull-Out Length: 88"/ 223.5 cm

Fold Product Size: 44" x 3" x 0.75"/ 111.8 x 7.6 x 1.9 cm

Inner Size (L x W): 44" x 1.2"/ 111.8 x 3 cm

Middle Size (L x W): 44" x 2.1"/ 111.8 x 5.4 cm

Outer Size (L x W): 44" x 3"/ 111.8 x 7.6 cm

Slide Lock: Support

I recently picked up the VEVOR 60" Drawer Slides, and even though they were a bit on the pricey side, I think they’re totally worth it. They feel really sturdy, and using them has been a breeze—super smooth operation! Installation was pretty easy, but I do have one suggestion. It would be nice if there were a few more spots to mount them. Also, making the inner slide removable would really help when installing. Overall, I’d definitely recommend these slides if you want something durable and reliable. They’ve made a big difference in my project!

Used this for a slide out tray on my van conversions and it works fantastic! Well made and heavy duty to insure smooth operation. Both slides have a lockout which is key! Very happy with the price beating the big A and shipping was quick. Thank you!

I have now purchased 5 sets of these to make truck bed slides for myself and 4 siblings. Great price and sturdy. Locking mechanism works well. Only improvement would be inclusion of wood screws for mounting.

Customer Reviews

4.9 Out of 5

Based on 119 reviews

Ratings by Features

Price 4.9
Quality 4.7
Features 4.7
Easy to Use 4.8
See More See Less

119 Review(s)

Clear filters

Greg Rumsey

Owner

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Myles

Great slides for a good price.

I bought these for use in a road case and they fit great, and work like they should! I would definitely purchase again

Dirtrider

Great slide that can handle the weight

Peter Henry

DIYer

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

xxx

when the going gets rough...

Good quality. They are harder to install because you cant separate the tracks for installation but that is for safety. Make sure to get the tracks with double locks.

Tyron

Pretty Decent for the price

look they are draw slides, and believe it or not they work. been used on a 90L camping fridge and a weber q slider for about a year now, no issues

Wayne

It’s working good

It’s working good for now . Just need to see if they will last the test of time. They are used for my work truck with my tools on it

Krystal

Good product, however, the customer support needs a direct phone number and more work. Sending videos to correct the problem is not always a help to what we are seeking.

Alvaro Estarellas

Espero q si pueda con 500 libras porq la verdad es para lo q lo necesito

Se ve muy fuerte y bueno el material espero q pueda con 500 libras pero si está muy bueno

Worth the price.

So far so good. I'm using there for solar panels on my transit.. not to sure how they'll hold up to the weather but will find out.. now to get the 60 inch on.
