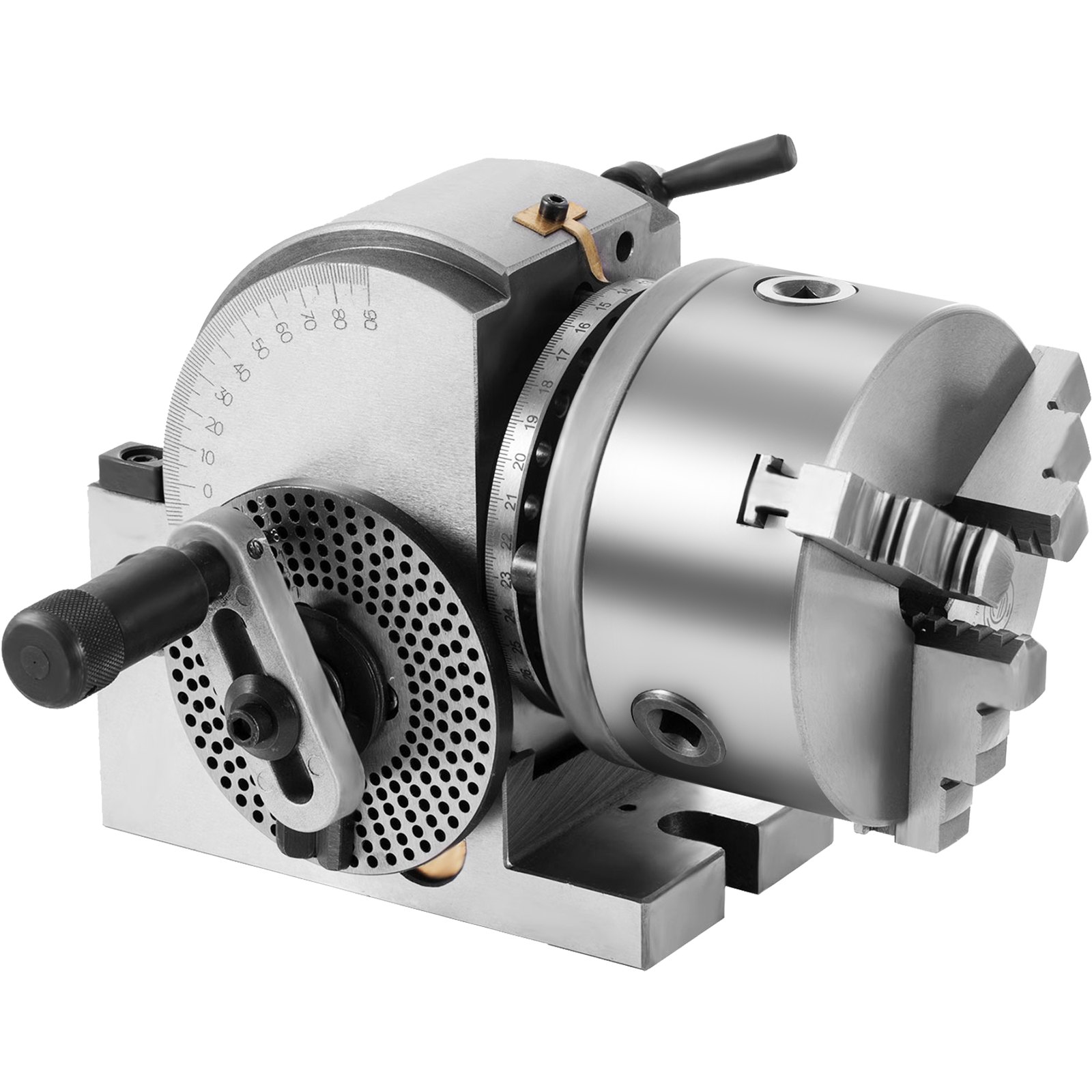

VEVOR dividing head with accessories, adjustable chuck, and rotary table attachments. VEVOR dividing head for drilling, cutting, boring, spot flattening in a cnc machine. VEVOR dividing head with ht200 cast iron body, rigid mirror finish, and very little friction. VEVOR dividing head with adjustable angles and accuracy calibration, swing 6.5", height 3.95". VEVOR dividing head with high precision indexing plate and 3-jaw chuck for axis machining VEVOR dividing head, strong support, standing and lying, rapid indexing, simple operation. VEVOR dividing head product specifications and dimensions with detailed measurements.
5CFDT000000000001V0

VEVOR BS-0 Dividing Head 5 Inch, Precision Dividing Head Set with 5" 3-jaw Chuck & Tailstock Dividing Plates for Milling Machine

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Solid Cast Iron Construction: Swing: 6-1/2"/168 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
  • Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
  • High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.

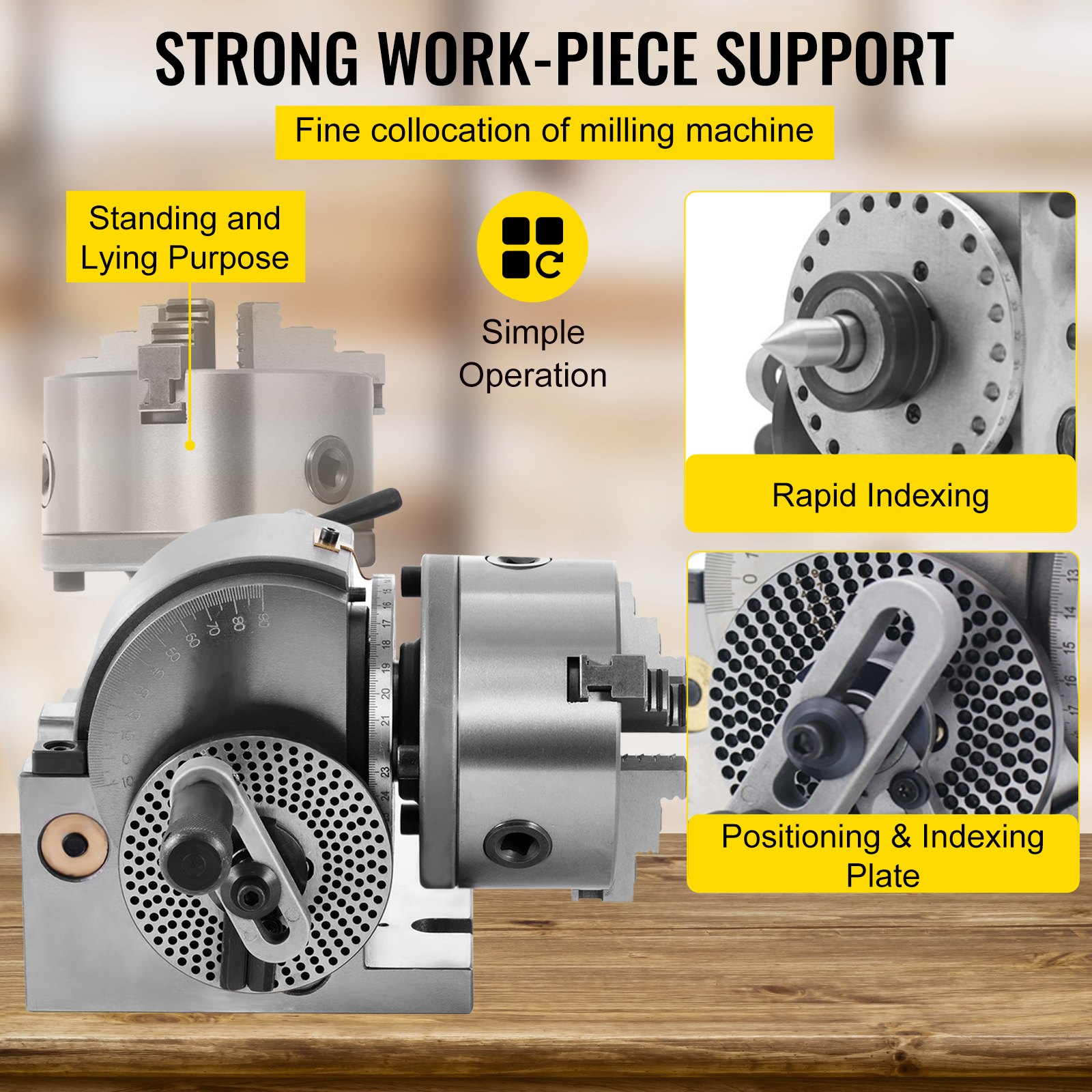

  • Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
  • Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR BS-0 Dividing Head 5 Inch, Precision Dividing Head Set with 5" 3-jaw Chuck & Tailstock Dividing Plates for Milling Machine
VEVOR dividing head for precise 5-inch indexing head milling machine with 4" center height.
VEVOR dividing head with accessories and adjustable base for milling machines.
BS-0 Precision Dividing Head
MT2 Headstock Taper & Complete Set & Simple Operation
The indexing head doesn't only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part
  • Solid Cast Iron Construction
  • Adjustable Dividing Head
  • High Precision Indexing Plate
  • Strong Workpiece Support
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

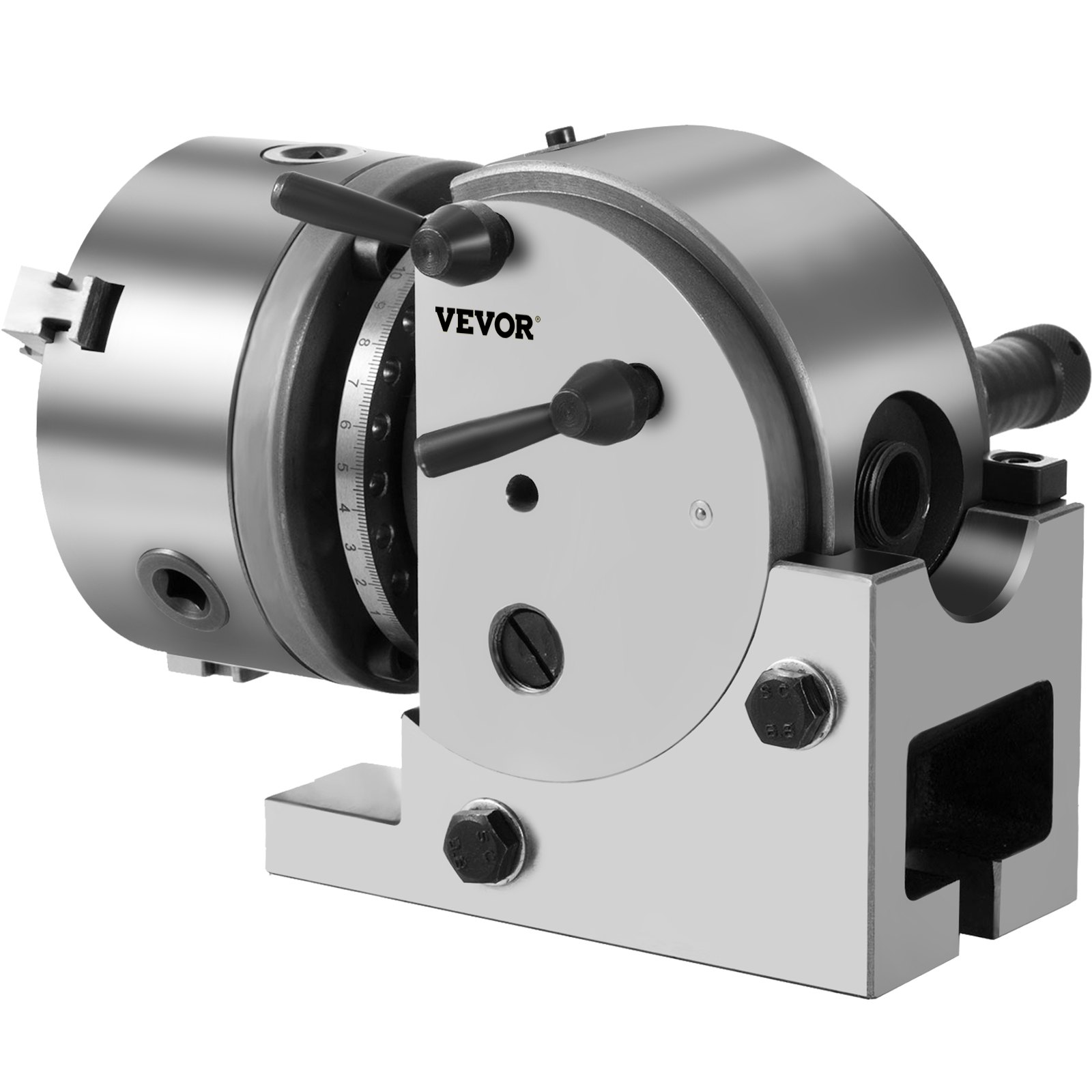

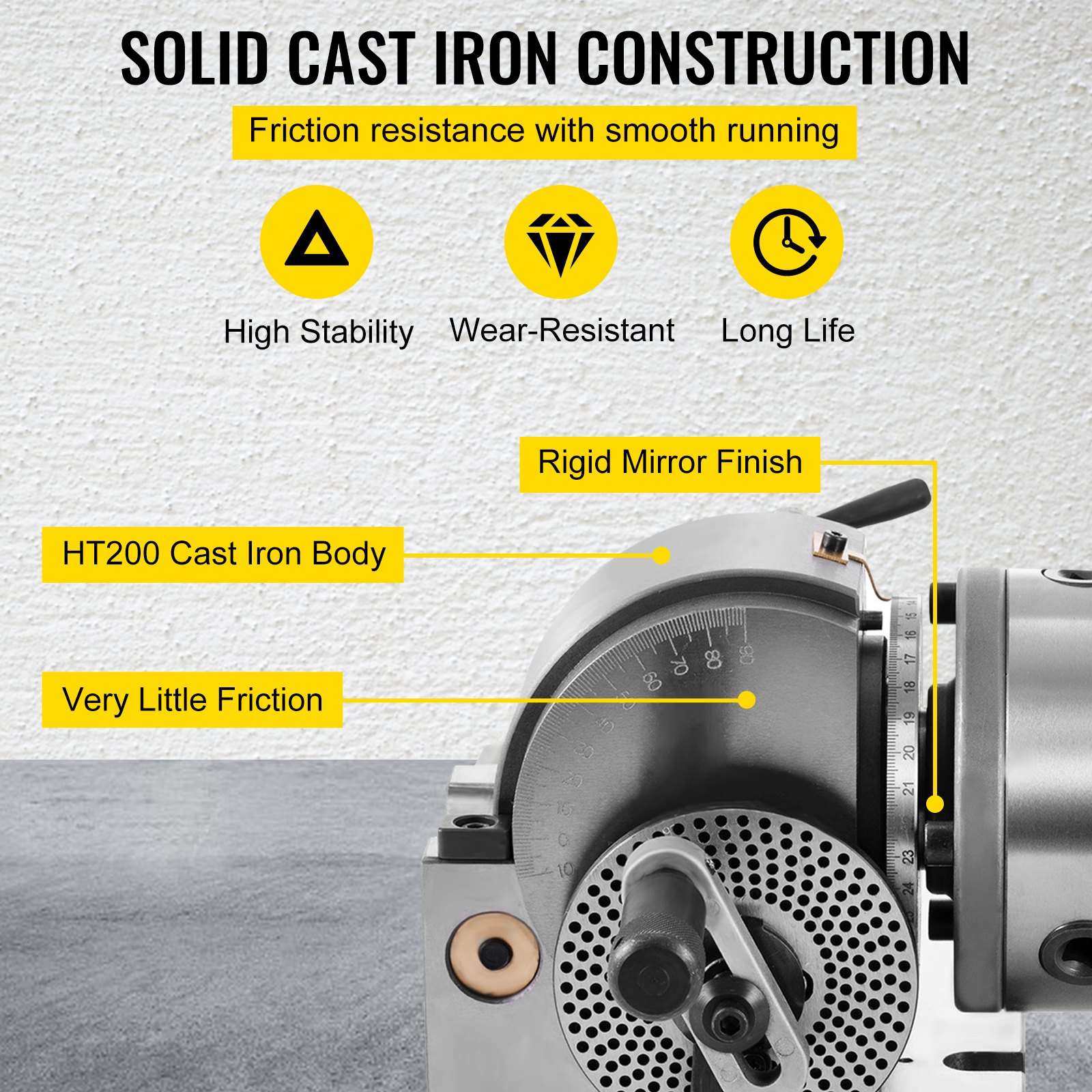

VEVOR dividing head with ht200 cast iron body and rigid sturdy construction.
Rigid & Durable Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that resists wear and tear and looks low-profile.

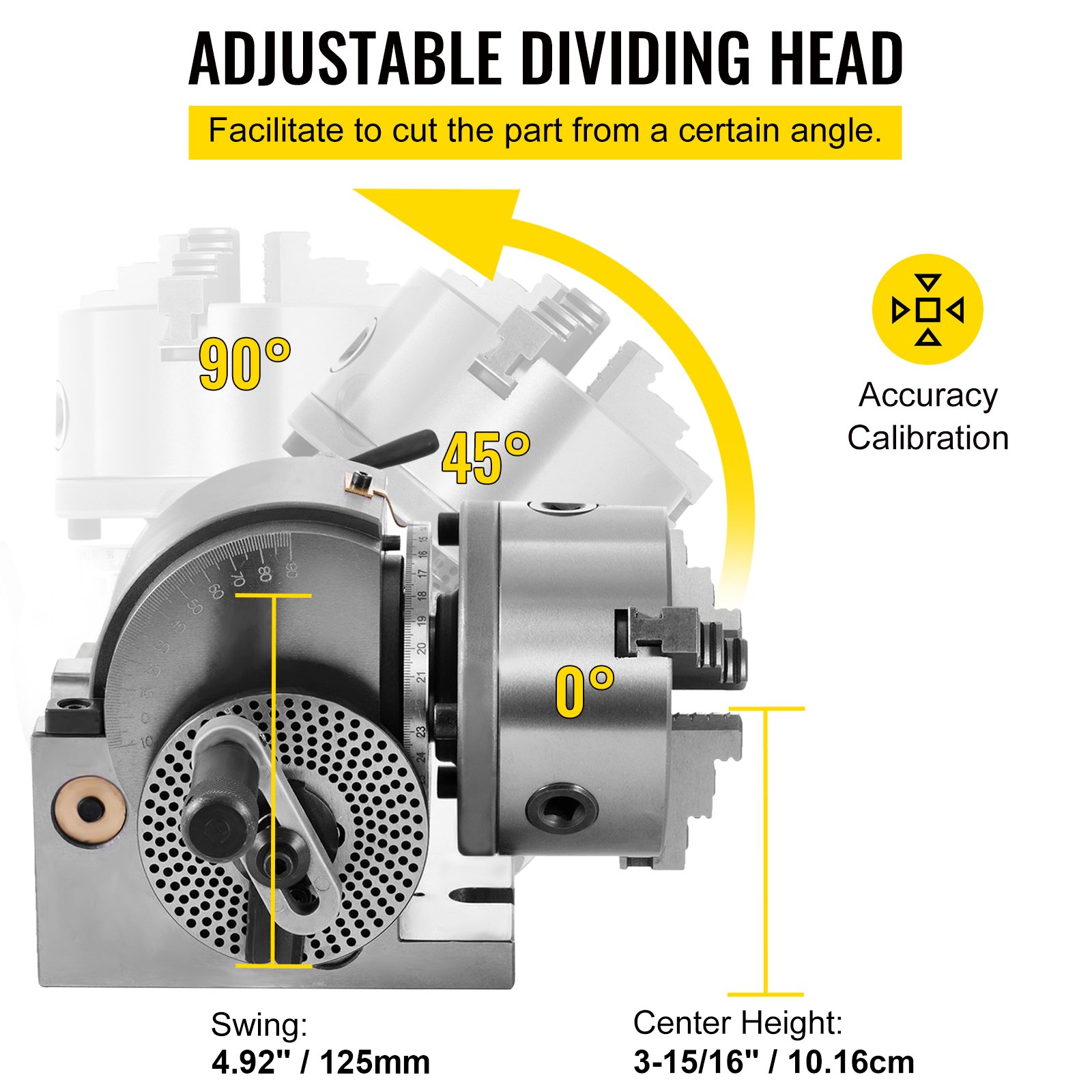

VEVOR dividing head with adjustable headstock, 6-1/2" swing, 3-15/16" center height.
Adjustable Headstock
The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.
VEVOR dividing head with direct indexing plate, lever, and spindle lock lever.

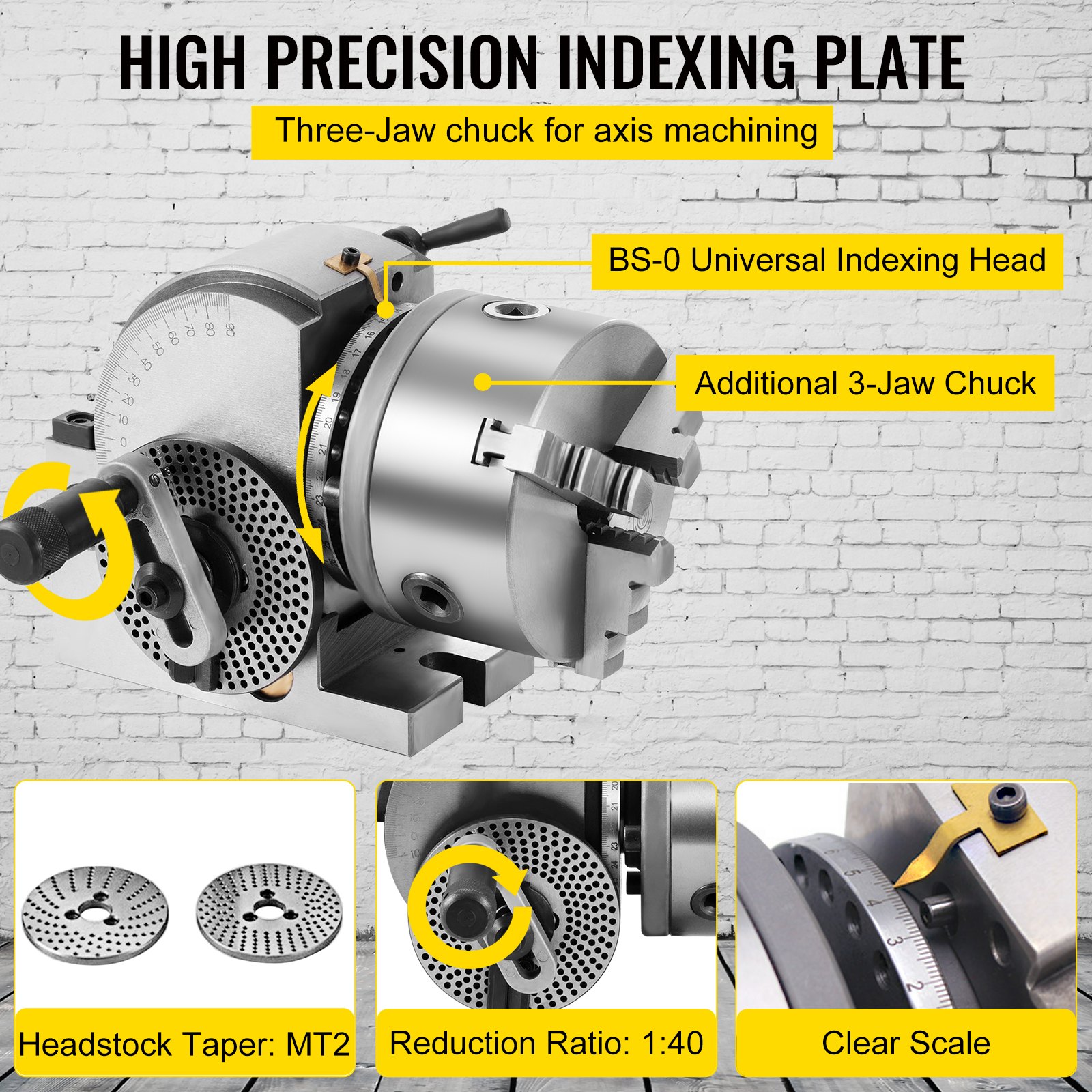

Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.
VEVOR dividing head with high precise plates and adjustable handle for accurate machining.
More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.
VEVOR dividing head with strong mt2 tailstock for precision machining.
Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.

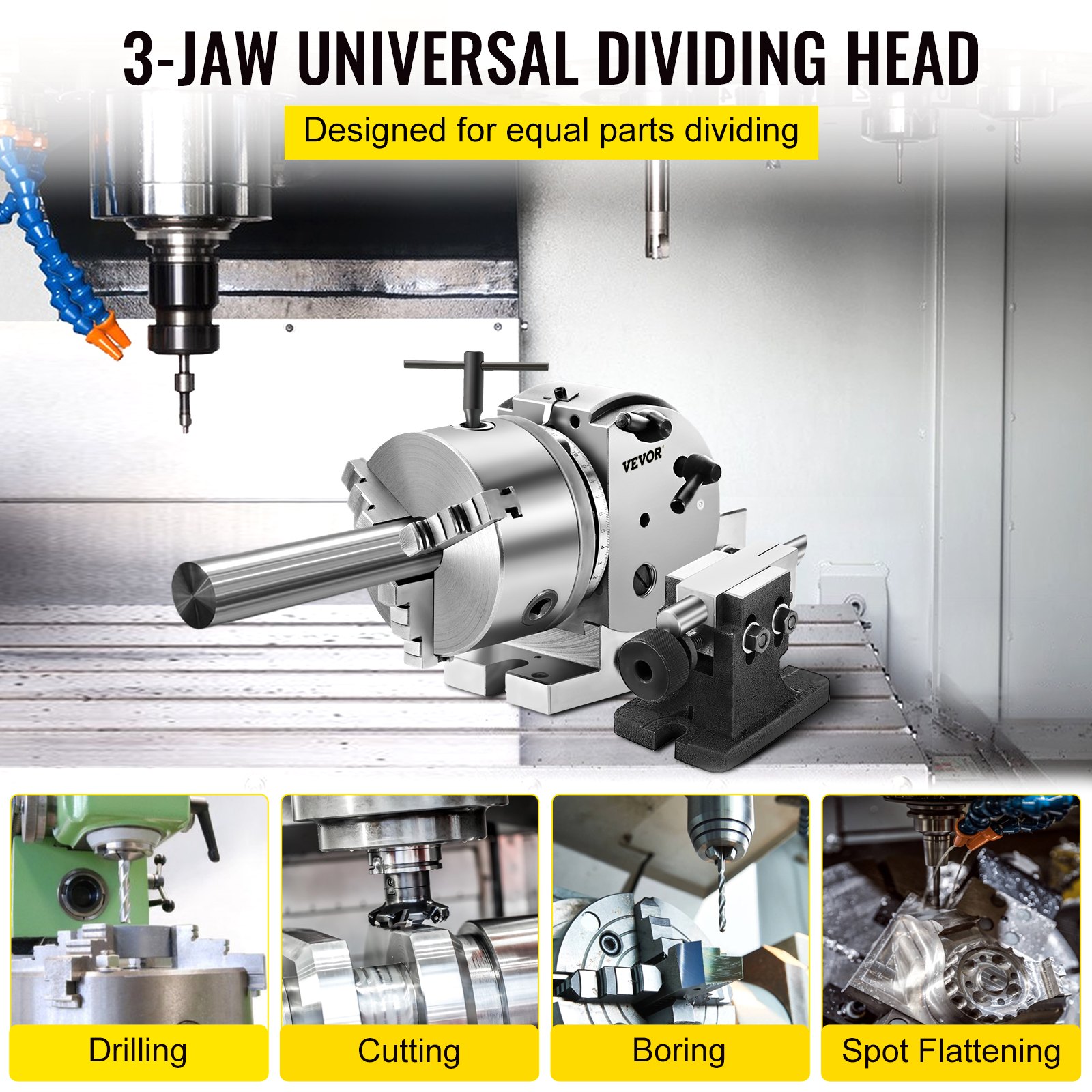

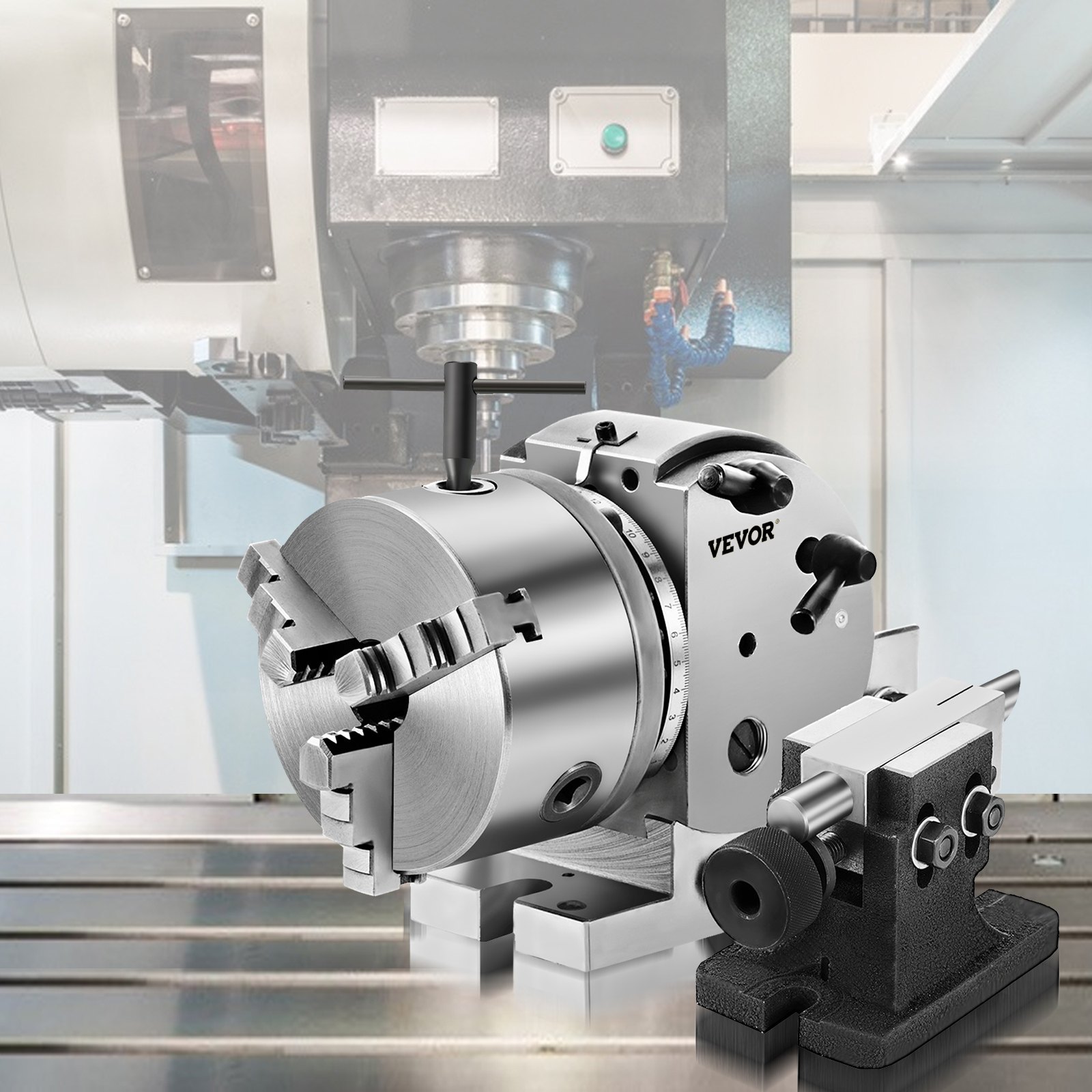

VEVOR dividing head showing wide application: drilling, cutting, boring, spot flattening.
Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.

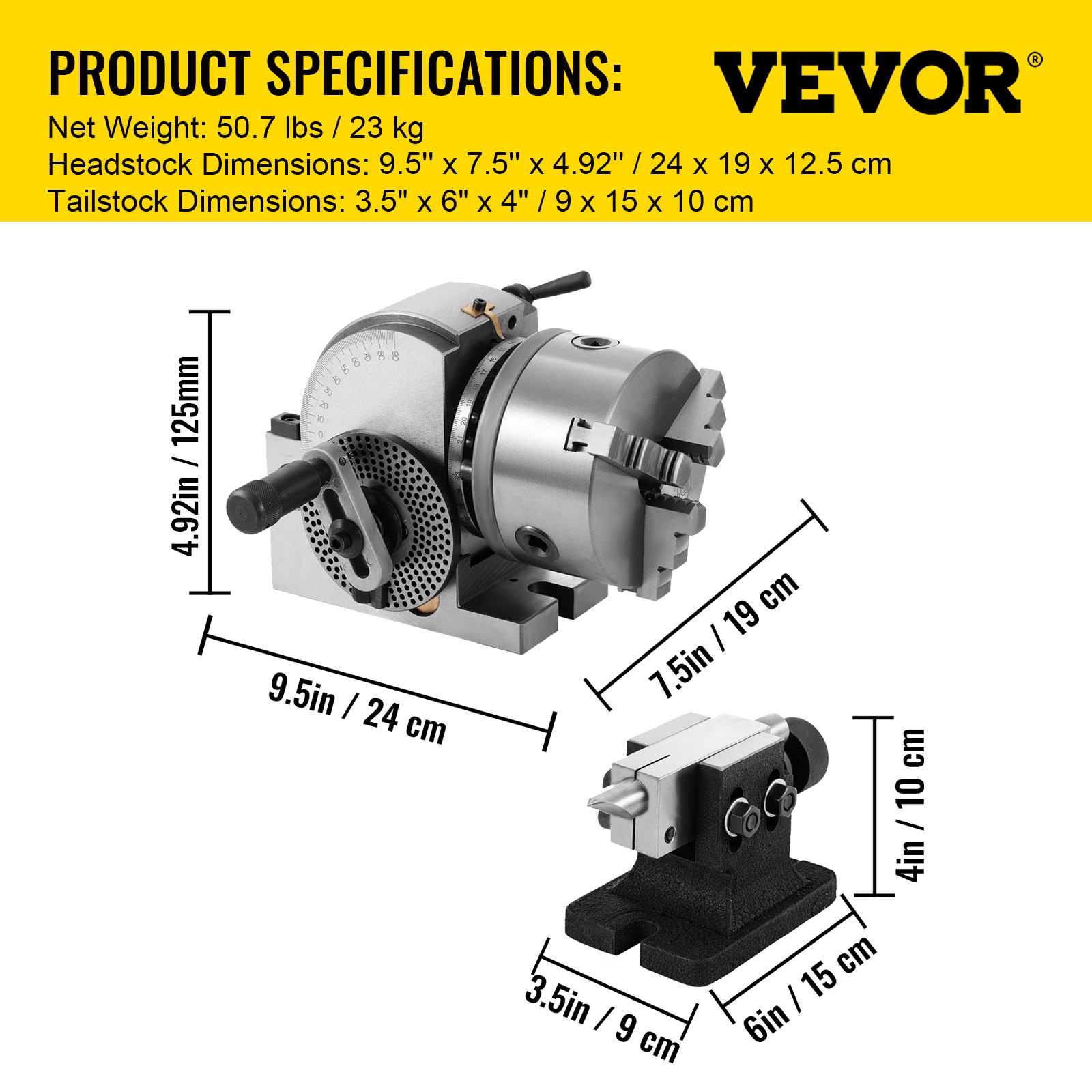

VEVOR dividing head with precise dimensions illustration for machining tasks.
Specifications
  • Swing: 6-1/2" (16.5 cm)
  • Center Height: 3-15/16" (10 cm)
  • Headstock Taper: MT2
  • Net Weight: 50.7 lbs (23 kg)
  • Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
  • Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

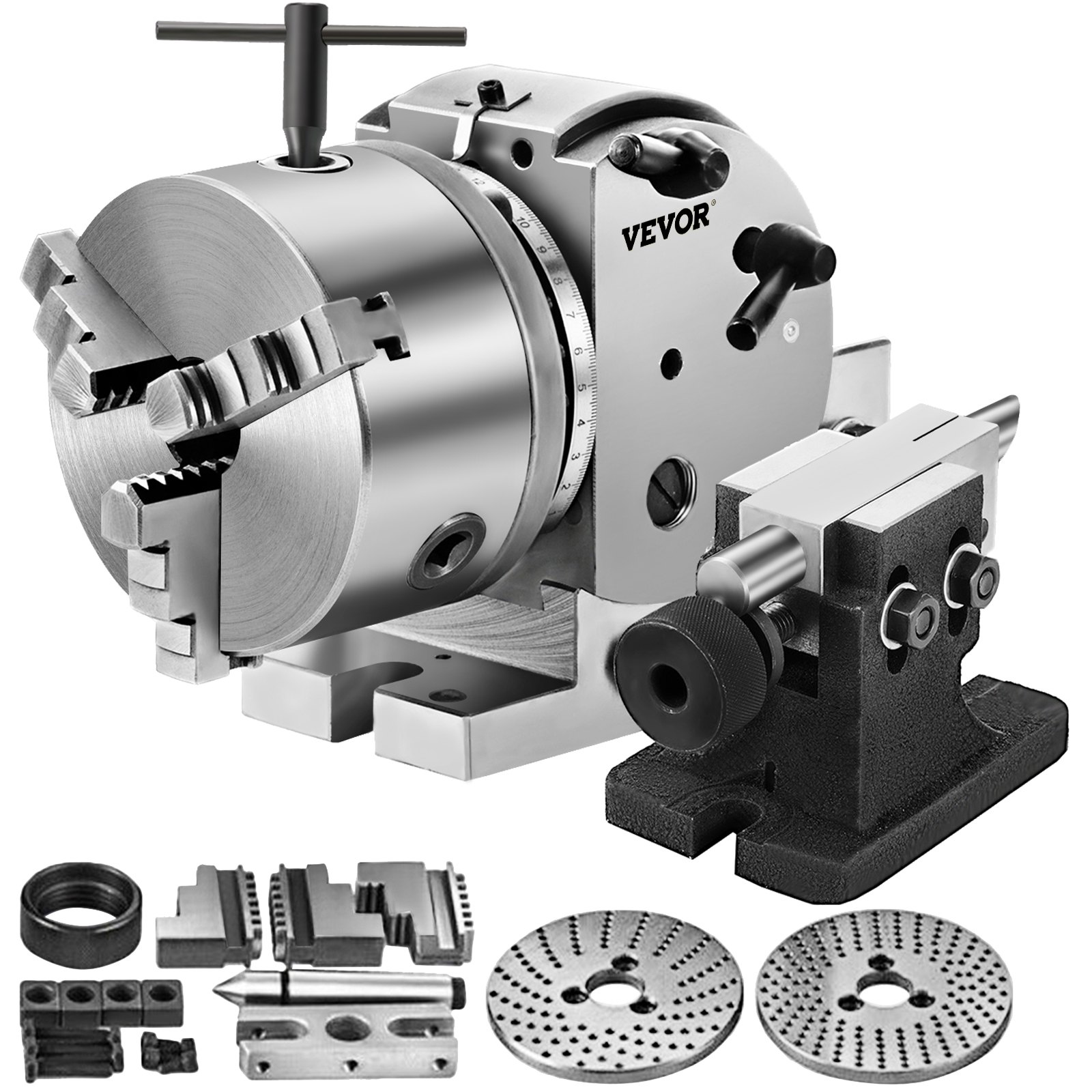

VEVOR dividing head with adjustable indexing plates and various components.
Package Content
  • 1 x Dividing Head
  • 3 x Dividing Plates
  • 1 x Tailstock
  • 1 x 125 mm 3-Jaw Chuck
VEVOR dividing head for precise 5-inch indexing head milling machine with 4" center height.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR dividing head with accessories and adjustable base for milling machines.
BS-0 Precision Dividing Head
MT2 Headstock Taper & Complete Set & Simple Operation
The indexing head doesn't only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part
  • Solid Cast Iron Construction
  • Adjustable Dividing Head
  • High Precision Indexing Plate
  • Strong Workpiece Support
VEVOR dividing head with ht200 cast iron body and rigid sturdy construction.
Rigid & Durable Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that resists wear and tear and looks low-profile.
VEVOR dividing head with adjustable headstock, 6-1/2" swing, 3-15/16" center height.
Adjustable Headstock
The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.
VEVOR dividing head with direct indexing plate, lever, and spindle lock lever.
Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.
VEVOR dividing head with high precise plates and adjustable handle for accurate machining.
More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.
VEVOR dividing head with strong mt2 tailstock for precision machining.
Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.
VEVOR dividing head showing wide application: drilling, cutting, boring, spot flattening.
Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
VEVOR dividing head with adjustable indexing plates and various components.
Package Content
  • 1 x Dividing Head
  • 3 x Dividing Plates
  • 1 x Tailstock
  • 1 x 125 mm 3-Jaw Chuck
VEVOR dividing head with precise dimensions illustration for machining tasks.
Specifications
  • Swing: 6-1/2" (16.5 cm)
  • Center Height: 3-15/16" (10 cm)
  • Headstock Taper: MT2
  • Net Weight: 50.7 lbs (23 kg)
  • Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
  • Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

Robust Dividing Head for Flawless Results

VEVOR Dividing Head is crafted with exceptional durable and long-lasting functionality at its core. This tool features a solid cast iron construction, making it suitable for prolonged heavy-duty use without signs of wear over time. You would find its mirror-finish swing an excellent choice for increasing its aesthetic appeal while offering comprehensive protection against wear and rust. This means this tool won’t lose its luster and functionality, causing you to regret your purchasing decision.


Aside from its amazing aesthetic appeal and strong build, the VEVOR Universal Dividing Head comes in handy during intricate machining or gear cutting, ensuring accurate and improved cutting efficiency. You can make precise adjustments and turns with this tool to accommodate a wide range of projects, from gear cutting to precision machining for flawless results.


Adjustable Headstock for Many Applications

One of the remarkable features of the VEVOR Precision Dividing Head is its adjustable headstock bringing flexibility to your metalworking or machining. You can tilt the headstock from 10 degrees below horizontal to a vertical position, allowing machinists and engineers to work on any workpiece without size or shape limitations. This feature makes this dividing head a valuable tool for anyone looking to expand their creative boundaries or tackle diverse metalworking tasks.


Furthermore, the headstock's adjustability improves your control over their workpieces. This leads to high precision machining and professional-quality results, regardless of your skill level and the project’s complexity. Also, it’s easy to make these fine adjustments and switch from one angle to another, which cuts down downtime significantly making room for better efficient workflow.


Achieve Superior Precision with Indexing Plate

VEVOR Dividing Head is equipped with a direct and interchangeable indexing plate, making it easier to achieve precise distances between your cuttings for accurate work. These indexing plates offer more than just effortless precision but a new level of flexibility, allowing machinists and metalworks to execute both simple divisions and complex projects with ease and accuracy.


Considering how easy it is to set your preferred distances between cuttings, you can kiss long setup time and tedious workflow goodbye. The VEVOR Universal Dividing Head is the tool to have for streamlined workflow and more efficient project completion.


Hold Workpieces in Place for Less Errors

VEVOR Dividing Head boasts a wide range of machine tool accessories, with the tailstock being the favorite of the lot. This tailstock for milling provides your workpiece with the much-needed support to keep it steady during the machining process. This accessory is useful when dealing with long metal pieces that are notorious for dancing around.


With a solid foundation and robust support, it’s easier to achieve a higher degree of precision, crucial for intricate metalworks. If you often find yourself faced with more challenging projects, this precision dividing head is the ally you need in those tricky times to reduce your risk of errors due to stability issues.


High Compatibility with Various Machines

The versatility of the VEVOR Universal Dividing Head makes it an indispensable tool for any metalworker, engineer, or machinist. Compared to its picky competitors, this precision dividing head works nicely with boring machines, grinders, drill presses, milling machines, etc. to accomplish various metalworking tasks without breaking a sweat.


Its swift integrations with different equipment in your workshop and solid build to handle the rigors of heavy-duty use make it a great choice for metalworkers looking to take on a wider range of projects to improve their craftsmanship. Whether it's flawlessly executing precision cuts or etching detailed patterns, this tool is the obvious choice for you with its rotary indexers, steady base, and high accuracy.


See More

Specification

Swing
6-1/2" (16.5 cm)
Center Height
3-15/16" (10 cm)
Headstock Taper
MT2
Net Weight
50.7 lbs (23 kg)
Headstock Dimensions
9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
Tailstock Dimensions
3.5" x 6" x 4" (9 x 15 x 10 cm)
Manual
Download Link
Questions and Answers
9 Questions
Can you get gears for differential indexing?
It comes with 3 indexing plates for any combination you might need. The most important thing you need to do before using is take it completely apart including the chuck and deburr , clean and put in some good grease and oil, it is horrendously dirty inside, otherwise it seems of good quality.
By vevor
Is the BS - O a universal unit? Or just a dividing unit and only cut straight gears?
No, BS-O is the model number.
By vevor
Can I use this as a welding positioner turntable with a drill connected to it?
Yes you could absolutely use this as a welding position/turntable. If your mechanically inclined it would be simple to set it up with a motor and footswitch for welding
By vevor
This can be used as a vertical OR horizontal table?
Yes. You can tilt the head 90 degrees. Make sure a verical table is sturdy. The rotating head is heavy.
By vevor
What is the through hole diameter of the chuck and the length of the chuck?
Thru hole is 30.21 mm length of chuck with back plate 66.87 mm without back plate 55.31 mm
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
77 Review(s)
Clear filters
Michael Brown Michael Brown
Great value for the price!
Great value for the price. The chuck ran out about .004” when it received it. When a slight modification, it can now be indicated in.I’m happy with the accuracy and workmanship. Now let’s see how it holds up. Great for a garage shop.
Popeye Popeye
Owner
Came packaged good and no missing parts. User manual very vague. Plates drilled on only one side but instructions stated plates are drilled on both sides. That is disappointing. Otherwise good for a small affordable dividing head, overall a rough but acceptable device. Save all your ordering information because if you have a problem, you are ignored if you are missing even one paper. Sad.
ApolloMobilePower ApolloMobilePower
Company
Stiff, came damaged. I have yet to check run-out, but I disassembled it, deburred it and reassembled it. It was full of burrs and some loose metal shavings on bearing surfaces. I cleaned then re-applied grease. I did not disassemble the chuck yet. The jaws themselves were not deburred, nor the slots. There was a massive burr all around causing the jaws to bind a bit. Upon removing the jaws, turning the mechanism for tightening the jaws was like a bag of rice, just crunching and grinding. I imagine it will have some poor machining. I will see what the concentricity/run out is in the future. The are sending me a replacement part for the damage, but if its not running true when I check, its just going in the trash. Picture below shows broken check ball for oiling the jaws; probably when there is metal in there.
spark pluge spark pluge
hobby machinist
I have sued it on two projects that I could not have done with out it. It amperes this will be one of my most used Machine tools.
Evan M Evan M
User
This product looks great, but the tolerance in the worm gear are so sloppy it could never be used as a dividing head.
Joseph Joseph
Commissioner
This dividing head comes with accessories relative to its functionality and is of exceptional quality and the build is top-notch. Vevor has the best price on the Internet for this unit. After sales support and customer service is among the best in the industry, Vevor is a top quality brand and their products rival that of the bigger name corporations and they offer a wide range of items appealing to everyone.
WCP WCP
Horizontal milling project
I bought this indexing device to mill an octagon rifle barrel and it worked excellent for that purpose. I think it will come in handy for a lot of mill projects in the future. Thanks
Neville Green Neville Green
Mr
As a Tradesman Fitter and Turner I found this to be good quality and great value, everything was as it should be , other more expensive brands would probably last longer if used in thousands of different jobs , however this item will last for most tradesmen and hobby machinist on hundreds of jobs
Des Bromilow Des Bromilow
bricoluer
I bought this fully expecting to have to "tune it", but it's fine right out of the box. Well packed, and coated in oil to prevent rust in transit and storage. The instructions are available off the internet if the enclosed manual is a bit sparse. The box contained all the accessories shown in the images (including chuck jaws, screws, etc) and all appear to be taiwanese quality (that's quite good if you don't know) I wouldn't be surprised to find this made in the vertex factory based on fit and quality. I will still strip it down and clean it before serious use, but first impressions on unwrapping and checking is great.
Josh Josh
Awesome Deal
You are getting a lot for your money on this bad boy
