VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
LSJGSZKJY8425ZBUGV3

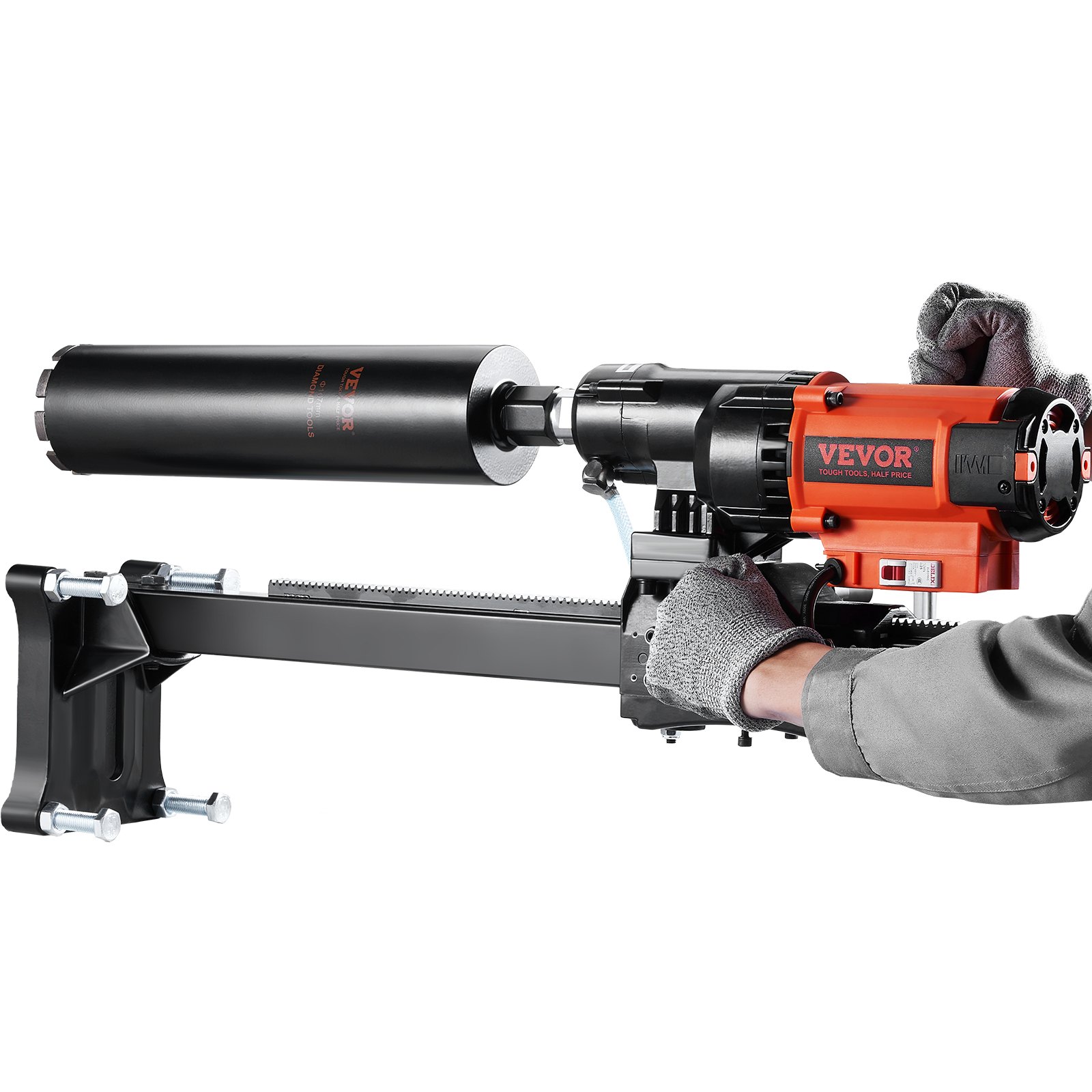

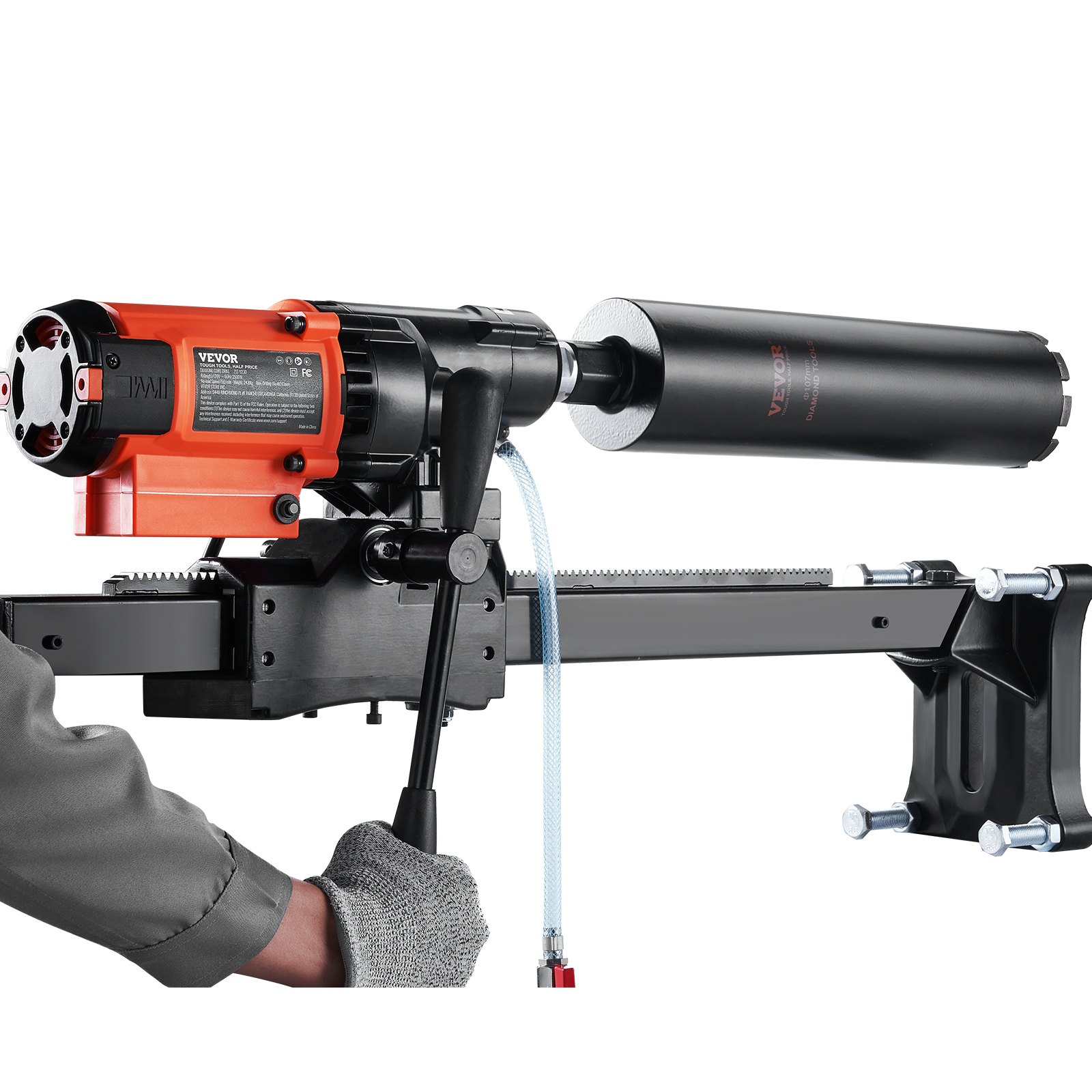

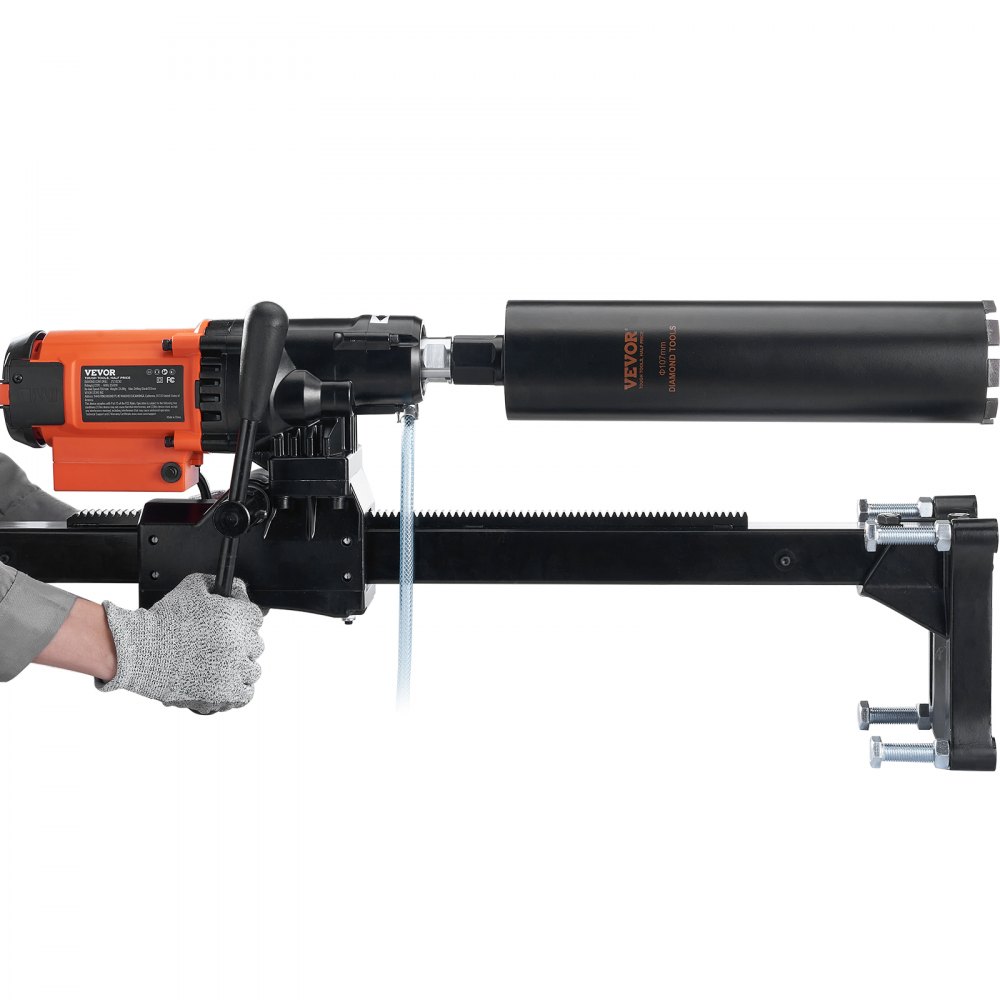

VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

8 inch

  • 8 inch
  • 10 inch
  • 4 inch

About this item

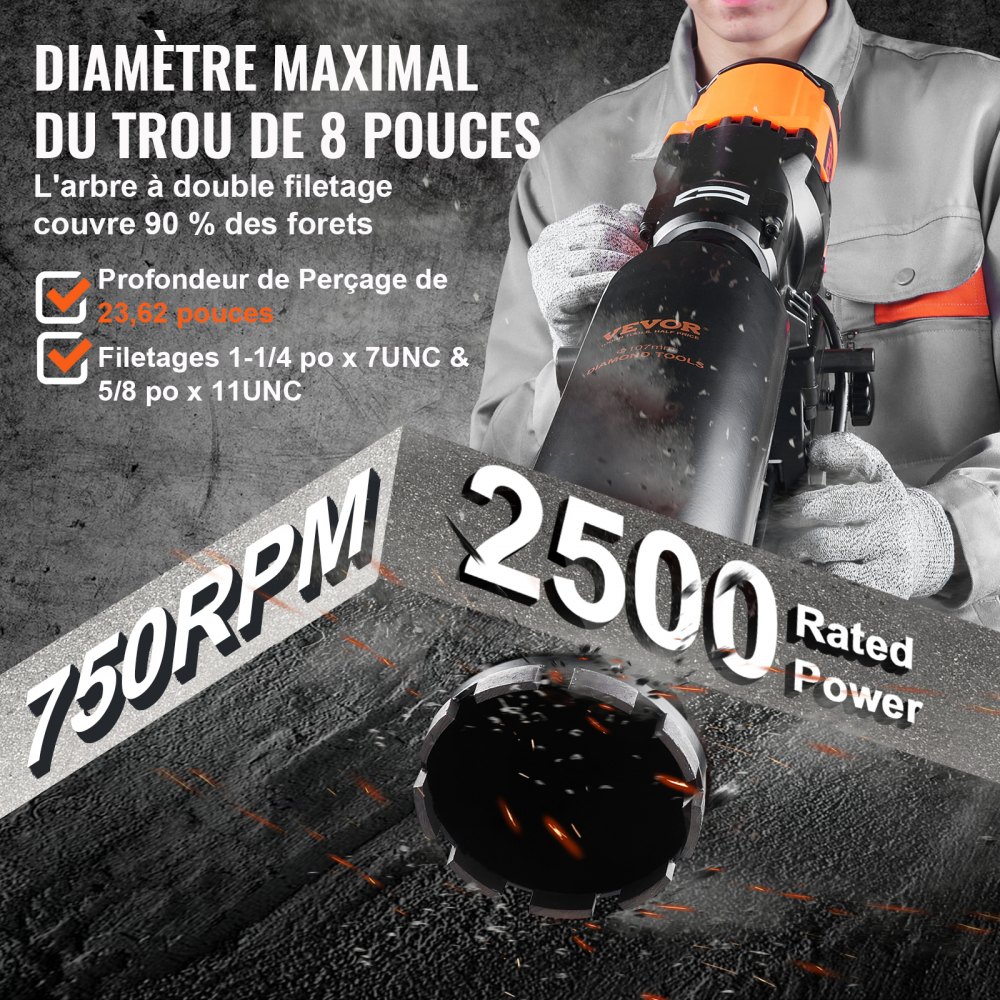

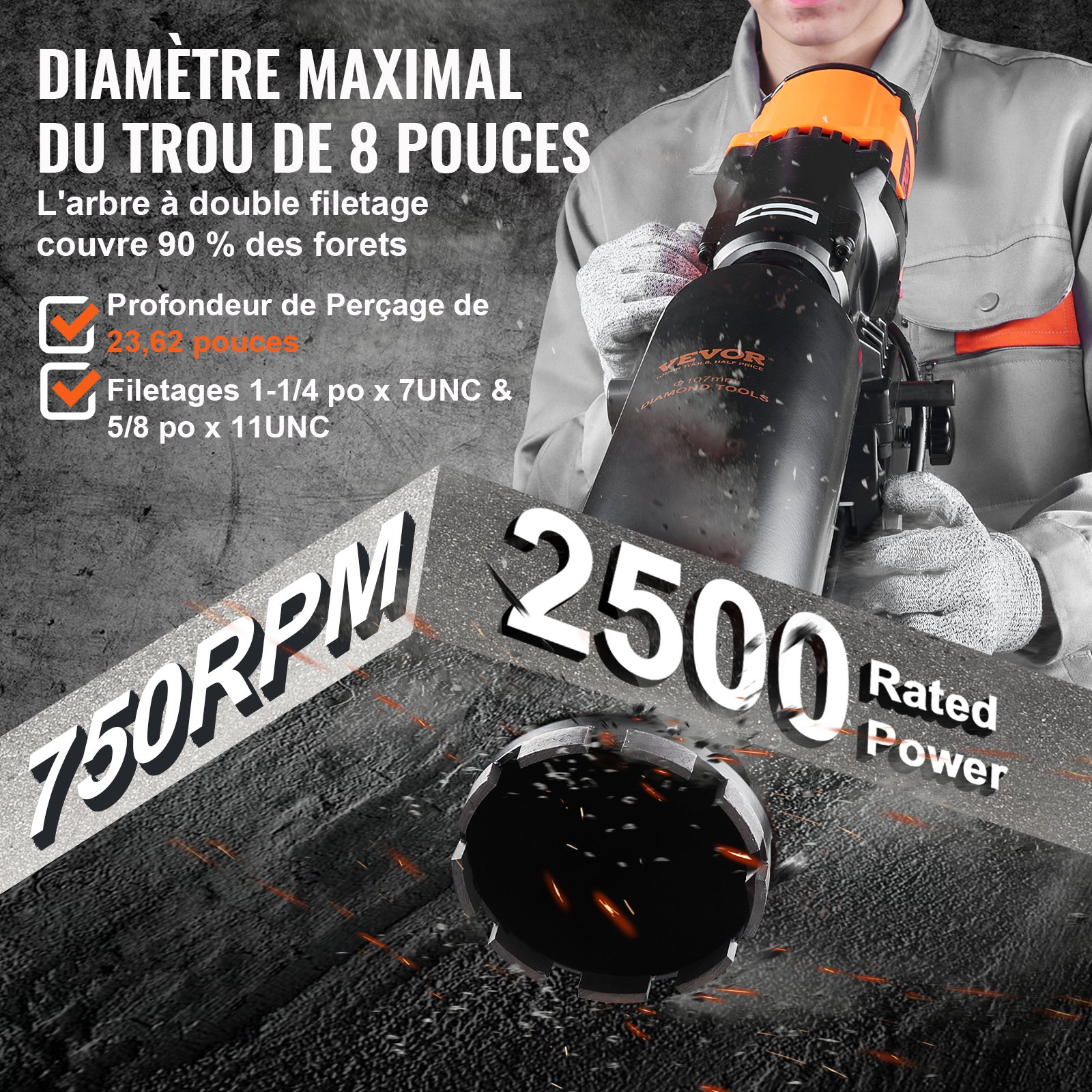

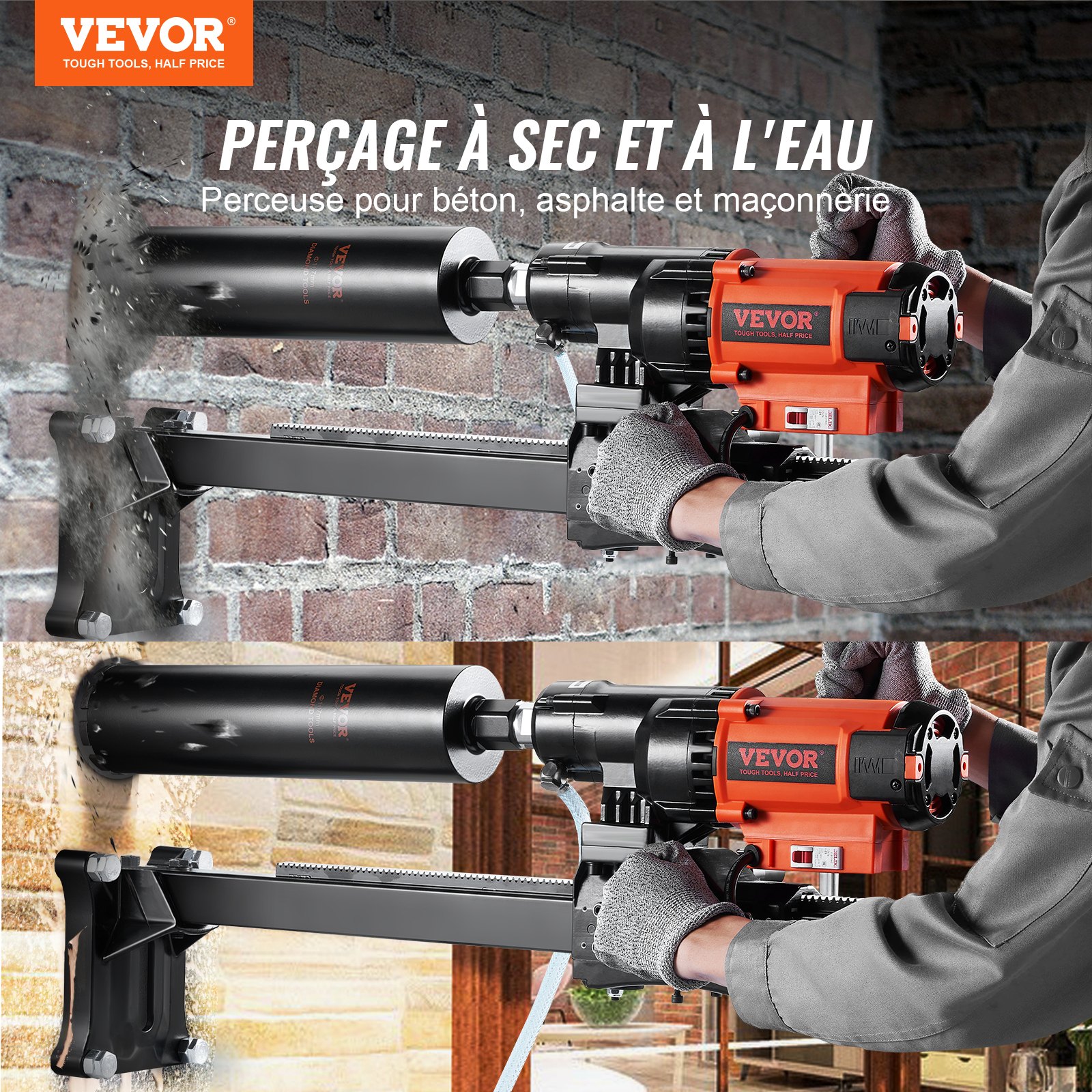

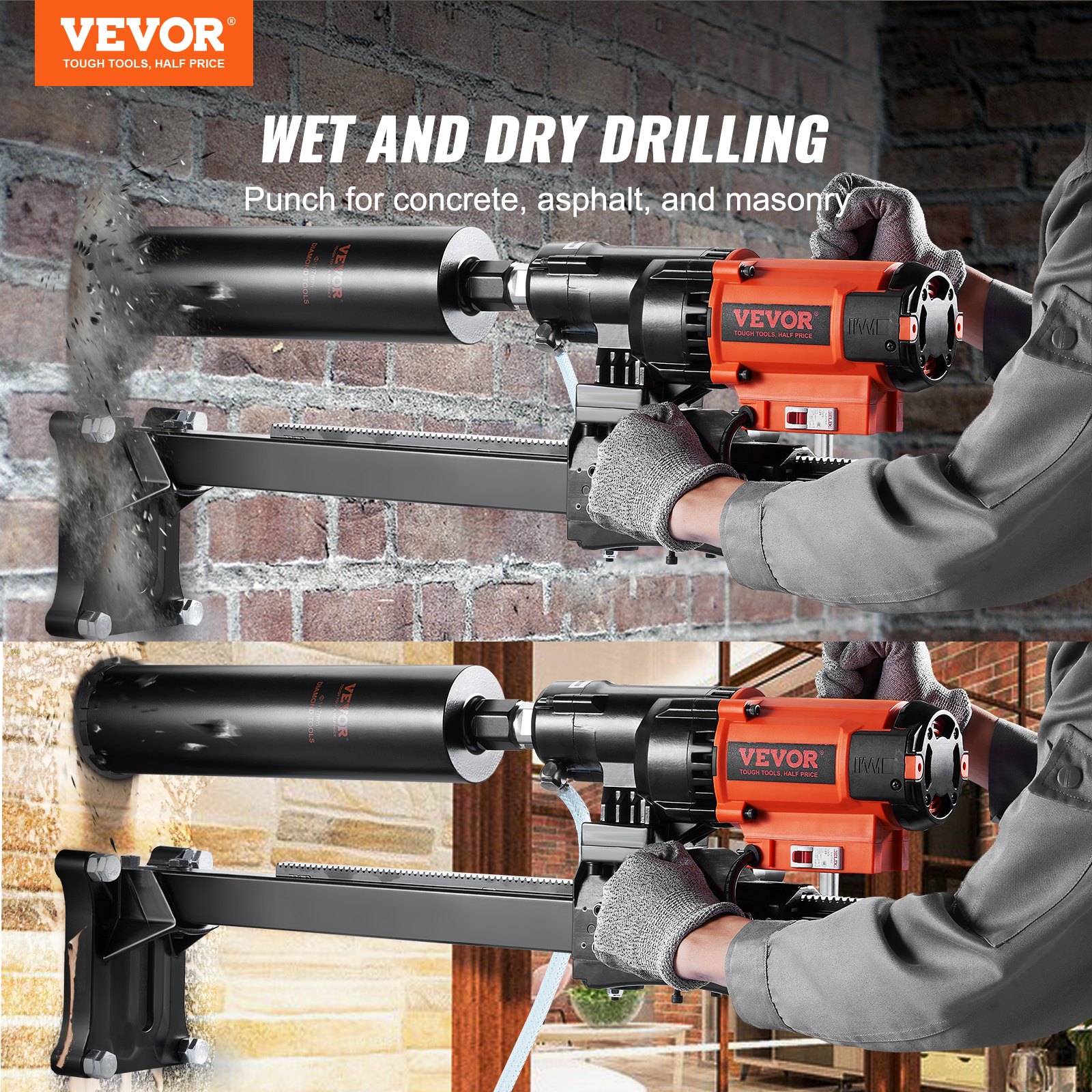

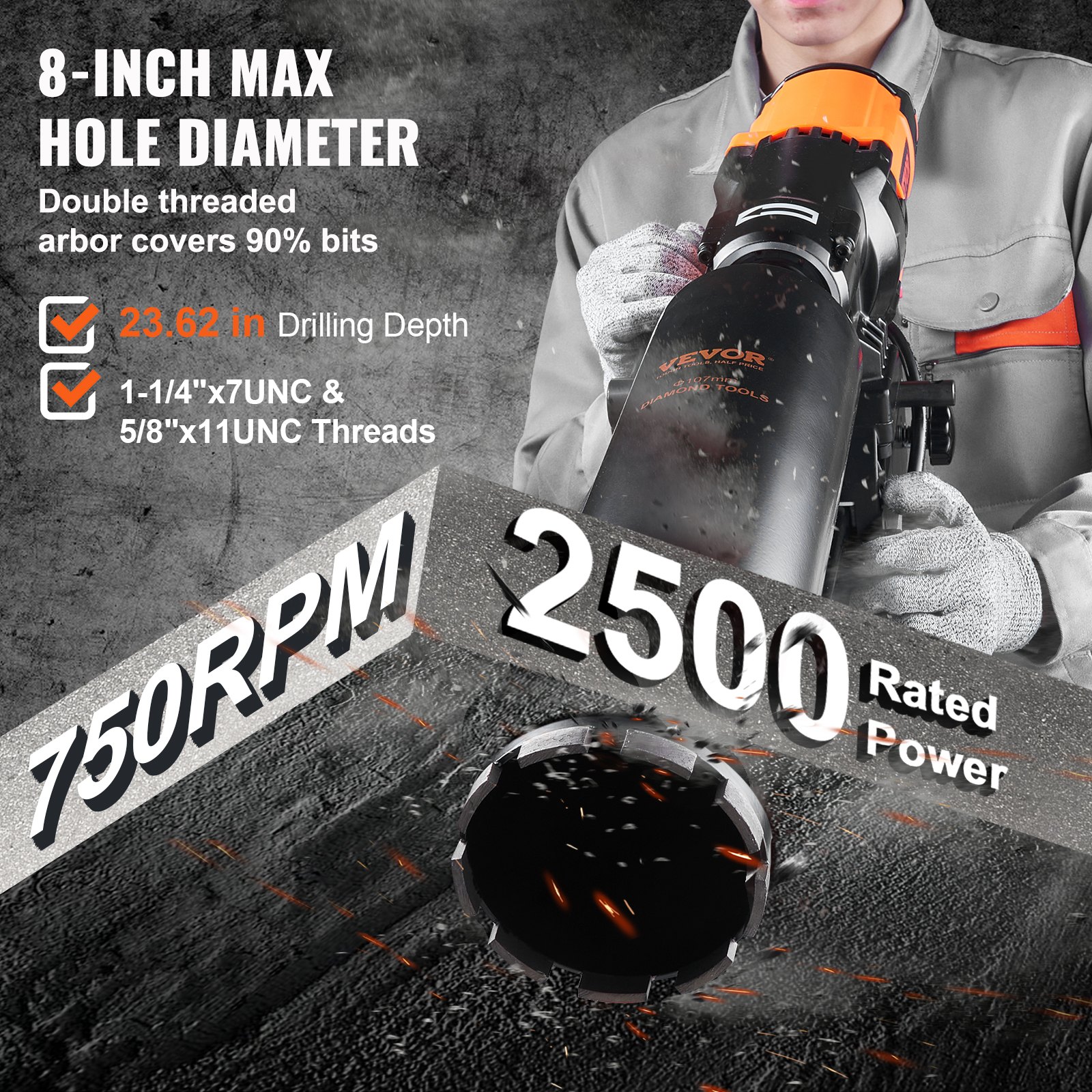

  • 8-inch Max Wet & Dry Drilling: Adapts up to 8-inch drill bits. Our standup core drilling machine with stand can perform wet and dry two modes drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 8 in / 20 cm diameter hole capacity. Attention: a industrial-grade 4.25in core bit is only included.
  • Capable Coring Efficiency: A 3200W powerful motor and 750RPM high-speed gearbox are intentionally taken to complete diversified drilling projects, allowing the operator to adjust based on the specific material being drilled. Max Drilling Depth: 23.62 in / 60 cm. Arbor Size: 1-1/4" x 7 UNC & 5/8" x 11 UNC.

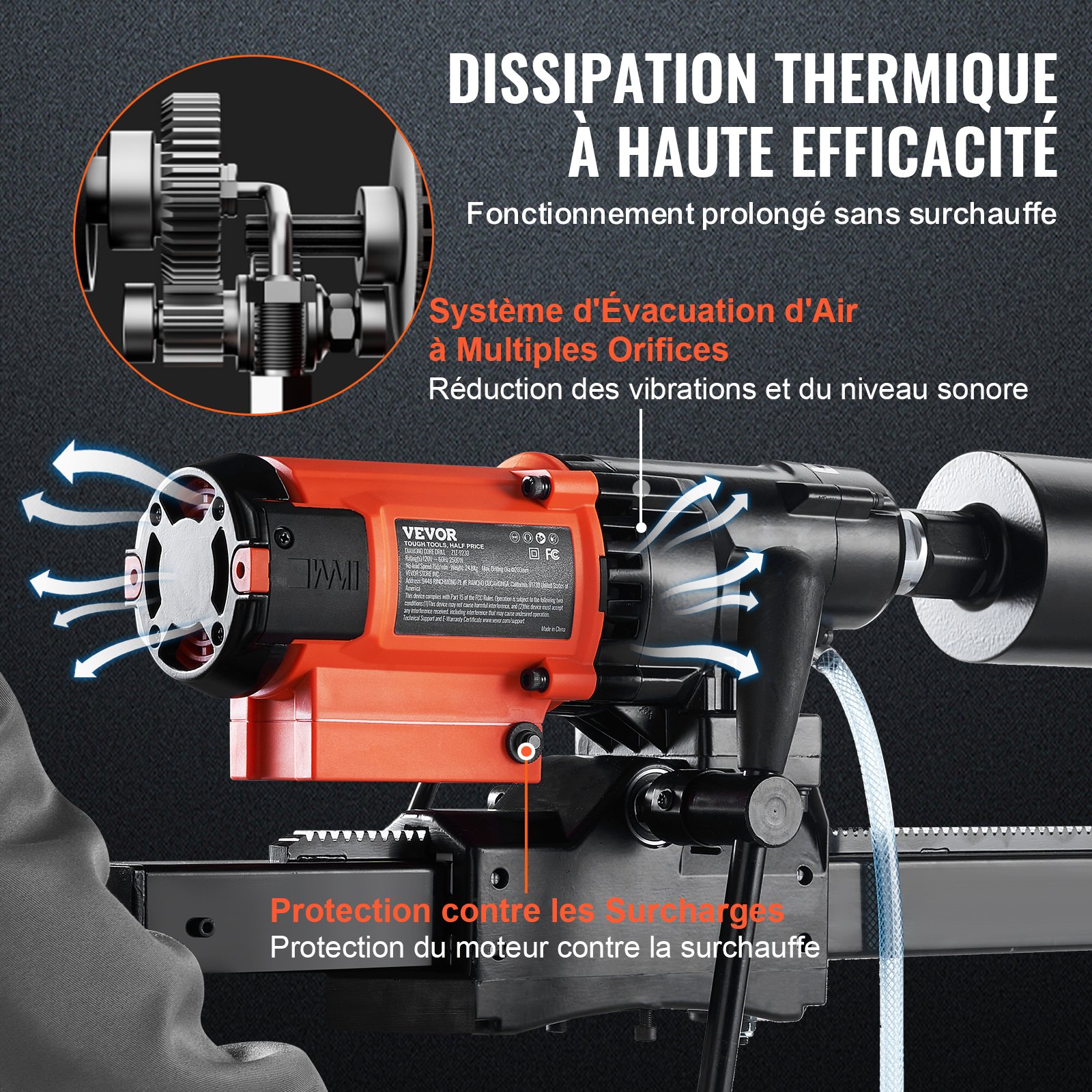

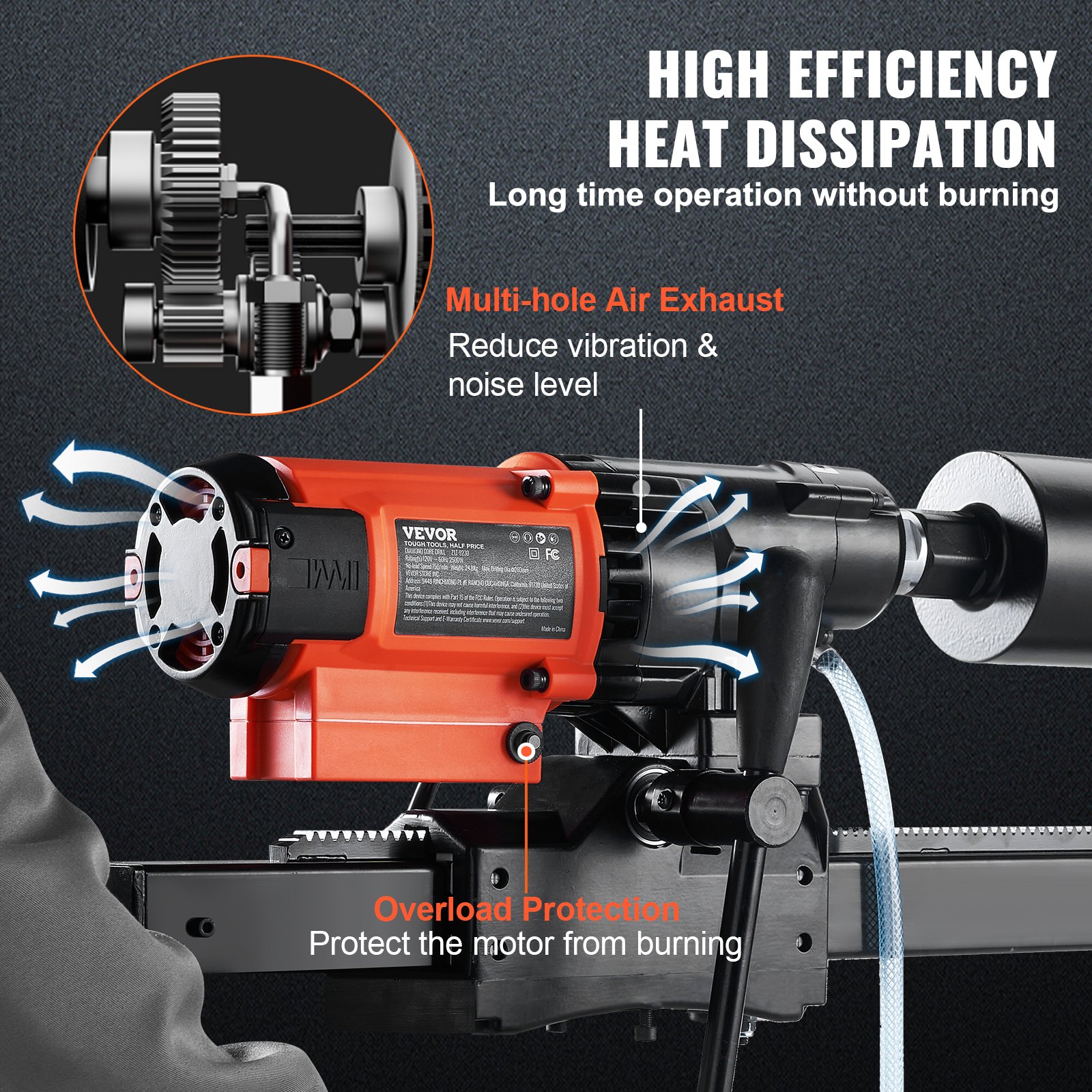

  • Expertly Designed for Security: Our diamond core drill rig integrates a secure clutch with an overload protection device to work by automatically tripping when the drill bit becomes stuck or encounters resistance beyond a certain level, further reducing the risk of operator damage and injury during the operations.

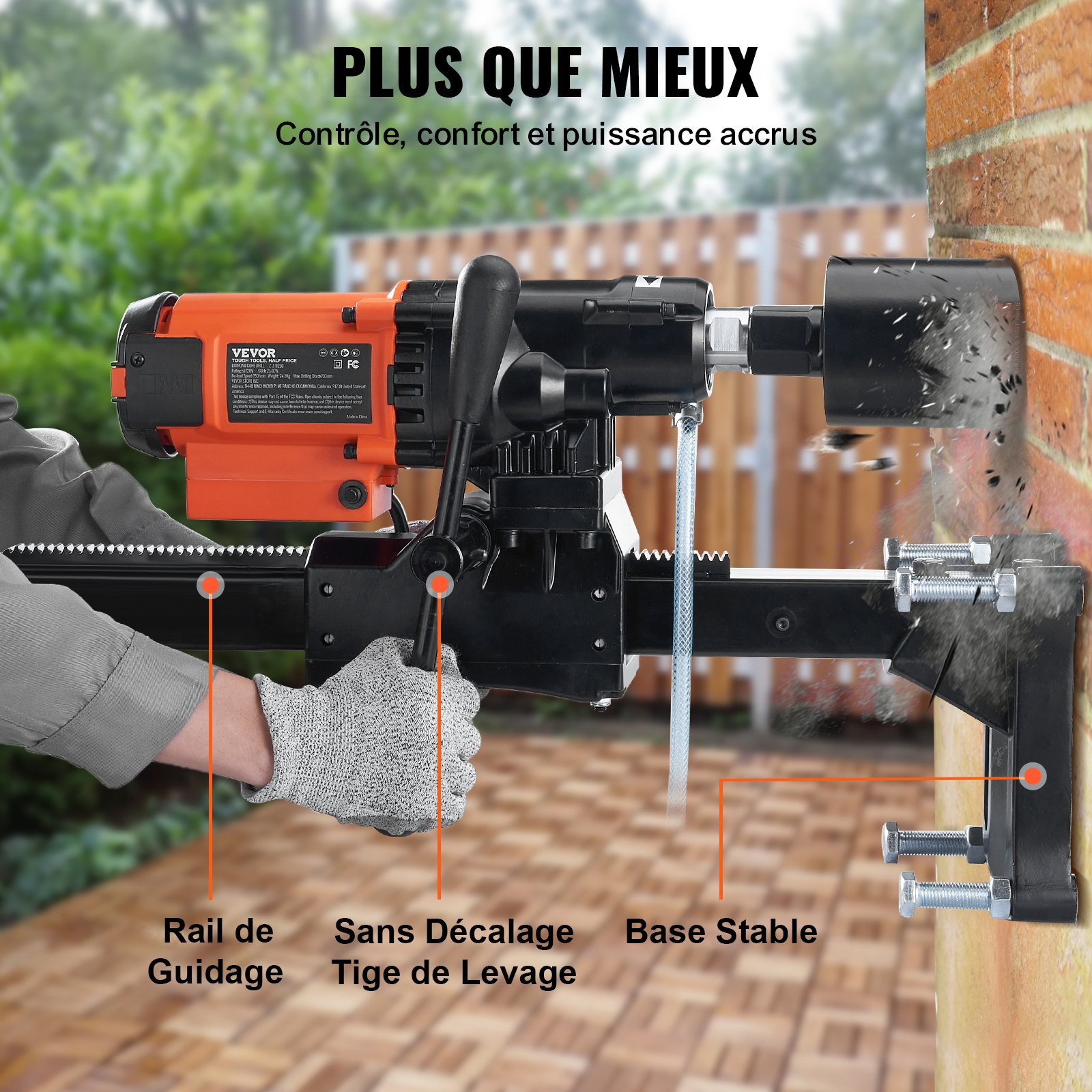

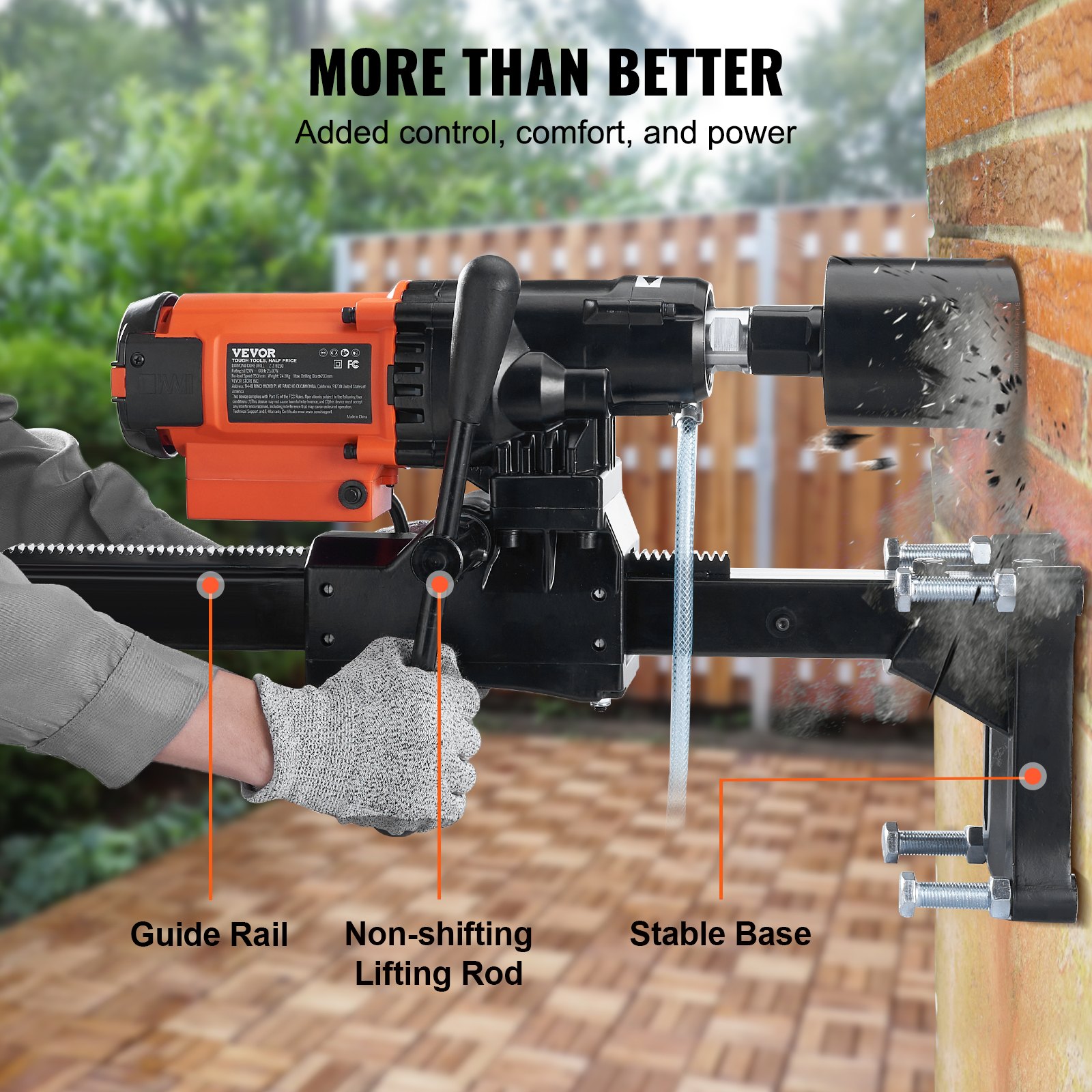

  • Effortless Drilling: Our concrete core drill has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and a thickened guide rail to stabilize the machine and reduce shaking.
  • Built for Heavy-Duty Concrete Drilling: Easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet&dry diamond core drilling rig will surely meet professional demands and is for more than just home use, and you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Diamond Core Drilling Machine, 8in Wet&Dry Concrete Core Drill Rig with Stand, 750RPM Speed & 1-1/4" 5/8" Thread & Lifting Handle, 8in Drilling Diameter for Concrete Brick Block Stone, 2500W
8 inch
8-inch Wet & Dry Core Drill Machine
Our diamond wet and dry drilling machine is suitable for a wide range of applications, including plumbing, electrical, HVAC, and construction projects. The heavy-duty but lightweight design makes it easy to carry and tackle a variety of materials, such as concrete, red brick, marble, etc.
The 3200W robust motor easily loosens the reinforced concrete wall with a rotary speed of 750RPM, widely used in road construction, home decoration, and Routine maintenance activities.

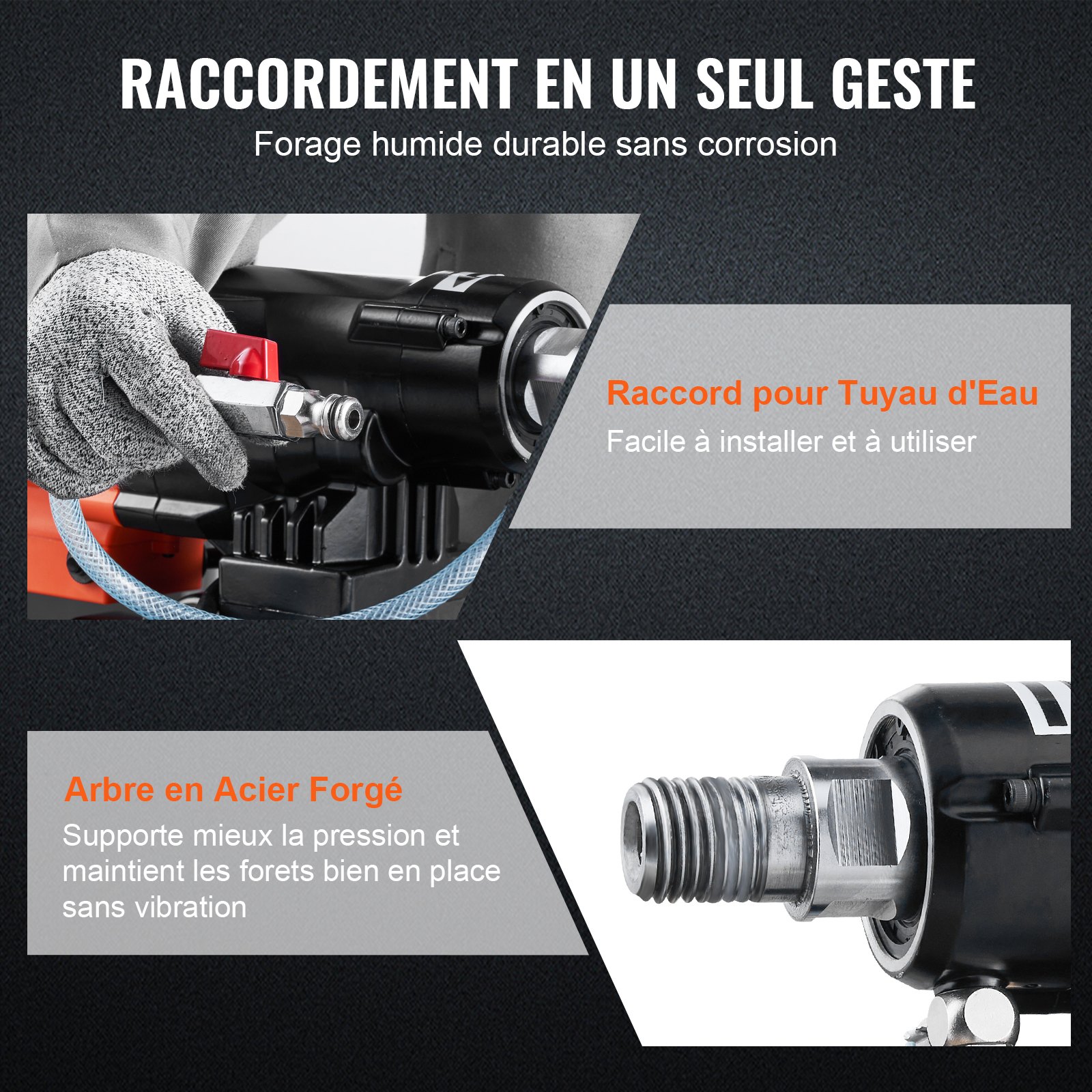

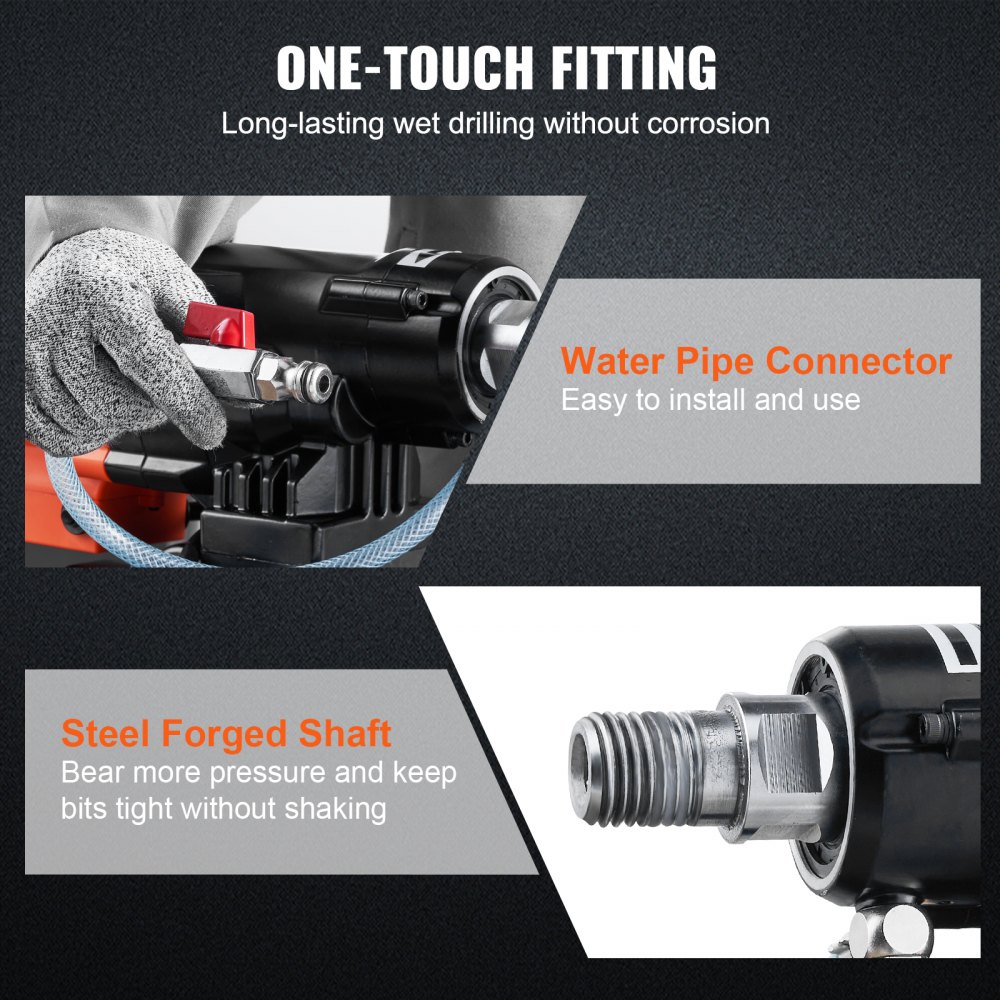

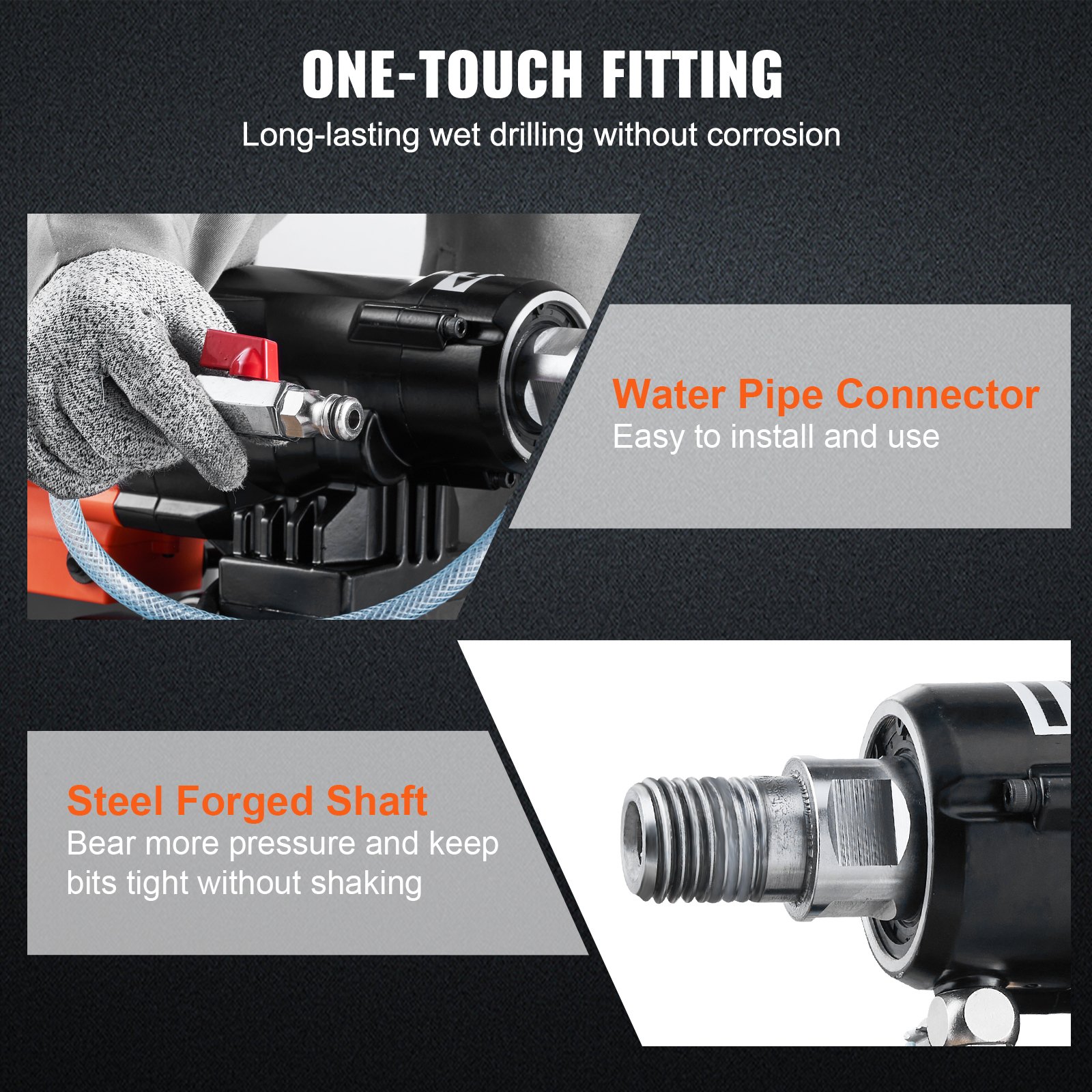

As the machine will work upside down, so water would unavoidable flow on to the drill machine. In this case, our drilling rig has a rustproof steel forged output shaft and quick-insert water pipe connector for a long-lasting water supply.
When the safety clutch is activated, it disengages the drill motor from the core bit, preventing the drill bit from rotating and reducing the risk of injury or damage to the machine.
Smooth alloy base support is lighter and steadier. It also means higher accuracy, good durability, and longer lifespan.

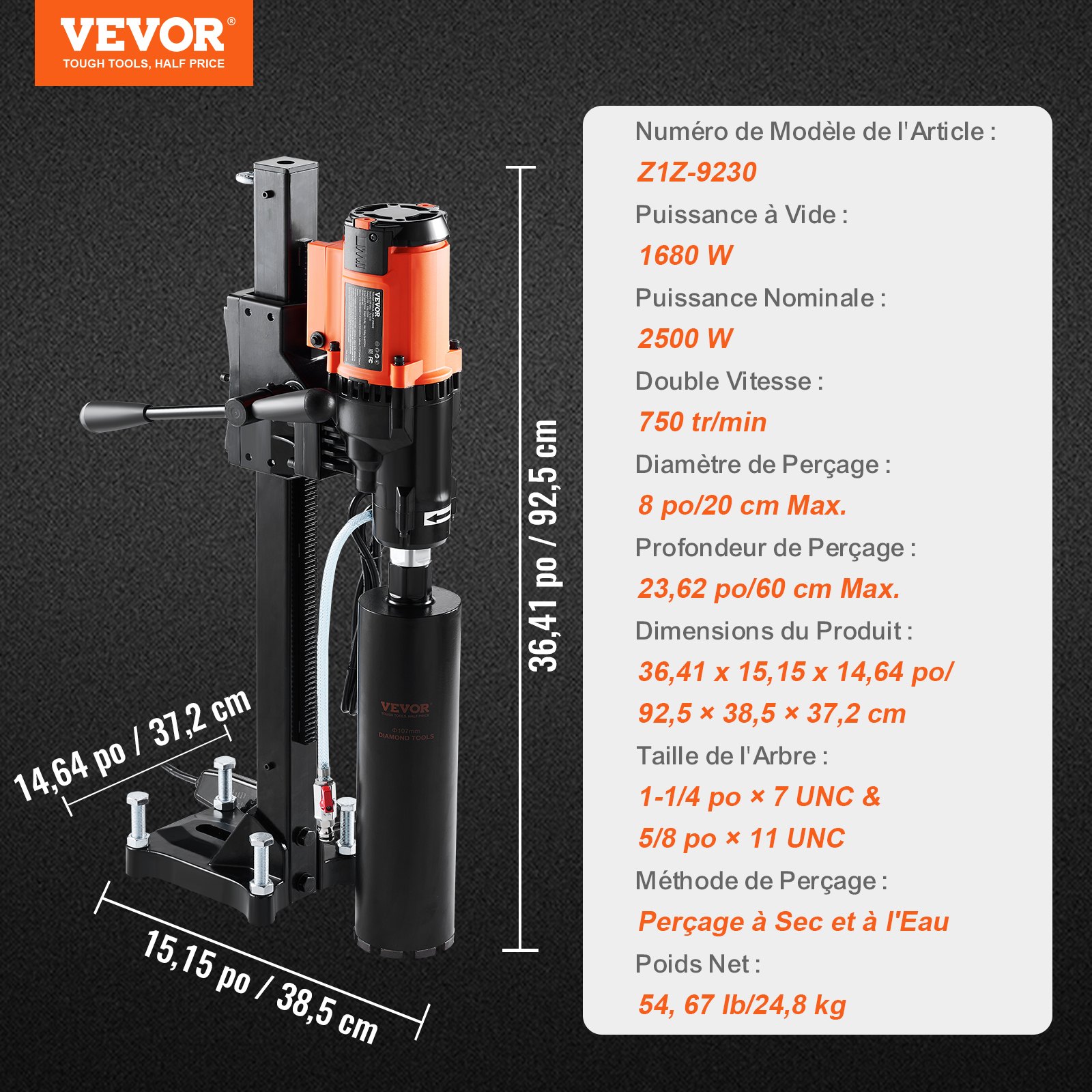

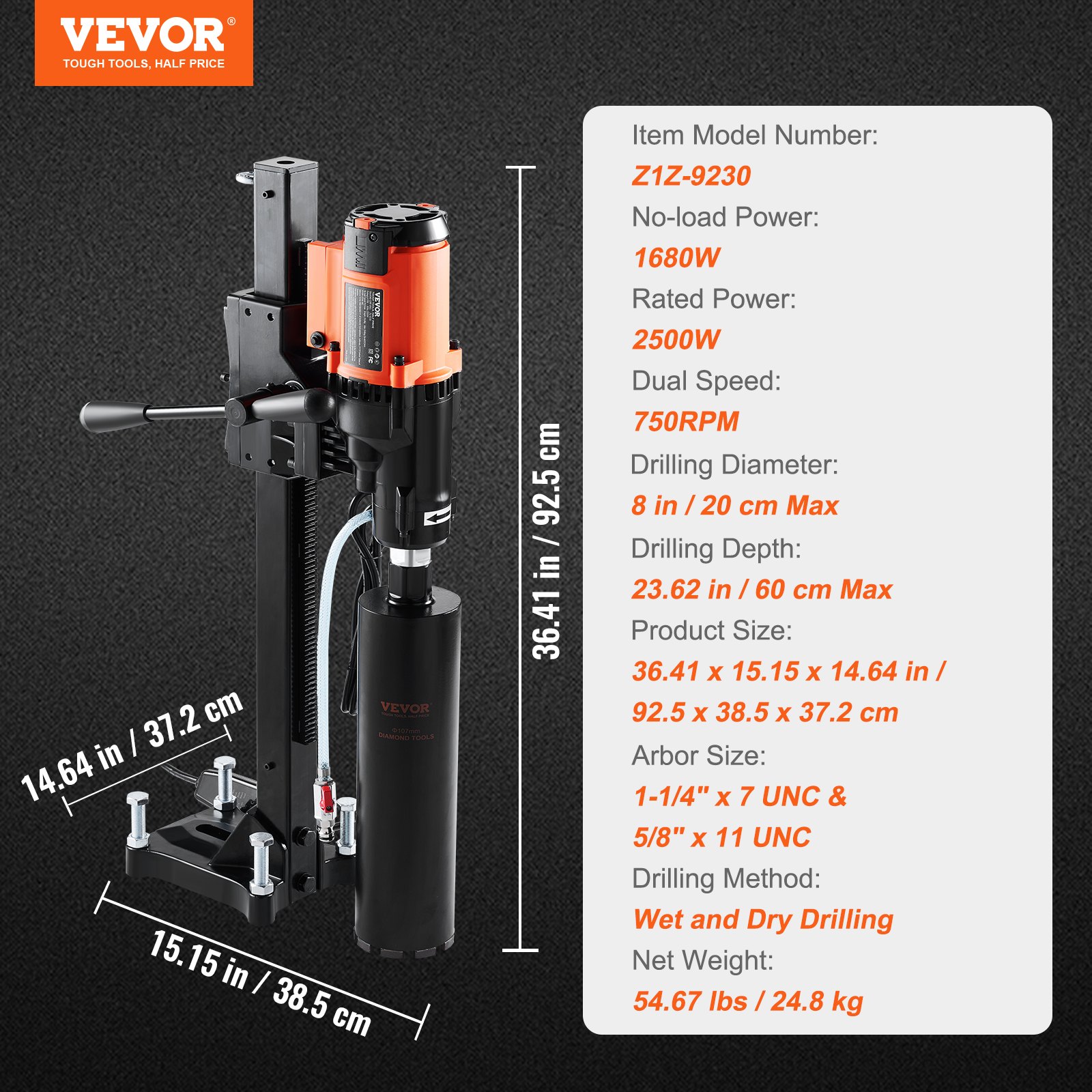

Specification

Item Model Number
Z1Z-9230
No-load Power
2000W
Rated Power
3200W
Speed
750RPM
Drilling Diameter
8 in / 20 cm Max
Drilling Depth
23.62 in / 60 cm Max
Arbor Size
1-1/4" x 7 UNC & 5/8" x 11 UNC
Drilling Method
Wet and Dry Drilling
Product Size
36.41 x 15.15 x 14.64 in / 92.5 x 38.5 x 37.2 cm
Net Weight
54.67 lbs / 24.8 kg
Manual
Download Link
Questions and Answers
2 Questions
Does this coring drill comes with different sizes of coring bits?
Coring drill bits with a diameter of less than 200mm can be used.
By vevor
Can I buy the drilling rig separately, I already have the vevor drill.
Sorry, we do not sell parts separately.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
116 Review(s)
Clear filters
Kenneth mitchell Kenneth mitchell
Press
Core drill works great
Andrew Aitchison Andrew Aitchison
Works great
Works great for core drilling ladder sockets in swimming pool concrete decks
Celine Celine
6inch hole
How could I make a 6 inch hole?
Jordan Jordan
Paid for itself the first job
This thing is built well. I have used it on 5 jobs now. The first was a horizontal drill. Holding any drill is tough when you are going through 8-10 inches on concrete. Words of advice: Get 4x1/2 inch tap construction to secure the drill to the concrete Don't drill your tap con within 1 inch of another hole or ledge. Don't use the tap con for more than 3 or 4 re-placements With longer bits to get them started bump the power on and off to get a secure ridge started. Always use plenty of water
Ward Clerk Ward Clerk
Owner
Drill looks great. Lots of weight and visual quality. Drilled. 3 holes, then stopped working. Contacted customer service who worked with me daily to try and resolve. Could not resolve and was given 50% refund. later I figured out it was the ground fault protection that malfunction and had to bypass it. So quality is lacking but customer service was outstanding. I'm happy with the resolution.
joe joe
It works
I used this to drill 6 4" holes through a 18" thick rock wall to help drain a parking lot. I have to admit I didn't have much hope for the bit that came with the machine. But I will admit my fears were misplaced. The flexibility of not being stuck to a stand allowed me to position the drill on an angle. The bit lasted all 6 holes without having any of the "teeth" break off. And other than having to reset the saftey gfci switch numerous times, it kept tripping because of fractured peices of stone making the bit get stuck, this drill worked amazing well and at a really reasonable price point.
Atamom Atamom
Great drill
I was skeptical of a core drill at this price point but I needed one in a hurry so I took a chance. It works great and has lasted so far. I bought another one for my crew and again so far so good.
Art E. Art E.
Great Tool for the Price, it Does the Job
I am in the process of adding a shower stall to a downstairs half bath and needed to "dig" a six foot drain pipe trench in the foundation. This probably is not the best tool to do that, but I gave it a try. I successfully drilled numerous 3" holes to create the trench and used the 4" bit to dig out space for the shower trap with no problem, this thing is rugged. I did let the drill cool down after drilling every three holes just to be on the safe side. I hit rebar several times, I thought that might eventually dull the bit but it didn't seem to. I did hit a copper water pipe in the foundation, at least the drill was helpful in getting access to the damaged pipe. I definitely felt I got my money's worth out of this drilling machine.
David A. David A.
Corn in the hole
This product was well worth the money and I would buy it again if I needed, it worked great
JoshW508 JoshW508
Quality
Excellent price and well made. Right out of the box cored 5 holes through 2” blue stone and granite. Comes with quick disconnect for hose connections. Highly recommend.
