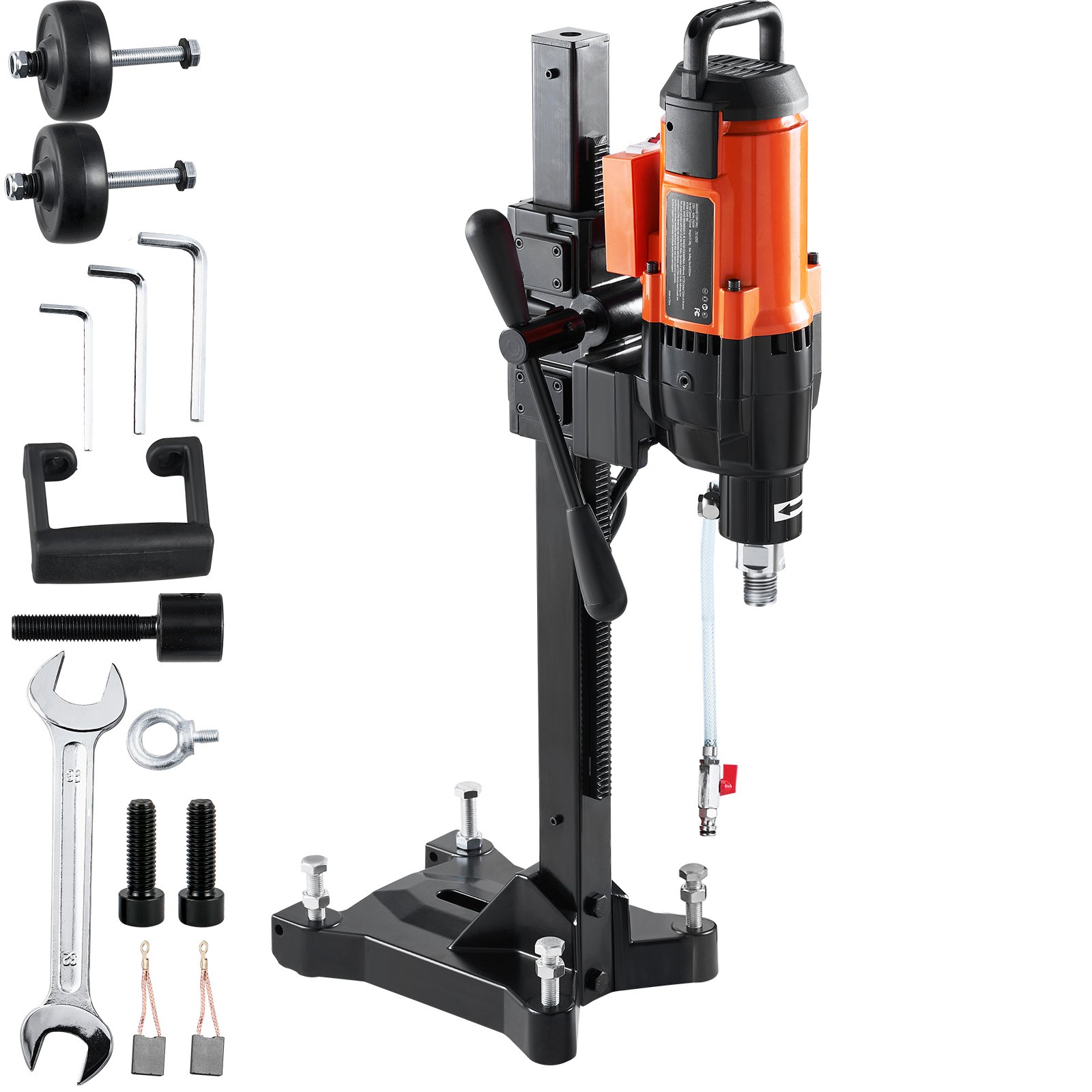

VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W
LSJGSZKJYCW104M3IV3

VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W

See All Customer Reviews
113 Reviews 2 answered questions
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

10 inch

  • 8 inch
  • 10 inch
  • 4 inch

About this item

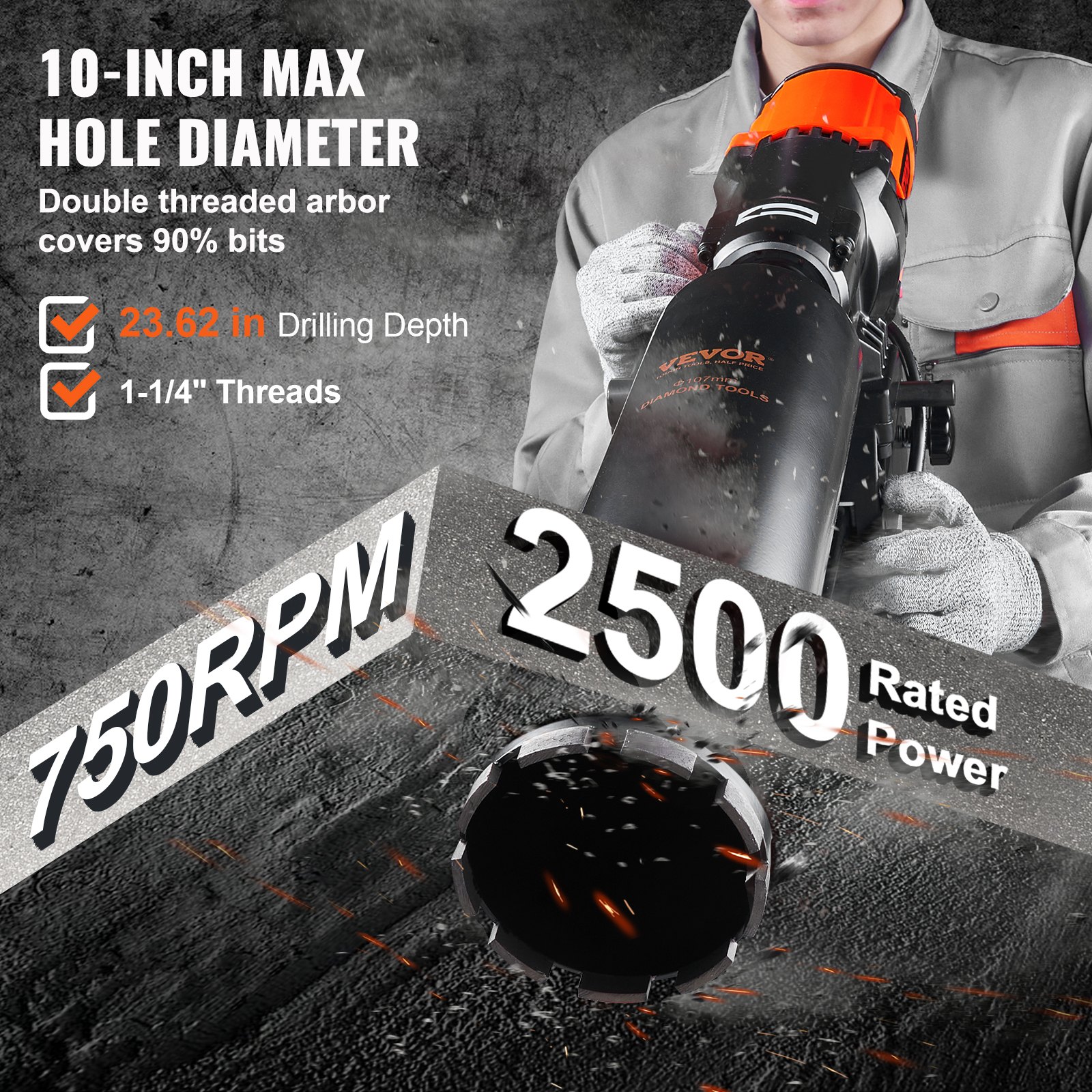

  • 10-inch Wet Drilling: Our standup core drilling machine with stand can perform wet drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 10 in / 26 cm diameter hole capacity.
  • Capable Coring Efficiency: A 3200W powerful motor and 750RPM high-speed gearbox are intentionally taken to complete diversified drilling projects, allowing the operator to adjust based on the specific material being drilled. Max Drilling Depth: 23.62 in / 60 cm. Arbor Size: 1-1/4" Thread.
  • Expertly Designed for Security: Our diamond core drill rig integrates a secure clutch with an overload protection device to work by automatically tripping when the drill bit becomes stuck or encounters resistance beyond a certain level, further reducing the risk of operator damage and injury during the operations.

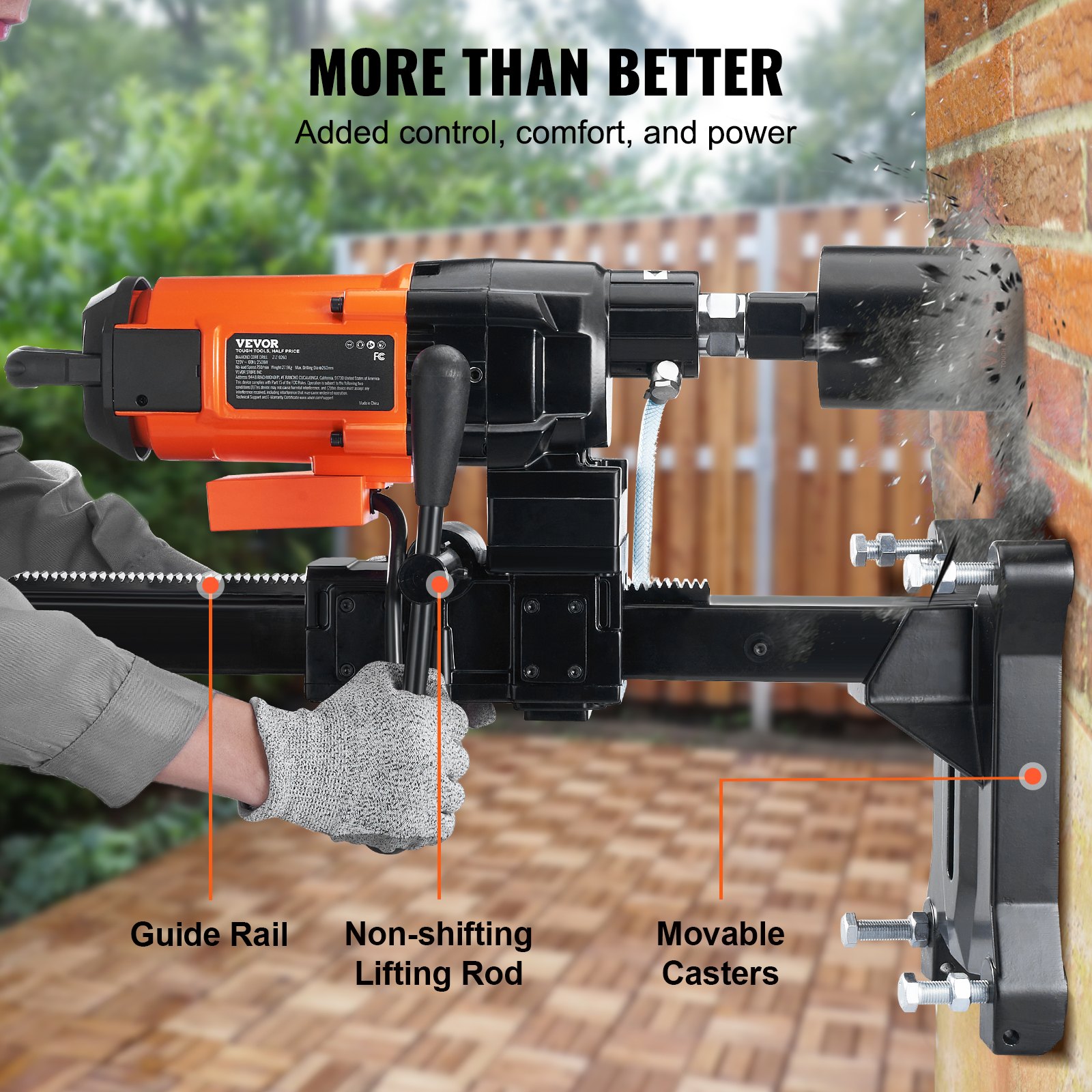

  • Effortless Drilling: Our concrete core drill has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and 2 caster wheels for you to move on various surfaces flexibly.

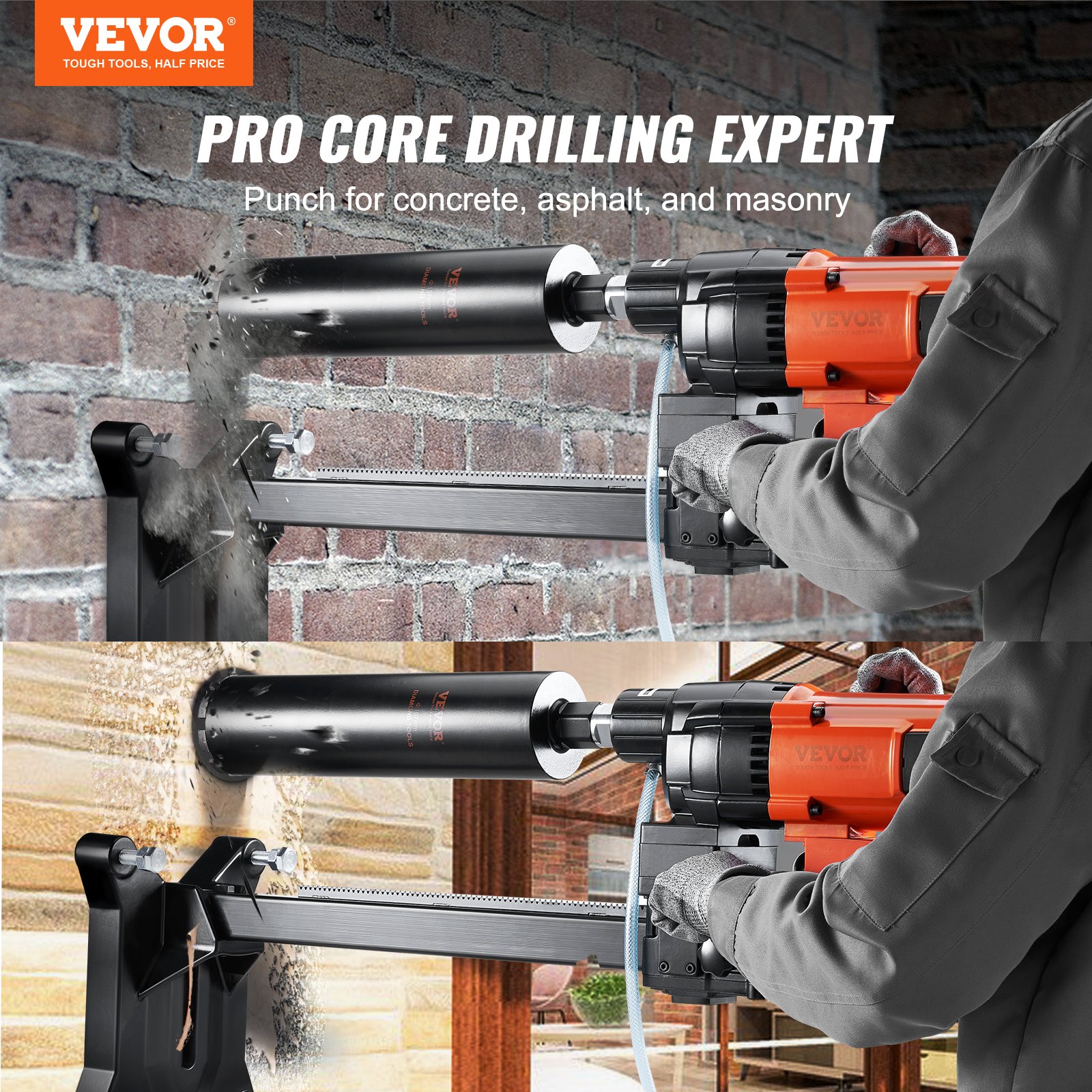

  • Built for Heavy-Duty Concrete Drilling: Easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet diamond core drilling rig will surely meet professional demands and is for more than just home use, and you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Diamond Core Drilling Machine, 10in Wet Concrete Core Drill Rig with Stand Wheels, 750RPM Speed & 1-1/4" Thread & Lifting Handle, 10in Drilling Diameter for Concrete Brick Block Stone, 2500W
10 inch
Description Specification Questions and Answers Reviews
vevorA+Template
10-inch Electric Core Drill Machine

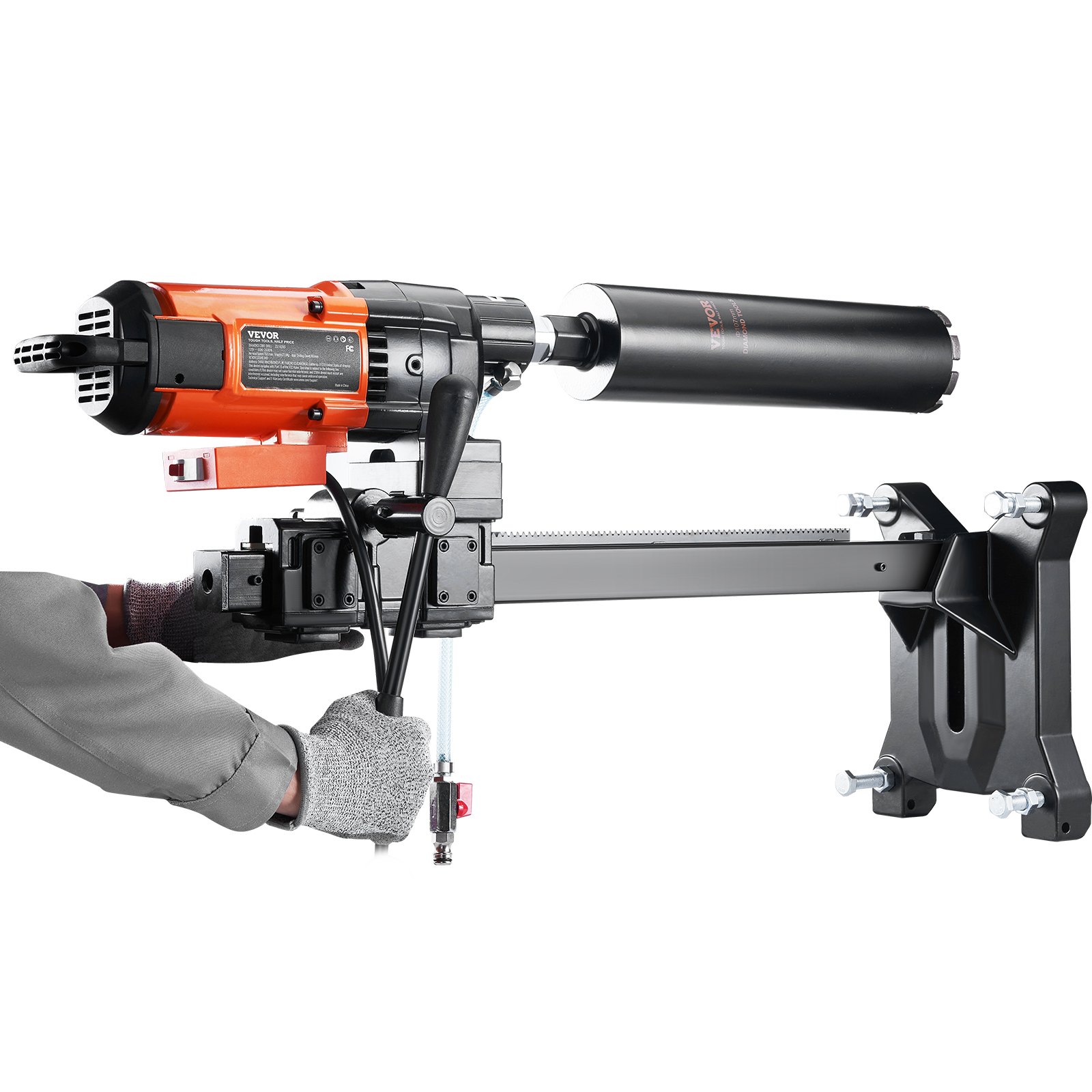

Our diamond wet drilling machine is suitable for plumbing, electrical, HVAC, and construction projects. The heavy-duty but lightweight design combined with caster wheels makes it easy to move and tackle a variety of materials, such as concrete, red brick, marble, etc.

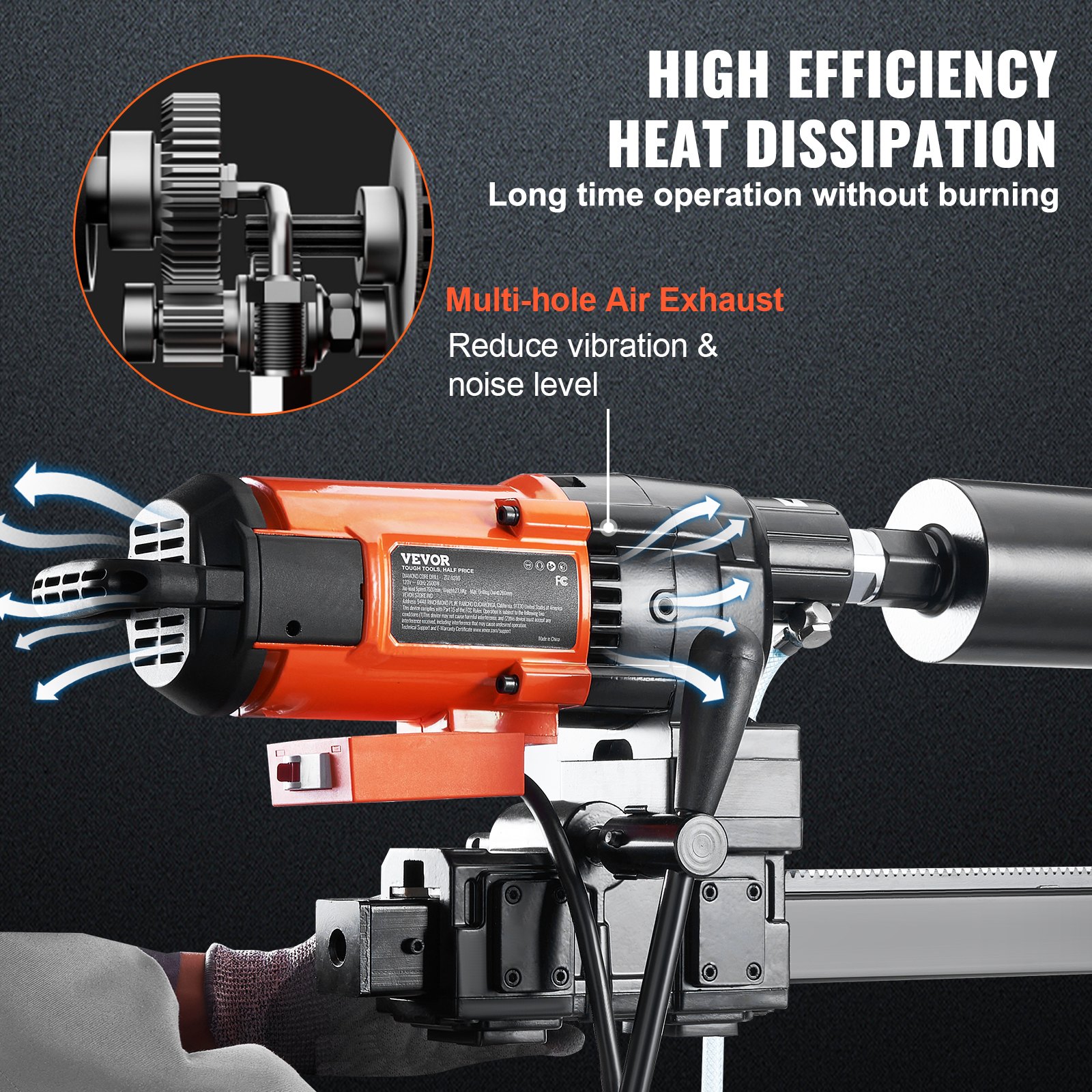

The 3200W robust motor easily loosens the reinforced concrete wall with a rotary speed of 750RPM, widely used in road construction, home decoration, and Routine maintenance activities.

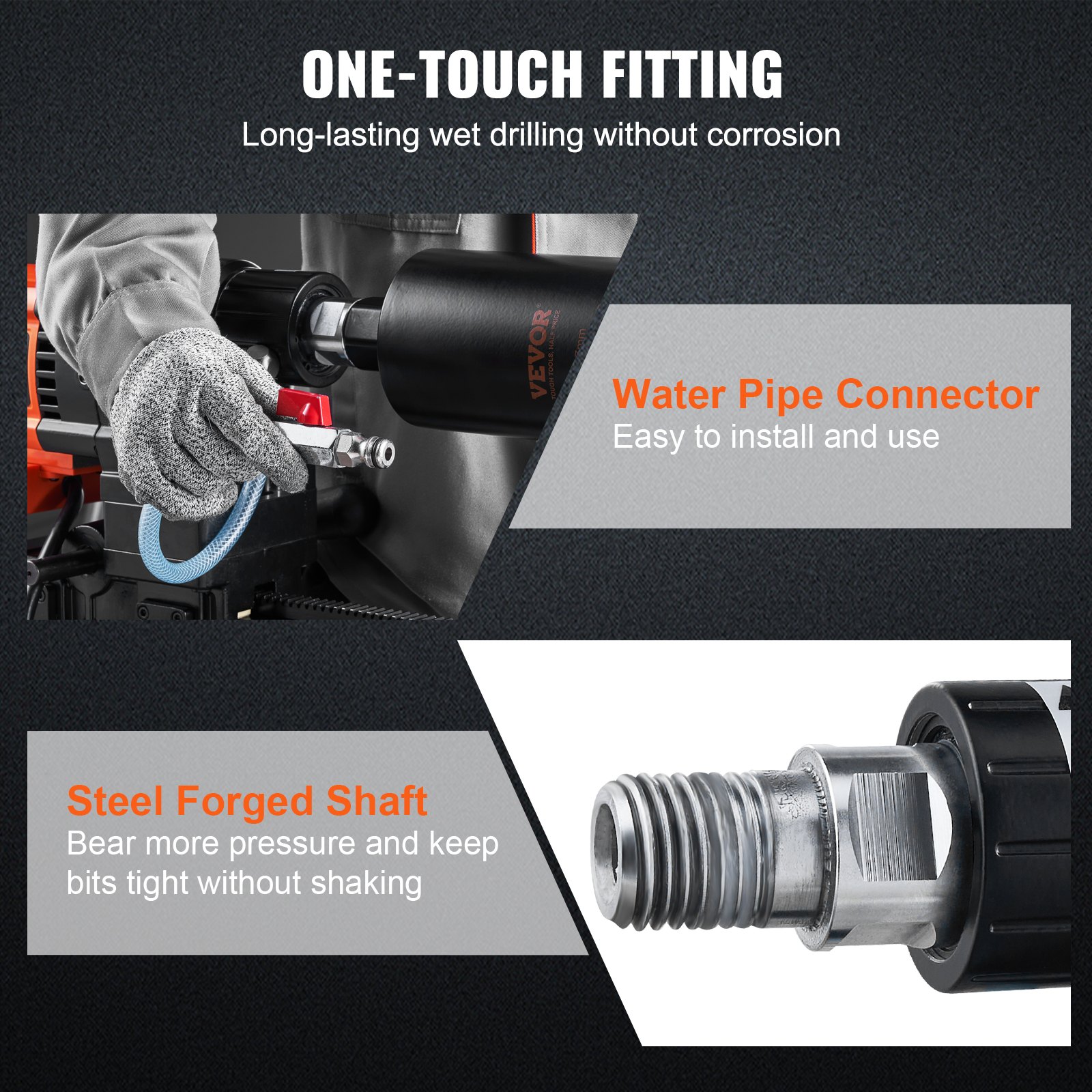

As the machine will work upside down, so water would unavoidable flow on to the drill machine. In this case, our drilling rig has a rustproof steel forged output shaft and quick-insert water pipe connector for a long-lasting water supply.
When the safety clutch is activated, it disengages the drill motor from the core bit, preventing the drill bit from rotating and reducing the risk of injury or damage to the machine.
Smooth alloy base support is lighter and steadier. It also means higher accuracy, good durability, and longer lifespan.

Specification

Item Model Number
Z1Z-9260
No-load Power
1630W
Rated Power
3200W
Speed
750RPM
Drilling Diameter
10 in / 26 cm Max
Drilling Depth
23.62 in / 60 cm Max
Arbor Size
1-1/4" Thread
Drilling Method
Wet Drilling
Product Size
36.61 x 10.11 x 20.47 in / 93 x 25.7 x 52 cm
Net Weight
61.5 lbs / 27.9 kg
Manual
Download Link
Questions and Answers
2 Questions
or Ask a Question
Hi, Do you sell a 1-1/4" Female to an M14 adapter so I can use small diamond bits on the saw? Thanks David
Answer This Question
We do not currently sell this adapter.
By vevor
Helpful ( 0 )
Can i put different size core bits on this machine? or will it only work with 10inch core.?
Answer This Question
It is ok as long as the threads match, and the diameter is within 260mm.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 113 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
113 Review(s)
Clear filters
Jordan Jordan
Paid for itself the first job
This thing is built well. I have used it on 5 jobs now. The first was a horizontal drill. Holding any drill is tough when you are going through 8-10 inches on concrete. Words of advice: Get 4x1/2 inch tap construction to secure the drill to the concrete Don't drill your tap con within 1 inch of another hole or ledge. Don't use the tap con for more than 3 or 4 re-placements With longer bits to get them started bump the power on and off to get a secure ridge started. Always use plenty of water
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ward Clerk Ward Clerk
Owner
Drill looks great. Lots of weight and visual quality. Drilled. 3 holes, then stopped working. Contacted customer service who worked with me daily to try and resolve. Could not resolve and was given 50% refund. later I figured out it was the ground fault protection that malfunction and had to bypass it. So quality is lacking but customer service was outstanding. I'm happy with the resolution.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
joe joe
It works
I used this to drill 6 4" holes through a 18" thick rock wall to help drain a parking lot. I have to admit I didn't have much hope for the bit that came with the machine. But I will admit my fears were misplaced. The flexibility of not being stuck to a stand allowed me to position the drill on an angle. The bit lasted all 6 holes without having any of the "teeth" break off. And other than having to reset the saftey gfci switch numerous times, it kept tripping because of fractured peices of stone making the bit get stuck, this drill worked amazing well and at a really reasonable price point.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Atamom Atamom
Great drill
I was skeptical of a core drill at this price point but I needed one in a hurry so I took a chance. It works great and has lasted so far. I bought another one for my crew and again so far so good.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Art E. Art E.
Great Tool for the Price, it Does the Job
I am in the process of adding a shower stall to a downstairs half bath and needed to "dig" a six foot drain pipe trench in the foundation. This probably is not the best tool to do that, but I gave it a try. I successfully drilled numerous 3" holes to create the trench and used the 4" bit to dig out space for the shower trap with no problem, this thing is rugged. I did let the drill cool down after drilling every three holes just to be on the safe side. I hit rebar several times, I thought that might eventually dull the bit but it didn't seem to. I did hit a copper water pipe in the foundation, at least the drill was helpful in getting access to the damaged pipe. I definitely felt I got my money's worth out of this drilling machine.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
David A. David A.
Corn in the hole
This product was well worth the money and I would buy it again if I needed, it worked great
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
JoshW508 JoshW508
Quality
Excellent price and well made. Right out of the box cored 5 holes through 2” blue stone and granite. Comes with quick disconnect for hose connections. Highly recommend.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Robert Lupo Robert Lupo
Plumber
The machine overall is great, one thing I'd change is the plastic handle on top, it should be metal...............................................
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Thomas Thomas
Works well for the price
I used this drill for a 4.5\" hole to vent a cold storage room... 8\" thick concrete. The drill was simple to figure out for the most part but a few of the parts don't really make sense and the instructions were basically useless. The drill comes with a QD water attachment but no connector for a garden hose. I bought a \"Shibuya Garden Hose Quick Connect\" and it fit perfectly and allowed me to use my garden hose without issue. I didn't get a chance to use the included diamond drill bit so I can't speak to the quality of that. But overall for the same price as a rental core drill this was perfect for a single hole. I don't know if it would hold to up repeated use on a construction site but for the DIYer using it a few times it was perfect.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Chris a Chris a
Plumber
This thing blew my mind for the price, I charged a customer $600 per hole to core and with the money we made in one night we could outfit a whole crew with each a paid off machine
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
