VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W
SCJGSZKJYCY44KHH6V3

VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W

See All Customer Reviews
62 Reviews 1 answered questions
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

4 inch

  • 8 inch
  • 10 inch
  • 4 inch

About this item

  • 4-inch Wet Drilling: Our lightweight handheld core drilling machine can perform wet drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 3.1-4 in / 8-10.2 cm diameter hole capacity. More importantly, a industrial-grade 4in core bit with 1-1/4" thread is thoughtfully included.
  • Two Gear Speed: Our 2-speed electric core drill, 950RPM / 2100RPM, has a convenient gearbox allowing different speeds to match the type of material being drilled and helping control the ideal speed for the job. 1500W strong motor to ensure the machine drilling fierce and consistent work.

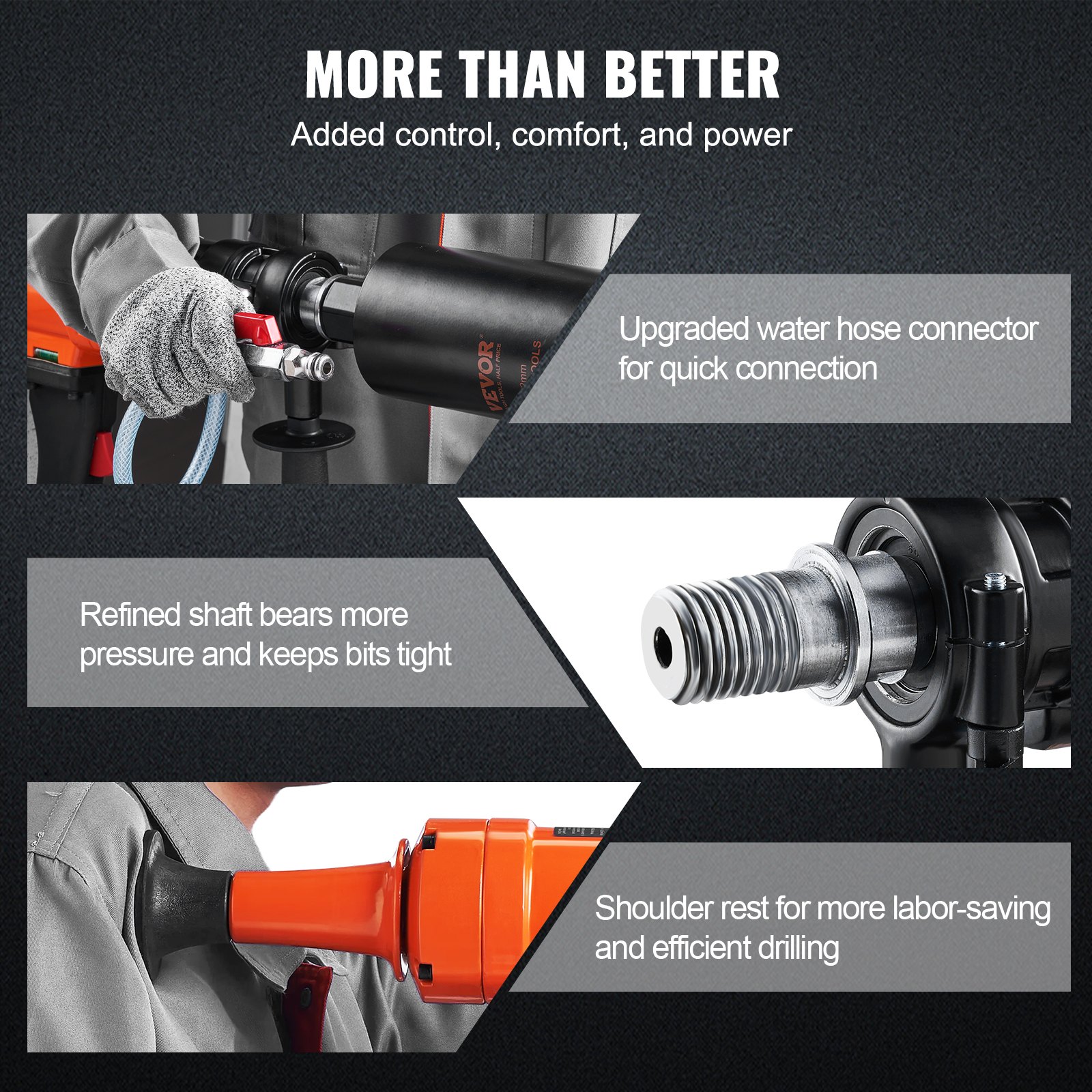

  • Effortless Drilling: Our handheld drilling rig has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and a shoulder rest for you to easily carry the core drill rig on your shoulder and reduce friction caused by drilling.
  • 2 Bubble Levels for Precision: Two fluorescent yellow-green measuring bubble level tools are placed on the core drilling housing to make adjustments more convenient, accurate, and easy to use. The bubble is clearly visible from all sides, helping you adjust the bit position and ensure the holes punched are at the same level.
  • Built for Heavy-Duty Concrete Drilling: The compact size makes it easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet diamond core drilling rig will surely meet professional demands and is for more than just home use. With our compact drill kit, you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Diamond Core Drilling Machine, 4in Handheld Wet Concrete Core Drill Rig, 1100-2400RPM Two Speed & 1-1/4" Thread & 2 Bubble Levels, 3-4in Drilling Diameter for Concrete Brick Block Stone, 1500W
4 inch
Description Specification Questions and Answers Reviews

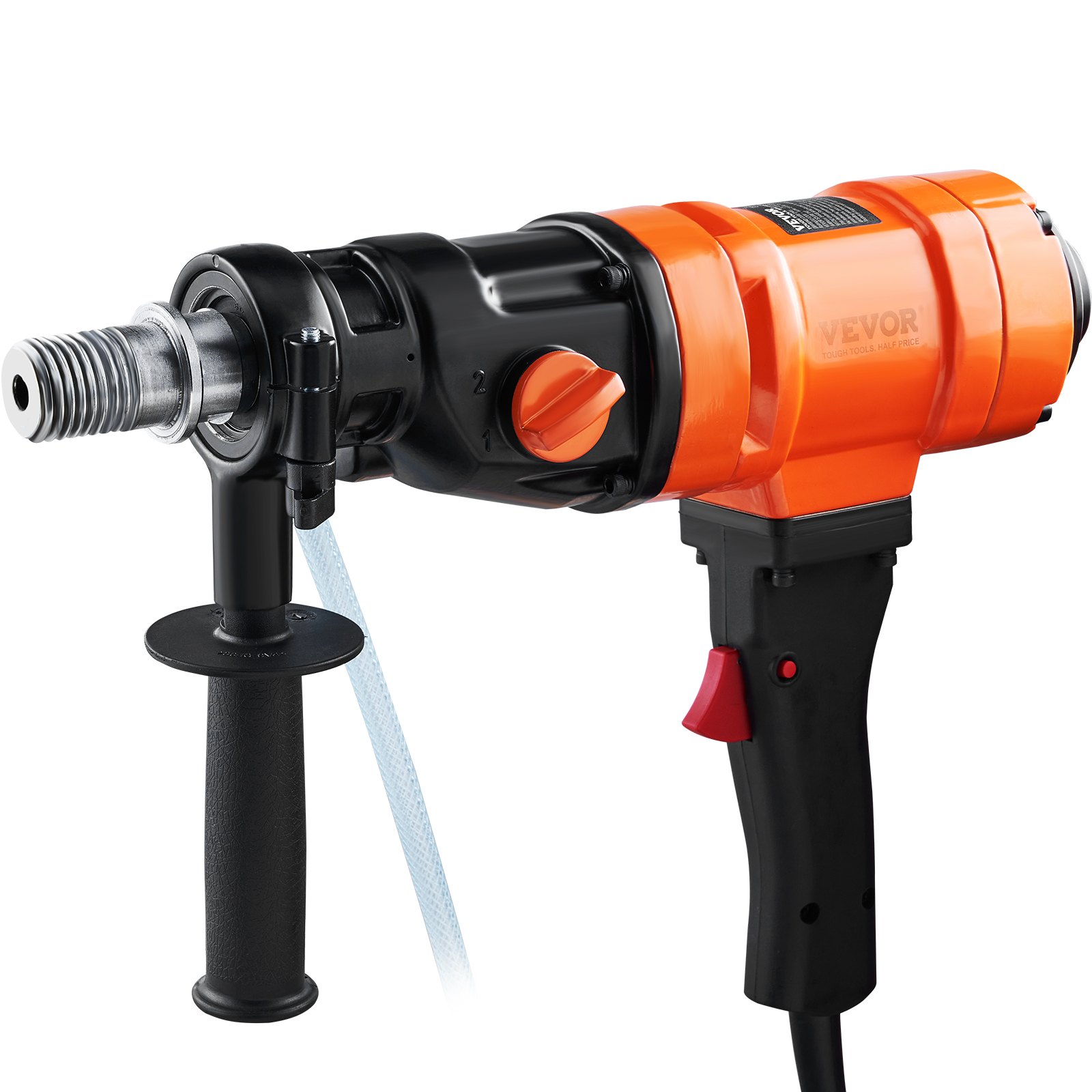

2-Speed Electric Core Drill Machine
VEVOR diamond core drill handheld, suited for wet drilling concrete, stone, asphalt, marble, bricks.
VEVOR diamond core drill handheld, suited for wet drilling concrete, stone, asphalt, marble, bricks.
Our 4-inch wet drilling machine is suitable for plumbing, electrical, HVAC, and construction projects. The compact size and lightweight design make it easy to maneuver in tight spaces, while the powerful motor and two-speed gearbox provide the versatility to tackle a variety of materials.
VEVOR diamond core drill with 1500w motor, 15.75 in depth, 1100rpm/2400rpm, and 3-4 in diameter.
VEVOR diamond core drill with 1500w motor, 15.75 in depth, 1100rpm/2400rpm, and 3-4 in diameter.
The 1500W robust motor easily loosens the reinforced concrete wall with a rotary speed of 950RPM / 2100RPM, widely used in road construction, home decoration, and Routine maintenance activities.

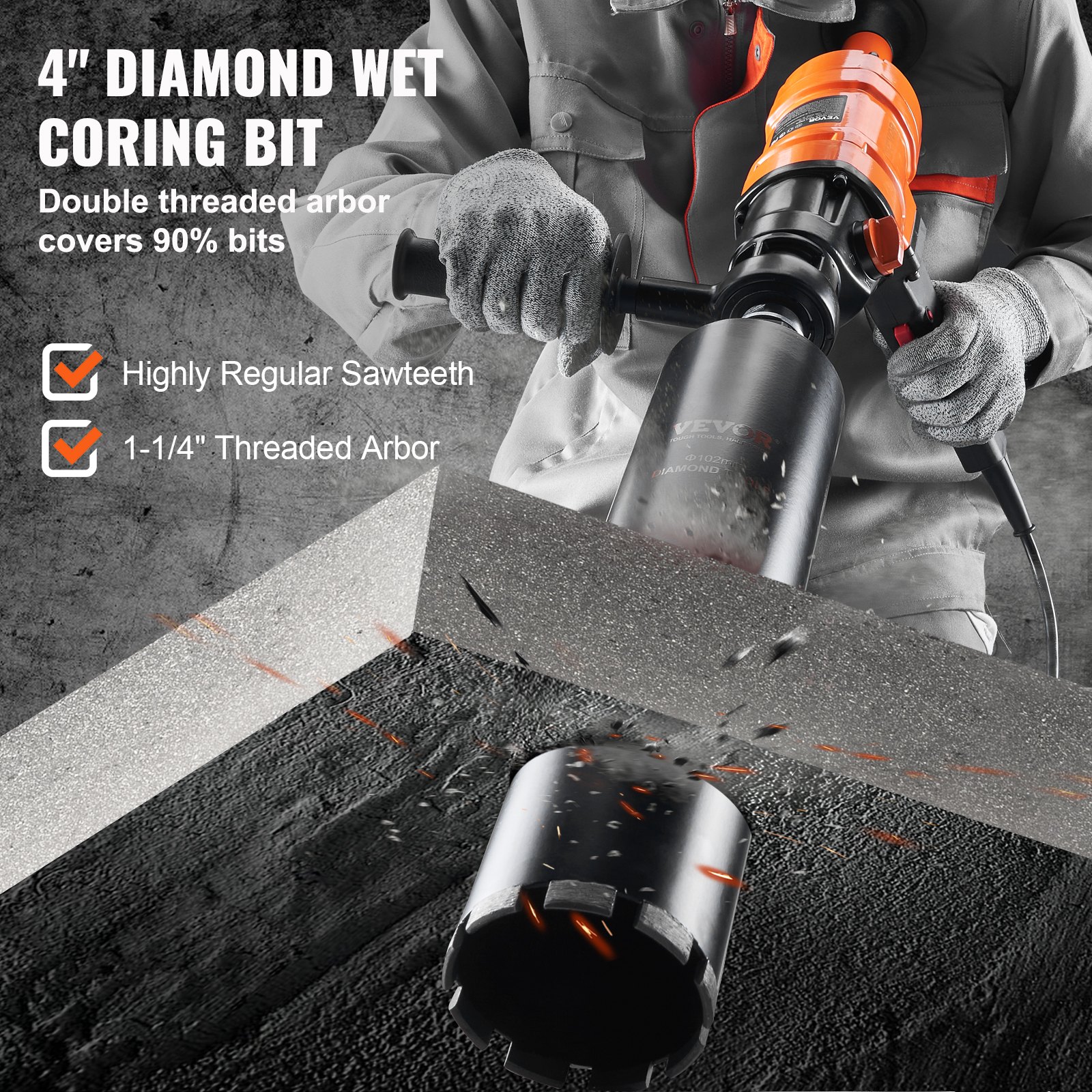

4" VEVOR diamond core drill bit, smooth drilling, laser-welded, durable steel, flat segments, no breaks
4" VEVOR diamond core drill bit, smooth drilling, laser-welded, durable steel, flat segments, no breaks
With a 1-1/4in universal thread, this 4-in core drill bit allows rapid assembling to more than 90% of core drilling machines. Start drilling at the vertical position, then continue to dig deep, and you will get a perfect hole in a second.

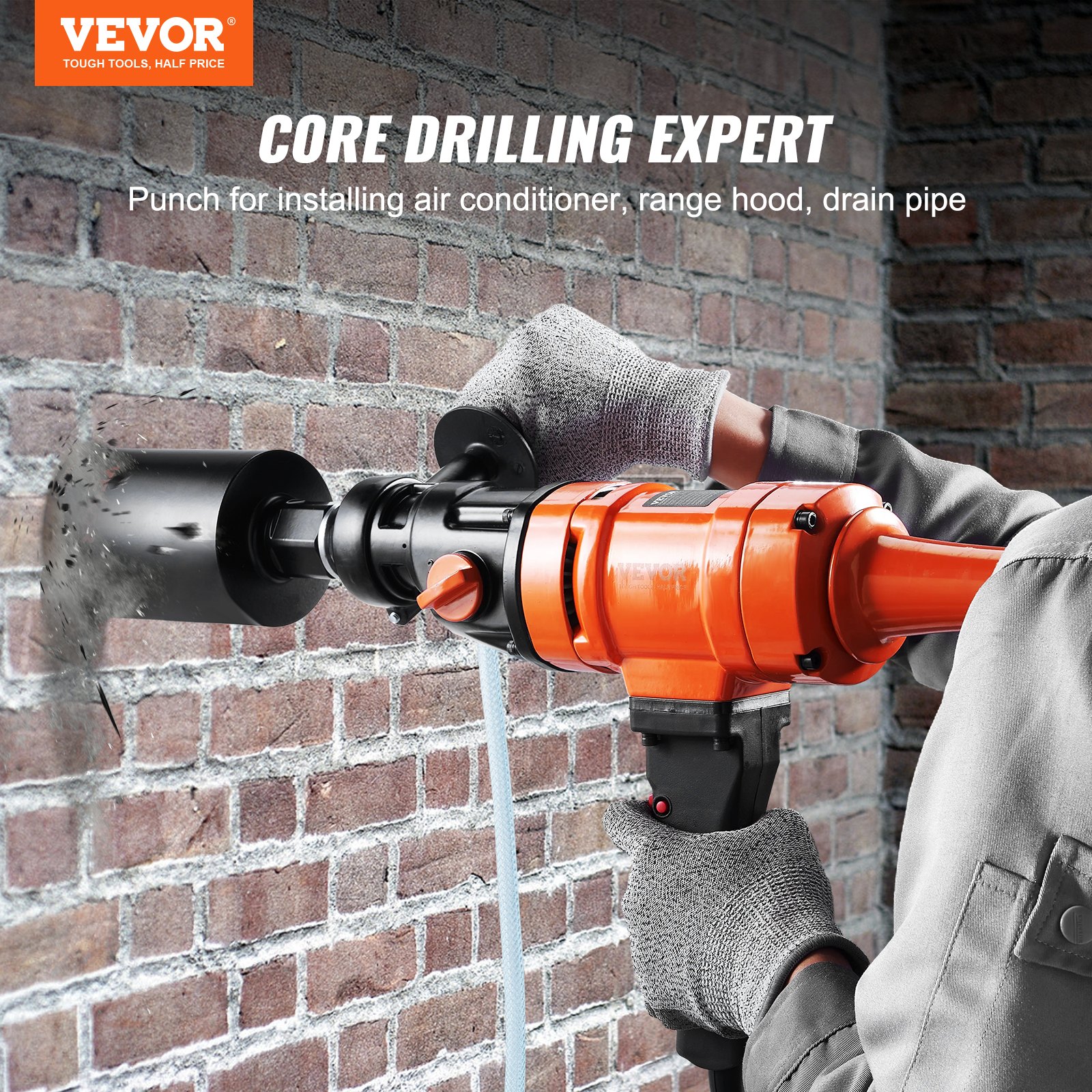

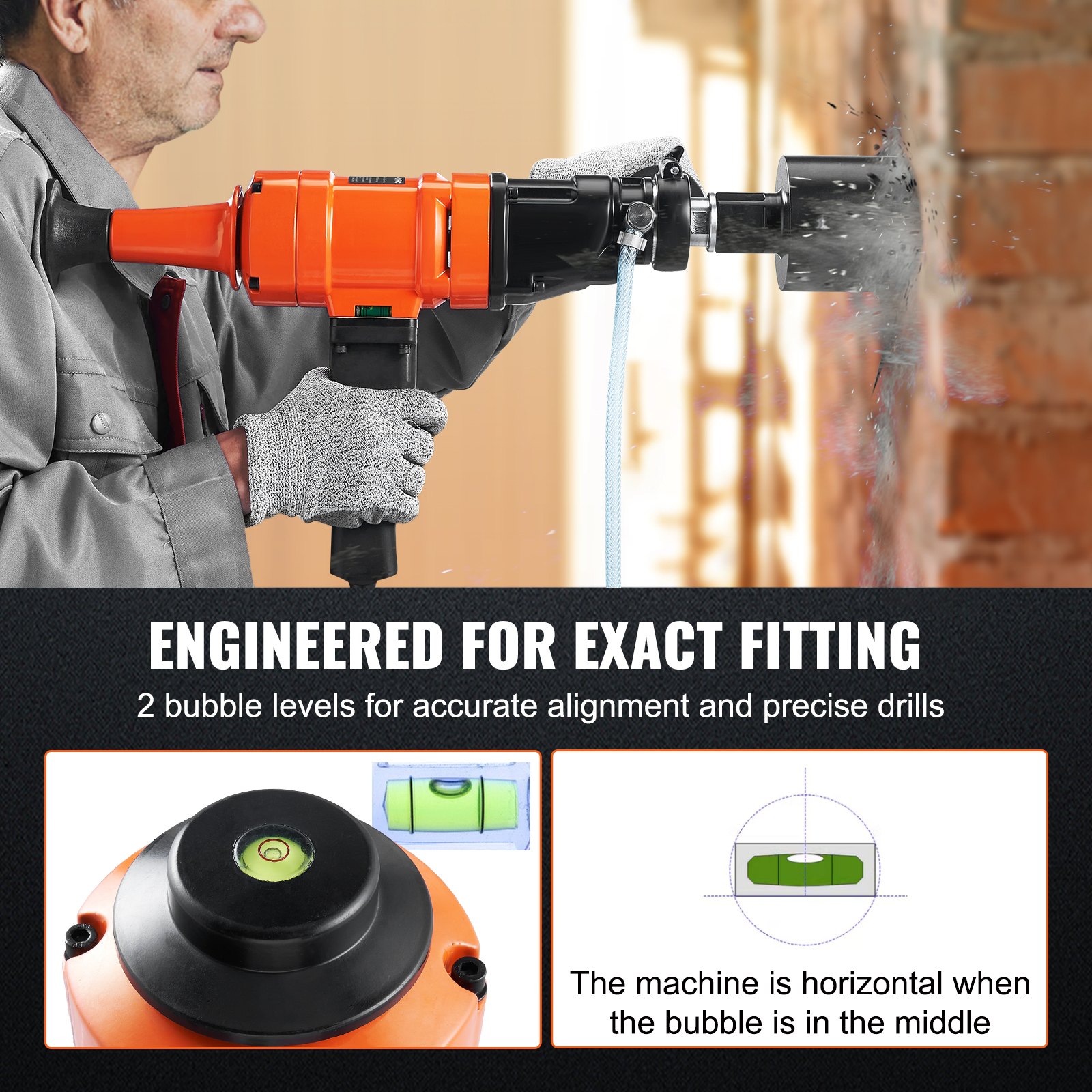

worker using orange VEVOR diamond core drill with level indicator for precise punching into a wall.
worker using orange VEVOR diamond core drill with level indicator for precise punching into a wall.
The bubble inside the circle will tell that the object's surface is level, as the bubble shows in the middle of the circle.

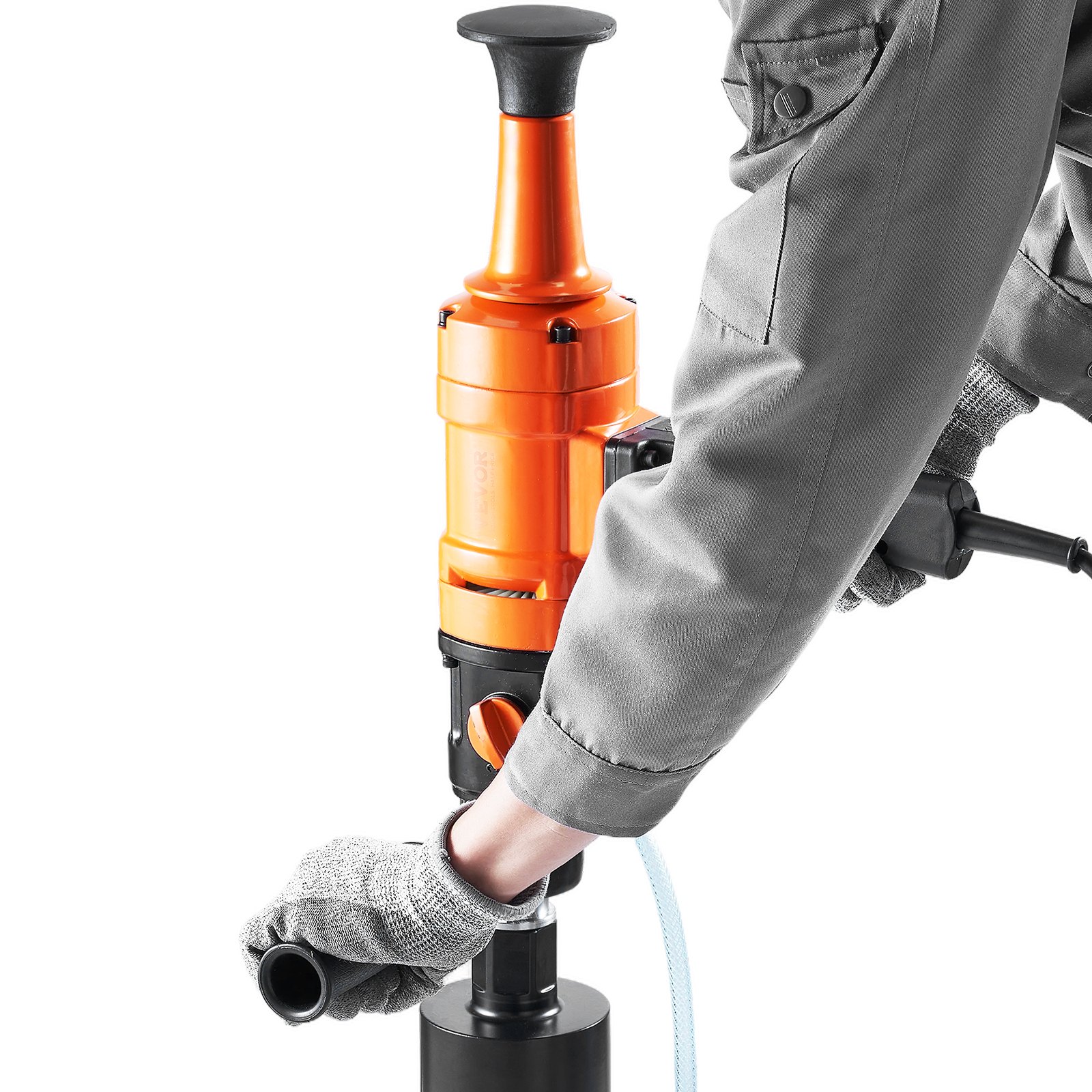

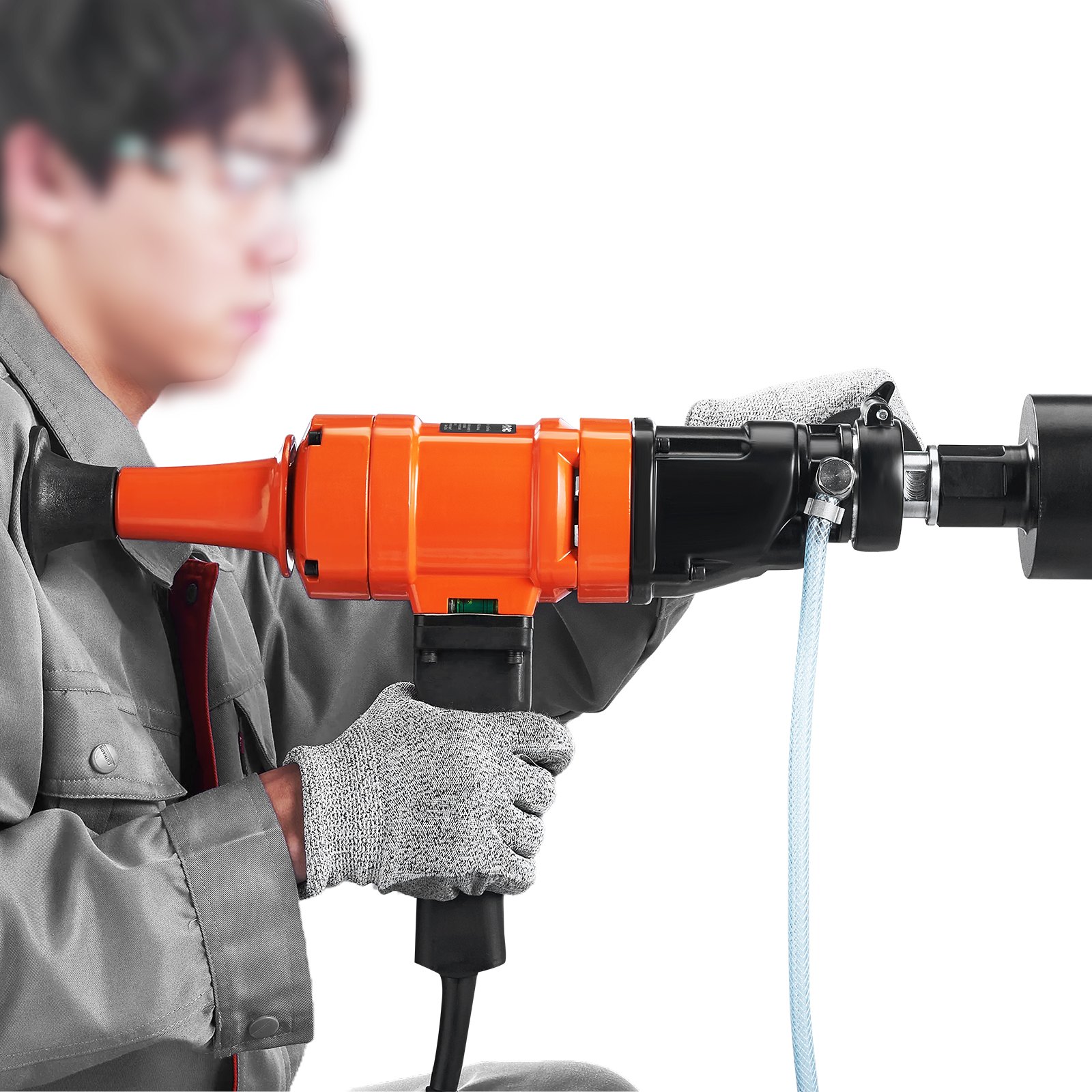

worker using VEVOR diamond core drill with labor-saving shoulder rest for comfort and support.
worker using VEVOR diamond core drill with labor-saving shoulder rest for comfort and support.
The unique shoulder rest is designed for comfortable handling. Blow-molded carrying case included for easy storing, classification, and convenient carrying.

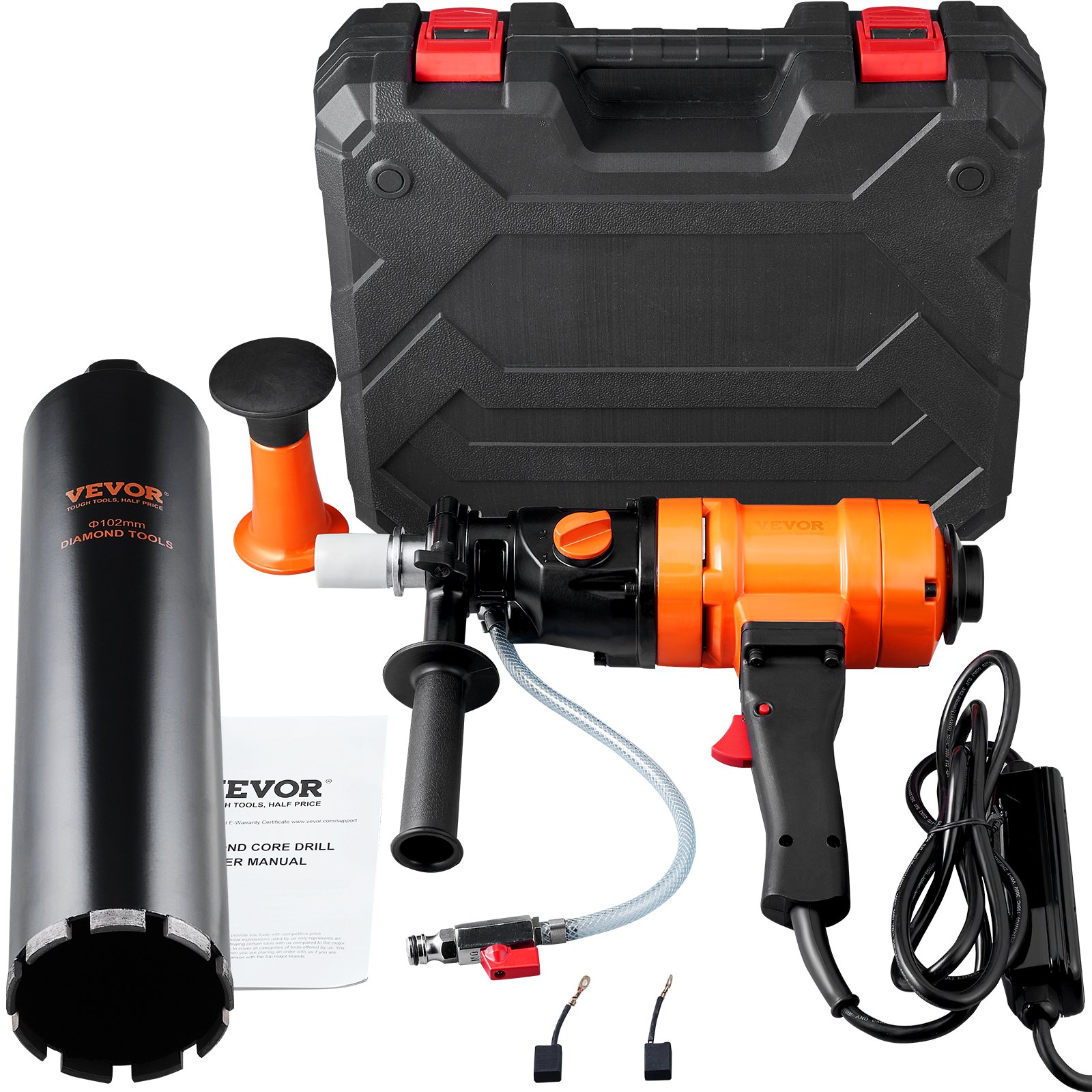

VEVOR diamond core drill set with carrying case, diamond drilling machine, 4in bit, and accessories.
VEVOR diamond core drill set with carrying case, diamond drilling machine, 4in bit, and accessories.

Specification

Item Model Number
Z1Z-CF02-80
No-load Power
860W
Rated Power
1500W
Dual Speed
950RPM / 2100RPM
Drilling Diameter
3.1-4 in / 8-10.2 cm
Drilling Depth
15.75 in / 40 cm
Arbor Size
1-1/4" Thread
Number of Bubble Level
2
Drilling Method
Wet Drilling
Drill Bit Size
Φ 4 x 15.75 in / 10.2 x 40 cm
Product Size
20.86 x 14.56 x 4.48 in / 53 x 37 x 11.4 cm
Net Weight
25.59 lbs / 11.61 kg
Questions and Answers
1 Questions
or Ask a Question
will this drill through bluestones
Answer This Question
It is recommended to tell us what the thickness of the bluestone is.
By vevor
Helpful ( 0 )

Customer Reviews

4.7 Out of 5
Based on 62 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
62 Review(s)
Clear filters
alcides a castellanos alcides a castellanos
Drilling machine
Great product worked seamless through 10 inches of concrete I would recommend it to any one !!!!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Mike Mike
Used only twice
Drill does not preform to its advertised specifications. Used with 8 in bit in cinder block and had a hard time drilling. I have used core Drills in the past and familiar with their operations. I bought this drill to not have to rent as I only need occasionally and the pri e was attractive. Possibly ok for smaller core bits.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Mason m widdison Mason m widdison
Ice rink Manager
This tool is what you would expect. Knowing that you get what you pay for. The drill is fantastic and easy to use. The 4" bit leaves a bit to be desired when It comes to durability. As long as you use a hole saw with some OSB as an install guide this will work well. I used it on full size brick's and some concrete. Things I would change • Add a clutch to the drill • Add a pilot bit to avoid using an OSB guide • FIx the drill being stuck in first of 2 gears
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Todd Taylor Todd Taylor
Construction Foreman
We needed to core drill approximately 60+ 4 inch homes through 6 inch concrete retaining wall blocks. Core drill company wanted $3500 to core the holes. I bought this drill from Vevor for under $200 and cored the blocks myself. The drill performed flawlessly and now I core drill all of my holes in house. Excellent piece of equipment and performs like the big named drills.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
EEProf EEProf
Jeezus, I wish I had bought this weeks ago.
Needed to get at at a 4" PVC pipe buried under 8" of very old concrete. This drill went through it fine, tried to wrench out of my hands a few times but the clutch cut it off. This is just a fantastic tool. My main heartburn (as with some other reviewers) was the water fitting. No, HD did not have it and after quite a bit of searching, Lowe's did. That said, I had to buy a $20 kit to get the fitting I needed. Anyway, once fitted the whole thing worked great. Wish I had started the project with this.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Francisco Francisco
President
Nice tool. Easy to use and heavy duty. The only is the case is too small, and the threat comes out of the case.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Bill Bill
residential pool ladder in concrete deck
cored a 4” hole vertically thru 6”concrete and metal embedded pieces, unit worked well, like butter. i used a wood plank template with a precut hole to hold the core bit in place until the hole was started. water line was reliable and didn’t fall off … picked up a quick connect from home depot
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
RON SHANE RON SHANE
Owner
Great product. Same as the blue color brand. Works and looks the exact same without the extra cost of another branded product as I observed the two side by side.cant go wrong with Vevor products
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
John Smith John Smith
Mr
I have not had time to use it but it looks OK . I have not had time to use it but it looks OK I haI have not had time to use it but it looks OKve not had time to use it but it looks OK
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Guido Guido
Will buy again if needed
Good drill strong. Identical to my previous drill. Unfortunately it came with the clutch set to high and I wasn't expecting the torque. So I got an ouchie. Lucky I know how to adjust the clutch.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
