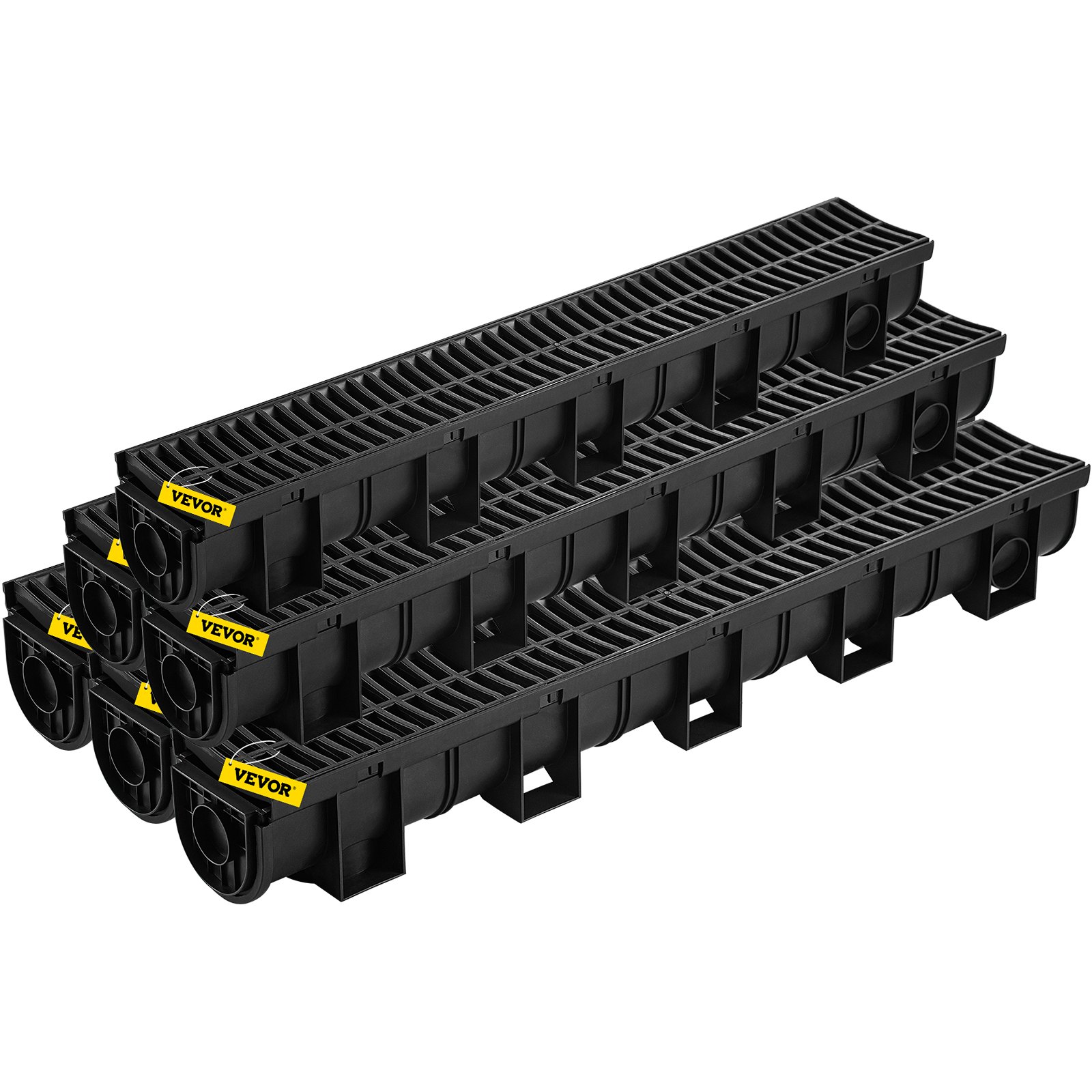

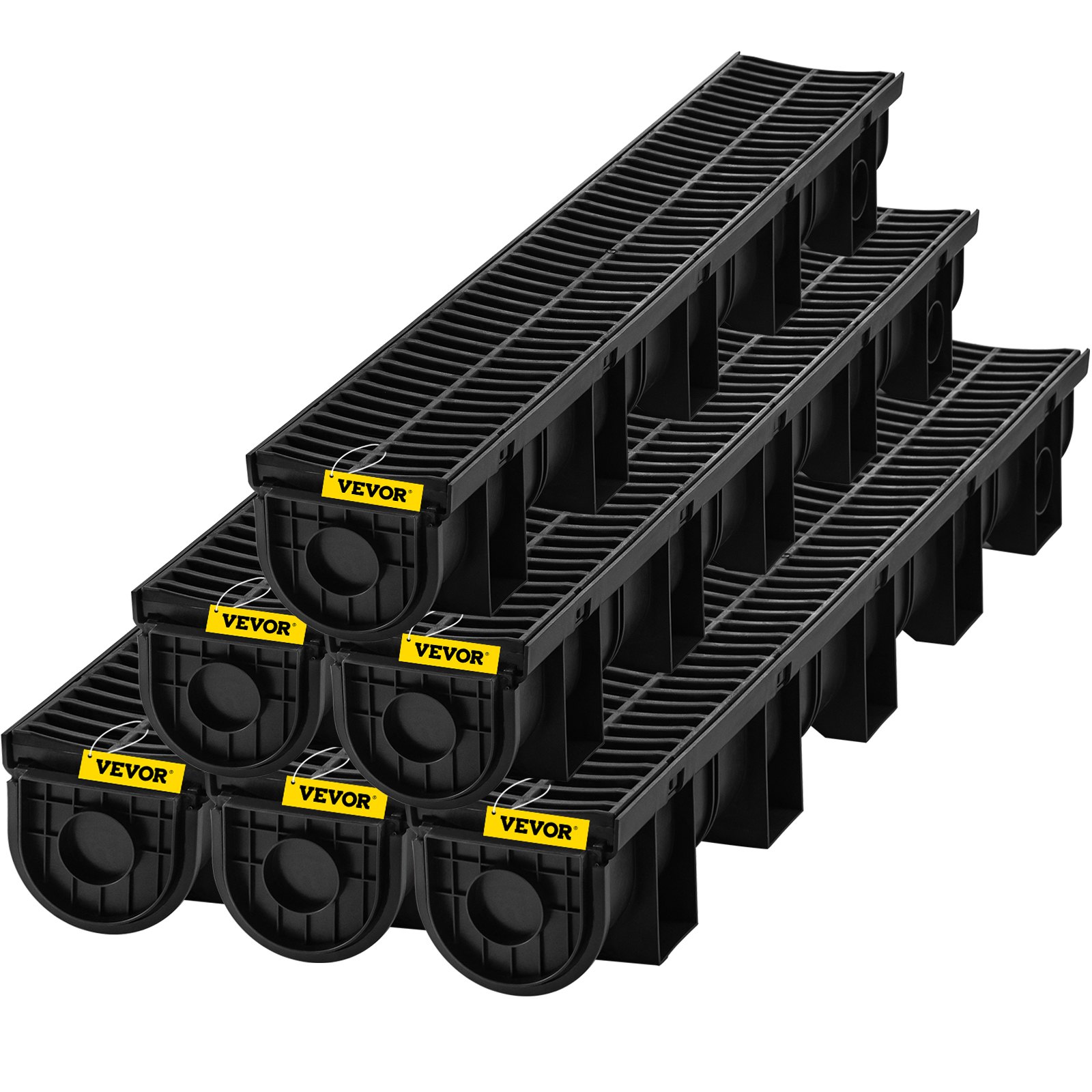

three black stacked sections of the VEVOR trench drain system with yellow labels. VEVOR trench drain system installed on a patio with dimensions and drainage solution. effortless installation of VEVOR trench drain system, featuring tight connection. VEVOR trench drain system with detachable grates for easy cleaning. VEVOR trench drain system with multiple bottom and side outlets sizes. VEVOR trench drain system with durable hdpe, 0.43 inch gap, and corrosion resistance. VEVOR trench drain system with product specs and usage scenarios for concrete, pool, driveway.
PSLGM10010062P7QMV0

VEVOR Trench Drain System, Channel Drain with Plastic Grate, 150x130MM HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Low-profile Drain System: Dimensions of each channel: 5.9" W x 5.1" H x 39.4" L. Commercial water drainage systems allow safe and efficient drainage for grassed areas, gardens, farms, patio areas, pool sides, office buildings, driveways, or factory interiors. The anti-flotation design prevents floating and doesn’t require staking when setting in concrete.
  • Easy & Quick Installation: You can connect these trench drains together for extra length. The interlocking design connects the drains tightly with no potential leak of water. Detachable grate can be manually installed and detached easily, needs no screws or bolts. It also provides a convenient way to clean the drain if it is bunged up.
  • Various Outlet Connections: Each trench drain provides a bottom outlet with multiple sizes(3.1 inch/ 3.6 inch), and a side outlet(2.2 inch). You can choose the size you need. No outlet connector is required because it is already built-in; thus, the pipe can be connected directly.
  • Durability & High Performance: Sturdy HDPE plastic creates a hard and durable structure. The load capacity is B125. The HDPE plastic provides a smooth interior surface, which allows faster water intake.
  • Complete Packing List: This trench drain kit comes with six drains with built-in bottom outlets, six plastic grates, and six end caps. Plus, the outlet connector is already built-in. All the accessories that you may need are included.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Trench Drain System, Channel Drain with Plastic Grate, 150x130MM HDPE Drainage Trench, Black Plastic Garage Floor Drain, 6x39 Trench Drain Grate, with 6 End Caps, for Garden, Driveway-6 Pack
VEVOR trench drain system by a pool in a lush green garden.

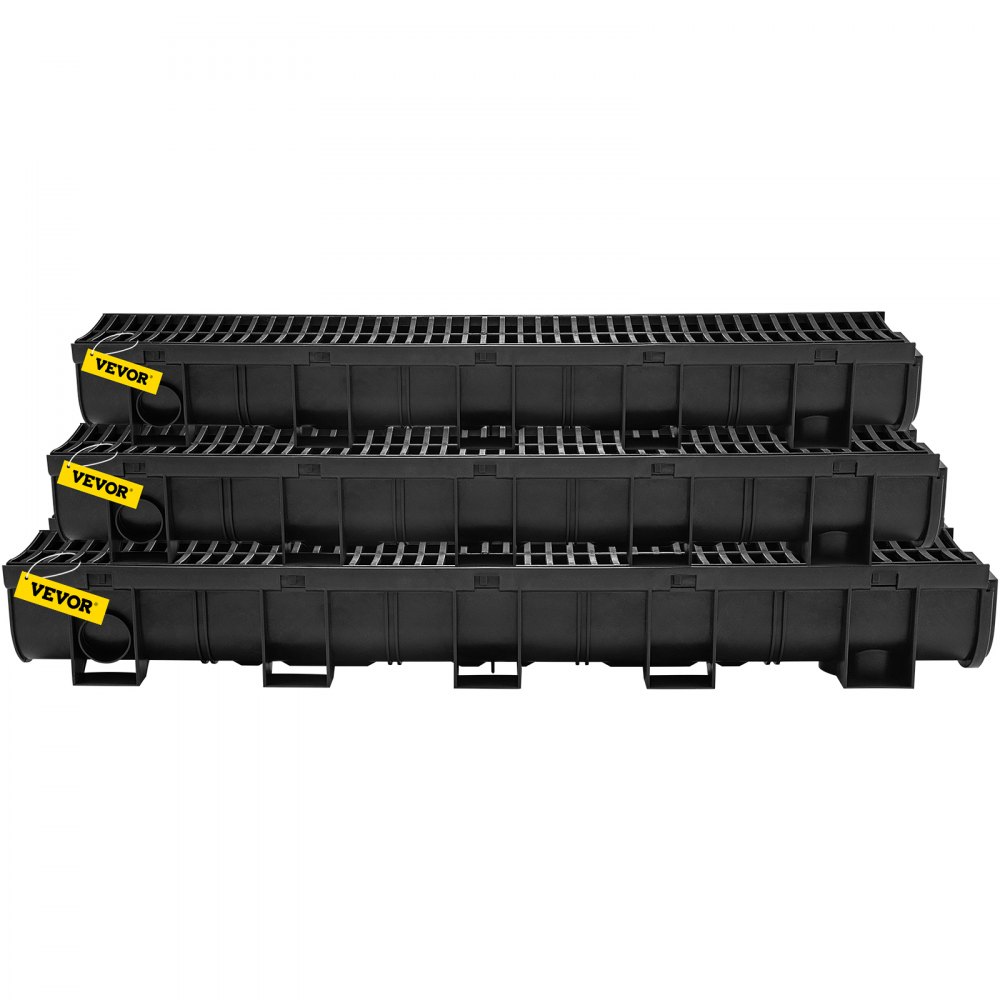

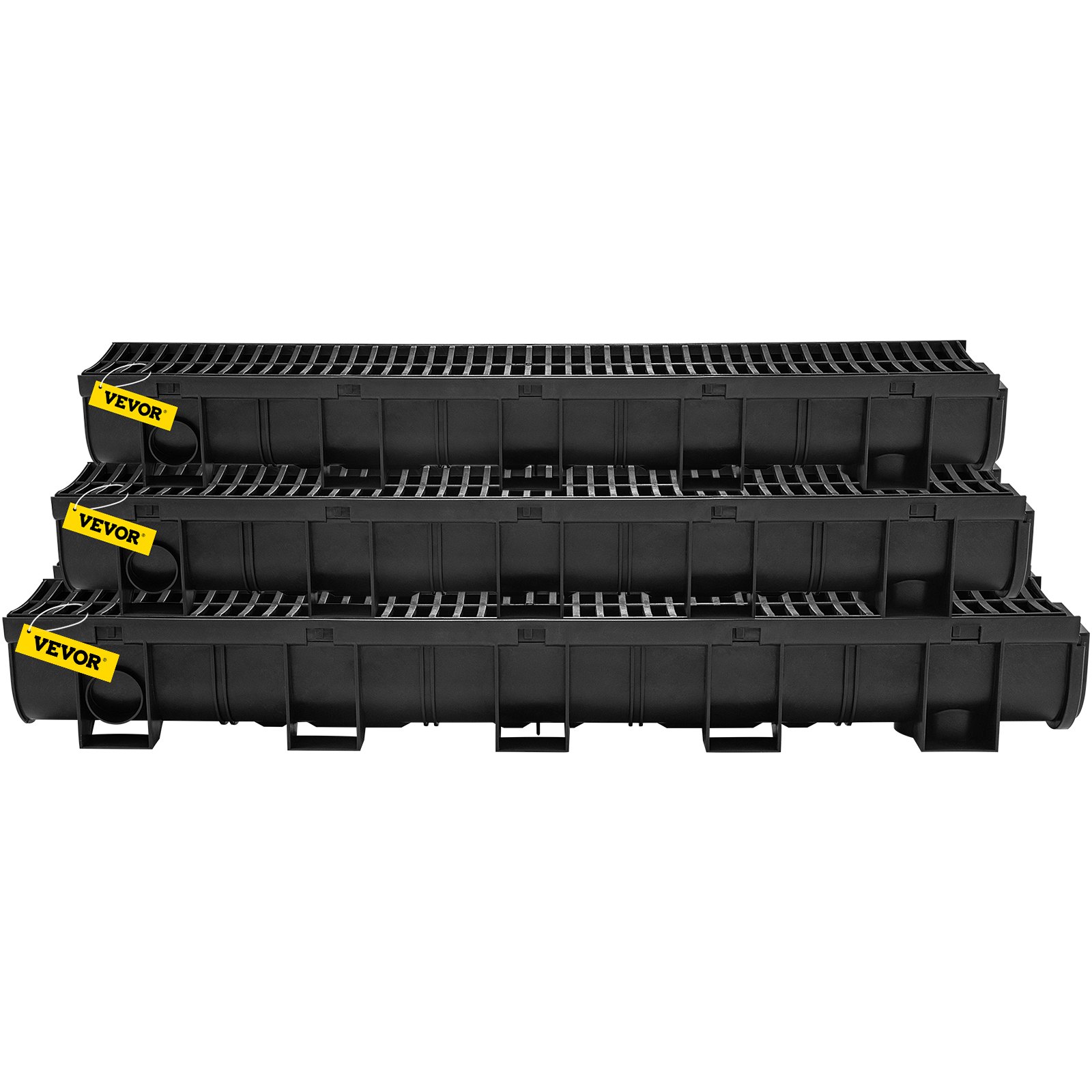

VEVOR trench drain system features three black plastic channels stacked together.
HDPE Plastic Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

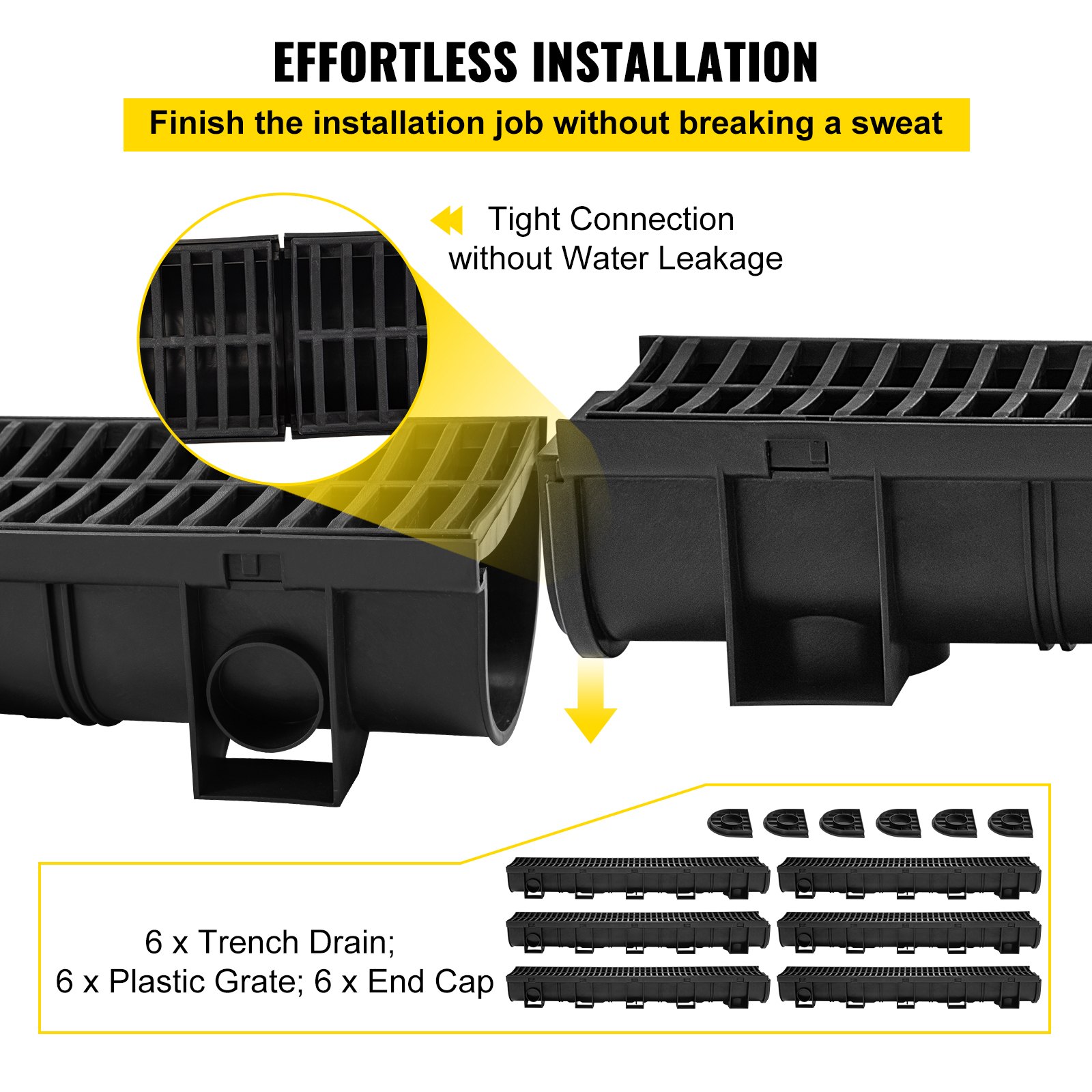

VEVOR trench drain system with hassle-free installation and tight connection.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.

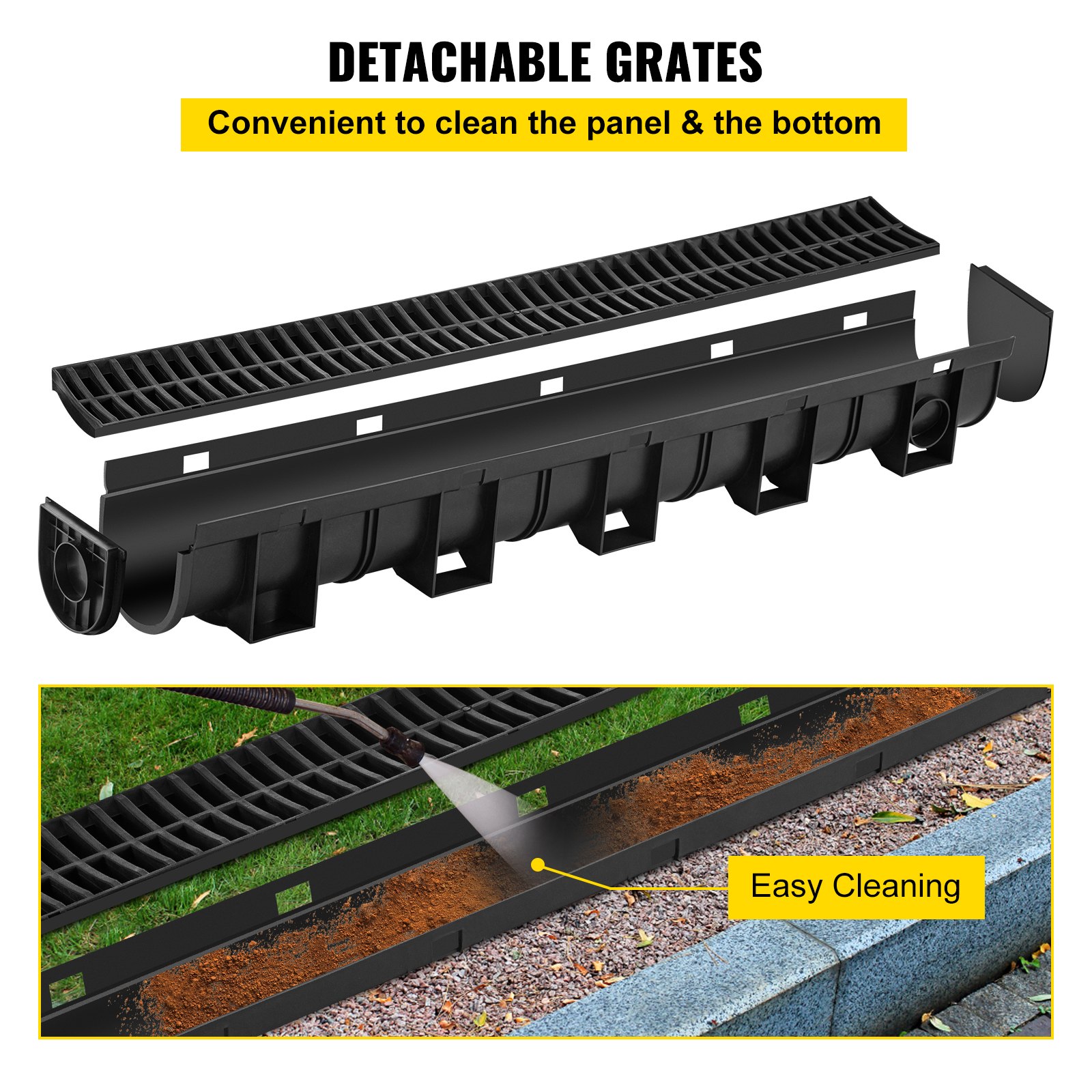

VEVOR trench drain system with removable grates, black drainage channel.
Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.

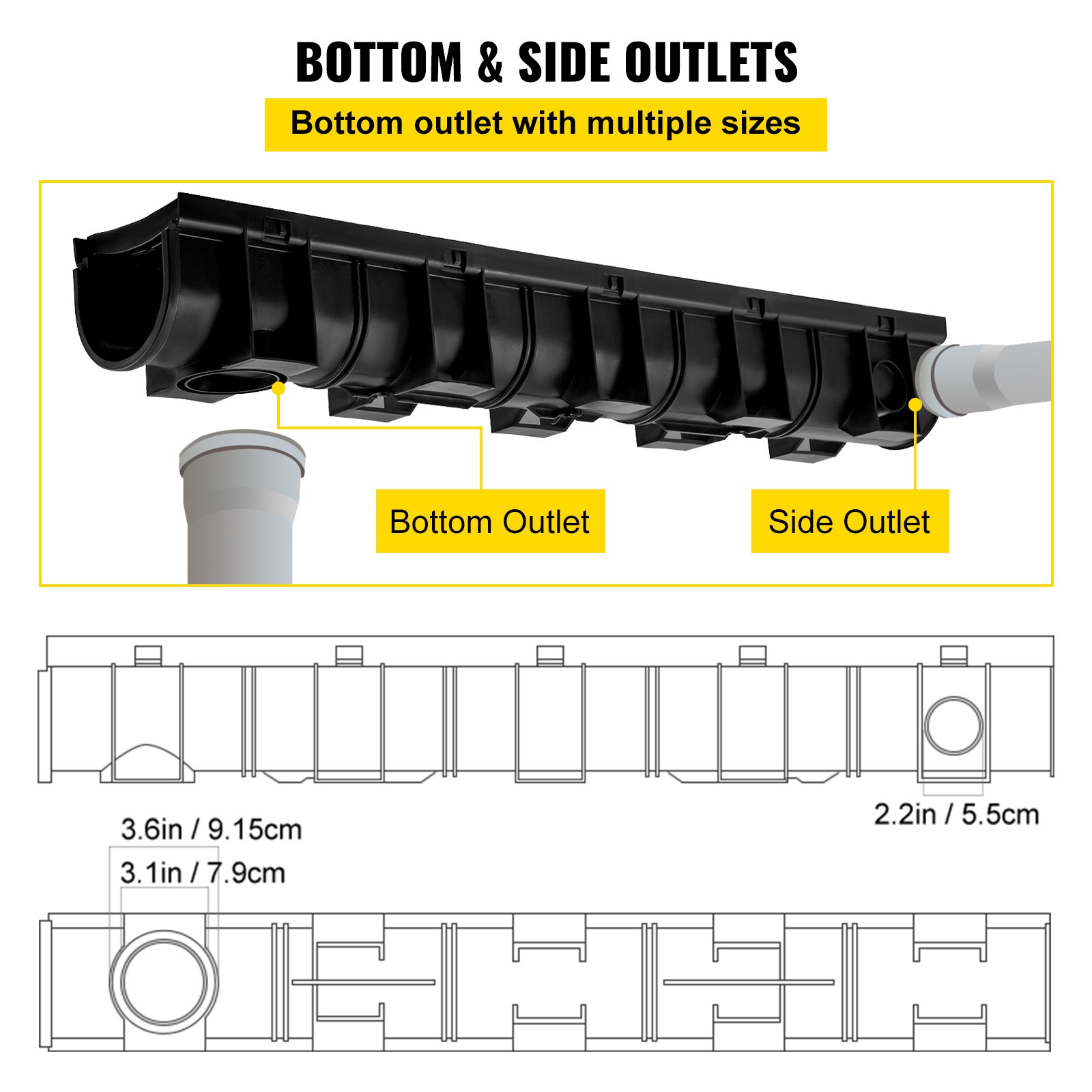

VEVOR trench drain system with bottom and side water outlets, plus measurements.
Water Outlets
The bottom and side outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

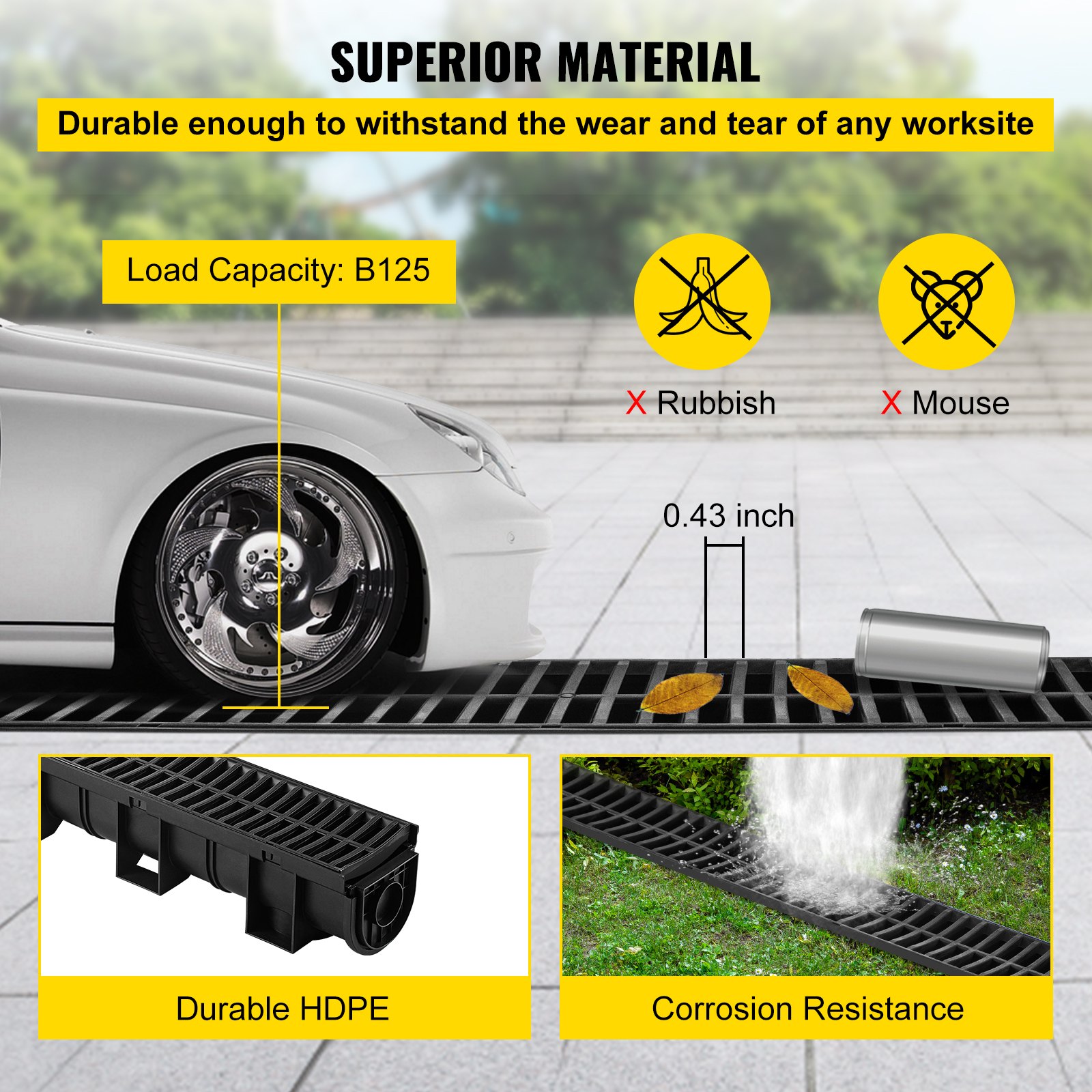

VEVOR trench drain system with durable hdpe for safe and efficient drainage.
Sturdy HDPE Material
Made of HDPE plastic, the load capacity is b125. It is suitable for driveways. The HDPE plastic creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system kit with plastic grates and end caps.
Trench Drain Kit
This trench drain kit includes six trench drains. Each one is one meter long. The accessories include six plastic grates and six end caps. We offer you all the accessories that you may need.

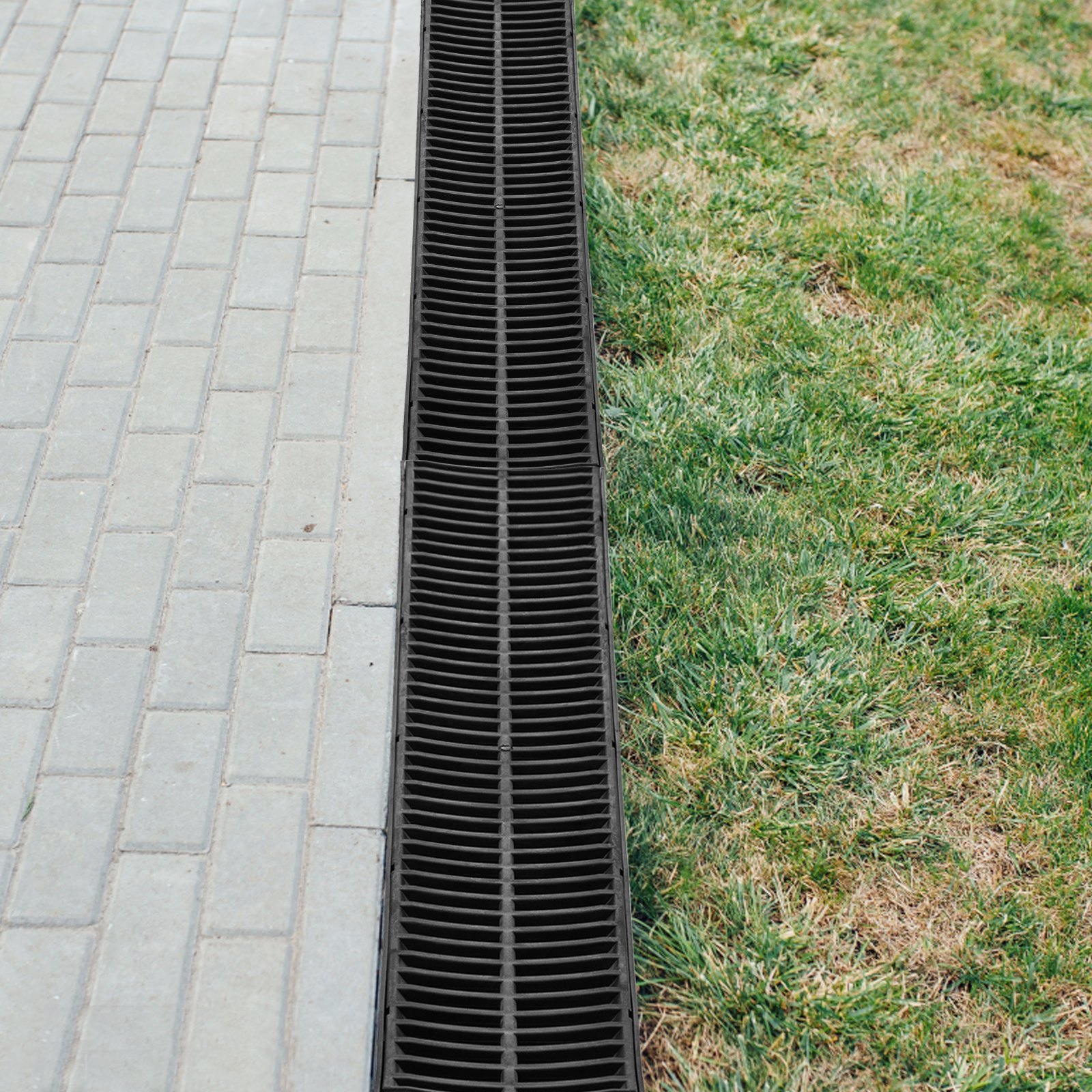

VEVOR trench drain system for concrete, swimming pool, driveway, and grass area.
Multiple Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the B125 load rate, it is also suitable for driveways.

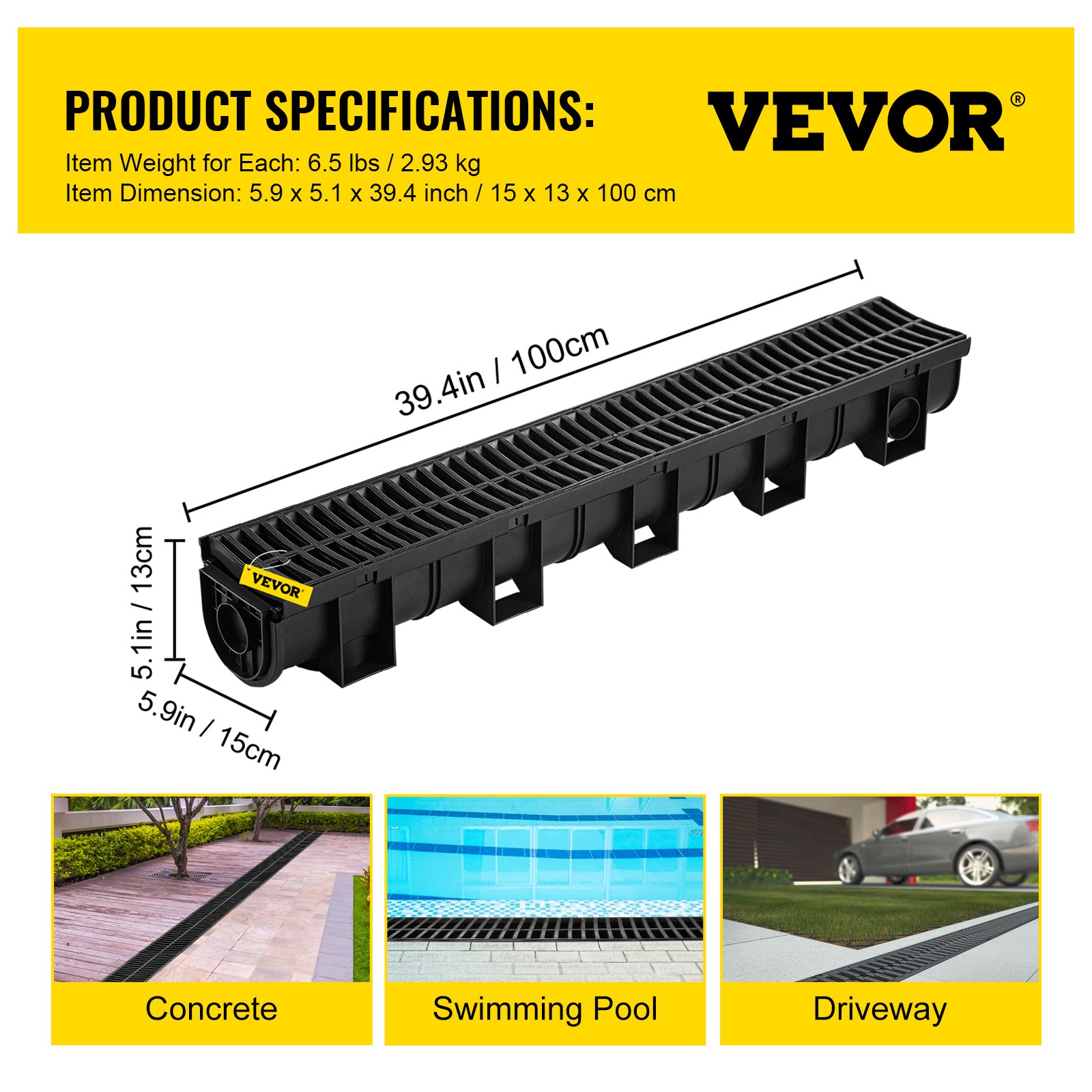

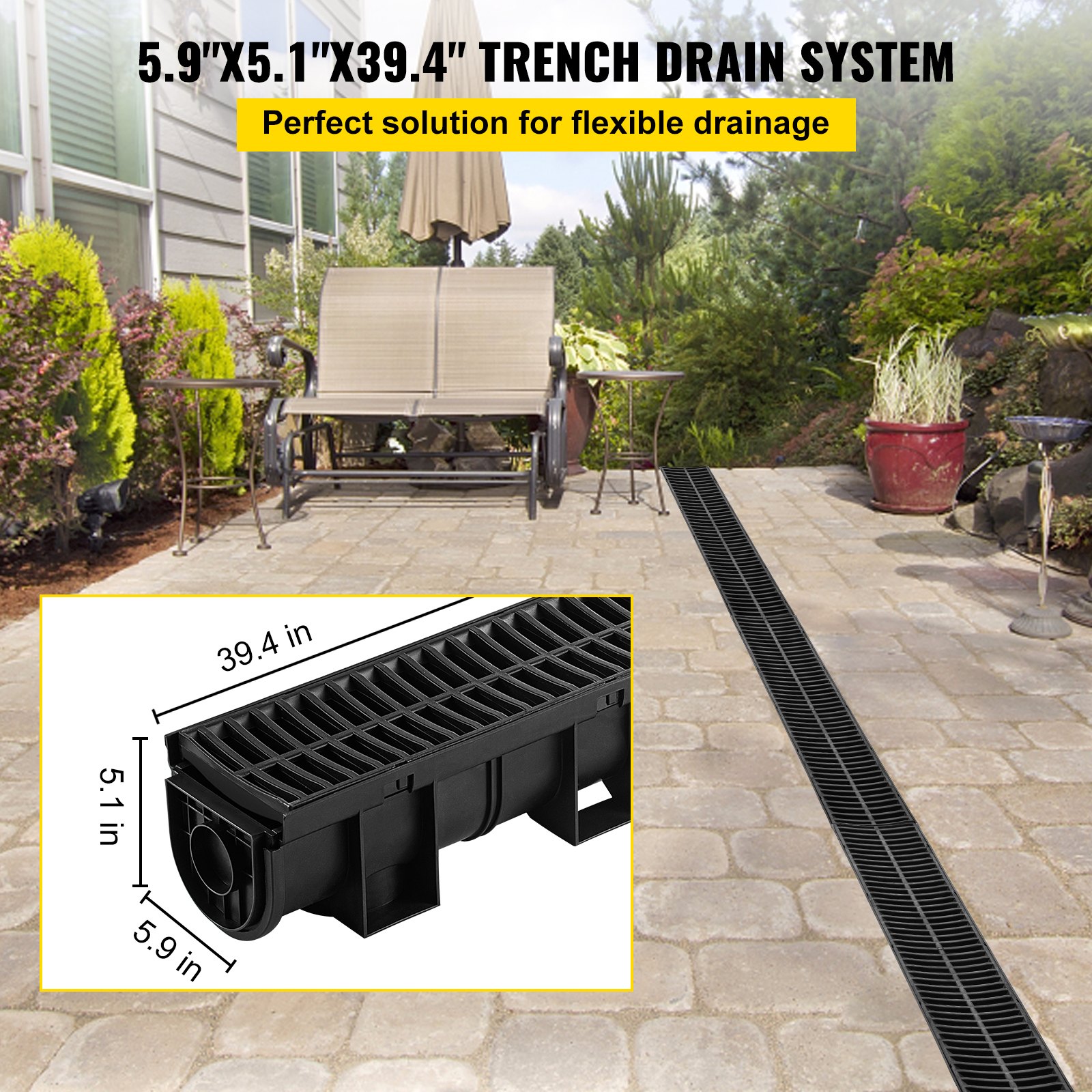

VEVOR trench drain system, dimensions 39.4in x 5.1in x 5.9in, black with labeled details
Specifications
  • Model: PSG100*100*6M
  • Material: HDPE Plastic
  • Color: Black
  • Load Rate: B125
  • Amount: 6 Packs
  • Diameter of Side Drain Hole: 2.2 inch/ 5.5 cm
  • Diameter of Bottom Drain Hole: 3.1 inch or 3.6 inch
  • External Item Dimensions: 5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
  • Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
  • Item Weight Each: 2.93 kg / 6.5 lbs
  • Maximum Working Temperature: 120℃/ 248℉
  • Minimum Working Temperature: -40℃/ -40℉
VEVOR trench drain system with black grating and yellow label on side.
Package Content
  • 6 x Trench Drain
  • 6 x Metal Grate
  • 6 x End Cap
VEVOR trench drain system by a pool in a lush green garden.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR trench drain system features three black plastic channels stacked together.
HDPE Plastic Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR trench drain system with hassle-free installation and tight connection.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.
VEVOR trench drain system with removable grates, black drainage channel.
Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.
VEVOR trench drain system with bottom and side water outlets, plus measurements.
Water Outlets
The bottom and side outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.
VEVOR trench drain system with durable hdpe for safe and efficient drainage.
Sturdy HDPE Material
Made of HDPE plastic, the load capacity is b125. It is suitable for driveways. The HDPE plastic creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system kit with plastic grates and end caps.
Trench Drain Kit
This trench drain kit includes six trench drains. Each one is one meter long. The accessories include six plastic grates and six end caps. We offer you all the accessories that you may need.
VEVOR trench drain system for concrete, swimming pool, driveway, and grass area.
Multiple Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the B125 load rate, it is also suitable for driveways.
VEVOR trench drain system with black grating and yellow label on side.
Package Content
  • 6 x Trench Drain
  • 6 x Metal Grate
  • 6 x End Cap
VEVOR trench drain system, dimensions 39.4in x 5.1in x 5.9in, black with labeled details
Specifications
  • Model: PSG100*100*6M
  • Material: HDPE Plastic
  • Color: Black
  • Load Rate: B125
  • Amount: 6 Packs
  • Diameter of Side Drain Hole: 2.2 inch/ 5.5 cm
  • Diameter of Bottom Drain Hole: 3.1 inch or 3.6 inch
  • External Item Dimensions: 5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
  • Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
  • Item Weight Each: 2.93 kg / 6.5 lbs
  • Maximum Working Temperature: 120℃/ 248℉
  • Minimum Working Temperature: -40℃/ -40℉

Drain the Surface Water — Trench Drain System

Keep your surface clean, stable, and non-slippery with the VEVOR trench drain system. It offers user-friendly installation with its interlocking connections. This drainage system has multiple water outlet connections that avoid water clogging and flooding. It provides a complete kit, such as black plastic drains, end caps, plastic grates, and more. You can use this drainage system everywhere due to its versatile functionalities. So, use this trench drain system and manage surface water and prevent flooding.


Multiple Water Outlet Channel Connections

If your drain system features multiple water outlet channel connections, the installation will be versatile and flexible. Here, the VEVOR offers different types of outlets in many sizes, such as bottom outlets in sizes like 2.2 inches, 3.1 inches, 48mm, 78mm, and 96mm. It also has 2.2-inch side outlets and end caps for the drain, ensuring effective water flow and avoiding clogging and flooding. Its multiple-channel drain will easily merge with your existing drain pipes.


High-Quality & Durable Design

The VEVOR provides sturdy HDPE drainage trench material, ensuring unparalleled strength and durability. It has an impressive load capacity of B125, making it suitable for driveway drainage. Its heavy-duty HDPE plastic maintains a smooth and durable surface that facilitates efficient management of your drainage water. It can withstand rough weather and heavy use, making it an ideal drainage system for many applications.


Easy Cleaning & Aesthetic Look

When your trench drain system is designed for ease of cleaning, it will keep maintenance low. Its smooth HDPE surface and sloped design ensure effortless water flow and reduce debris that blocks the flow; you don't even need to remove the screws. This drainage system has removable grates and end caps that provide easy access for cleaning and extend its lifespan.


If you have a trench drain system that looks good, it will keep your building's structure or design attractive. Therefore, the VEVOR trench system has an aesthetic look, making it simple and accommodating to your every need. It combines functionality with modernity. The durable construction of this trench drainage does not damage your architecture or detract from it.


Complete Accessories

This trench drain system provides everything you need to install it. It comes with six 1-meter-long plastic tubes that help collect the water and flow it away. You will also get six plastic grate drains that will perfectly fit on top of the tubes, ensuring water flows while keeping debris out. Moreover, its six end caps efficiently seal the ends of the tubes, securing a tight connection.


Quick and Straightforward Installation

The VEVOR trench drain system is designed with interlocking. So, there is no need for screws and bolts, which makes it easy to install. It can help you increase the length of this trench drain to meet your needs.


This trench drain grate can be easily detached, and you can manually install it effortlessly. This drain system also has pre-sloped channels that ensure proper water flow. You will not need to have any specialized tools, making it simple and straightforward. Moreover, a detailed introduction manual will be provided to help you install the drain system on your first attempt.


Versatile Functionality

This trench drain system is designed to solve all your water drainage problems. Its versatility will allow it to handle water management efficiently in every possible setting, no matter if it's your garden drainage system, garage floor drain, driveways, or commercial areas. It will also work in industrial or agricultural locations, making it useful for both indoor and outdoor areas. It helps avoid damage related to water, such as erosion and slippery surfaces. Its long-lasting and durable performance makes it a cost-effective solution for every setting.


See More

Specification

Model
PSG100*100*6M
Material
HDPE Plastic
Color
Black
Load Rate
B125
Amount
6 Packs
Diameter of Side Drain Hole
2.2 inch/ 5.5 cm
Diameter of Bottom Drain Hole
3.1 inch or 3.6 inch
External Item Dimensions
5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
Internal Item Dimensions
3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
Item Weight Each
2.93 kg / 6.5 lbs
Maximum Working Temperature
120℃/ 248℉
Minimum Working Temperature
-40℃/ -40℉
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
81 Review(s)
Clear filters
Anthony Anthony
French drain
They don't work I don't like them I wish I would have never bought them it ain't going to work for what I needed for
Customer Service Reply: Dear valued customer,thank you for reaching out to us and sharing your concerns. We genuinely appreciate your feedback and understand how important it is for you to have a positive experience with our products or services. We encourage you to visit our website and navigate to the "Contact Us" page, where you can find various ways to get in touch with our dedicated customer support team. Our professionals are well-equipped to assist you and will work diligently to provide you with a satisfactory resolution.
BobG BobG
Homeowner.
The install worked well. I installed it in concrete. I taped the grates with painters' tape to keep the concrete out. The only problem I had was the concrete got in the slots where the grates snap in which made it difficult to get them out. I would recommend taping these slots if concrete is used.
plumber plumber
Refund
Product not meant for 3"/2" PVC pipe. Gap's or too big. Grates do not easily pop off. No instruction's can be found online or shipped with product. I took a chance and lost out. Customer service will make it hard to return (Vevor)
Graeme Graeme
Great
Perfect for the job and well made
Francis Francis
arrivé à l'heure
receveur de douche. Produit de qualité. Mais il est livré sans siphon.
Def1960 Def1960
Pleasure Concepts LLC Owner.
Looks great. Look forward to getting this job done. Would recommend these driveway drains to anyone...
Billwh87 Billwh87
Works good
Works well to direct water away from my porch walkway. Before, water would run down on my sidewalk along with mud, etc.
ddufon ddufon
Well built and great price.
I actually purchased this to use as an outdoor drain for my garden pathway. Fits perfectly
Vevor Trench Vevor Trench
Vevor Trench Drain
The six-piece set is a great value, These drains are a well-built product and Vevor had fast shipping. Easy install, quality.
Cameron Cameron
So far so good
The quality of this drain exceeds my expectation for the price. We simply provided the parts to our contractor and it was straight forward for them to install. The strainer can be a bit difficult to clean but that's being nitpicky.
