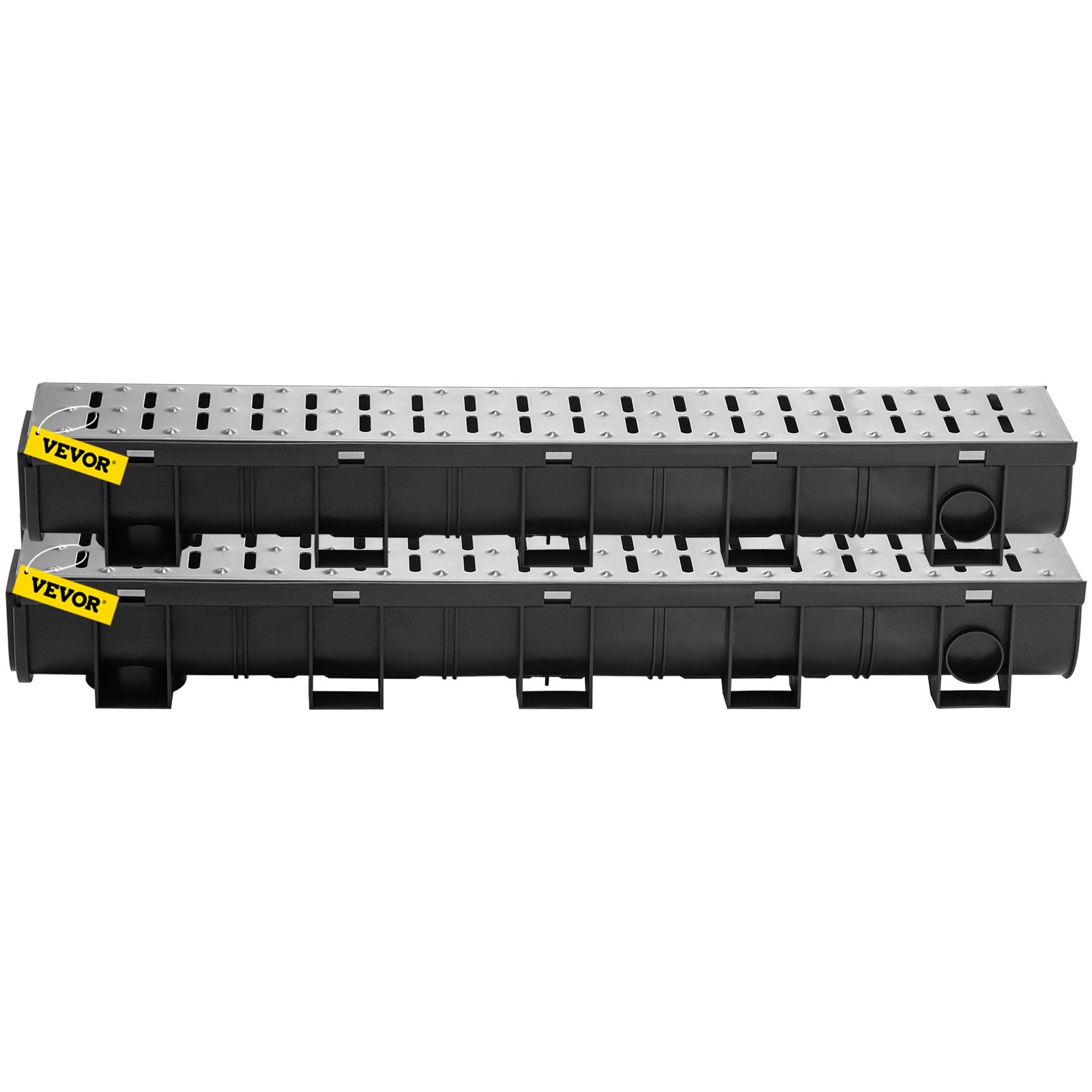

dual black VEVOR trench drain system with metal grates and yellow branding. VEVOR trench drain system on a patio with furniture and surrounding garden. VEVOR trench drain system installation with stainless steel grates and end caps. VEVOR trench drain system with detachable grates for easy cleaning and maintenance. bottom and side outlets of VEVOR trench drain system with multiple outlet sizes. VEVOR trench drain system with durable hdpe, stainless steel, and corrosion resistance. VEVOR trench drain system, ideal for concrete, swimming pool, and driveway areas.
PSBXGM100100387N0V0

VEVOR Trench Drain System, Channel Drain with Metal Grate, 150x130 mm HDPE Drainage Trench, Black Plastic Garage Floor Drain, 3x39 Trench Drain Grate, with 3 End Caps, for Garden, Driveway-3 Pack

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Low-profile Drain System: Dimensions of each channel: 5.9" W x 5.1" H x 39.4" L. Commercial water drainage systems allow safe and efficient drainage for grassed areas, gardens, farms, patio areas, pool sides, office buildings, driveways, or factory interiors. The anti-flotation design prevents floating and doesn’t require staking when setting in concrete.
  • Easy & Quick Installation: You can connect these trench drains together for extra length. The interlocking design connects the drains tightly with no potential leak of water. Detachable grate can be manually installed and detached easily, needs no screws or bolts. It also provides a convenient way to clean the drain if it is bunged up.
  • Various Outlet Connections: Each trench drain provides a bottom outlet with multiple sizes(3.1 inch/ 2.2 inch), and a side outlet(2.2 inch/ 5.5 cm). You can choose the size you need. No outlet connector is required because it is already built-in; thus, the pipe can be connected directly.
  • Durability & High Performance: Sturdy HDPE plastic and stainless steel material creates a hard and durable structure. The load capacity is A15. The HDPE plastic provides a smooth interior surface, which allows faster water intake.
  • Complete Packing List: This trench drain kit comes with three drains with built-in bottom outlets, three plastic grates, and three end caps. Plus, the outlet connector is already built-in. All the accessories that you may need are included.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Trench Drain System, Channel Drain with Metal Grate, 150x130 mm HDPE Drainage Trench, Black Plastic Garage Floor Drain, 3x39 Trench Drain Grate, with 3 End Caps, for Garden, Driveway-3 Pack

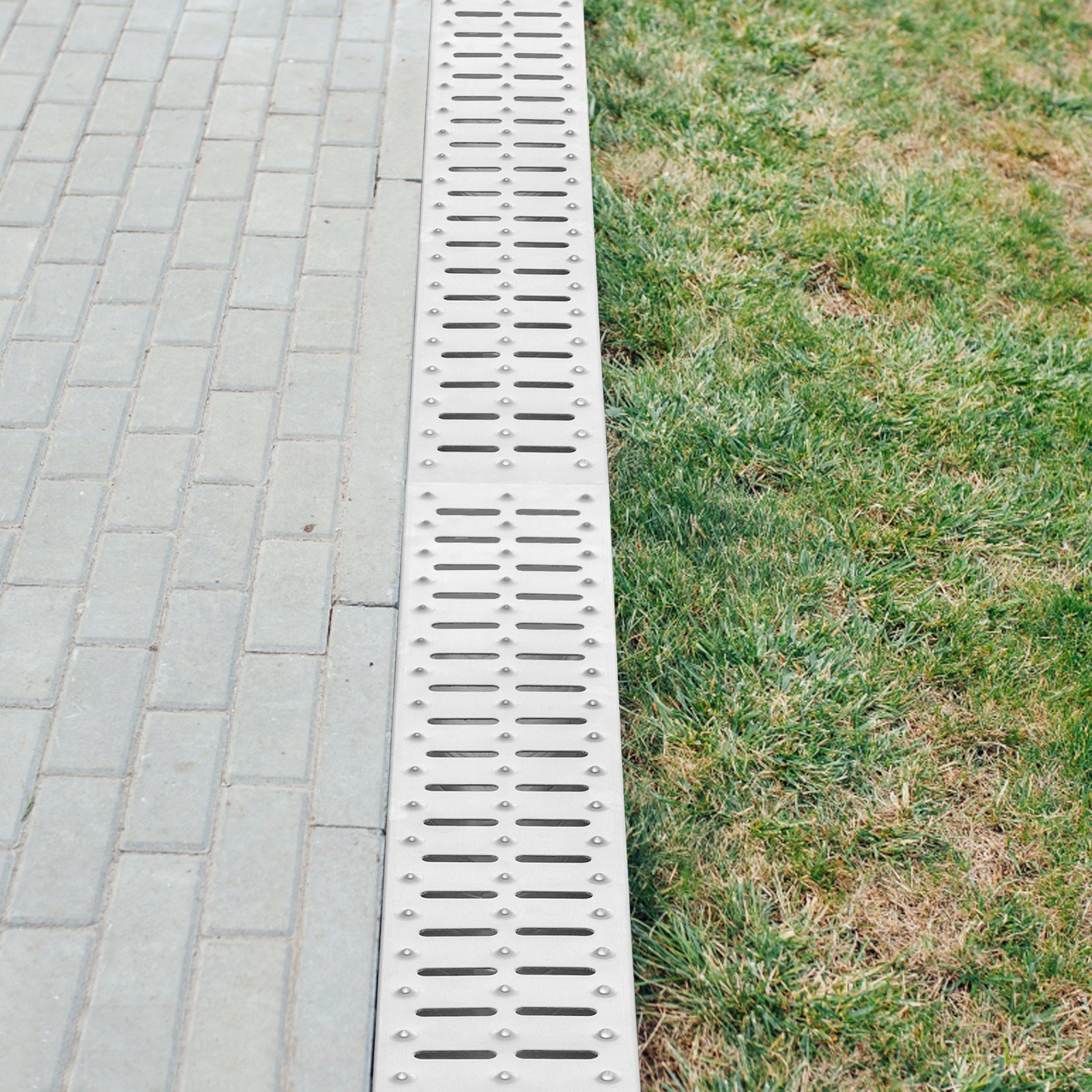

VEVOR trench drain system by a pool with surrounding green landscape.

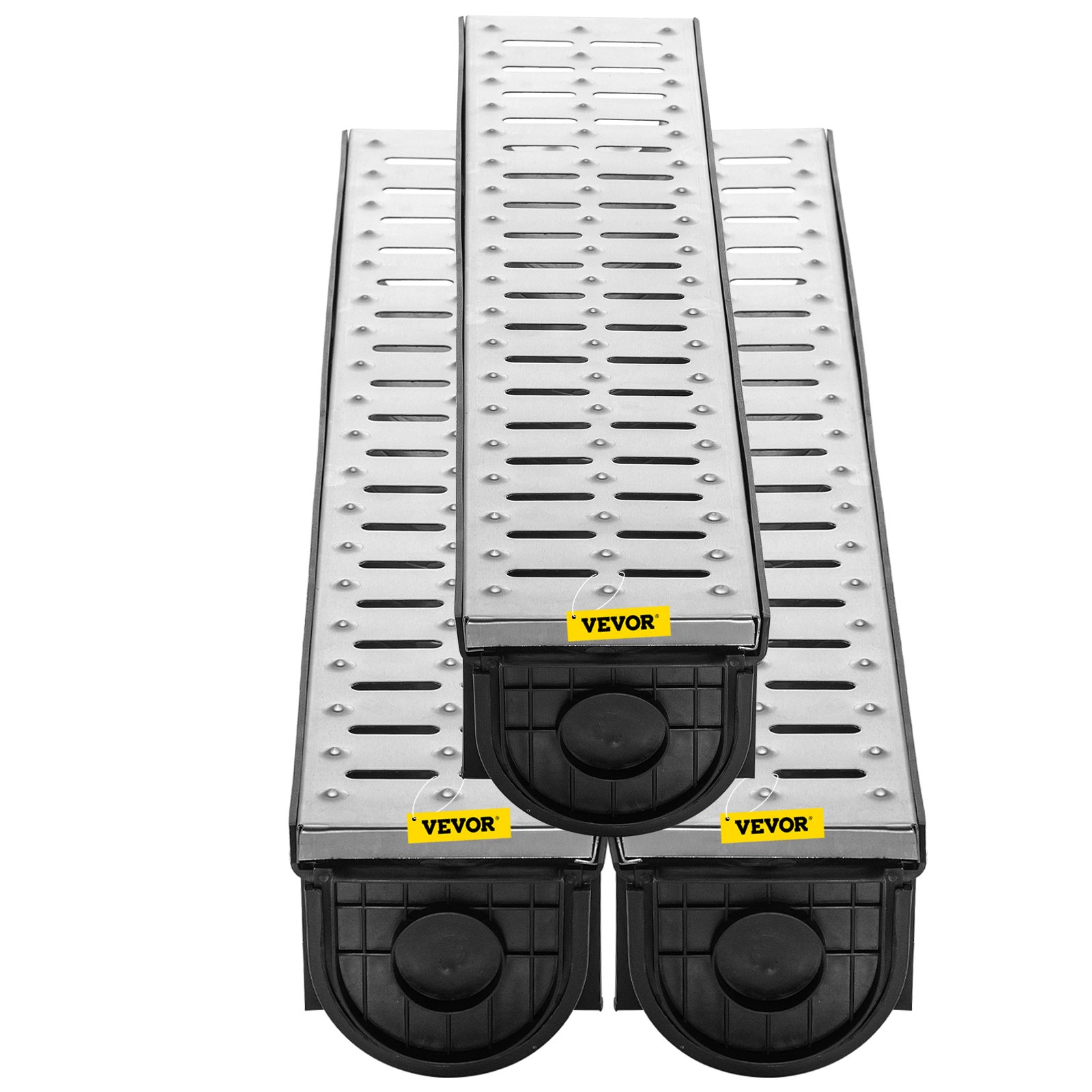

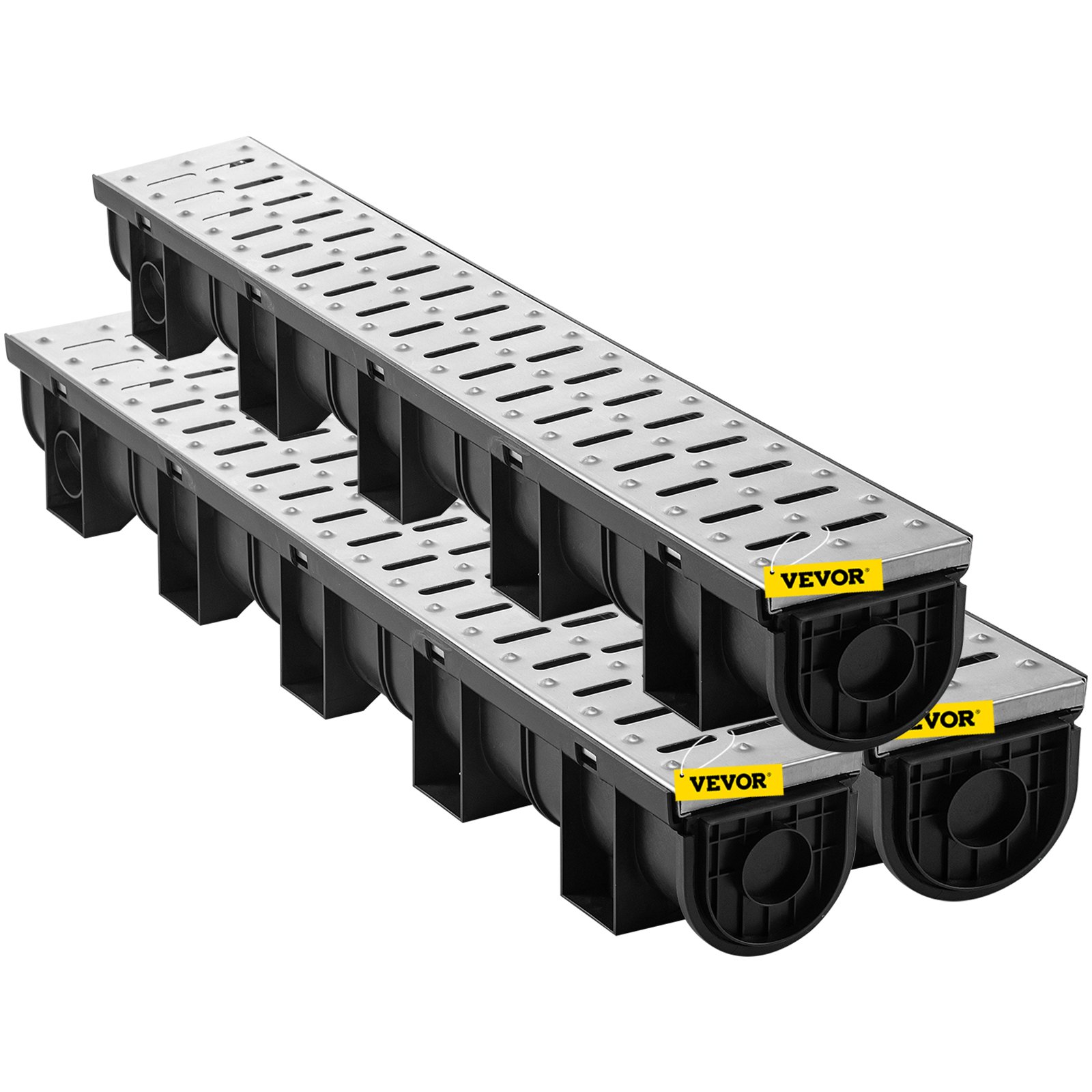

two stacked VEVOR trench drain systems with black bases and metal grates.
Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

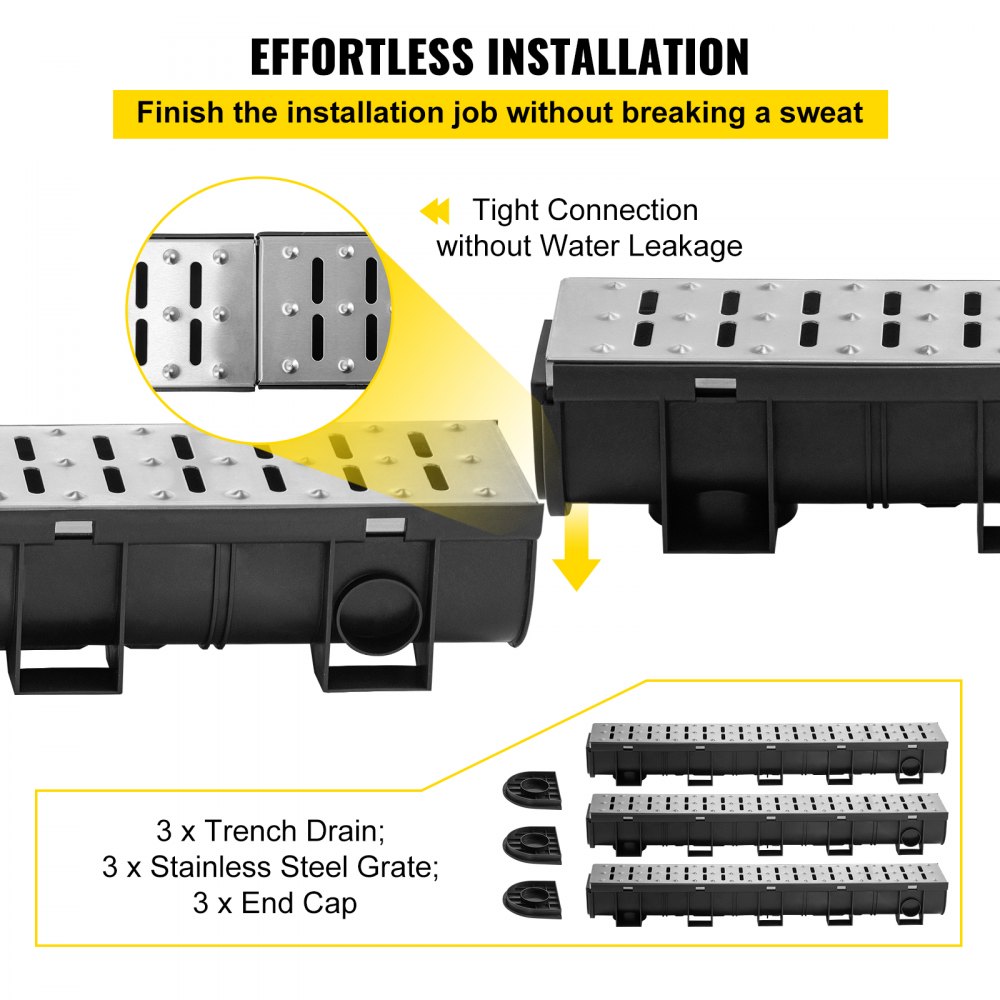

VEVOR trench drain system for hassle-free installation with tight connection, no leaks.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.

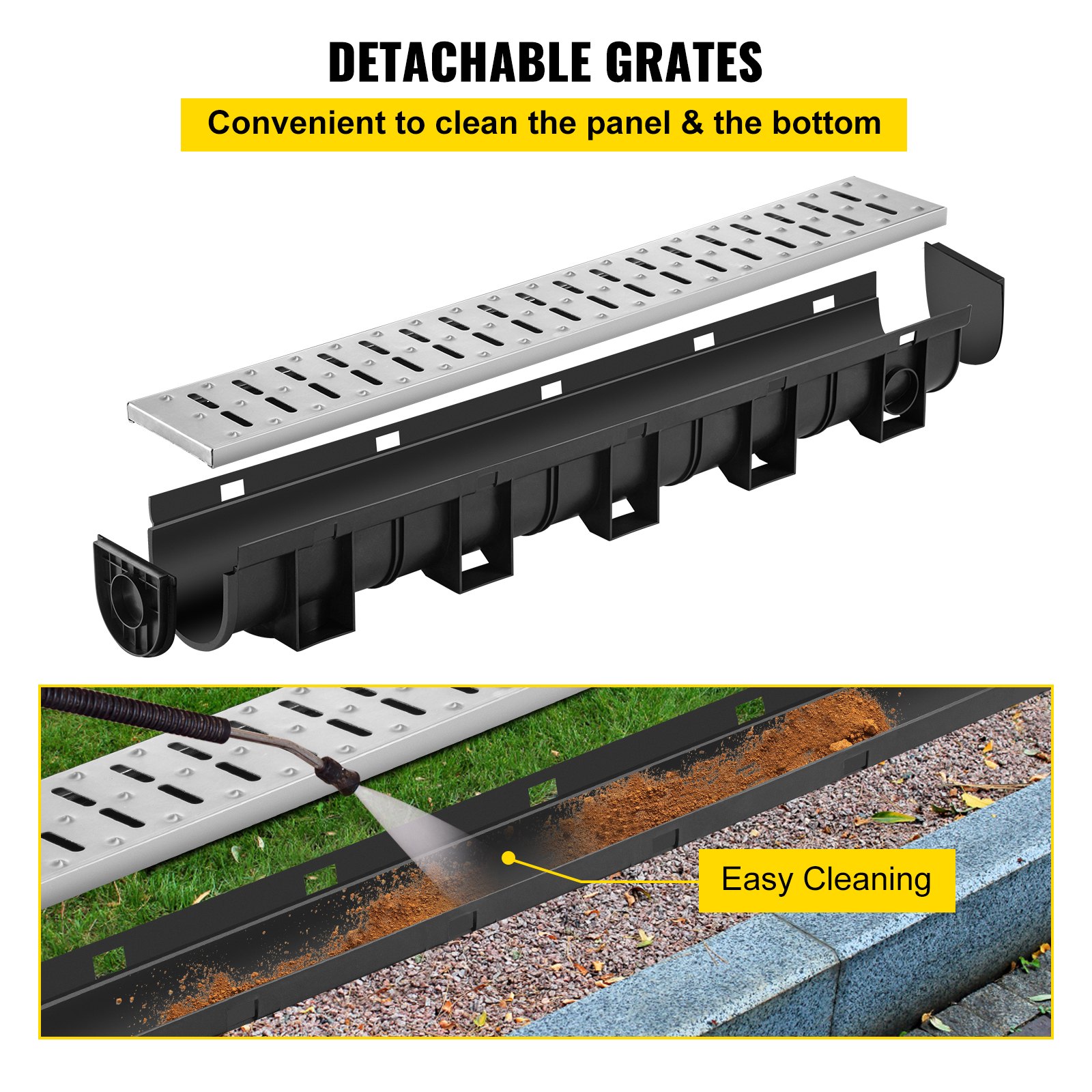

VEVOR trench drain system with removable grates in black and silver.
Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.

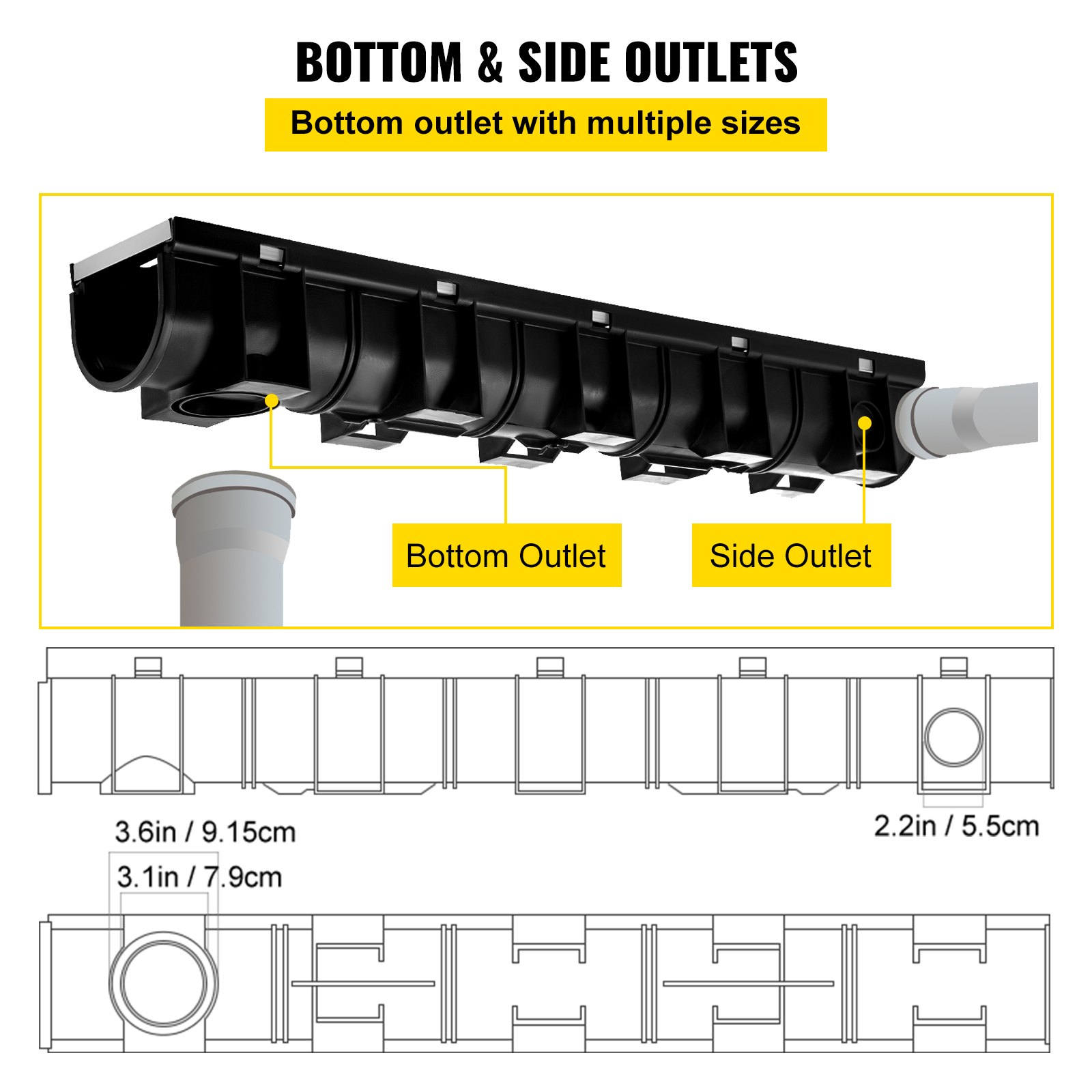

VEVOR trench drain system showing bottom and side water outlets with dimensions.
Water Outlets
The bottom and side outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

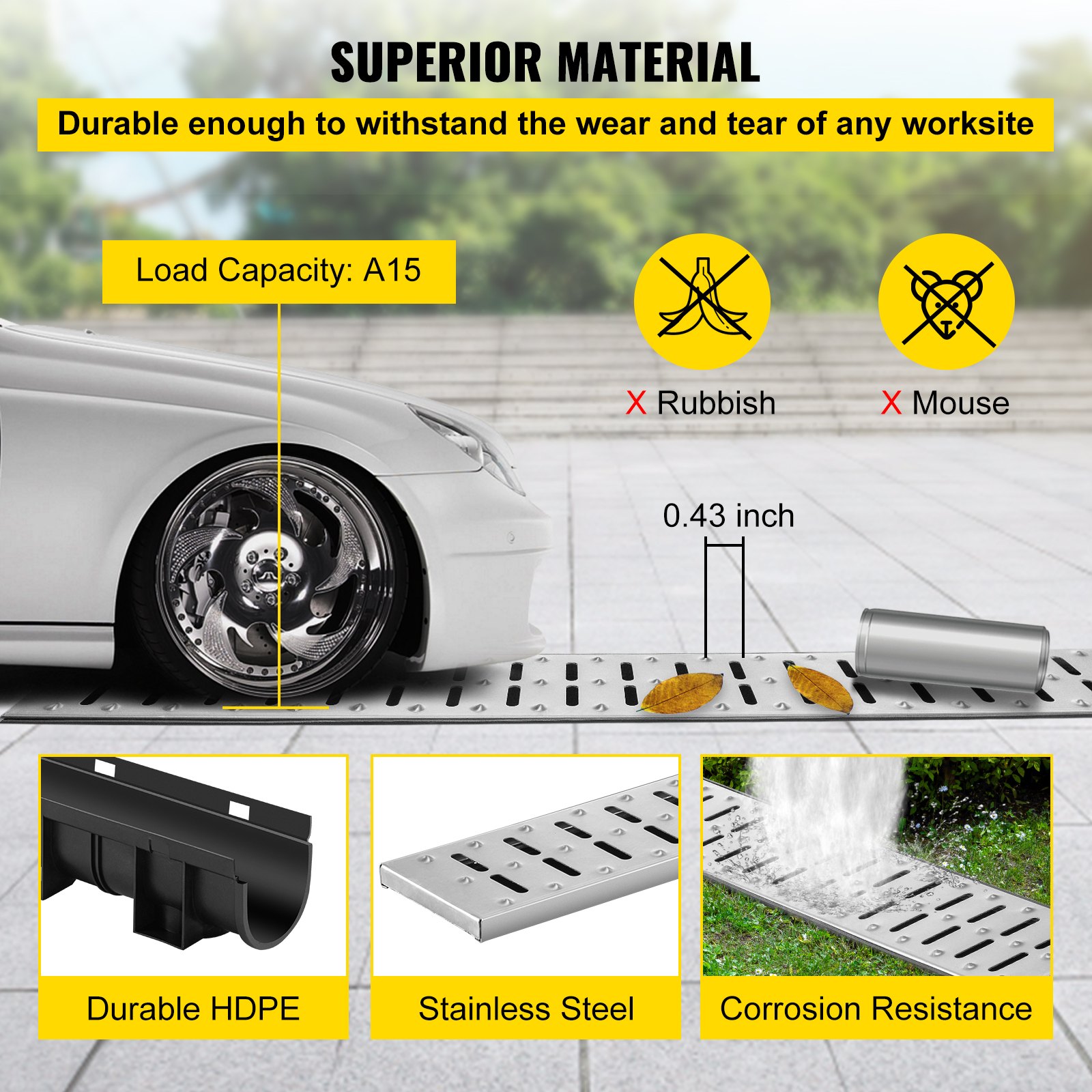

VEVOR trench drain system with hdpe and stainless steel material for efficient drainage.
HDPE + Stainless Steel Material
Made of HDPE plastic and stainless steel, the load capacity is A15. It is suitable for driveways. The superior material creates a smooth and durable surface to drain the water away smoothly.
VEVOR trench drain system with stainless steel grate and end caps.
Trench Drain Kit
This trench drain kit includes three trench drains. Each one is one meter long. The accessories include three metal grates and three end caps. We offer you all the accessories that you may need.

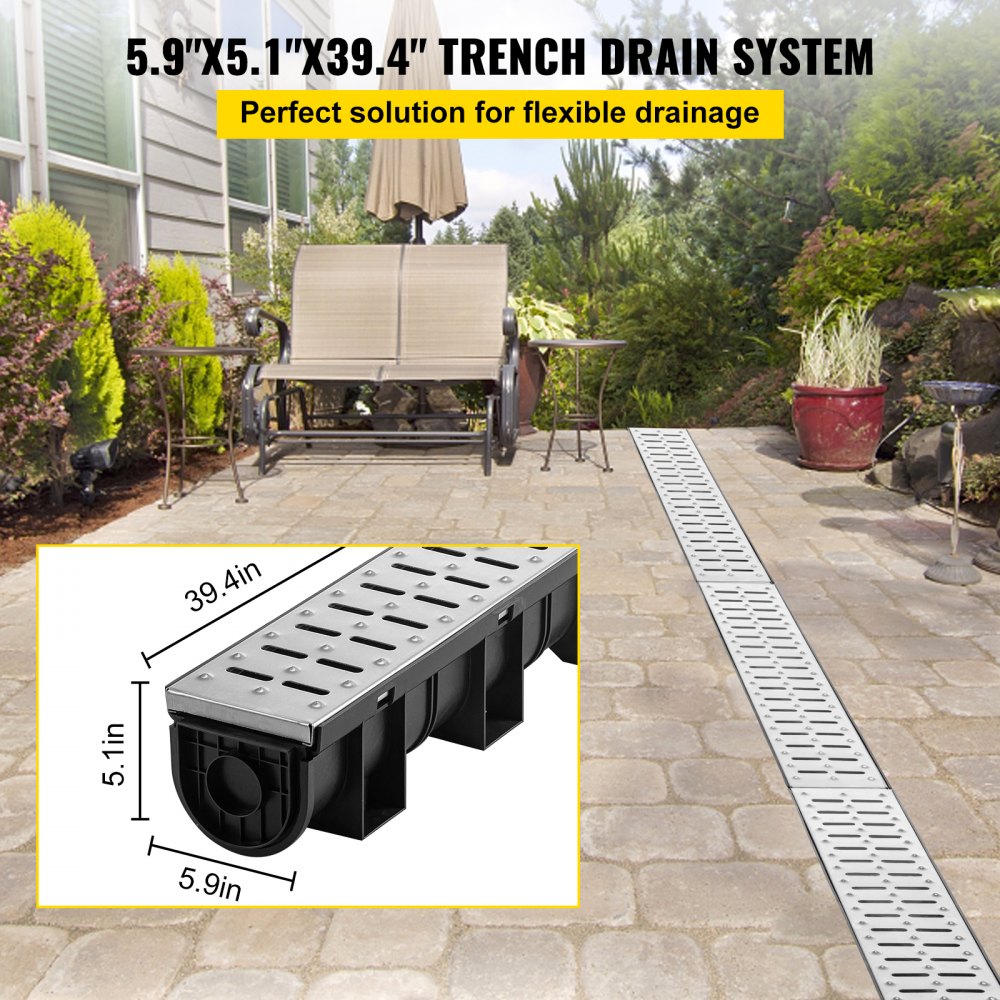

VEVOR trench drain system for concrete, swimming pool, driveway, and grass area.
Extensive Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the A15 load rate, it is also suitable for driveways.

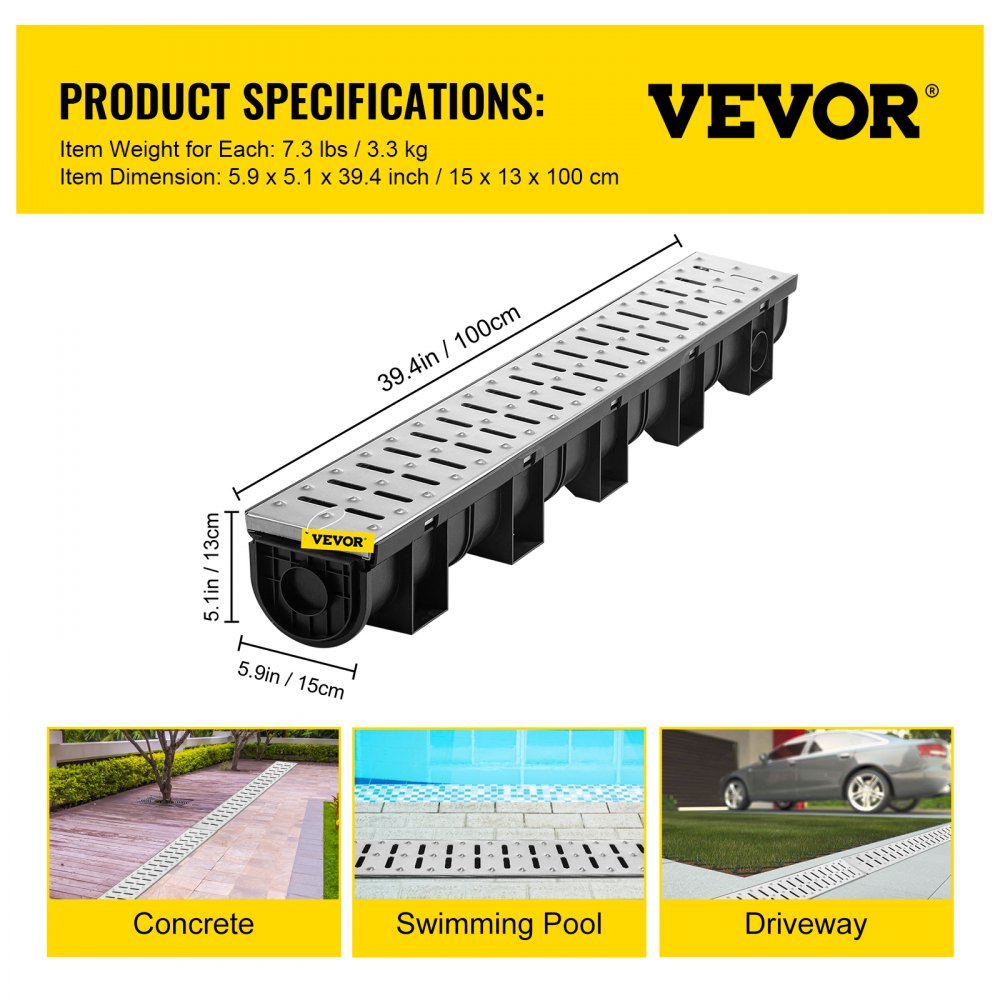

VEVOR trench drain system with dimensions: 39.4in x 5.1in x 5.9in.
Specifications
  • Model: PSG100*100*3M
  • Material of Trench Drain: HDPE Plastic
  • Material of Grate: Stainless Steel
  • Color: Black & Silver
  • Load Rate: A15
  • Amount: 3 Pack
  • External Item Dimensions: 5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
  • Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
  • Diameter of Bottom Drain Hole: 3.1 inch or 3.6 inch
  • Diameter of Side Drain Hole: 2.2 inch/ 5.5 cm
  • Item Weight Each: 3.3 kg / 7.3lbs
  • Maximum Working Temperature: 120℃ / 248℉
  • Minimum Working Temperature: -40℃ / -40℉
VEVOR trench drain system with black base and silver top grate.
Package Content
  • 3 x Trench Drain
  • 3 x Metal Grate
  • 3 x End Cap
VEVOR trench drain system by a pool with surrounding green landscape.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

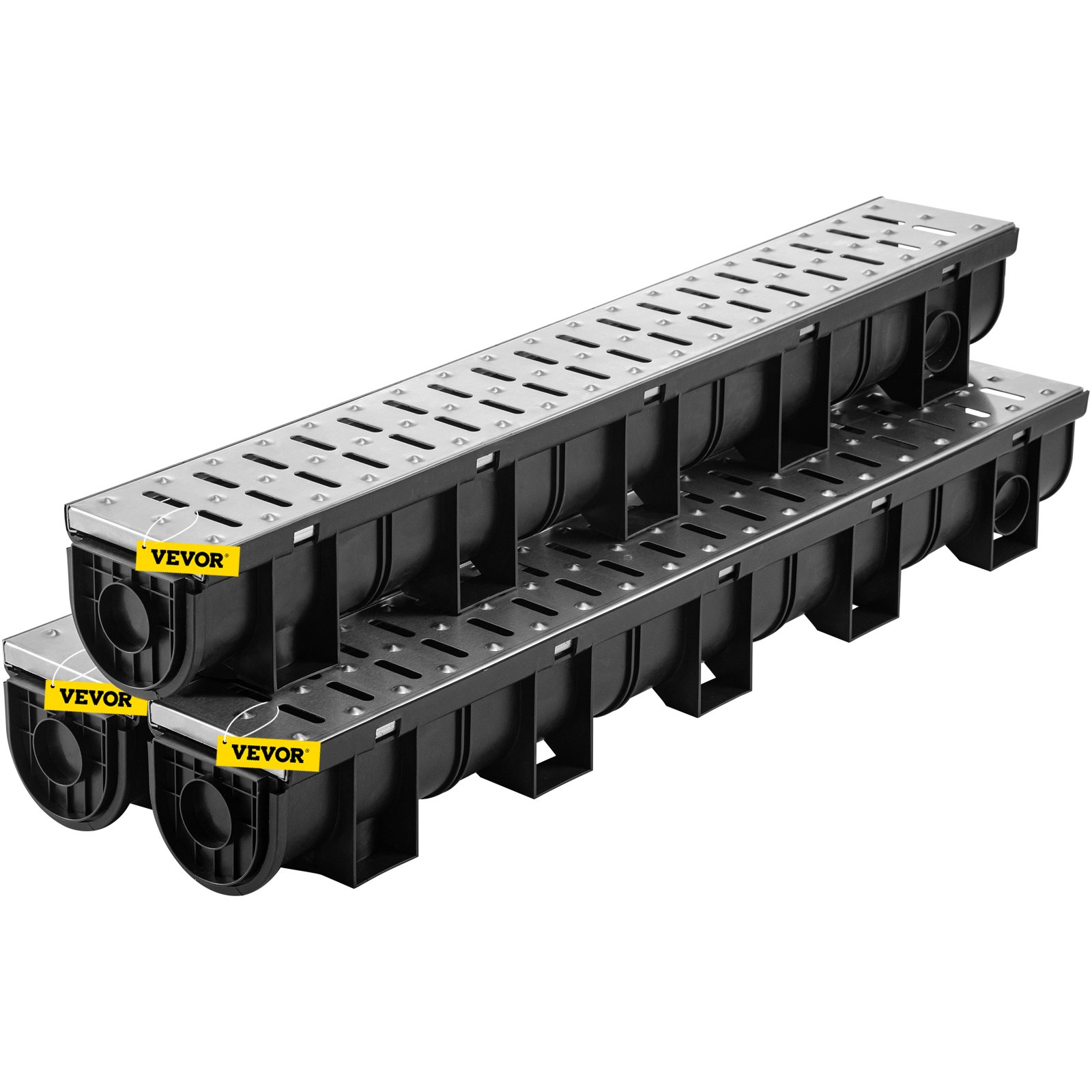

two stacked VEVOR trench drain systems with black bases and metal grates.
Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
  • Low-profile Drain System
  • Easy & Quick Installation
  • Various Outlet Connections
  • Durability & High Performance
  • Complete Packing List
VEVOR trench drain system for hassle-free installation with tight connection, no leaks.
Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.
VEVOR trench drain system with removable grates in black and silver.
Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.
VEVOR trench drain system showing bottom and side water outlets with dimensions.
Water Outlets
The bottom and side outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.
VEVOR trench drain system with hdpe and stainless steel material for efficient drainage.
HDPE + Stainless Steel Material
Made of HDPE plastic and stainless steel, the load capacity is A15. It is suitable for driveways. The superior material creates a smooth and durable surface to drain the water away smoothly.

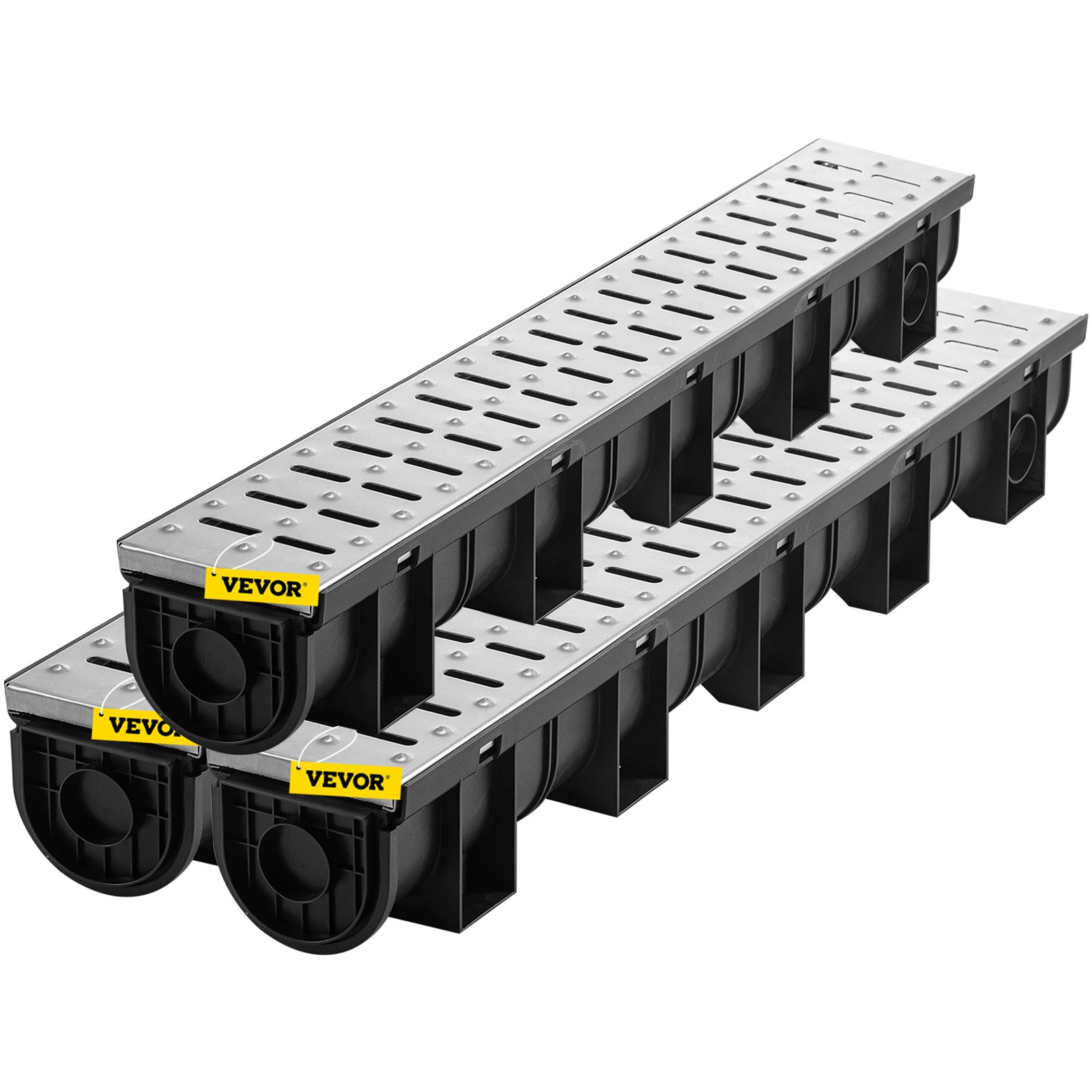

VEVOR trench drain system with stainless steel grate and end caps.
Trench Drain Kit
This trench drain kit includes three trench drains. Each one is one meter long. The accessories include three metal grates and three end caps. We offer you all the accessories that you may need.
VEVOR trench drain system for concrete, swimming pool, driveway, and grass area.
Extensive Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the A15 load rate, it is also suitable for driveways.
VEVOR trench drain system with black base and silver top grate.
Package Content
  • 3 x Trench Drain
  • 3 x Metal Grate
  • 3 x End Cap
VEVOR trench drain system with dimensions: 39.4in x 5.1in x 5.9in.
Specifications
  • Model: PSG100*100*3M
  • Material of Trench Drain: HDPE Plastic
  • Material of Grate: Stainless Steel
  • Color: Black & Silver
  • Load Rate: A15
  • Amount: 3 Pack
  • External Item Dimensions: 5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
  • Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
  • Diameter of Bottom Drain Hole: 3.1 inch or 3.6 inch
  • Diameter of Side Drain Hole: 2.2 inch/ 5.5 cm
  • Item Weight Each: 3.3 kg / 7.3lbs
  • Maximum Working Temperature: 120℃ / 248℉
  • Minimum Working Temperature: -40℃ / -40℉

Essential Solutions for Water Management — Trench Drain System

Remove and handle excess water from runoff surfaces with this trench drench system. Featuring two outlets and is made of premium HDPE plastic and stainless steel material, this channel drain perfectly manages water flow in various settings. Whether you’re looking for a quality drainage system for farms, poolsides, driveways, grassed areas, gardens, office buildings, or factory interiors, this system is what you need. So, buy yours today and update your water drainage system.


Hassle-Free Installation

Installing this drain system is super easy. Just follow a few steps, and it will start working. In the first stage, you need to decide where you will install this trench drain system. Now, mark the area and make a trench using a trenching tool. After making a trench, put a layer of gravel to make a stable base. Now, install the drain channel properly in the drench.


Now, connect a pipe on the bottom or the side of the drain channel wherever you desire. Once the pipe is installed, fix the channel and level it by putting more sand and gravel. Once everything is fixed, cover the drain with a cover to keep it from clogging.


Unparalleled Quality for Heavy Loads

As you know, trench drains are usually used in high-traffic areas, like commercial kitchens, parking lots, etc. If your trench drain system cracks, collapses, or deforms, it will be very dangerous for vehicles and pedestrians. You will also have to install another trench drain system, wasting your money and time.


So, always ensure that a premium quality channel drain is installed so it can withstand the heavy load. Moreover, it resists rust and corrosion to maintain its appearance and shape for long-lasting use.


The VEVOR trench drain grate is made of strong HDPE plastic and stainless steel. It withstands the A1G load capacity and is rust—and corrosion-resistant. So, no matter where you want to install this trench drain system, it will handle the heavy weight without breaking or getting rusty, providing you with a durable experience.


Various Outlet Connections for Easy Installation

If a trench drain system features two outlets, it will easily handle heavy rainfall and a large volume of water. Moreover, if one outlet becomes clogged, the other one will remain operational. This means there will be no risk of flooding and water damage.


So, if you’re going to buy a trench drain system, ensure you purchase a two-outlet drain channel. Where can you get such a drain channel? The VEVOR drain channel is just an order away. It features two outlets, one on the bottom and one on the side. The bottom outlet comes in different sizes, such as 2.2 inches and 3.1 inches and the side outlet’s size is 2.2 inches.


Maintain Your Area Decor

Yes, the role of a trench drain system is to remove the excessive water. However, it must complement the surrounding architecture or landscape. In this way, it will enhance the overall look of the area and keep it look beautiful. So, would you like to get such a drain channel?


If your answer is a big yes, the VEVOR drain system will be a great choice. Its design and color tones with every area and changes its overall look. So, whether it’s a commercial space, residential driveway, or a public park, this drain channel will maintain its look. So, order your trench drain channel today and effortlessly handle the water while maintaining your area look.


See More

Specification

Model
PSG100*100*3M
Material of Trench Drain
HDPE Plastic
Material of Grate
Stainless Steel
Color
Black & Silver
Load Rate
A15
Amount
3 Pack
External Item Dimensions
5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm
Internal Item Dimensions
3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm
Diameter of Bottom Drain Hole
3.1 inch or 3.6 inch
Diameter of Side Drain Hole
2.2 inch/ 5.5 cm
Item Weight Each
3.3 kg / 7.3lbs
Maximum Working Temperature
120℃ / 248℉
Minimum Working Temperature
-40℃ / -40℉
Questions and Answers
2 Questions
Hi, In regard to the piping diameter, you have diff size, bottom and side outlet. Side outlet is 55mm and bottom outlet is 79mm. If i cut and make an extension and want to buy the end cup, where can i buy it ? also can i use the left over and connect to the other Dranaige channel?
You can actually find this pipe in the local building materials market.
By vevor
Hi are side outlets compatible with Australian made plastic pipes and fittings. Looking forward to your reply.
It requires 90mm diameter pipe.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
83 Review(s)
Clear filters
Udit Sharma Udit Sharma
MD
Received product 10 days late from promised date. No return or refund offered. Had to buy product locally from Home Depot to finish time bound construction. Very dissatisfied with customer delivery and service!
Preston Eggler Preston Eggler
Great product
Easy to install. Exactly what was expected. Definitely would use again
Michael Kelly Michael Kelly
Perfect drain
We are concreting my pole barn and needed a drainage system for when we wash vehicles. We were so impressed with this drain that we ordered another for the other side of the barn that will be a workshop. Price wise, the box stores couldn’t touch the price and charged almost as much for one 3’ section as the entire 10’ sections from Vevor cost. If you need a drain system, I highly recommend this one.
Drew Drew
Great channel drains
I've used these channel drains over and over with great success!
BobG BobG
Homeowner.
The install worked well. I installed it in concrete. I taped the grates with painters' tape to keep the concrete out. The only problem I had was the concrete got in the slots where the grates snap in which made it difficult to get them out. I would recommend taping these slots if concrete is used.
Graeme Graeme
Great
Perfect for the job and well made
Francis Francis
arrivé à l'heure
receveur de douche. Produit de qualité. Mais il est livré sans siphon.
Def1960 Def1960
Pleasure Concepts LLC Owner.
Looks great. Look forward to getting this job done. Would recommend these driveway drains to anyone...
Billwh87 Billwh87
Works good
Works well to direct water away from my porch walkway. Before, water would run down on my sidewalk along with mud, etc.
ddufon ddufon
Well built and great price.
I actually purchased this to use as an outdoor drain for my garden pathway. Fits perfectly
