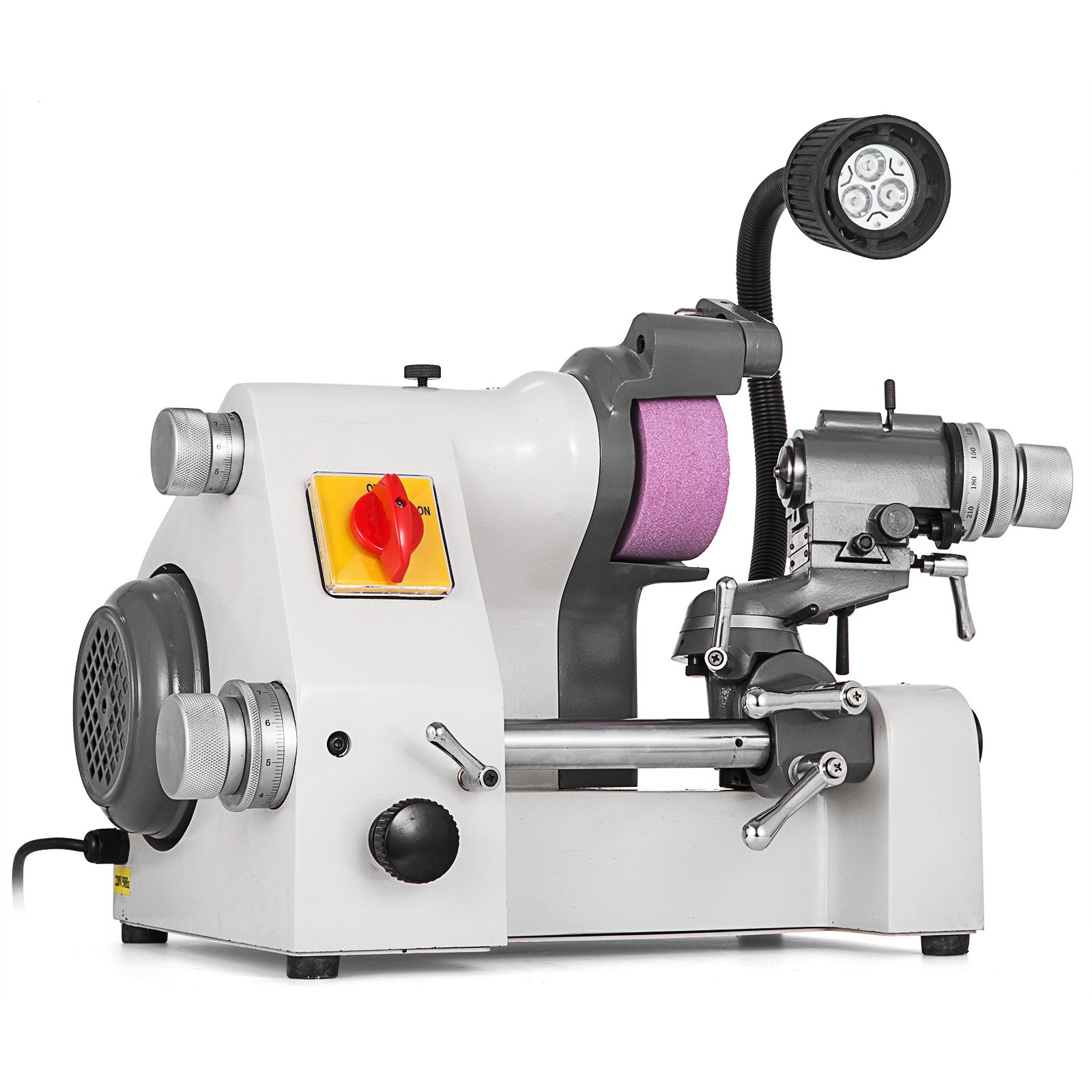

VEVOR U3 Universal Cutter Grinder Machine for Sharpening Cutter
MDJU3WNDJYMJ00001V3

VEVOR U3 Universal Cutter Grinder Machine for Sharpening Cutter

See All Customer Reviews
4 Reviews
AU $1,19723
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download
Discontinue

About this item

  • 5 collets are included in the package: 0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm, allowing flexible application in different situations. Universal dividing head with 24 positions to ensure that any particular angle of shape can be obtained and makes this machine multi-functional.
  • Advantages
  • High grinding accuracy with flexible rotation
  • Main shaft adopts double bearing, durable and wear-resisting
  • Attractive appearance with novel structure, easy to install and operate
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR U3 Universal Cutter Grinder Machine for Sharpening Cutter
AU $1,19723 Only 1 Left, order soon
Discontinue
Description Specification Questions and Answers Reviews
unashoppingifytemplatenew

This multi-functional cutter grinder sharpener is used to grind cutting tools including lathe tools, drill bits, milling cutters and gravers. A necessary machine for CNC engraving machines, pantograph milling machines, machining centers, etc.

5 collets are included in the package: 0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm, allowing flexible application in different situations. Universal dividing head with 24 positions to ensure that any particular angle of shape can be obtained and makes this machine multi-functional.

Advantages:

  • High grinding accuracy with flexible rotation
  • Main shaft adopts double bearing, durable and wear-resisting
  • Attractive appearance with novel structure, easy to install and operate

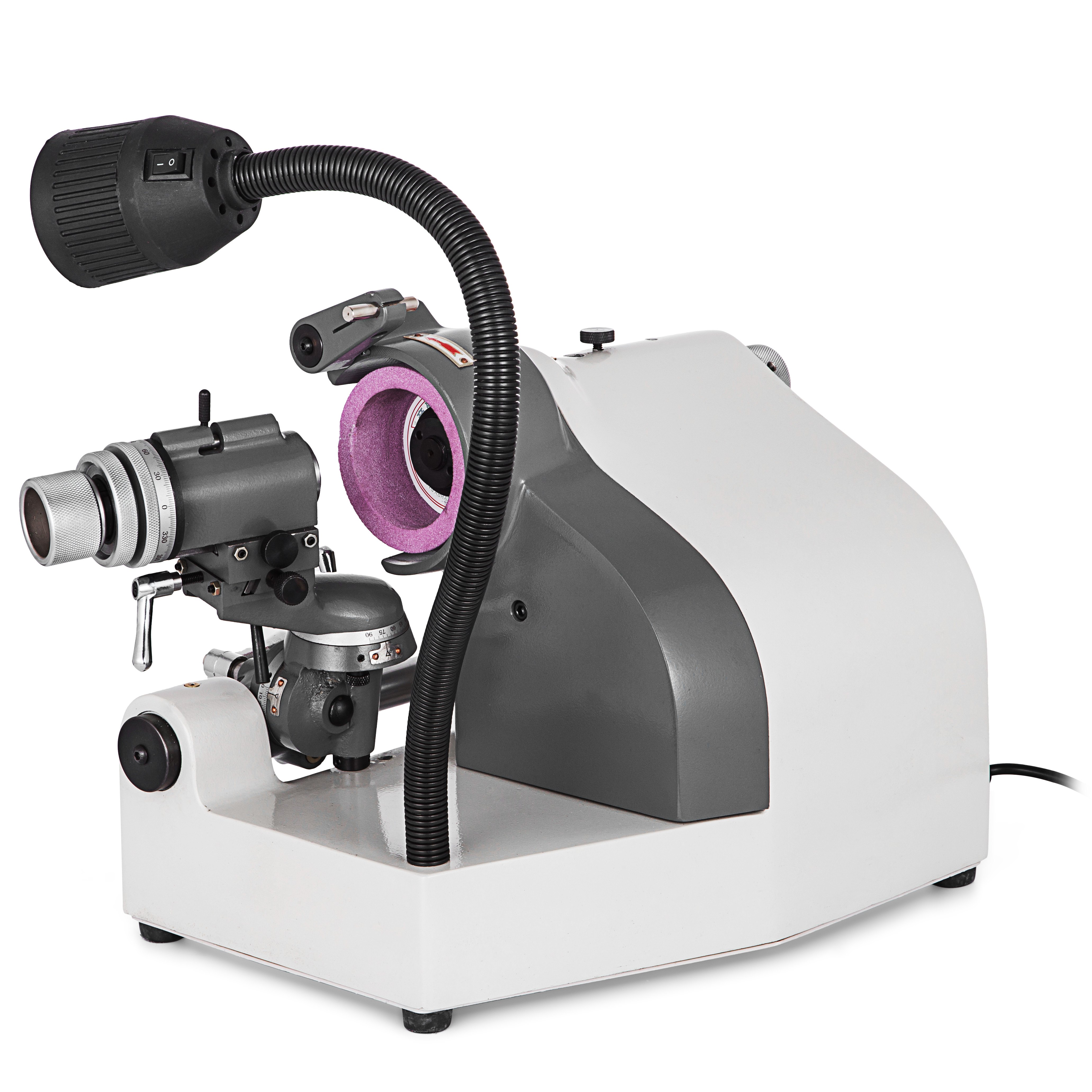

  • 360º illumination helps you see better in dim surroundings as if in bright day light
  • 3 attachments included
  • WORK CAPACITY-This multi-functional cutter grinder sharpener owns a maximum collet capacity of 18 mm (0.7"). Max grinding diameter: 100 mm (3.94"). Grinding spindle: 5200 RPM
  • 5 COLLETS-0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm to choose from under different circumstances
  • 3 ATTACHMENTS-Twist drill grinding attachment X 1. End mill grinding attachment X 1. Lathe tools grinding attachment X 1. These enclosed accessories will cooperate with the grinder sharpener to finish work better
  • HIGH ACCURACY-The main shaft of this universal grinder sharpener adopts double bearing, flexible in rotation and high in precision. Runout within 0.02 mm (0.0008"). Included universal dividing head with 24 positions to ensure that any particular angle of shape can be obtained
  • ALL-ROUND UPGRADE-Compared with traditional U2 machines, U3 machines own more reasonable structure. Fine appearance is achieved by chosen material. Also clamping power is promoted to save effort and improve working efficiency
  • Model: U3

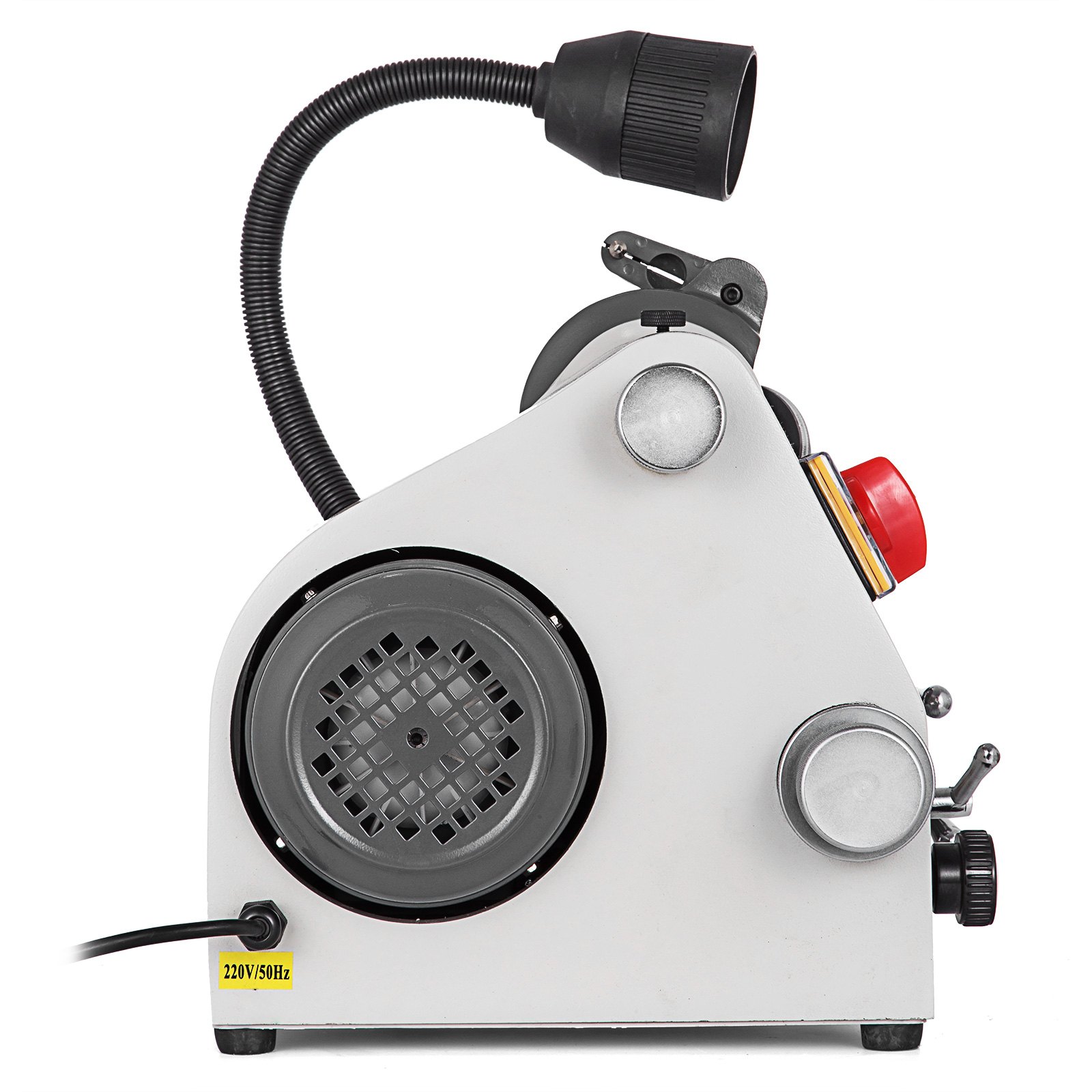

  • Power: 220V
  • Max Collet Capacity: 18 mm (0.7")
  • Max Grinding Diameter: 100 mm (3.94")
  • Grinding Spindle: 5200 RPM
  • 5 Collets: 0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm
  • Runout: Within 0.02 mm (0.0008")
  • Taper Angle: 0-180º
  • Relief Angle: 0-45º
  • Negative Angle: 0-26
  • Grinding Wheel Rotate Speed: 5200 RPM
  • Gross Weight: 120.9 lb (54.8 kg)

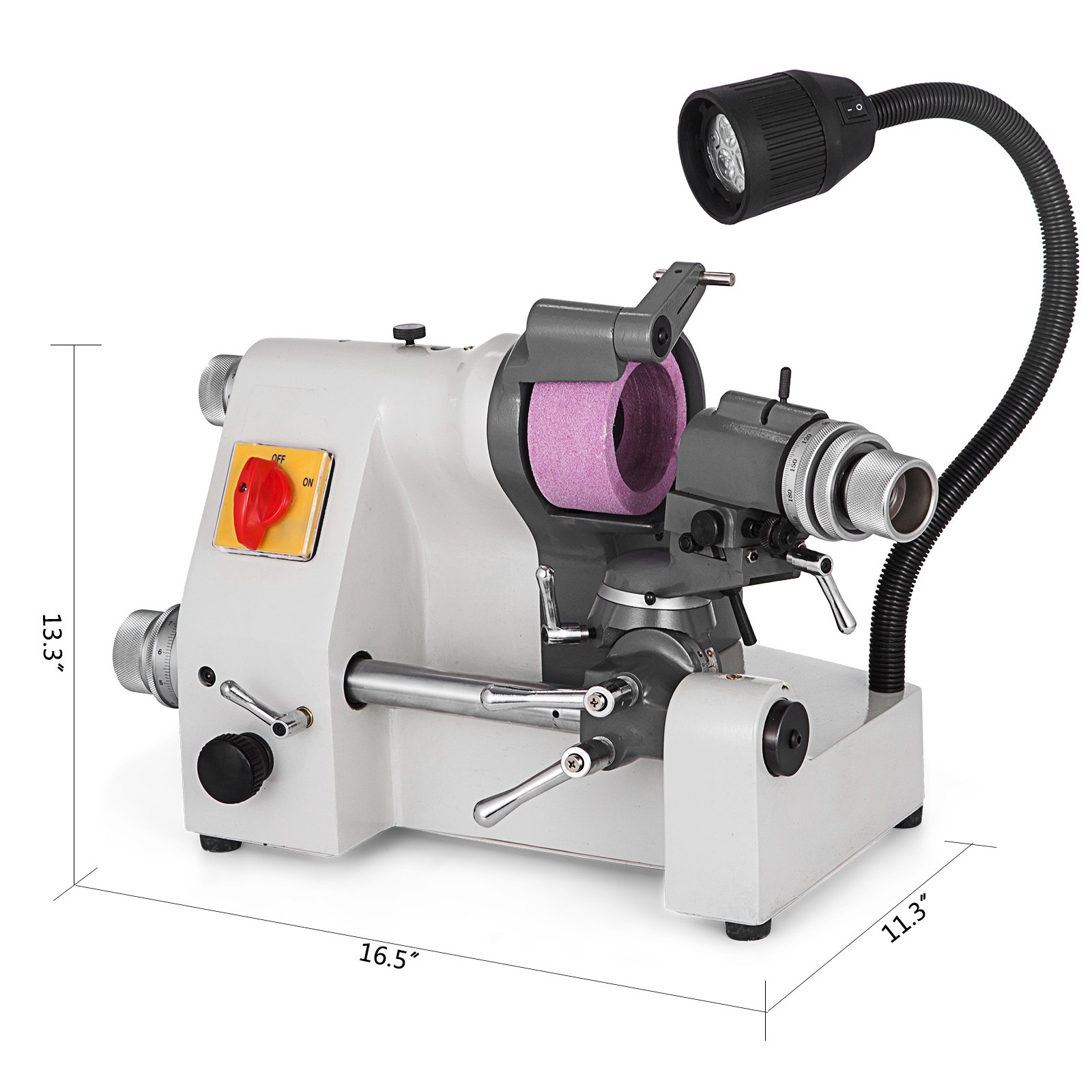

  • Package Dimensions (L x W x H): 21.3" x 16.5" x 15.4" (54 x 42 x 39 cm)

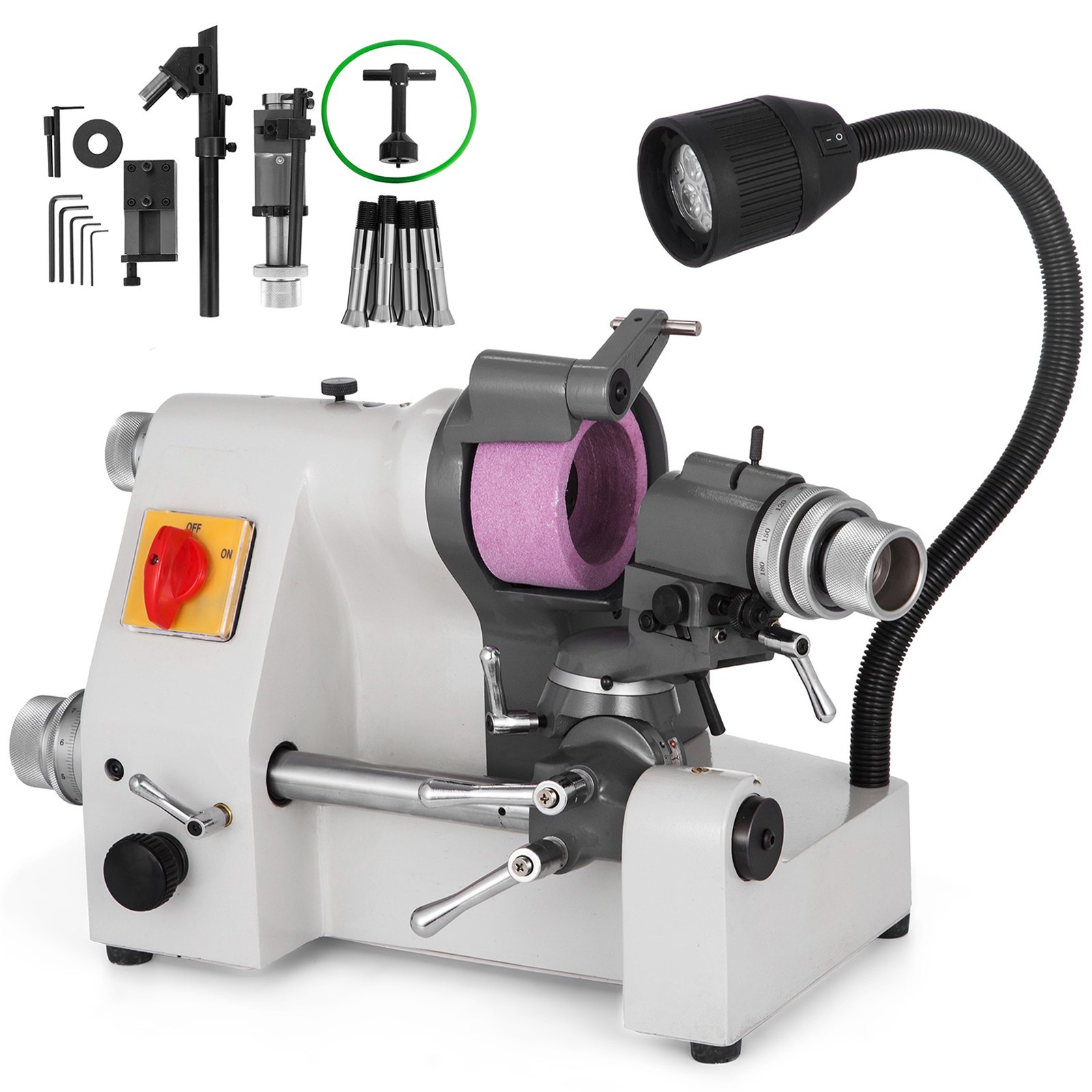

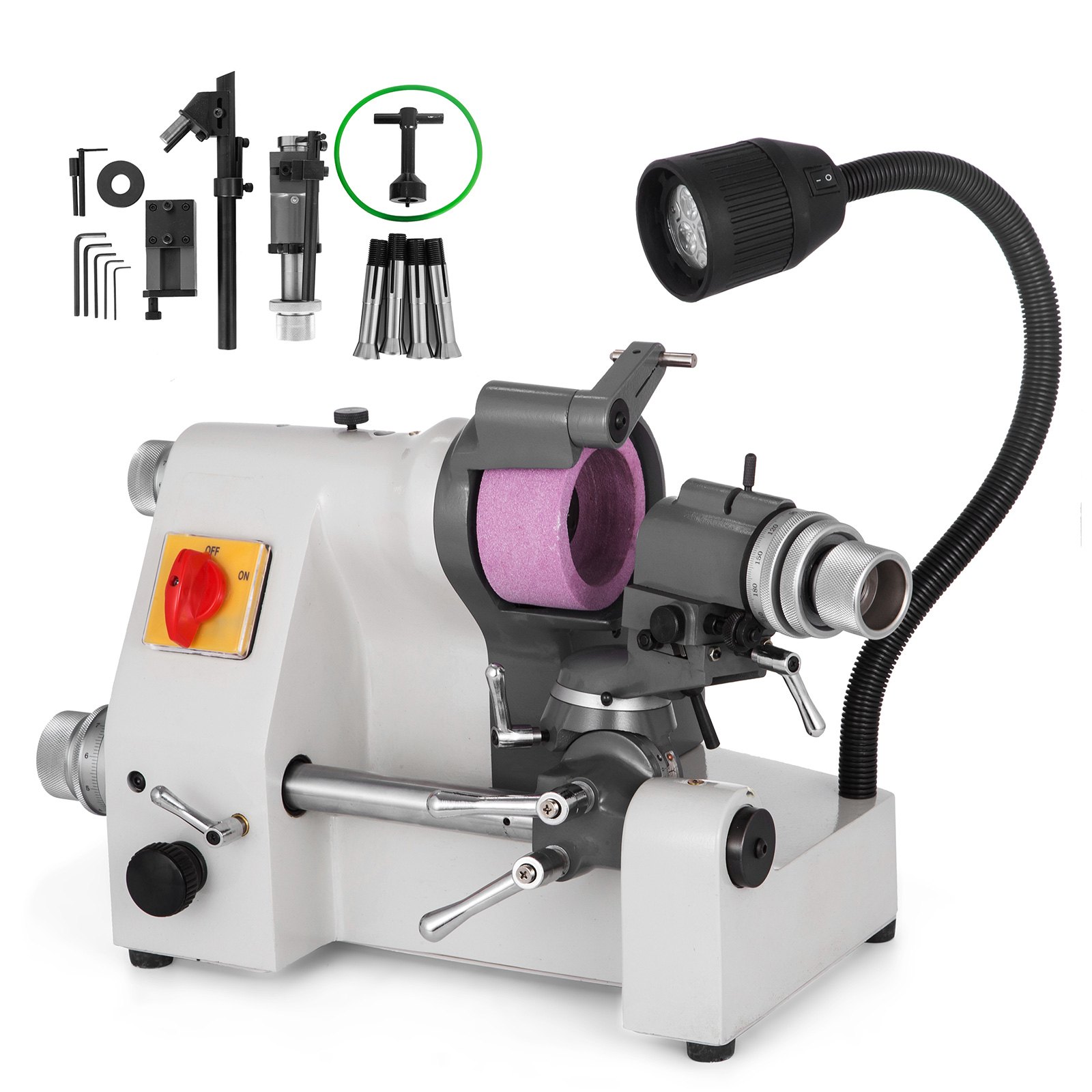

  • 1 X Multi-functional Cutter Grinder Sharpener
  • 5 X Collets
  • 1 X Twist Drill Grinding Attachment
  • 1 X End Mill Grinding Attachment
  • 1 X Lathe Tools Grinding Attachment
  • 1 X Grinding Wheel
  • 2 X Wheel Wrenches
  • 1 X Grinding Wheel Gasket and Transmission Belt Set
  • 1 X Grinding Wheel Dresser
  • 1 X Grinding Wheel Handling Tool
  • 1 X Grinding Wheel Lock Pin
  • 1 X Wrench and Accessory Set
  • 1 X Manual

This multi-functional cutter grinder sharpener is used to grind cutting tools including lathe tools, drill bits, milling cutters and gravers. A necessary machine for CNC engraving machines, pantograph milling machines, machining centers, etc.

5 collets are included in the package: 0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm, allowing flexible application in different situations. Universal dividing head with 24 positions to ensure that any particular angle of shape can be obtained and makes this machine multi-functional.

Advantages:

  • High grinding accuracy with flexible rotation
  • Main shaft adopts double bearing, durable and wear-resisting
  • Attractive appearance with novel structure, easy to install and operate
  • 360º illumination helps you see better in dim surroundings as if in bright day light
  • 3 attachments included
  • WORK CAPACITY-This multi-functional cutter grinder sharpener owns a maximum collet capacity of 18 mm (0.7"). Max grinding diameter: 100 mm (3.94"). Grinding spindle: 5200 RPM
  • 5 COLLETS-0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm to choose from under different circumstances
  • 3 ATTACHMENTS-Twist drill grinding attachment X 1. End mill grinding attachment X 1. Lathe tools grinding attachment X 1. These enclosed accessories will cooperate with the grinder sharpener to finish work better
  • HIGH ACCURACY-The main shaft of this universal grinder sharpener adopts double bearing, flexible in rotation and high in precision. Runout within 0.02 mm (0.0008"). Included universal dividing head with 24 positions to ensure that any particular angle of shape can be obtained
  • ALL-ROUND UPGRADE-Compared with traditional U2 machines, U3 machines own more reasonable structure. Fine appearance is achieved by chosen material. Also clamping power is promoted to save effort and improve working efficiency
  • Model: U3
  • Power: 220V
  • Max Collet Capacity: 18 mm (0.7")
  • Max Grinding Diameter: 100 mm (3.94")
  • Grinding Spindle: 5200 RPM
  • 5 Collets: 0.15"=4 mm, 0.2"=6 mm, 0.3"=8 mm, 0.39"=10 mm, 0.47"=12 mm
  • Runout: Within 0.02 mm (0.0008")
  • Taper Angle: 0-180º
  • Relief Angle: 0-45º
  • Negative Angle: 0-26
  • Grinding Wheel Rotate Speed: 5200 RPM
  • Gross Weight: 120.9 lb (54.8 kg)
  • Package Dimensions (L x W x H): 21.3" x 16.5" x 15.4" (54 x 42 x 39 cm)
  • 1 X Multi-functional Cutter Grinder Sharpener
  • 5 X Collets
  • 1 X Twist Drill Grinding Attachment
  • 1 X End Mill Grinding Attachment
  • 1 X Lathe Tools Grinding Attachment
  • 1 X Grinding Wheel
  • 2 X Wheel Wrenches
  • 1 X Grinding Wheel Gasket and Transmission Belt Set
  • 1 X Grinding Wheel Dresser
  • 1 X Grinding Wheel Handling Tool
  • 1 X Grinding Wheel Lock Pin
  • 1 X Wrench and Accessory Set
  • 1 X Manual

Specification

5 X Collets
1 X Twist Drill Grinding Attachment
1 X End Mill Grinding Attachment
1 X Lathe Tools Grinding Attachment
1 X Grinding Wheel
2 X Wheel Wrenches
1 X Grinding Wheel Gasket and Transmission Belt Set
1 X Grinding Wheel Dresser
1 X Grinding Wheel Handling Tool
1 X Grinding Wheel Lock Pin
1 X Wrench and Accessory Set
1 X Manual
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.2 Out of 5
Based on 4 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
4 Review(s)
Text, image, video
Text, image, video
Photos Only
Videos Only
All star
All star
5 star Only
4 star Only
3 star Only
2 star Only
1 star Only
Most Recent
Most Recent
Most Helpful
Clear filters
Dean Gomez Dean Gomez
good quality accurate machine
better than expected
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Edith Pierce Edith Pierce
IT REALLY DOES GRIND DRILLS ...
I purchased this T&C Grinder after attempting to make one DIY. The price was within My budget and it was delivered promptly. The User manual was a Useless Manual. It was another example of what the Chinese need to do better . I tried to draw upon the internet and YouTube to get some clues to how to use the machine. This was helpful to some extent, but I was still unable to grind a Twist Drill on the supplied attachment. I eventually worked out the procedure using fundamental engineering and logic. AS FOLLOWS:- This may help others ... I took a new Drill, and set the axis so the new drill just touched the grinder face. I advanced the wheel to take a very small skim off the drill. I then decided if the settings were OK, if not I would decide what axis needed fine adjustment. By successive steps, I arrived at the correct settings. I took notes as to what the setting numbers were, plus made permanent marks on the castings so if the Index scaled were moved, I could reset to the permanent reference. I am very pleased with the machine. Looking forward to attacking the Milling cutters next.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Linda Henry Linda Henry
The best quality of Chinese made equipment
I have had a few Chinese made machine tools (lathe, mills etc.) ?over the years but this is by far the best quality machine of them all. I was very pleasantly surprised.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Weaver Weaver
U3
As advertised, except the metal locking handles in the photographs turned out to be plastic. Small thing, I know, but would have been nice. Otherwise delivered in good order and works well.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
