VEVOR belt grinder wheels and bearings in polished metallic finish. anodized embossed t6061 aluminum with high strength and corrosion-proof properties. drive wheel specs for VEVOR belt grinder with measurements and features. tracking wheel features for VEVOR belt grinder with dimensions and labeled parts. VEVOR belt grinder idler wheel features with standoff and bearing 6201 rs (sealed). VEVOR belt grinder with easy assembly and recommended mounting instructions. VEVOR belt grinder polishing iron, wood, copper, and plastic with wide applications
YCSDJQ424MM235O58V0

VEVOR Belt Grinder 2" x 72" Wheel Set, Belt Knife Grinder Wheel Set, Aluminum Belt Grinder Wheel Crowned for Knife Grinder with 4" Drive Wheel (0.94" Bore), 3" Tracking Wheel and 2 x 2" Idler Wheels

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off on your first three app orders. Only App.
Download Now
Exclusive AU $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • 【6061-T6 ALUMINUM】- The belt grinder wheel is constructed with durable aluminum material, warp-proof, rust-proof, and corrosion-proof for long-term usage. It is durable and stable, ensuring smooth working.
  • 【4" DRIVE WHEEL】- 4" drive wheel is CNC machined with a 0.94 inch/24 mm bore. Bore is equipped with a 0.31 inch/8 mm keyway. The wheel is 2.4 inch/61 mm wide. The surface is truly crowned to ensure the belt won't jump off the wheel.
  • 【3" TRACKING & 2" IDLER WHEEL】- The 3" tracking wheel is 3" in diameter and 2.4" wide. The 2" idler wheels are 2" in diameter and 2.4" wide. 3 x heavy duty 1/2"/12 mm bearings fitted back to back in each wheel for max bearings life. There is a spacer between the bearings to relieve over-tightening.
  • 【EASY INSTALLATION】- This belt grinder wheel set is easy to carry and use with small and lightweight features. The 1/2"/12 mm bearings can easily be replaced when worn. Stalling this wheel on machines is no fatigue.
  • 【FLEXIBLE USES】- The knife grinder wheel set can satisfy your needs and work great in grinding metals, wood, acrylic, and other materials. It is widely used in parts factories, building materials factories, etc., perfect for tool polishing.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Belt Grinder 2" x 72" Wheel Set, Belt Knife Grinder Wheel Set, Aluminum Belt Grinder Wheel Crowned for Knife Grinder with 4" Drive Wheel (0.94" Bore), 3" Tracking Wheel and 2 x 2" Idler Wheels
VEVOR belt grinder wheel set, 2" x 72", 6061-t6 aluminum.

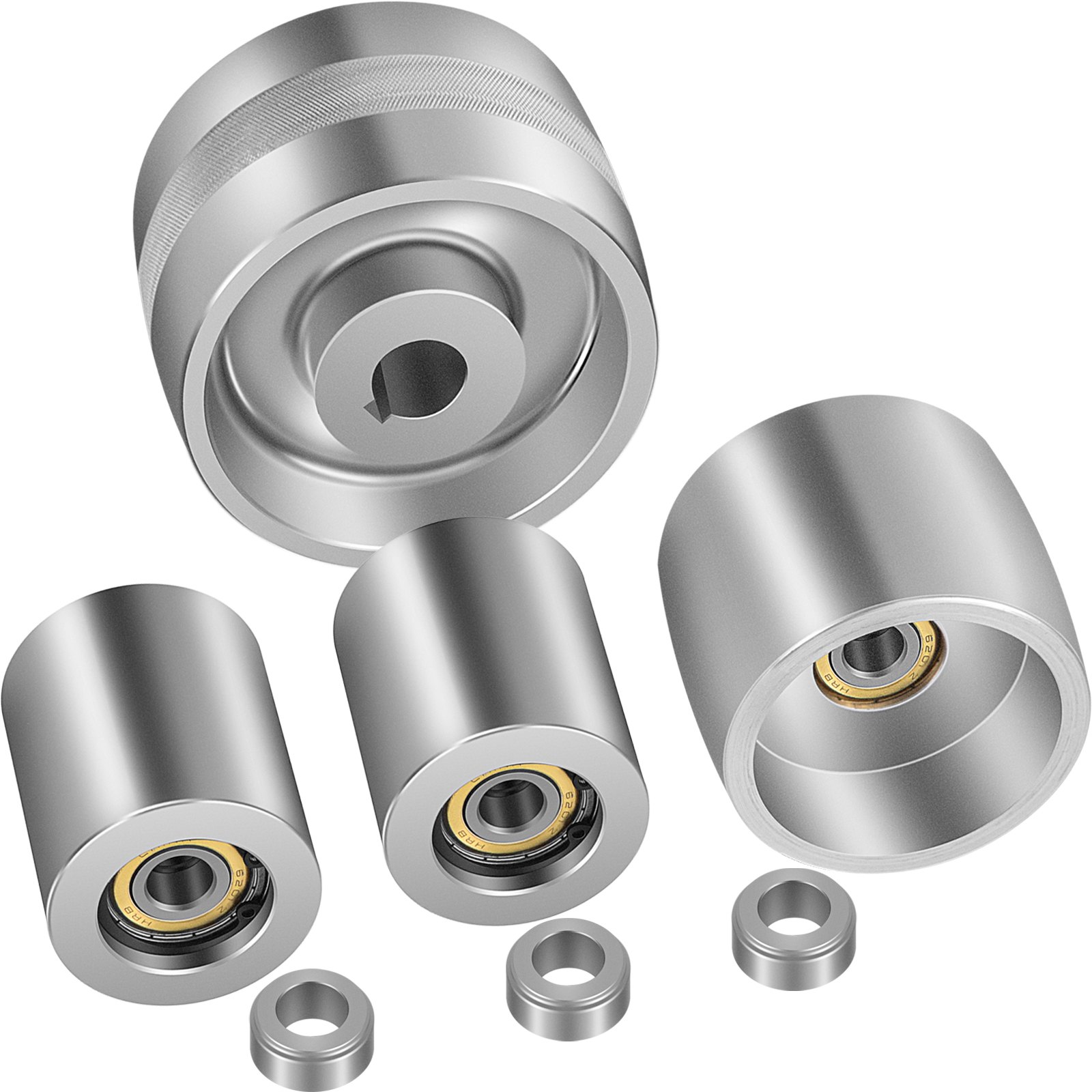

VEVOR belt grinder parts including four metal wheels and bearings on white background
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 4" Drive Wheel
  • 3" Tracking & 2" Idler Wheel
  • Easy Installation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
embossed anodized t6061 aluminum for VEVOR belt grinder with high strength, corrosion-proof.

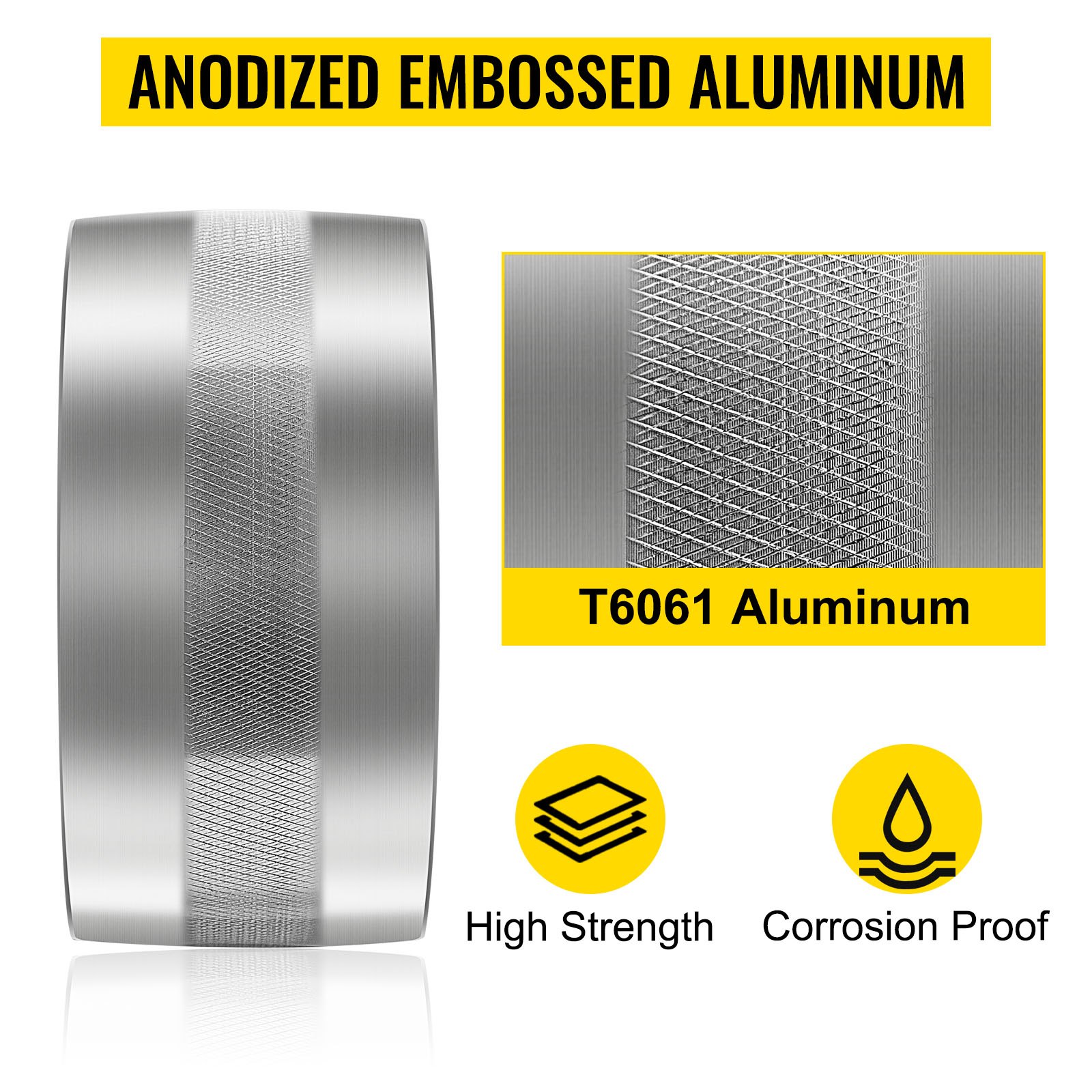

Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.

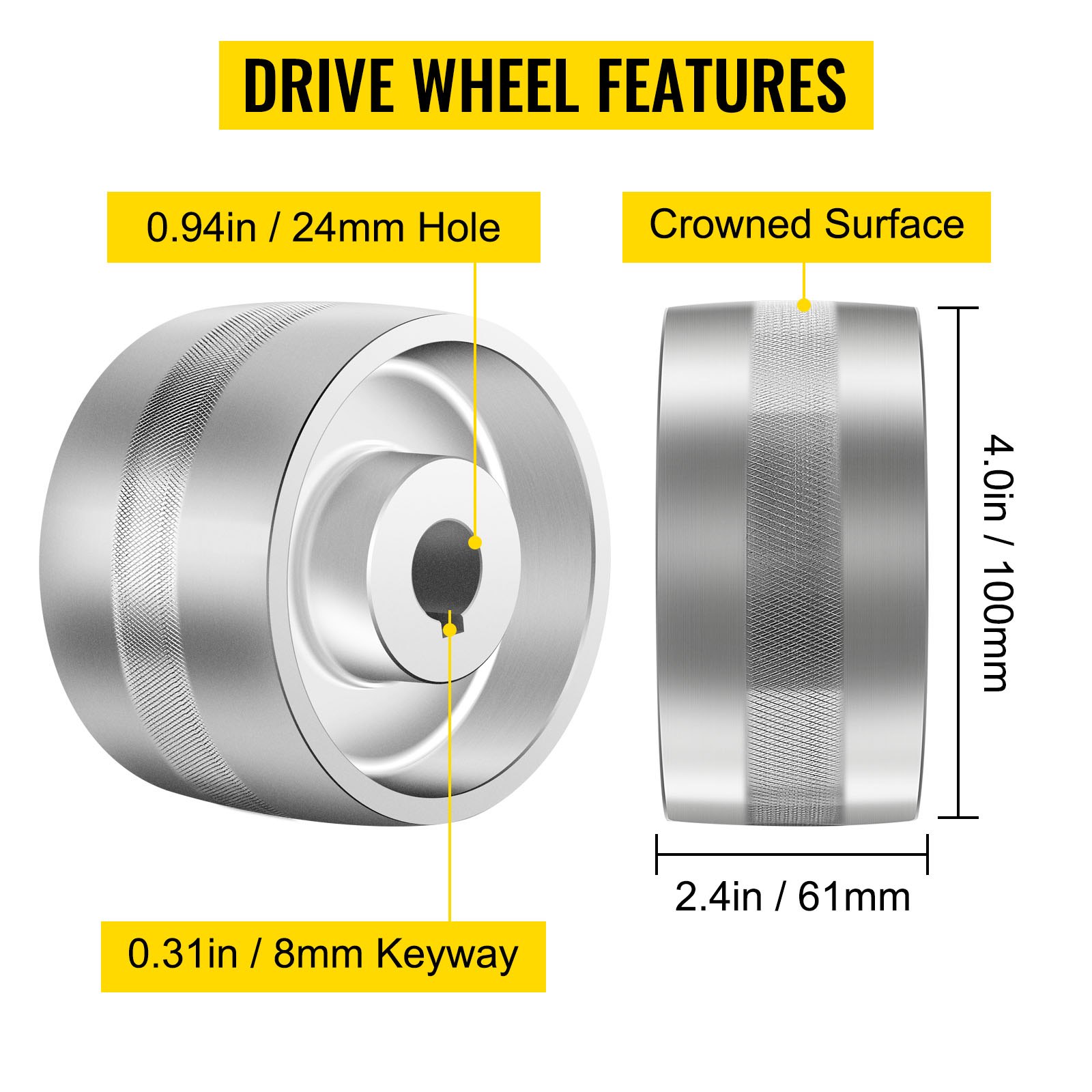

drive wheel with 0.94in hole, 0.31in keyway, and crowned surface for VEVOR belt grinder.

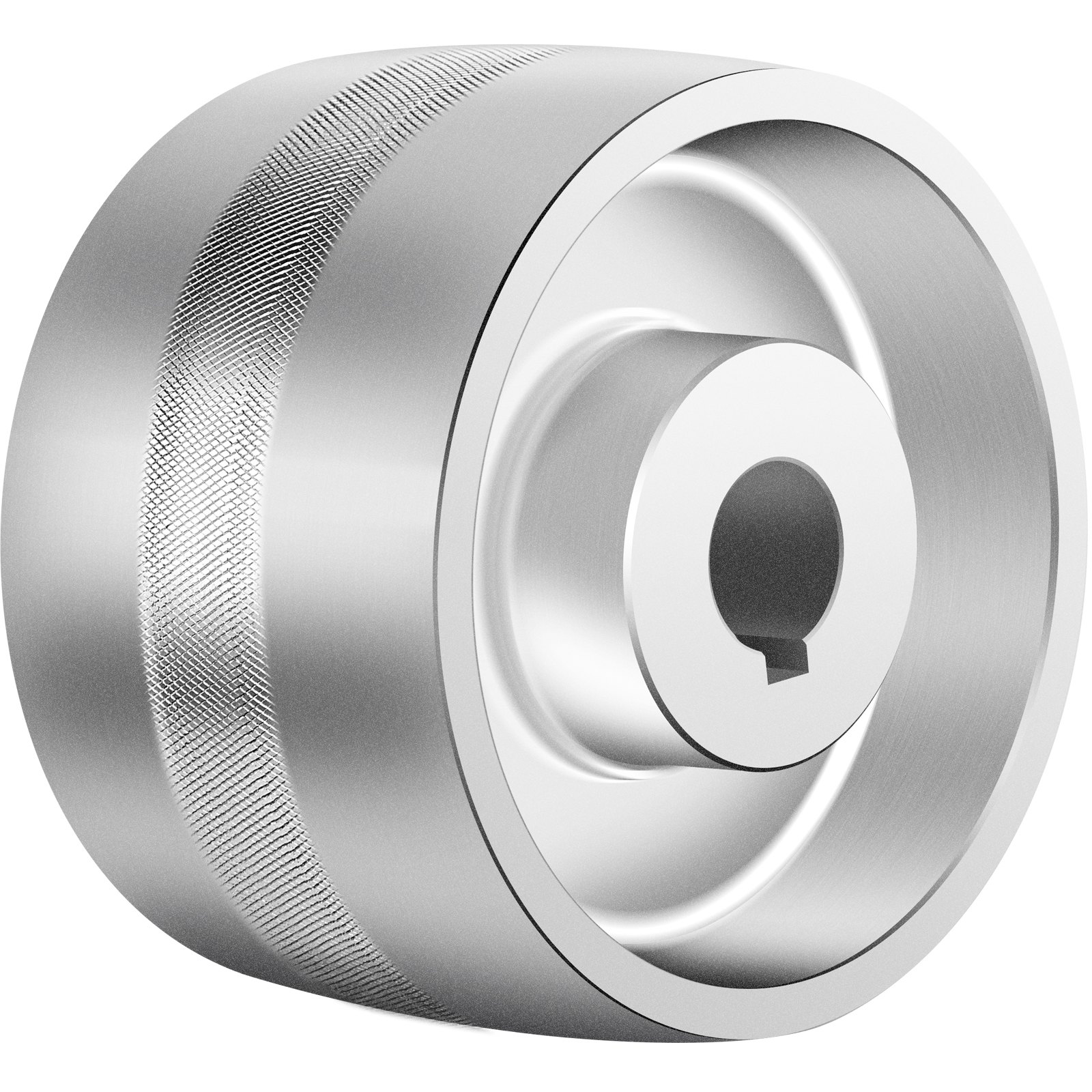

Drive Wheel Features
The drive wheel is 4" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 0.94 inch/24 mm bore with a 0.31 inch/8 mm keyway.
tracking wheel features for VEVOR belt grinder with dimensions and bearing details.

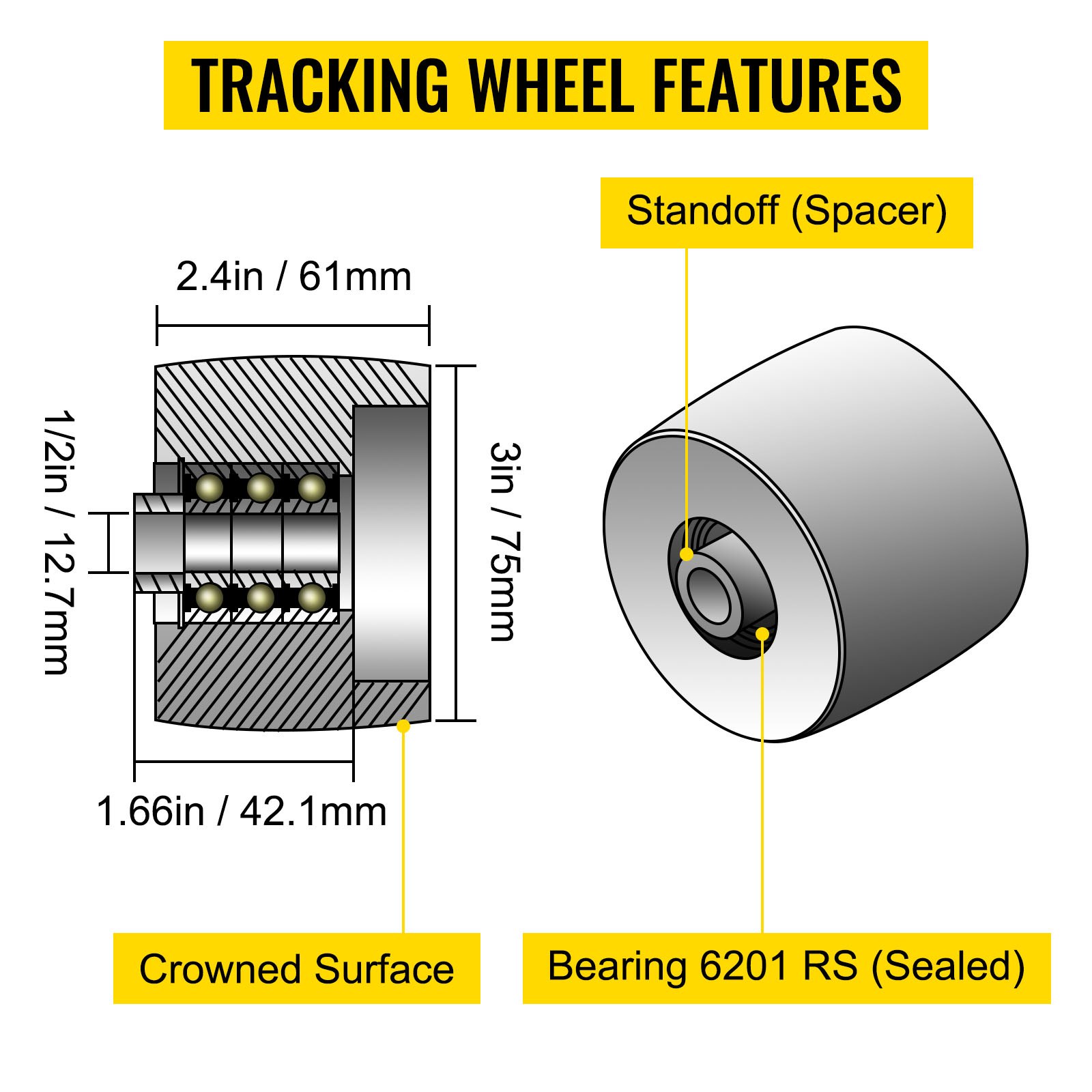

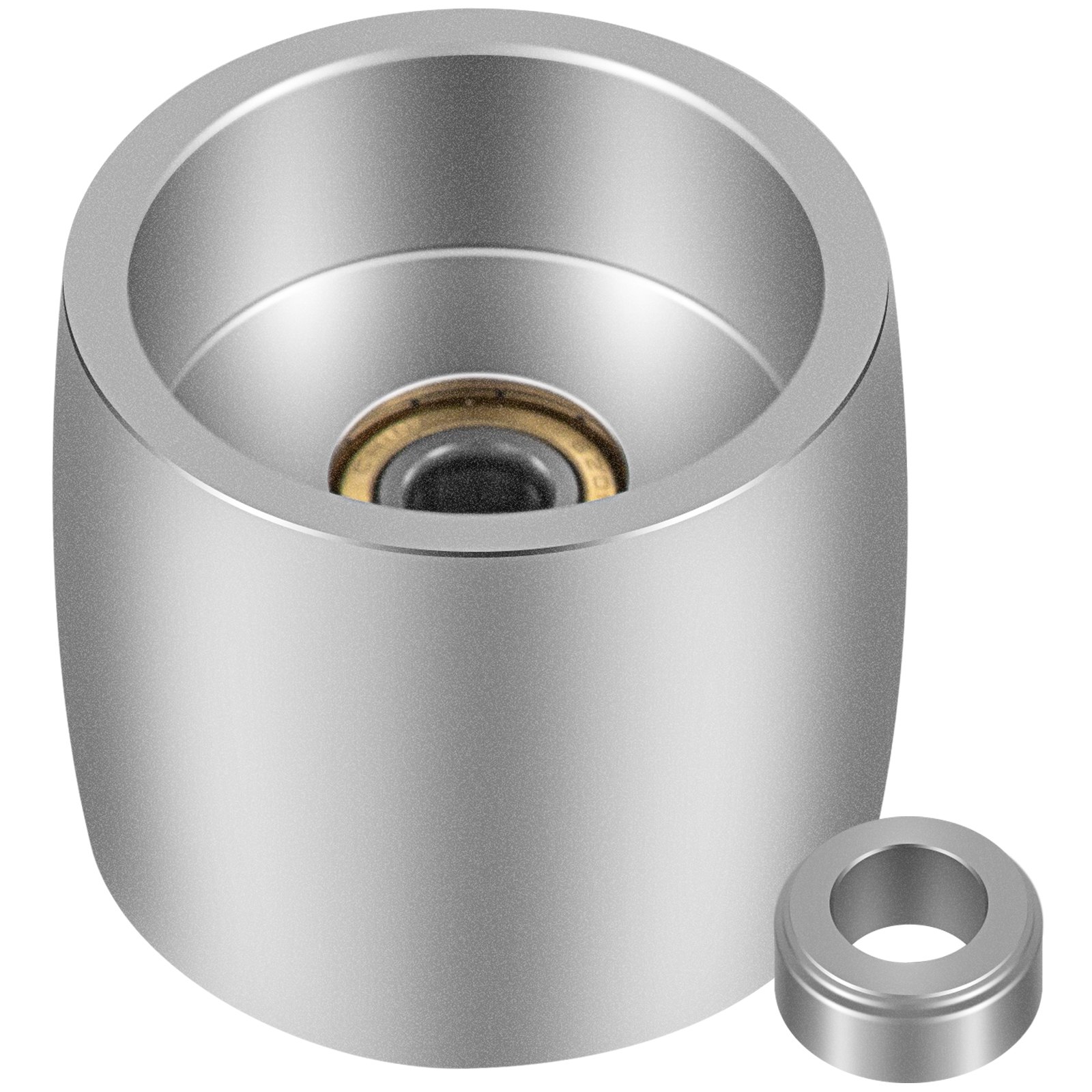

Tracking Wheel Features
The 3" tracking wheel is 3" in diameter and 2.4" wide. It has three 6201 bearings (1/2") installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.

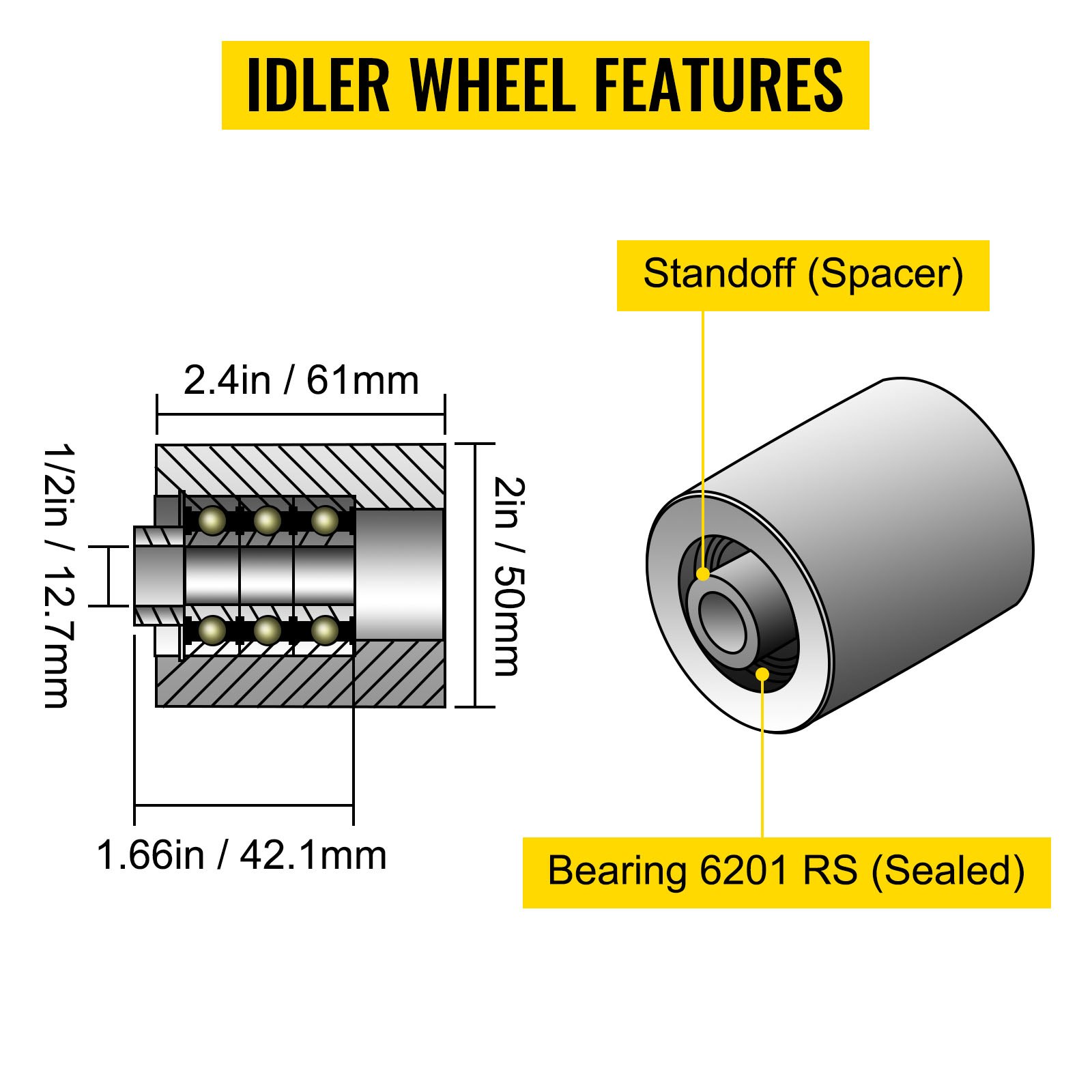

idler wheel dimensions and components for VEVOR belt grinder.

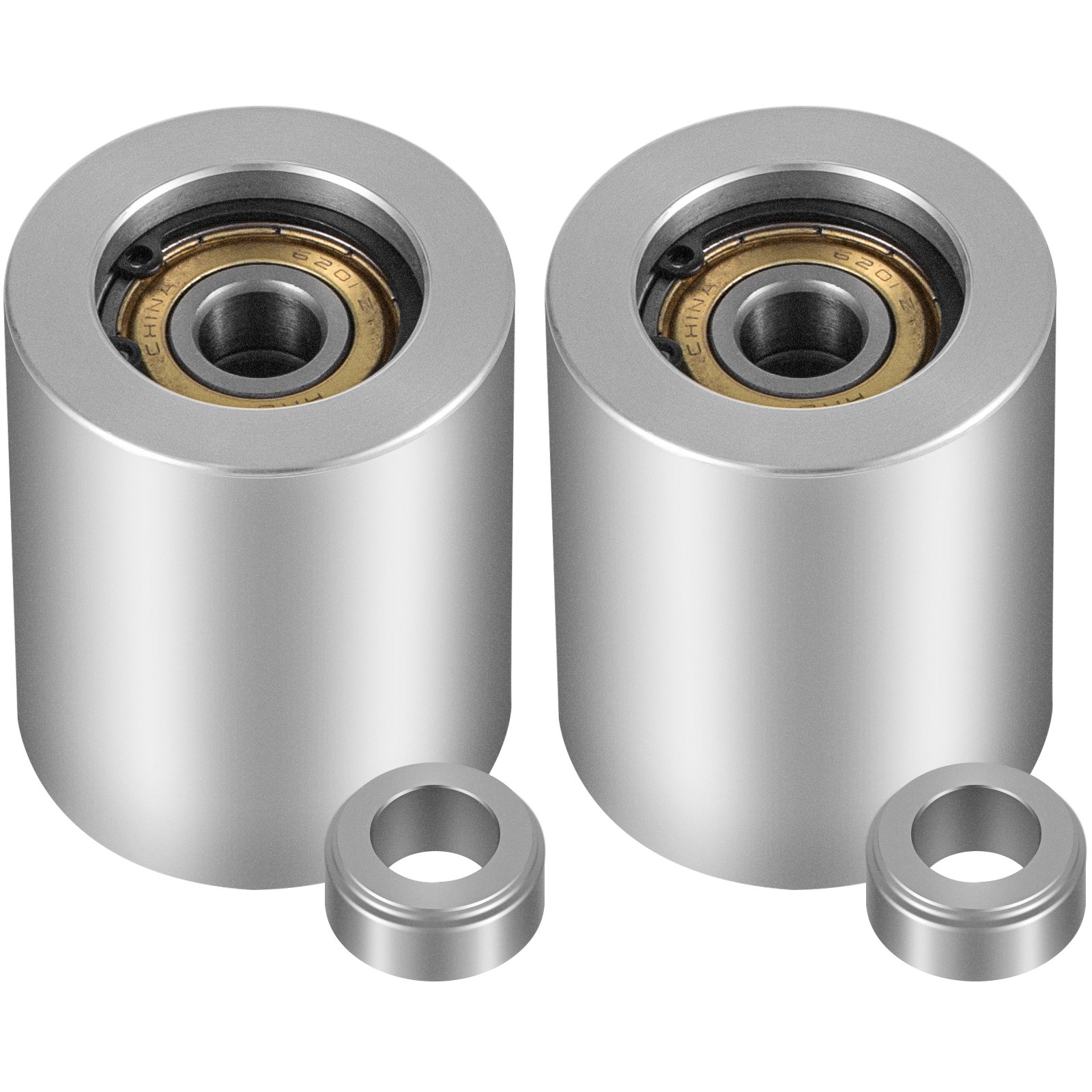

Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch/9.5 mm wide standoff (sleeve) will raise the wheel of the mounting plate.
VEVOR belt grinder assembly diagram with recommended mounting instructions and washers.

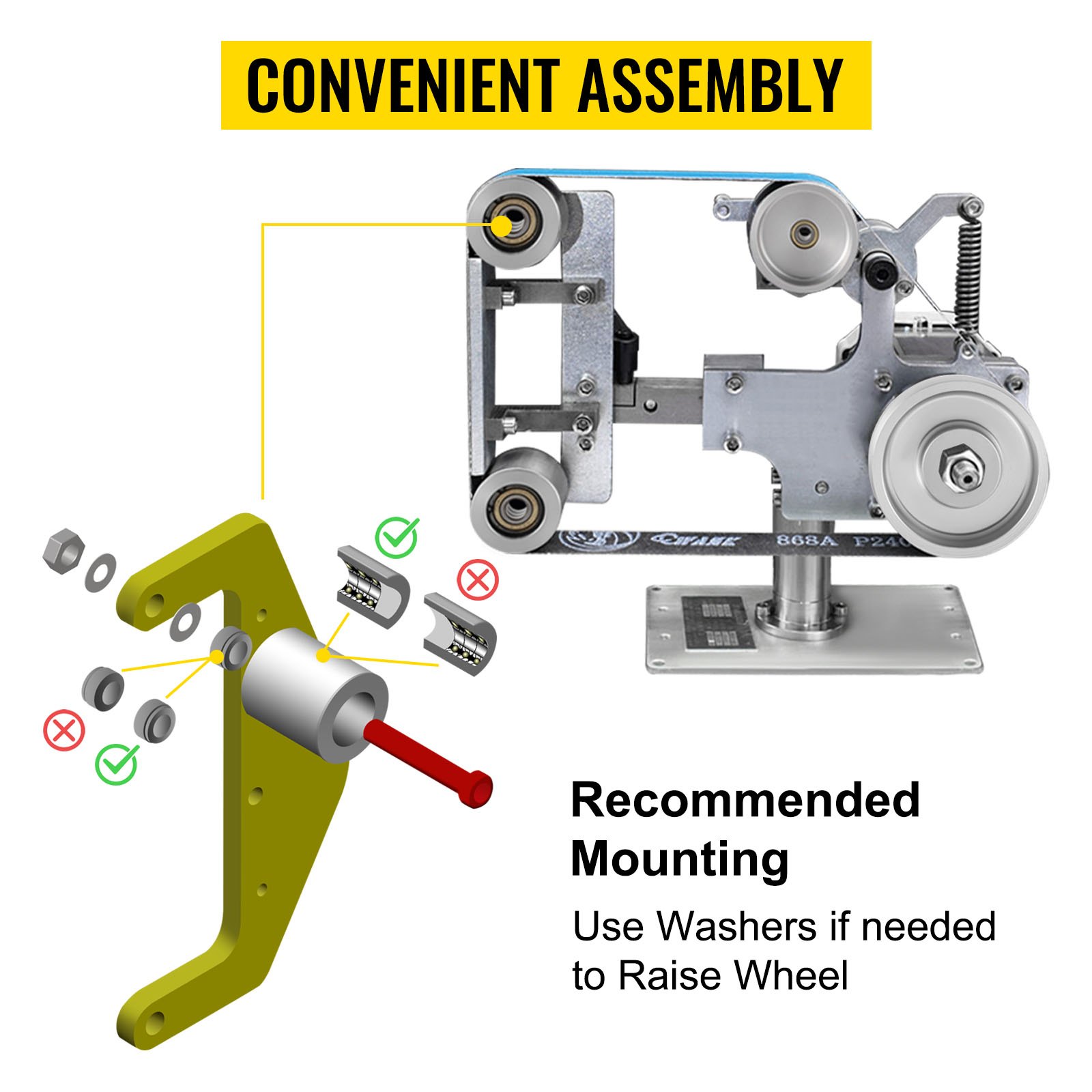

Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.
VEVOR belt grinder polishing iron, wood, copper, and plastic with wide applications.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.

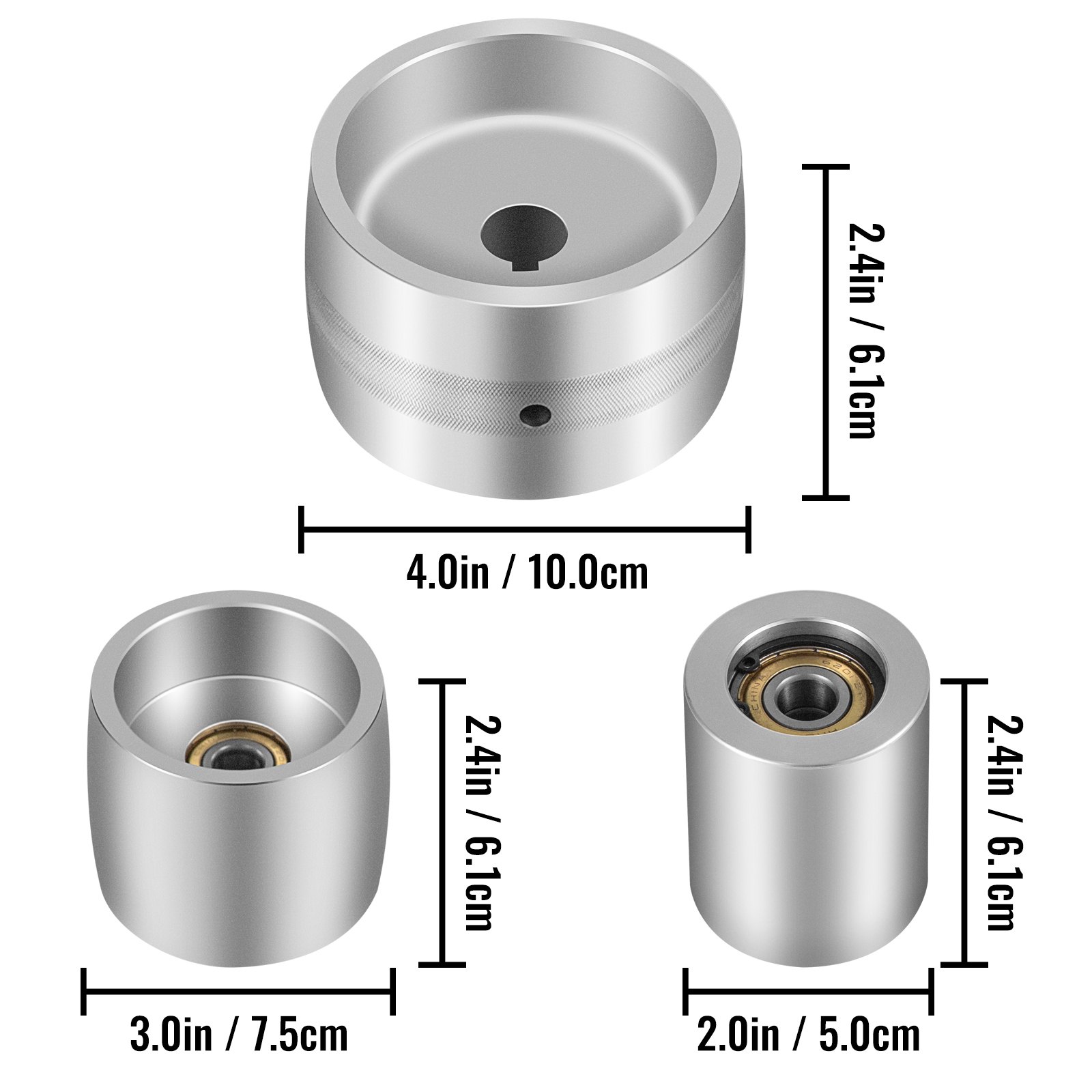

three VEVOR belt grinder parts with dimensions: 4x2.4in, 3x2.4in, and 2x2.4in.
Specifications
  • Model: VV-BGW-42423
  • Drive Wheel Diameter: 4 inch/100 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 0.94 inch/24 mm
  • Keyway: 0.31 inch/8 mm
  • Tracking Wheel Diameter: 3 inch/75 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 3.44 lbs/1.56 kg
VEVOR belt grinder accessory set with four silver contact wheels and bearings.
Package Content
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Instruction
VEVOR belt grinder wheel set, 2" x 72", 6061-t6 aluminum.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR belt grinder parts including four metal wheels and bearings on white background
Belt Grinder Wheel
Our wheel is designed to provide prolonged and dependable use with an excellent aluminum frame and compression resistance surface. It is commonly used on 2 x 72-inch belt grinders for hollow-grinding and knife making, a perfect choice for tool polishing metal, wood, acrylic, and other materials.
  • 6061-T6 Aluminum
  • 4" Drive Wheel
  • 3" Tracking & 2" Idler Wheel
  • Easy Installation
embossed anodized t6061 aluminum for VEVOR belt grinder with high strength, corrosion-proof.
Anodized Embossed Aluminum
Belt wheels are made of anodized embossed aluminum (6061-T6), impervious to humidity, water, corrosion, and compression. It's an excellent option in industry sectors such as processing.
drive wheel with 0.94in hole, 0.31in keyway, and crowned surface for VEVOR belt grinder.
Drive Wheel Features
The drive wheel is 4" in diameter and 2.4" wide. It is crowned to help with belt tracking. It has a 0.94 inch/24 mm bore with a 0.31 inch/8 mm keyway.
tracking wheel features for VEVOR belt grinder with dimensions and bearing details.
Tracking Wheel Features
The 3" tracking wheel is 3" in diameter and 2.4" wide. It has three 6201 bearings (1/2") installed in the hub and a spacer between the bearings. This bearing combination allows for tightening the mounting bolts without causing any axial force on the bearings.
idler wheel dimensions and components for VEVOR belt grinder.
Idler Wheel Features
The 2" idler wheels are 2" in diameter, and 2.4" wide. Bearings are placed back to back. A 3/8 inch/9.5 mm wide standoff (sleeve) will raise the wheel of the mounting plate.
VEVOR belt grinder assembly diagram with recommended mounting instructions and washers.
Convenient Assembly
Assembly is pretty straightforward. Make sure the method you use to mount the wheels does not make contact with the inner and outer races on the bearings, simultaneously causing them to bind.
VEVOR belt grinder polishing iron, wood, copper, and plastic with wide applications.
Wide Applications
The suitable belt size is 2" X 72". The wheel is a perfect choice for a hollow-grinding straight razor, pocket knives, hunting knives, axes, etc. It is suitable for metal grinding and non-metal grinding industries.
VEVOR belt grinder accessory set with four silver contact wheels and bearings.
Package Content
  • 1 x Drive Wheel
  • 1 x Tracking Wheel
  • 2 x Idler Wheel
  • 1 x Instruction
three VEVOR belt grinder parts with dimensions: 4x2.4in, 3x2.4in, and 2x2.4in.
Specifications
  • Model: VV-BGW-42423
  • Drive Wheel Diameter: 4 inch/100 mm
  • Drive Wheel Width: 2.4 inch/61 mm
  • Bore: 0.94 inch/24 mm
  • Keyway: 0.31 inch/8 mm
  • Tracking Wheel Diameter: 3 inch/75 mm
  • Idler Wheel Diameter: 2 inch/50 mm
  • Tracking/Idler Wheel Width: 2.4 inch/61 mm
  • Standoff Width: 3/8 inch/9.5 mm
  • Product Weight: 3.44 lbs/1.56 kg

Belt Grinder Wheel Set: Precision and High-Quality Construction

The VEVOR belt grinder wheelset is a top choice for precision and quality. Its components are precisely machined for accuracy. The aluminum wheels are sturdy and durable. This set ensures a smooth and efficient grinding experience. These wheels fit perfectly on your grinder. A high-quality build guarantees long-lasting durability. A 4-inch drive wheel and 3-inch tracking wheel make an incredible difference in performance. Our set includes a 4-inch drive wheel and a 3-inch tracking wheel. They maintain balance and stability during operation. Precision sets can be used for both professional projects and DIY projects.


Aluminum Belt Grinder Wheel: Lightweight and Durable

The aluminum belt grinder wheel is both lightweight and durable. Made from solid aluminum, it offers excellent strength. The material ensures the wheel remains lightweight, reducing strain on the motor. Despite its light weight, this is built to last. This makes it ideal for heavy-duty use. Also, the aluminum construction resists wear and tear. The wheel maintains its shape and performance over time. It is a reliable choice for frequent and prolonged use because of its lightweight nature. The wheel provides smooth and consistent operation. Therefore, handling and controlling the grinder is easier. Durable material means less frequent replacements, saving you time and money.


Knife Grinder Wheel: Enhances Grinding Efficiency

The set is made to enhance grinding efficiency significantly. The wheels are designed to increase belt speed. This leads to faster and more efficient grinding. The 4-inch drive wheel improves grinding performance. It has a 3-inch tracking wheel that provides precise tracking. This combination reduces the time needed for grinding tasks. Enhanced efficiency is ideal for both hobbyists and professionals. These wheels maintain consistent speed and performance, making them perfect for knife sharpening and other grinding jobs. You can upgrade your grinder quickly with this set. enhanced efficiency means you can complete more work in less time.


Crowned Belt Grinder Wheel: Maintains Optimal Belt Tracking

The crowned belt grinder wheel keeps the best tracking of belts. The shape helps keep the belt centered. This reduces the risk of any belt slipping or wandering. The design ensures that the belt stays in place during use. It leads to more consistent and accurate grinding. Also, the crowned wheel helps extend the life of the belt. You reduce wear and tear, making the conveyor last longer. Optimal tracking ensures smooth and stable operation. This is crucial for fine-grinding and sharpening tasks. Our crowned wheel is perfect for detailed work. The design ensures the belt remains taut and effective.


Drive Wheel for Belt Grinder: Easy Installation and Upgrade

The belt grinder drive wheel is easy to install and upgrade. This set includes all the necessary components for quick installation. The wheels fit perfectly and require minimal effort to mount. Hence, it’s so easy to upgrade your grinder without professional help. These wheels are designed to be user-friendly. Even beginners can easily install them. It saves time and effort. Furthermore, the easy installation saves time in preparation. It also ensures that you have the grinder ready for use quickly. You also get access to the upgrade process as well. Most belt grinding sets support most belt grinders. So, this makes it a versatile choice for different models.


Fast and Reliable Service with Responsive Seller

This makes the buying process smooth and hassle-free. The responsive service ensures you get what you ordered without delays. The seller's responsiveness contributes to the overall positive buying experience. This is why VEVOR is a trusted choice for grinder accessories. It has fast and reliable service that guarantees customer satisfaction in your purchase. You can easily get the right parts for your grinder without waiting.


Precisely Machined Components Ensure Perfect Fit

This is why you should choose the VEVOR belt grinder wheel set. The components of the belt grinder wheel set are precisely machined. This ensures a perfect fit on your grinder. These wheels are designed to match exact specifications, which guarantees compatibility and performance. It makes it easy and efficient. Specific dimensions ensure the wheels fit without issues. This makes the installation process simple and effective. Also, the precisely made components also ensure durability. A high-quality build means the tires last longer. In this precision, these wheels perform as expected. Therefore, we recommend the VEVOR belt grinder wheel set as a dependable choice for any grinder or similar tools.


See More

Specification

Model
VV-BGW-42423
Drive Wheel Diameter
4 inch/100 mm
Drive Wheel Width
2.4 inch/61 mm
Bore
0.94 inch/24 mm
Keyway
0.31 inch/8 mm
Tracking Wheel Diameter
3 inch/75 mm
Idler Wheel Diameter
2 inch/50 mm
Tracking/Idler Wheel Width
2.4 inch/61 mm
Standoff Width
3/8 inch/9.5 mm
Product Weight
3.44 lbs/1.56 kg
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
31 Review(s)
Clear filters
Colin Colin
4" Belt Grinder Wheel set
Bought this set with the intent of building myself a 1" x 30" two pulley Linisher. The price point for this Vevor kit was cheaper than I could buy the raw materials needed to make my own pulleys. Quality of the supplied pulleys in the kit was very good & the material machined very nicely for my needed modifications. The supplied bearings also run nicely & seem to be of a better quality than other "brand" equipment I've dealt with.
Jason R Jason R
Belt grinder wheels
Very nice wheel set. These wheels seem to be made very well, great price!! Won’t know how they truly work until installed.
bill bill
owner
had 5/4 /2 rollers on my 2 x 72 belt grinder , bought this as an upgrade . took 5 minutes to replace my 5" drive roller with this 6" roller .am thrill with the increase in belt speed !!! by all accounts and my best math this increased belt speed by 1000 feet per minute . the differance was immeadiately apparent ! wow , massive improvement for 50.00 .
Edward M. Zimmerman Edward M. Zimmerman
5 inch wheel
The wheel looks good. I will be putting on the belt grinder>
Alex Alex
.
Bought to use in a 2x48 belt grinder. Cheaper than making them myself. Some of the bearings were a loose fit, but easily fixed with loctite. Otherwise really good product and great value for money.
George George
Solid aluminum
Seem to be good quality
Ronald wheeler Ronald wheeler
Mr
Love the quality .superb balance no vibration. Makes me feel safer than my last set of home made ones. can't beat he price .quick post too.
azuanatoya azuanatoya
item look good and like in description.
item look good and like in description.
Richard Patterson Richard Patterson
Bearings measure 12mm not 1/2 inch. Everything is precisely machined and high quality
The seller is also very responsive. Everything about these wheels just IS what its supposed to be, numbers are exact. I just happen to have been sent a metric version by mistake but my issue was fixed quickly.
Kerwin & Sandie Scheel Kerwin & Sandie Scheel
The wheel set, well build for my need on the project I am working on.
Wheels round freely as needed.
