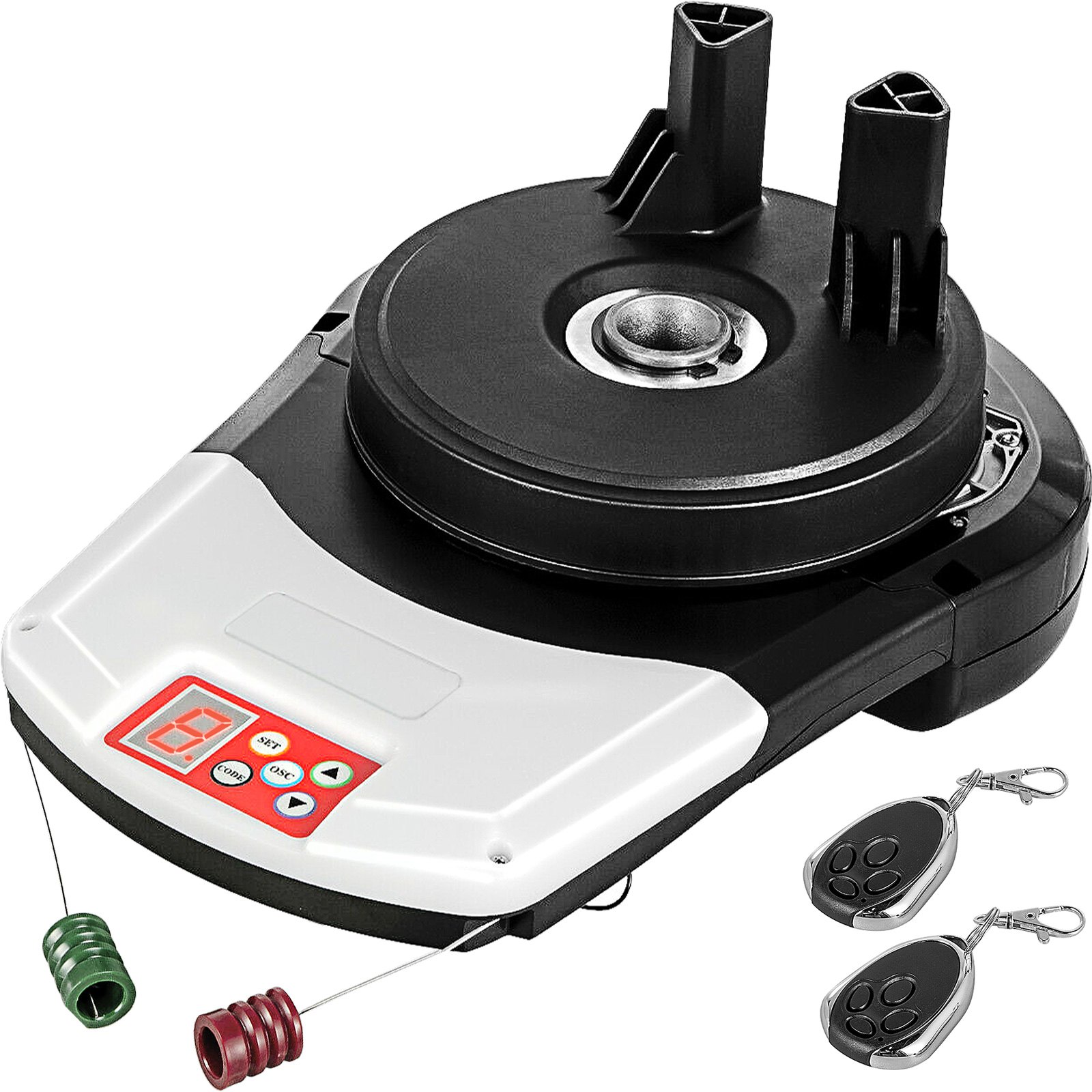

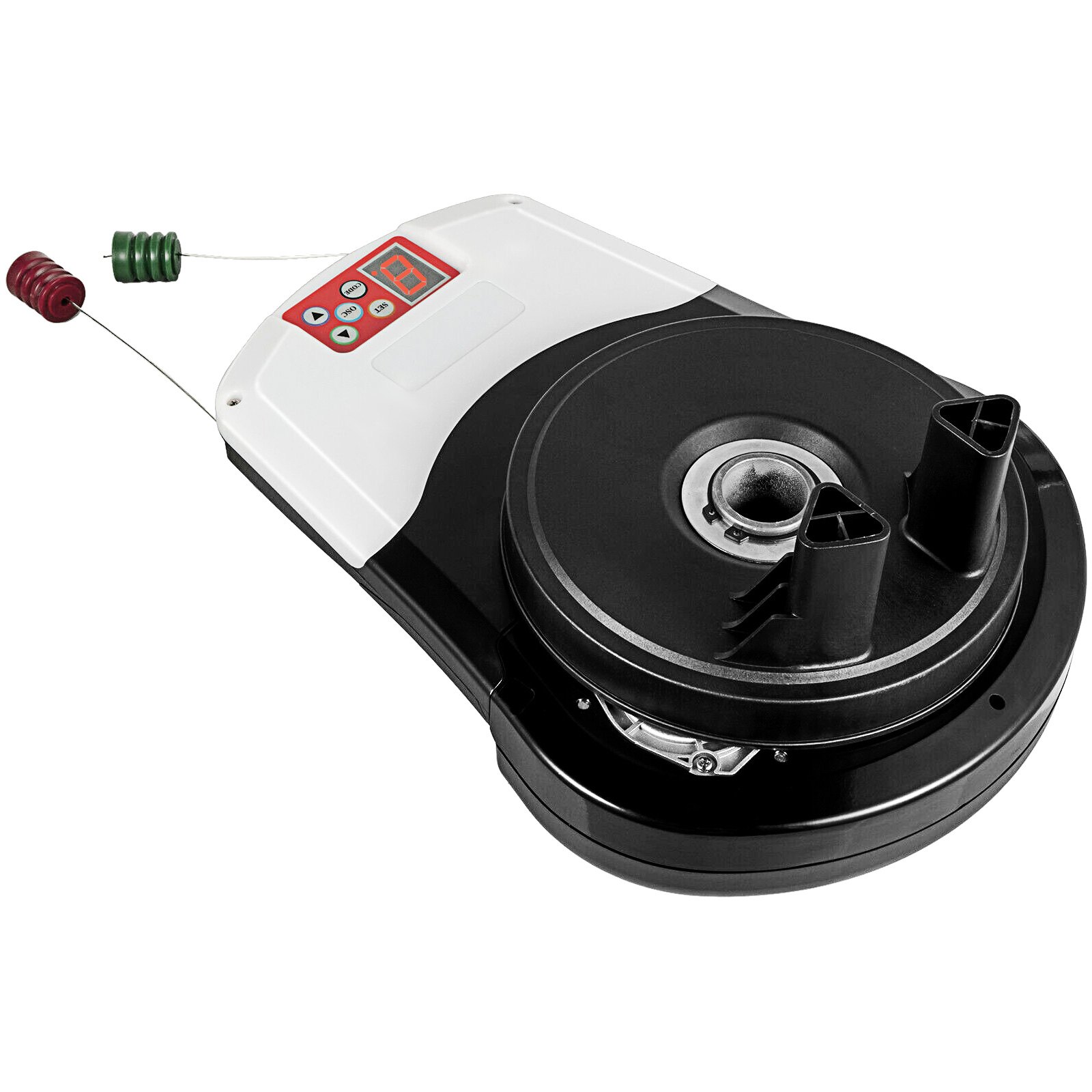

Garage Roller Door Opener
This powerful rolling door opener can power doors up to 270 sq.ft, and it is designed with premium LED Festoon courtesy light. The roller door opener was designed for easy installation with minimal side room and reliable casing. It can power up to 16.4ft, 2-door area by a 24V motor, and the rolling gate will spin up in no time.
- High-quality construction
- Powerful performance
- Reinforced protection
- Easy installation
Durable Material & Motor
The roller door opener is designed for easy installation with minimal side room and reliable casing. Driven by a powerful motor, the opener features automatic safety reverse system and soft start/soft stop.

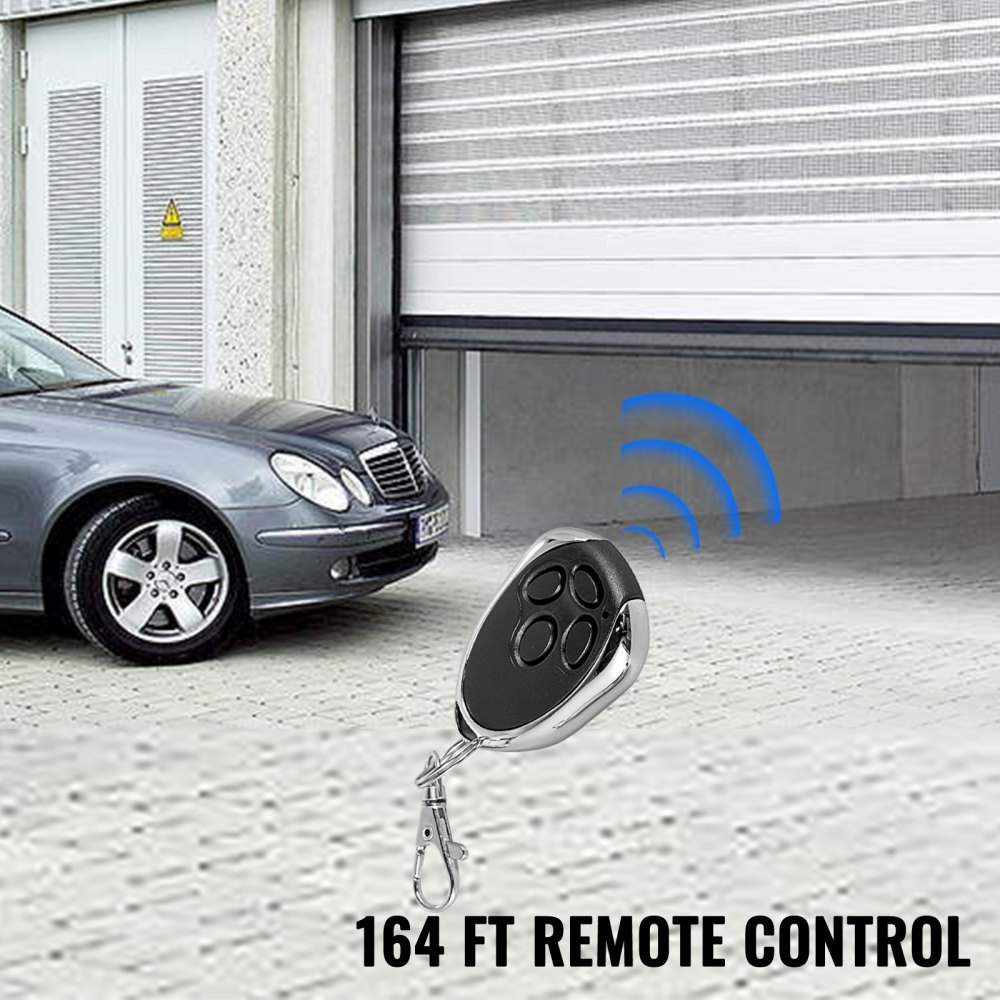

164 ft Remote Control

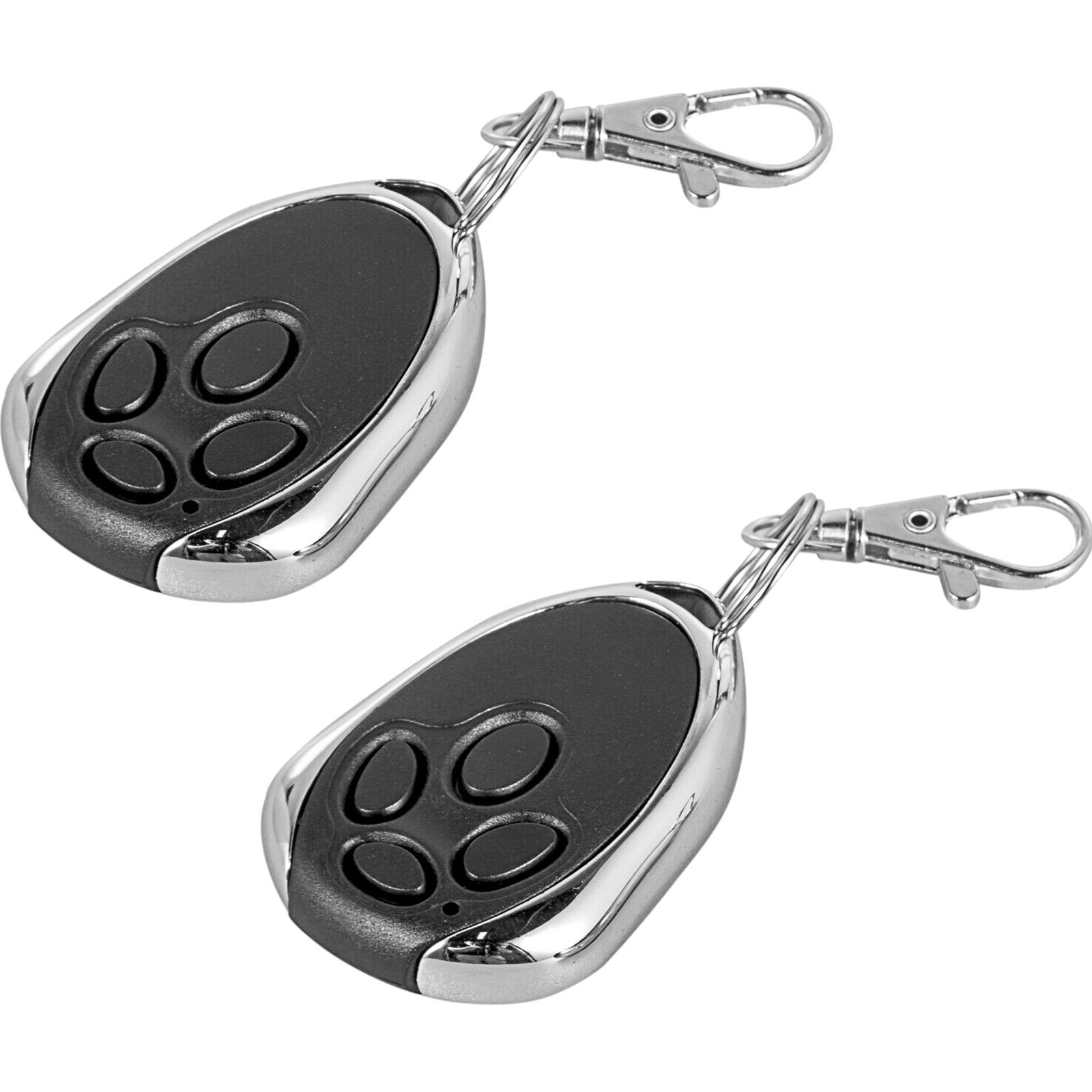

This roller door opener includes two garage remotes which incorporate four functional buttons, enabling you to control up to 164 ft/50 m remotely. The LED light comes on automatically whenever the door is activated.

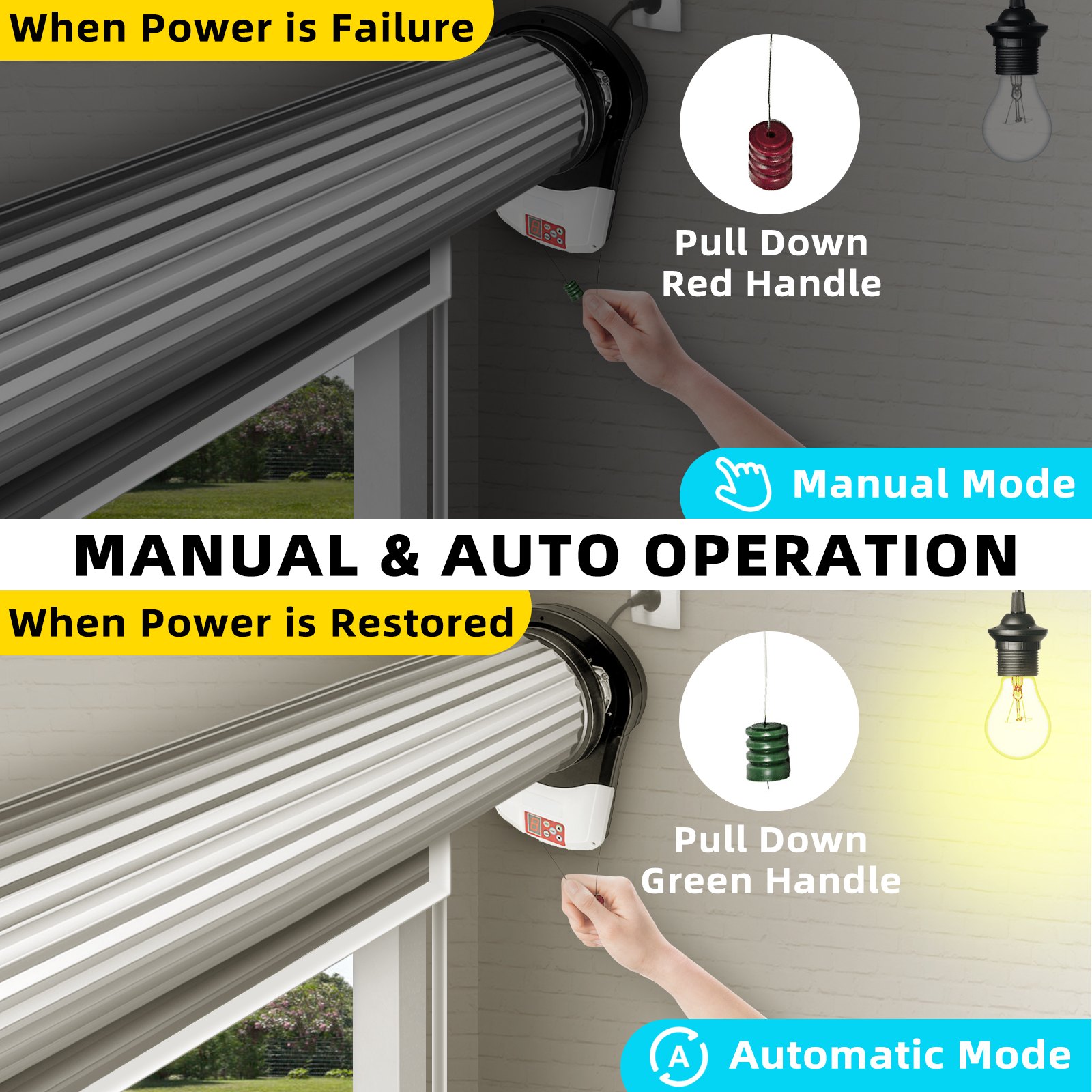

Manual & Auto Operation
If the power goes out, you can pull down the red string handle to switch the opener to manual mode. When the power is restored, pull down the green string handle, and the opener will return to automatic mode.

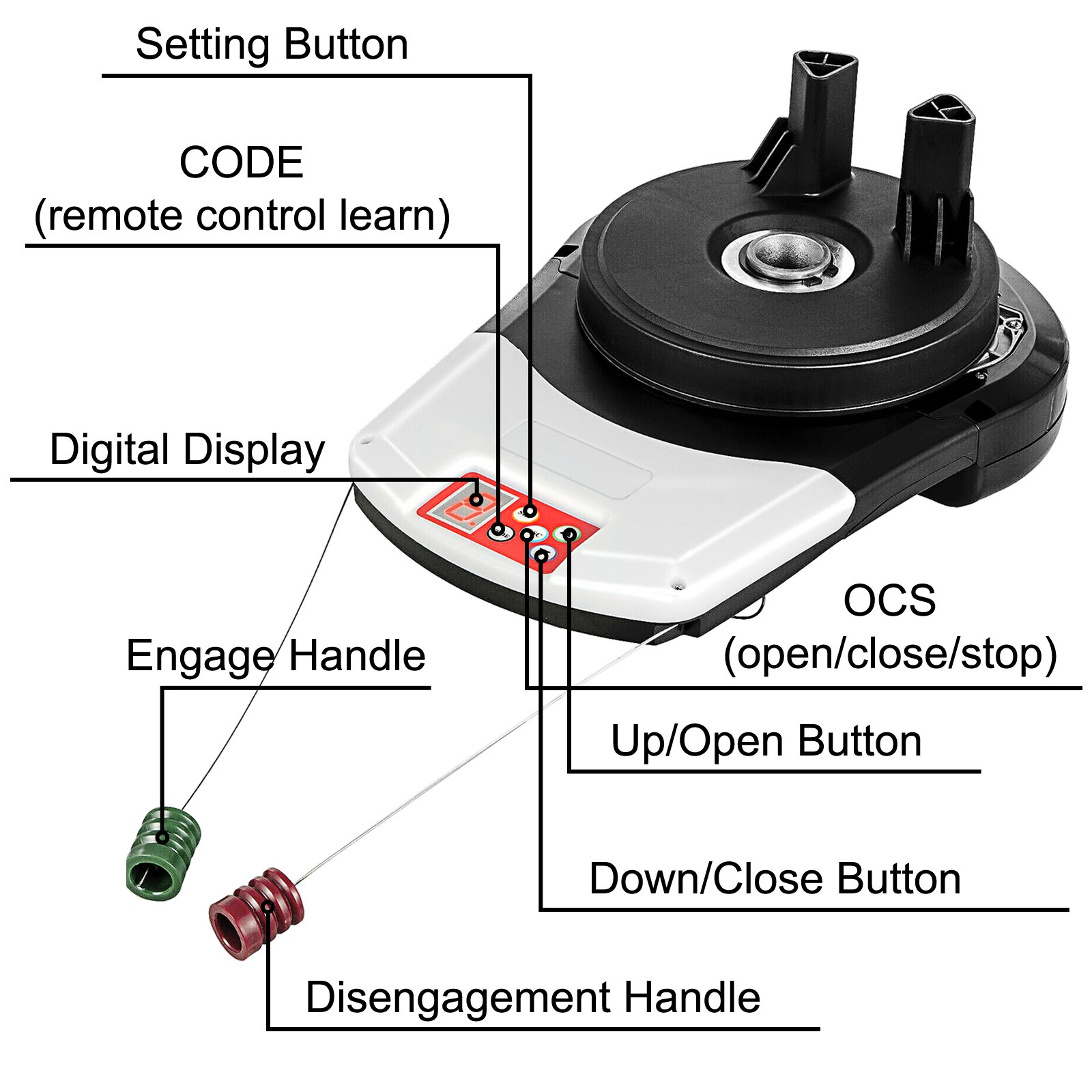

Display Screen
The rolling door opener features a digital display screen for easy operation. The gate opener is featured with overload protection and obstruction detection and a manual release for safety.

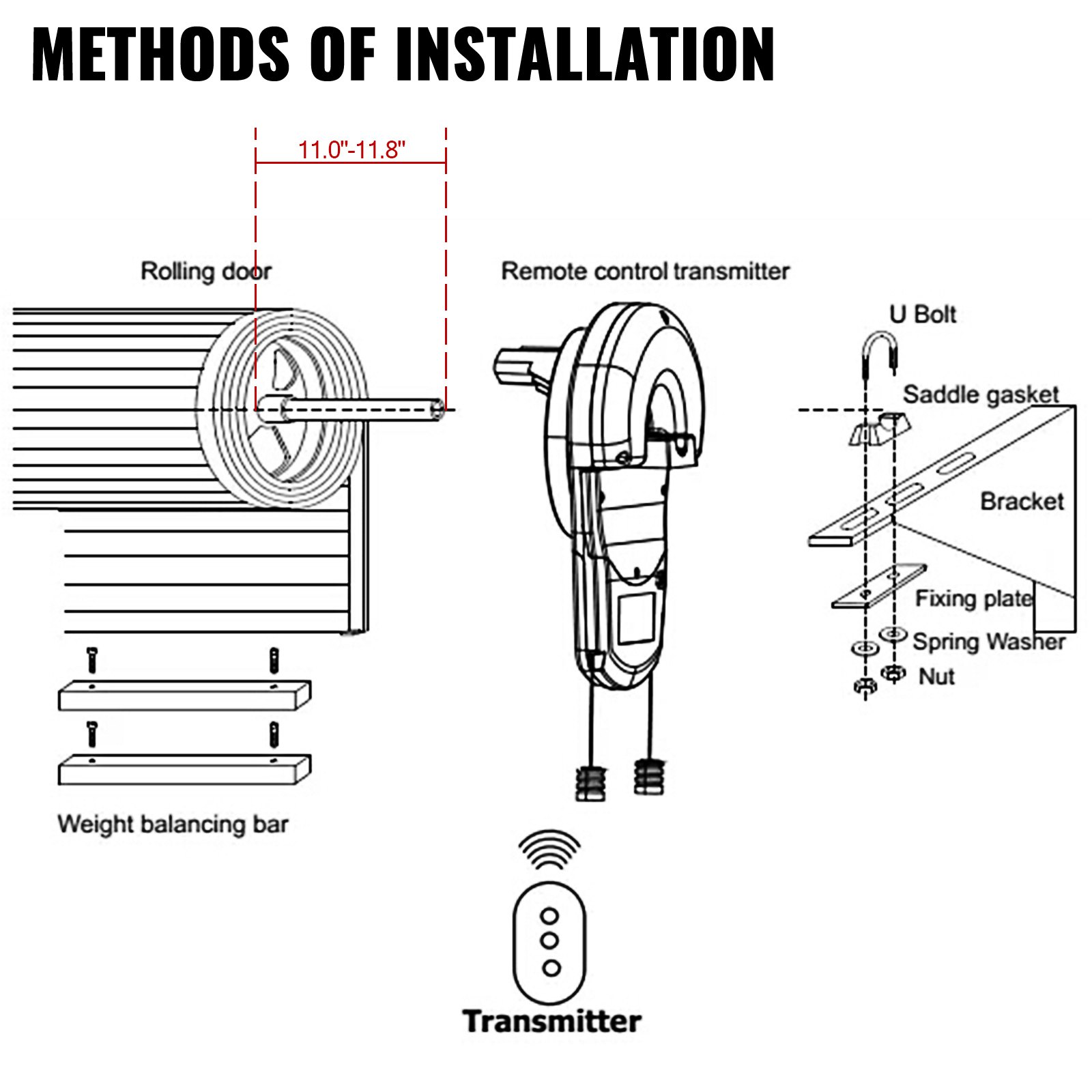

Methods of Installation
This powerful rolling door opener can power up to 16.4ft, 2-door area of 270 sq ft by a 24V motor, and the rolling gate will spin up in no time. It is also designed with premium LED light. Both right and left side installation are available.

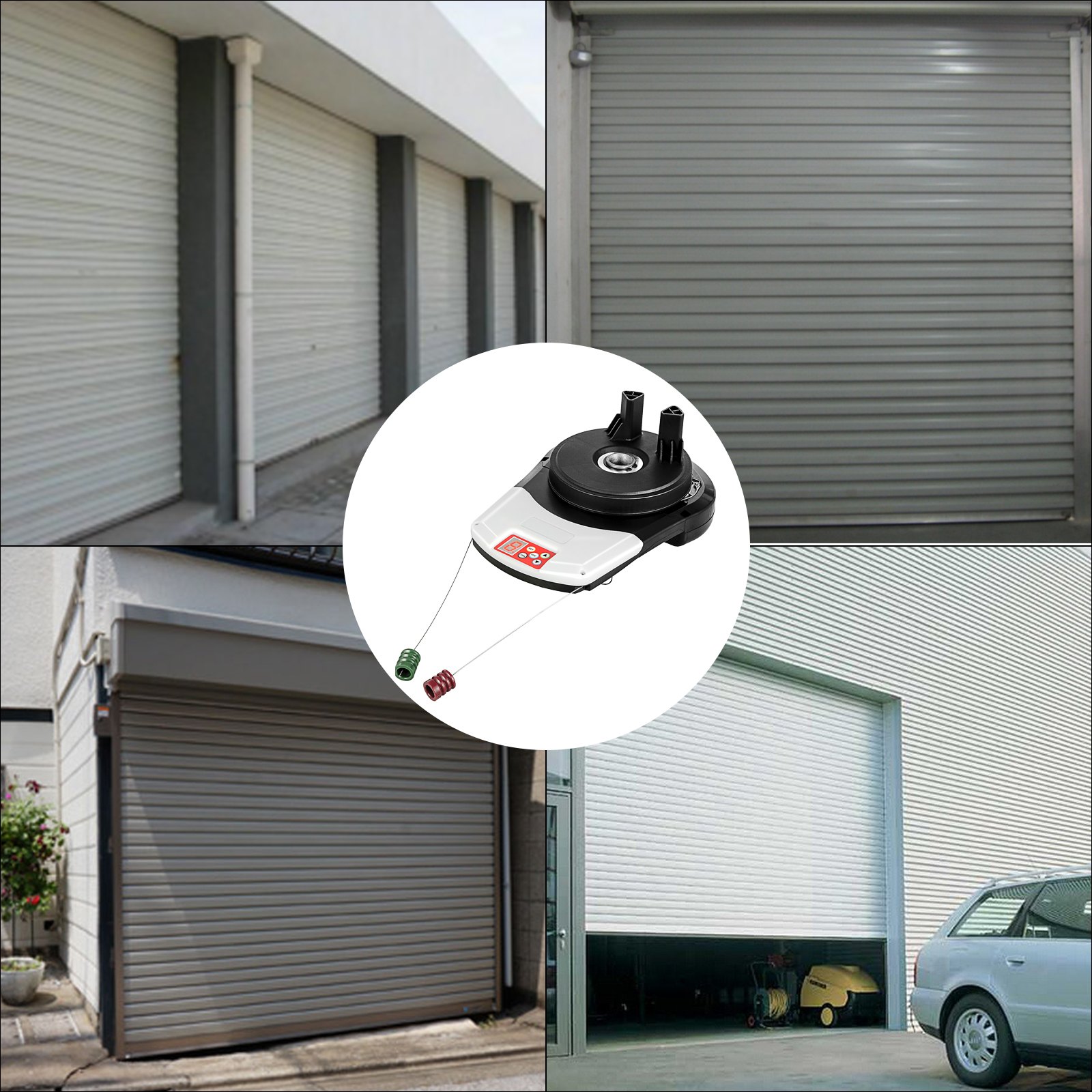

Wide Application
The rolling door opener can be used for all kinds of the roller up doors. The clearance between the door curtain and the mounting bracket calls for a minimum of 11 inches.
Package Content
- 1 x Motor
- 1 x Control Box
- 1 x U-Bolt & Screw Kit
- 2 x Garage Remote
- 1 x Instruction Manual
Specifications
- Model: RDO-0094
- Input Voltage: 220V AC
- Motor Power: 100W
- Control Board Voltage: 24V DC / 5V DC
- Light Globle Voltage: 36V / 1.5W
- Motor Type: Pure Copper Motor
- Maximum Door Opening: 25 ㎡
- Max. Lift Force: 800 N
- Maximum Door Height: 5 m
- Max Control Distance: 50 m
- Coding Type: Rolling Code
- Transmitter Frequency: 433.92 MHZ
- Number of Code Combination: Over 4.29 Billion Random Codes

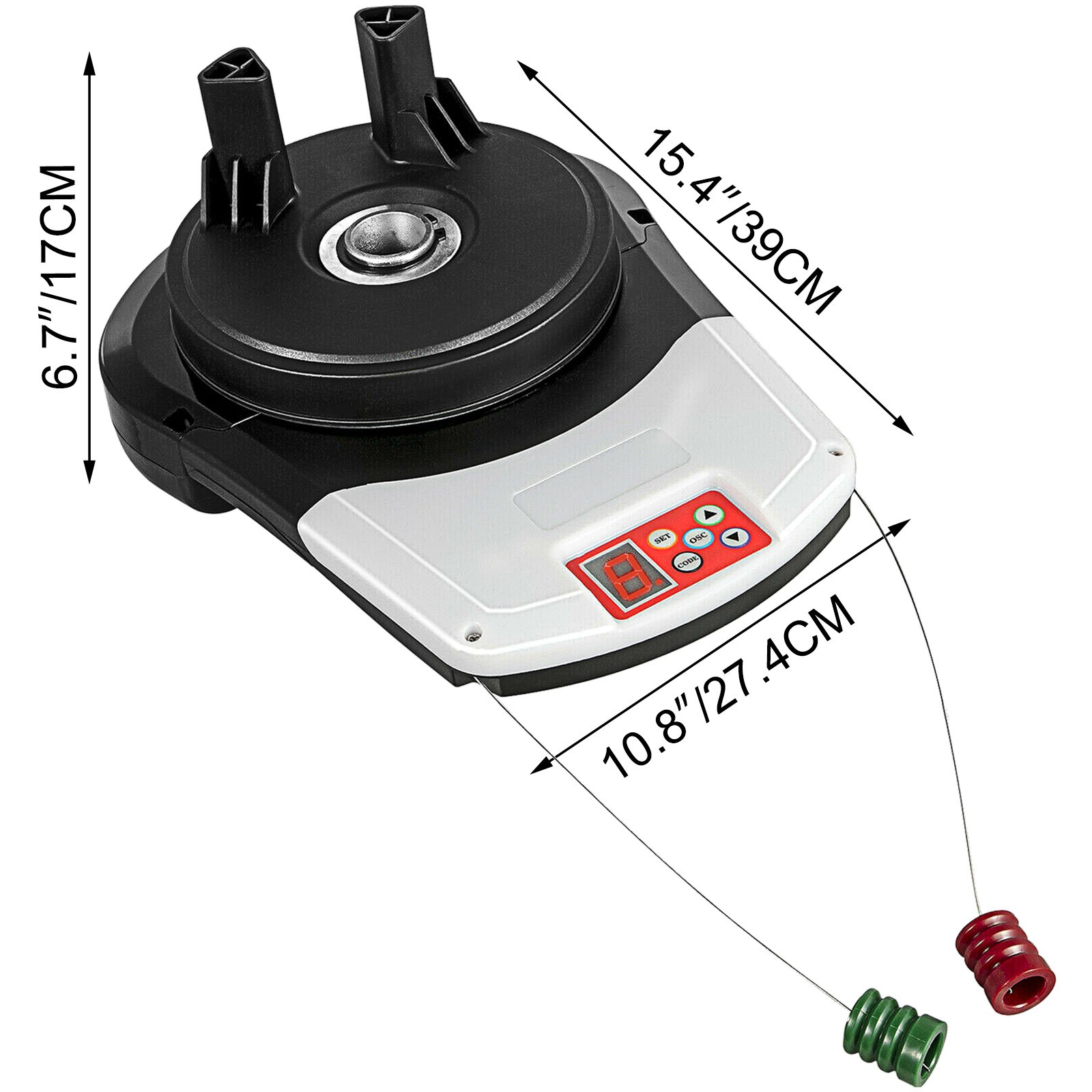

- Product Size: 27.4 x 39 x 17 cm
