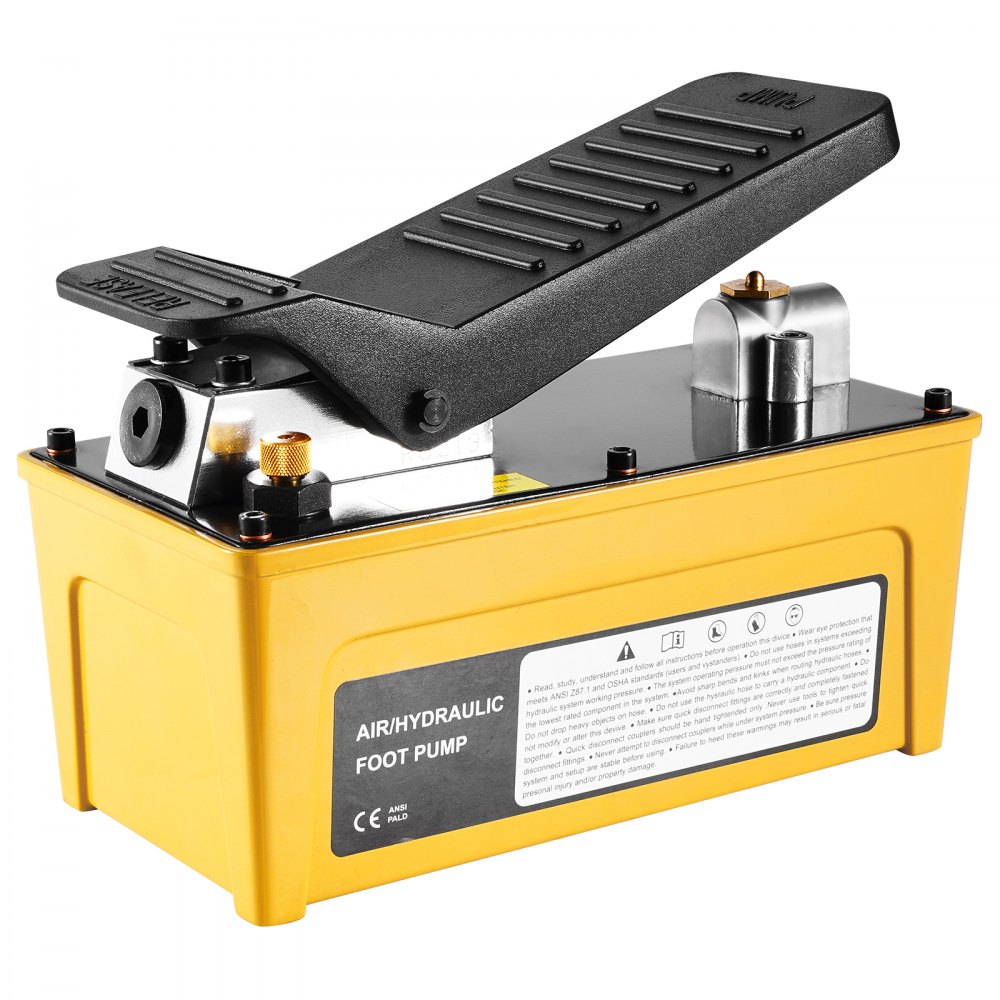

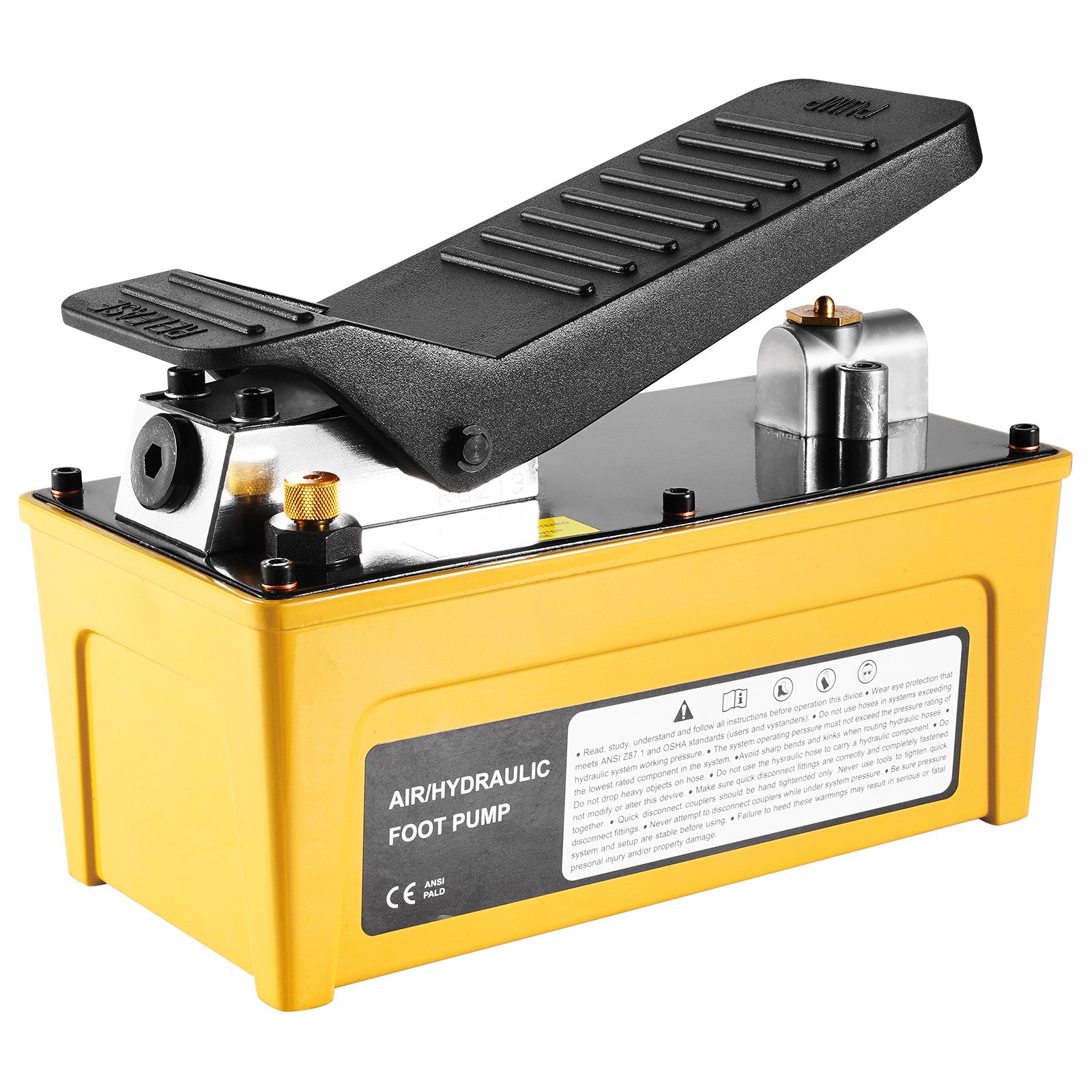

VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump

Name: VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump
Brand: VEVOR
SKU: CGKQB18MJTHSFZYLPV0
Price: 185.99 AUD
Availability: OutOfStock
Rating: 4.7 (35 reviews)

See All Customer Reviews

35 Reviews

Price including GSTSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive AU $5.00 off for your first three orders on the App.

Download Now

Exclusive AU $5.00 off for your first three orders on the App.

Scan the QR code to download

With or Without Controller: Without Controller

With Controller
Without Controller

About this item

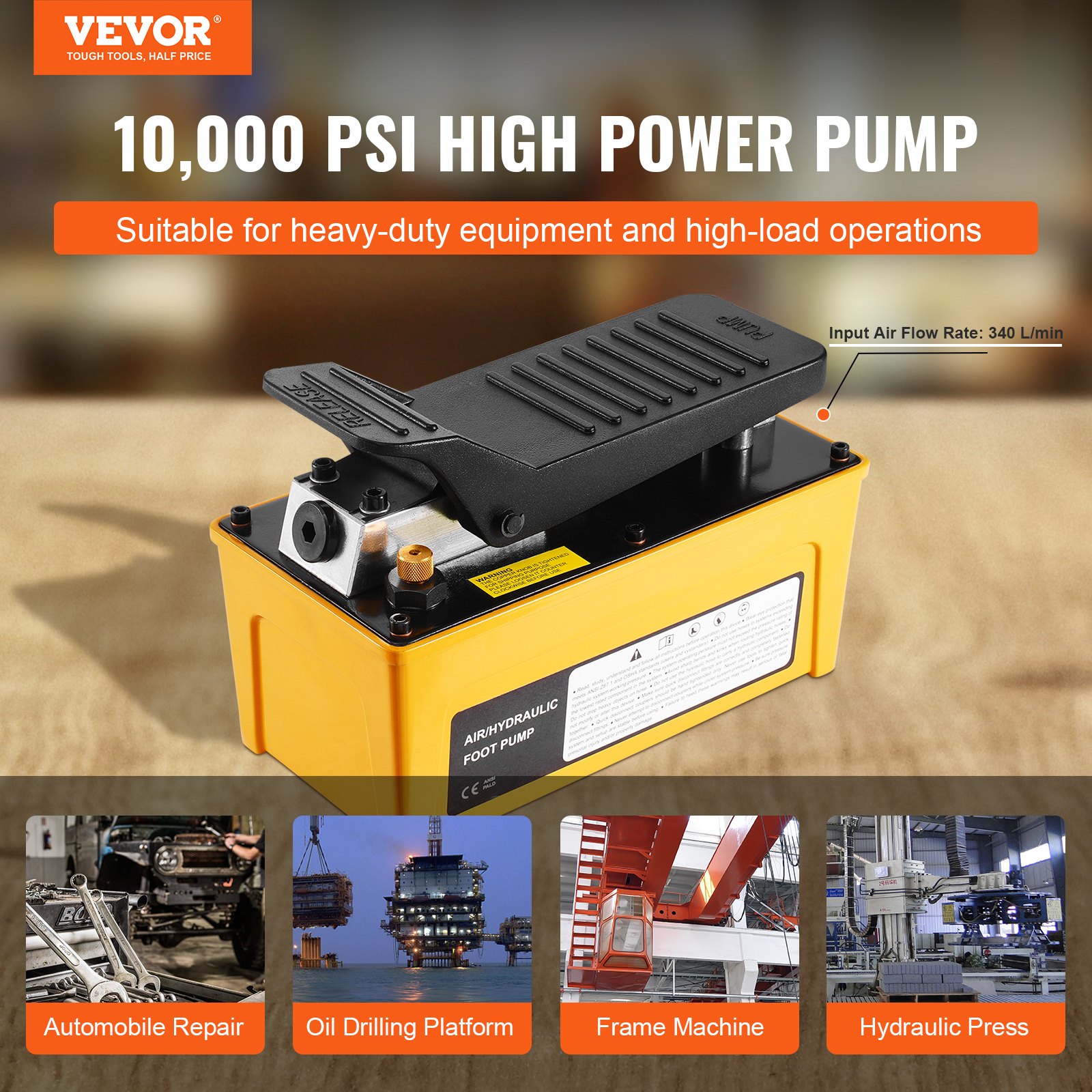

10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic foot pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.

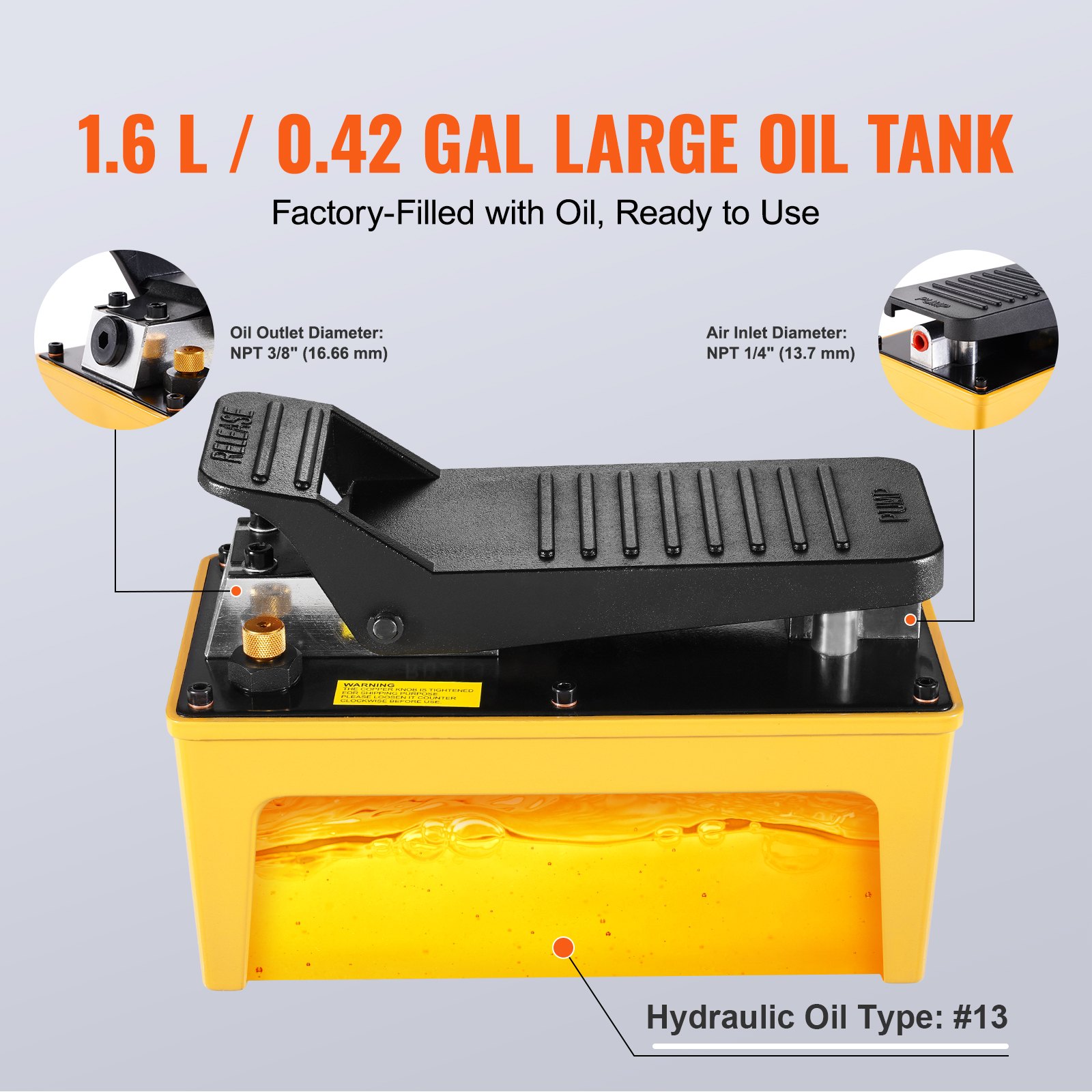

Factory-Filled with Oil: This air hydraulic pump comes with a large 1.6 L / 0.42 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.

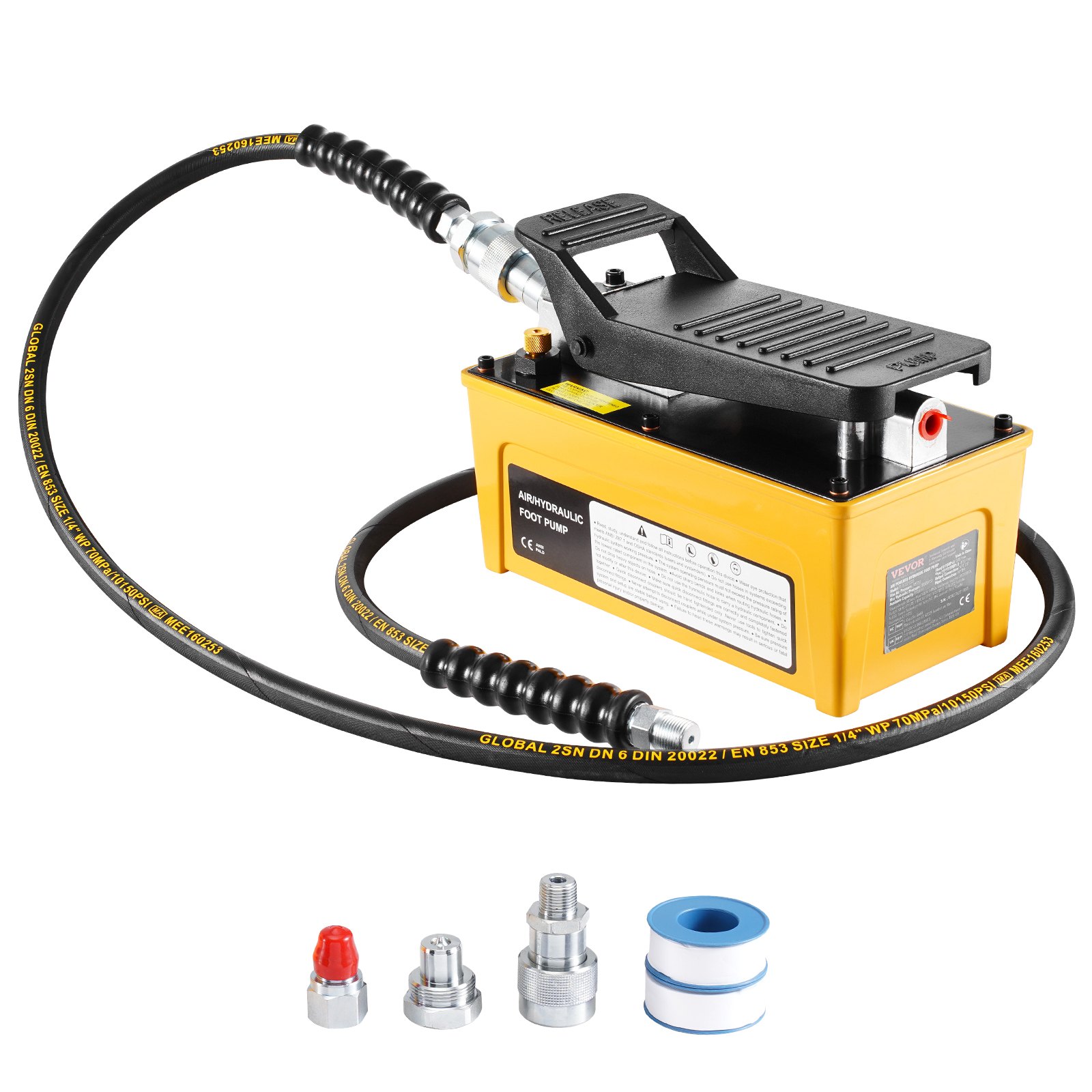

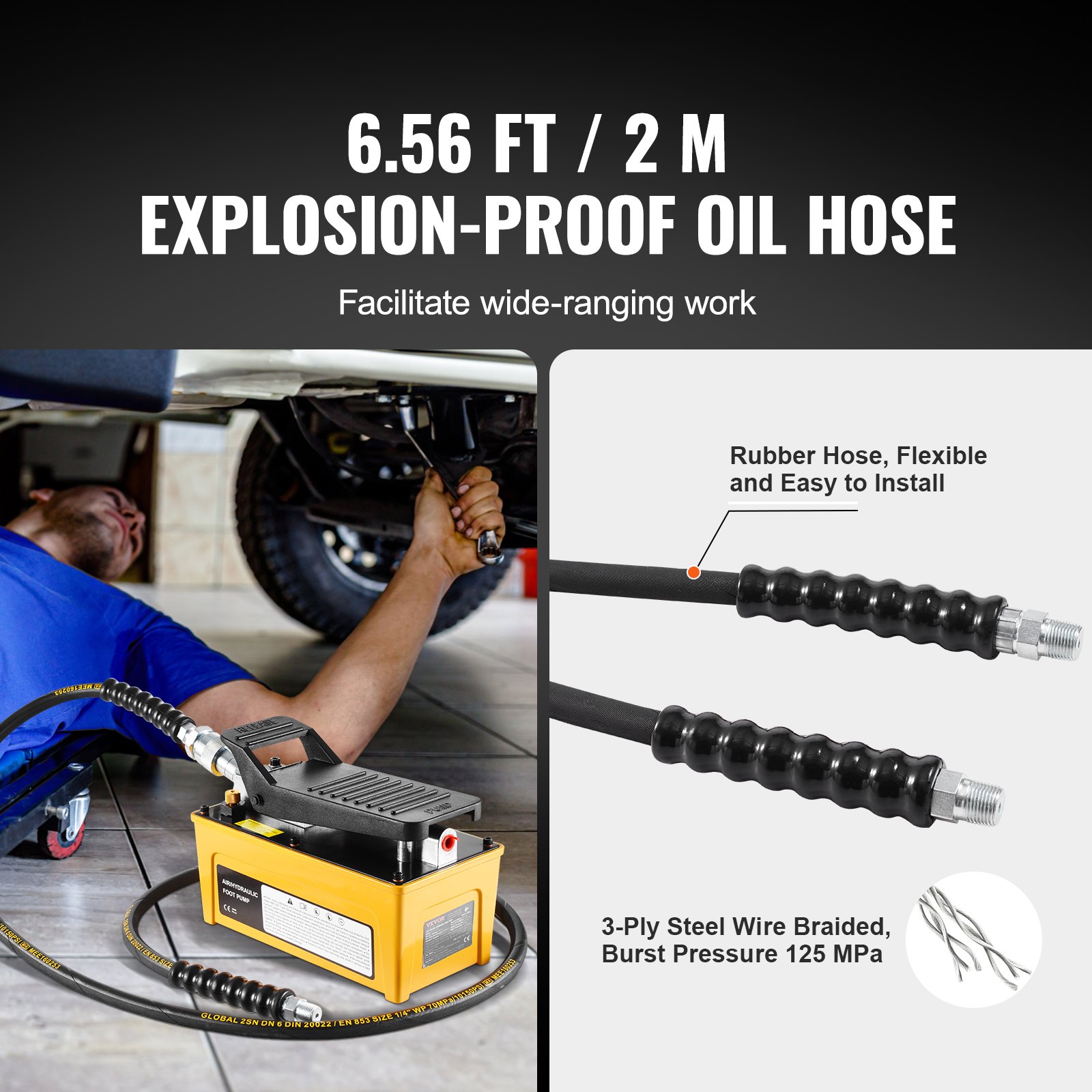

Long Oil Hose: This air actuated treadle foot pump equipped with a 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, capable of handling pressures up to 125 MPa. This design prevents leaks and allows for flexible, long-distance operation.

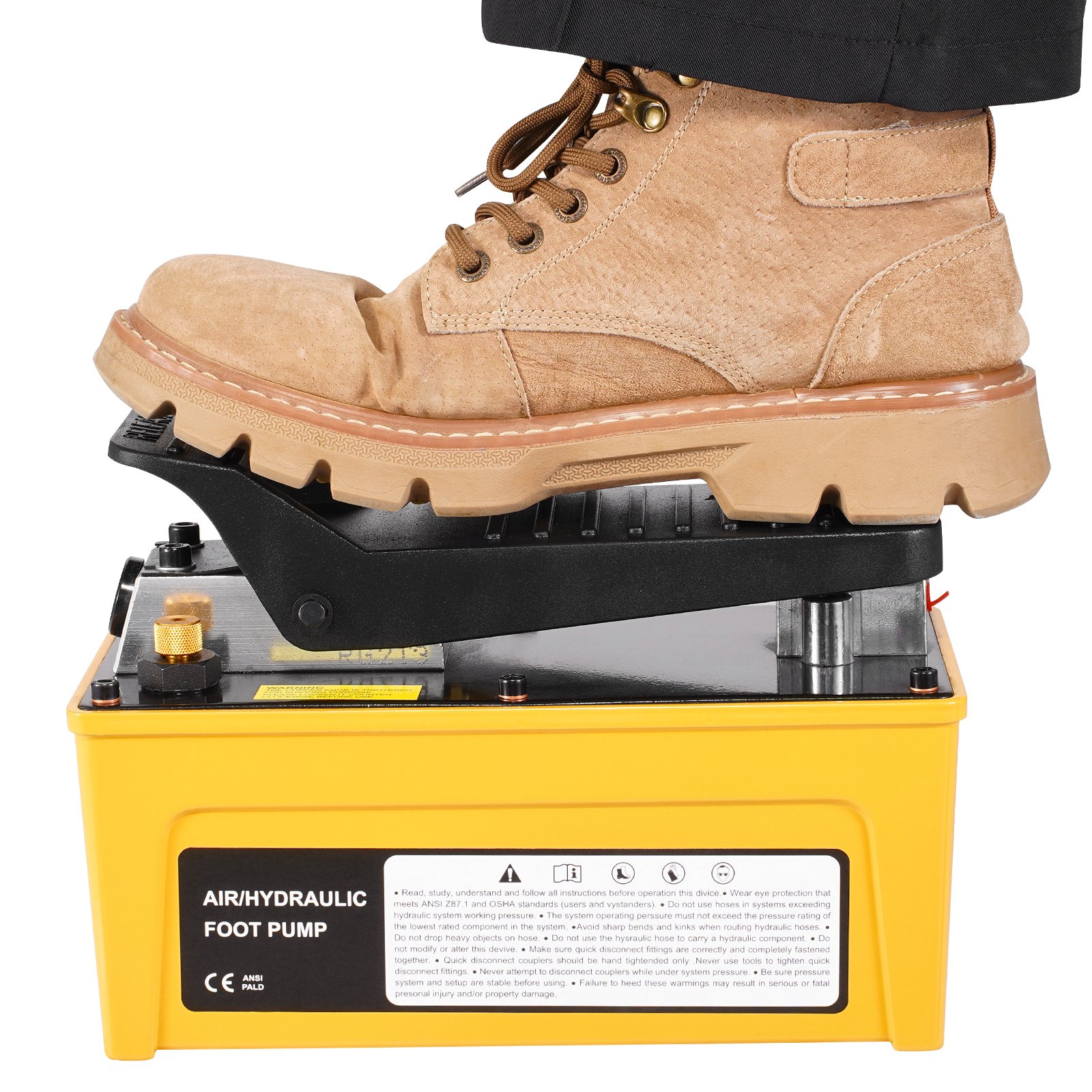

Effortless Foot Operation: The foot-operated air hydraulic pump includes hydraulic oil-no extra purchases are needed. Press down to build pressure and release quickly, making your job more straightforward and efficient.

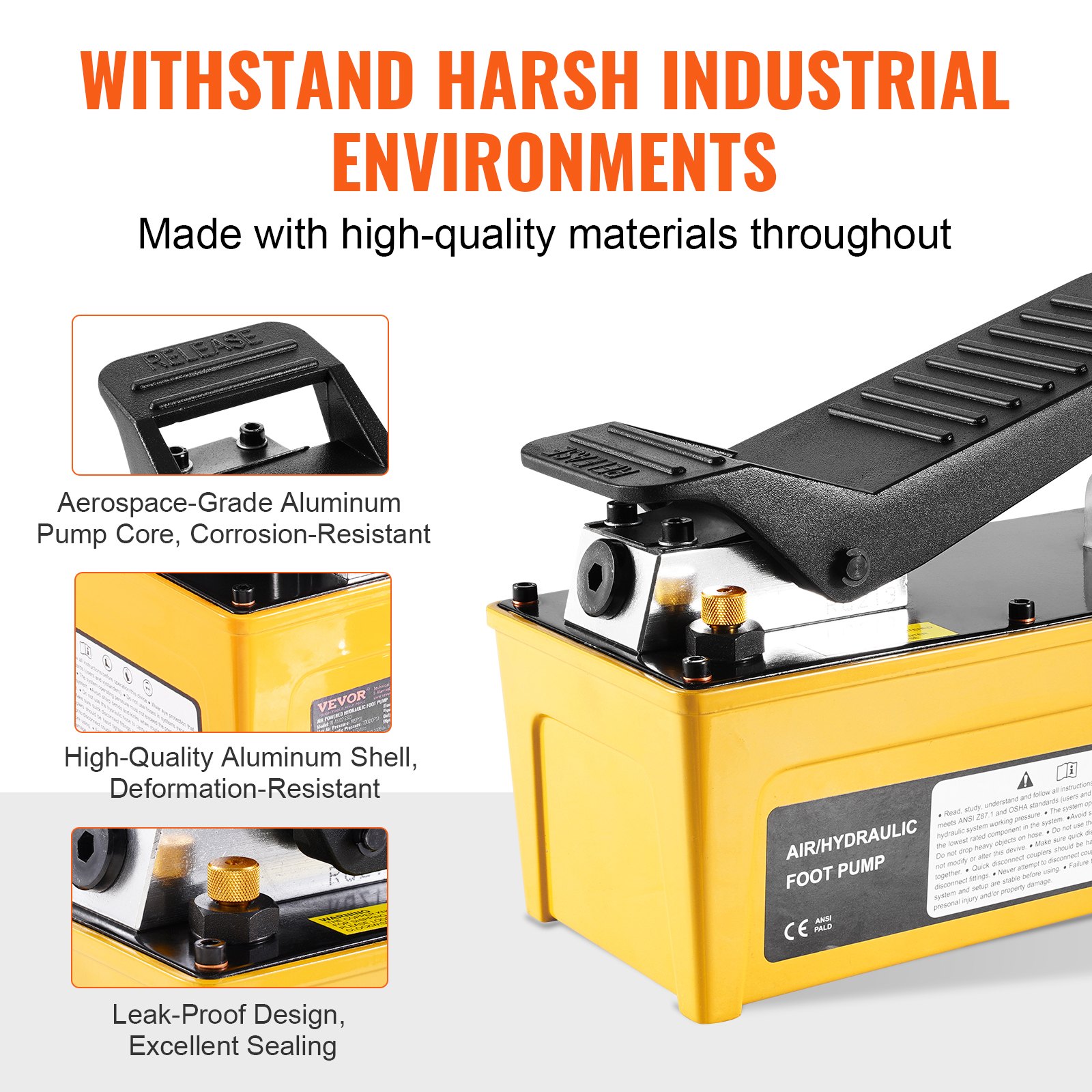

Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.

See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump

With or Without Controller: Without Controller

Description Specification Questions and Answers Reviews

10,000 PSI Air Hydraulic Pump - Durable & Powerful

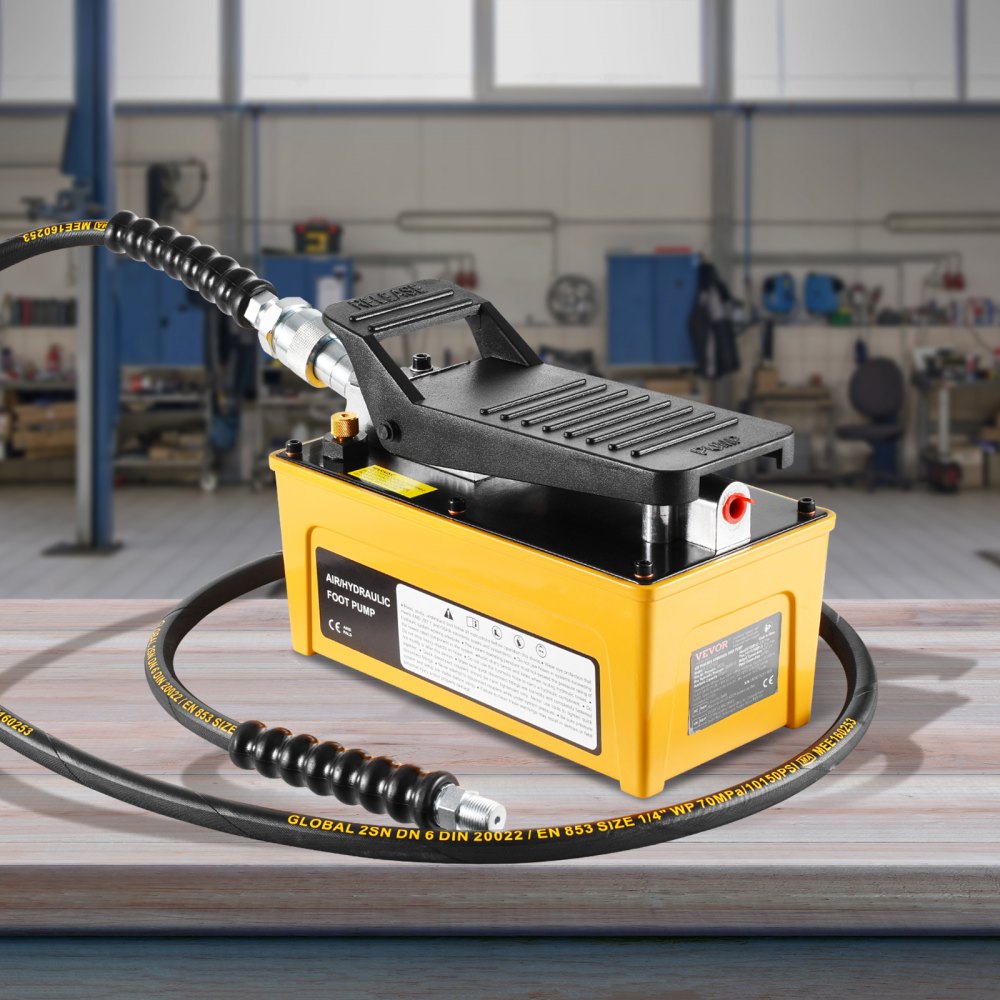

Get reliable power with our 10,000 PSI Air Hydraulic Pump. Built tough with a hard shell, long oil hose, and factory-filled with hydraulic oil (#13), it features easy controls, a shock-resistant base, and a quick setup. Ready for demanding jobs, it’s efficient and built to last.

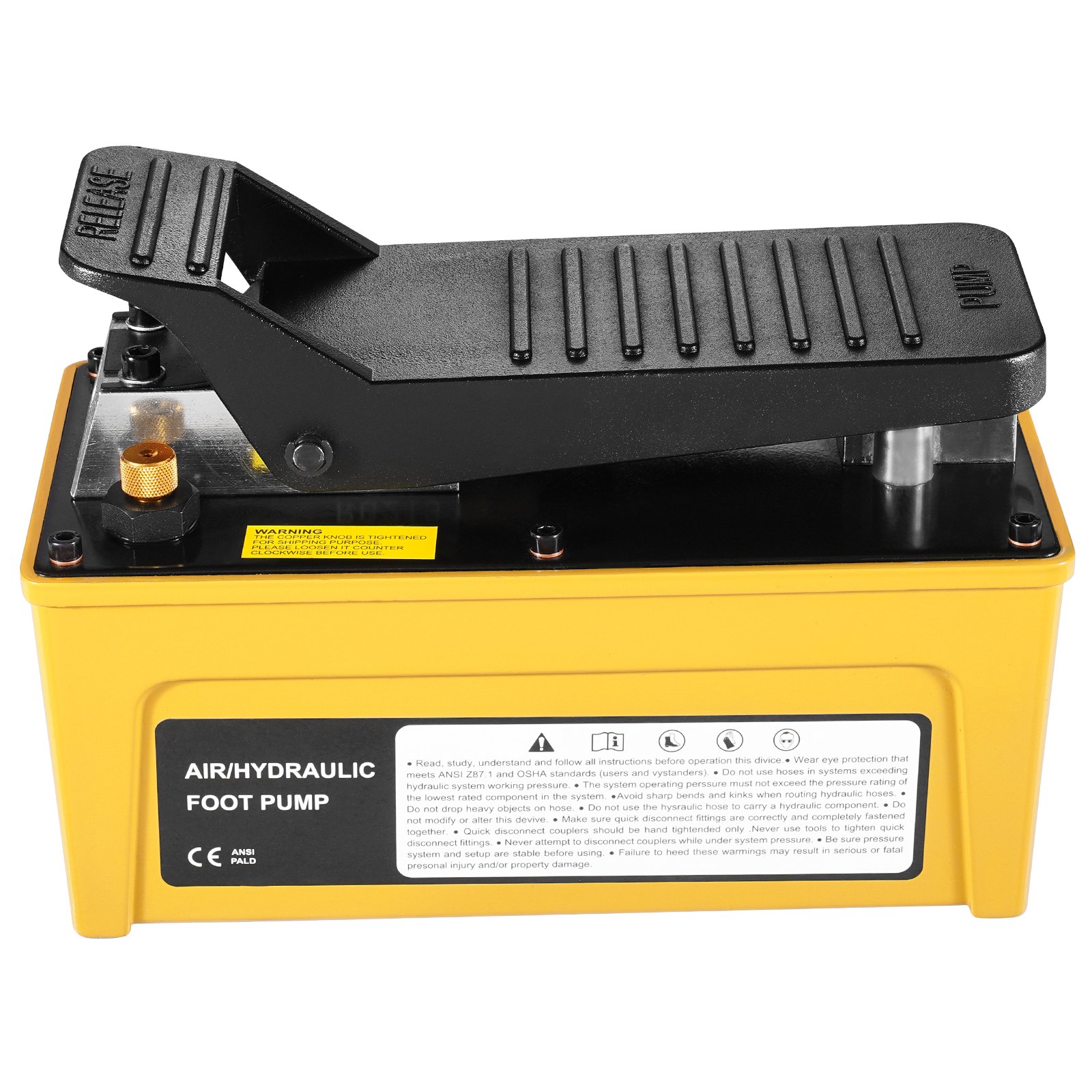

The hydraulic foot pump’s rugged outer shell protects the internal components like a champ. It’s pressure-resistant, corrosion-resistant and deformation-resistant in tough conditions. Factory-filled with hydraulic oil (#13), it ensures efficient, secure, and durable hydraulic operation.

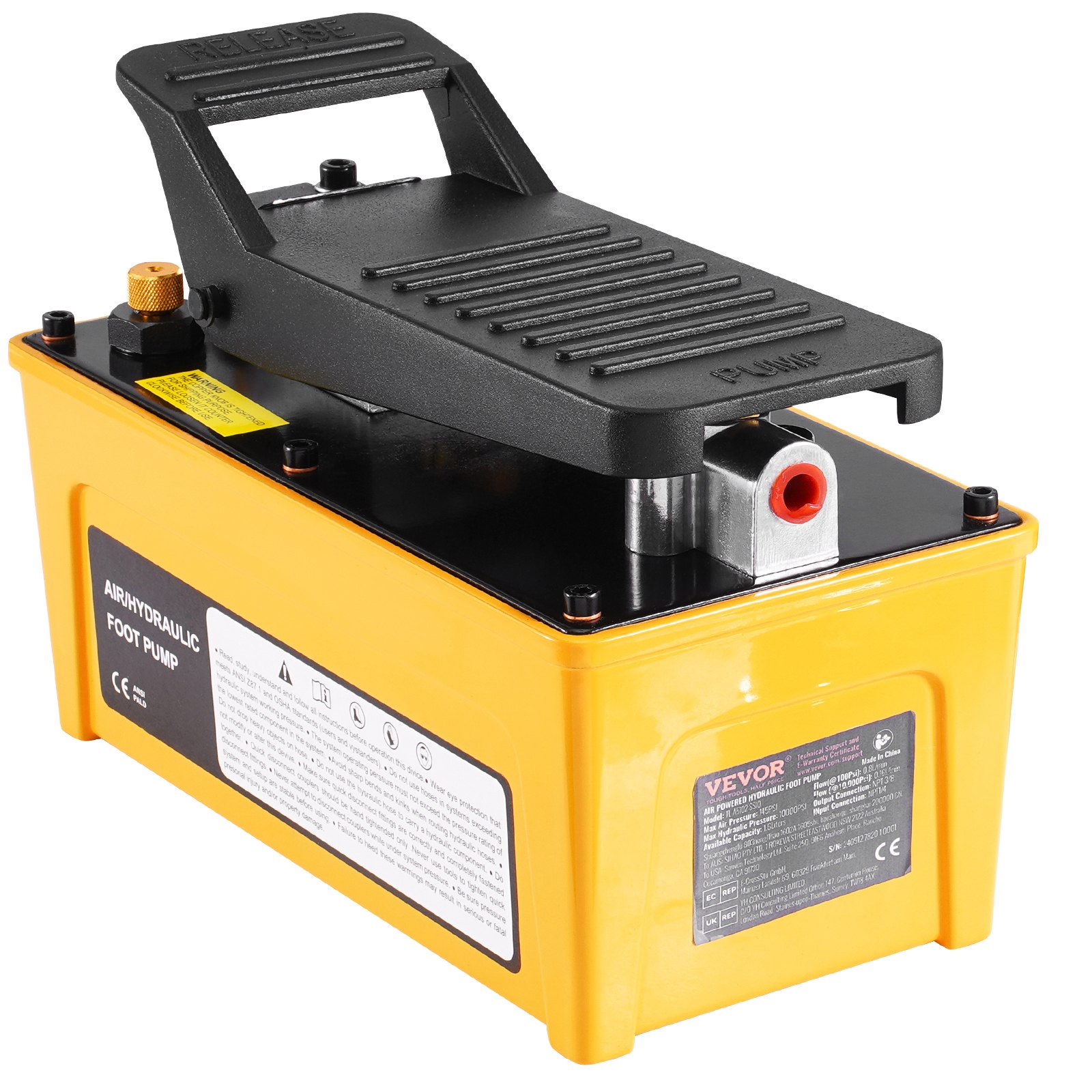

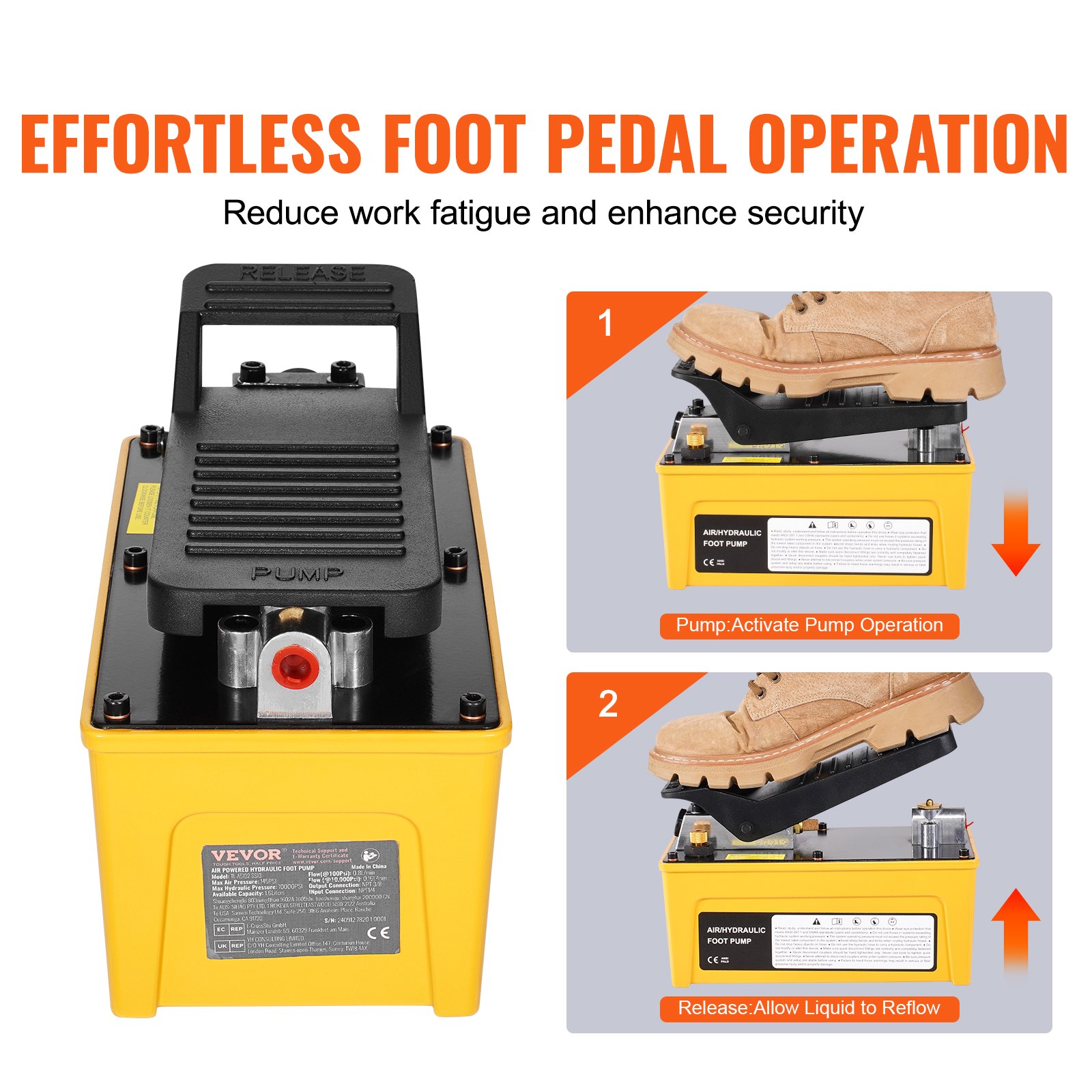

The operation of this air actuated treadle foot pump couldn’t be more straightforward. Two controls—“Pump” to start and “Release” to let the fluid flow back smoothly and precisely—will put you in complete control of your hydraulic system with minimal effort.

With two fixing screw holes at the bottom, you can secure this air hydraulic foot pump for steady, vibration-free use. It’s all about keeping your operations stable and efficient.

Just three simple steps and you’re all set! Remember, open the air vent for 5 minutes before getting started, then close it to keep things running smoothly.

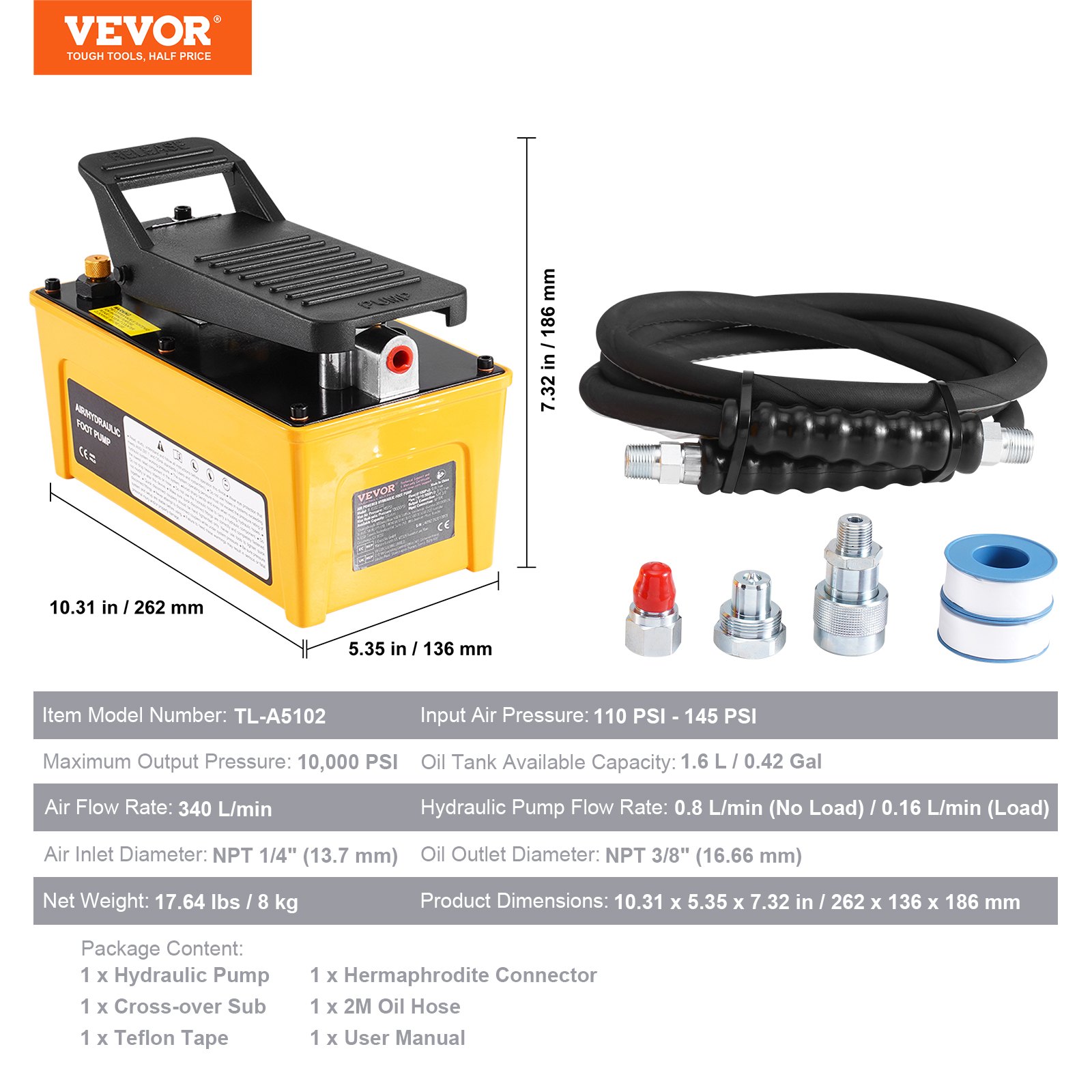

Specification

Item Model Number: TL-A5102

Input Air Pressure: 110 PSI - 145 PSI

Maximum Output Pressure: 10,000 PSI

Oil Tank Available Capacity: 1.6 L / 0.42 Gal

Air Flow Rate: 340 L/min

Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)

Air Inlet Diameter: NPT 1/4" (13.7 mm)

Oil Outlet Diameter: NPT 3/8" (16.66 mm)

Net Weight: 17.64 lbs / 8 kg

Product Dimensions: 10.31 x 5.35 x 7.32 in / 262 x 136 x 186 mm

Questions and Answers

Typical questions asked about products: Is the product durable? ...

Ask the First Question

Customer Reviews

4.7 Out of 5

Based on 35 reviews

Ratings by Features

Price 4.9
Quality 4.7
Features 4.7
Easy to Use 4.8
See More See Less

35 Review(s)

Clear filters

bee

mechanic

great product at the best price anywhere, this tool is as described and works great ,very handy to have in my shop

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

S H

Master

Just a good quality unit, well built , easy to use unlike this review system because it won’t let me submit until I have written a novel

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Rod

Mr.

This pump is a joke. No matter what it leaks oil all over my shop. I have tightened everything but it still leaks like a sieve..Poor design..

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Dan

Operator

Bought this to drive a 30T jack. Initially worked okay then blew a seal & refused to work. Ended up stripping it & rebuilding it. The internal pump body was out of alignment. Once rebuilt with fresh oil it worked fine, better than before.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Customer Service Reply: Hey, there. Thank you for reaching out to us and sharing your concerns. We are sorry to hear about your poor experience with us. We encourage you to visit our website and navigate to the "Contact Us" page, where you can find various ways to get in touch with our dedicated customer support team. Our professionals are well-equipped to assist you and will work diligently to provide you with a satisfactory resolution.

See More See Less

shop owner

I paired this pump with the CH-70 punch and it's an excellent match makes holes easy and fast! Great product would buy again!!

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Felix Lopez

owner

Pump works great, super easy install, lift speed is a little underwhelming, but otherwise is great for the value!

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Mkeithddc

Great Product

So I don't normally do reviews, but they sent me an email and a link so I figured I would this time So I never heard of this company before. Needed a port-a-power pump for a press tool which I also bought from Vevor. The pump works good, no leaks well built. The only issue I found is that the push on hydraulic fittings that come with this pump and that come with the 2 types of presses, they are not the same type. So I just had to order and extra of the one of the kind I decided to use. I would def recommend this press to others. Also shipping was fast

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Good to go

Reliable

Good Quality for general workshop use. Use on tyre changer and hydraulic crimper. We have purchased several of these for different purposes.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Millard smith

Exactly what we needed and smooth, fast transaction!

Exactly what we needed and smooth, fast transaction! Thanks for shipping to Hawaii!

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Mark

Great buy. Pumps fast

Works great. Way better than hand pumping my porta power set. Came with oil in it ready to use. Don't forget to loosen the breather cap/knob before using. I close it when I'm done using it, but you have to make sure you open it before pumping up your cylinders.

See More See Less
