VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head
KQYSJBTHSSBT4JDUMV0

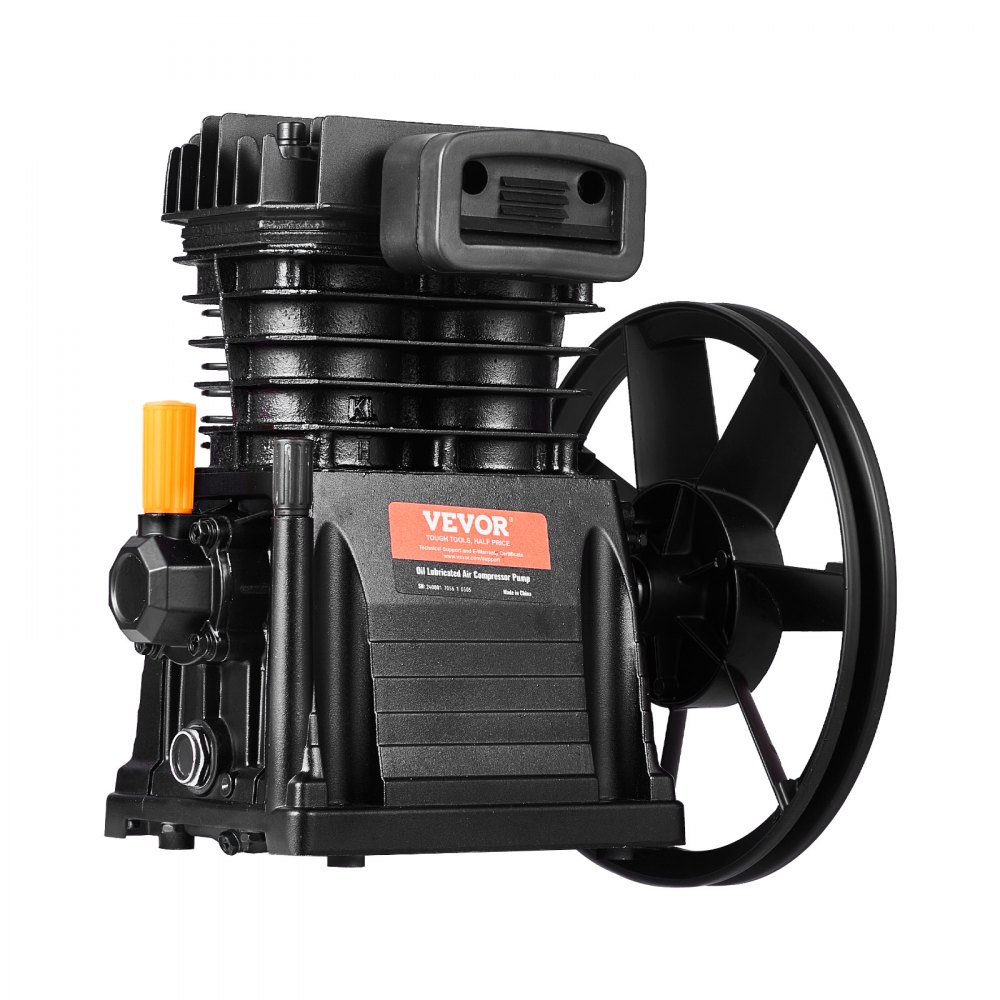

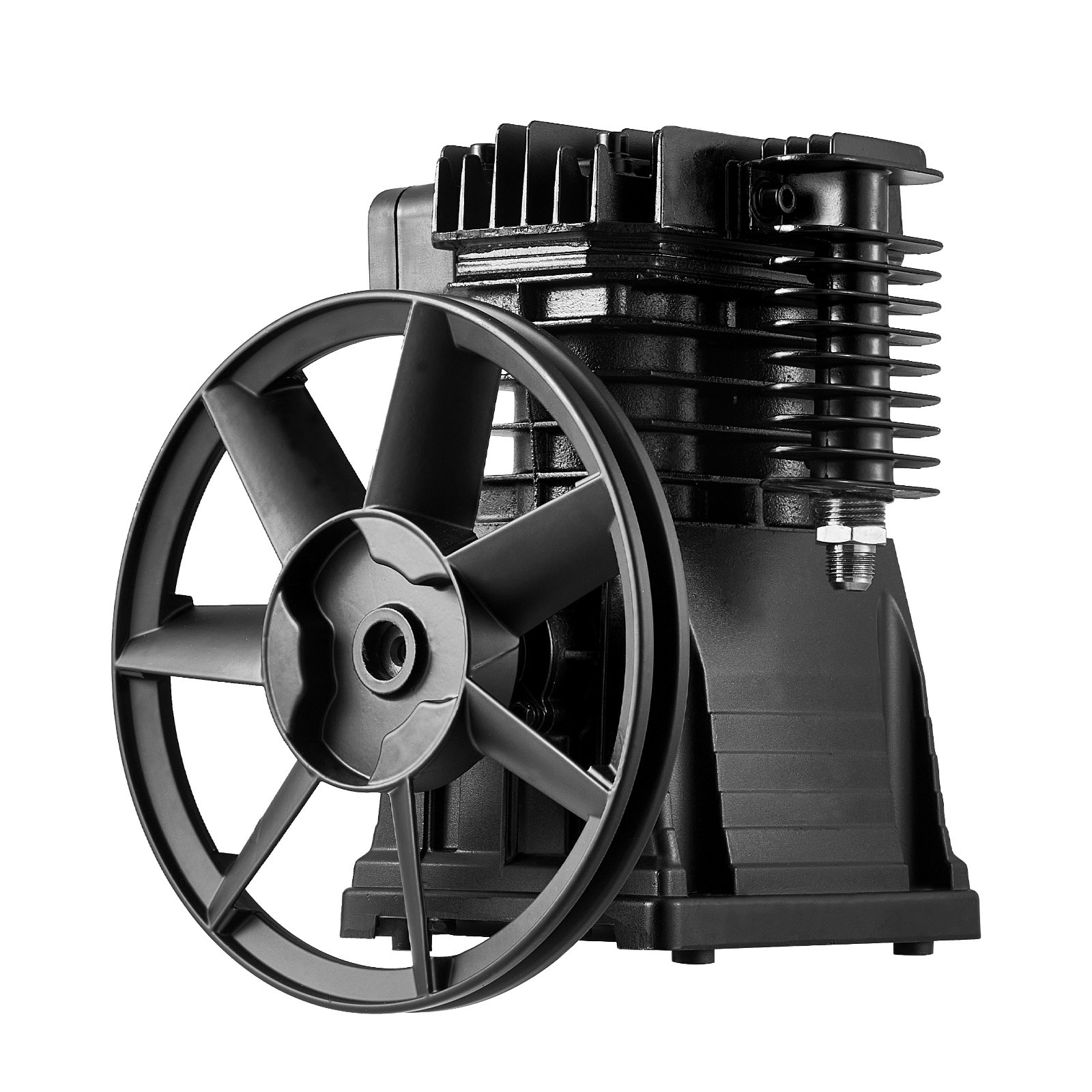

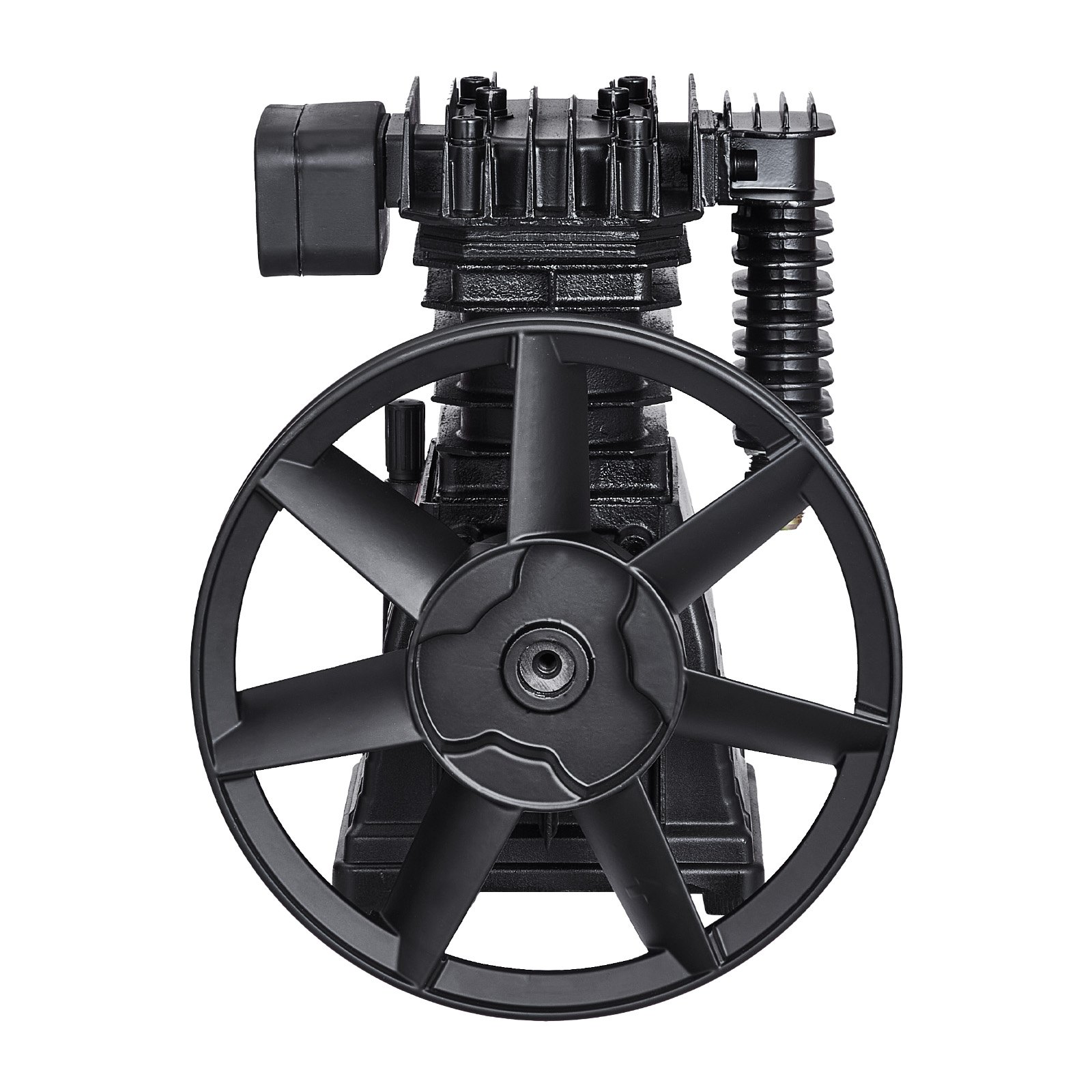

VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head

See All Customer Reviews
31 Reviews
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

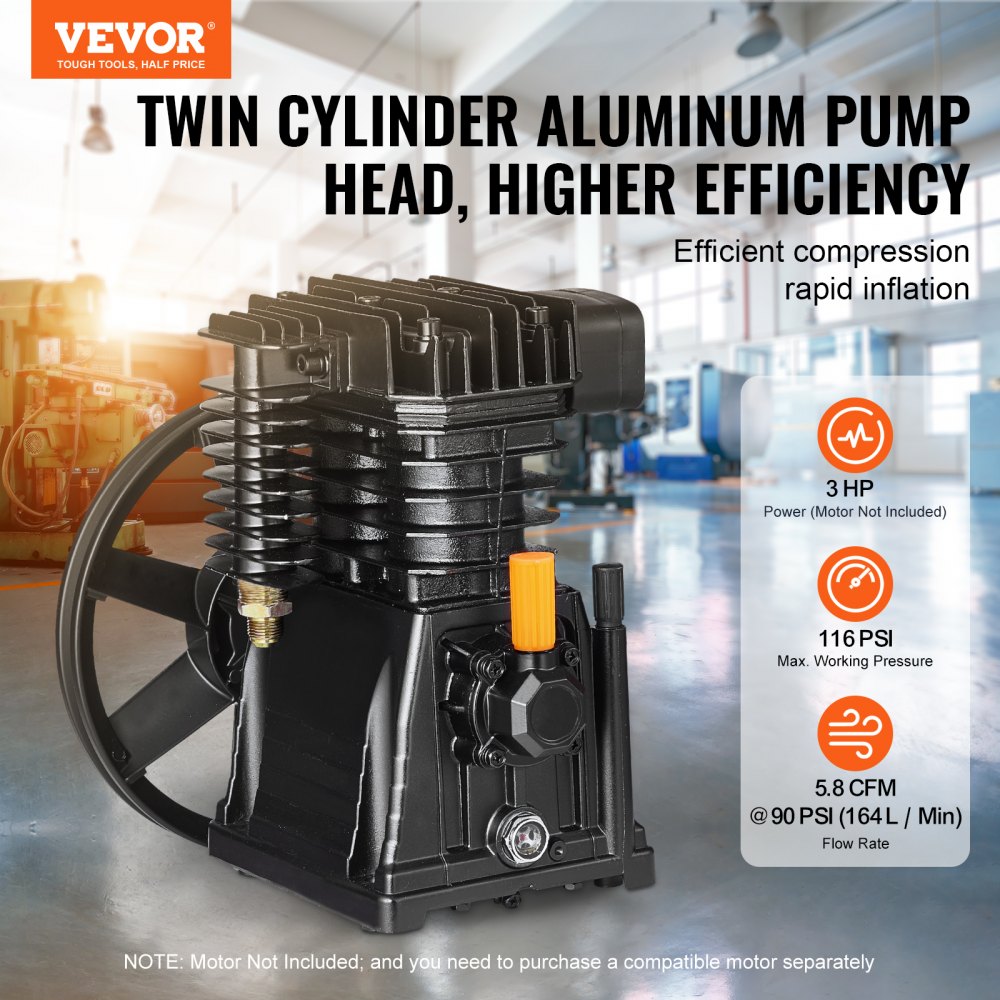

  • 3HP Air Compressor Pump Head: VEVOR 3HP twin-cylinder air compressor pump head features 5.8 CFM @ 90 PSI air delivery rate and 116PSI max working pressure, provides a continuous and sufficient air supply for a wide range of equipment, ideal for tire inflation, spray painting, woodworking, and more tasks. (NOTE: Motor Not Included)

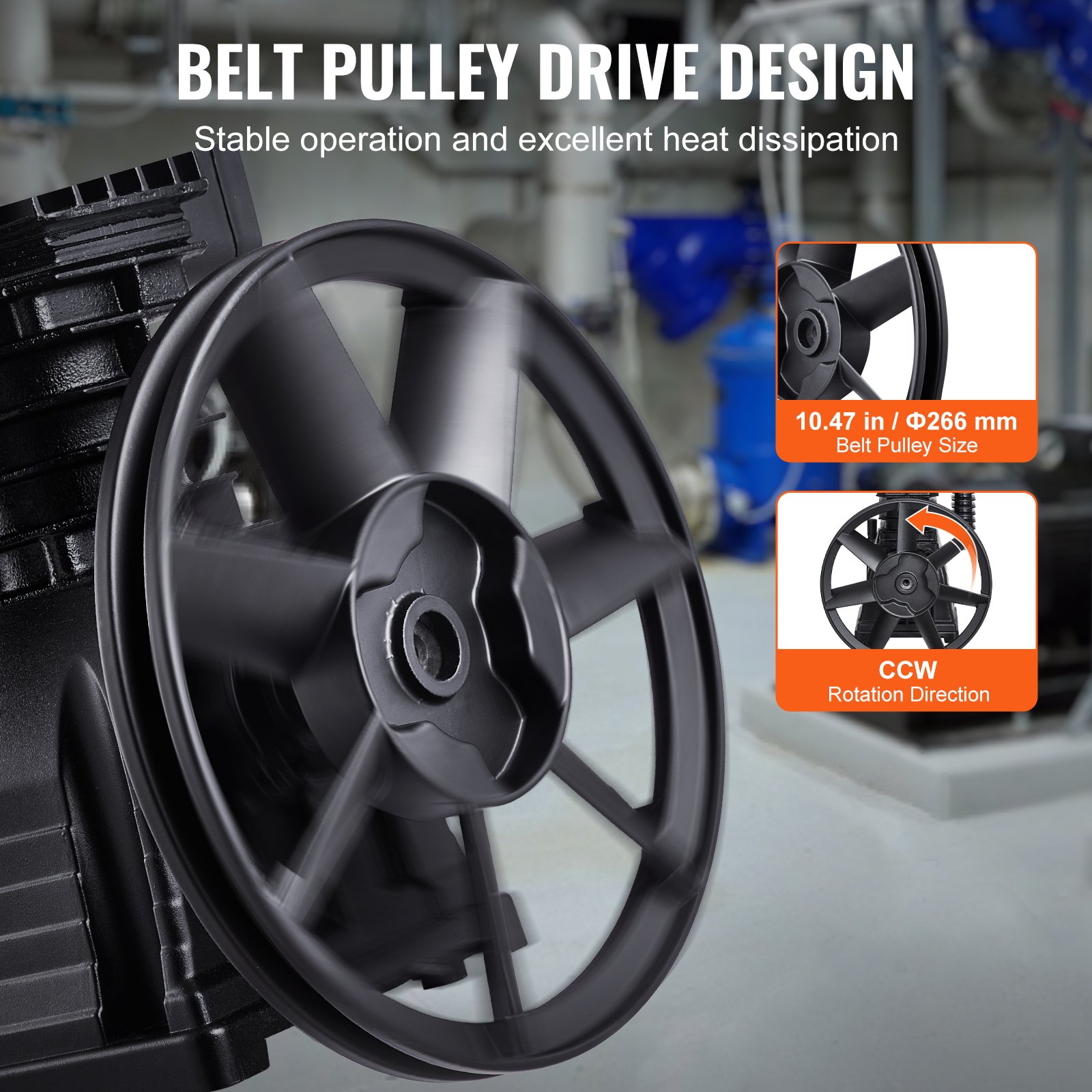

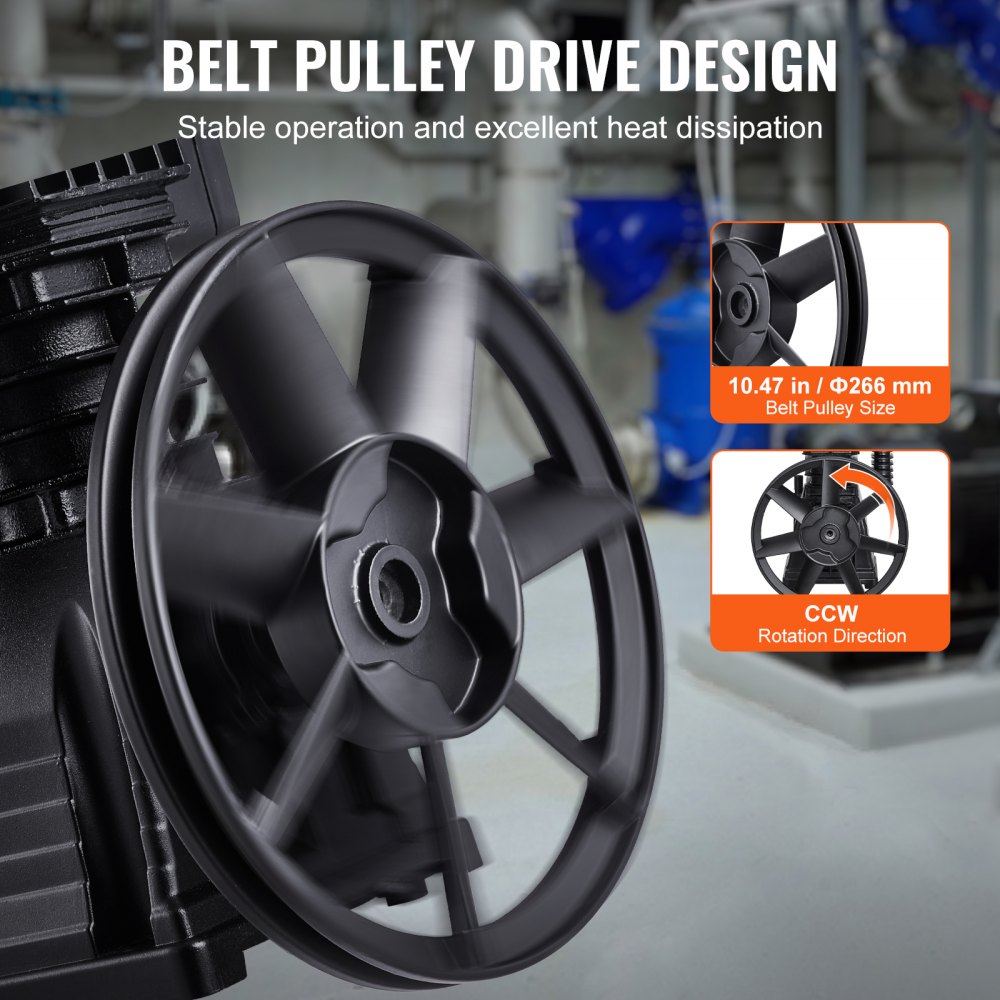

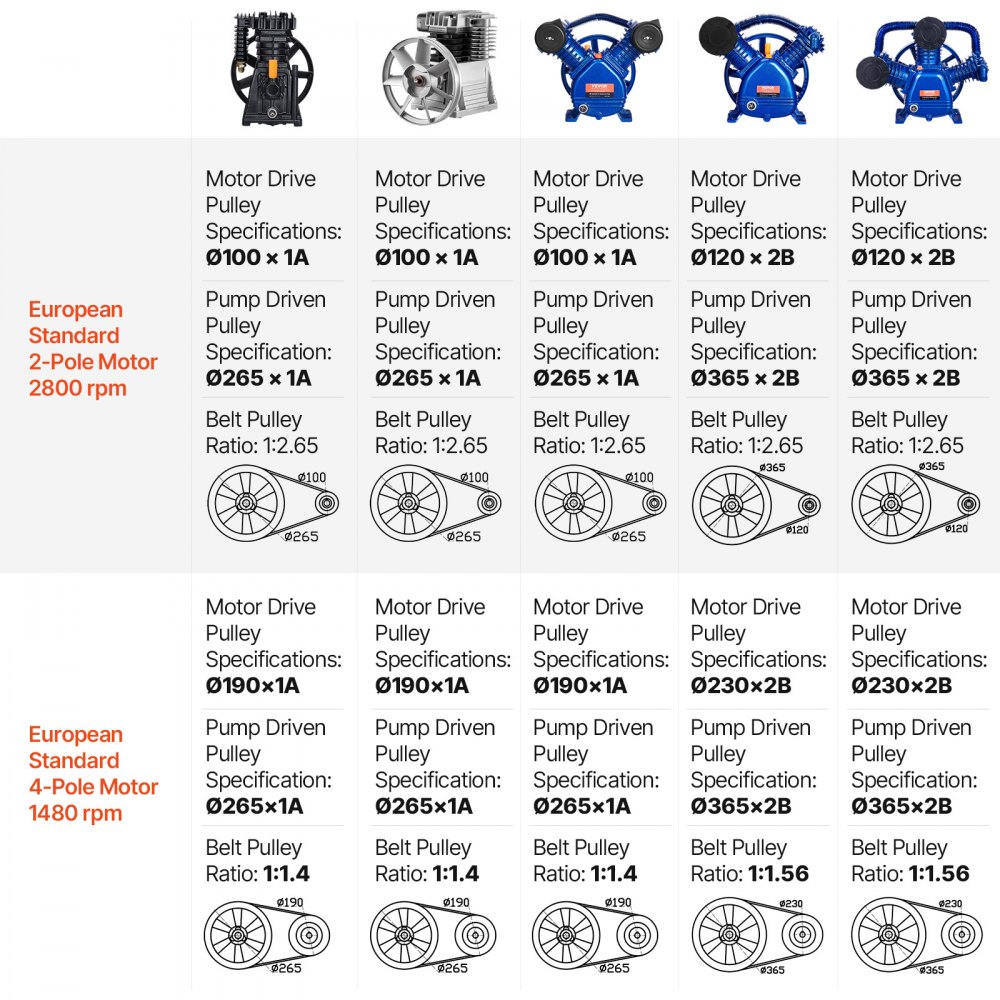

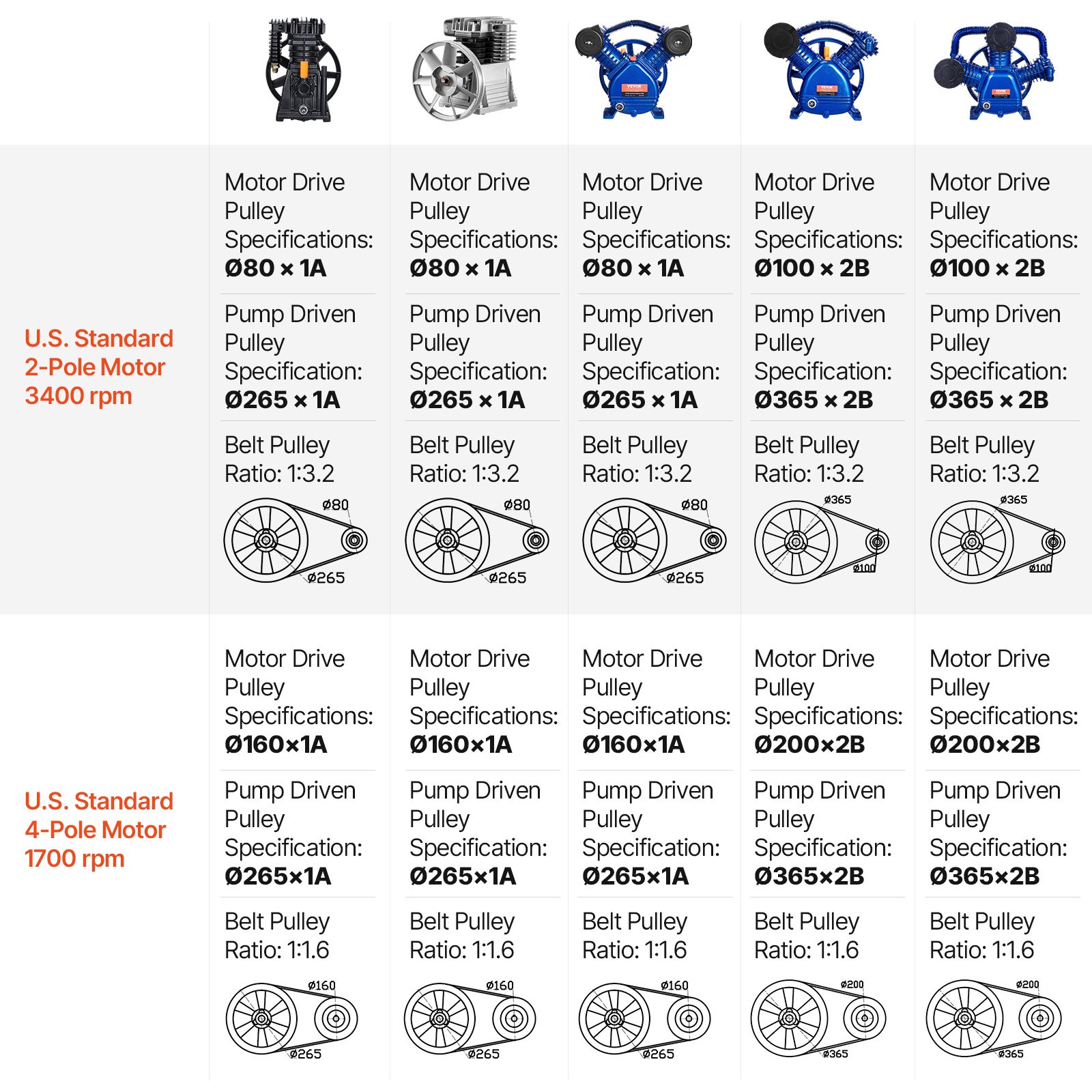

  • Proven Belt-Driven Design: Utilizing the proven belt-driven design to avoid bearing displacement, our air compressor piston pump provides efficient compression and smooth running. (Installation notes: When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.)

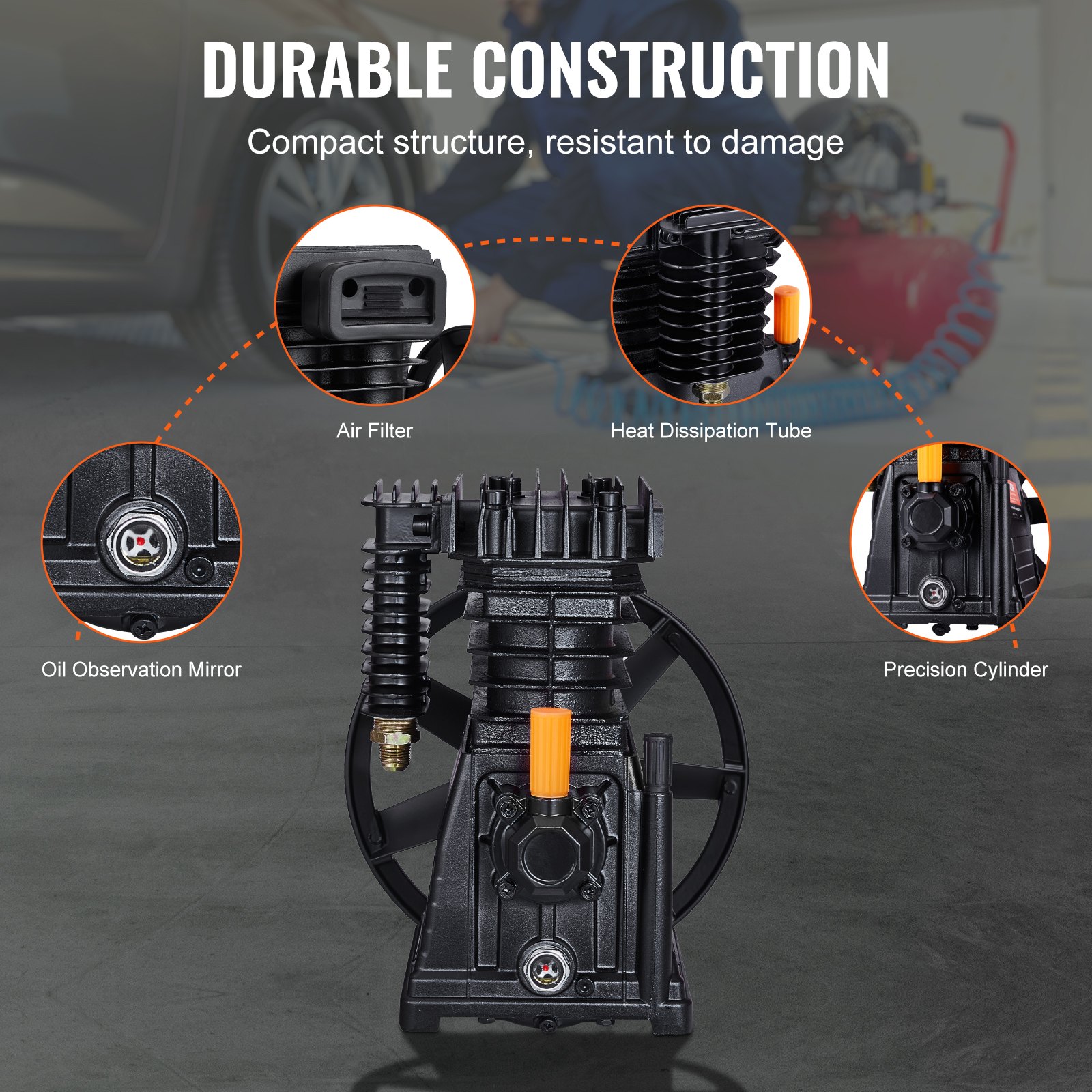

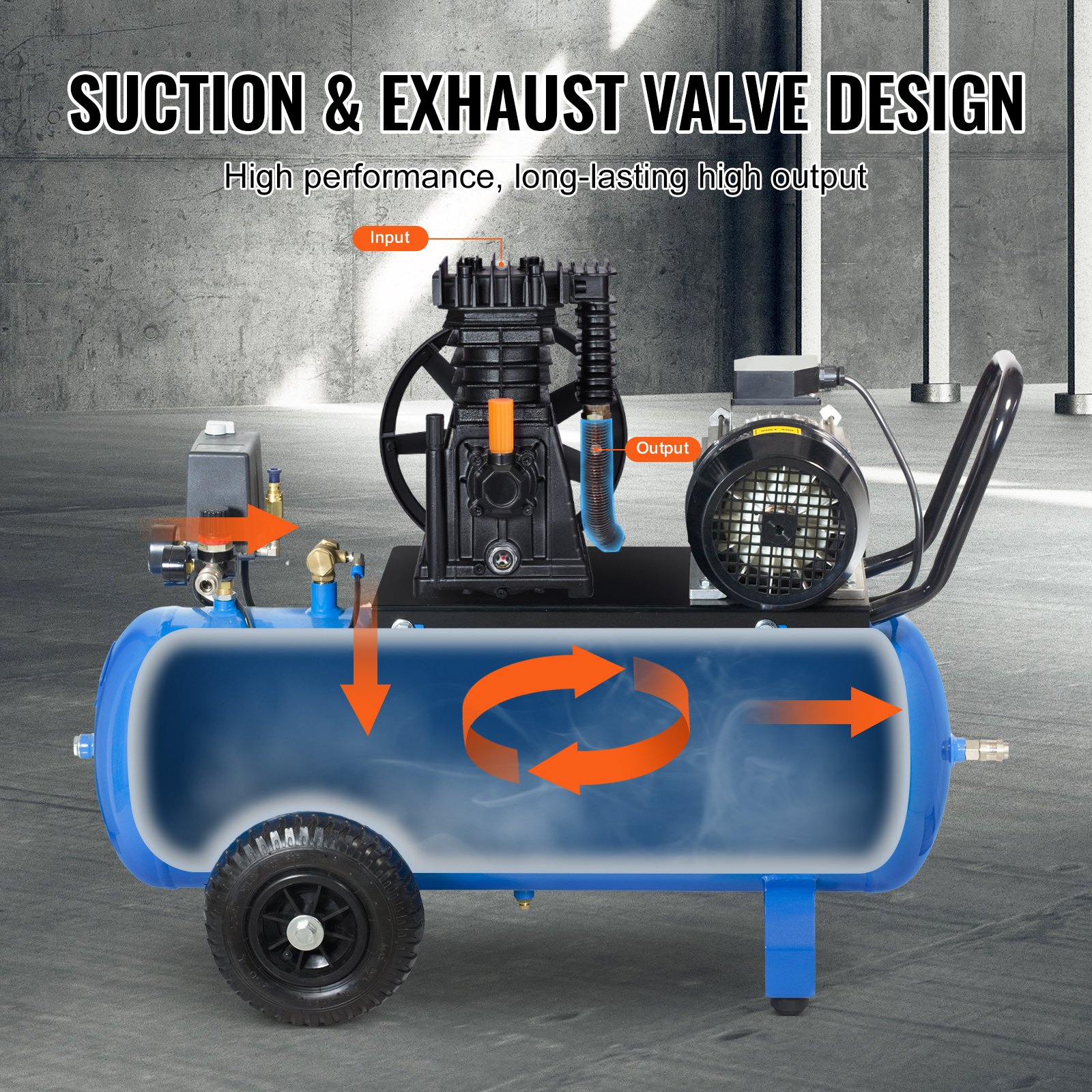

  • Superior Features: This single-stage air compressor pump features an high-quality intake and exhaust valve design, precision cylinder, efficient heat dissipation fins, and air filter to enhance stability and extend service life, and the convenient oil observation mirror allows users to easily monitor the oil level.
  • Durable and Efficient: The oil lubricated piston pump head is mainly made of high-quality aluminum ingot, offering excellent wear and damage resistance, and rapid heat dissipation. Coupled with its high efficiency and low energy consumption, it delivers powerful pneumatic performance while helping you save on operational costs.
  • Wide Applications: VEVOR 3HP air compressor pump head is widely used in chemical, light industry, textile, mining, construction, home decoration, woodworking shops, auto repair, etc. It delivers reliable compressed air to meet the demands of various equipment and tools, greatly enhancing your work efficiency.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air Compressor Pump Head 3HP 5.8CFM @ 90PSI Twin Cylinder Piston Pump Head
Description Specification Questions and Answers Reviews
Trust VEVOR Air Compressor Pump for Efficient Compression
VEVOR 3HP twin-cylinder air compressor pump head is your go-to solution for your pneumatic needs. It boasts an impressive air flow of 5.8 CFM @ 90 PSI, 116 PSI maximum working pressure and single-stage compression, delivering a steady and abundant air supply for a variety of applications.
Our oil-lubricated piston pump head features a belt-driven design that enhances efficient compression while delivering smooth operation. It promotes efficient heat dissipation, extends lifespan, and ensures consistent performance over time.
This compressor pump head features a seamless welding structure that offers excellent wear resistance and damage tolerance, making it capable of withstanding long-term use. It is equipped with an oil observation window, allowing users to easily monitor oil levels.
Ensuring that your compressor pump head replacement operates efficiently and safely is crucial. Following these simple precautions will help you maximize the pump head's performance and ensure its long-term stability.

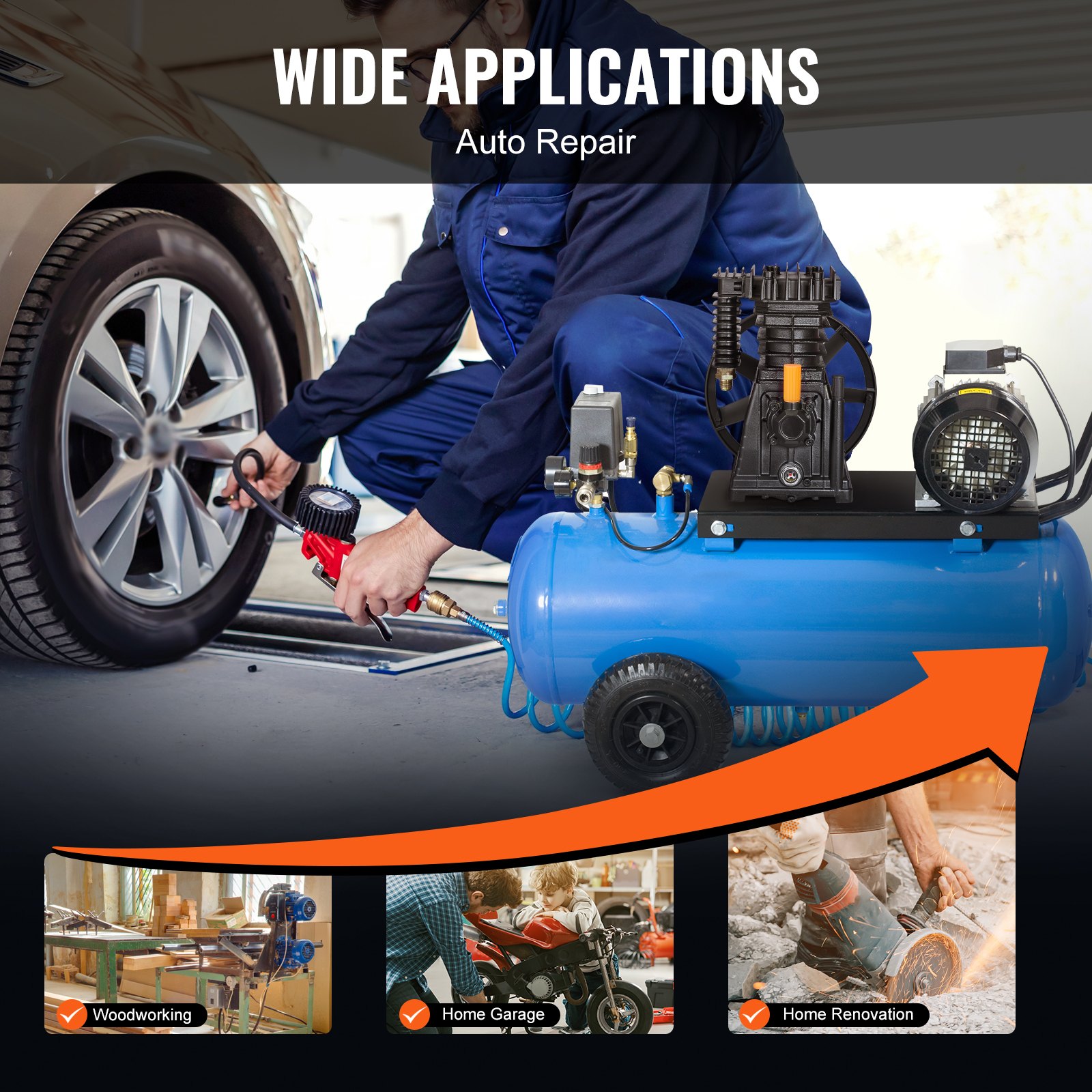

This twin-cylinder air compressor pump is widely applicable in auto repair, woodworking shops, home garages, renovation projects, and more. It provides reliable air supply to meet diverse inflation needs and boost work efficiency.

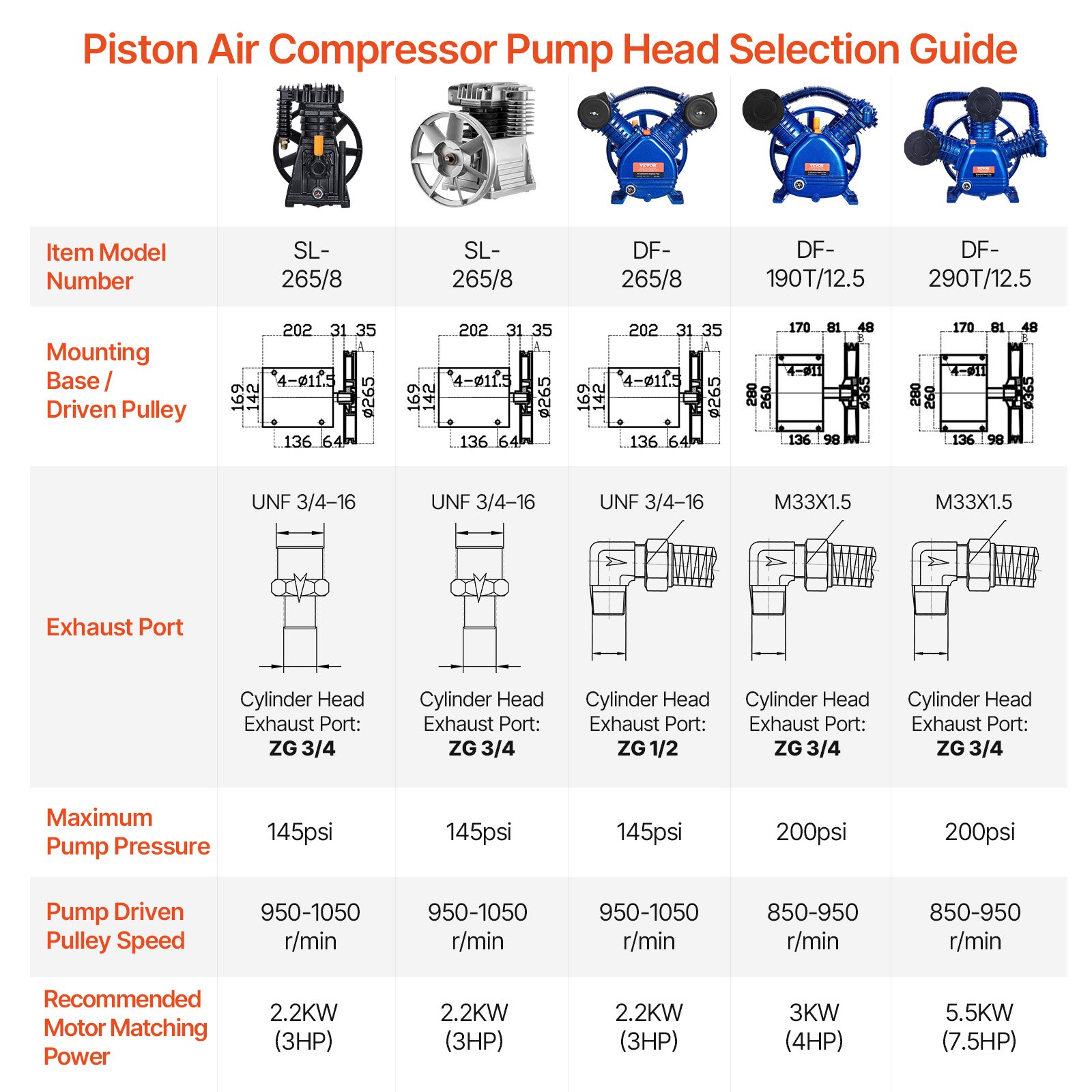

Specification

Item Model Number
SL-265/8
Power
3.0 HP
Number of Cylinders
2
Maximum Air Pressure
116 PSI
Flow Rate
5.8 CFM @ 90 PSI (164 L/Min)
Product Dimensions
11.8 x 10.4 x 13.2 in / 300 x 265 x 335 mm
Product Weight
21.6 lbs / 9.8 kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.5 Out of 5
Based on 31 reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
31 Review(s)
Clear filters
Eric Andersen Eric Andersen
Air compressor heads
Air compressor is nice and quiet but one of them shipped without the rubber isolation feet and intake filters. I've tried everything to get ahold of someone but they never get back to me
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Baird Baird
Happy customer
Great pump, quiet! Easy to wire up and install. Replaced a seized HF central pneumatic compressor. Needed to angle iron to mount it to the existing central pneumatic base, but fit quite easily.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Larry Larry
Owner
Overall you can tell the compressor pump is a cheaper pump however it does not even come close to the 11 cfm they claim. Will not keep up with a small 1/4 die grinder.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Russki Russki
Works Really Well
Decided to use unknown brand (at the time) compressor pump for my workshop. It arrived super fast , nicely packed. Assembled my workshop compressor and it works super nice. Mounted it on 60 gallon tank. What i love about it , that it doesnt get as hot as cast iron pump.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Mallory Ashton Lee Shavender Mallory Ashton Lee Shavender
Return
I actually need to return this, please if someone could contact me. I have already emailed once. Thank you. Mallory Shavender
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Mosteller Mosteller
It works and come complete with all parts needed.
On the lower priced ones it does not show an air filter so I paid a few bucks more for this one. It is an off size so I had to drill new mounting holes (surprise?). But it is working on my old U S General tank. I had to buy new pulley for the motor to keep the speed down and I had to remove the head and change it ( and the valve plates) around to make it fit and work. It takes longer to get to full pressure than the old pump but it does get there. I think I should have bought the V shape compressor ( a bit more expensive but should work better and last longer) But this one does make 120 PSI and does pump air. We will see.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Dan R. Dan R.
Quality control is lacking but good pump
To start with, when I inspected the pump, all the head bolts were loose and one was sticking out about an inch. I emailed the seller about torque settings and they said to tighten them. Made me question if the pump would explode when I brought it online. Fortunately after getting it running it is a quiet pump and builds air and recovers quickly. For the price, a good buy, but check the tightness of ALL the bolts prior to installing it. Gave it four stars for the quality control issues.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Marx1947 Marx1947
Good pipe of kit
Excellent value, quality, and performance I have to fill in the rest of this as they must have a certain number of words. Recently I bought arouter paid for it the got the order canceled owing to nonpayment so wrote that off and tried to buy another router but sold out every model. So double whammy no goods for payment and not able to buy another because sold out. My mate also ordered one but like me did not get it, sold out, paid though.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
metalmover metalmover
compressor
Pump was just what I needed. Works great. Minimal modifications. Runs all my air tools. Great to do business with. Thanks....
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Dave B. Dave B.
Chief cook and bottle washer.
Everything I purchase from Vevor has been high quality and worked well. This pump is no exception. It works well. The output tube that feeds the compressed air into the tank attaches lower on the pump than the original. You will probably have to buy 12" of 1/2" copper tubing and bend it to fit like I did. It's quite simple. I purchased a used 80 gallon compressor for $250.00. I replaced the pump and motor with ones I purchased at Vevor. I wound up with a brand new 80 gallon compressor for around $600.00, can't beat that. The only thing I would change about Vevor is the company they use to ship their goods. It took a month from when Vevor shipped the motor for me to receive it and I only received it after Rita from Vevors incredible customer service department called FedEx and apparently raised hell. Offering UPS as a shipping option would fix that.
