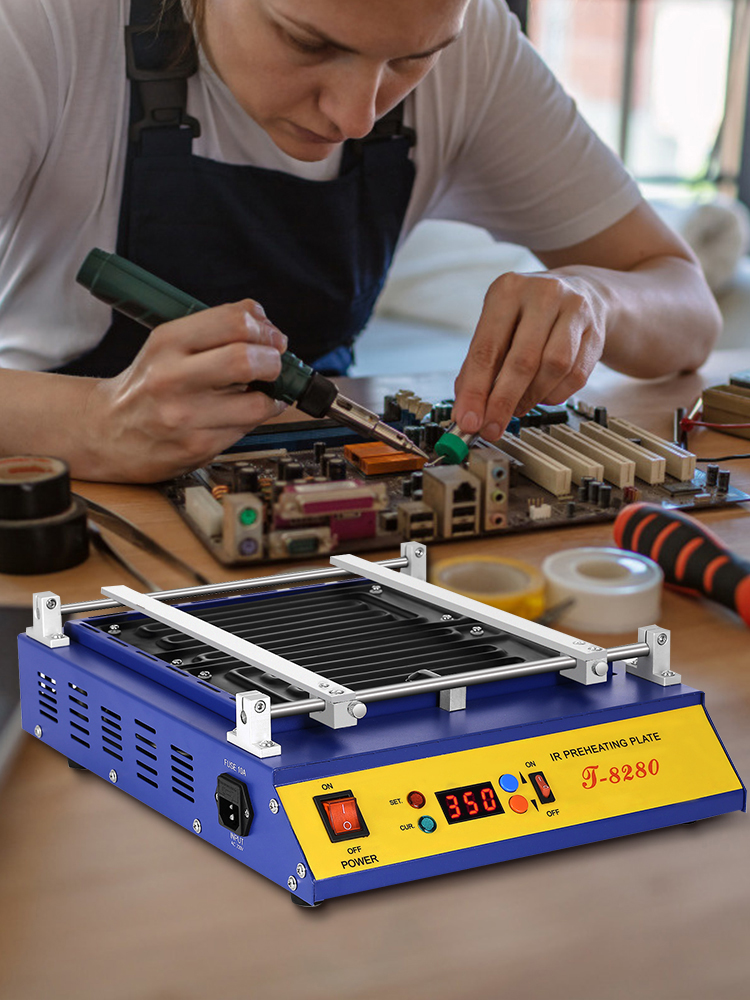

Ir Preheating Oven T8280 Rework Station Temp-set Button Cut Through 1600w
Rated 3.5/5 based on 11 customer reviews

Ir Preheating Oven T8280 Rework Station Temp-set Button Cut Through 1600w

Available: In Stock
Product SKU: T8280JRQ000000001V3
$129.99 AUD


Features & Details


  • [INTELLIGENT TEMPERATURE CONTROL]- The advanced PID intelligent temperature control ensures accurate temperature and even heat distribution and avoids IC damage due to the fast or uninterrupted warming up.
  • [LARGE WORKING BENCH]- The T-8280 soldering station machine's power is 1600W, and its working bench size is 280 x 270 mm / 11 x 10.6 inches. By the knob for adjustment and the slider guide, you can easily control the soldering's working size.
  • [GREAT HEAT DISSIPATION]- The preheating oven is being protected from overheating by an excellent cooling system inside the machine body. The built-in fans also allow it to work for a long time.
  • [EASY OPERATION]- The ergonomic design makes the BGA soldering machine practical and easily operated; the compact design and a small footprint allow the T-890 to be easily bench positioned, transported, or stored.
  • [WIDE APPLICATION]- The user-friendly operation interface and its perfect LCD monitor are quite suitable for heating lead/lead-PCB board and components, especially suitable for BGA, the SMD element PCB board.
  • This machine selects the infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely.
  • T-8280 can achieve to heat PCB board and component which contains lead or not, especially for the BGA and SMD parts.
  • Use infrared heat, easy to cut through, heat proportion, don't have sirocco flow. Don't shift the small components on the PCB board, ensure the welding quality.
  • This machine has 600W heating system, widely to 280x270mm.
  • Can use together with the handhold infrared welder T-835.
  • Easily operate, you can operate it through easy training.
Specifications:
  • Model: T-8280
  • Work Bench Size: 410×316mm
  • Rated Voltage and Frequency: AC 220v-230v 60Hz
  • Complete Machine Power: 1600W
  • Preheating Plate Power: 1500W
  • Preheating Plate Size: 280×270mm
  • Preheating Plate Temperature Adjustable: 0~450℃


Package Content:

Specification

  • Work Bench Size: 16.14'' x 12.44'' / 410 x 316 mm
  • Rated Voltage and Frequency: AC 110V 60/50Hz
  • Complete Machine Power: 1600W
  • Preheating Plate Power: 1500W
  • Preheating Plate Size: 11'' x 10.6'' / 280 x 270 mm
  • Preheating Plate Temperature Adjustable: 32℉ - 842℉ (0~450℃)
  • Weight: 7.1 kg / 15.65 lbs

Package Content

  • 1 x Preheating plate main body
  • 1 x Temperature sensor
  • 1 x PCB board holder
  • 1 x Power line


Features & Details


  • [INTELLIGENT TEMPERATURE CONTROL]- The advanced PID intelligent temperature control ensures accurate temperature and even heat distribution and avoids IC damage due to the fast or uninterrupted warming up.
  • [LARGE WORKING BENCH]- The T-8280 soldering station machine's power is 1600W, and its working bench size is 280 x 270 mm / 11 x 10.6 inches. By the knob for adjustment and the slider guide, you can easily control the soldering's working size.
  • [GREAT HEAT DISSIPATION]- The preheating oven is being protected from overheating by an excellent cooling system inside the machine body. The built-in fans also allow it to work for a long time.
  • [EASY OPERATION]- The ergonomic design makes the BGA soldering machine practical and easily operated; the compact design and a small footprint allow the T-890 to be easily bench positioned, transported, or stored.
  • [WIDE APPLICATION]- The user-friendly operation interface and its perfect LCD monitor are quite suitable for heating lead/lead-PCB board and components, especially suitable for BGA, the SMD element PCB board.
  • This machine selects the infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely.
  • T-8280 can achieve to heat PCB board and component which contains lead or not, especially for the BGA and SMD parts.
  • Use infrared heat, easy to cut through, heat proportion, don't have sirocco flow. Don't shift the small components on the PCB board, ensure the welding quality.
  • This machine has 600W heating system, widely to 280x270mm.
  • Can use together with the handhold infrared welder T-835.
  • Easily operate, you can operate it through easy training.
Specifications:
  • Model: T-8280
  • Work Bench Size: 410×316mm
  • Rated Voltage and Frequency: AC 220v-230v 60Hz
  • Complete Machine Power: 1600W
  • Preheating Plate Power: 1500W
  • Preheating Plate Size: 280×270mm
  • Preheating Plate Temperature Adjustable: 0~450℃


Package Content:

Specification

  • Work Bench Size: 16.14'' x 12.44'' / 410 x 316 mm
  • Rated Voltage and Frequency: AC 110V 60/50Hz
  • Complete Machine Power: 1600W
  • Preheating Plate Power: 1500W
  • Preheating Plate Size: 11'' x 10.6'' / 280 x 270 mm
  • Preheating Plate Temperature Adjustable: 32℉ - 842℉ (0~450℃)
  • Weight: 7.1 kg / 15.65 lbs

Package Content

  • 1 x Preheating plate main body
  • 1 x Temperature sensor
  • 1 x PCB board holder
  • 1 x Power line
