SUNKKO 709AD Pulse Spot Welder Solder Welding Machine for 18650 Battery 3.2KW
Rated 3.5/5 based on 11 customer reviews

SUNKKO 709AD Pulse Spot Welder Solder Welding Machine for 18650 Battery 3.2KW

Available: Out of Stock
Product SKU: DHJ709AD3IN1DCDHJV3
$299.99 AUD
Successful pre-order.Thanks for contacting us!

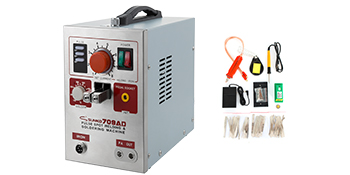

709AD Spot Welding Machine
709AD is an upgrade battery spot welder of the traditional 709A series. It combines spot welding(fixed & mobile welding way) and anti-static soldering function. The micro-computer controlled product features high precision, high reliability, and power-saving. With this very machine, your work efficiency will significantly get improved and suitable for beginners to use.
  • Premium Material
  • Portable Welding Pen
  • LED Light Illuminated
  • Good Heat Dissipation

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Premium Material
Constructed with high-strength steel and micro-computer chips, the battery welder is accurate & durable. Improve integrity on welding.
Portable Welding Pen
With a mobile welding pen, the welding machine makes welding more flexible, enlarges your welding area, and provides convenience.
LED Light Illuminated
With 2 LED lights under a fixed spot welding head, it is easy to light the welding operation for some low luminance environment.

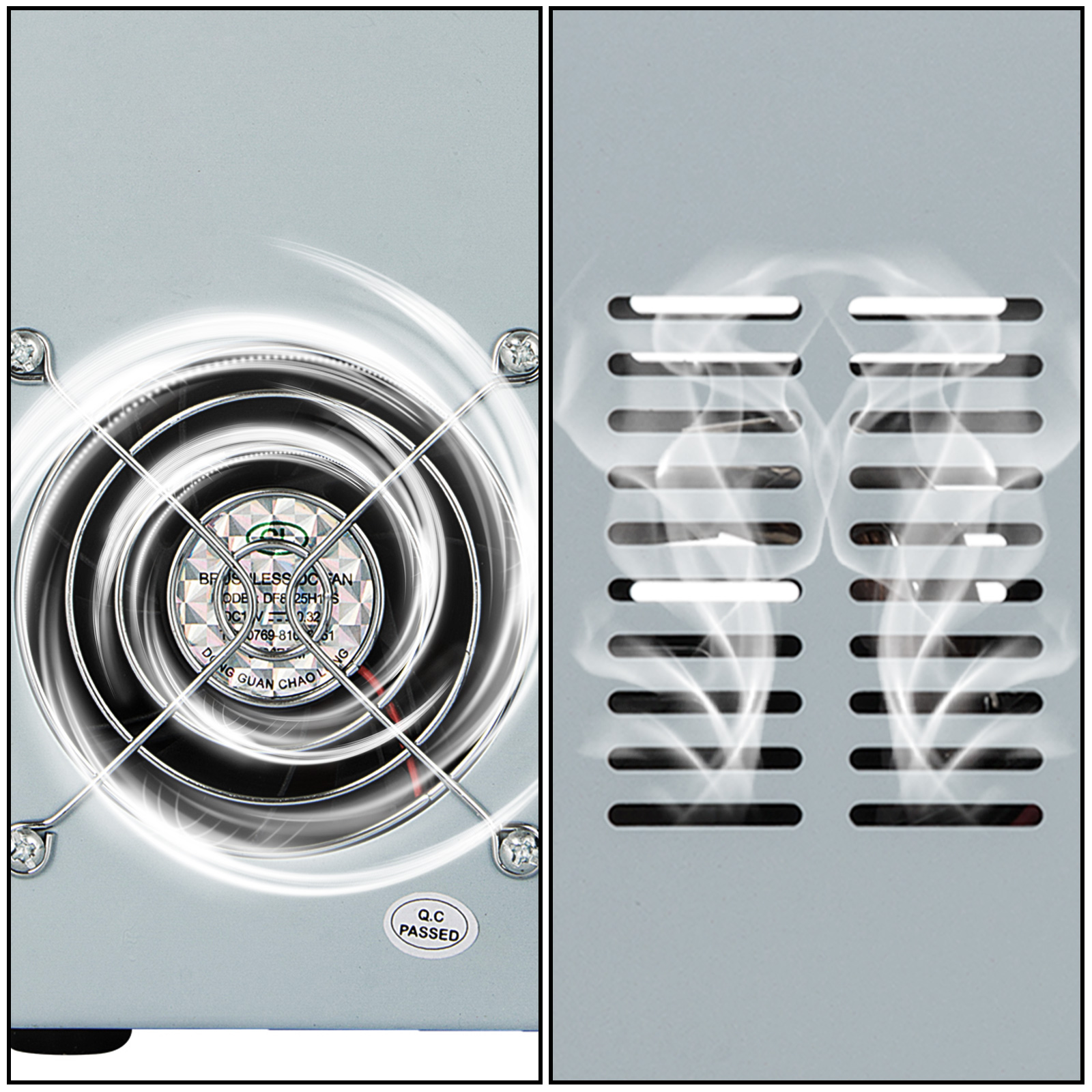

Good Heat Dissipation
The built-in strong automatic cooling fan can prevent over-heat of the machine and effectively extend its working time.
Additional Accessory
The battery pulse spot welder comes with a complete accessory for your work, including one plated nickel set and one pure nickel set.
Broad Application
It is perfect for welding wire of protection circuit board for battery packs and integrated circuit soldering.
Specifications
  • Spot Welding Parameters
  • Model: 709AD
  • Power Supply: AC 220V, 50Hz
  • Power Max.: 3.2 KW
  • Current: 50-800 A
  • Time of Double Pulse(Instantaneous Welding Time): 1~10 ms(adjustable, by adjusting the welding current knob)
  • Time of Four Pulses(Instantaneous Welding Time): 2~20 ms (adjustable)
  • Time of Eight Pulses (Instantaneous Welding Time): 8~80 ms (adjustable)
  • Welding Pin Range: 5-6 mm
  • Welding Pressure Adjust: 300-750g
  • Welding Distance: Adjustable
  • Welding Thickness(Fixed Welder): 0.05-0.30 mm
  • Welding Thickness(Mobile Gun): 0.05-0.5 mm
  • Pulse Quantity Selection: 2-18
  • Soldering Parameters
  • Soldering Iron Temperature: 150℃-500℃
  • Constant Temperature Accuracy: +/-5℃
  • Soldering Pen Power: 50W
  • Temperature Rise: 6-8s
  • Cooling Fan: Yes
  • LED Light: Yes

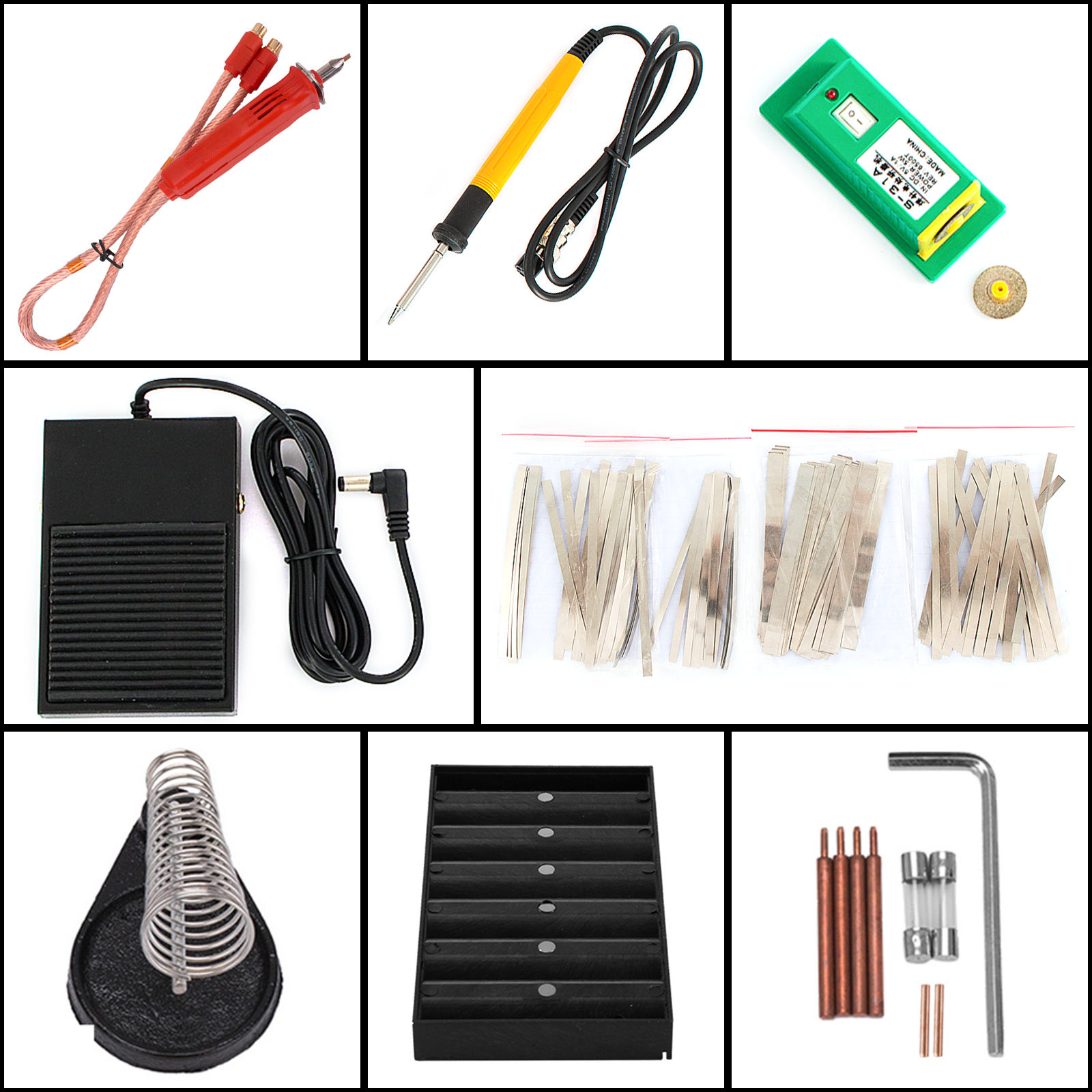

Package Content
  • 1 x Spot Welder Machine
  • 1 x Mobile Welding Pen
  • 1 x Soldering Pen
  • 1 x Foot Controller
  • 1 x Soldering Stand
  • 1 x Electric Grinding Machine
  • 1 x Battery Holder
  • 1 x Welding Pins Kit
  • 1 x Plated Nickle Set(0.1*4*100 mm; 0.15*8*100 mm)
  • 1 x User Manual

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
709AD Spot Welding Machine
709AD is an upgrade battery spot welder of the traditional 709A series. It combines spot welding(fixed & mobile welding way) and anti-static soldering function. The micro-computer controlled product features high precision, high reliability, and power-saving. With this very machine, your work efficiency will significantly get improved and suitable for beginners to use.
  • Premium Material
  • Portable Welding Pen
  • LED Light Illuminated
  • Good Heat Dissipation
Premium Material
Constructed with high-strength steel and micro-computer chips, the battery welder is accurate & durable. Improve integrity on welding.
Portable Welding Pen
With a mobile welding pen, the welding machine makes welding more flexible, enlarges your welding area, and provides convenience.
LED Light Illuminated
With 2 LED lights under a fixed spot welding head, it is easy to light the welding operation for some low luminance environment.
Good Heat Dissipation
The built-in strong automatic cooling fan can prevent over-heat of the machine and effectively extend its working time.
Additional Accessory
The battery pulse spot welder comes with a complete accessory for your work, including one plated nickel set and one pure nickel set.
Broad Application
It is perfect for welding wire of protection circuit board for battery packs and integrated circuit soldering.
Package Content
  • 1 x Spot Welder Machine
  • 1 x Mobile Welding Pen
  • 1 x Soldering Pen
  • 1 x Foot Controller
  • 1 x Soldering Stand
  • 1 x Electric Grinding Machine
  • 1 x Battery Holder
  • 1 x Welding Pins Kit
  • 1 x Plated Nickle Set(0.1*4*100 mm; 0.15*8*100 mm)
  • 1 x User Manual
Specifications
  • Spot Welding Parameters
  • Model: 709AD
  • Power Supply: AC 220V, 50Hz
  • Power Max.: 3.2 KW
  • Current: 50-800 A
  • Time of Double Pulse(Instantaneous Welding Time): 1~10 ms(adjustable, by adjusting the welding current knob)
  • Time of Four Pulses(Instantaneous Welding Time): 2~20 ms (adjustable)
  • Time of Eight Pulses (Instantaneous Welding Time): 8~80 ms (adjustable)
  • Welding Pin Range: 5-6 mm
  • Welding Pressure Adjust: 300-750g
  • Welding Distance: Adjustable
  • Welding Thickness(Fixed Welder): 0.05-0.30 mm
  • Welding Thickness(Mobile Gun): 0.05-0.5 mm
  • Pulse Quantity Selection: 2-18
  • Soldering Parameters
  • Soldering Iron Temperature: 150℃-500℃
  • Constant Temperature Accuracy: +/-5℃
  • Soldering Pen Power: 50W
  • Temperature Rise: 6-8s
  • Cooling Fan: Yes
  • LED Light: Yes
