3 Axis Cnc Router Kit 1610 2500mw Injection Molding Material With Laser Engraver
Rated 3.5/5 based on 11 customer reviews

3 Axis Cnc Router Kit 1610 2500mw Injection Molding Material With Laser Engraver

Available: In Stock
Product SKU: DKJ3Z1610DKJ2500MV3
$238.99 AUD
Lowest Price Guaranteed
Found a cheaper option ?

This VEVOR product has the lowest price on all online sales platforms. If you find the same product at a lower price on other websites (Amazon or eBay), don't hesitate to get in touch with our customer service staff, and we will provide you with that lower price.

Submitted successfully. Thank you for contacting us

Features & Details

  • [PREMIUM QUALITY]- Made of 2020 aluminum profiles and black injection molding material for Long-term use and high precision. The working travel of this machine is 160(X)x100(Y)x40(Z)mm.
  • [EASE OF USE]- Easy to assemble according to the instructions. Simply connect to computers via USB port, and controlled by GRBL. Laser engraving can be achieved with Minilaser software. Supports windows XP SP3, win7, win8, win10,(32/64) and Linux system.
  • [CONVENIENT CONTROL]- Comes with an ingenious GRBL control board, featuring dual Y-axis, four-axis drive and full functionality, which can easily achieve simple engraving.
  • [HIGH PERFORMANCE]- Equipped with T8 screw rods driving units, three 42 stepper motors, and a 775 (12-36V)24V spindle motor with rotational speed of 10000r/min. Also with an extra 2.5W laser, whose wavelength is 450nm.
  • [VERSATILE USE]- Used to engrave all types of plastics, soft aluminum, acrylics, PVCs, PCBs, etc. The laser is capable of engraving plastic, leather and other soft, non-reflective materials.
Note: The manual, software, list and assembly video are stored in the USB. More details, please refer to the USB.
Product Description
CNC 1610 DIY Engraving Machine With Laser Engraver
This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
  • Premium Quality
  • Ease Of Use
  • Convenient Control
  • High Performance
Key Features

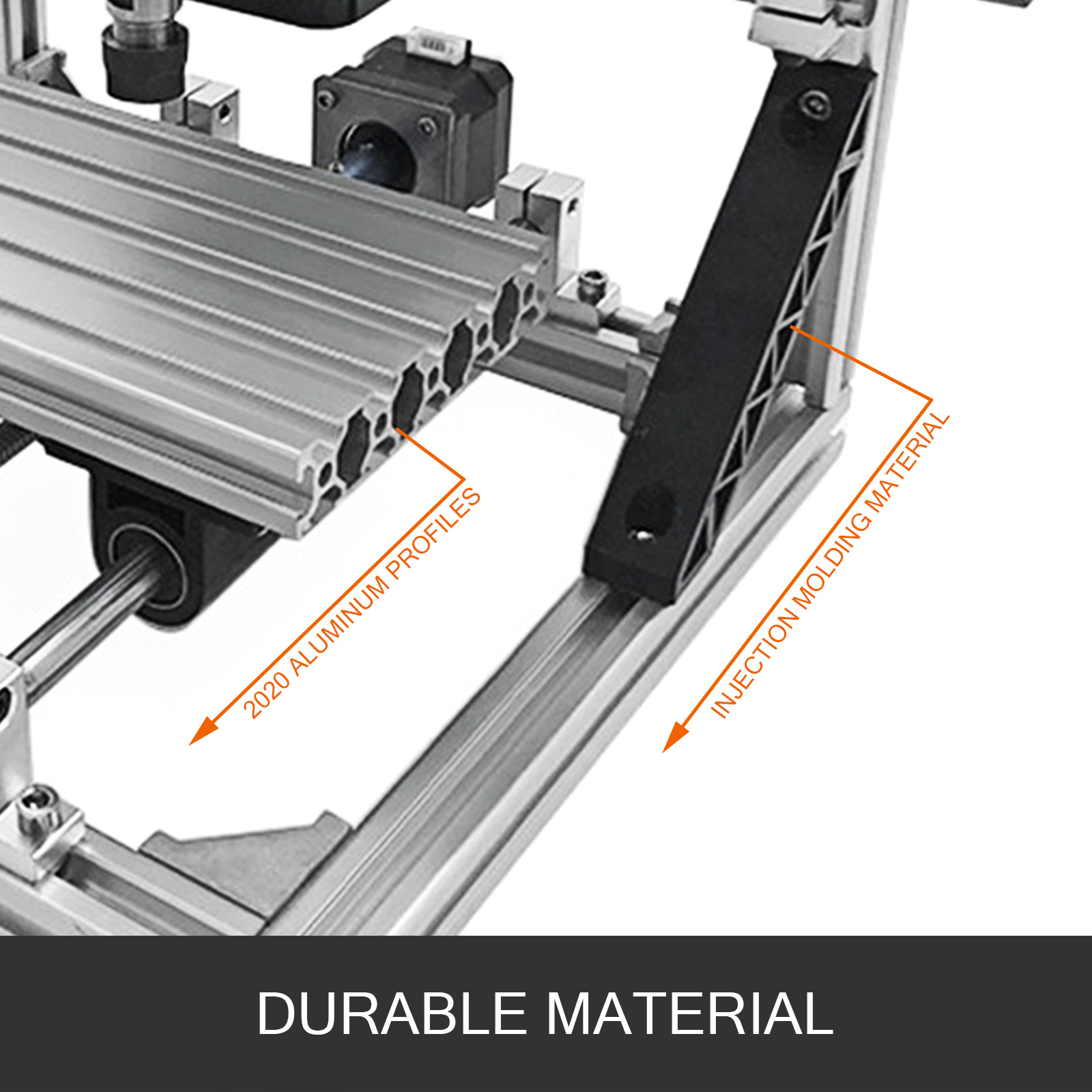

Durable Material


With the external dimensions of 260x240x220mm, frames are made of 2020 aluminum profiles,and the fixed parts are made of black injection molding material, which is of good appearance, high precision and durability.

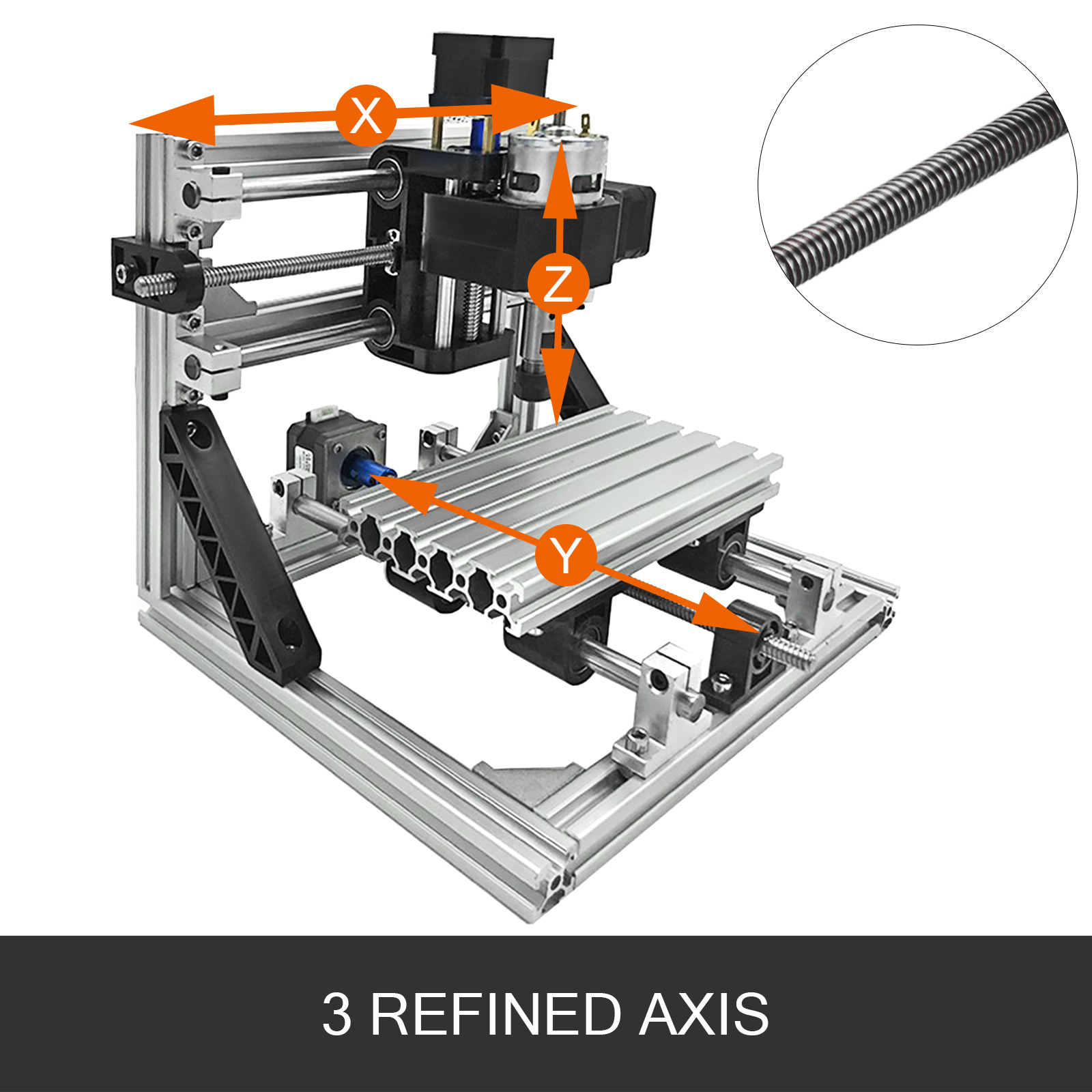

3 Refined Axis


Equipped with 3 axis, able to realize plane engraving, with effective working travel of 160(X)x100(Y)x40(Z)mm. The driving units consist of T8 stainless steel screw rods, whose lead distance is 5mm, and the double copper nuts can eliminate the difference.



GRBL Control Board


The GRBL control board can be connected to a computer via a USB interface, featuring dual Y-axis, four-axis drive and full functionality. Laser is able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality.



Efficient Motors


Equipped with three 42 stepper motor on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min. An extra 2.5W laser engraver is included, with wavelength of 450nm, providing much more efficient engraving.

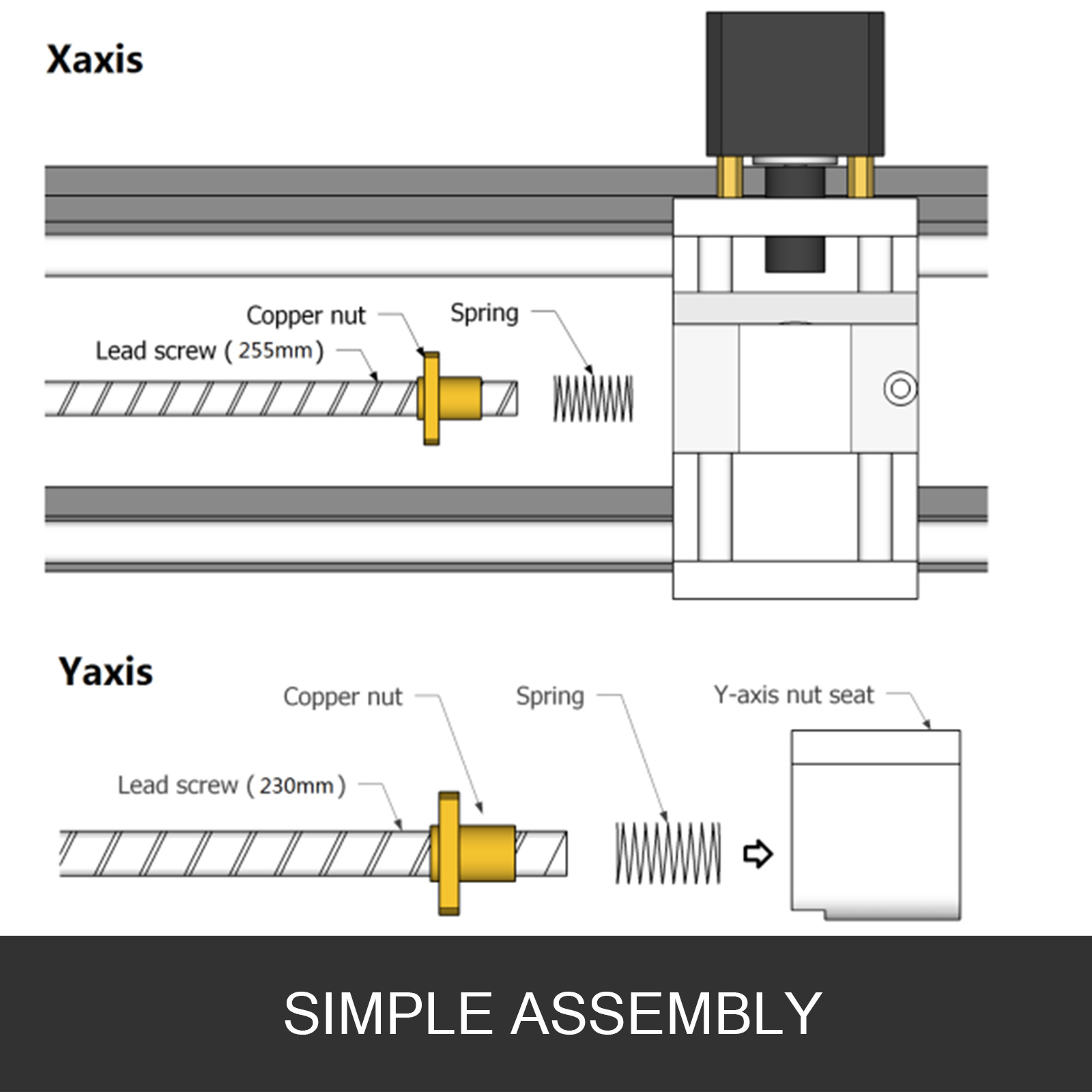

Simple Assembly


The engraving machine comes with detailed user manual and assembly instructions. Simply hand assembled according to the installation instructions, then you can enjoy the delight of using engraving machine.



Wide Application


This CNC engraving machine is capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials. The laser engraver can be used to carve paper, wood, plastic, leather and other soft, non-reflective materials.
Specifications
  • Effective Working Travel: 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6")
  • Shape Dimension: 260*240*220mm (10.2"*9.4"*8.7")
  • Materials: 2020 Aluminum Profile & Injection Molding Material
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm/min
  • Input Power: DC 24V
  • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
  • Gross Weight: 13.9 lb (6.31 kg)

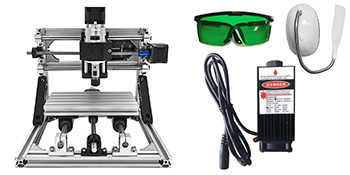

Package Content
  • 1 x CNC 1610 Router Kit
  • 1 x Spindle
  • 1 x 2500mw Laser Engraver
  • 1 x Power Supply
  • 1 x Cable
  • 2 x Graver
  • 1 x Table Lamp
  • 1 x U-Disk (English manual & software are INCLUDED)

Features & Details

  • [PREMIUM QUALITY]- Made of 2020 aluminum profiles and black injection molding material for Long-term use and high precision. The working travel of this machine is 160(X)x100(Y)x40(Z)mm.
  • [EASE OF USE]- Easy to assemble according to the instructions. Simply connect to computers via USB port, and controlled by GRBL. Laser engraving can be achieved with Minilaser software. Supports windows XP SP3, win7, win8, win10,(32/64) and Linux system.
  • [CONVENIENT CONTROL]- Comes with an ingenious GRBL control board, featuring dual Y-axis, four-axis drive and full functionality, which can easily achieve simple engraving.
  • [HIGH PERFORMANCE]- Equipped with T8 screw rods driving units, three 42 stepper motors, and a 775 (12-36V)24V spindle motor with rotational speed of 10000r/min. Also with an extra 2.5W laser, whose wavelength is 450nm.
  • [VERSATILE USE]- Used to engrave all types of plastics, soft aluminum, acrylics, PVCs, PCBs, etc. The laser is capable of engraving plastic, leather and other soft, non-reflective materials.
Note: The manual, software, list and assembly video are stored in the USB. More details, please refer to the USB.Product DescriptionCNC 1610 DIY Engraving Machine With Laser Engraver
This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
  • Premium Quality
  • Ease Of Use
  • Convenient Control
  • High Performance
Key Features



Durable Material


With the external dimensions of 260x240x220mm, frames are made of 2020 aluminum profiles,and the fixed parts are made of black injection molding material, which is of good appearance, high precision and durability.



3 Refined Axis


Equipped with 3 axis, able to realize plane engraving, with effective working travel of 160(X)x100(Y)x40(Z)mm. The driving units consist of T8 stainless steel screw rods, whose lead distance is 5mm, and the double copper nuts can eliminate the difference.



GRBL Control Board


The GRBL control board can be connected to a computer via a USB interface, featuring dual Y-axis, four-axis drive and full functionality. Laser is able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality.



Efficient Motors


Equipped with three 42 stepper motor on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min. An extra 2.5W laser engraver is included, with wavelength of 450nm, providing much more efficient engraving.



Simple Assembly


The engraving machine comes with detailed user manual and assembly instructions. Simply hand assembled according to the installation instructions, then you can enjoy the delight of using engraving machine.



Wide Application


This CNC engraving machine is capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials. The laser engraver can be used to carve paper, wood, plastic, leather and other soft, non-reflective materials.Specifications
  • Effective Working Travel: 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6")
  • Shape Dimension: 260*240*220mm (10.2"*9.4"*8.7")
  • Materials: 2020 Aluminum Profile & Injection Molding Material
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm/min
  • Input Power: DC 24V
  • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
  • Gross Weight: 13.9 lb (6.31 kg)
Package Content
  • 1 x CNC 1610 Router Kit
  • 1 x Spindle
  • 1 x 2500mw Laser Engraver
  • 1 x Power Supply
  • 1 x Cable
  • 2 x Graver
  • 1 x Table Lamp
  • 1 x U-Disk (English manual & software are INCLUDED)
